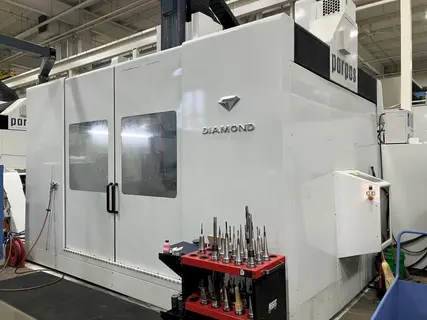

Parpas Diamond 5 Axis Linear Gantry Type Vertical Machining Center
Brand
Category
Model
DIAMOND
Stock #
Not specified
Year
2012
Condition
Used
Location
Michigan
|
Control: Heidenhain TNC 530i
Axis Travels:
(X axis travel) Longitudinal 87"
(Y axis travel) 59"
(Z axis travel ) 39" (1000 mm)
Additional 12.99 inches (165mm or 6.49"/side) can be reached on the X & Y Axis by rotating the
Head around C-Axis in Vertical Position.
Spindle Nose to Table in Vertical 1235 mm / 48.6 inches
T-Slotted Table Dimension 91" x 63" (2300 x 1600mm)
Clearance Between The Columns 2700 mm / 106 inches
5-Axis Head Pivot Value 330mm / 12.99 inches
X and Y Axes Feed Rates 80M / 3149" /min
Z Axis Feed Rate 80M / 3149" /min
Ballscrews All 3 Axis
Feed Rate 1500 IPM
5-Axis Milling Head:
Continuous Indexing Head
A & C Axis (TOE-29 Head)
Ram C-Axis Range +/- 370°
Head A-Axis Range +/- 105°
A & C Axis Head Positioning Increment 0.001° Each Axis
Spindle Speed 20,000 RPM
Power (continuous) 29 kW
Constant power range 3,000 -20,000 RPM
Spindle torque 92Nm S1, 117Nm S6
Spindle taper HSK-63-A
Parpas Patented Long-Life Spindle Model MTS/29.92
Coolant around the spindle 450 PSI
Air around the spindle 100 PSI
Heidenhain 530i control
Automatic Tool Changer 24 Pockets
HSK63 spindle taper
(2) Chip Conveyors
Chiller Unit
MTA Dry Energy Refrigerated Air Dryer
HVAC Controlled Gantry, Parpas Patent
5-Axis Dual Torque Motor Driven Liquid Cooled Head
Parpas Patented Long-Life High Speed Spindle Model MTS-29.92
with HSK-63-A Tool Holder. 20,000 RPM
Remote Hand Held Pendent with Electronic Hand-wheel included.
19" Large Format Hi-Res Monitor
24-Position Automatic Tool Changer
Stainless Steel and LED Lighting inside the Working Cabin.
BLUM Tool Laser Pre-setter System and with Tool Family Software.
Flood Coolant System External to the Spindle
Through-Tool High Pressure Coolant 735-PSI
Paper Tray Coolant Filtration System (Losma)
Water Gun for chips (wash down)
Oil Skimmer
Air/Coolant Tool Cooling with Switching (through the spindle and around)
Dual Front & Back of Table Chip Conveyor System
Tele-service
Kinematic option without calibration sphere
Machine 3D model (for the simulator)
Foot Print Dimensions: 232" Wide LR x 195" FB
|
