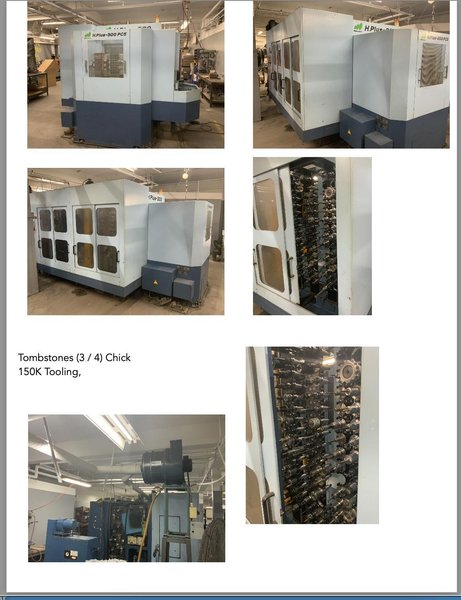

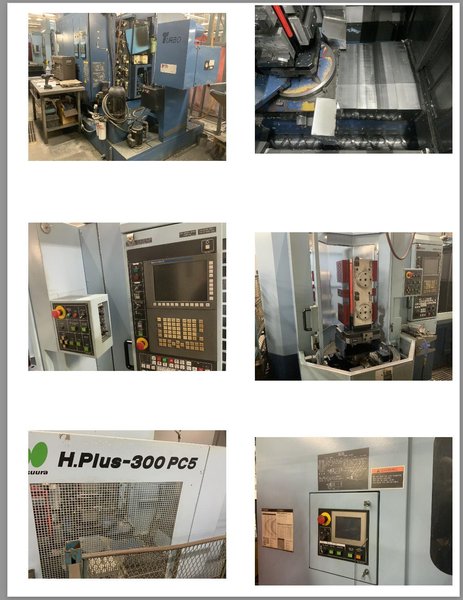

MATSUURA H.PLUS-300-PC5 MULTI-PALLET CNC HORIZONTAL
Brand
Category
Model
H.PLUS 300-PC5
Stock #
Not specified
Year
Not specified
Condition
Not specified
Location
Washington
|
CONTROL: MATSUURA G-TECH 18i CNC CONTROL (FANUC)
PALLET SIZE: (11)11.81" x 11.81"
APC: PC-5 FLOOR PALLET SYSTEM
LOAD CAPACITY: 551 LB.
MAX. WORK SIZE: 19.68 x 29.92
TRAVELS:
X-AXIS: 19.68"
Y-AXIS: 22.04"
Z-AXIS: 19.68"
B-AXIS: 360 POSITIONS
SPINDLE SPEED: 15,000 RPM
SPINDLE MOTOR: 15/20 HP
SPINDLE MAX. MOTOR TORQUE: 120/1,200 NM/MIN
TYPE OF TOOL SHANK: BT 40T
TYPE OF RETENTION KNOB: JIS B 6339 40P
MAX TOOL DIAMETER: 3.54"
MAX TOOL DIAMETER: 5.9" W/ CONDITIONS
MAX TOOL LENGTH: 11.8"
MAX TOOL WEIGHT: 17.6 LBS.
ATC: 240 ATC
TOOL CHANGE TIME: 2.4 SEC.
INPUT POWER: 42 kVA
VOLTAGE: AC200/220V+-10%
AIR SOURCE: 0.54~0.93
REQUIRED AIR VOLUME: MAX.350 NL/MIN
EQUIPPED WITH:
FANUC DRIVES
360,000 DEGREE INDEXING OF PALLET WITH CURVIC COUPLING
TURBO MICROFINE II CHIP CONVEYOR BELT SYSTEM
1,000 PSI SPINDLE THROUGH COOLANT
ULTRA FINE CHIP COLLECTOR
LASER TOOL EYE
RENISHAW NC-4 LASER PROBE
RENISHAW IN PROCESS PROCESS PROBE
CHIP CONVEYOR
LARGE AMOUNT OF MEMORY
TOTAL ENCLOSURE GUARD WITH CEILING
SYNCHRONIZED TAPPING FUNCTION
AD-TAP FUNCTION
IPC FUNCTION
SPINDLE OIL COOLER
AUTO GREASE SUPPLIER FOR SPINDLE
FEED AXIS GREASE AUTO SUPPLY
SWARF REAR DISPOSAL
CHIP FLOW
SPINDLE OVERLOAD PROTECTION
M-CODE COUNTER (9 M-CODE)
WORK LIGHT
LEVELING PLATE AND BOLTS
5120M MEMORY
IZ-2/160 HI SPEED CUTTING SOFTWARE
FLOORSPACE REQ: 13' X 22'
|
