FORMAX M#FX35M 5 DIE PROGRESSIVE HEADER
Brand
Category
Model
FX35M
Stock #
116782
Year
1996
Condition
Used
Location
Not specified
|
FORMAX M#FX35M 5 DIE PROGRESSIVE HEADER
1996 VINTAGE
HEADING TONNAGE .. 50
TOTAL HEADING LOAD (METRIC TONS) .. 70
STROKES PER MIN. - SINGLE SPEED .. 300
STROKES PER MIN. - VARIABLE SPEED ... 100/300
CUTOFF DIAMETER (85,000 PSI) ... .472
CUTOFF LENGTH (MIN./MAX.) .... .236/3.937
KICKOUT STROKE - DIE (MIN./MAX.) ... .315/2.953
KICKOUT STROKE - PUNCH (MIN./MAX.) ... .472/1.260
DIE DIAMETER .... 2.362
PUNCH DIAMETER ... 1.968
FORMAPAK WEIGHT (LBS)* ... 605
MOTOR SIZE (HP) .... 30
NET WEIGHT (LBS)* ... 29,327
BOXED WEIGHT (LBS)* ... 34,839
FLOOR SPACE WIDTH* ... 7'11"
FLOOR SPACE LENGTH* .... 15'7"
HEIGHT * .... 7'2"
SPECIALS:

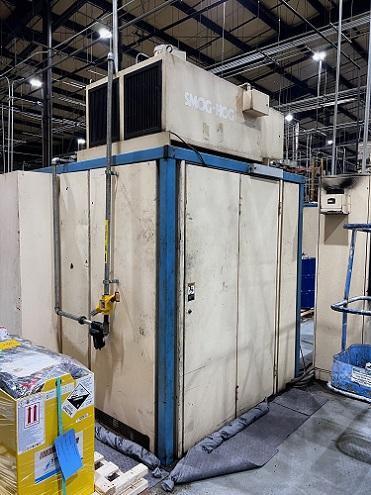

ELECTROSTATIC FILTER (SMOGHOG)
VARIABLE SPEED DRIVE
FORMAPAK JIB CRANE
TRIM, INCLUDING SCRAP DISCHARGE CONVEYOR AND BOTTOM DISCHARGE TRIM TOOLPAK
SINGLE-PLANE WIRE STRAIGHTENER
MICRO POSITION MONITOR
SHORT FEED SAFETY
FORMAPAK SETUP FIXTURE
AIR TO LAST STATION FOR PART DISCHARGE ASSIST.
ELECTRICAL UPGRADE JUNE 2020
|
