2014 PARPAS OMV ACTIVE FIVE 2000 | Machining Centers, Vertical

2014 PARPAS OMV ACTIVE FIVE 2000 | Machining Centers, Vertical

Name: 2014 PARPAS OMV ACTIVE FIVE 2000 | Machining Centers, Vertical
Brand: PARPAS
SKU: 33816
Availability: PreOrder

Brand

PARPAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Machining Centers, Vertical

Manufacturer:

PARPAS

Model:

OMV ACTIVE FIVE 2000

Year:

2014

Stock #:

33816

Status:

For Sale

Serial #:

311AL/77

Description

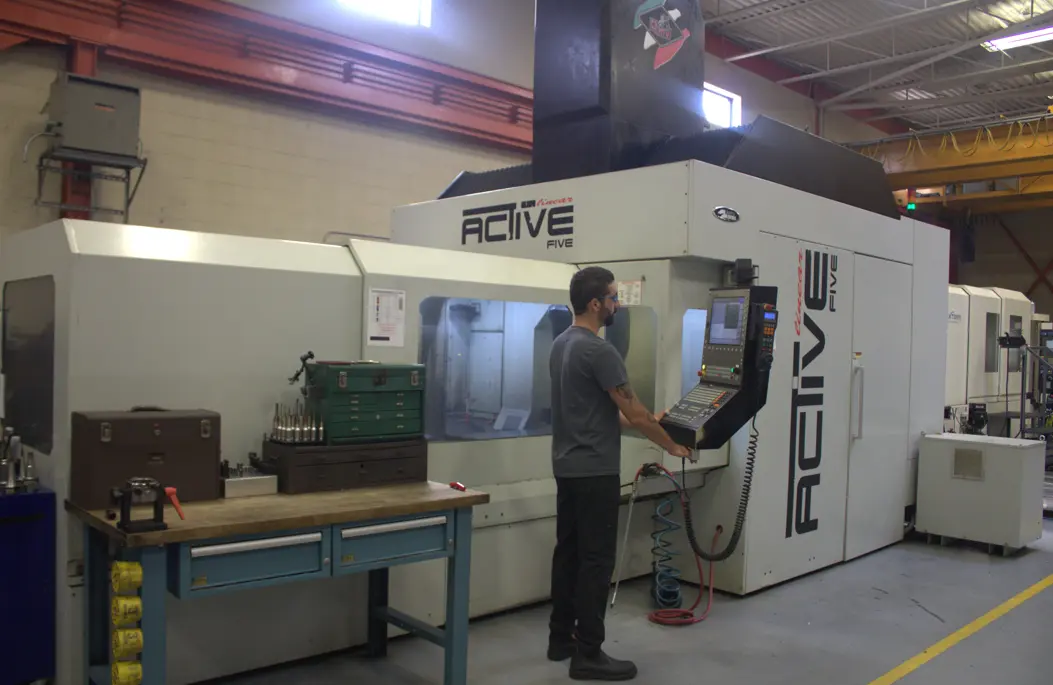

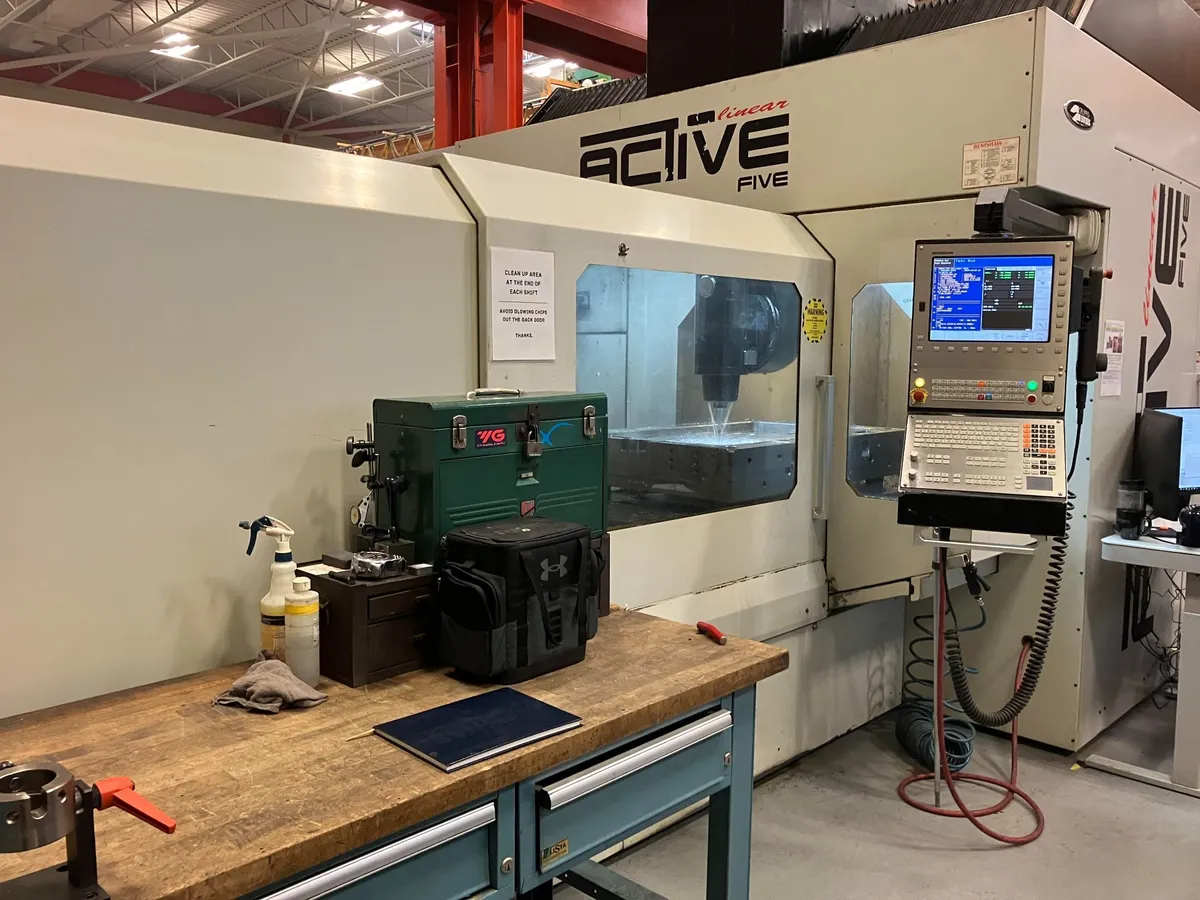

Parpas Active Linear Five 2000 5-Axis VMC
78" x 70" x 33.4", 82" x 39" Table, HSK63, 20K RPM, 42 ATC, Heidenhain TNC 530i Control, 300 PSI Coolant, Probe

ImperialMetric

X-Axis	78.7"	1,999 mm
Y-Axis	70.8"	1,798.3 mm
Z-Axis	33"	838.2 mm
Power	38 hp	28.3 kW
RPM	18,000 RPM	18,000 RPM
# ATC	42	42
Taper	HSK 63A	HSK 63A
Table-W	39.4"	1,000.8 mm
Table-L	82.6"	2,098 mm
# Axis	5	5

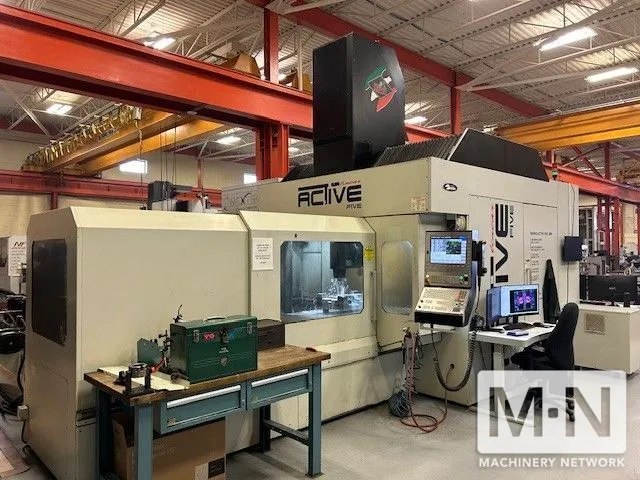

Parpas Active Linear Five 2000 (5) Axis Vertical Machining Center
New 2014

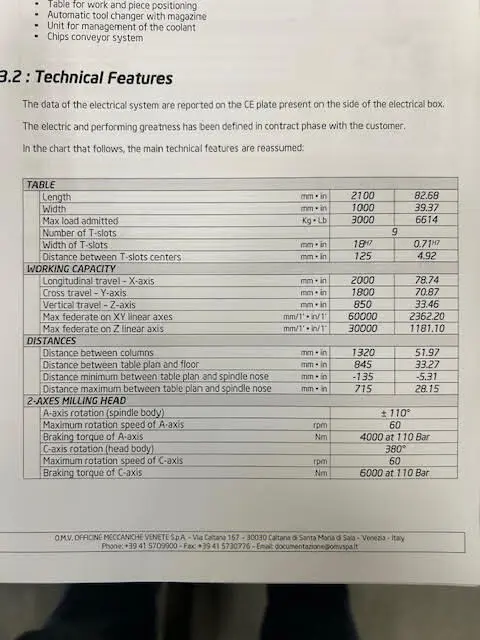

Specifications:
Table Size ........................: 82" x 39"
Max Table Load ....................: 6600 Lbs.
X Axis ............................: 78"
Y Axis ............................: 70"
Z Axis ............................: 33.4"
Spindle Taper .....................: HSK 63
Spindle Speed .....................: 20,000 RPM
Tool Changer ......................: 42 ATC

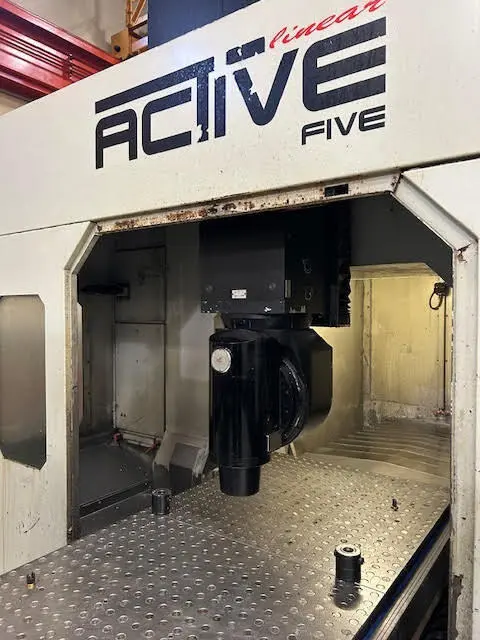

A Axis Head Travel.................: +/- 110 Degrees
C Axis Head Travel ................: +/- 380 Degrees
Max. Feed Rate X,Y Linear Axis.....: 2362 IPM
Max. Feed Rate Z Axis..............: 1181 IPM
Distance Between Columns..........: 51.97"
Distance Between Table & Floor.....: 33.27"
Distance Table Surface to Spindle..: 20.15"

Equipped With::

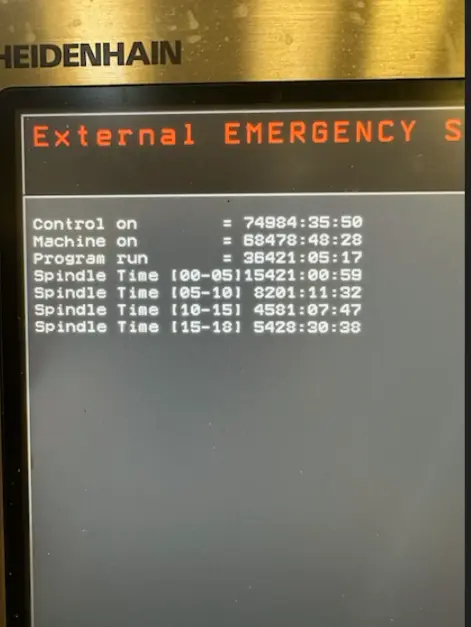

Heidenhain TNC 530i Control
42 ATC Tool changer
Blum Laser Tool Pick-Up
Renishaw Probe Model OMP-600
300 PSI Coolant Through Spindle

Note: Rebuilt 5 Axis Head in 2024
