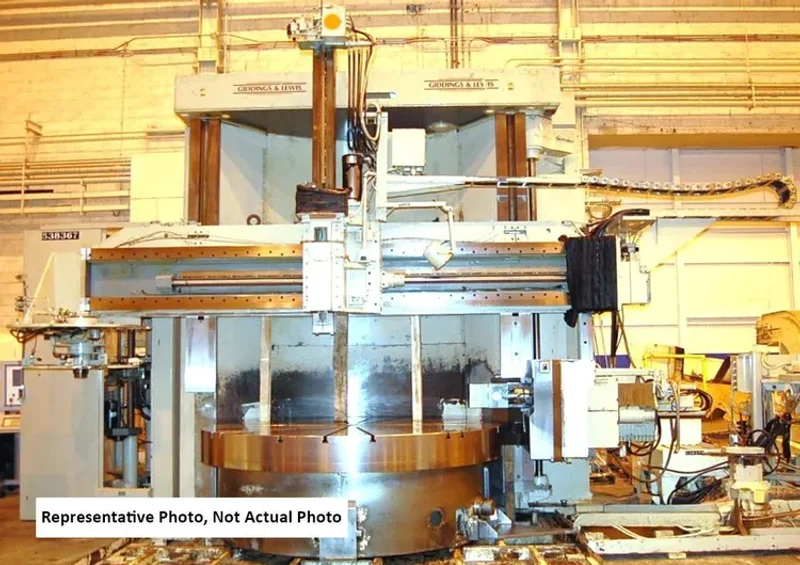

1991 GIDDINGS & LEWIS VTC 3000 | Boring Mills, Vertical

1991 GIDDINGS & LEWIS VTC 3000 | Boring Mills, Vertical

Name: 1991 GIDDINGS & LEWIS VTC 3000 | Boring Mills, Vertical
Brand: GIDDINGS & LEWIS
SKU: 33818
Availability: PreOrder

Brand

GIDDINGS & LEWIS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Boring Mills, Vertical

Manufacturer:

GIDDINGS & LEWIS

Model:

VTC 3000

Year:

1991

Stock #:

33818

Status:

For Sale

Description

120" Vertical Boring Mill, 120" Table, 144" Swing, 84" Height Under Cross, Numeripath Control & More

ImperialMetric

Table Dia	118"	2,997.2 mm
Swing	134"	3,403.6 mm
Work Ht-U/R	59"	1,498.6 mm
Power	100 hp	74.6 kW
RPM	150 RPM	150 RPM

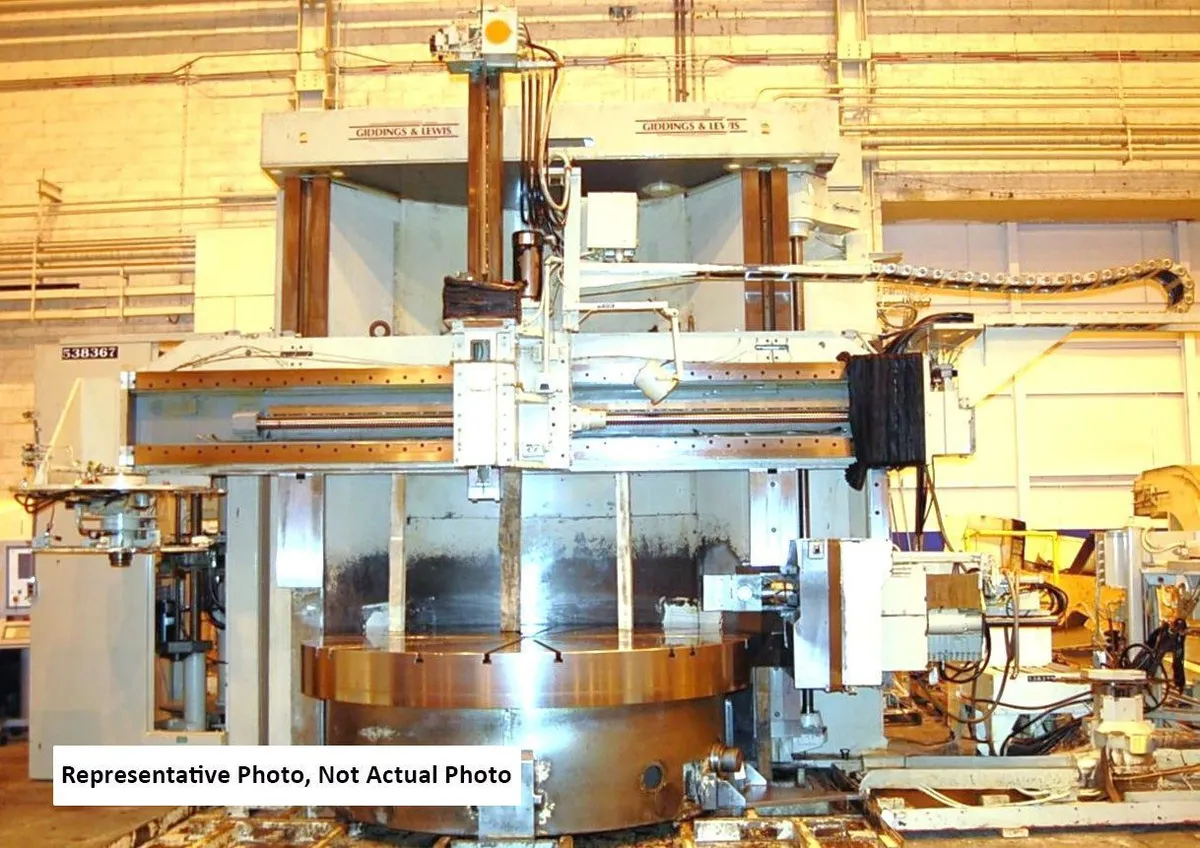

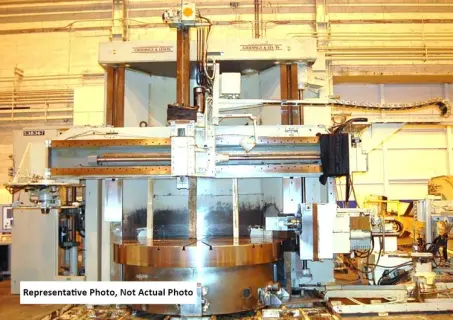

Giddings & Lewis VTC-3000 120” Vertical Boring Mill
New: 1991

Specifications:
Table Diameter: 120"
Maximum Swing: 144"
Maximum Swing w/ Side Head: 134"
Height Under Cross Rail: 84"
Cross Rail Vertical Travel: 60"
Table Speeds: 3-130 RPM
Number of Table Speeds: 2
Rail Elevating Rate: 30 IPM
Right Hand Ram Head:
Vertical Travel of Ram (Z): 62"
Travel Below Rail: 54"
Horizontal Travel Right: 80"
Horizontal Travel Left: 79"
Rapid Traverse Rate: 250 IPM
Power Draw Bar Ram: ANSI B5.5 #60 Taper
Right Hand Side Head:
Vertical Travel Above Table: 68.5"
Vertical Travel Below Table: 6.8"
Horizontal Ram Travel: 32"
Rapid Traverse Rate: 150 IPM
Tool Changer: ANSI B5.50 #50 Taper

Equipped With::
Giddings & Lewis Numeripath 8000-L CNC Control
30-Station Automatic Tool Changer
15-Station Automatic Tool Changer, Side Head
Vertical Ram & Right Hand Side Heads
Auxiliary Hand Held Pendant
3" Diameter Ball Screws
AC Servo Drives
Inductosyn Feedback
Tool Tip Probe (Probe not included)
Programmable Rail Height
Temperature Controlled Coolant System
Programmable Chip Conveyor
Way Covers on Cross Rail
Pedestal Pendant Control
Hardened Ways on All Axes
2-Speed Helical Gear Transmission
Flood Coolant System w/ Coolant Pan
150 HP 460 Volt, 3 Phase, 60 Hz
