Hurst 1725 lb/hr Vertical Firetube Steam Boiler (2023) – With Honeywell V4062D Actuator, Never Used

Equipment Overview

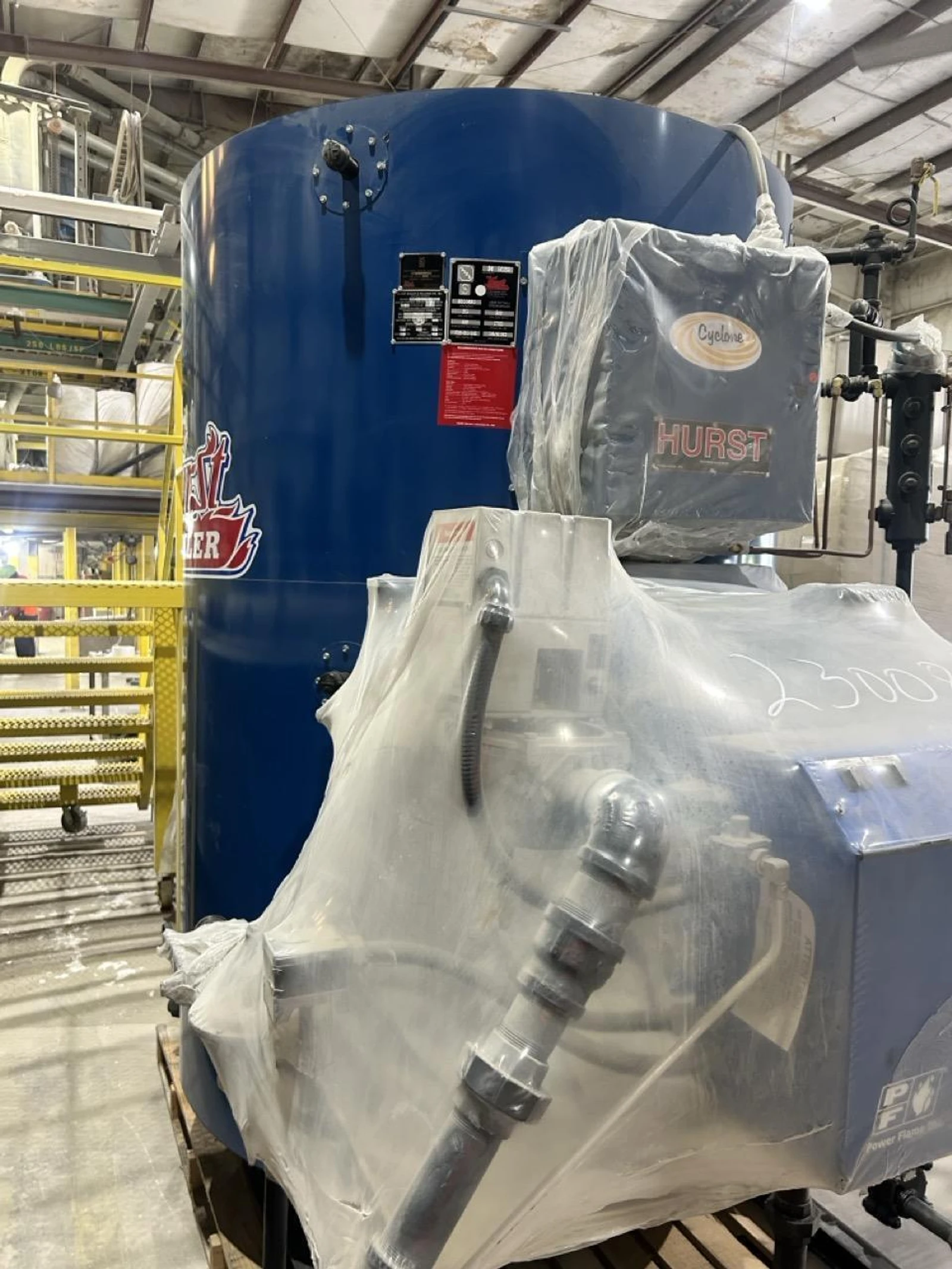

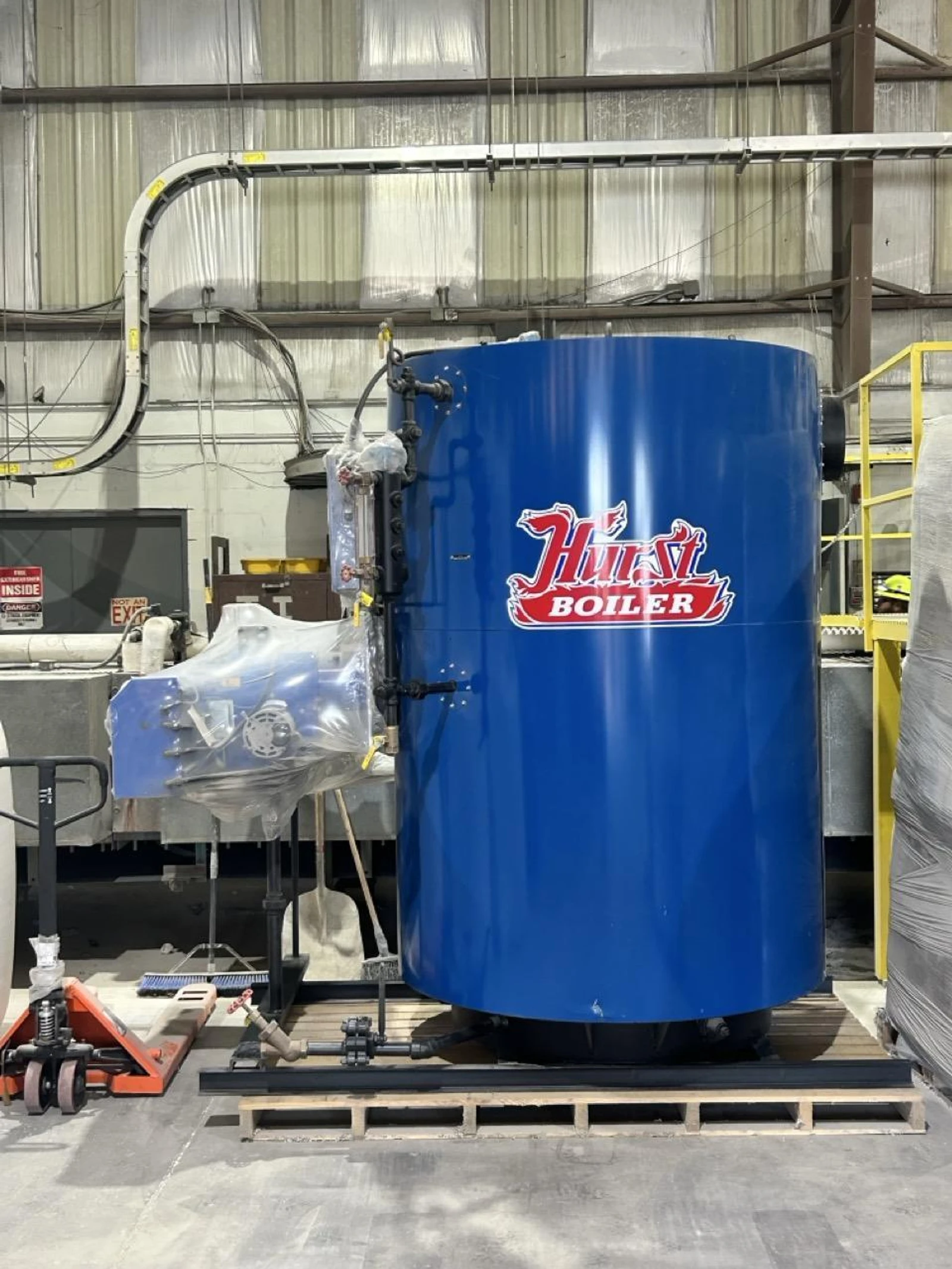

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Offered is a never-used 2023 Hurst 4VT vertical firetube steam boiler, fully documented and ready for deployment. With a rated output of 1,725 lbs/hr and fully UL/ASME certified, this unit includes a Honeywell V4062D actuator and electrical controls. OEM water spec requirements are clearly labeled, and the full accessory, manual, and electrical documentation sets are included. Ideal for industrial, processing, or institutional steam service with minimal prep time.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications Boiler System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Steam Output: 1,725 lbs/hr

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Design Pressure: 150 PSI

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Configuration: Vertical Firetube

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fuel Compatibility: Natural gas or oil (field convertible)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Thermal Efficiency: ~80–83%

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Certifications: UL Listed, ASME Section I stamped

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Year: 2023

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Condition: Factory-new; never fired

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Water Chemistry Requirements: -Feedwater TDS: <300 ppm -Boiler Water TDS: 2000–3000 mmhos -Feedwater pH: 8.3–10.0 -Boiler pH: 9.0–11.0 -Hardness: <0.3 ppm (CaCO₃) -Sulfite: 30–60 ppm -Alkalinity: 300–600 ppm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Specifications: -Voltage: 460V, 3-phase, 60 Hz -Max Load: 3.0 A -Recommended Feeder: 15 A -Transformer: 75 VA w/ 0.75 A fuses (primary/secondary) -Short Circuit Rating: 5 kA

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Actuator Details: -Make/Model: Honeywell V4062D1002 -Voltage: 110–120V, 50/60 Hz -Opening Time: 26 sec -Closing Time: 1 sec -Rated Load: 15 in-lbs @ 2-11/16 in radius -Ambient Temp Range: -40°F to +158°F -Actuation: Multiposition valve control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
