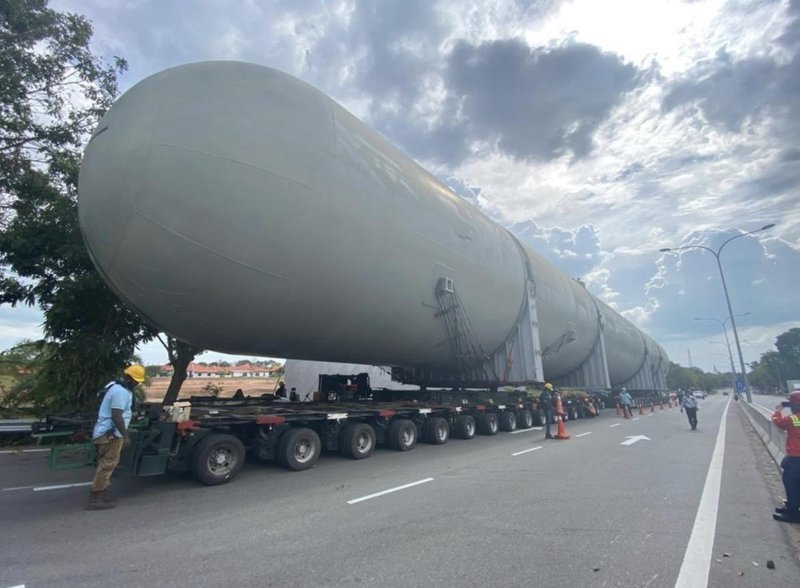

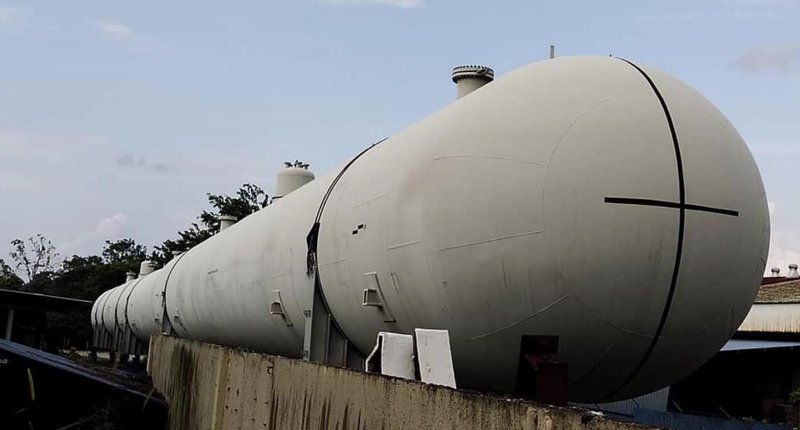

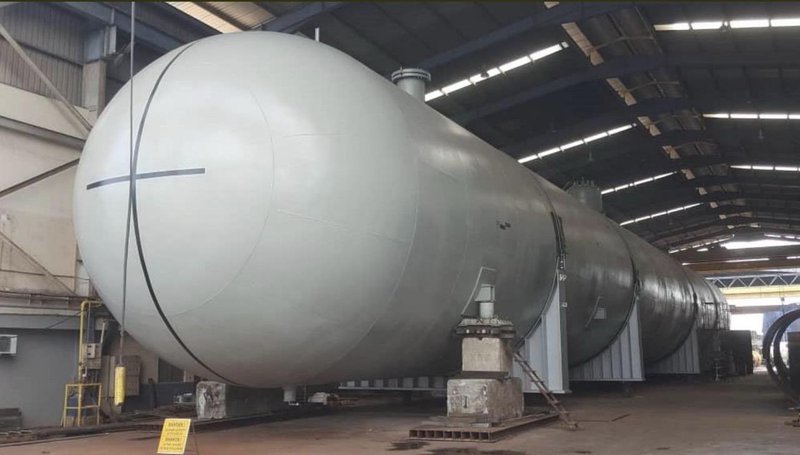

KNM LPG Bullet Tank – 3300m³ Horizontal Pressure Vessel – 2017

Design Code : ASME Section VIII Div.2, Class 2 2017 Edition & EEMUA 190-Edition (2017)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Size : ID 8m x 61m (TLTL)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Thickness : 38mm (Shell) 25mm (Head)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Material : SA 537 cl 2

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacity 3,300 m3 per bullet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Empty Weight : 612 MT per bullet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating Weight : 2,308 MT per bullet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Full of Water Weight : 3,950 MT per bullet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Design Pressure (Internal External) : 19 FV barg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Design Temperature (Max Min) : 50 -40 deg C

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Post Weld Heat Treatment : Yes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,**4 Available**
