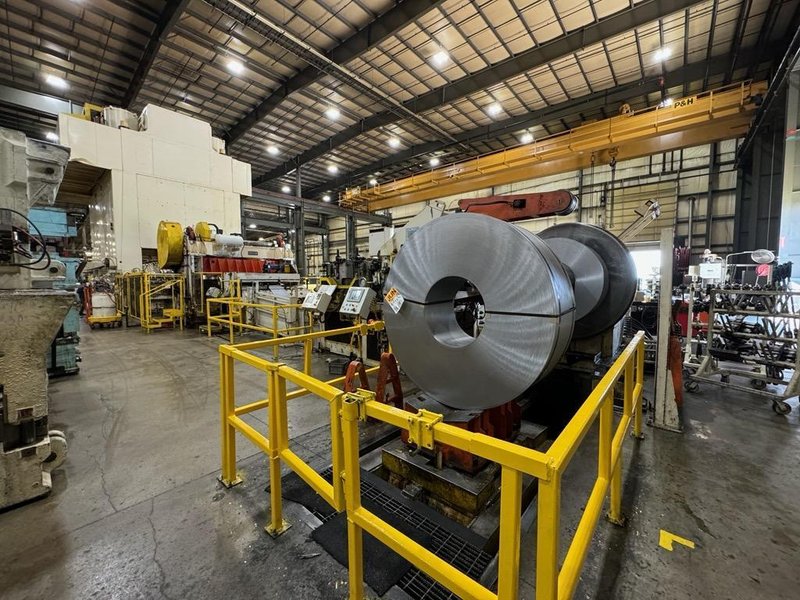

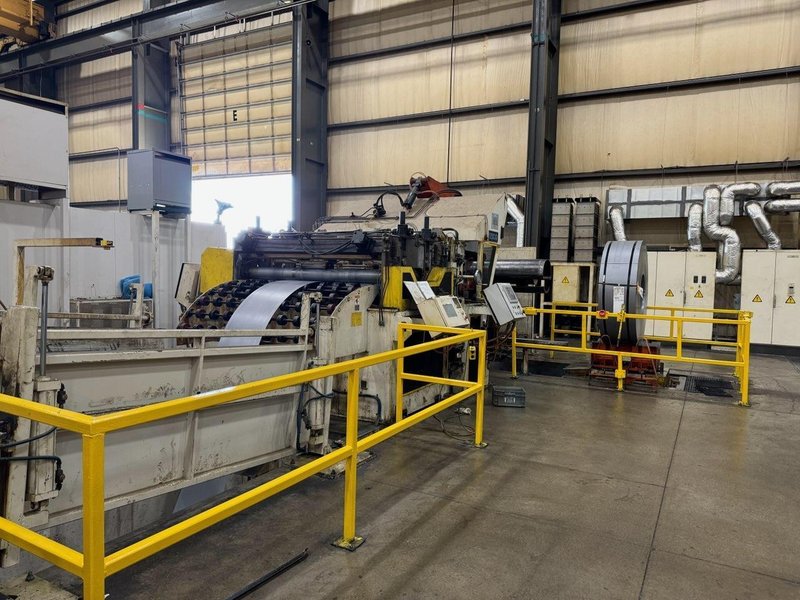

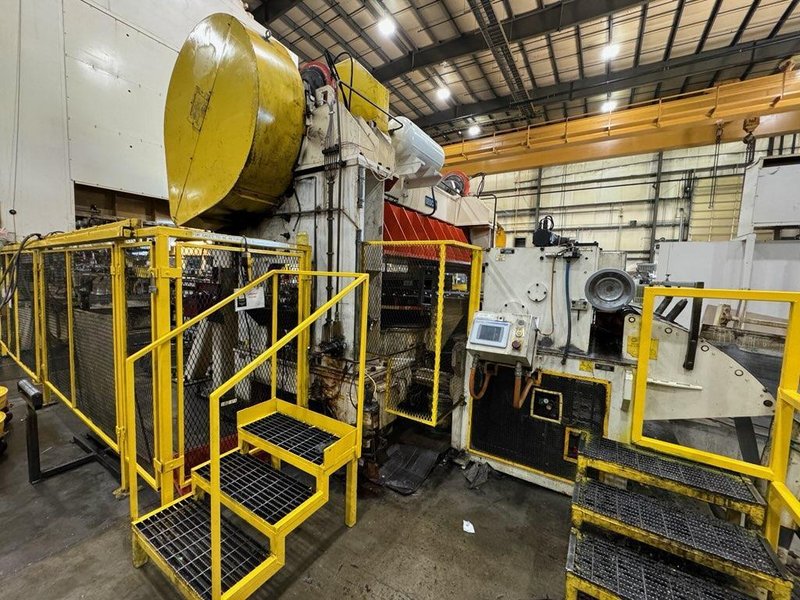

SESCO Coil Feed Line 60,000 Lbs. x 72" Wide

Sesco Conventional Complete Coil Feed Line Specifications:
Coil weight capacity: 60,000 Lb
Coil width capacity: 72"
Stock thickness capacity: .125" x 72" Wide
Expansion range: 22" - 26"
Coil O.D. Capacity: 72"

Sesco Conventional Complete Coil Feed Line Equipment and Features:

Sesco Traveling Coil Reel and Traveling Coil Load Car
Traversing coil reel base
Three leaf mandrel with coil keeper arms
Hydraulic mandrel expansion
Air brake mounted on main spindle
Adjustable tensioning
Threading drive for jog forward and reverse
Traversing coil load car
Power lift and travel
Narrow coil supports
Coil storage rack

Sesco Peeler, Threader, Hold Down Arm Station
Stand alone PTH station
Hydraulic hold down arm raise and lower
Hydraulic hold down arm motorized end wheel
Hydraulic peeler table raise and lower
Hydraulic peeler table spade extension

Sesco Powered Coil Straightener
Entry and exit pinch roll assemblies x 6" diameter
Air operated upper pinch roll adjustment
Seven powered straightener rolls x 3" diameter
Bank type upper straightening roll adjustments via screw jacks
Adjustable stock width edge guides
Dual flights of upper and lower straightener roll back ups
Exit cascade loop support rollers
Variable speed drive
Operator's control station
Auto / Run cycle

Sesco Dual Exit threading Table
Bomb bay door design

Sesco Servo Roll Feed
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Self centering dual roll stock width edge guides
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
