ABBOTT MESH BELT FURNACE 8ZSCR-12-216HH5-86PC/H3-2100, 174 KW, Stock # 14466
Brand
Category
Type
Model
8ZSCR-12-216HH5-86PC/H3-2100
Stock #
14466
Year
Not specified
Condition
Not specified
Location
Connecticut
|
ABBOTT FURNACE MESH BELT

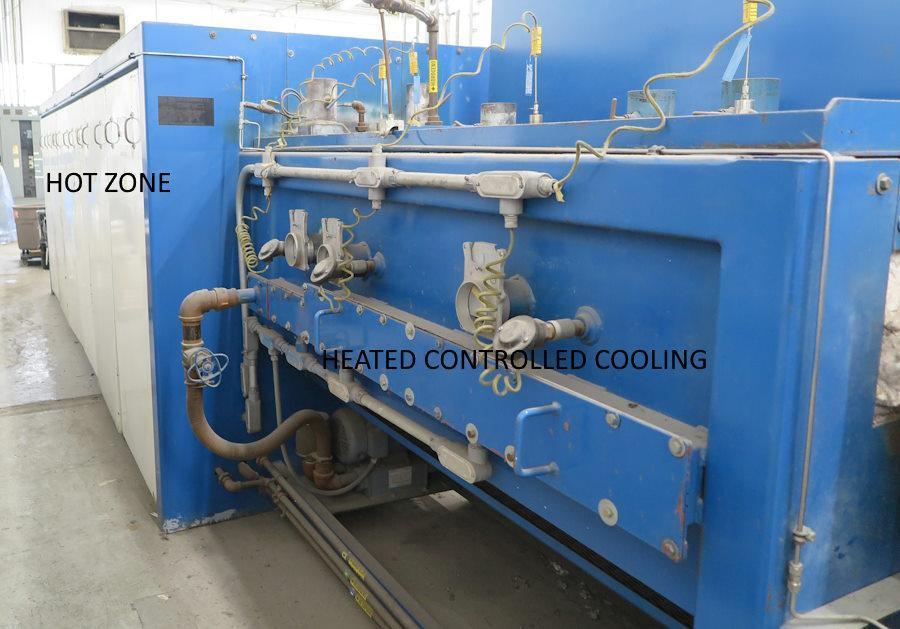

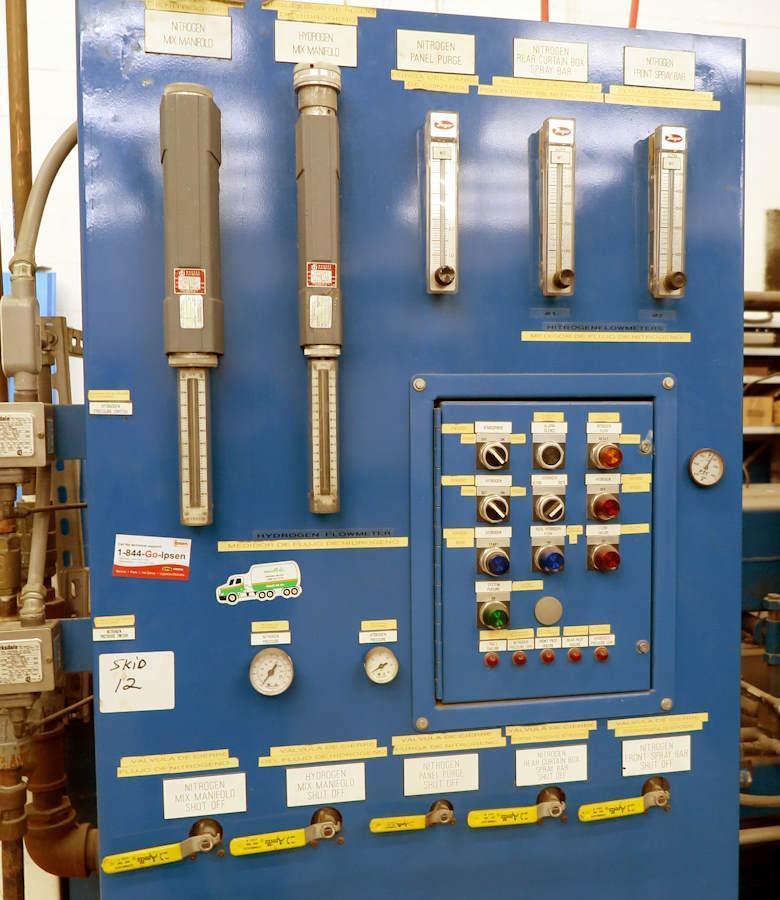

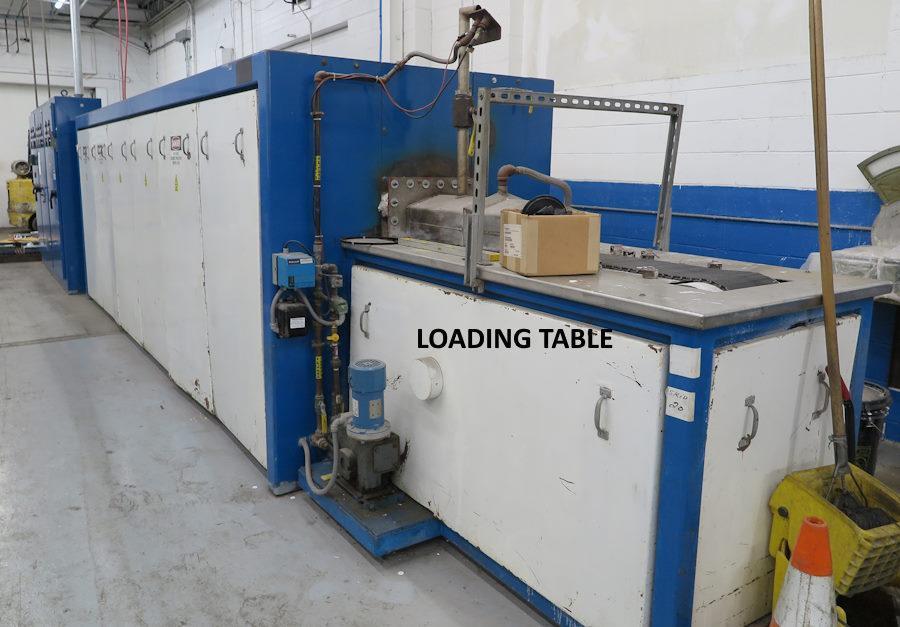

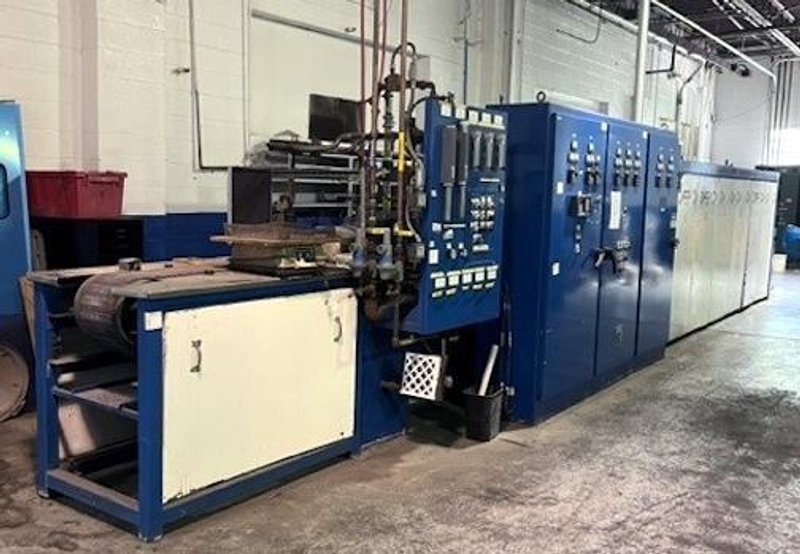

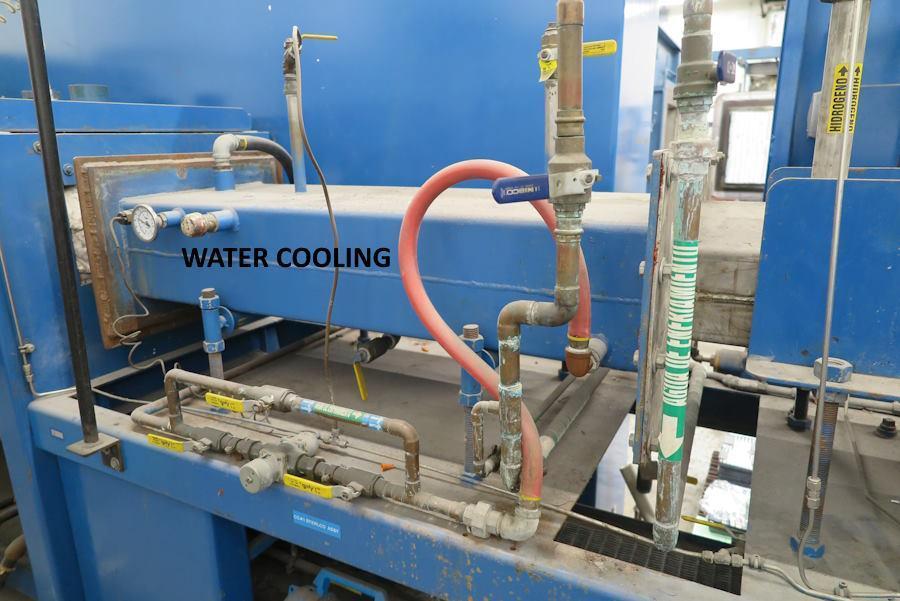

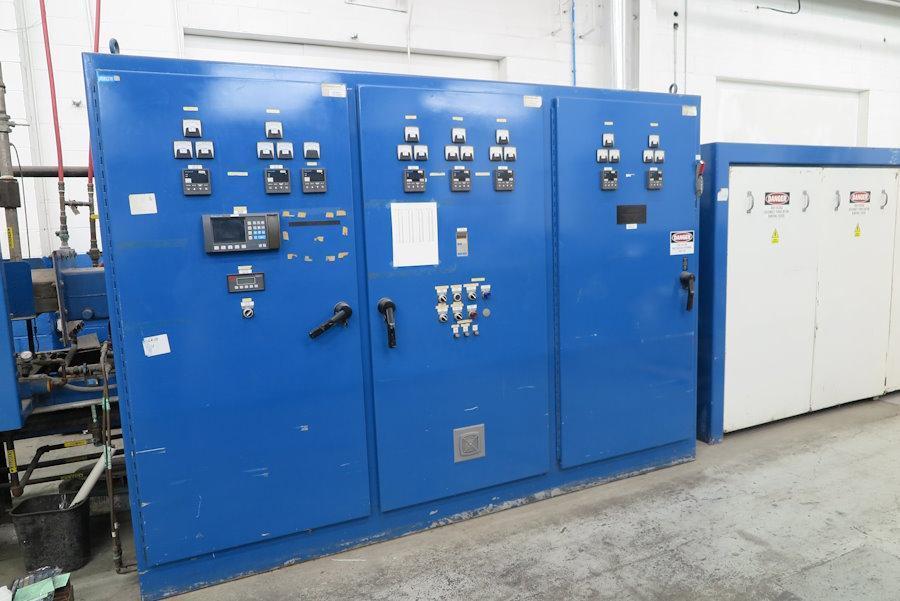

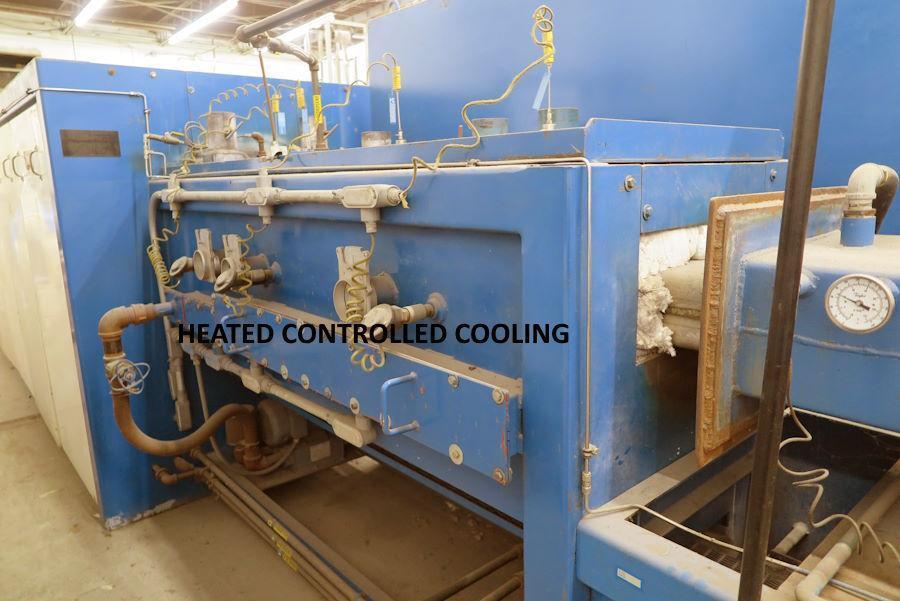

STOCK # 14466 TYPE: BELT TYPE ANNEALING MODEL: 8ZSCR-12-216HH5-86PC/H3-2100 SERIAL#: AB383-13352-IMI-0600 POWER: 174 KW PHASE: 3 VOLTACE: 480 HERTZ: 60 MANUFACTURER: ABBOTT TYPE: ATMOSPHERE BELT FURNACE SIZE I.D.: 12”WIDE X 216”(18’)LONG X 4”HIGH SIZE O.D.: 44’LONG MODEL: 8ZSCR-12-216HH5-86PC/H3-2100 SERIAL NUMBER: AB383-13352-IMI-0600 MAXIMUM TEMP.: 2100 F ELECTRICS: 480 VOLTS, 174 KW, 3 PHASE CONTROLS: HONEYWELL DIGITAL CONTROLS FOR (8) ZONES OF CONTROL. MOUNTED IN ENCLOSED PANEL. GENERAL: 12"WIDE ATMOSPHERE BELT FURNACE WITH ALLOY RETORT CURRENTLY USING A 10"WIDE BELT. PARTS ARE LOADED ON THE VARIABLE SPEED MESH BELT AT 6'LONG ENTRANCE TABLE, PASS THROUGH 3' ENTRANCE PURGE, 18' HEAT CHAMBER, 7' HEATED CONTROLLED COOLING, 4' WATER COOLING, 3' EXIT PURGE AND UNLOADED AT 5' EXIT TABLE. DIVIDED INTO (8) ZONES OF CONTROL EQUIPPED WITH FLO SCOPES FOR HYDROGEN & NITROGEN. NEW 2000. **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
