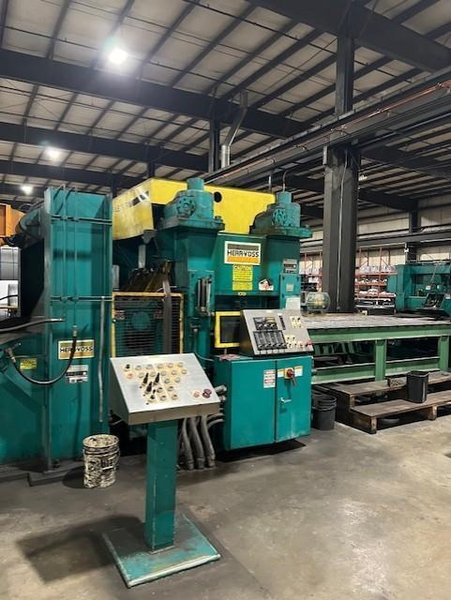

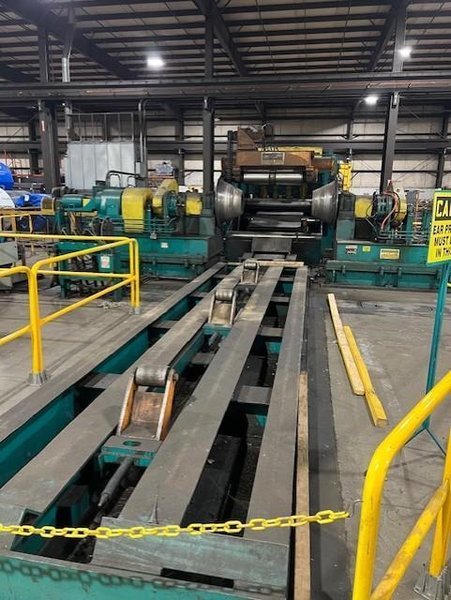

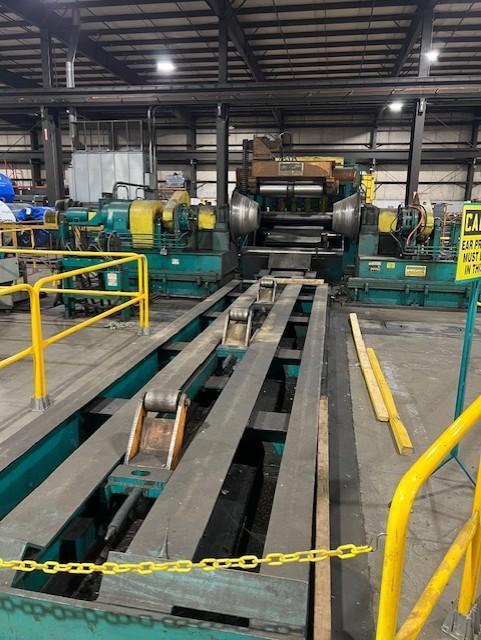

74" x .375" x 60,000# HERR VOSS CUT TO LENGTH LINE STOCK# 3993
Brand
Category
Type
Model
Not specified
Stock #
3993
Year
Not specified
Condition
Very Good
Location
Ohio
|
-36" to 74" Wide
-60,000 lbs. Coil Weight
-0.075" to 0.375" Thick at 80,000 PSI Yield
-20 to 175 FPM Line Speed
-50 FPM Jog Speed
-20" to 34" Coil I.D. Range
-Left to Right Line Direction
-84" Max. Coil OD
Consisting of the following:

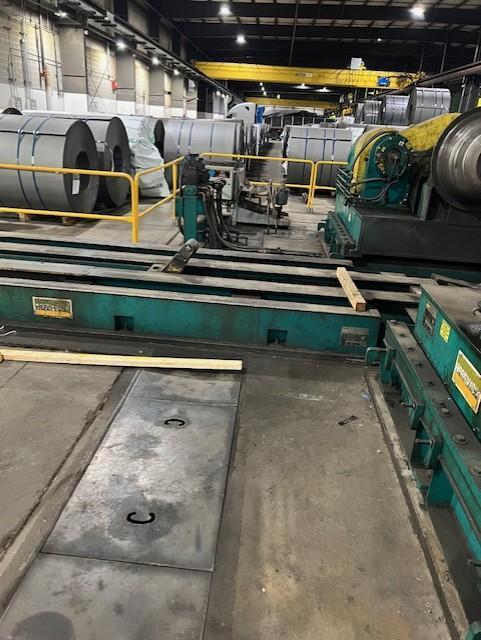

-Entry Coil Ramp:
3 Coil Storage
Hyd. Lever Type Holding Mechanism

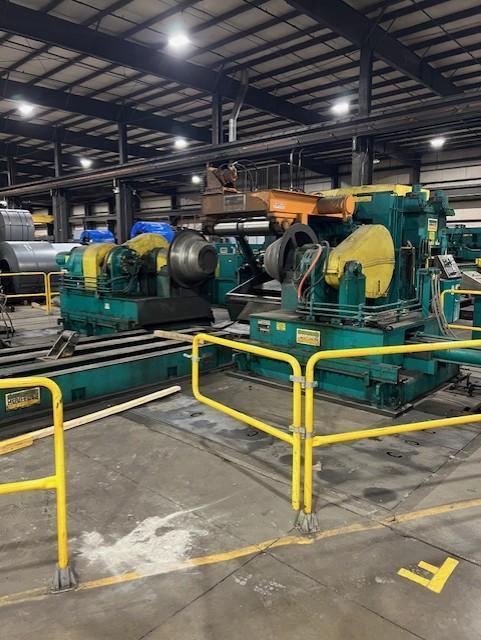

-Cone Type Uncoiler:
Motorized Feedup AC Motor and Air Clutch on one head
Wichita Water Cooled Brake on each head
Sliding Base on each head
Coil Lift with 12" Bore Hydraulic Cylinder

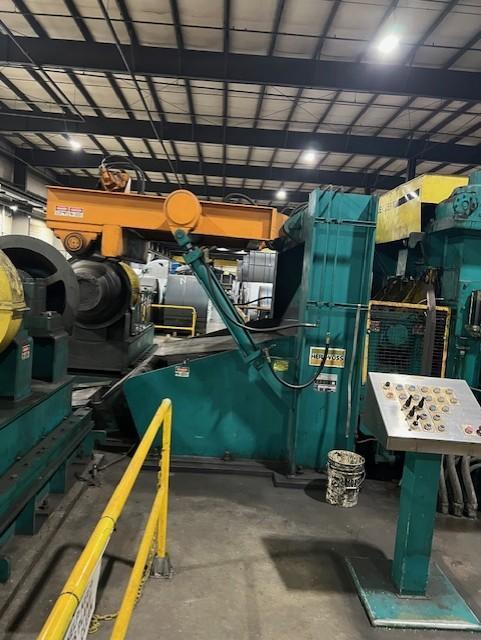

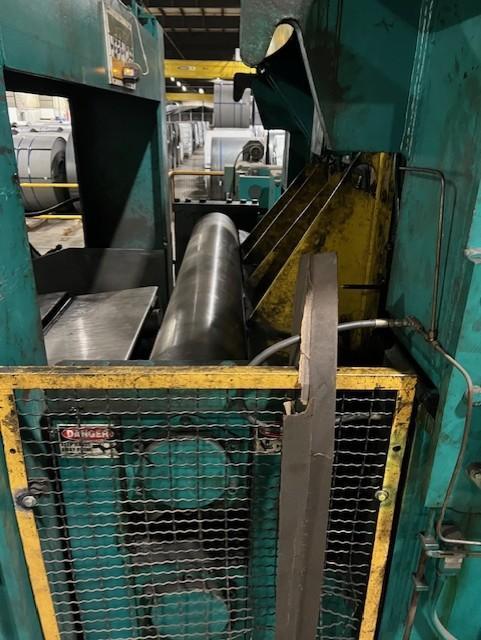

-Threading Unit:
Motorized Overarm Holddown Roll
Steel Roll powered by AC Motor
Hydraulic Actuated Peeler Table
-Entry Side Guides:
Powered Width Adjustment
-Precision Leveler:
Keystone Model#88/4.50-11/5 4 HI LH
Gauge Range: 0.096" - 0.375"
88" Roll Face Width
4.50" Dia. Work Rolls
11 Rolls
5 Flights of Motorized Backups
4 HI Design
150 HP DC Motor
-Squaring Guides:
Powered Width Adjustment
(Will open to 80" Wide)
-Powered Tailout Pinch Rolls:
Hydraulic Cylinder Open & Close
-Measuring Unit:
Entry Encoder Roll

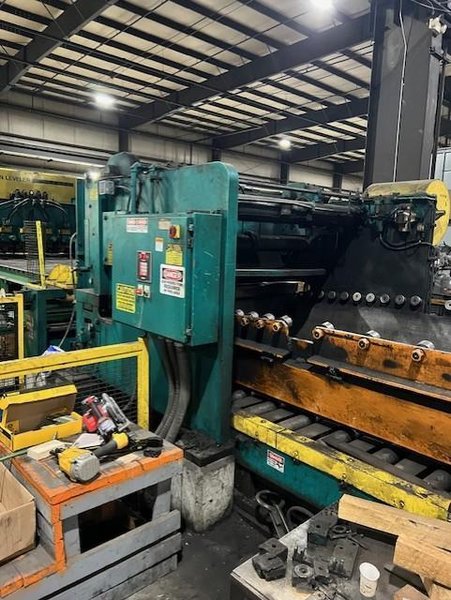

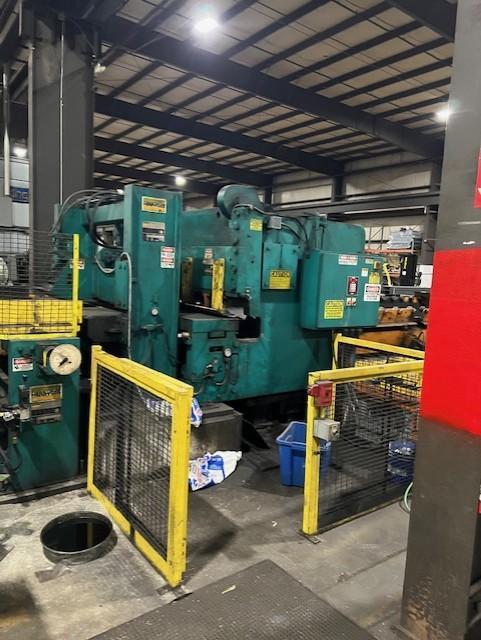

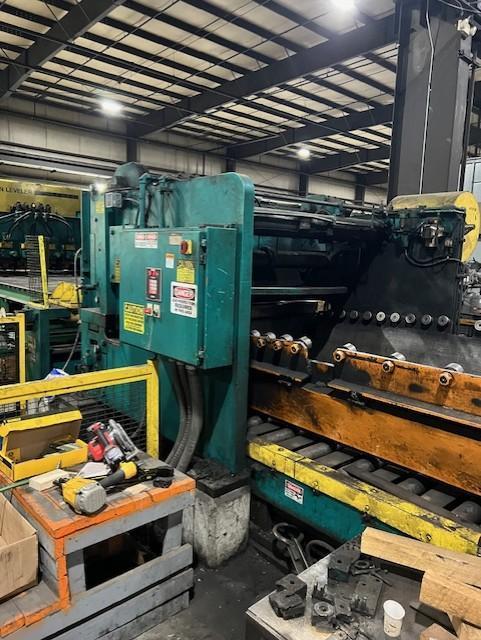

-Herr Voss Mechanical Shear:
Blade Gap Adjustment Control
Straight Blade Rake
Material Holddowns

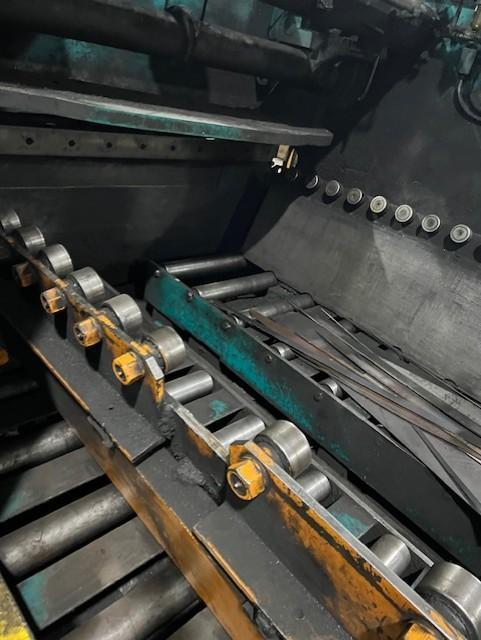

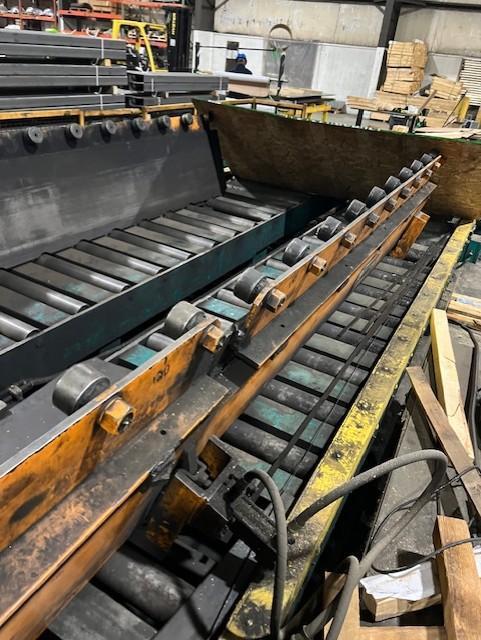

-Drop Type Stacker:
Side Guide Retainers with Powered Side Tap
40,000# Capacity
Min. Sheet Length: 24"
Max. Stacked Sheet: 24'

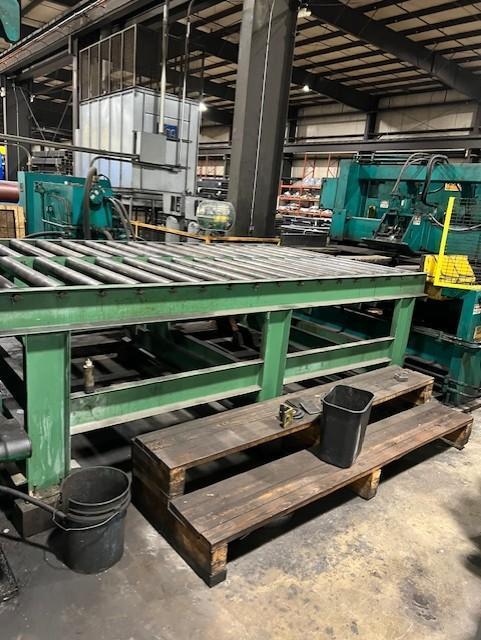

-40' of additional Runout Conveyor
-Main Operators Control Panel
-Main Hydraulic Power Unit
-Includes Complete Mechanical and Electrical Drawings and
Operators Manual.
|
