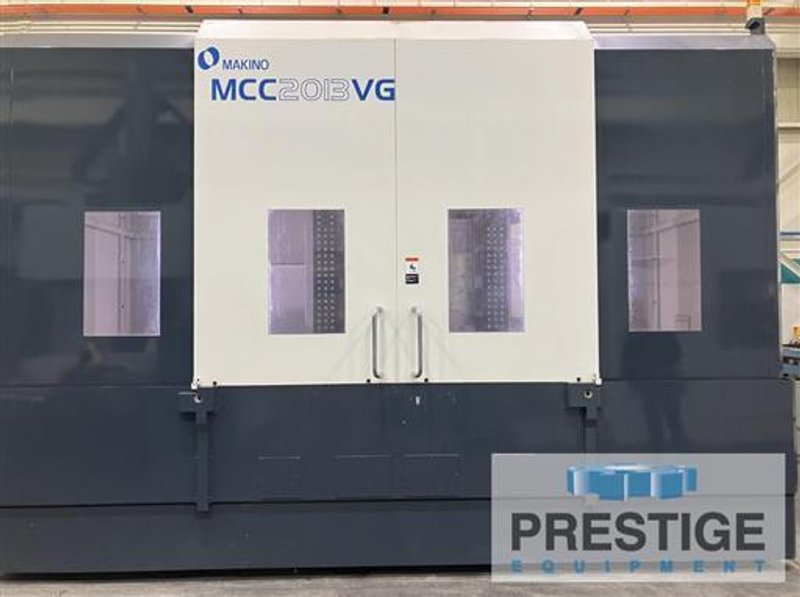

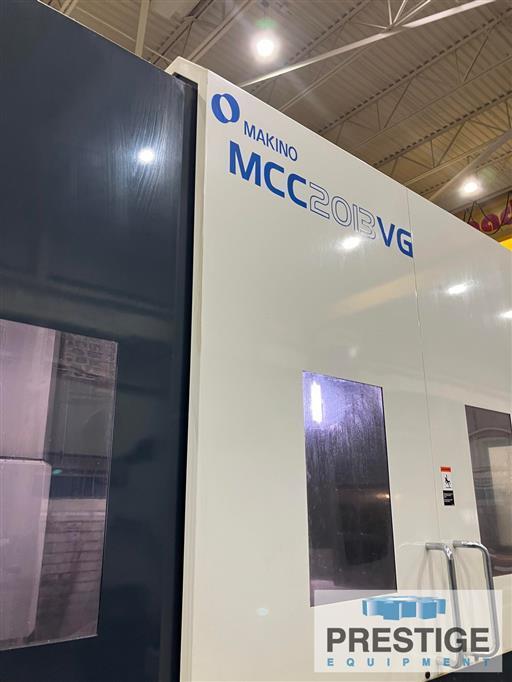

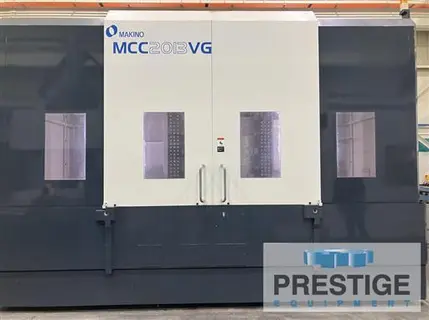

MAKINO MCC 2013 VG (6) AXIS HORIZONTAL MACHINING CENTER

SPECIFICATIONS:
INDEXING ROTARY TABLE SIZE 59" X 47" (360,000 DEGREE)
TABLE MAX. LOAD 22,000 Lbs.
CROSS TRAVEL (X 80"
VERTICAL TRAVEL (Y) 51.5"
LONGITUDINAL TRAVEL (Z) 51.5"
SPINDLE SPEEDS 5 TO 12,000 RPM
SPINDLE DRIVE 40/29 HP
SPINDLE TAPER HSK 100/A
MAX. MACHINING ENVELOPE 80" X 51.5" X 51.5"
DISTANCE TABLE TOP TO SPINDLE CENTER 10" TO 61"
A AXIS ROTATION -30 DEG. TO +30 DEGREE
A AXIS MINIMUM INDEXING ANGLE 1 DEGREE
C AXIS ROTATION +/- 185 DEGREE
C AXIS MINIMUM INDEXING ANGLE 1 DEGREE
RAPID TRAVERSE X,Y,Z AXIS 787 IPM
TOOL CHANGER 120 ATC
CUTTING FEED RATE 787 IPM
Min. INPUT ANGLE INCREMENTS .0001 DEGREE
MAX. TOOL DIA., POSITION/ADJACENT 4"/8" DIA.



Equipped With:

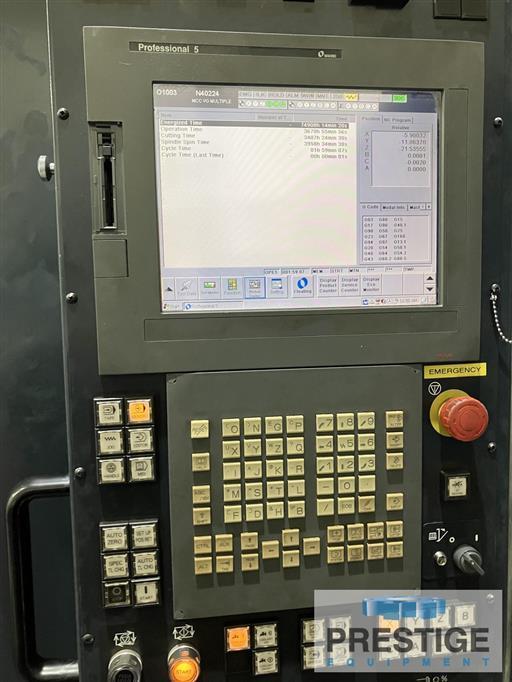

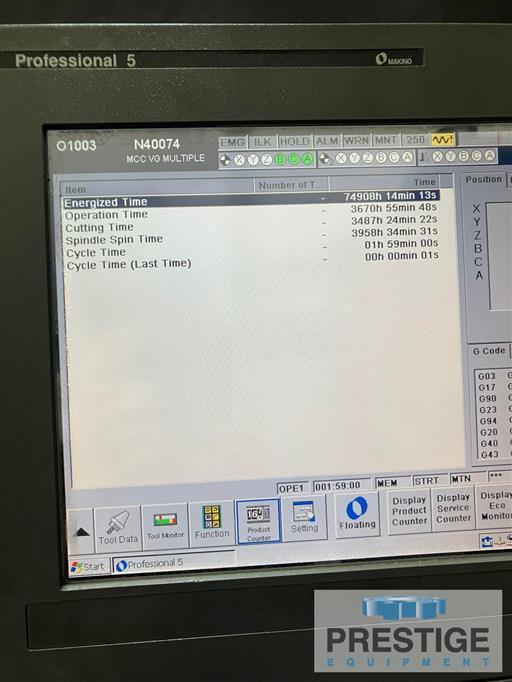

Makino Professional 5 (FANUC SERIES 30i) CNC Controls
3 PLUS 2 SPINDLE INDEXING HEAD (1) DEGREE INCREMENTS A & C AXIS
(2) SPINDLE SPEED ELECTRIC RANGES FOR HIGH TORQUE AND HIGH SPEED OPERATION
COOLANT THROUGH SPINDLE
MOIRE SCALE FEED BACK SYSTEM X,Y,Z AXIS (0.1 MICRON RESOLUTION)
FULL 4TH AXIS BUILT IN ROTARY TABLE 0.0001 DEGREE
SUPER GI MAKINO CONTROL FUNCTION
MIST COLLECTOR

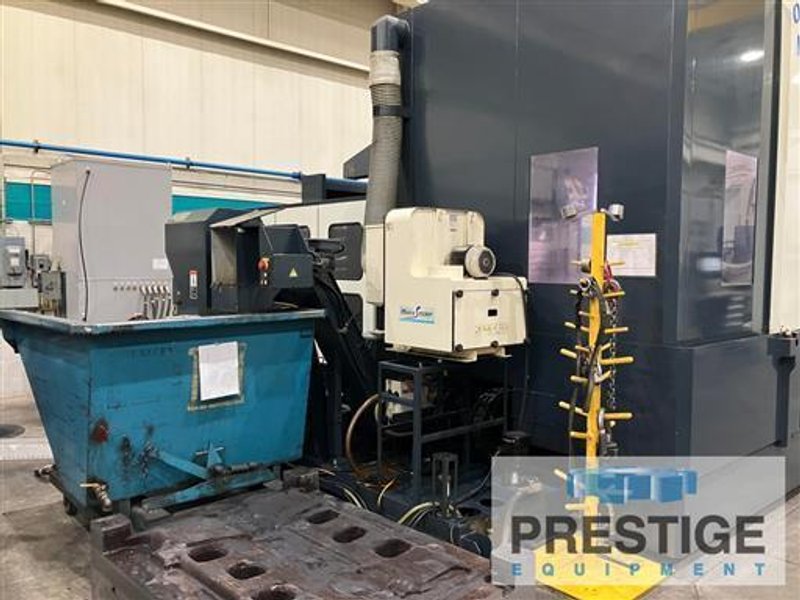

LIFT UP TYPE CHIP CONVEYOR
FLOOD COOLANT
DATA SERVER
2 RANGE SPINDLE GEAR SELECTION
RENISHAW PROBE SOFTWARE
AUTOMATIC NON-CONTACT BLUM TOOL LASER PICK-UP (POP UP TYPE)
PORTABLE MANUAL PULSE GENERATOR
(600) MACRO COMMON VARIABLES
HIGH SPEED SMOOTH TCP
DATA CENTER STORAGE 360MB
99 TOTAL TOOL OFFSETS
INCH METRIC SELECTION
RIGID TAPPING STANDARD
NEW SPINDLE INSTALLED IN 2023 (COST $65,000)


Machine dimensions: 246" Wide x 242" FB x 161" High


NOTE: New cost on this machine was $1.5 million USD
