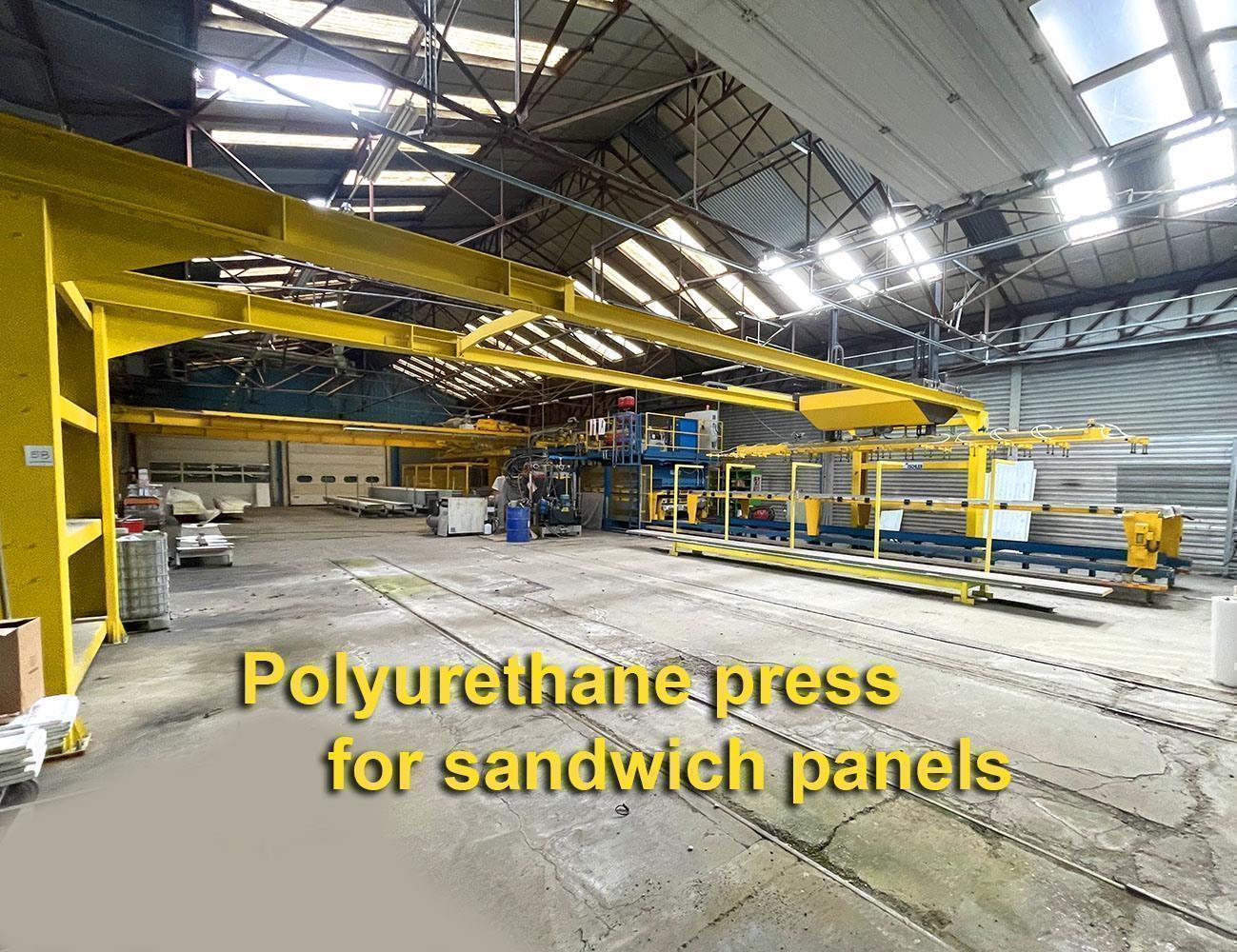

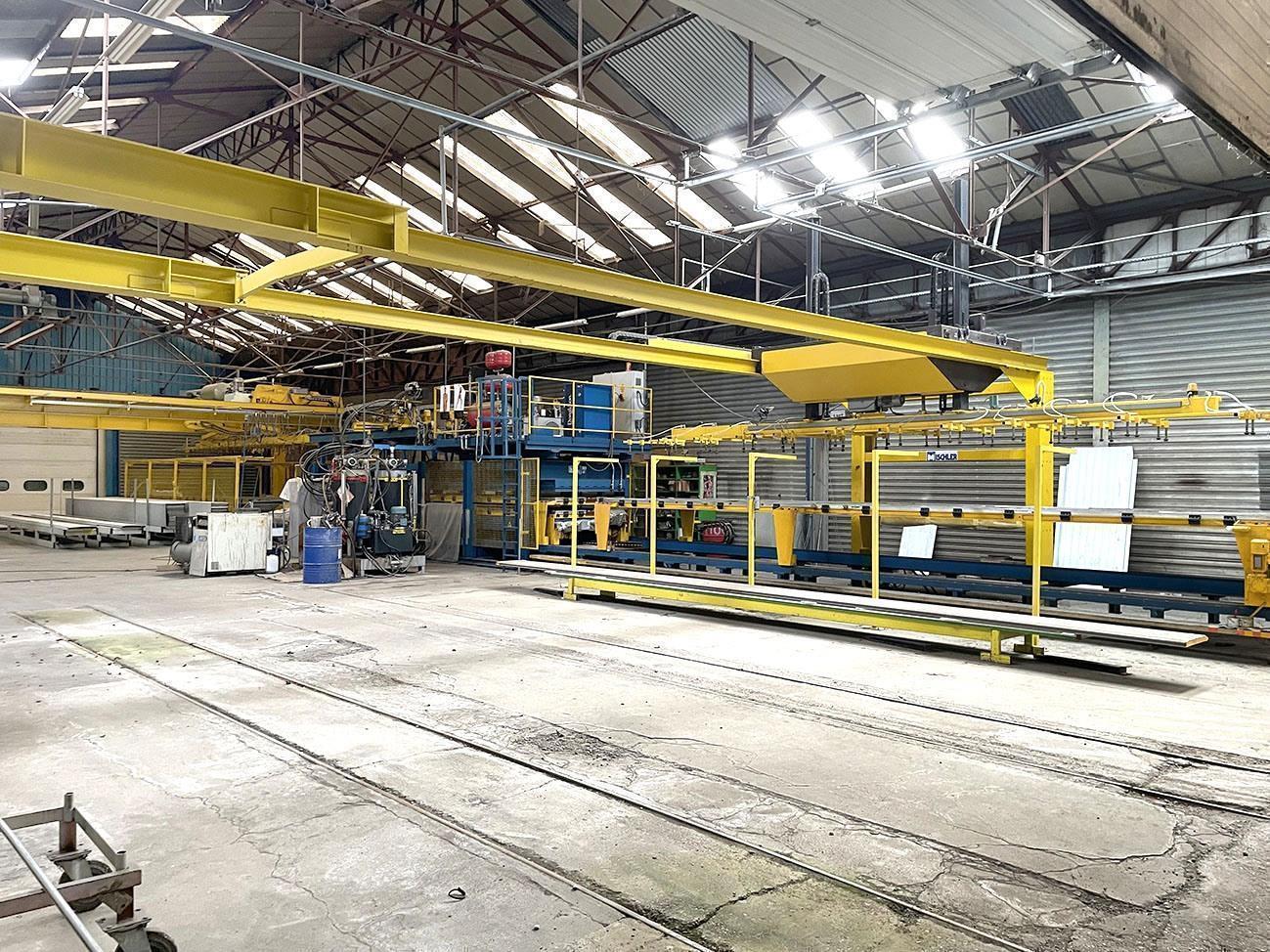

Manni / Cannon polyurethane press for sandwich panels

Panels for thermal insulation of industrial buildings

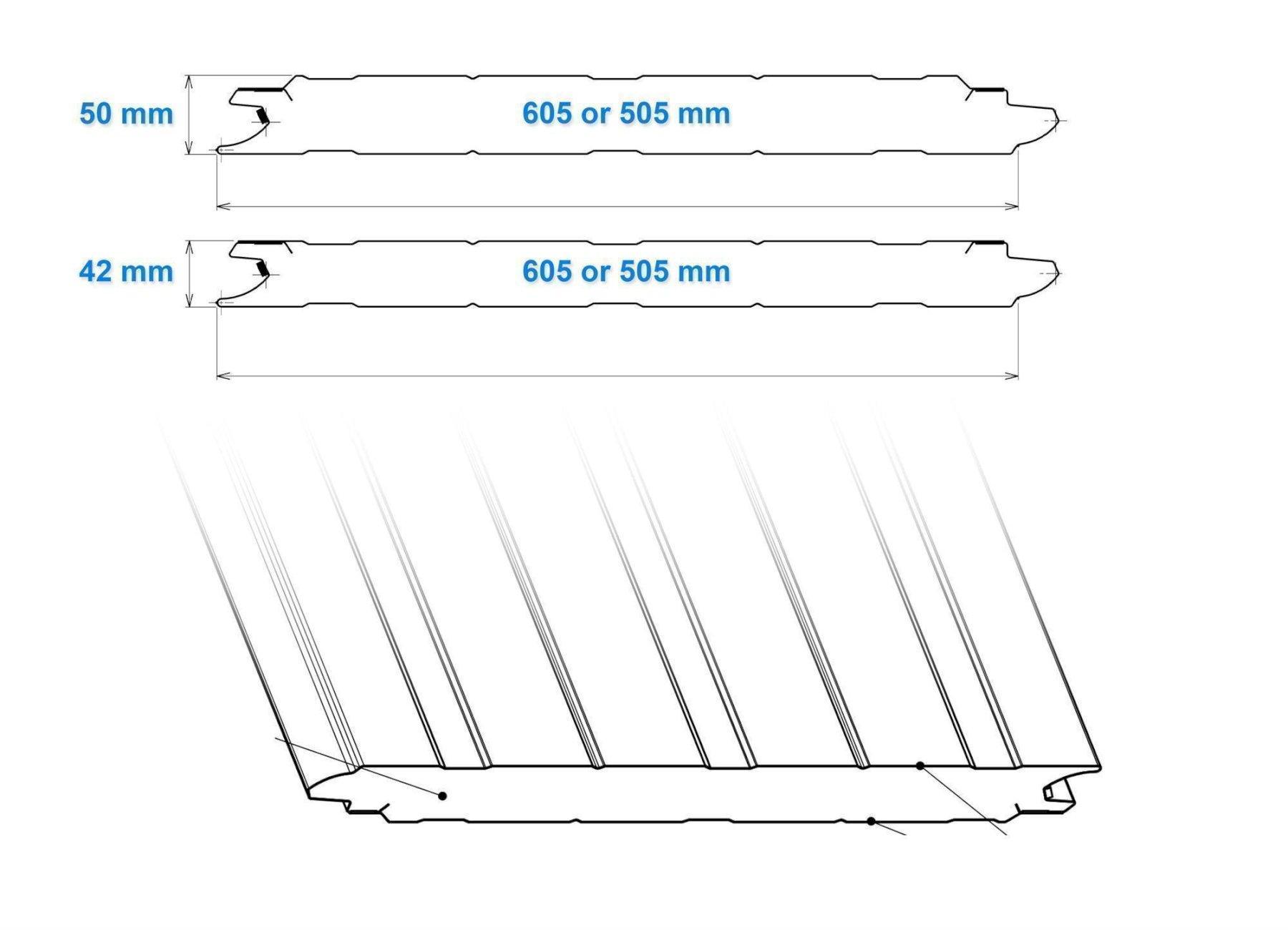

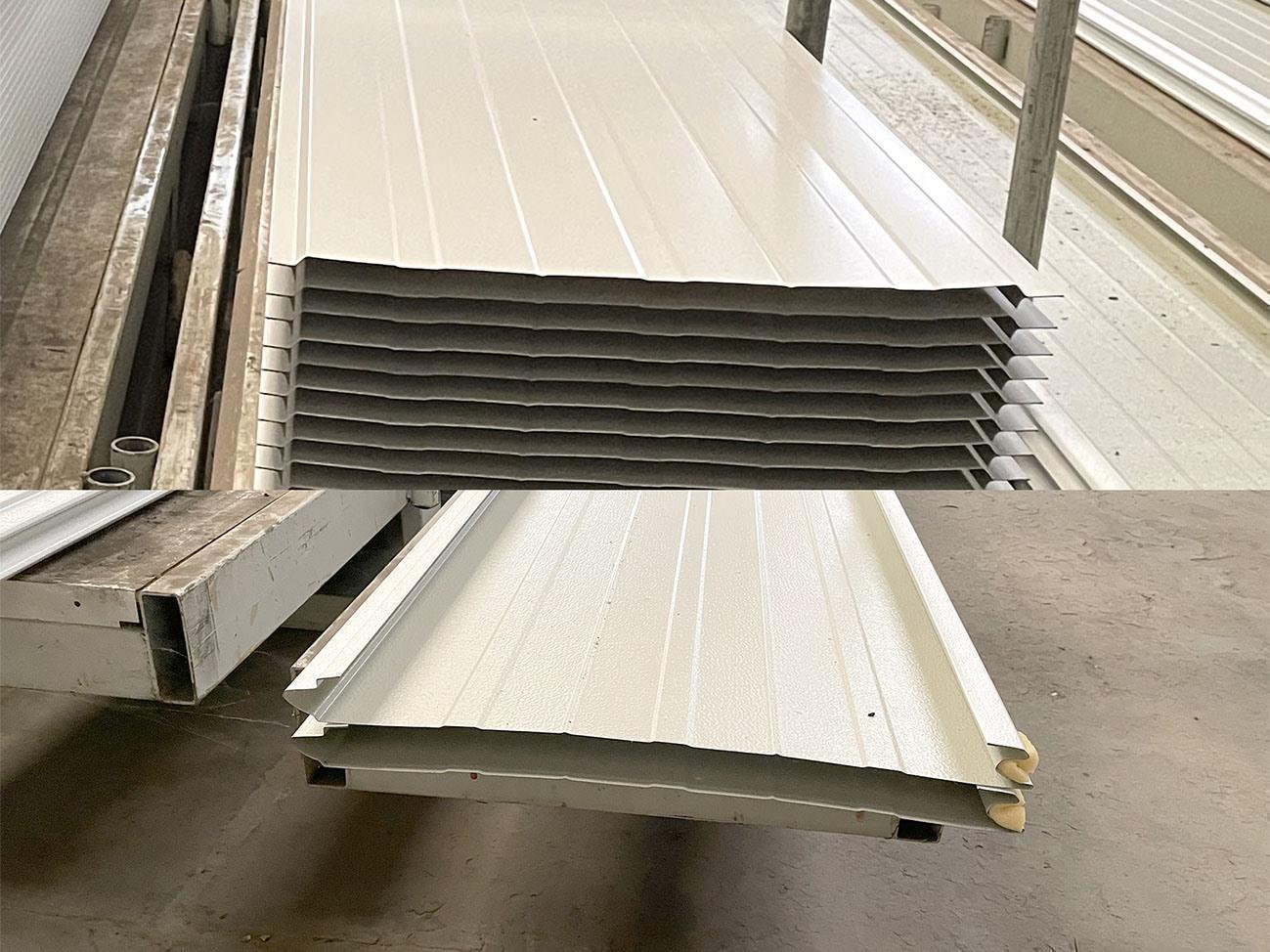

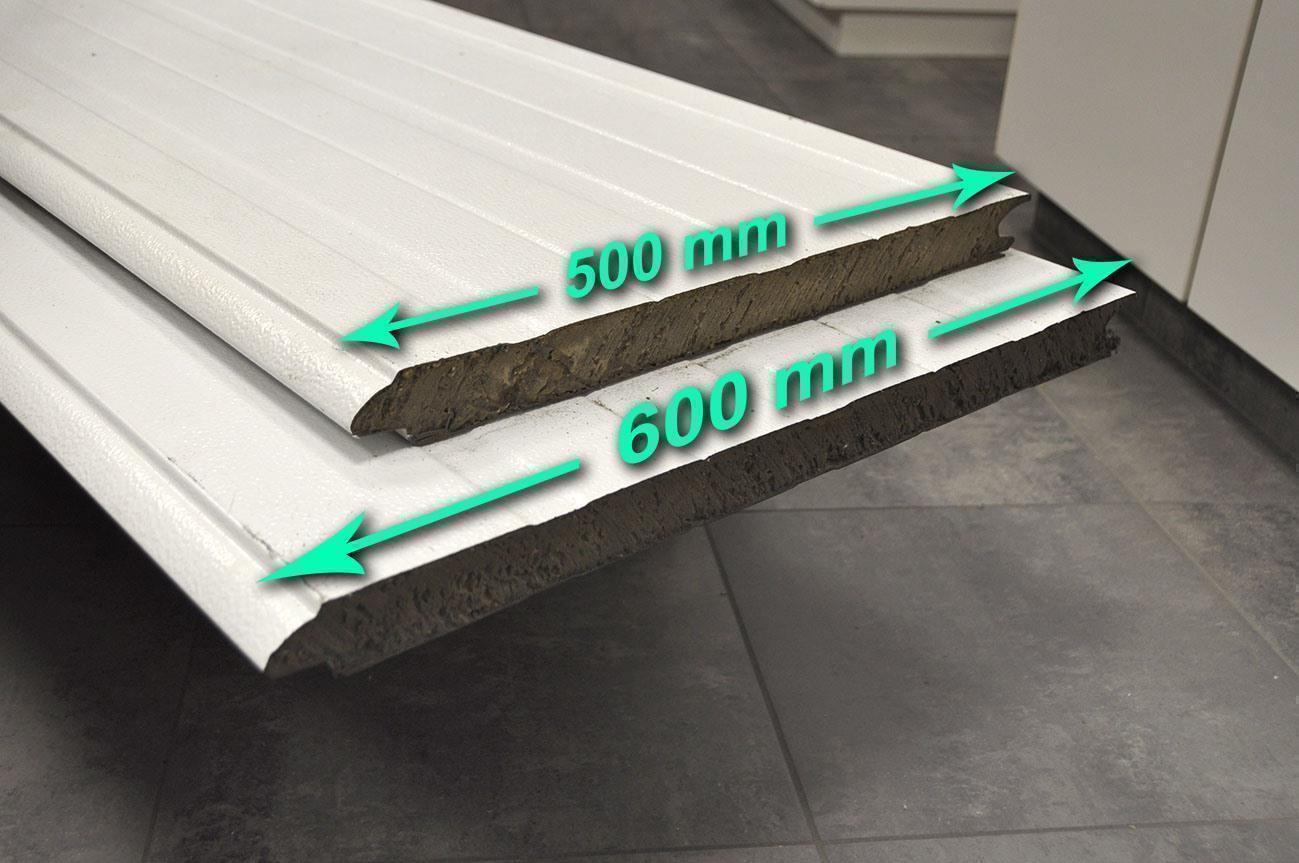

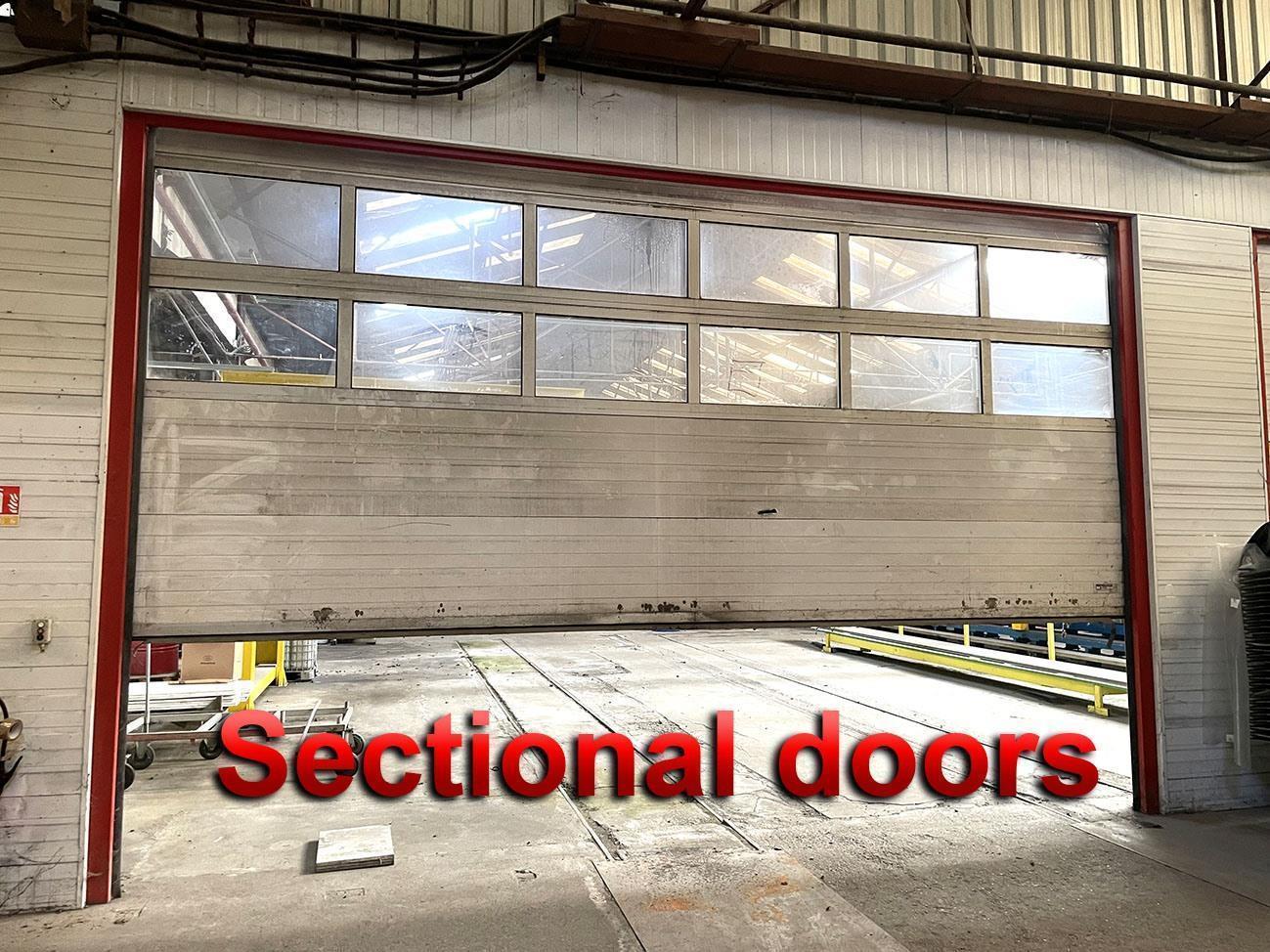

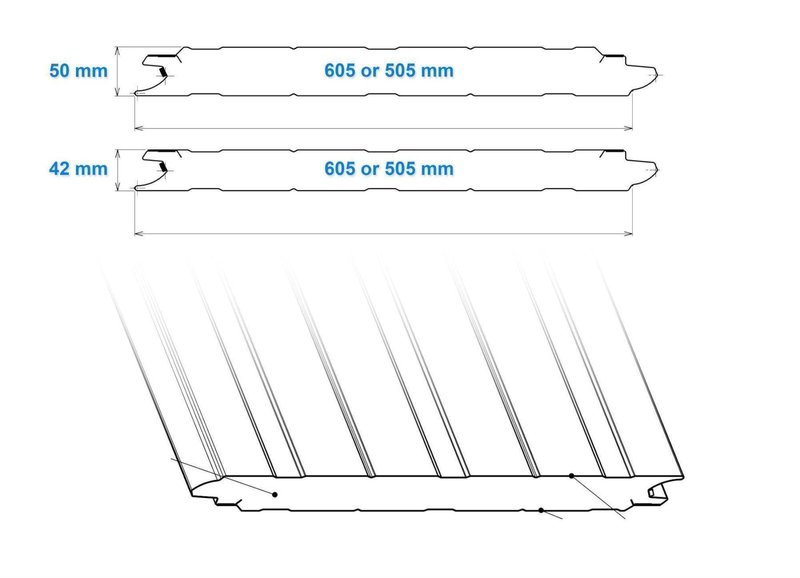

Sectional door panels (current configuration)
Panels for residential roof insulation

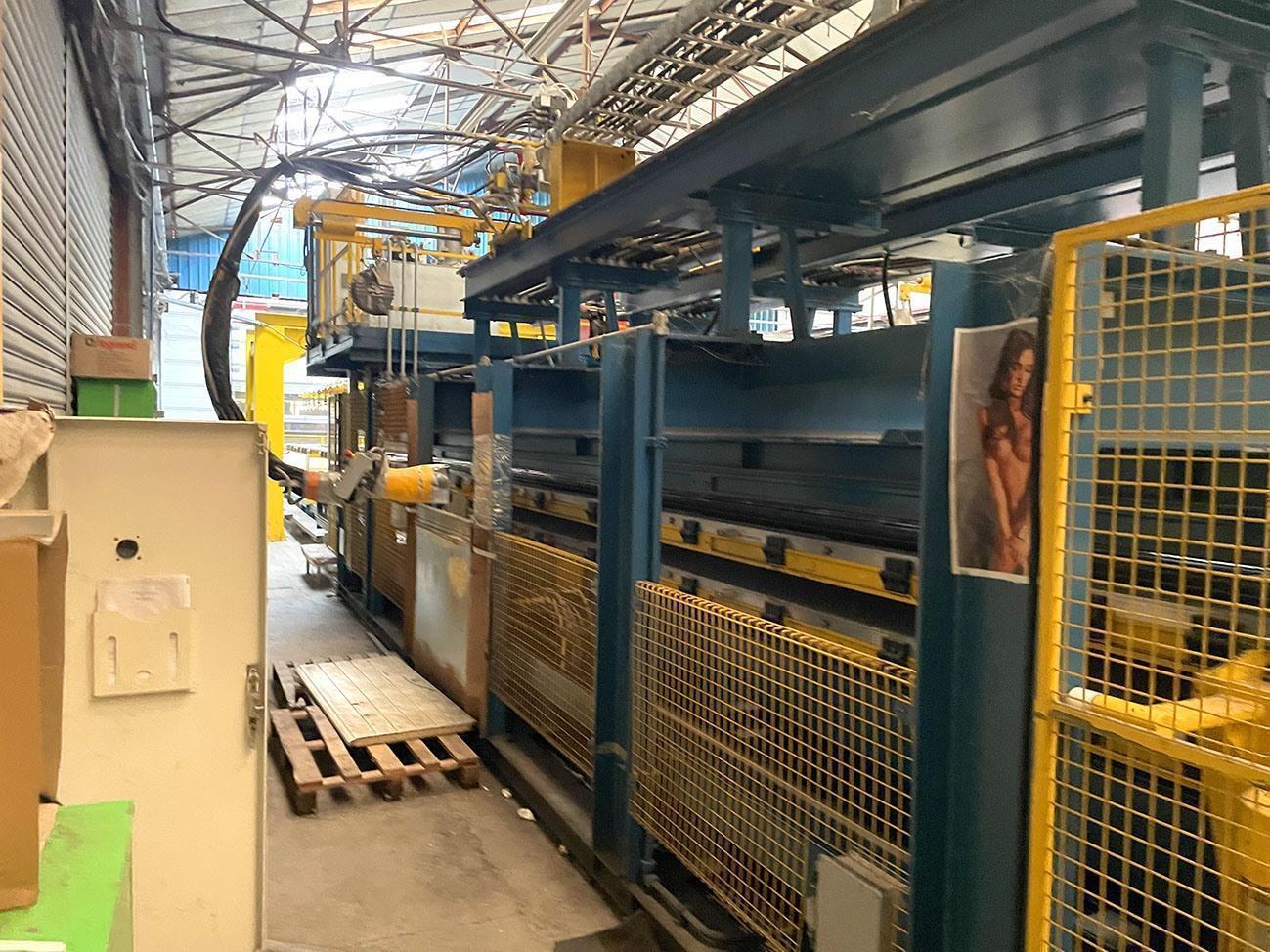

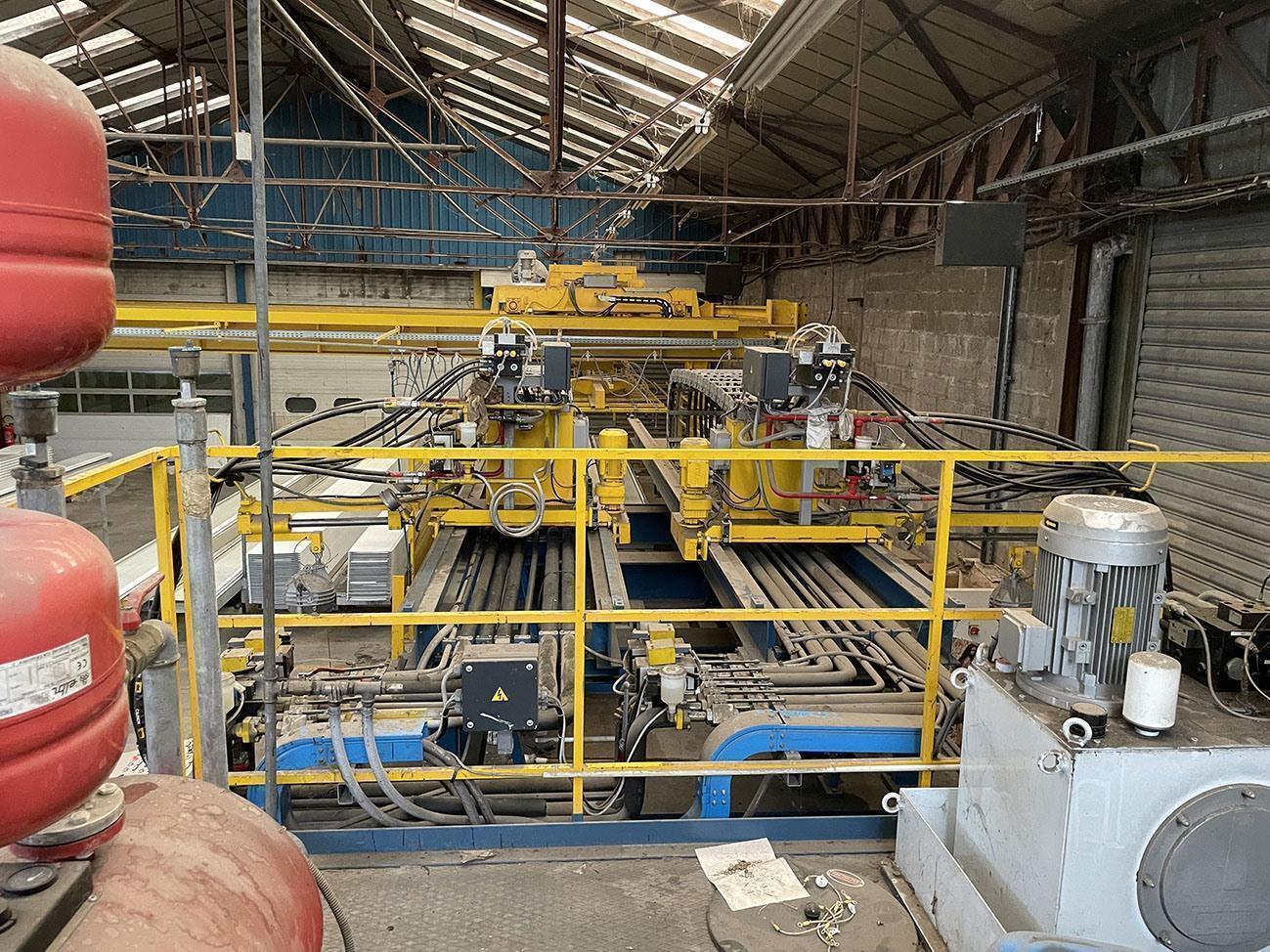

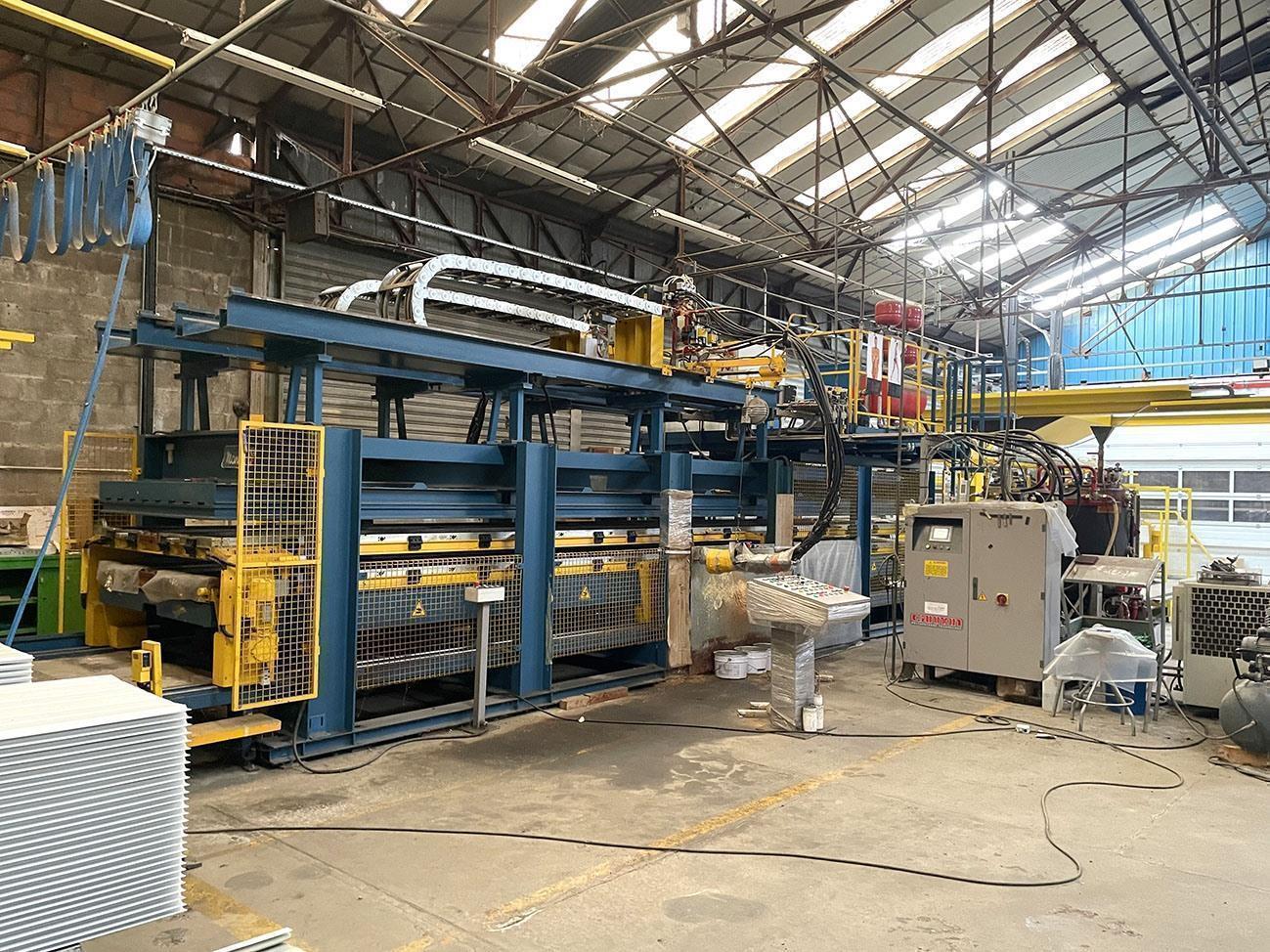

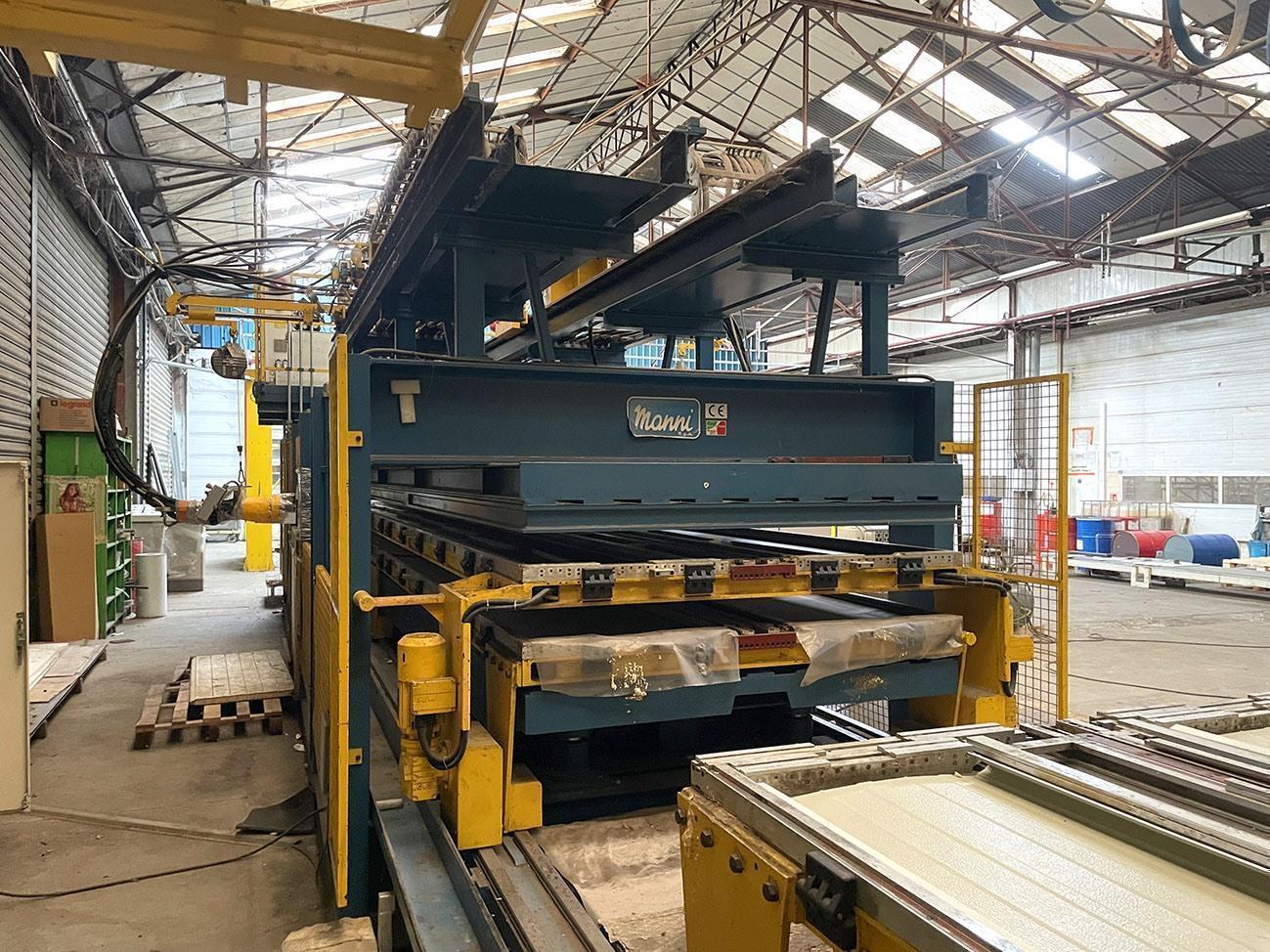

Manni trolley press 2+2

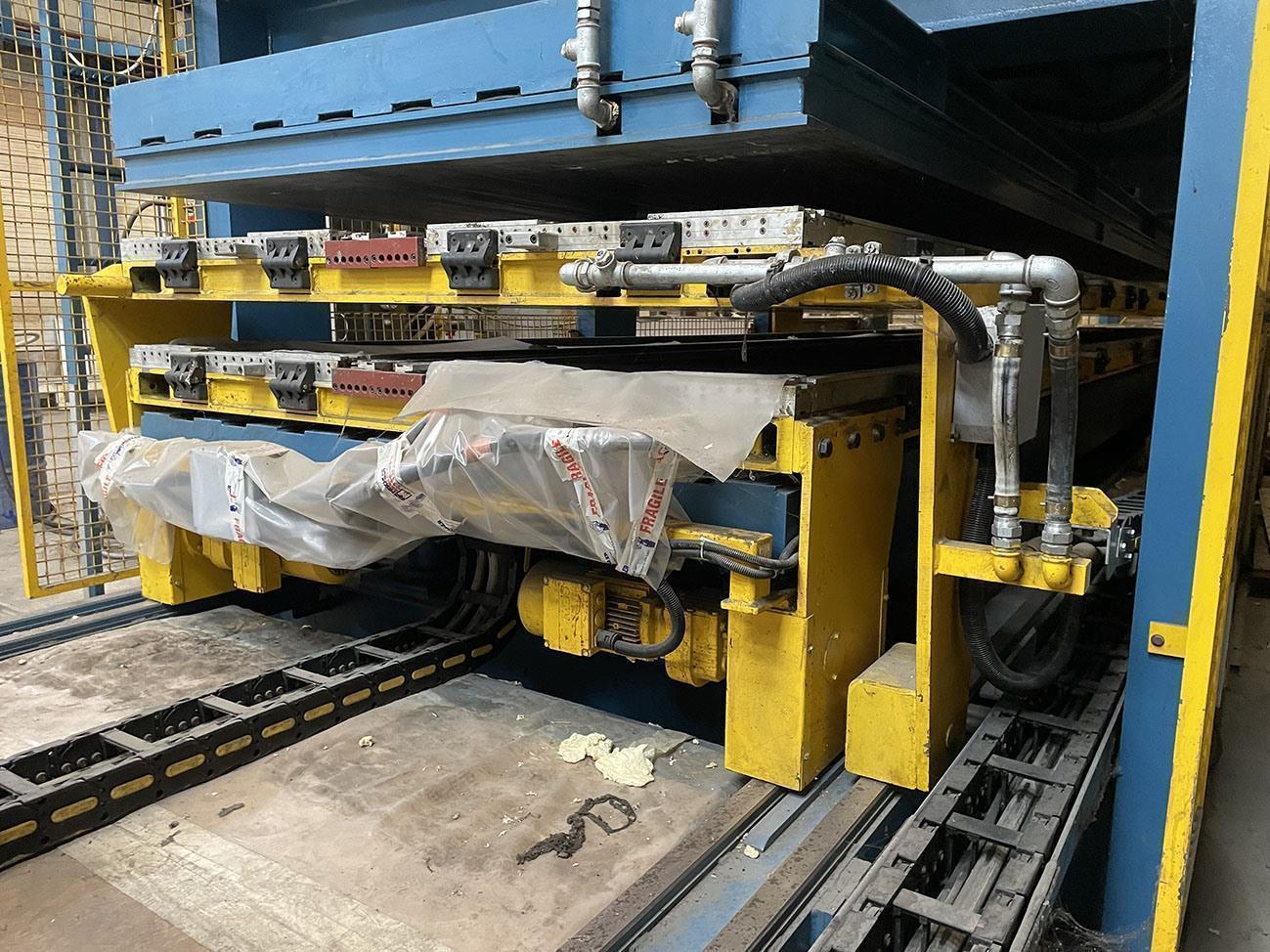

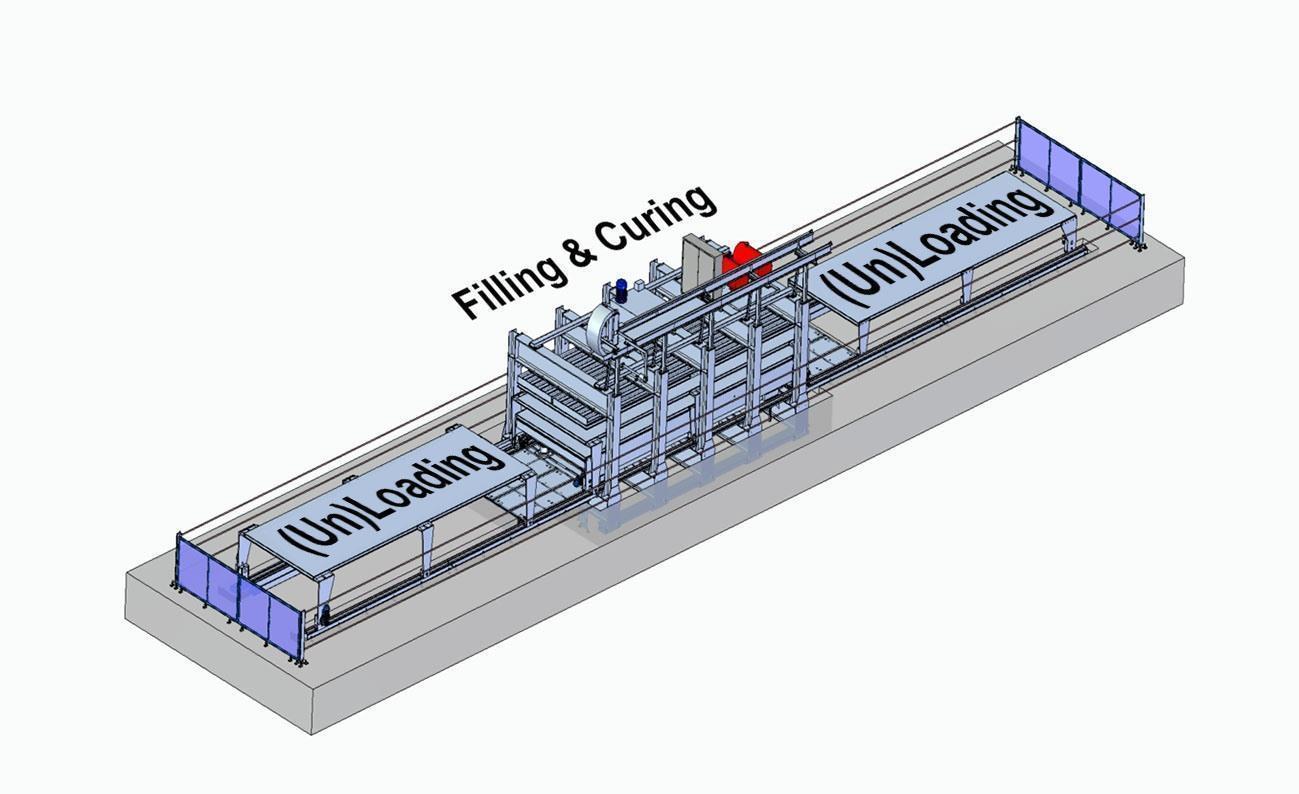

The hydraulic closed die press (2+2) is the optimum solution in terms of productivity and plant layout. Independent motorized tables allow one sandwich panel to be prepared while another panel is curing in the press, significantly reducing production downtimes.
- 4 tables
- table dimensions: 9500 x 1600 mm
- maximum opening: 150 mm
- each cycle produces 4 sandwich panels, 24-40 panels per hour

Manni manipulator for automatic loading and unloading + stacking of finished panels
Maximum workpiece weight: 700 kg

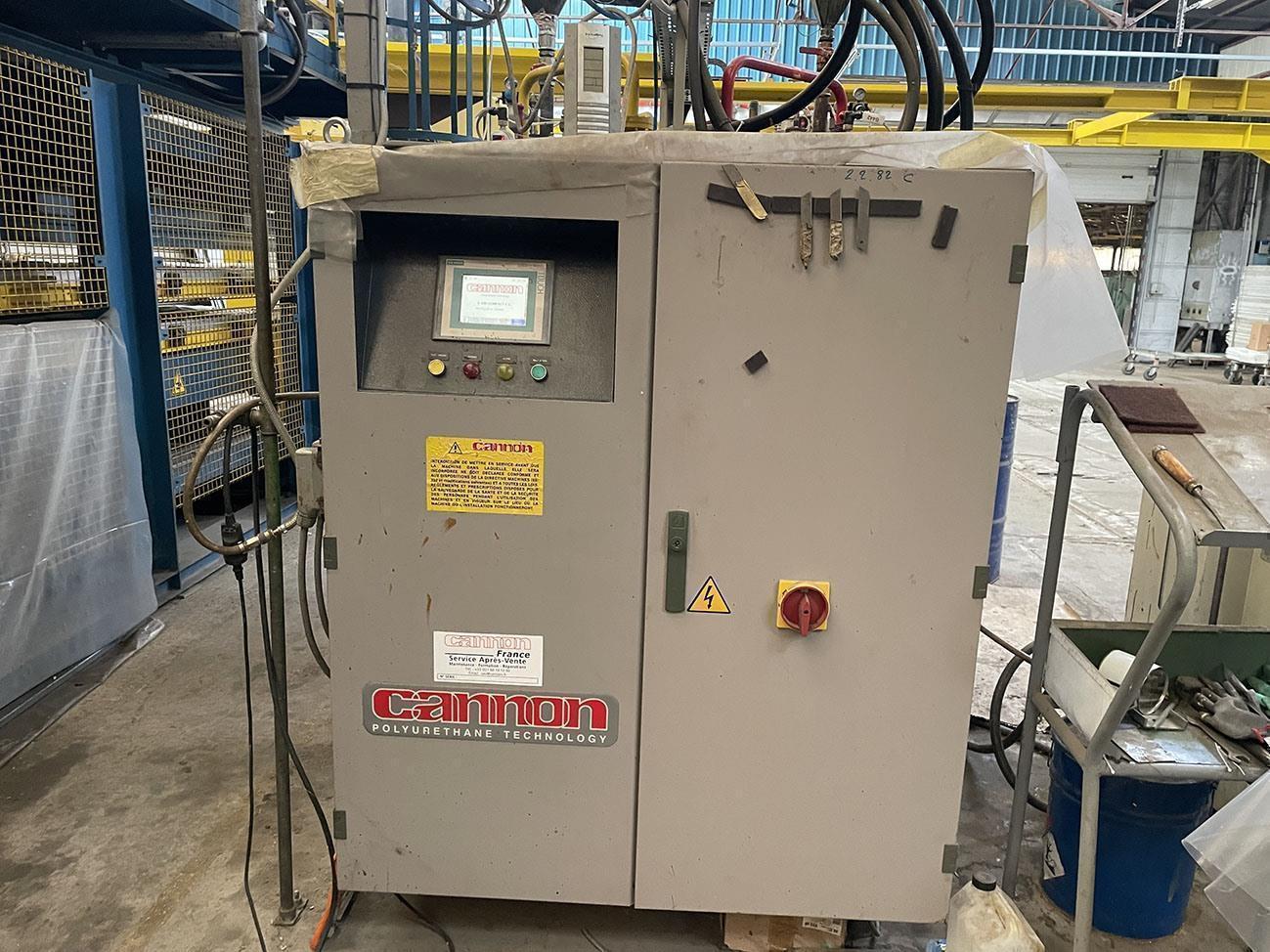

Polyurethane dosing unit Cannon A-Compact HF

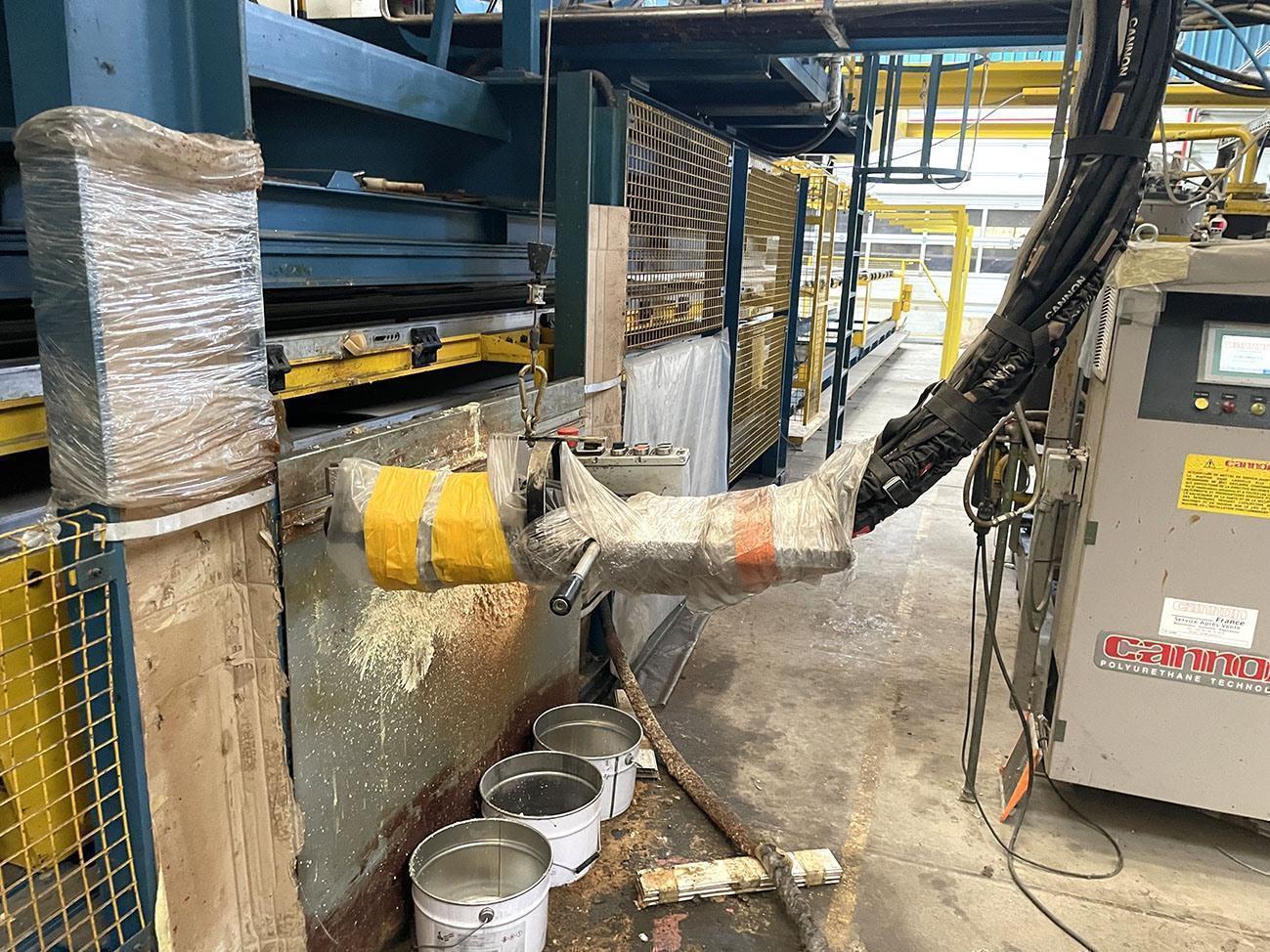

The injection is done on both sides of the Manni press
Designed for the processing of polyol blends with solid fillers (RRIM)
Jacketed and insulated tanks with level control and automatic filling with special stirrer for solid fillers
Recycle power distributors
Digital low/high pressure gauges
Hybrid dosing system: piston pump for isocyanate, hydraulic cylinder specially designed by Cannon for filled polyol
Closed-loop automatic output and ratio adjustment and control

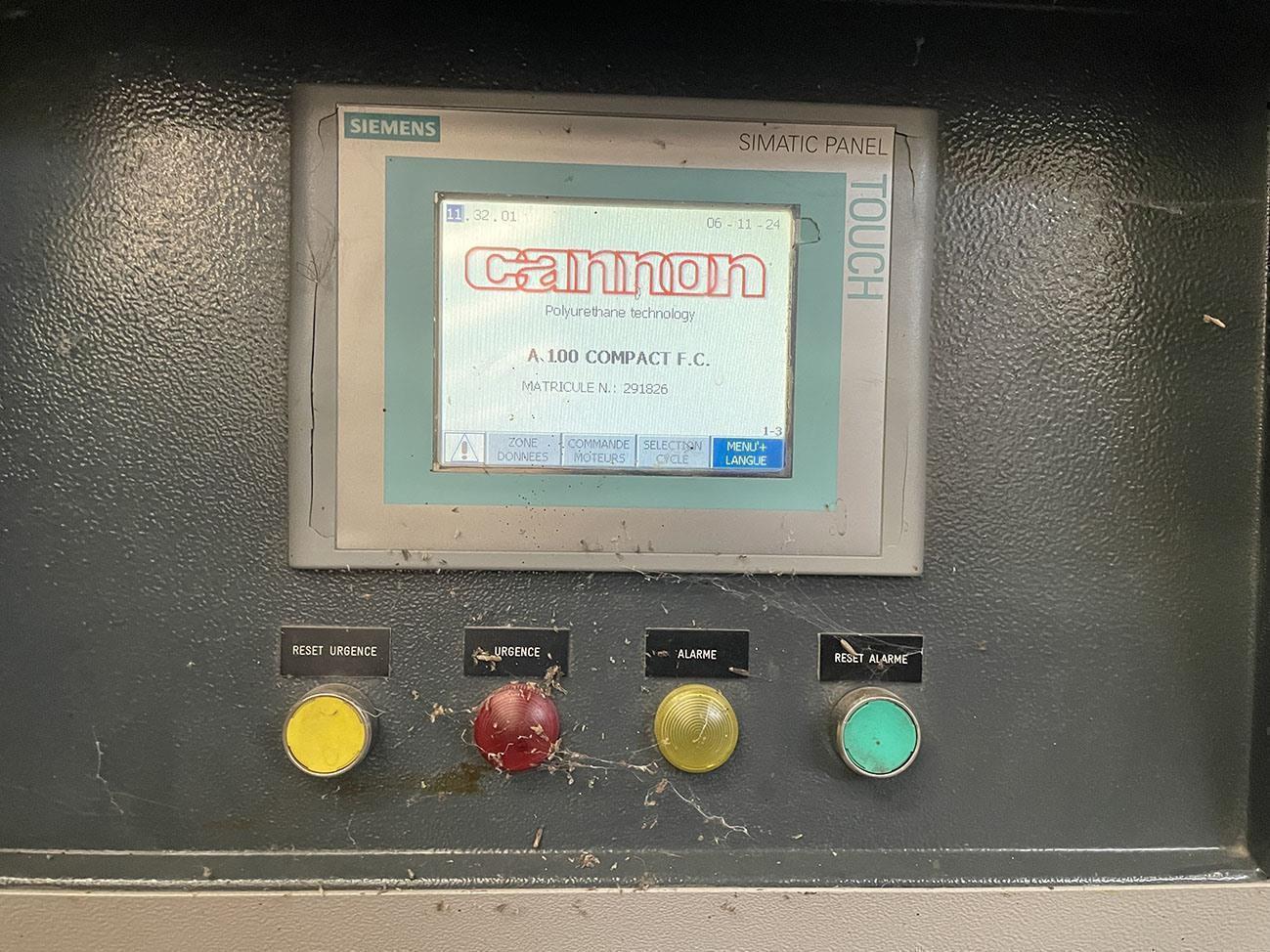

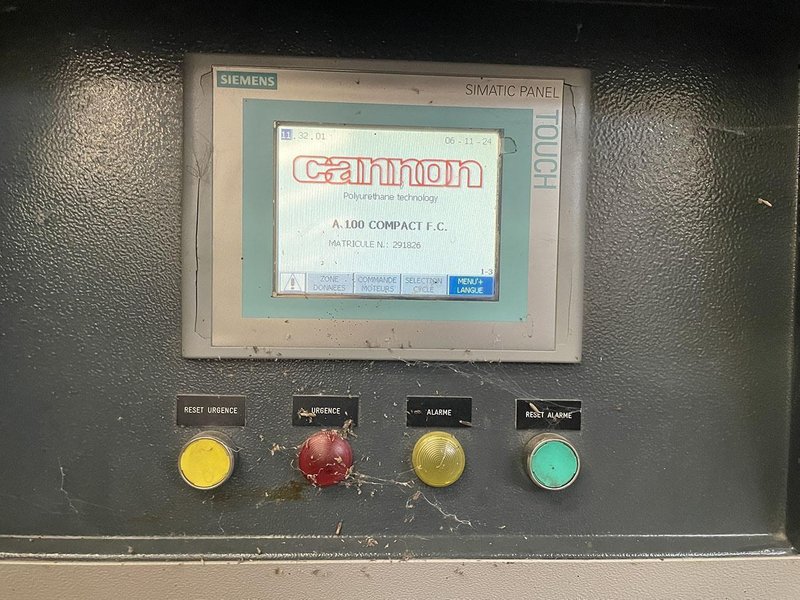

Touchscreen control panel
Calibration of each component directly via the mixing head
400V – 50Hz – 118 amps – 66 kW

Required space : 25 meters x 16 meters x 4.16 meters
