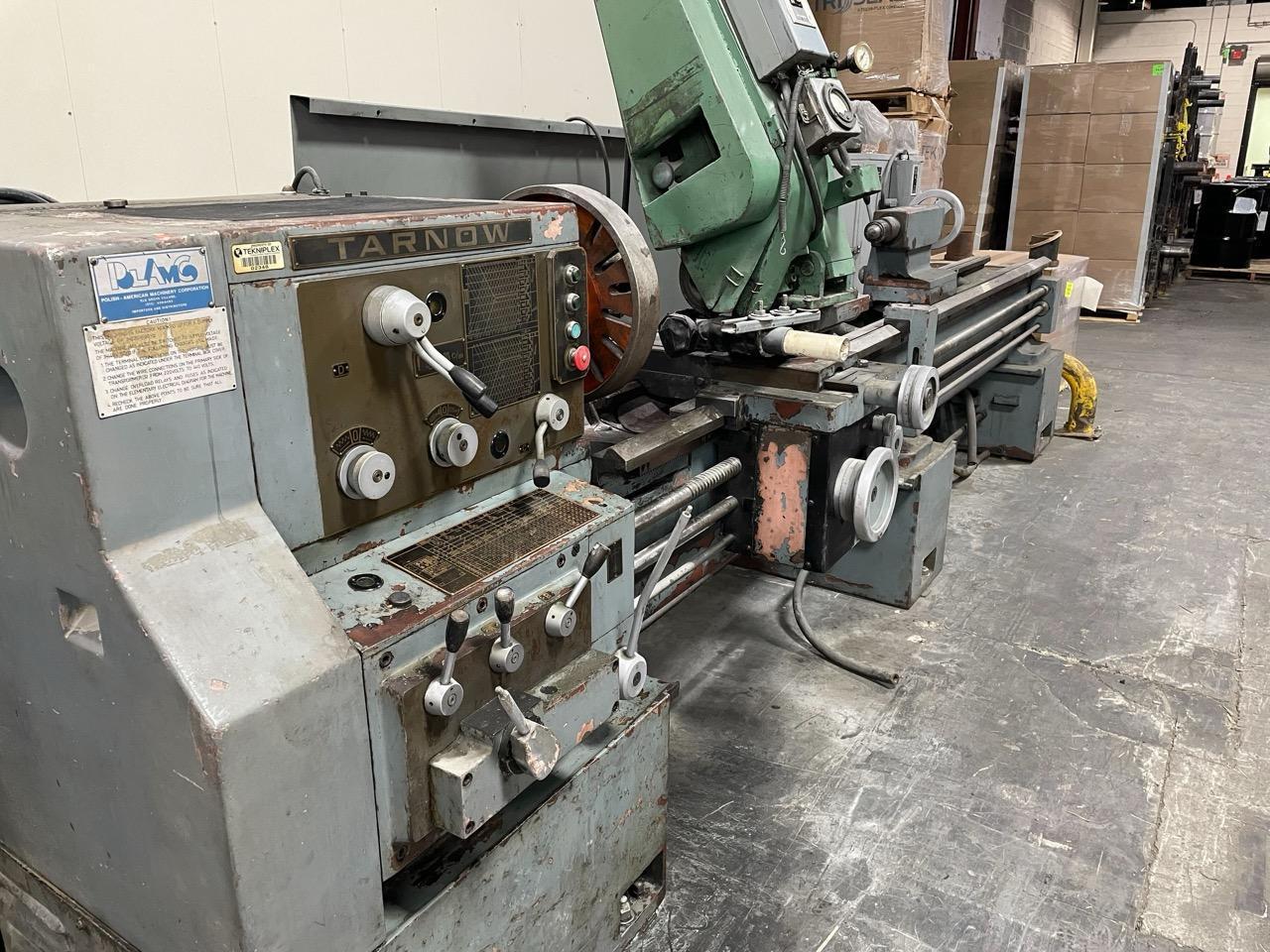

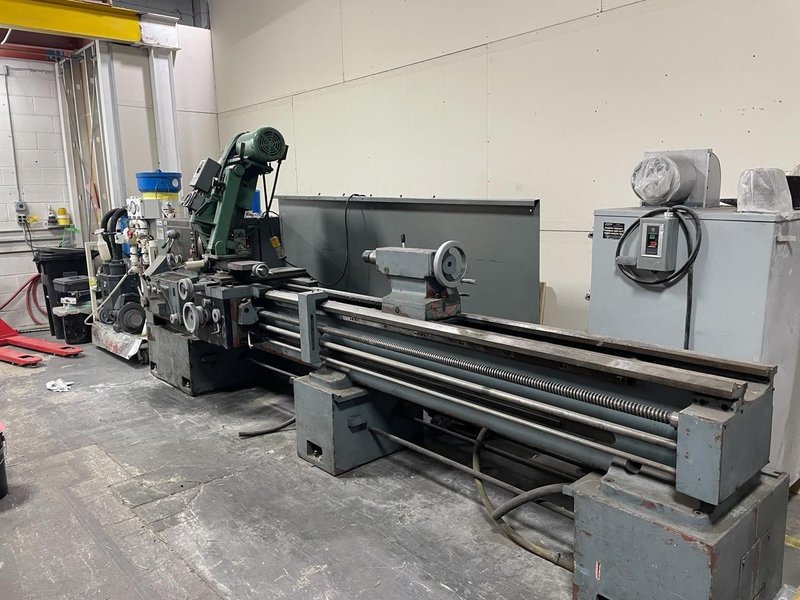

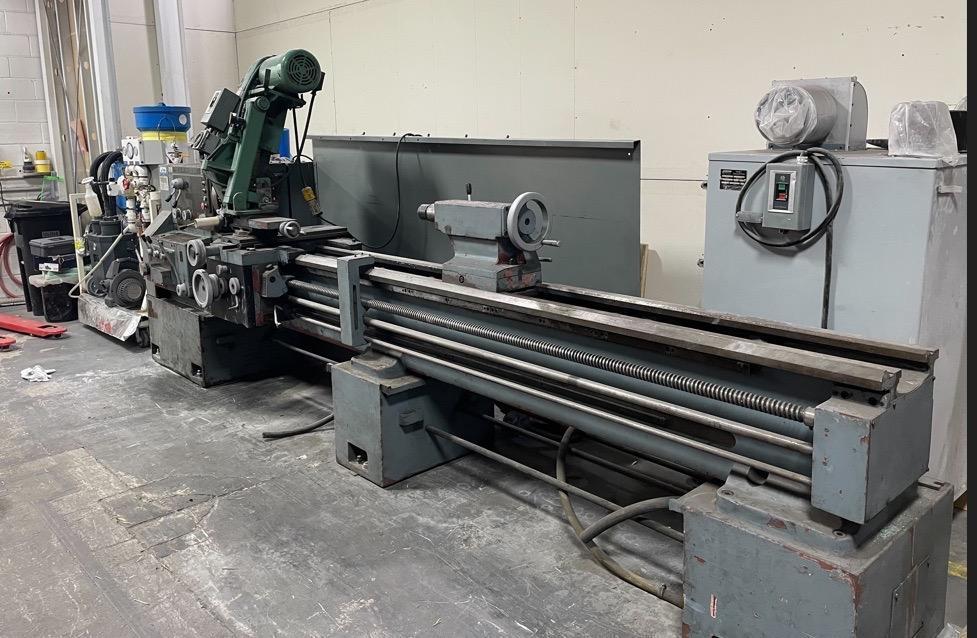

20″ x 98″ Tarnow Tuj 50 x 3000 Engine Lathe, 1978 – Grinding Attachment

Admits between centers: 98.42″ Height of centers over bed: 10.23″ Height of centers over saddle: 6.49″ Swing over bed (dia.): 20.86″ Swing over saddle (dia.): 13″ Swing over gap (dia.): 30″ Gap length in front of the face plate: 9.84″ Width of bed upper port: 14.56″ Number of spindle speeds: 16 Range of spindle speeds: 25-1250 r.p.m 35.5-1800 r.p.m Spindle bore diameter: 2.06″ Morse taper in spindle: No. 6 Number of longitudinal feeds without changing the gear in quadrant: 42 Values of longitudinal feeds: 0.003″ to 0.17″/rev. Number of cross-feeds without changing the gears in quadrant: 42 Values of cross-feeds (equal to one half or longitudinal feeds): 0.001″ to 0.08″/rev. Number of metric threads: 38 Range of metric threads: 0.01″ to 1.10″ Number of English threads: 35 Range of English threads: 28 to 1 t.p.i Number of module threads: 29 Range of module threads: 0.03″ to 1.10″ Number of D.P threads: 34 Range of D.P threads: 28 to 31 t.p.i Lead screw pitch: 0.47″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

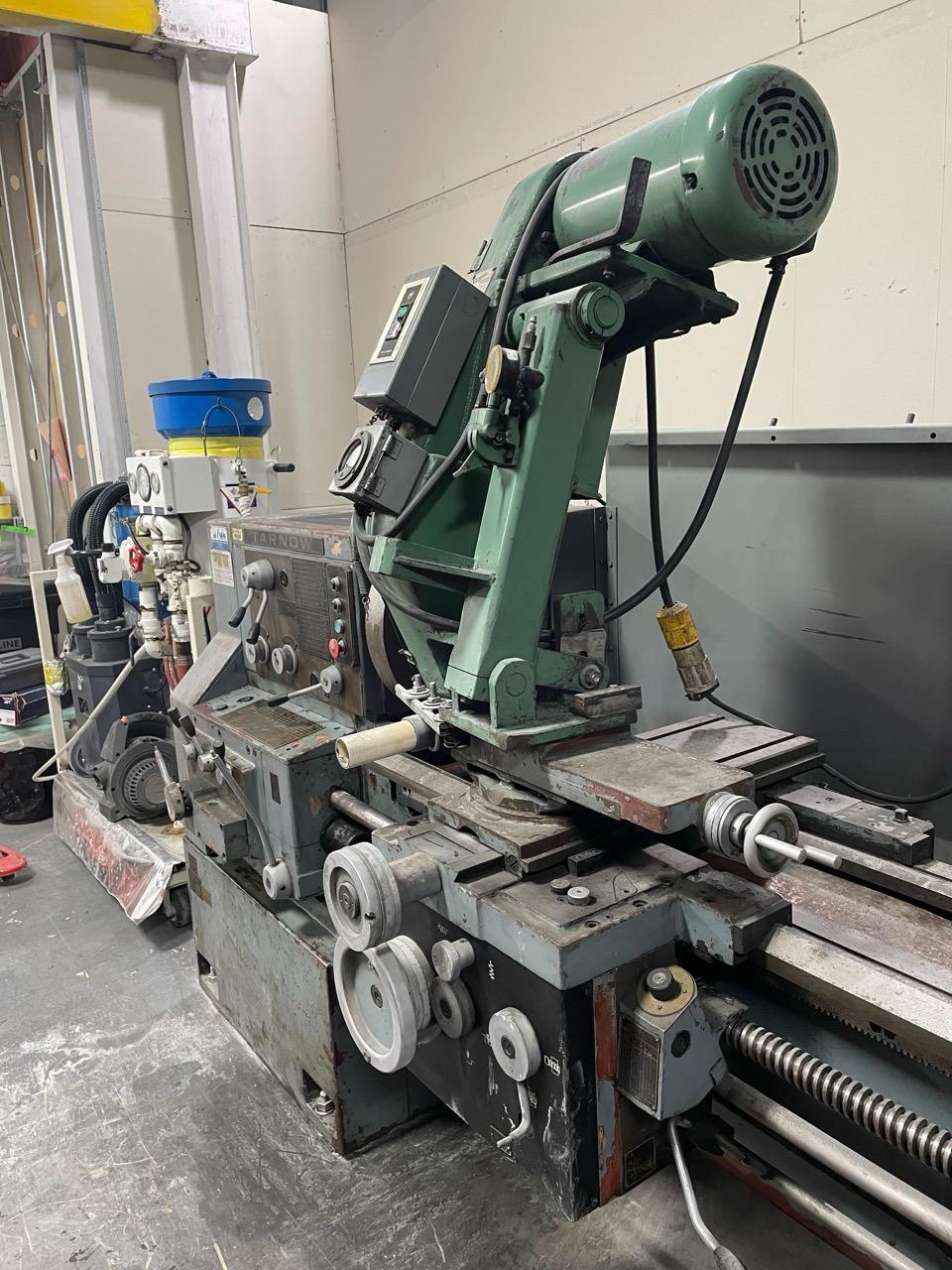

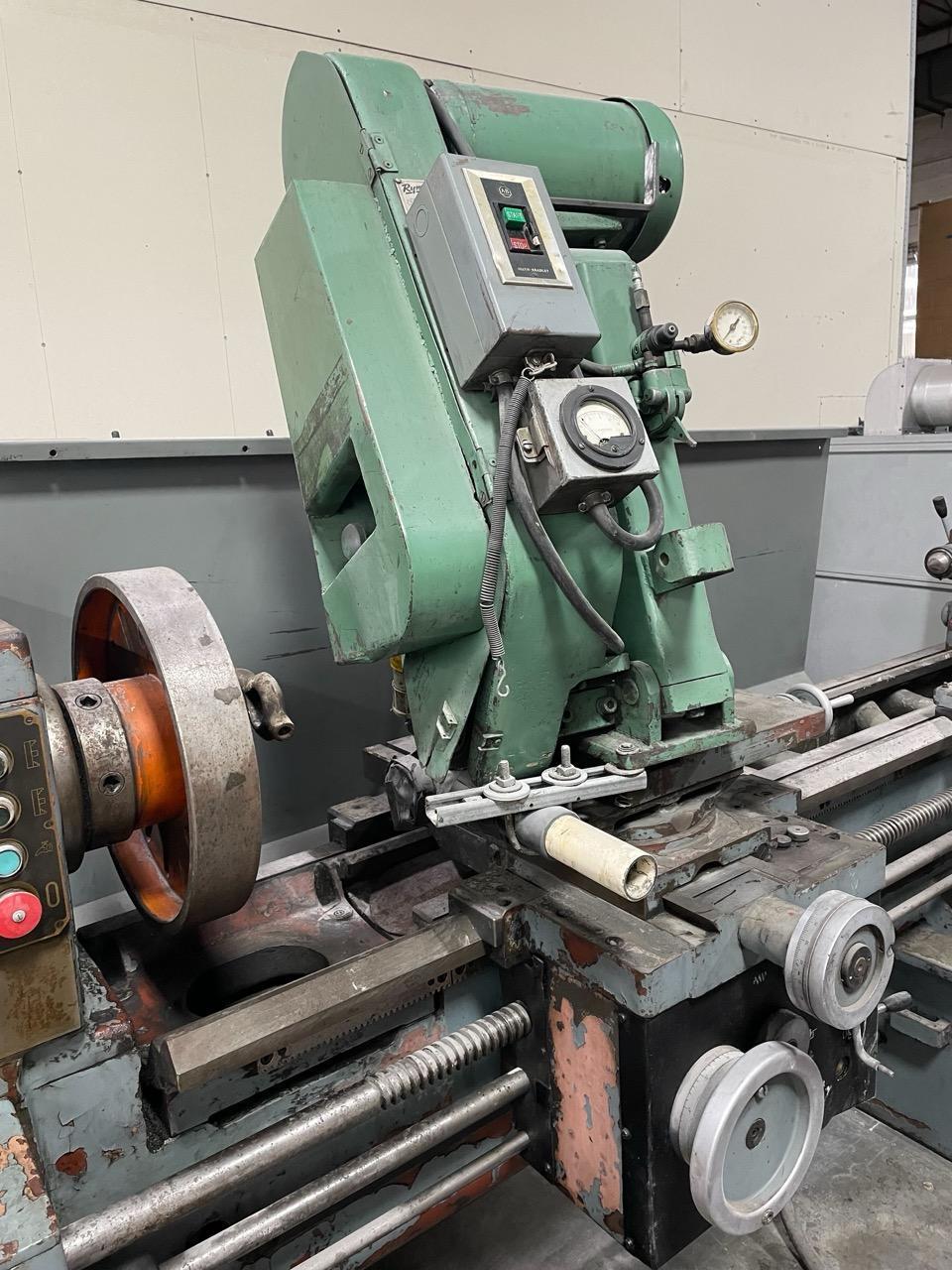

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Grinding Attachment Tailstock Inch/Metric Threading
