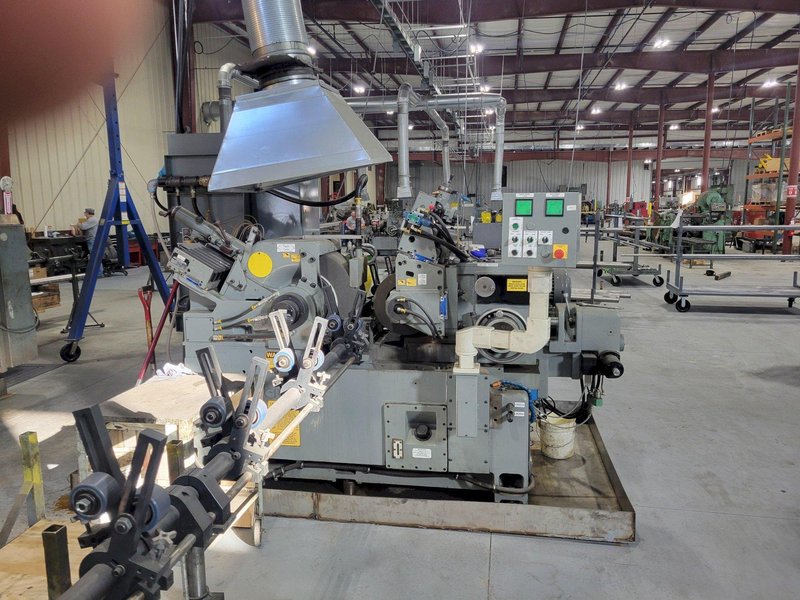

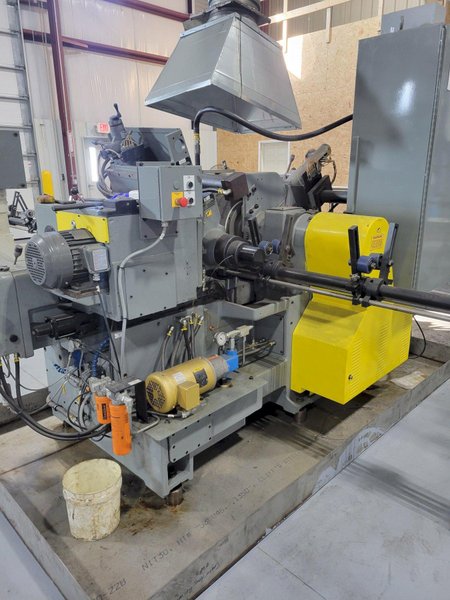

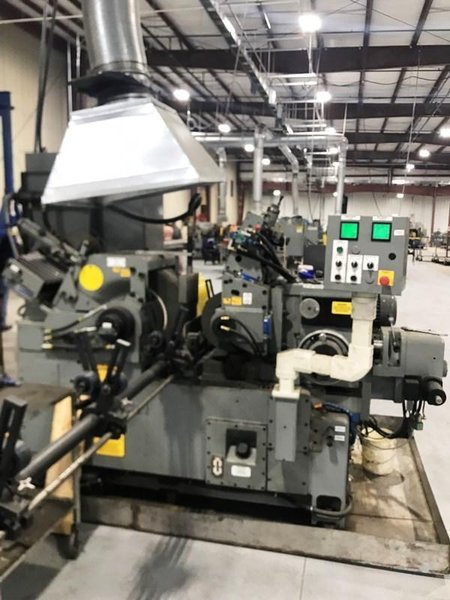

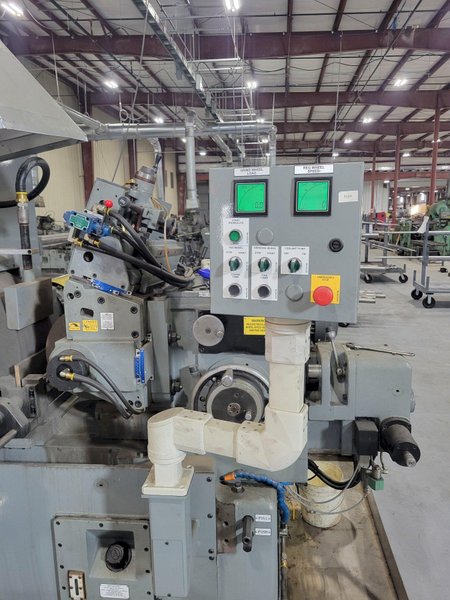

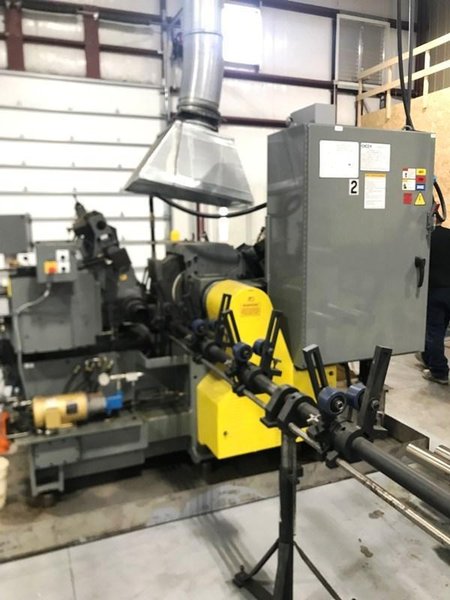

230-10 CINCINNATI TWIN GRIP CENTERLESS GRINDING MACHINE
Brand
Category
Type
Model
230-10
Stock #
19577
Year
1969
Condition
Excellent
Location
Indiana
|
230-10 CINCINNATI TWIN GRIP CENTERLESS GRINDING MACHINE
Remfanufactured 2023 EQUIPPED WITH: Hydraulic grinding wheel profile truing unit – automatic truing with diamond advance Hydraulic regulating wheel profile truing unit Front infeed handwheel – micrometer type Electro-hydraulic automatic infeed attachment – electro-hydraulically operated without hydraulic ejector Loading dwell with Electro-Hydraulic Automatic Infeed Attachment Compensating devices for infeed operations – used with electro-hydraulic automatic infeed attachment – push button Barnes MPE-15 Coolant System In & Out Long Bar Attachment SPECIFICATIONS: Capacity 1/4″ – 4″ dia. Wheels: Grinding – widths up to 10″, 12″ hole 24″ dia. Regulating – widths up to 10″, 5″ hole w/ 2″ C.B. in back and 1.5″ C.B. in front 12″ dia. Drive Motors: Grinding wheel 30 HP Regulating wheel 1.5 HP Wheel speeds – infinitely variable 11 – 300 RPM Sizing adjustments – hand wheel graduated 0.000050″ Coolant System: Pump 50 gal./min. Cutting fluid tank capacity 150 gal. Approximate Dimensions 95″(W)x 128″(L)x86″(H) Approximate Weight 13,200 lbs. |
