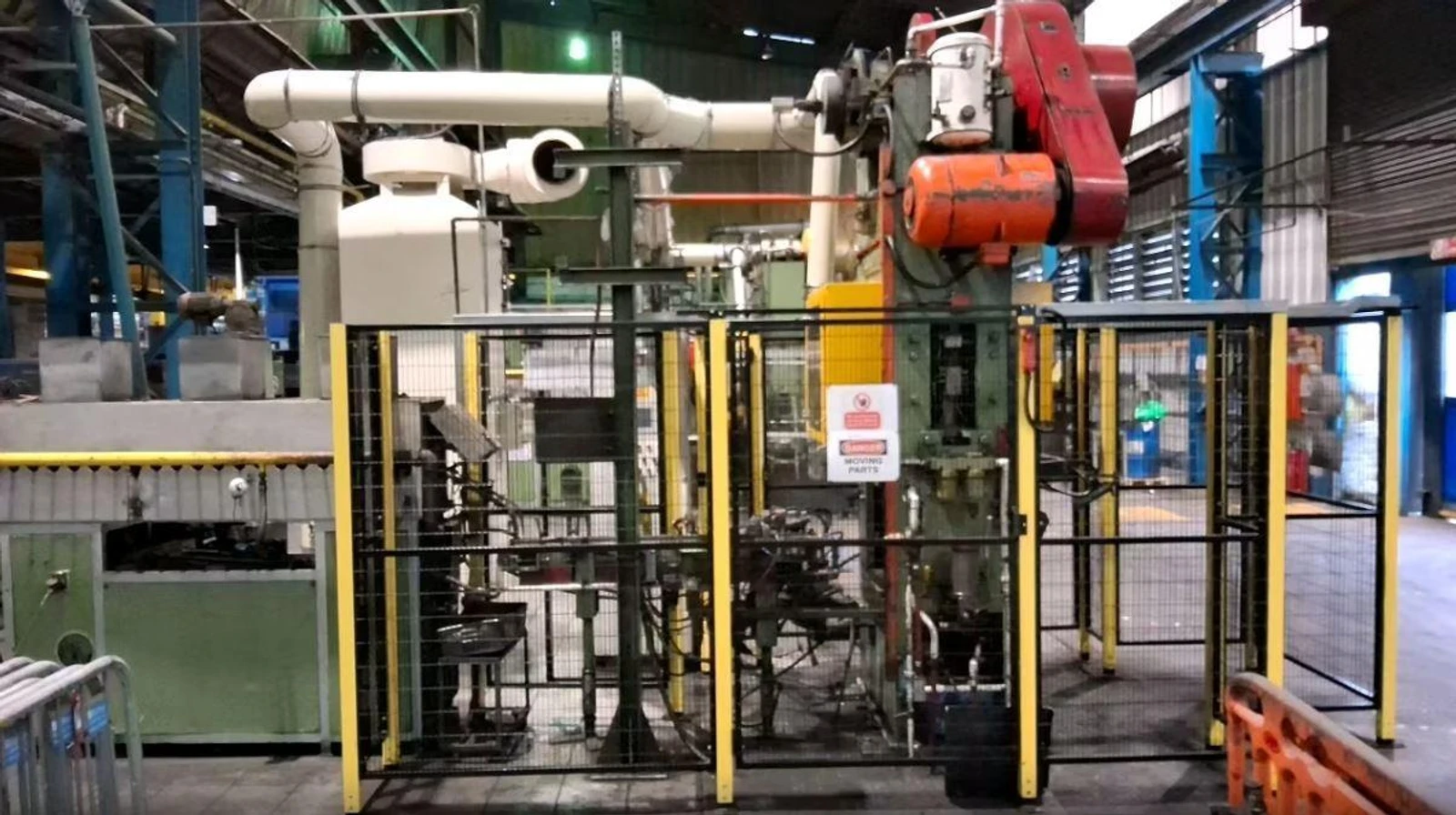

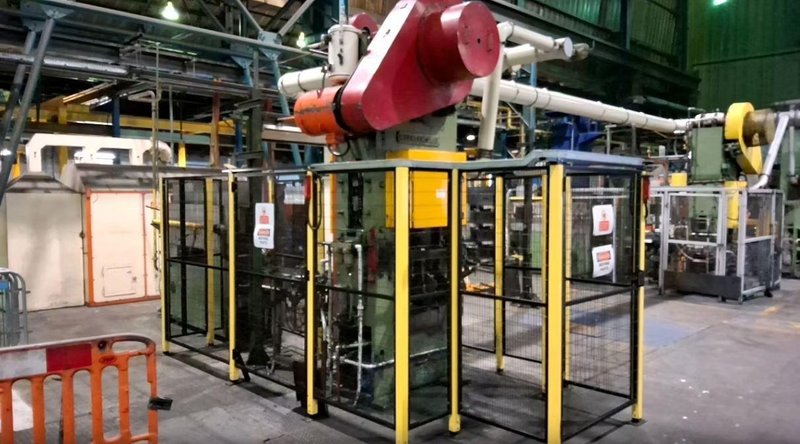

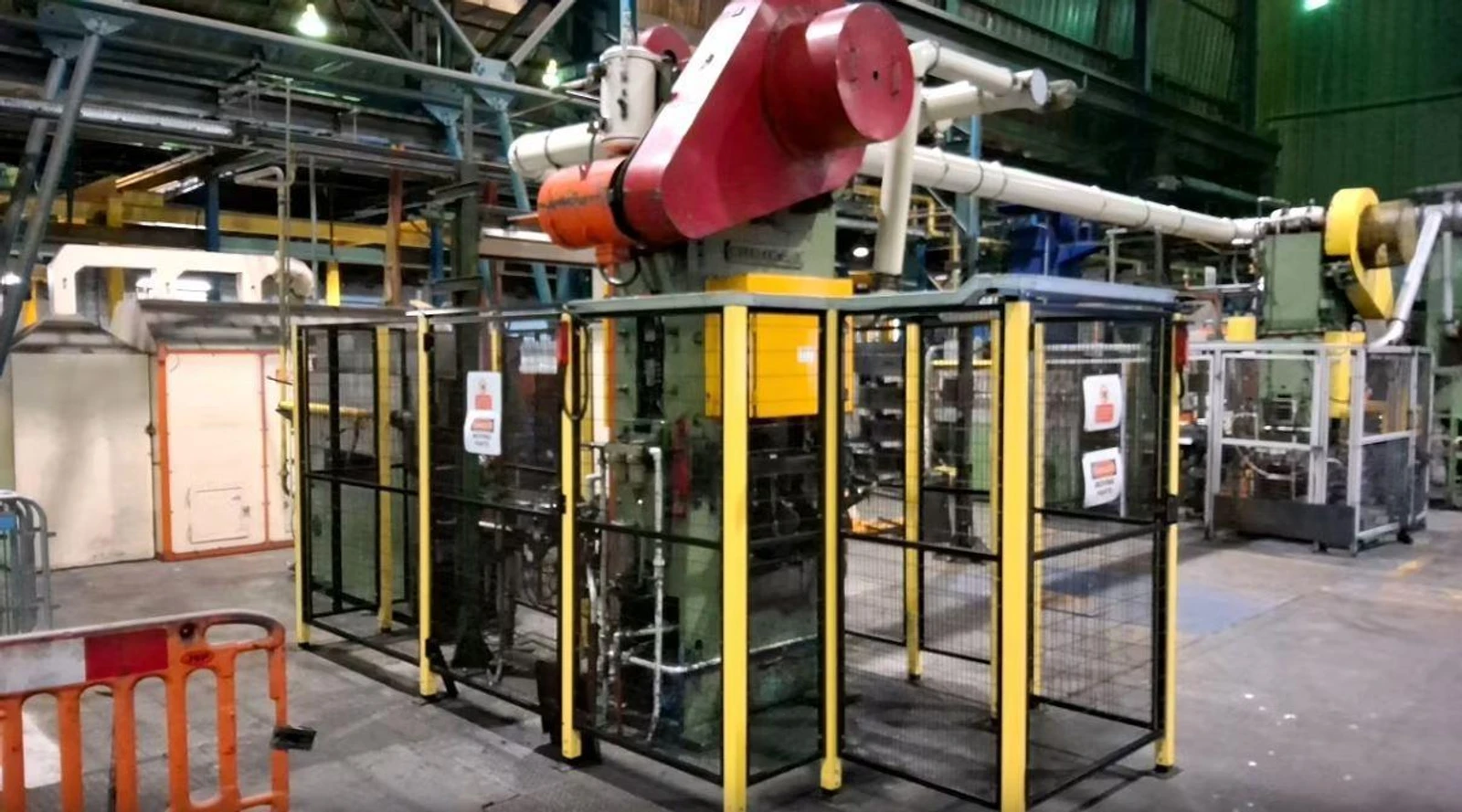

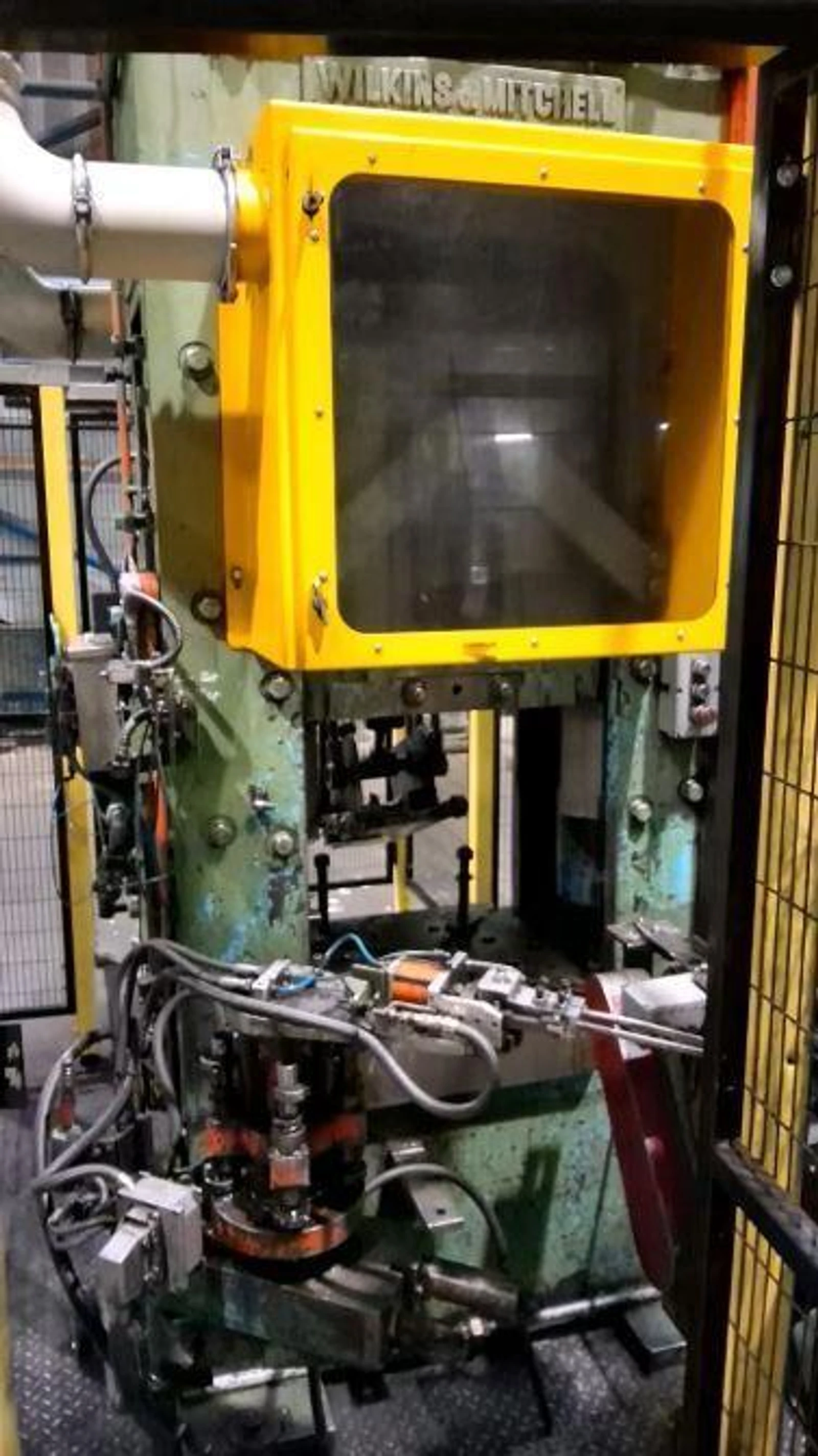

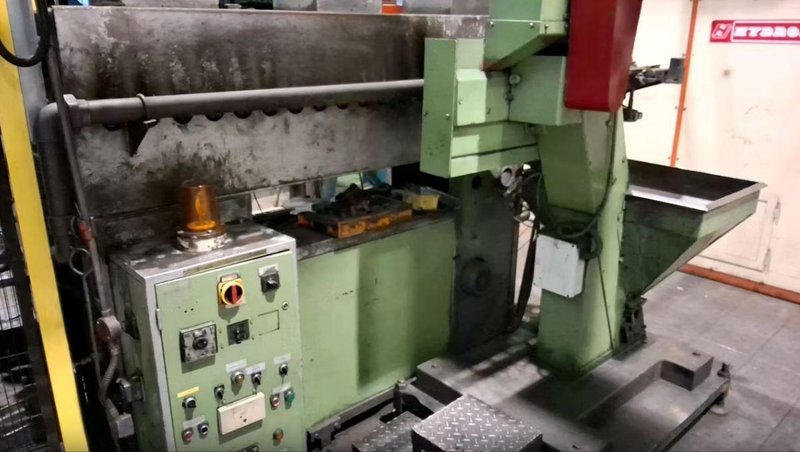

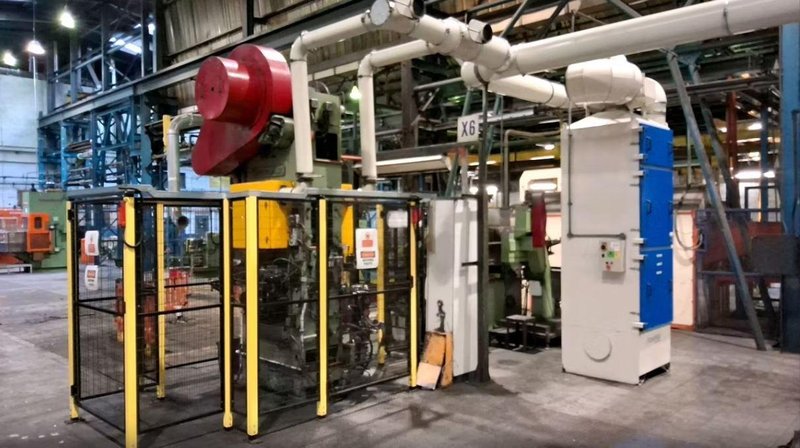

100 TON WILKINS & MITCHELL HOT FORGING PRESS W/ SUB PRESS

100 TON WILKINS & MITCHELL HOT FORGING PRESS W/ SUB PRESS

HOT FORGE PRESS

MANUFACTURER – WILKINS & MITCHELL

CURRENT APPLICATION – HOT BRAS FORGING

TONNAGE – 100 TON

STROKE – 8”

STROKES PER MINUTE – 60

SLIDE ADJUSTMENT – 3”

SHUTHEIGHT – 13” – 16”

SLIDE LEFT TO RIGHT – 20”

SLIDE FRONT TO BACK – 17

BOLSTER LEFT TO RIGHT – 24”

BOLSTER FRONT TO BACK – 25”

BOLSTER THICKNESS – 5 ¾”

WORKING HEIGHT – 29 ¾”

CUSHION CAPACITY – 11 TONS (LONG)

CUSHION STROKE – 4” MAXIMUM

PLATEN LEFT TO RIGHT – 22 ¾”

PLATEN FRONT TO BACK – 17”

HORIZONTANL SPILT DIE SUB PRESS

NUMBER OF SLIDES – 4

PUNCHING AND CORING – YES

DIE SPACE – 150MM X 150MM X 114MM

PUNCHING MAX DIAMENTER – 30MM

PUNCHING MAX STROKE – 63MM

CORING MAXIMUM DIAMETER – 30MM

CORING MAXIMUM STROKE – 27MM

SUB PRESS WEIGHT – 1.25 TONS

INCLUDES

PRESS CONTROLS
