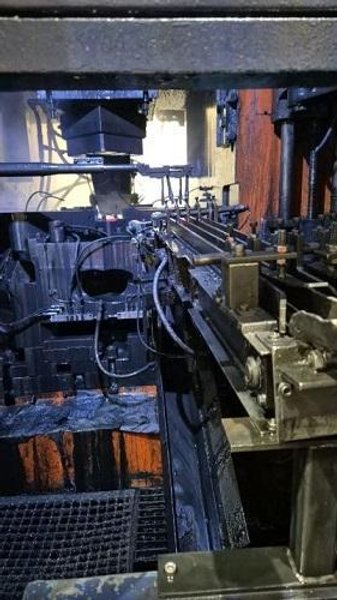

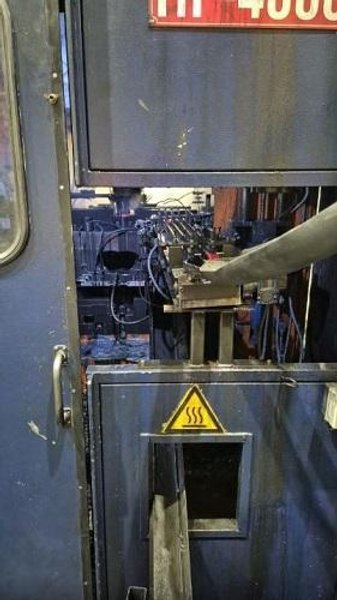

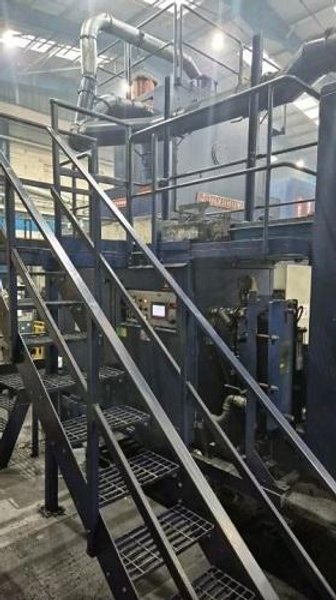

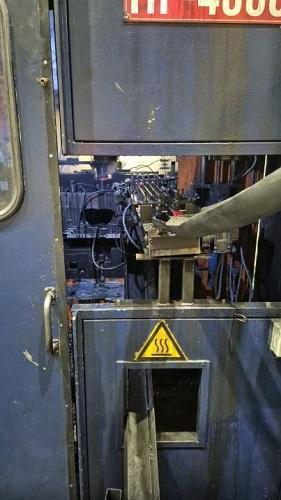

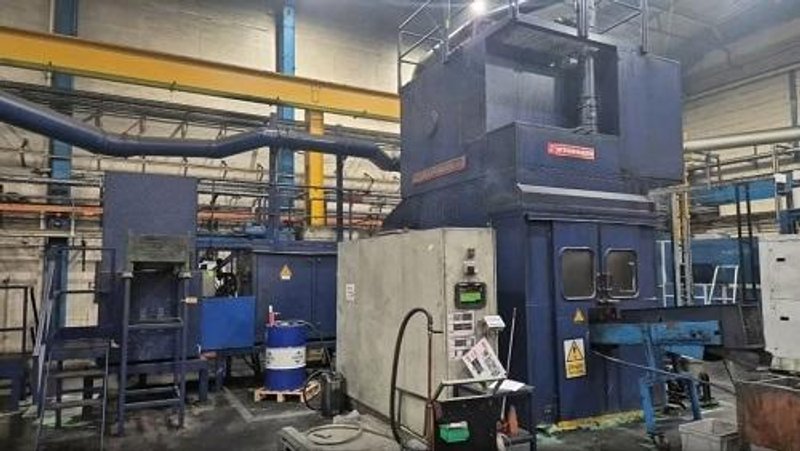

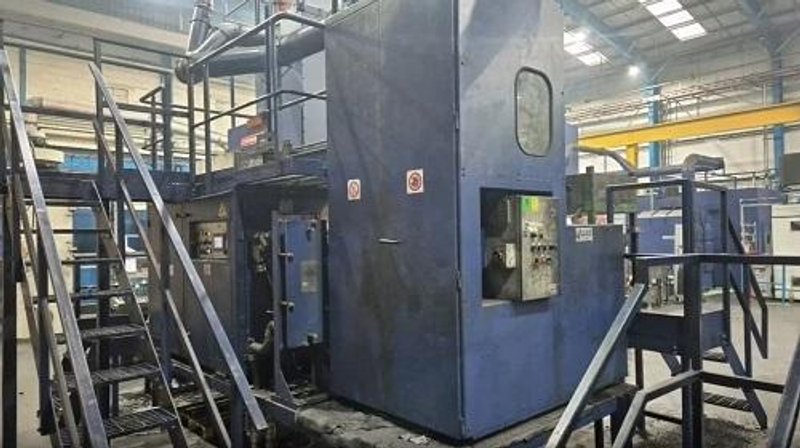

400 TON HF4000 HYDROMEC MECHANICAL FORGING PRESS (1997)
Brand
Category
Type
Model
Not specified
Stock #
116742
Year
1997
Condition
Not specified
Location
Not specified
|

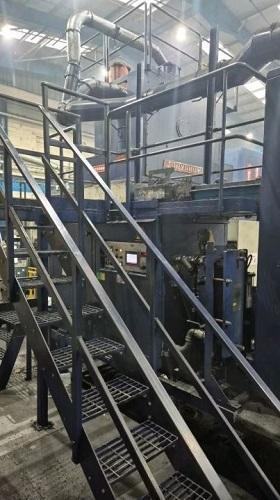

400 TON HYDROMEC HF4000 NON-FERROUS HOT FORGING PRESS LINE
MANUFACTURER - HYDROMEC
YEAR - 1997
SERIAL NUMBER - 445
MODEL - HF4000 C/D
MATERIAL - NON-FERROUS
TONNAGE - 400 TON (4000 KN)
STROKE - 380MM
STROKE PER MINUTE (SINGLE STROKE) - 35-45
RAM ADJUSTMENT RANGE - 100MM
CLEARANCE (STROKE TO BOTTOM, ADJUSTMENT TO TOP) - 865MM
SIZE OF TOOL MOUNTING PLATE - 1000MM X 1000MM
MAIN PRESS MOTOR - 59 KW
MAIN MOTOR RAM ADJUSTMENT - 2.2 KW
CUSHION FORCE - 70 TON (700 KN)
CUSHION STROKE - 40 - 120MM
INCLUDES:

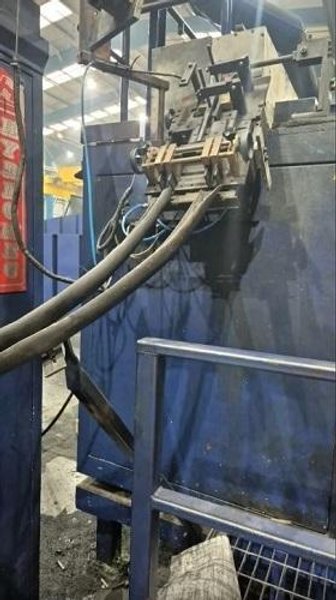

AUTOMATED PICK AND PLACE ROBOT

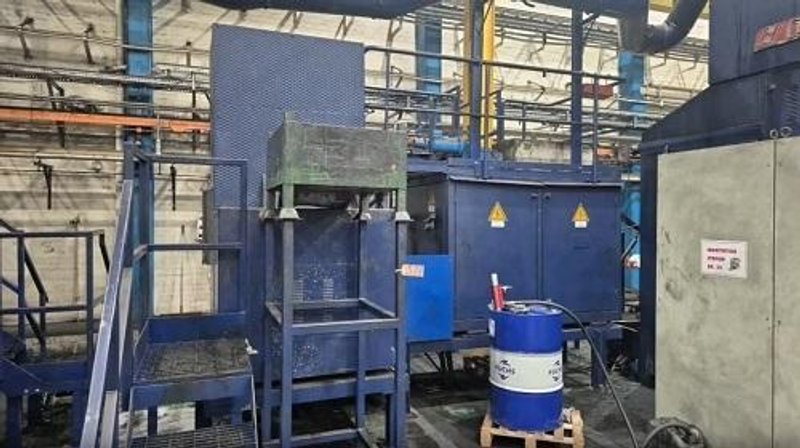

FULLY AUTOMATED SLUG LOADING STATION WITH FURNACE/CONVEYANCE
C.E.F.I. F09 SLUG FURNACE (NEW 1997) , 300 KW POWER
ELECTRICS

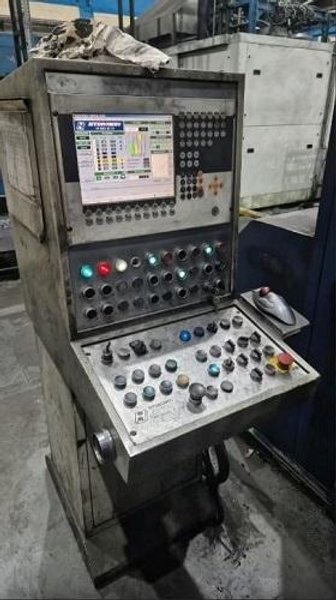

PRESS CONTROLS
|
