15 TON OCN MDL. 3/15.80 SX BAR TO BAR DRAWING LINE - NEW 2009

15 TON OCN MDL. 3/15.80 SX BAR TO BAR DRAWING LINE - NEW 2009

MANUFACTURER – OCN (ITALY)

YEAR – 2009

CURRENT MATERIAL – BRASS BAR

BAR TYPES – ROUND, SQUARE, HEXAGONAL

MAXIMUM SPEED  - 80 MPM

MAXIMUM PULLING FORCE -15 TON

INPUT MATERIAL MINIMUM LENGTH – 3 METER

INPUT MATERIAL MAXIMUM LENGTH – 9 METER

OUTPUT MATERIAL MINIMUM LENGTH – 3 METER

OUTPUT MATERIAL MAXIMUM LENGTH – 4 METER

ROUND BAR DIAMETER – 11MM MINIMUM – 42MM MAXIMUM

HEXAGONAL BAR DIAMETER – 11.1MM MINIMUM – 38.9MM MAXIMUM

CONFIGURATION – RIGHT TO LEFT

LINE COMPONENTS

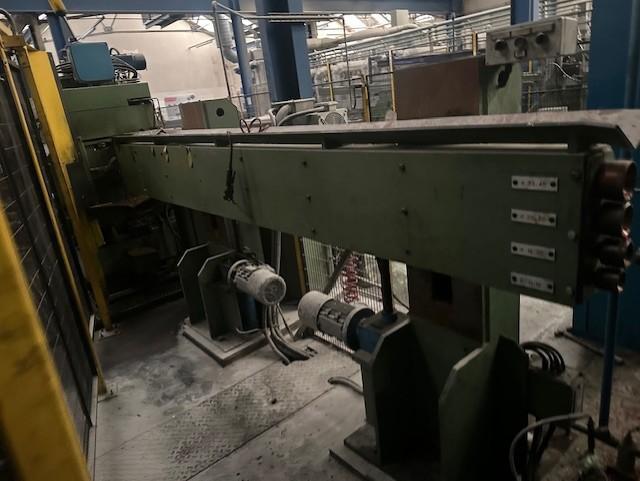

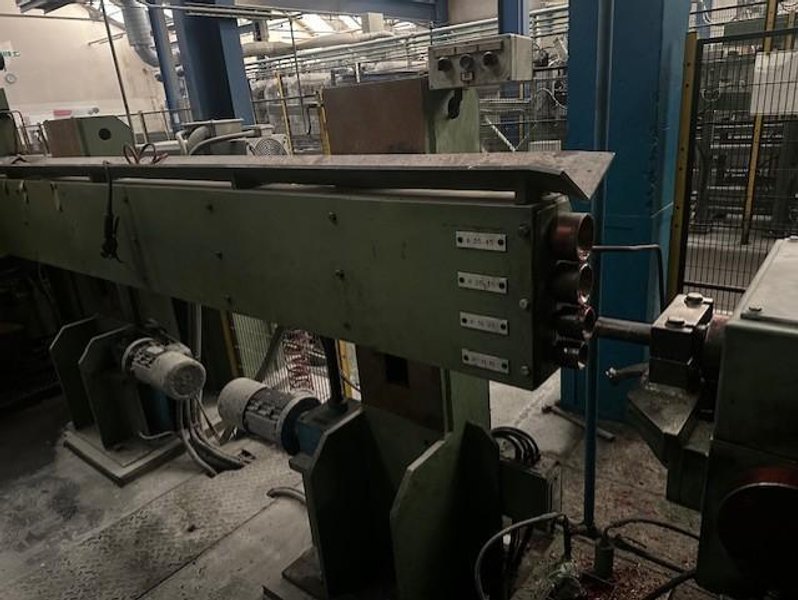

ENTRY FEED TABLES

PUSH POINTER

DRAW BENCH

VERTICAL STRAIGHTENER

HORIZONATAL STRAIGHTENER

PINCH ROLL

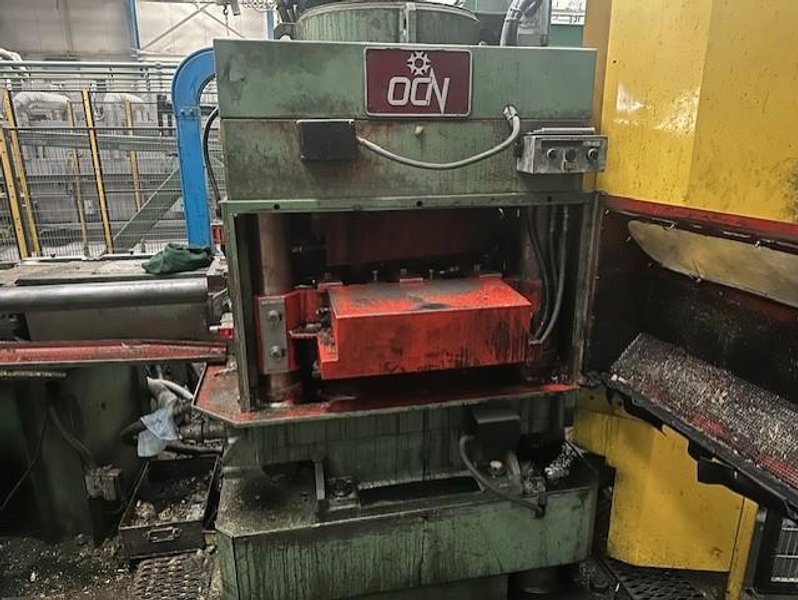

FLYING HYDRAULIC IMPACT CUTOFF

4-POSITION BAR GUIDE TABLE

PINCH ROLL

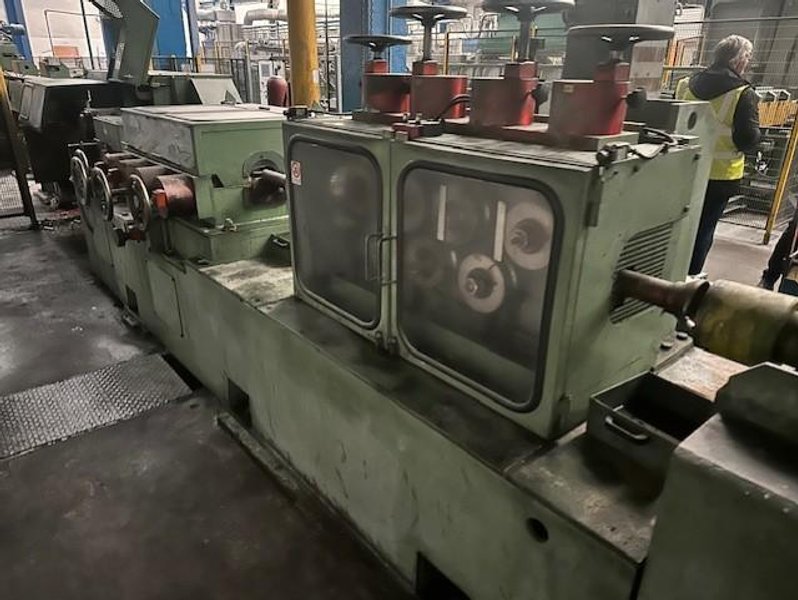

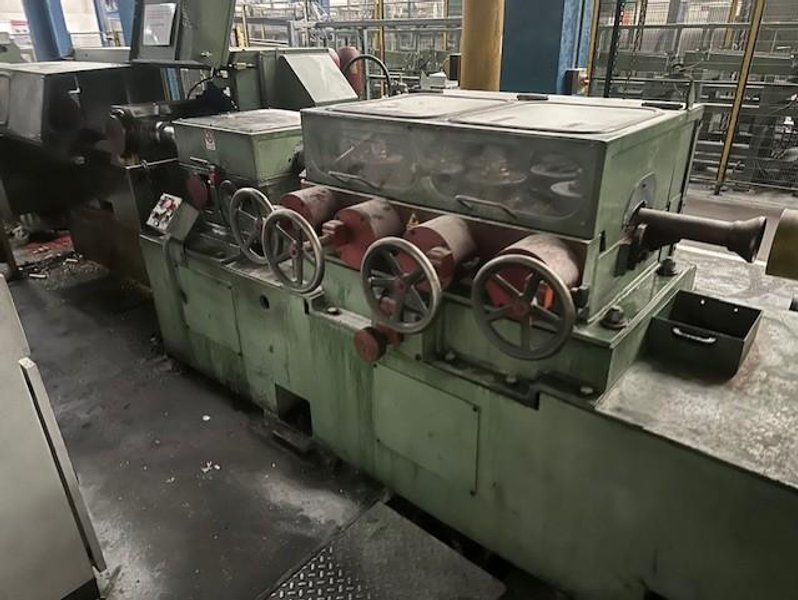

2R/2M POLISHER/STRAIGHTENER

EXIT COLLECTING TABLE

(2) FINISH SAWS

CHAMFERING UNIT (RIGHT SIDE)

UNLOAD TABLE

OPERATORS DESK / CONTROLS
