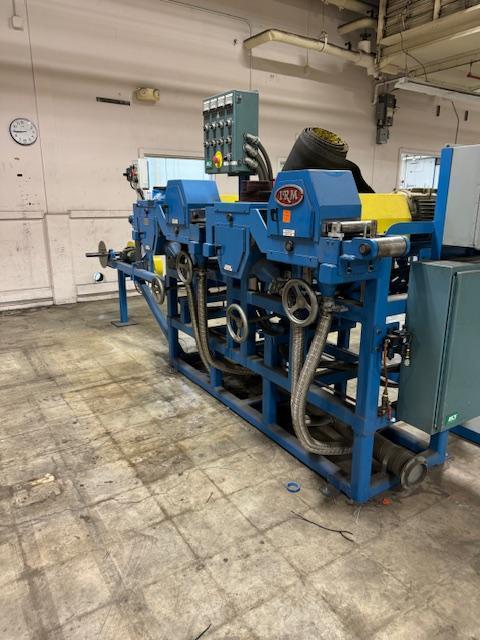

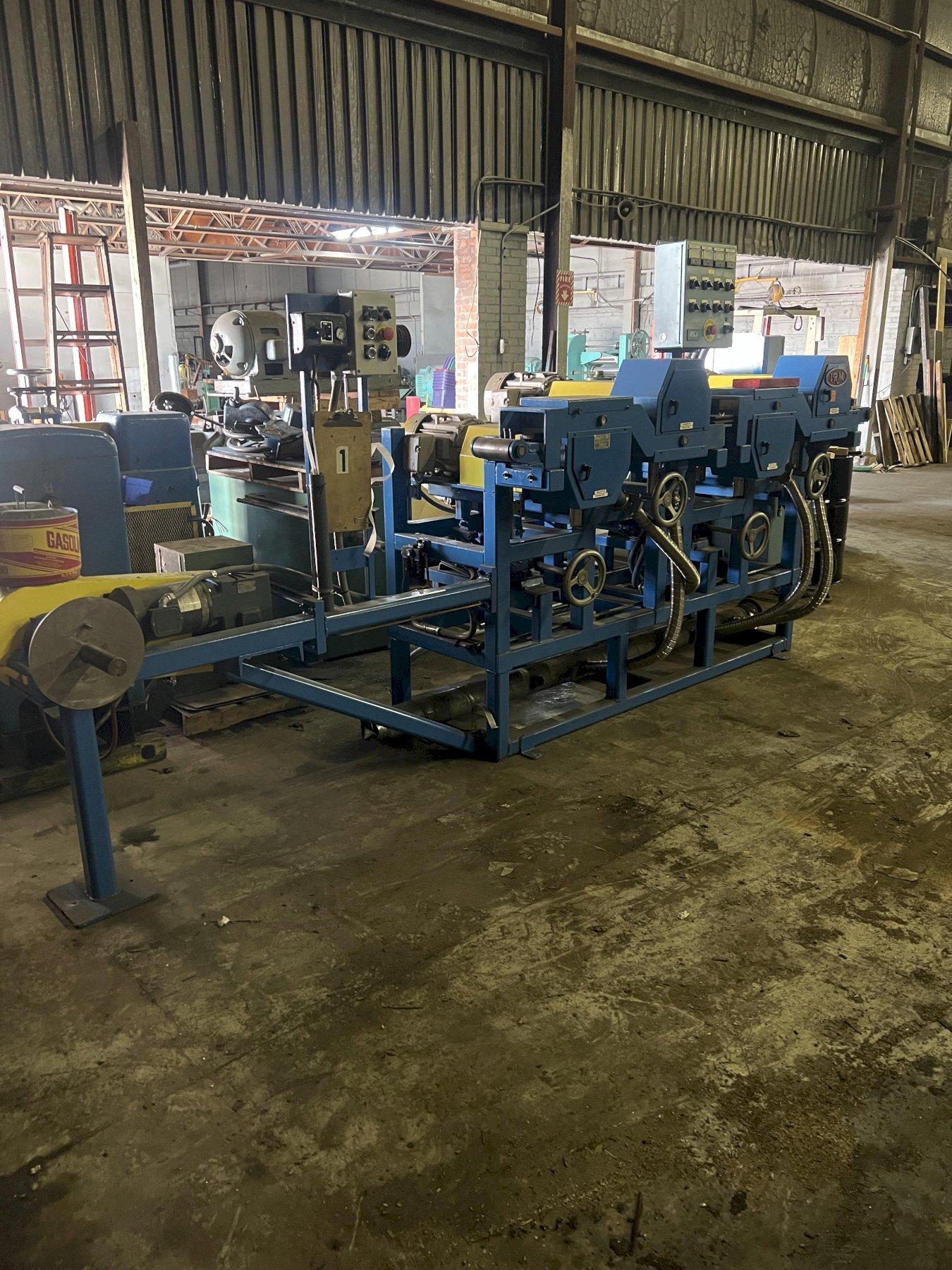

IRM Four Head Brushing Machine with Recoiler

IRM Four Head Brushing Machine with Recoiler

Maximum Strip Width: 4”

Approx. Thickness Capacity: 0.125”

Brushing Heads: Four, (2) Top , (2) Bottom, 2” Diameter Hardened Shafts

Brush Size: 6”OD with 2” ID

Wire Supporting Rolls: Height adjustable 6” diameter made of hardened tool steel & chromed.

Brushing Motor Power: (4) 7.5 HP, 3500 RPM Motors, 220 Volts

Recoiler Capacity: 1,500 lbs
Recoiler Station:Shaft Size; 1-15/16"
Recoiler Motor Power: 1.5 HP DC Motor & Control 0-50 FPM

Each brushing head is fitted with an AMP meter to indicate the amount of contact force on the material.
Adjustable strip guides are installed through the pass line.
Machine is equipped with a 5” diameter pipe for future installation of a dust collector
A 10” air clutch will provide adjustable re-coil tension from a central operating station.
All heads are controlled from one central operating station and are also reversible for sharpening.
