Capacity: Distance Between Centers : 1600mm (63″) Center Height : 225mm (8.86″) Weight Between Centers : 250kg (551 lbs) Strokes (Z/X) : 1.750 x 350mm (68.9″ x 13.78″) Feeds Max. (Z/X) : 20.000 mm/min (787 ipm)

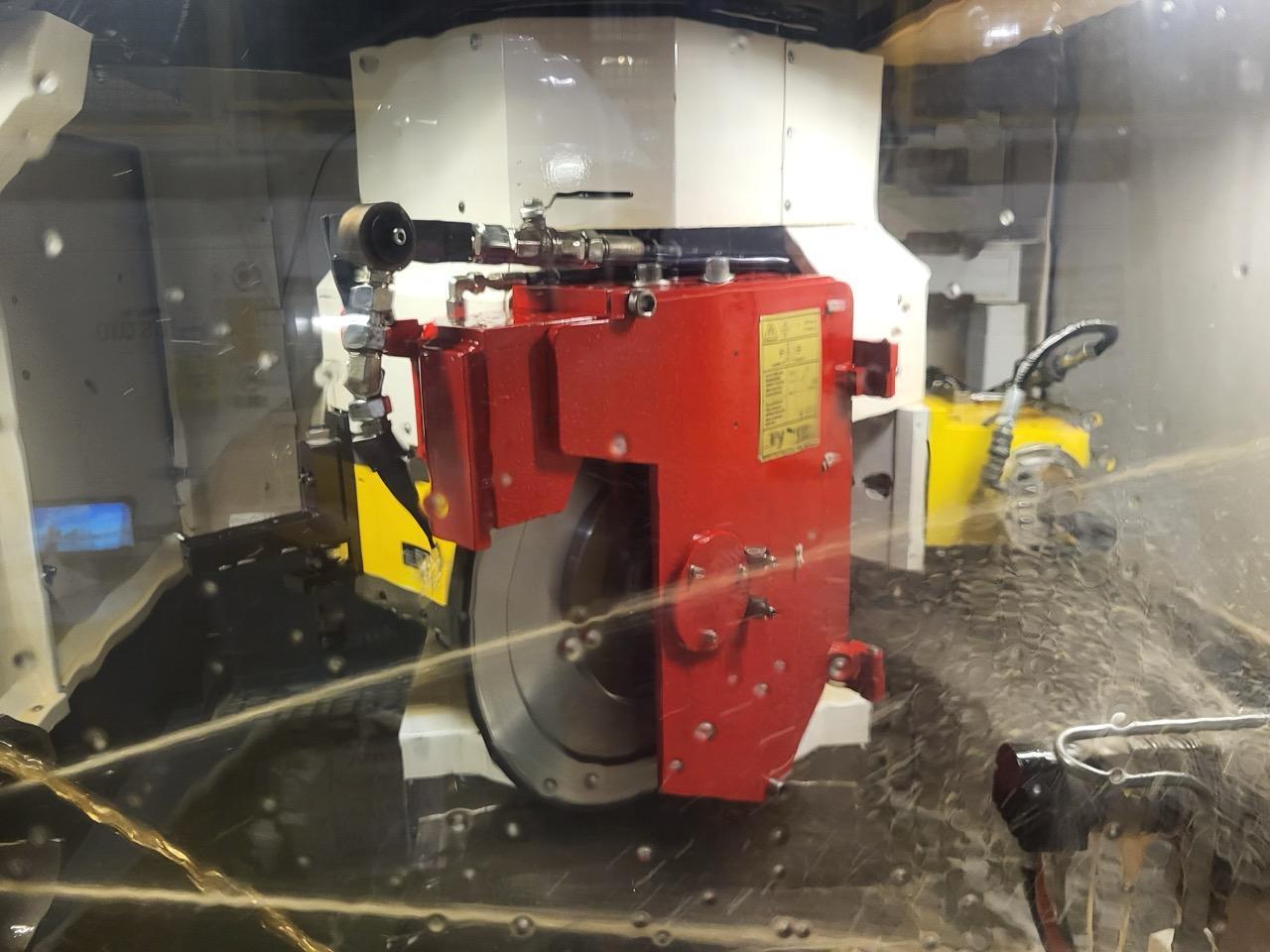

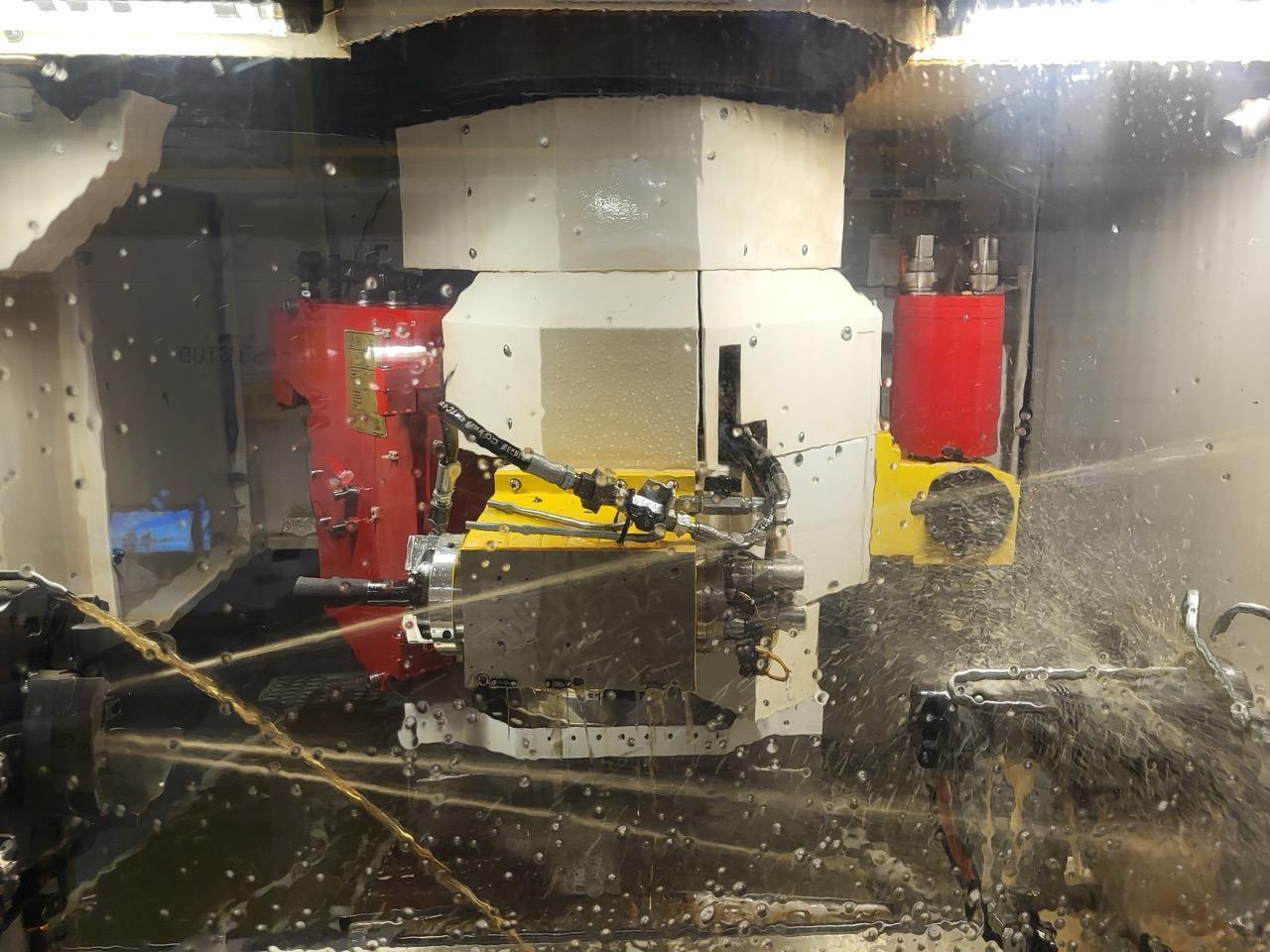

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wheelhead: Type : 2 OD wheels (left/right), 2 ID spindles Stroke B-Axis : -45° / +225° Indexing Precision B-Axis : 0,001° Wheel Dimensions (Ø x width x bore) T1 : 500 x 80 x 203 mm (19.69″x3.15″x7.99″) Wheel Dimensions (Ø x width x bore) T2 : 500 x 80 x 203 mm (19.69″x3.15″x7.99″) Motor Power : 15 kW (20 hp) Wheel Speeds : 750 – 4.500 rpm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Workhead: Type : direct drive Type of Cone: ISO 50 Speeds : 1 – 1.500 rpm Power : 10 kW (13 hp)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tailstock: Type of Cone: MT4 Quill Stroke : 80mm (3.15″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: Floor Space : 5.200 x 3.800 mm (204.7″x149.6″) Height : 2.107 mm (82.96″) – weight : 10.200 kg (22.487 lbs)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrics: Voltage : 400 V Frequence : 50 Hz Installed Power : 30 kVA

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
