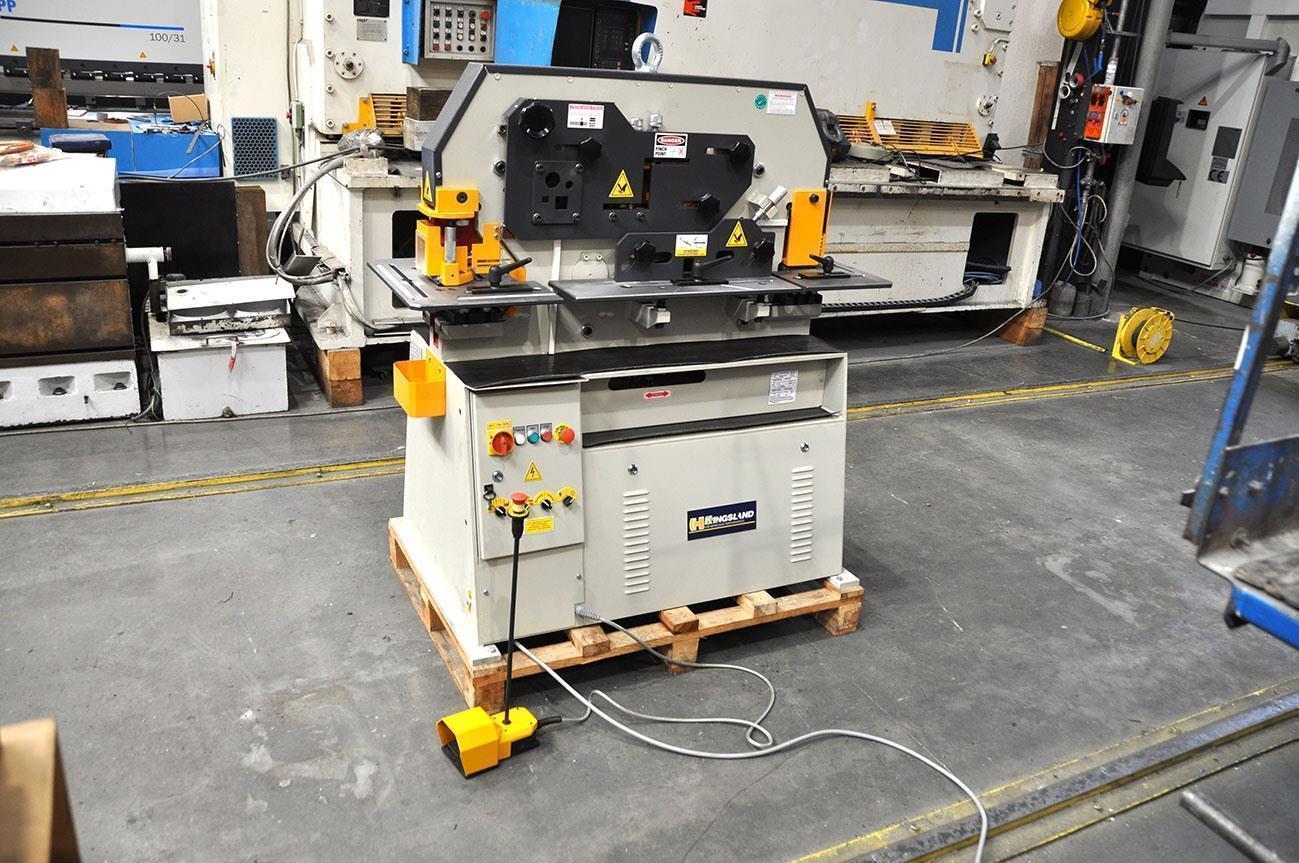

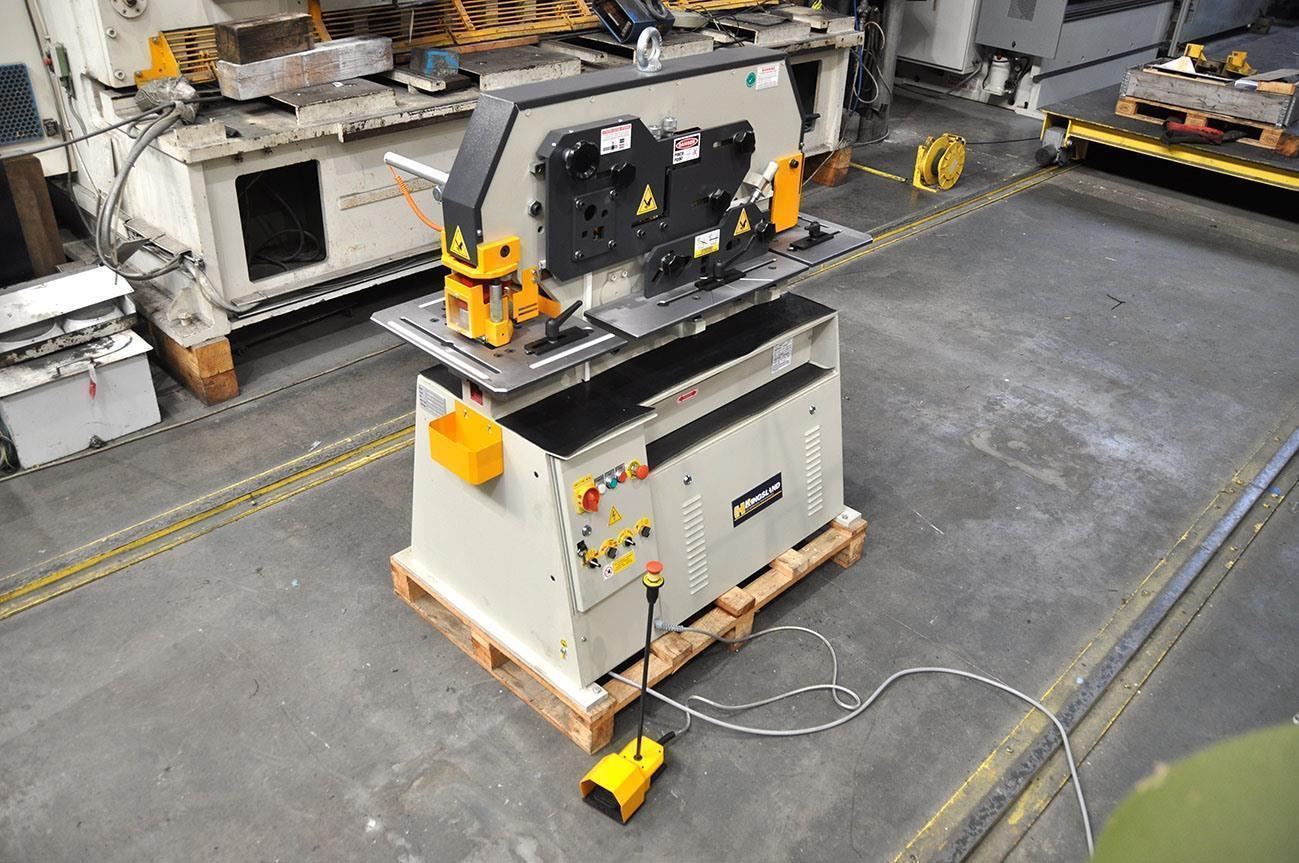

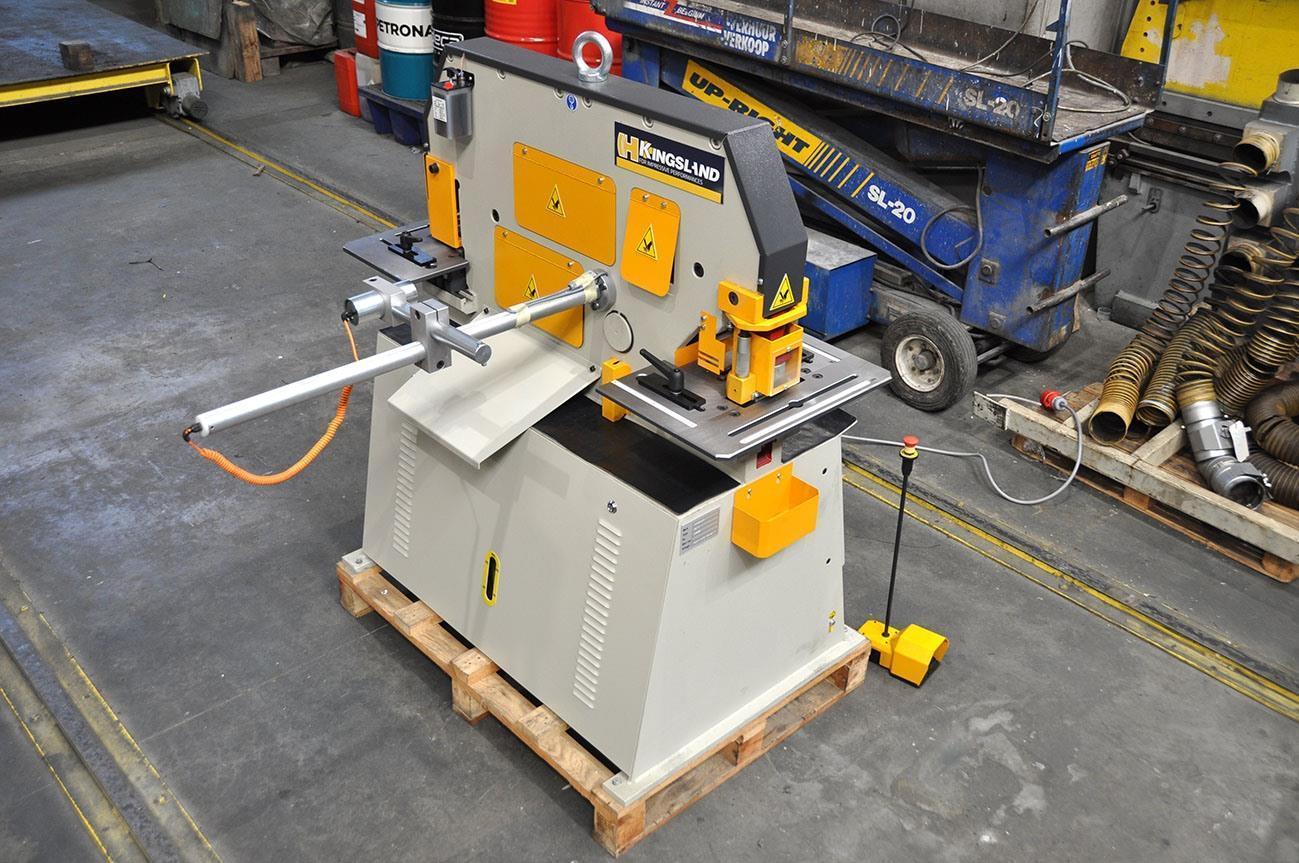

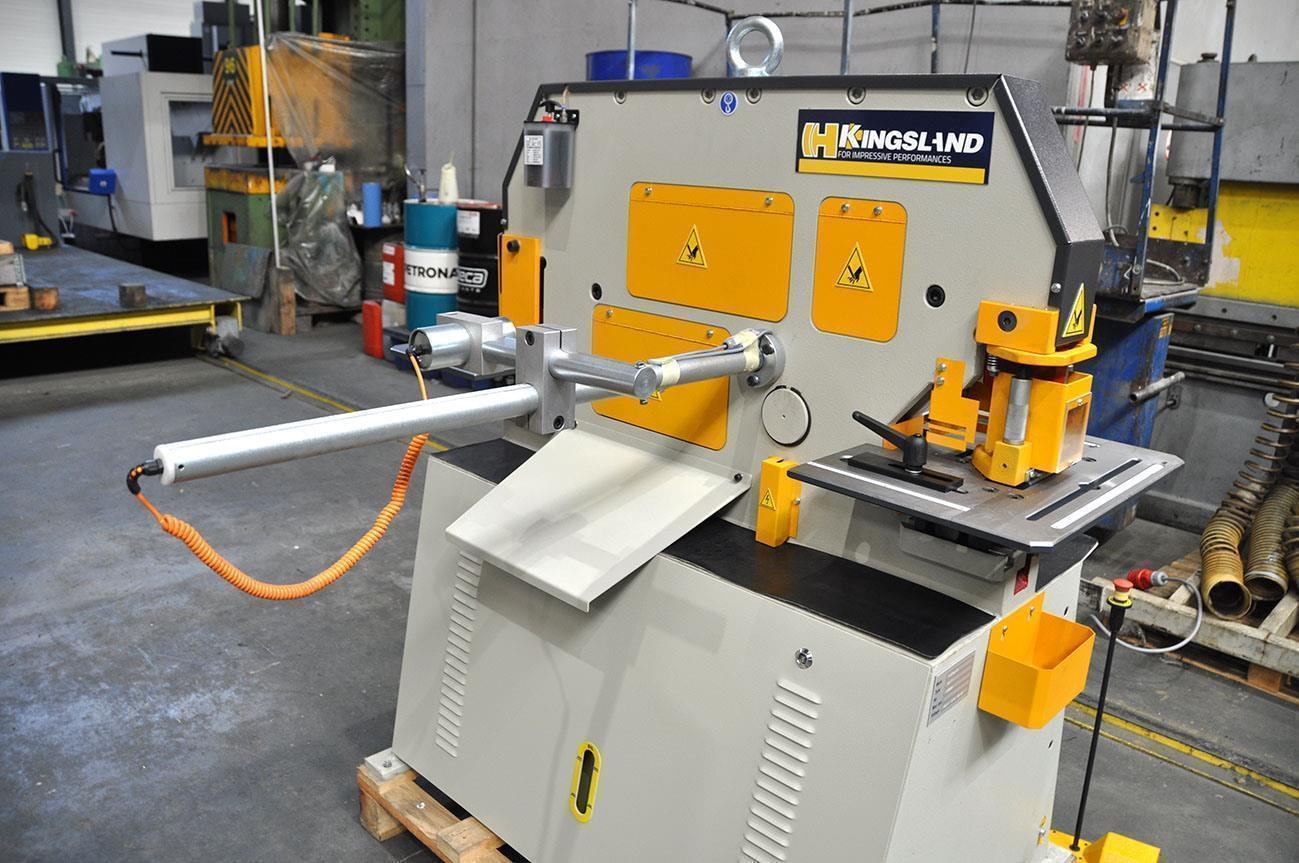

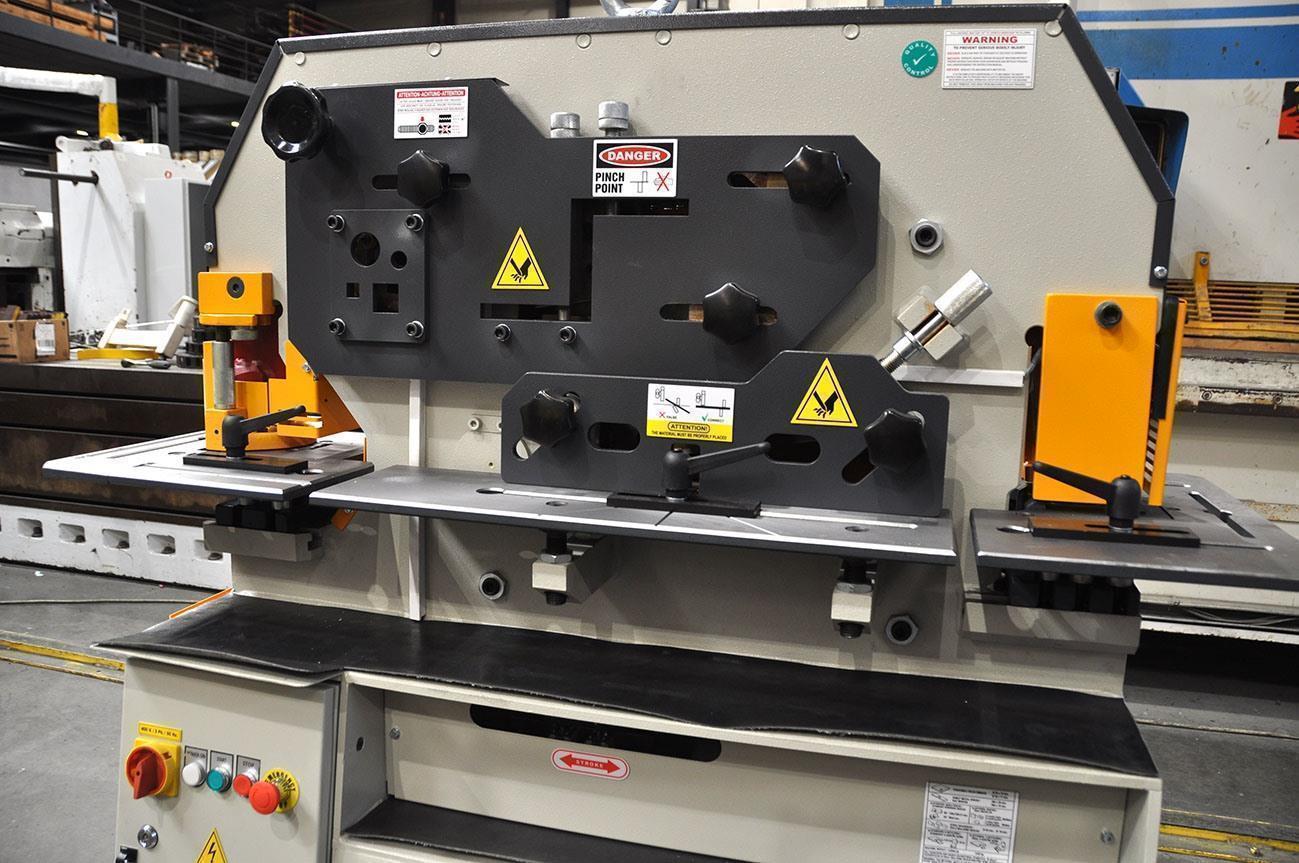

Kingsland 60 ton

Brand
KINGSLAND
Category
Punching Equipment
Type
Ironworkers
Model
60 ton
Stock #
P.13 10842
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

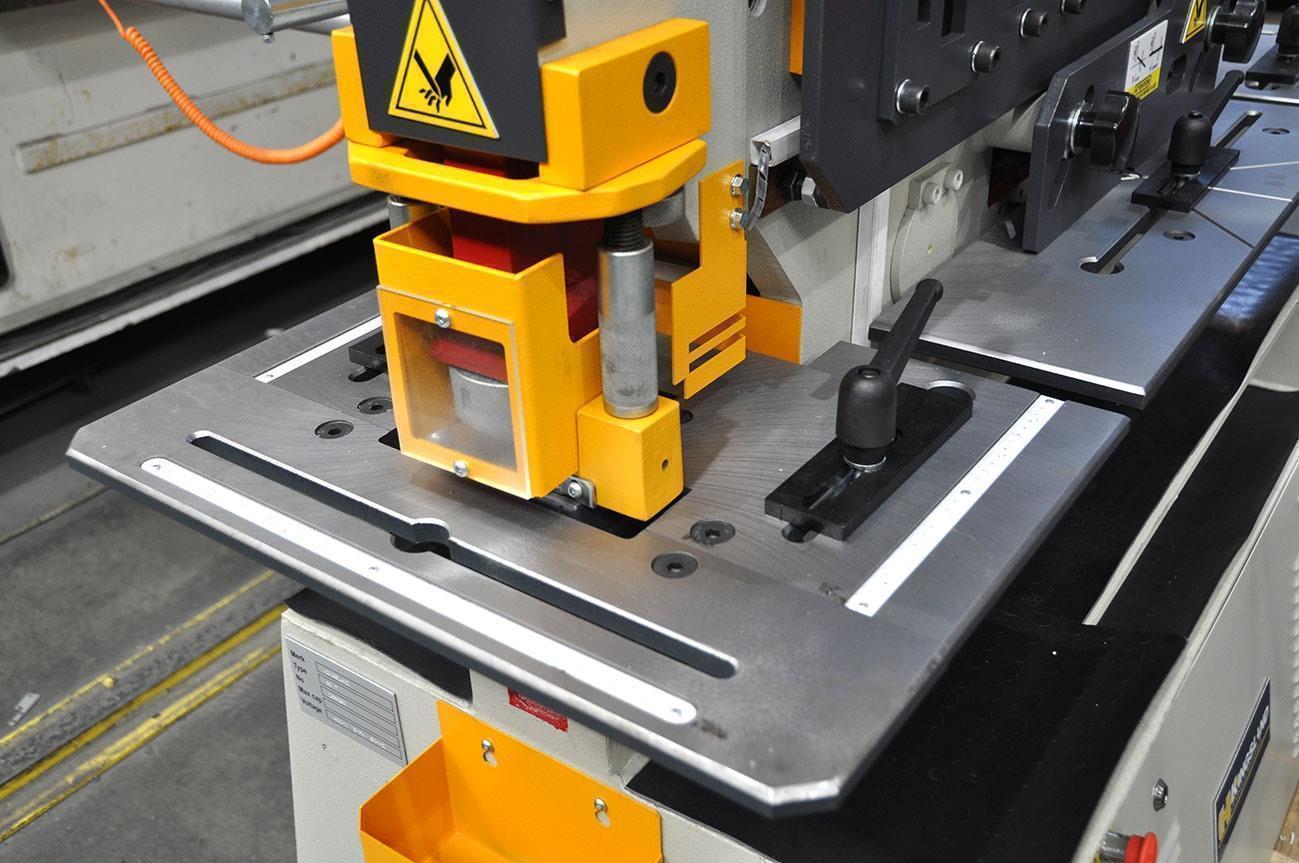

  • Punchingcapacity 60 ton
  • Dia x sheetthickness 28 x 15 mm
  • Max course 55 mm
  • Strokes/min 26 str/min
  • Depth of throat 220 mm
  • Max hole dia. 110 mm
  • Work level 940 mm
  • Max cutting-thickness in plate 200 x 20 / 310 x 15 mm

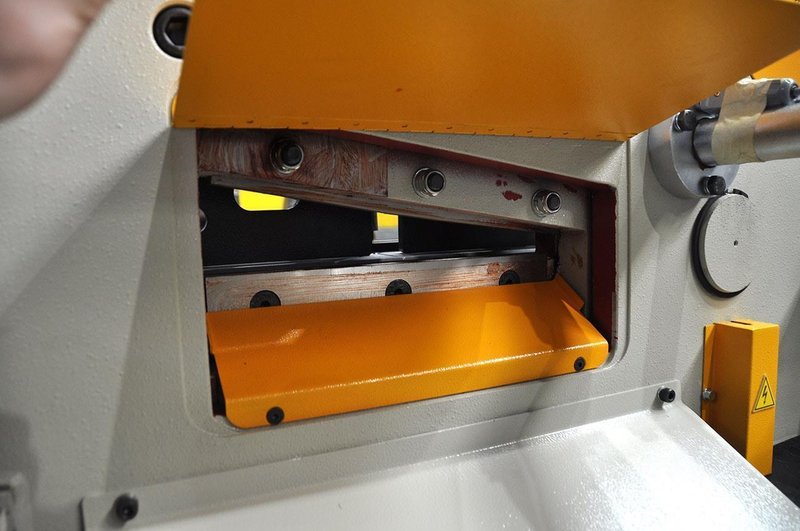

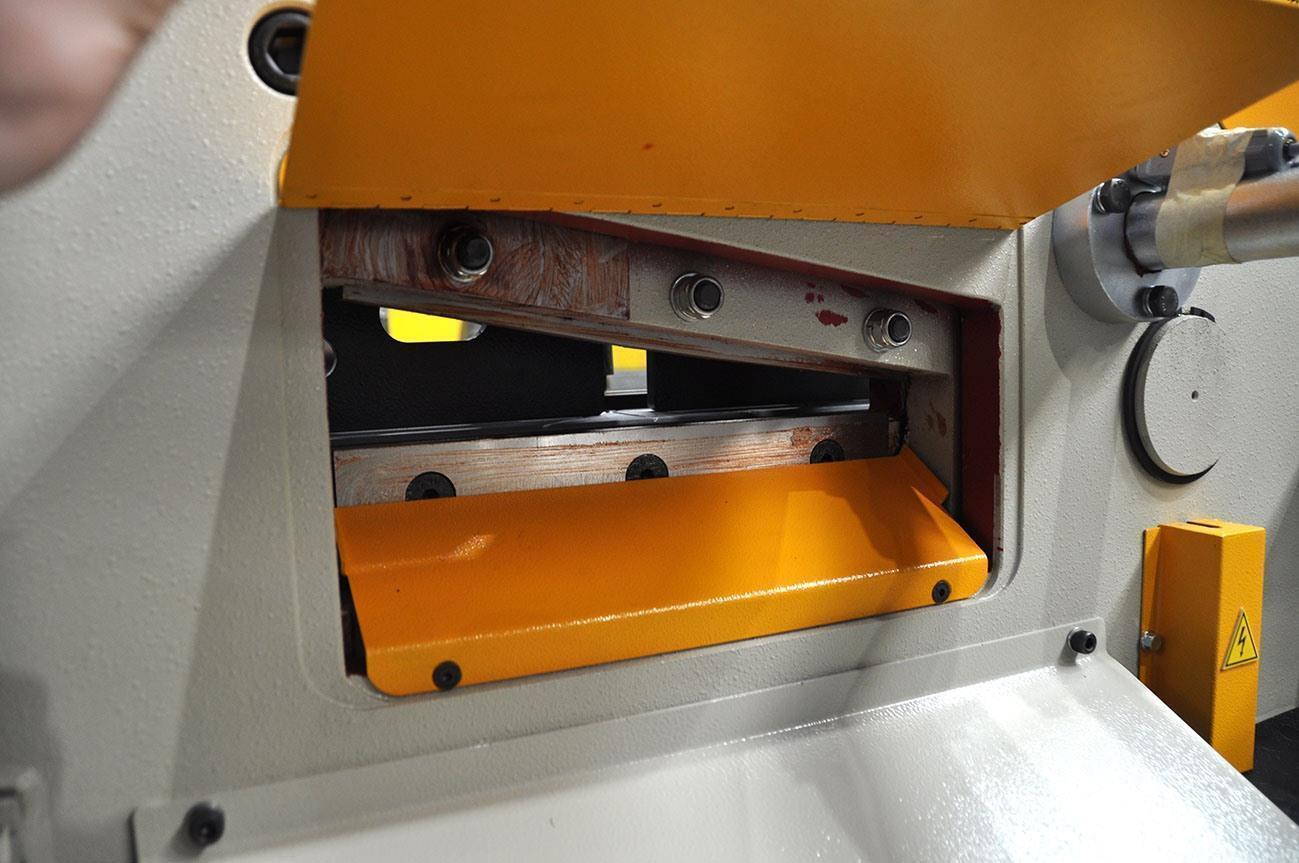

  • Blade length 380 mm

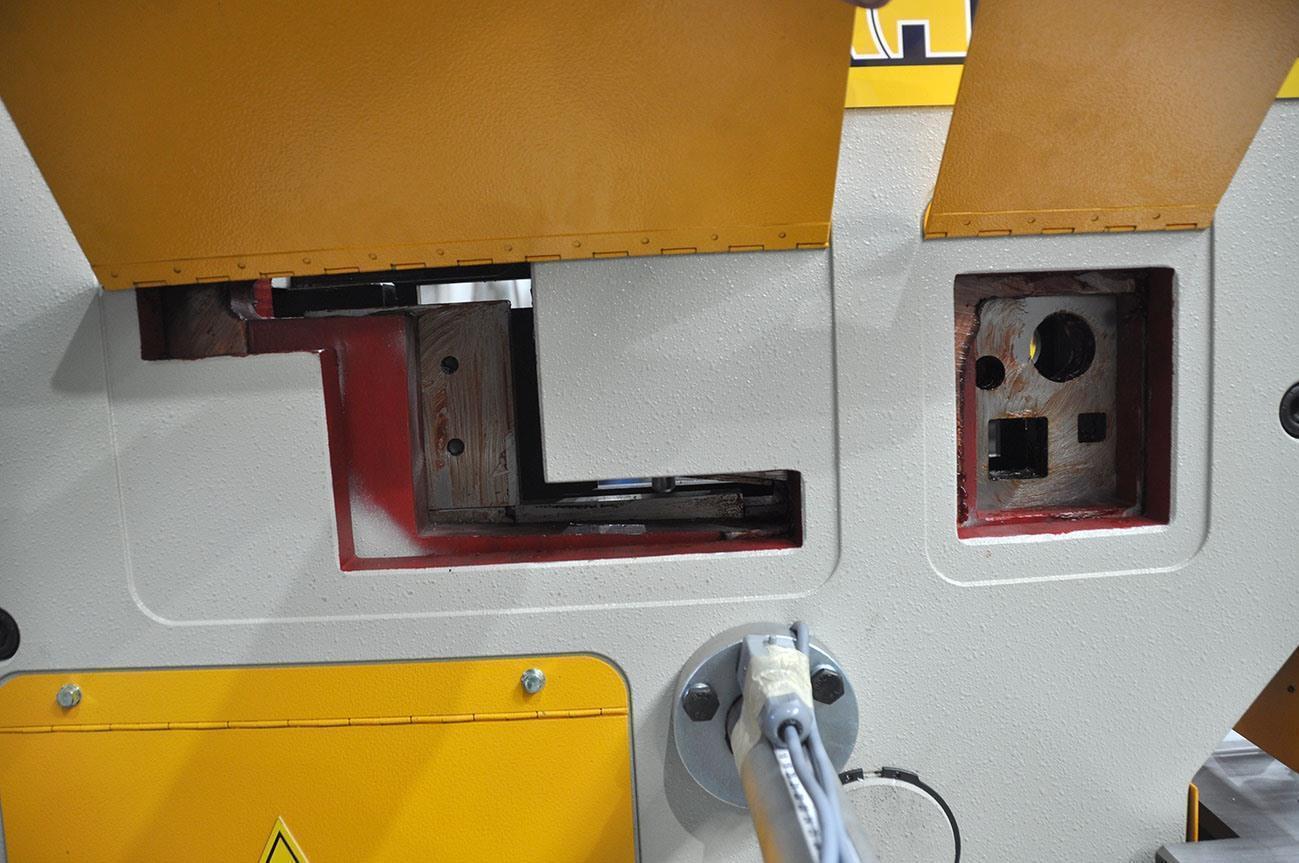

  • 90°-cut 120 x 120 x 12 mm
  • 45°-cut 80 x 8 mm
  • Work level 1140 mm
  • Cut to length round/square 40 / 35 mm
  • Cut to length UFN/IPN profiles 102 x 51 mm
  • Cut to length Profile T 80 x 10 mm
  • Max material -thickness by notching 10 mm
  • Max wide by notching 42 mm
  • Depth V-profile / rectangle 100 mm
  • Electric motor (power) 4 kW
  • Length 1510 mm
  • Depth 590 mm
  • Height 1570 mm
  • Weight 1250 kg

Additional info

  • Tooling is the same as Geka / Kingsland
    Standard punch is dia 22 mm

    punching cap: dia 28 x 15 mm / dia 38 x 11 mm
    cutting cap: 200 x 20 mm / 300 x 15 mm
    angle shear cap: 90° 120 x 120 x 12 mm / 45° 80 x 8 mm
    steel bar shear cap: dia 35 / 40 mm
    notching cap: 100 x 42 x 10 mm


    Bending examples with bending dia (optional): 250 x 15 mm / 500 x 3 mm
