Jaespa - Ø 1600 mobile bandsaw for large workpieces

Name: Jaespa - Ø 1600 mobile bandsaw for large workpieces
Brand: JAESPA
SKU: L.03 12712
Availability: PreOrder

Brand

JAESPA

Not specified

Located in Deinze, Belgium

Technical information

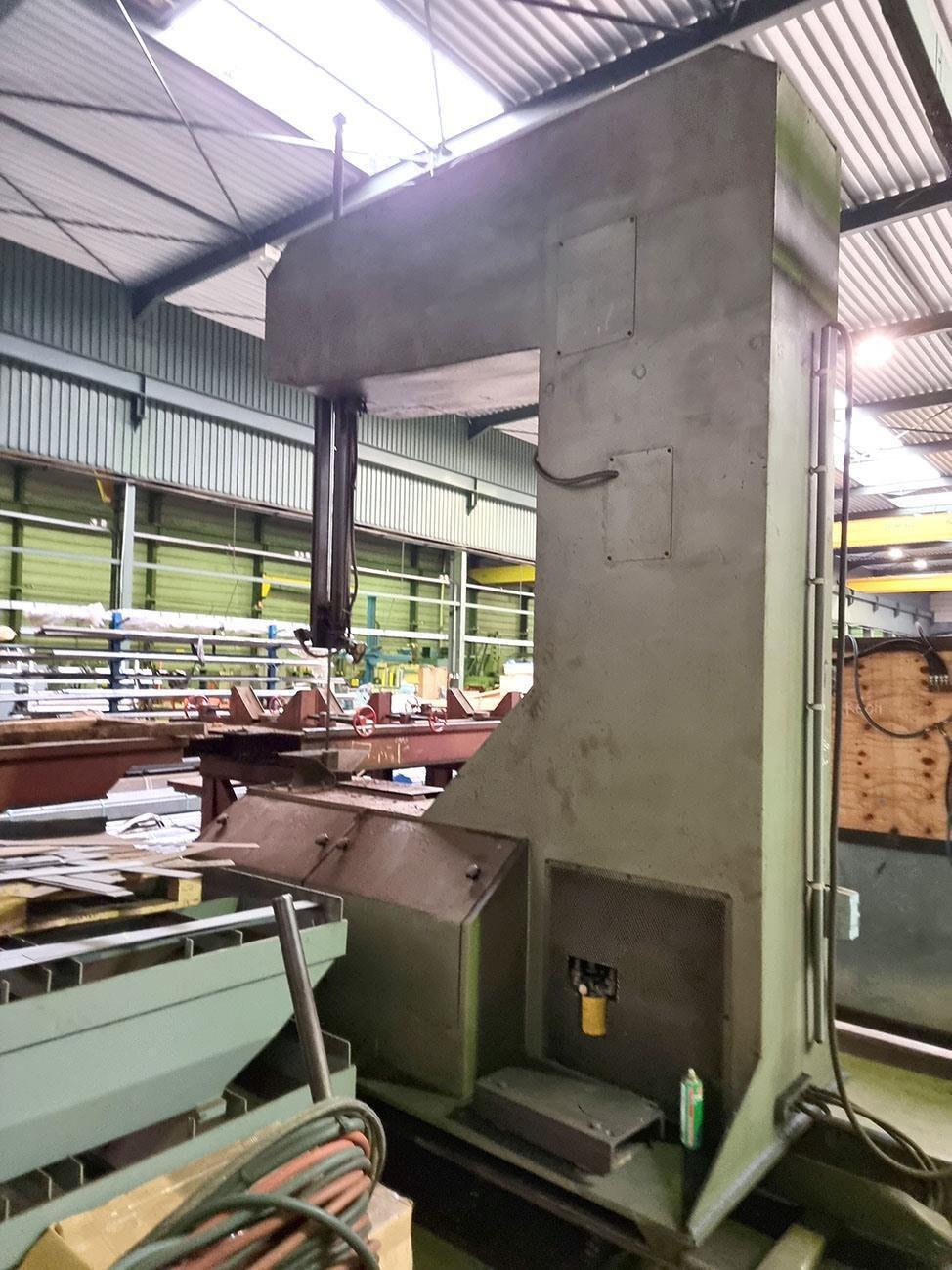

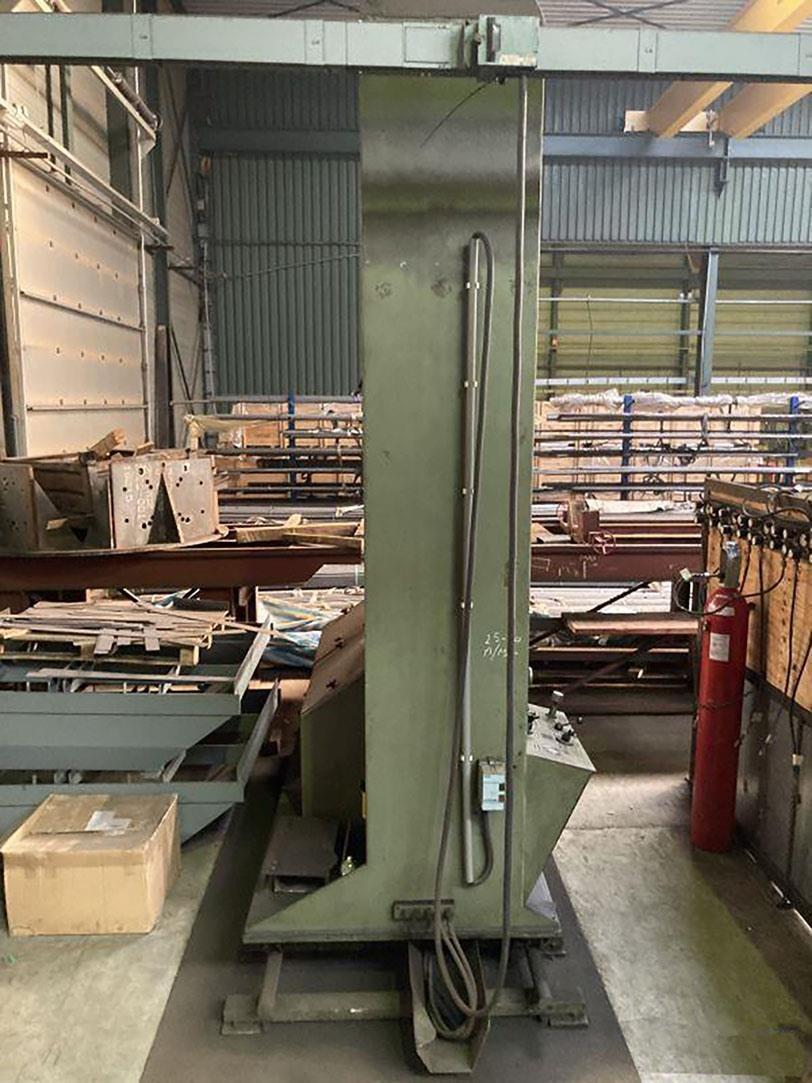

JAESPA ASH-15/S - VERTICAL METAL BANDSAW MACHINE

APPLICATION:

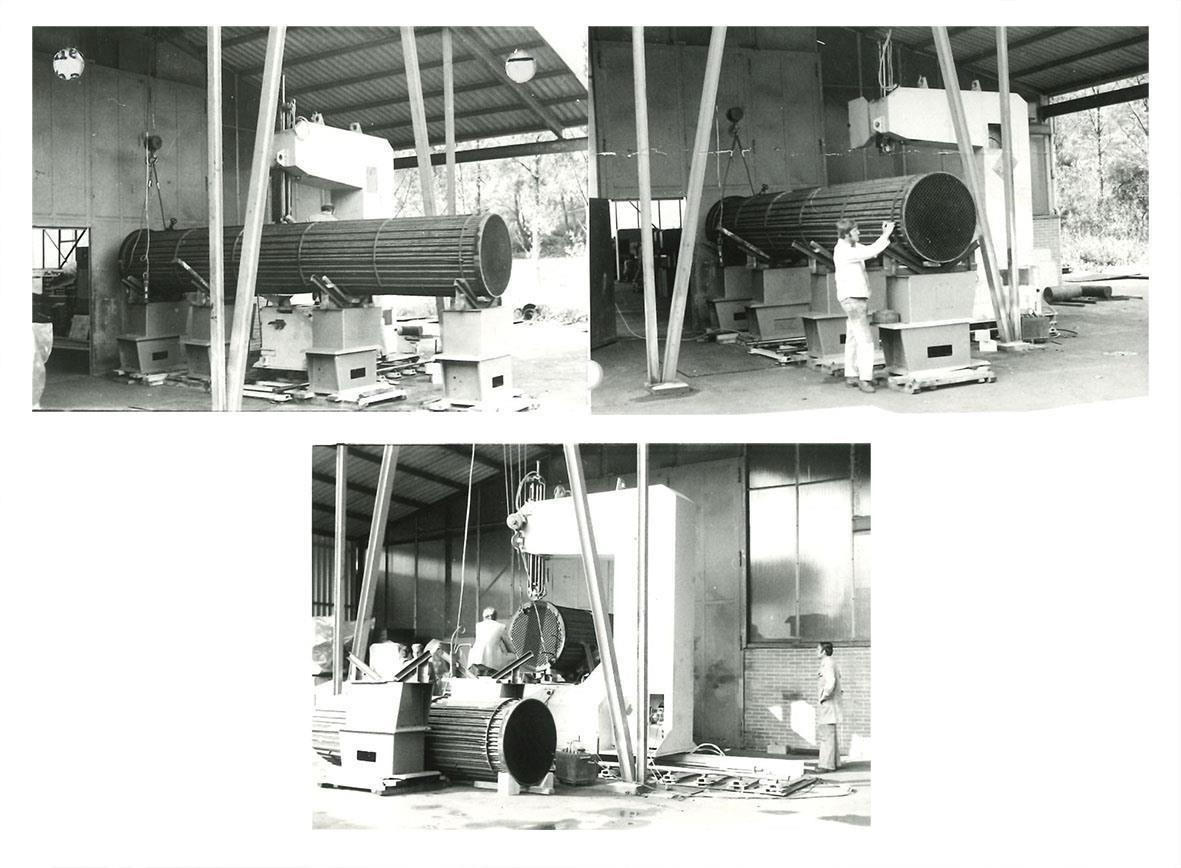

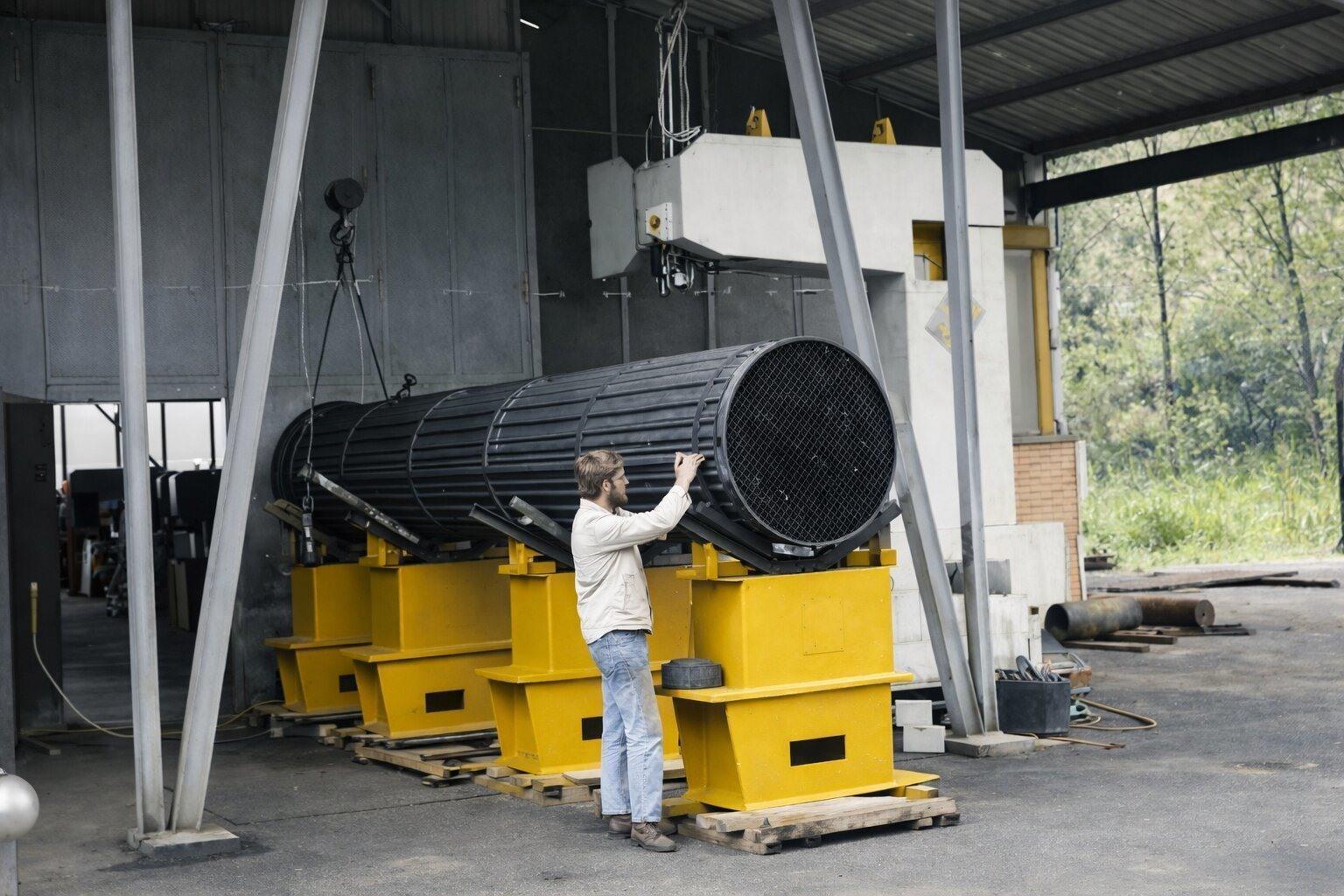

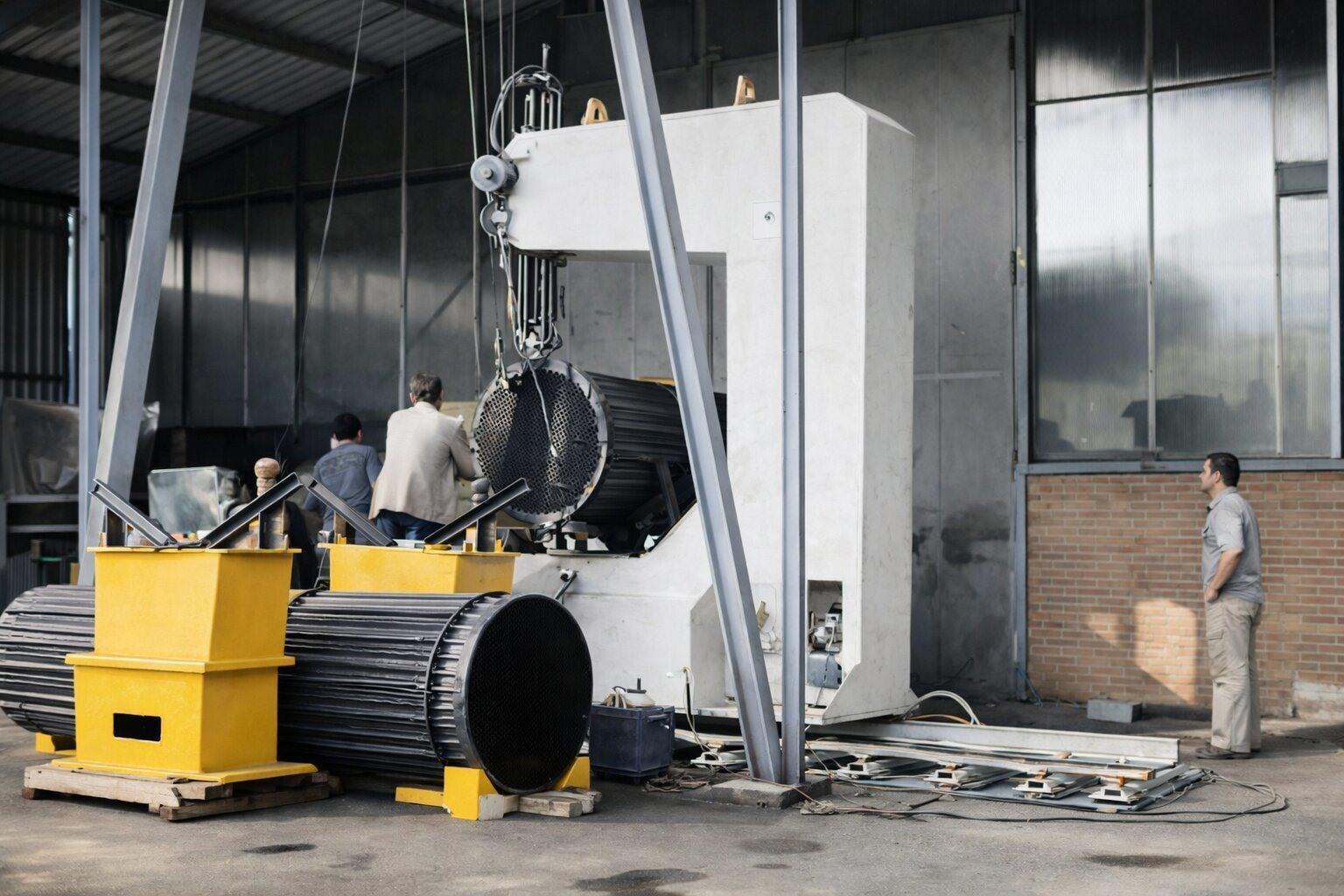

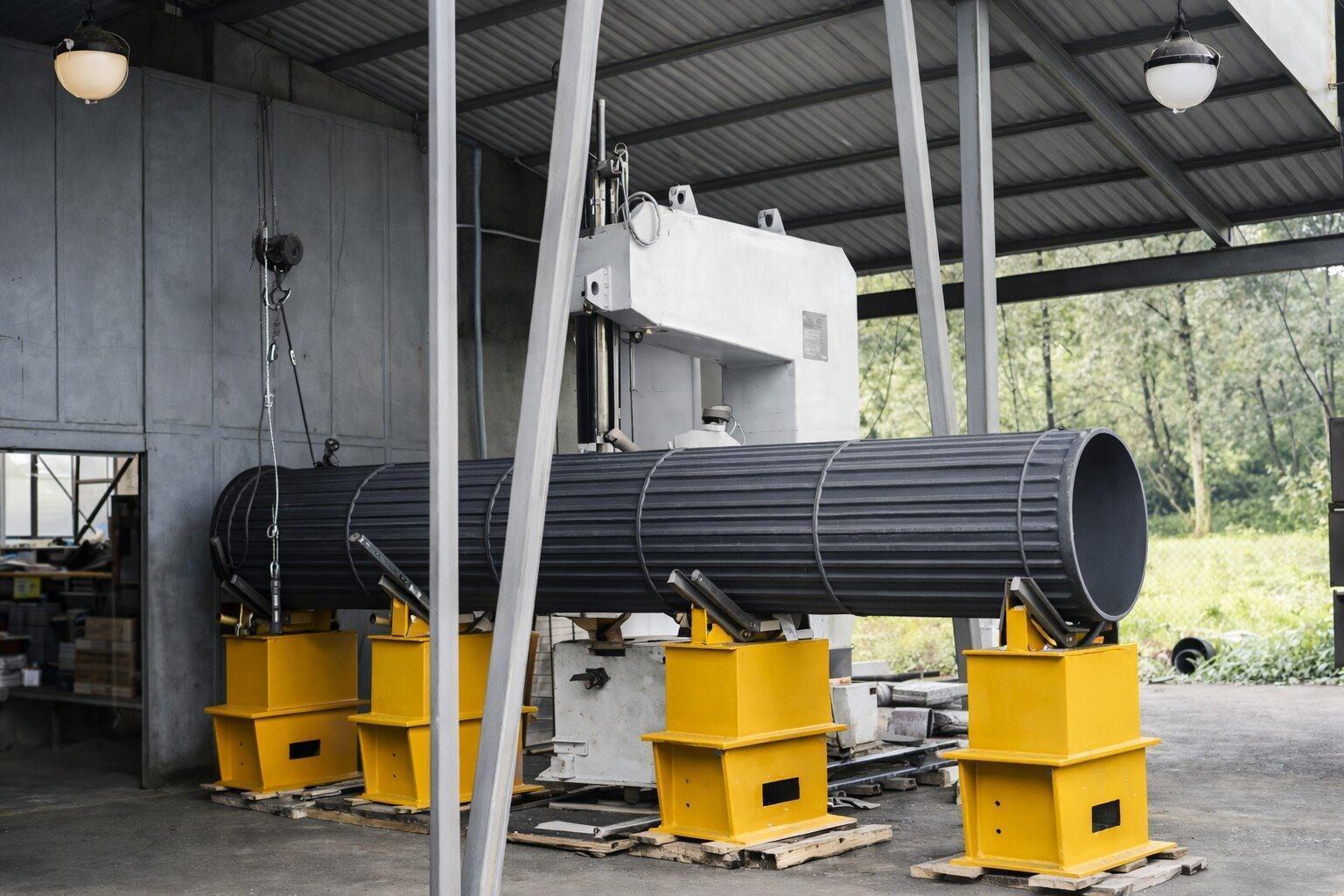

For cutting heat exchangers with a maximum diameter of Ø 1,600 mm

GENERAL DESCRIPTION:

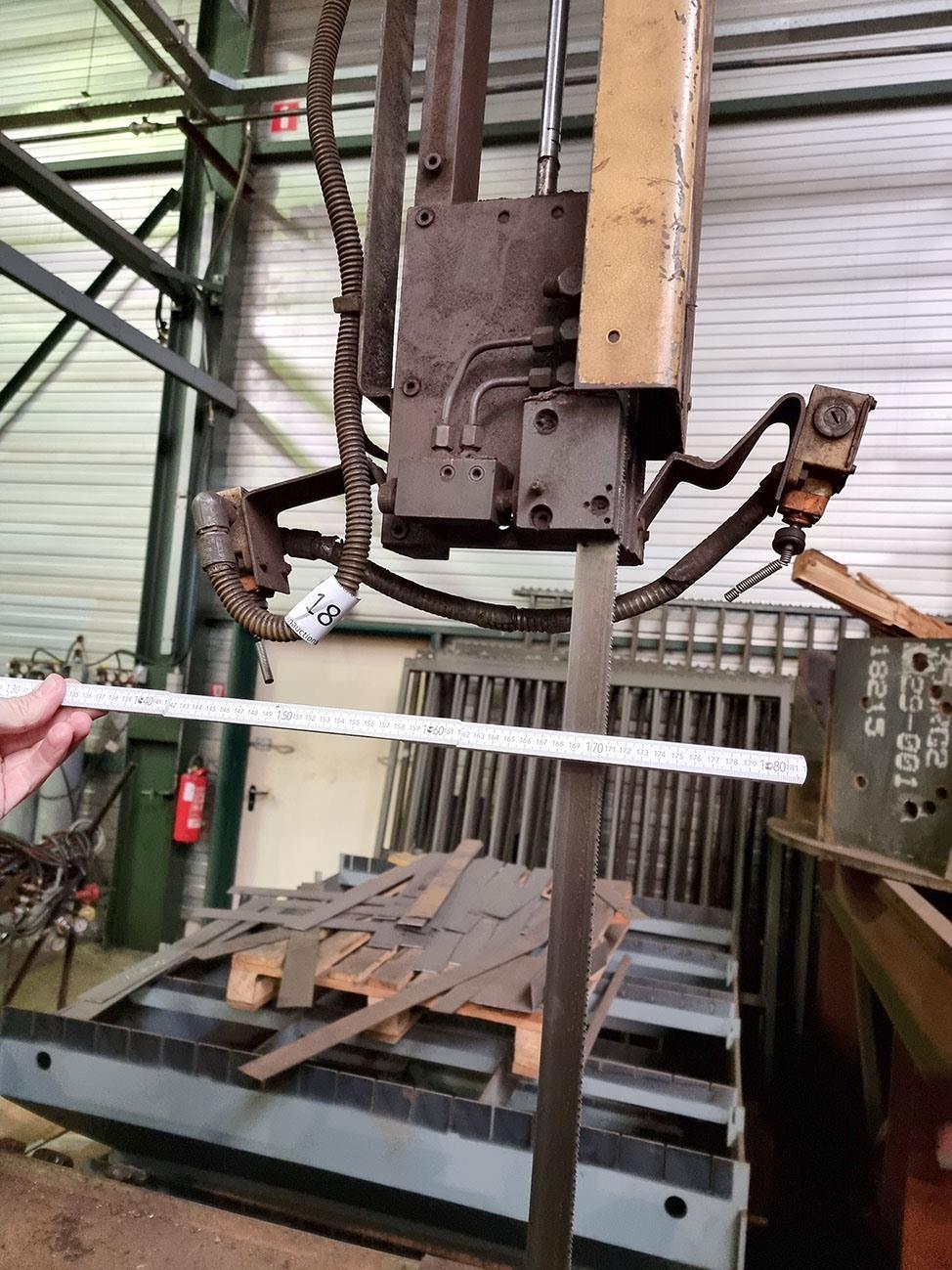

The bandsaw performs cutting with the blade rotated by 90°, moving transversely to the workpiece with a cutting stroke of 1,600 mm

TECHNICAL DATA:
Wheel diameter (3 wheels): 630 mm
Cutting height: 1,600 mm

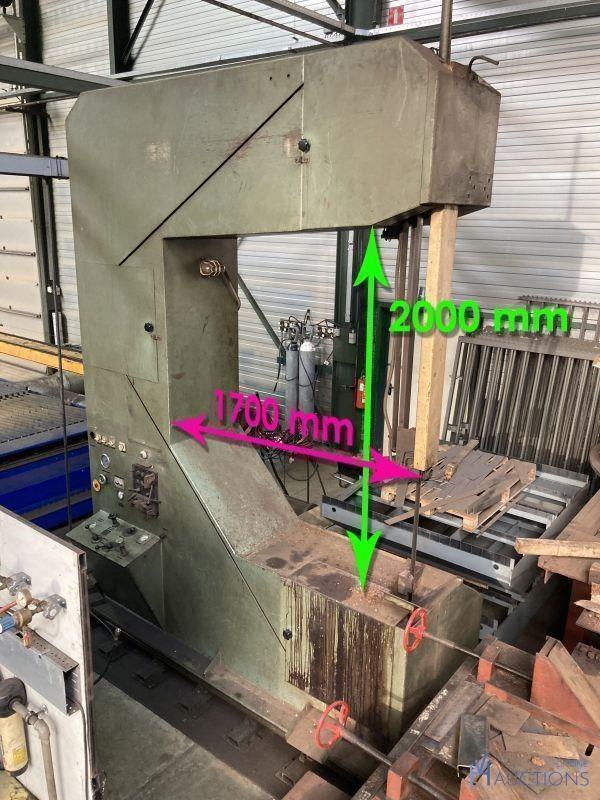

Throat (distance between column and blade): 1,650 mm
Cutting stroke: 1,650 mm
Feed stroke: 1,850 mm
Motor power: 5.5 kW
Cutting speed, infinitely variable: 16 – 120 m/min
Band welding unit capacity: 5–32 × 1.1 mm
Adjustable feed force on material: 30 – 120 kg
Saw blade size: 9,100 × 25 × 0.9 mm

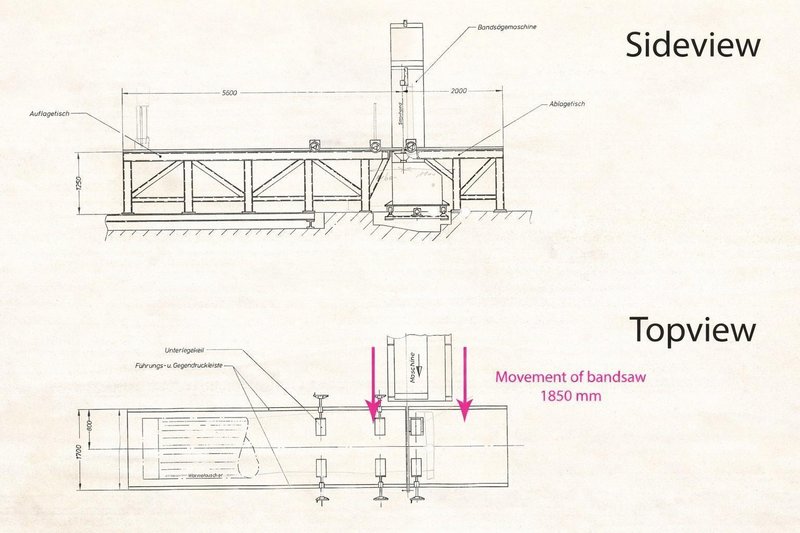

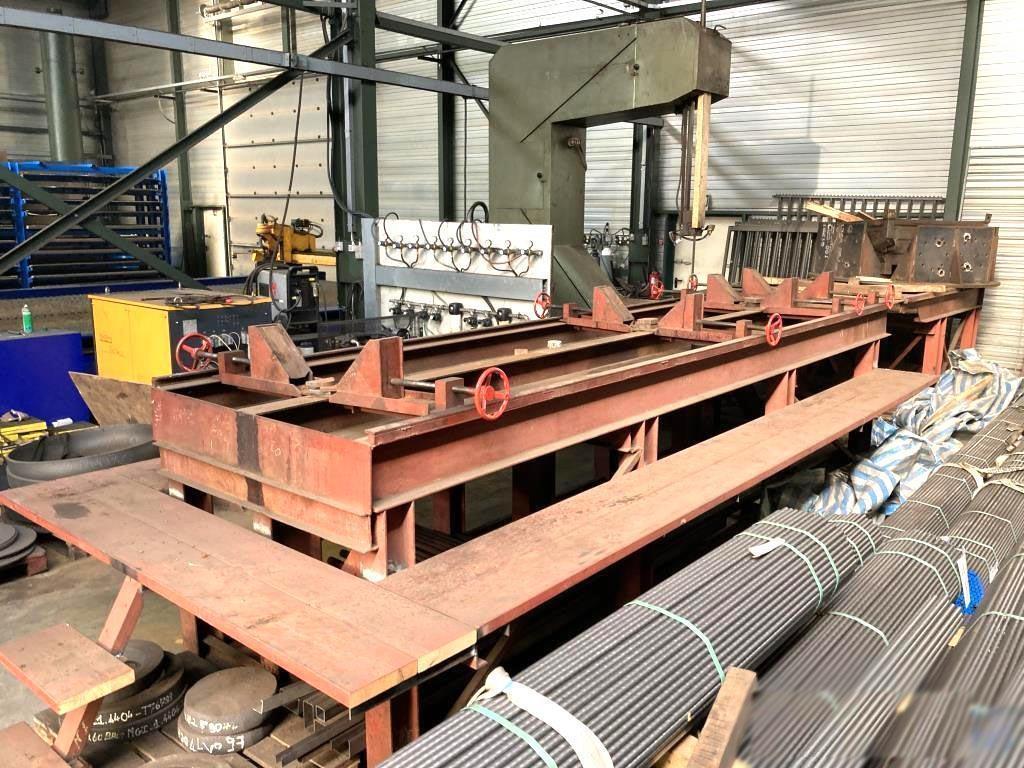

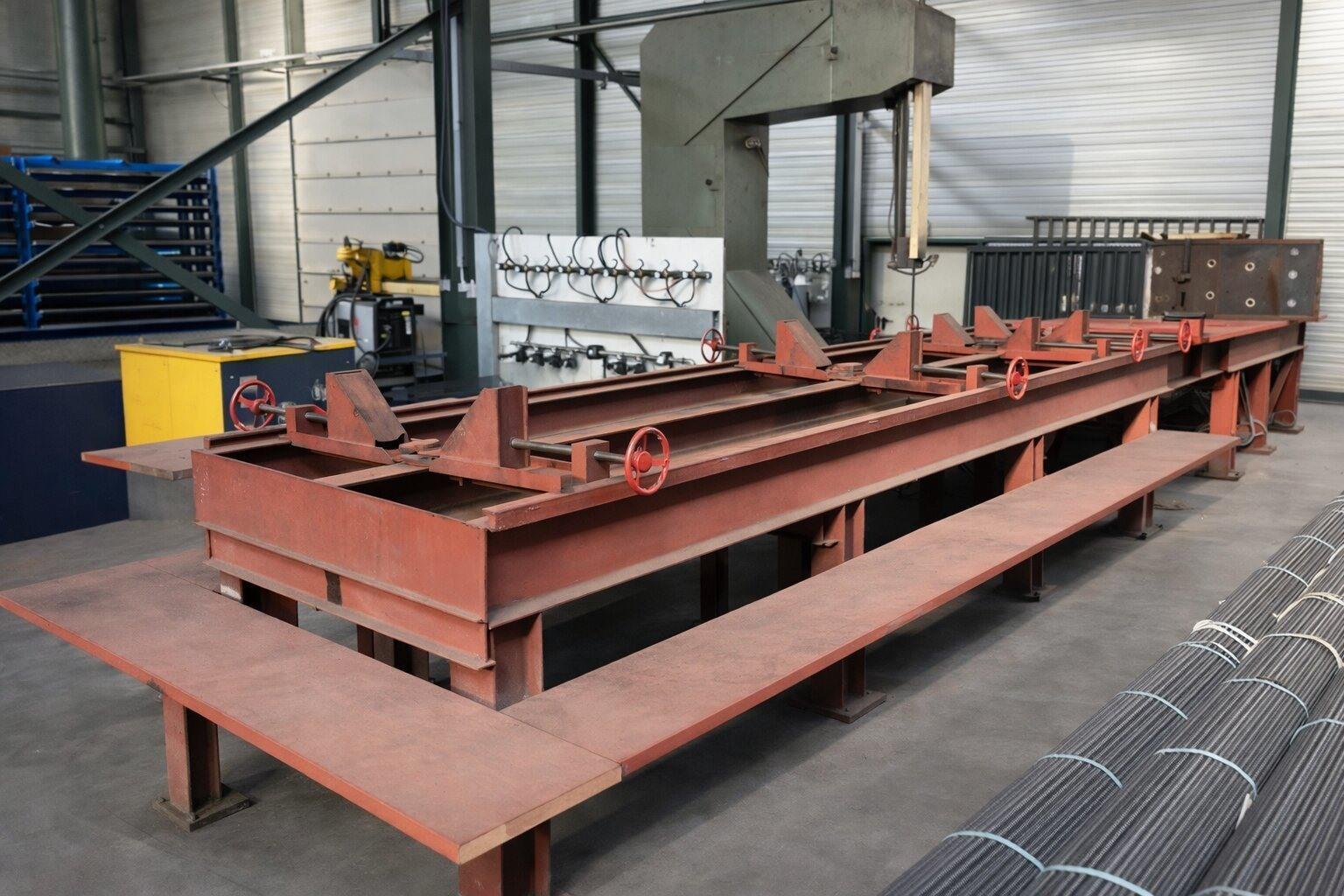

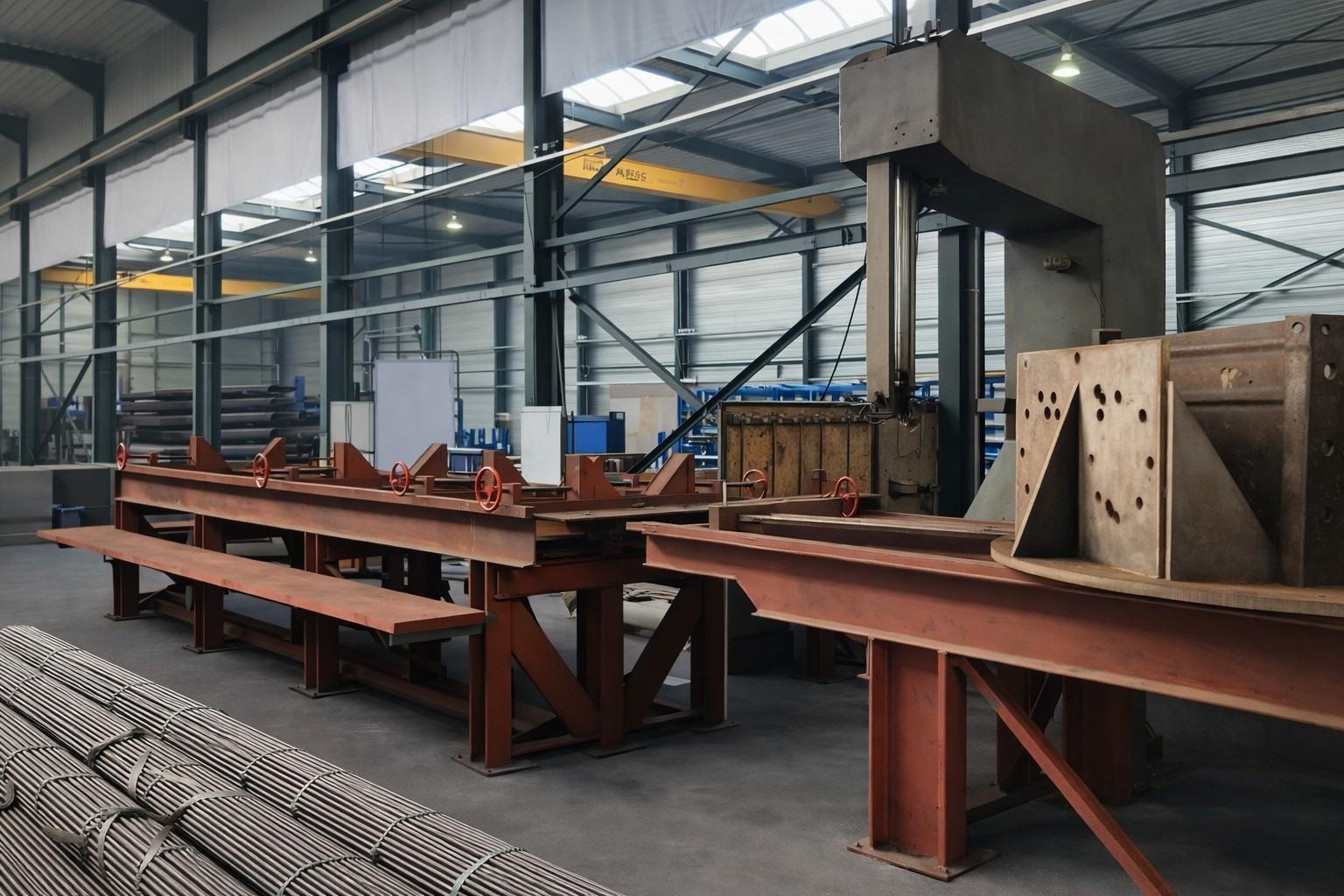

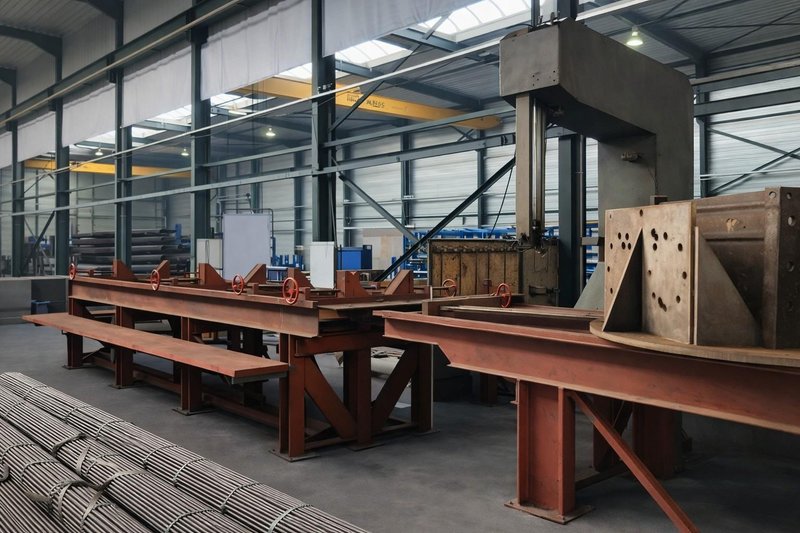

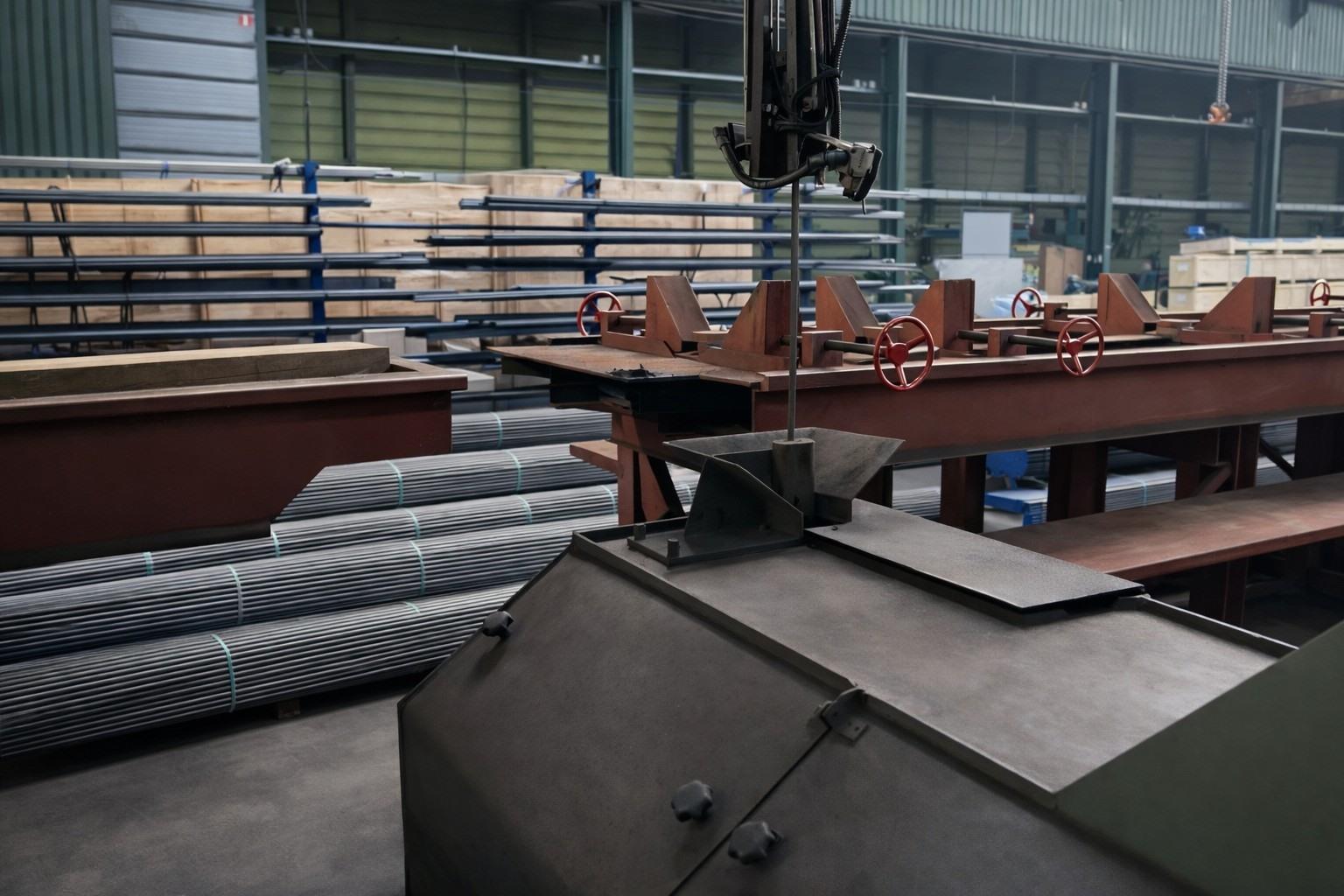

BANDSAW TABLE (WORK SUPPORT TABLE)

GENERAL DESCRIPTION:
Large, heavy-duty bandsaw table of frame construction, designed to support heat exchangers

TECHNICAL DATA:

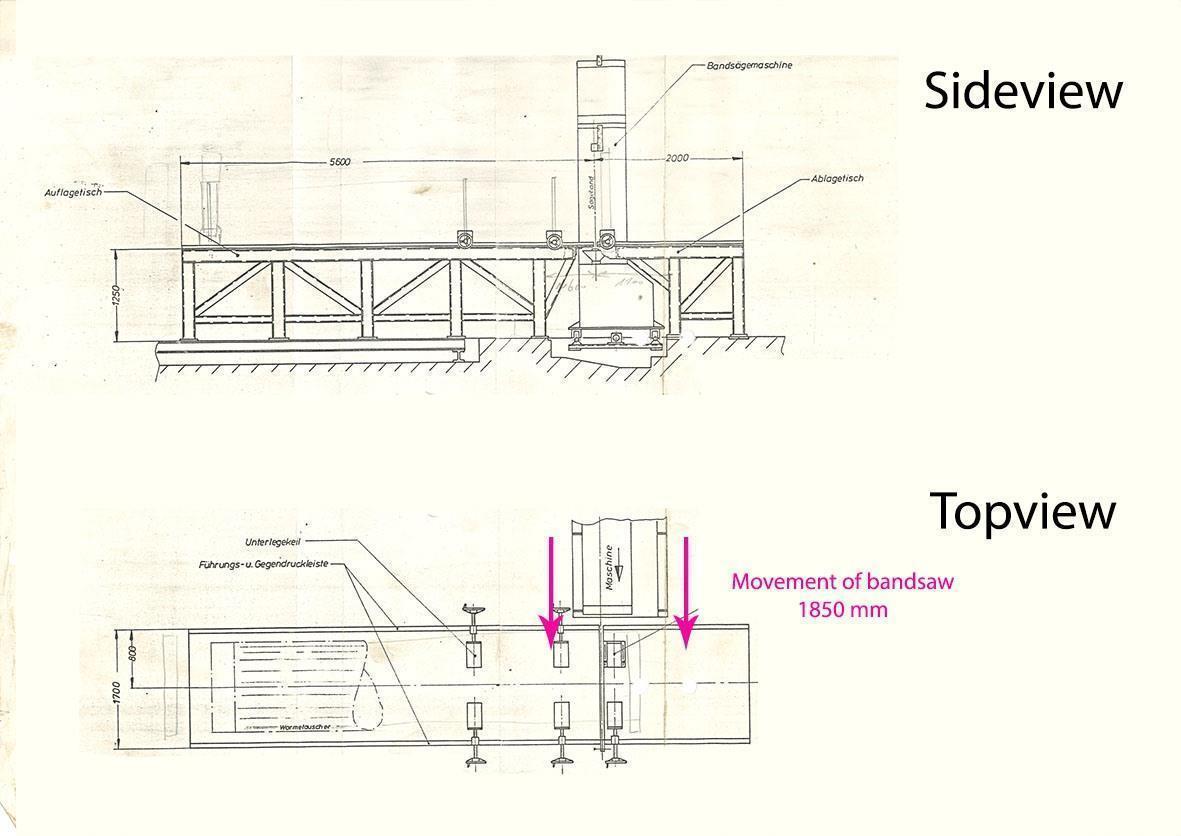

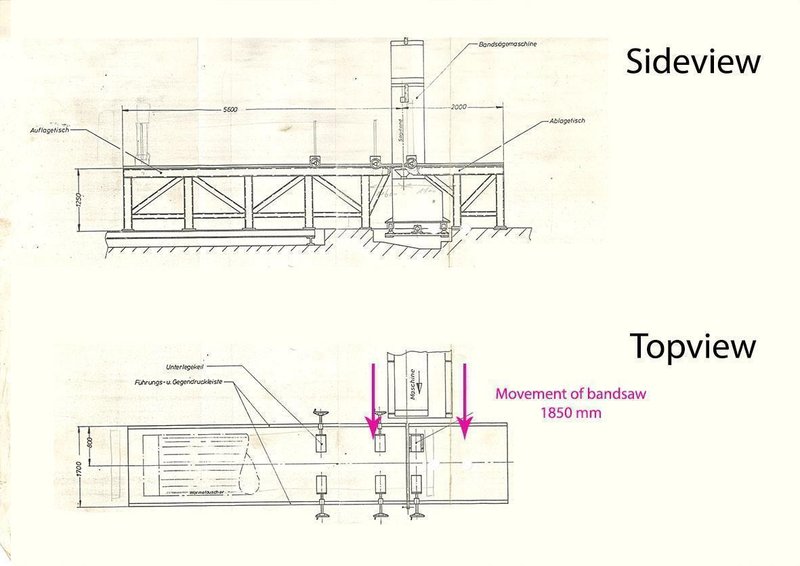

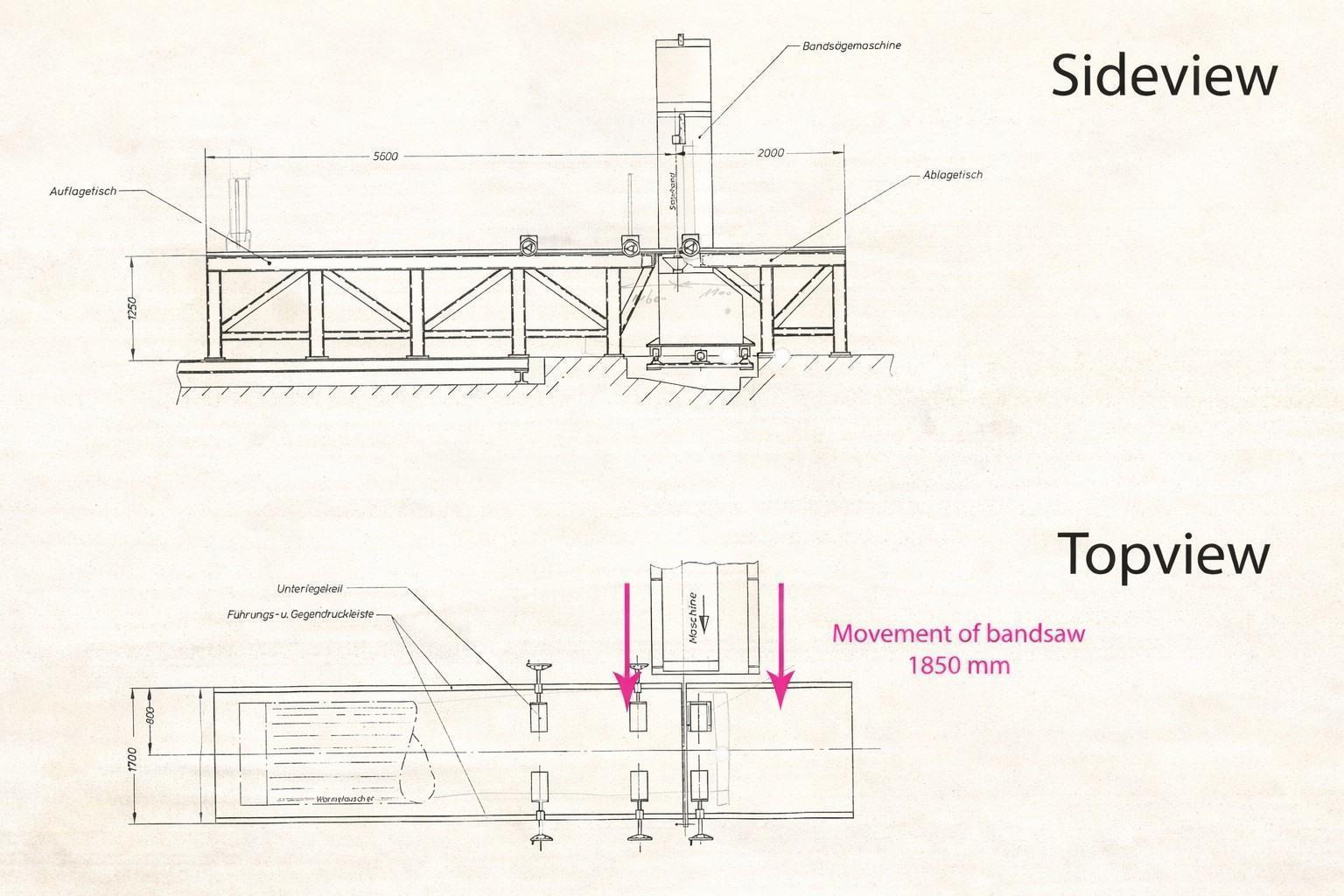

Table dimensions:
Left of blade: 5,600 × 1,700 mm
Right of blade: 2,000 × 1,700 mm
Table height: 1,250 mm
Total weight: 2,300 kg
Load capacity: 25 tons

DESCRIPTION:
The bandsaw table is constructed from heavy-duty U-profiles and fitted with a 10 mm thick top plate
When anchored to the floor, the table provides a rigid, deformation-resistant structure
The table surface is flat and continuous and can be optionally drilled with holes as required
For workpiece clamping, profiles are mounted on both sides of the table, serving as supports for prism wedges.
