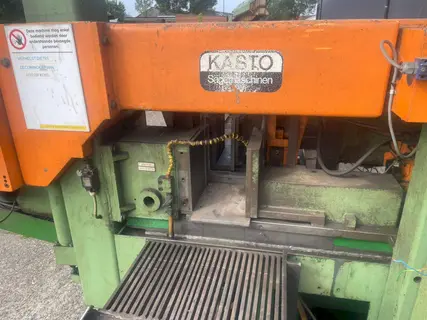

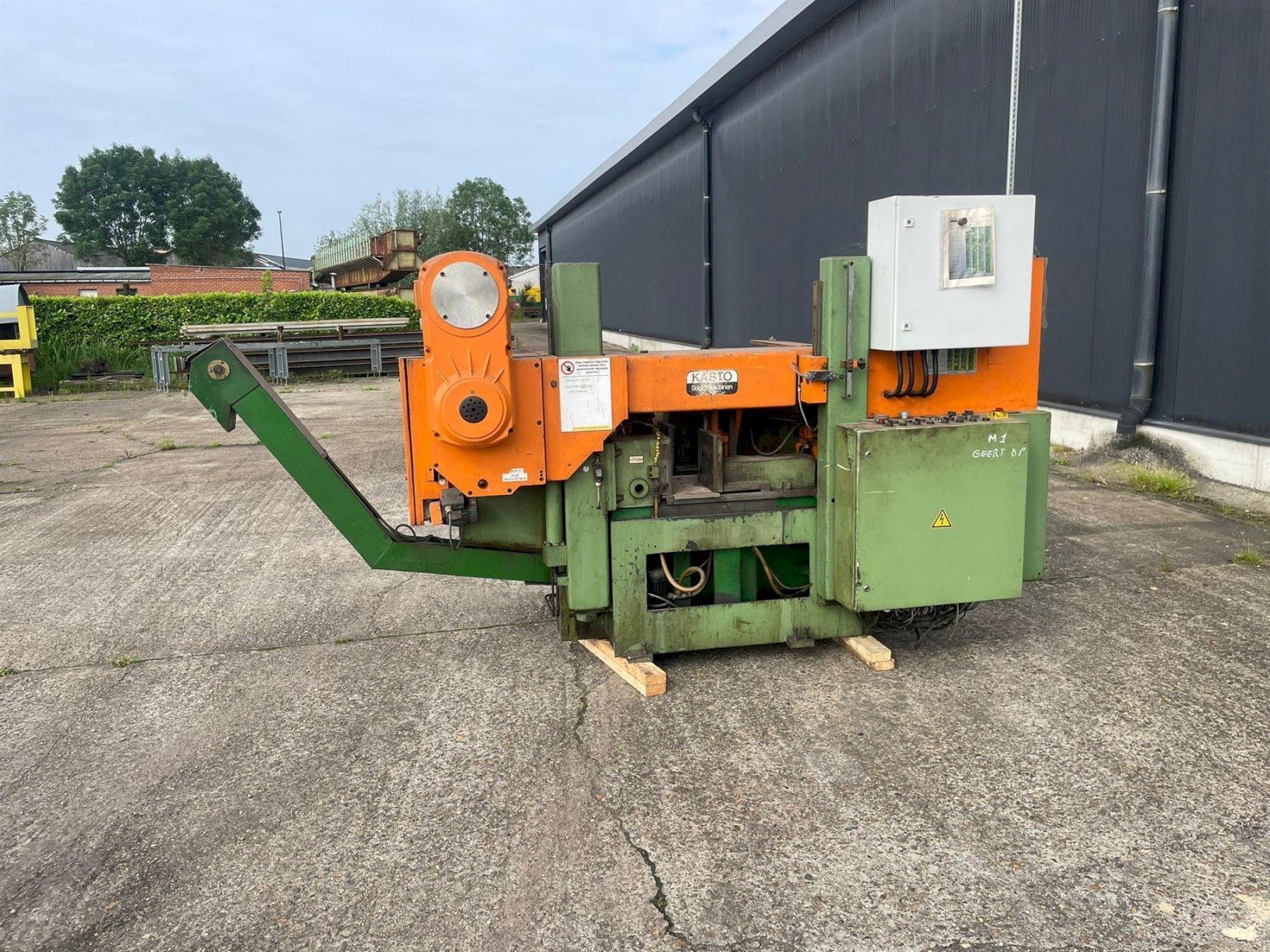

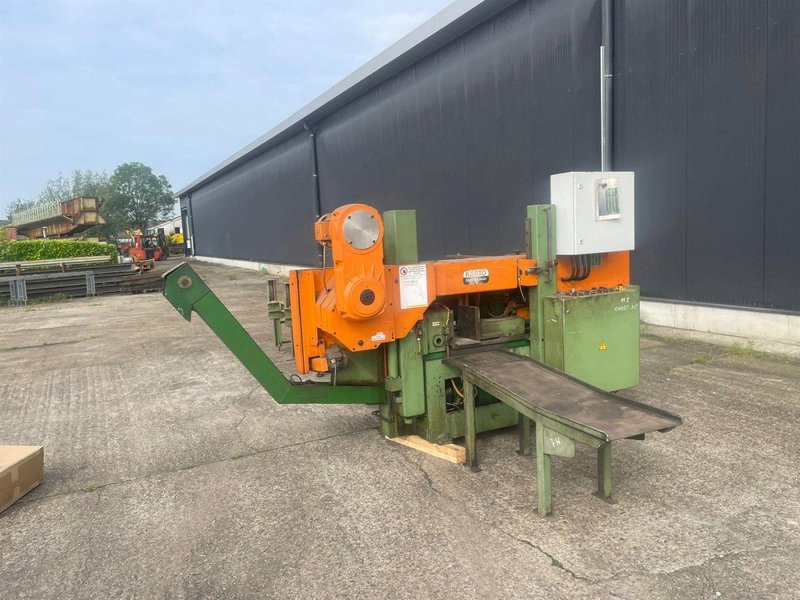

Kasto HBA 360

Brand

KASTO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Depth of throat 360 mm
Max height of workpiece 360 mm
Sawspeed 20-130 m/min
Length of band saw 5334 x 38 x 1.3 mm
Power needed 8.0 kW
Length 2400 mm
Depth 2900 mm
Height 1800 mm
Weight 2 ton

Additional info

single cut and automatic possible
hydr. saw band tensioning

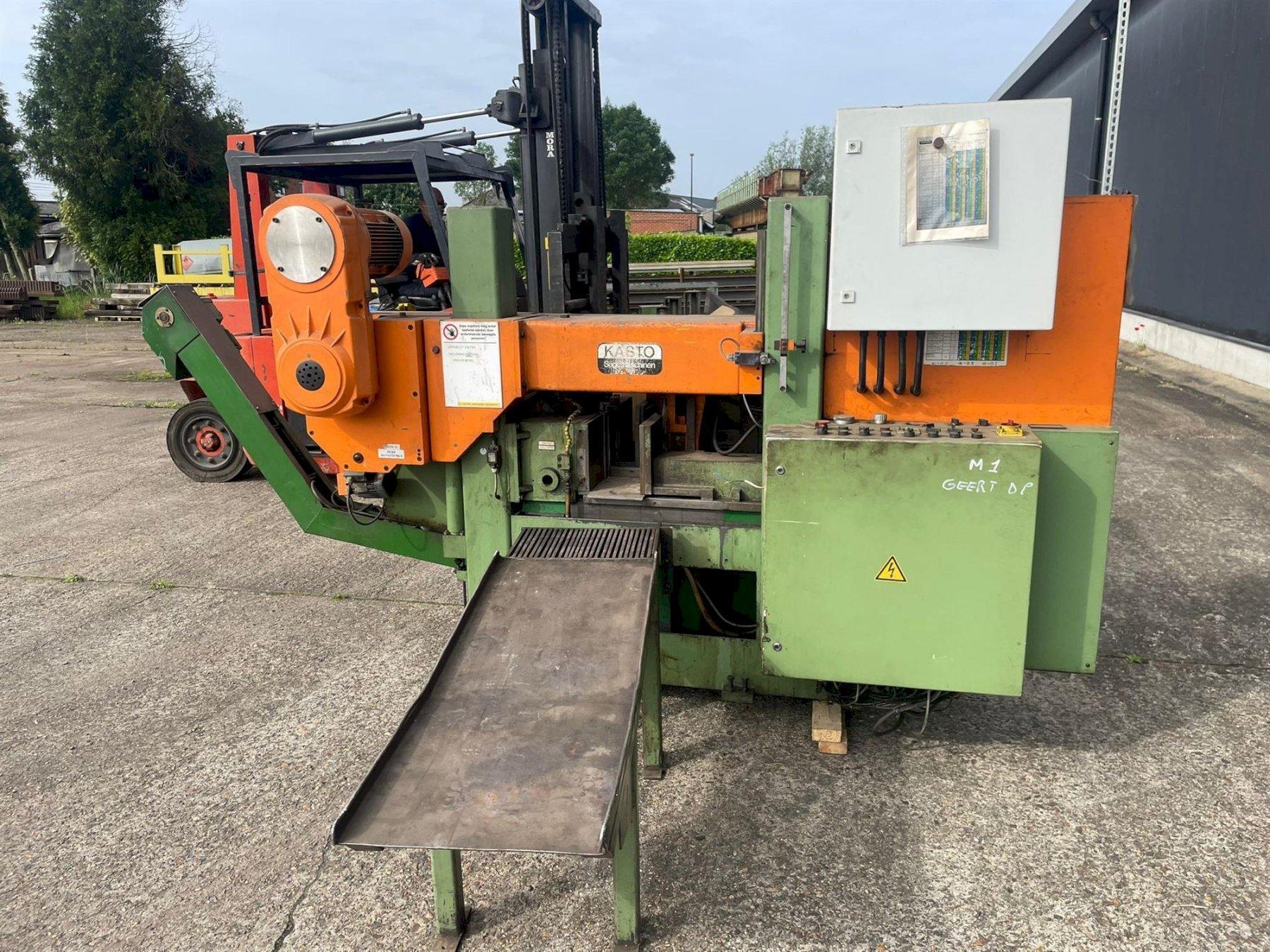

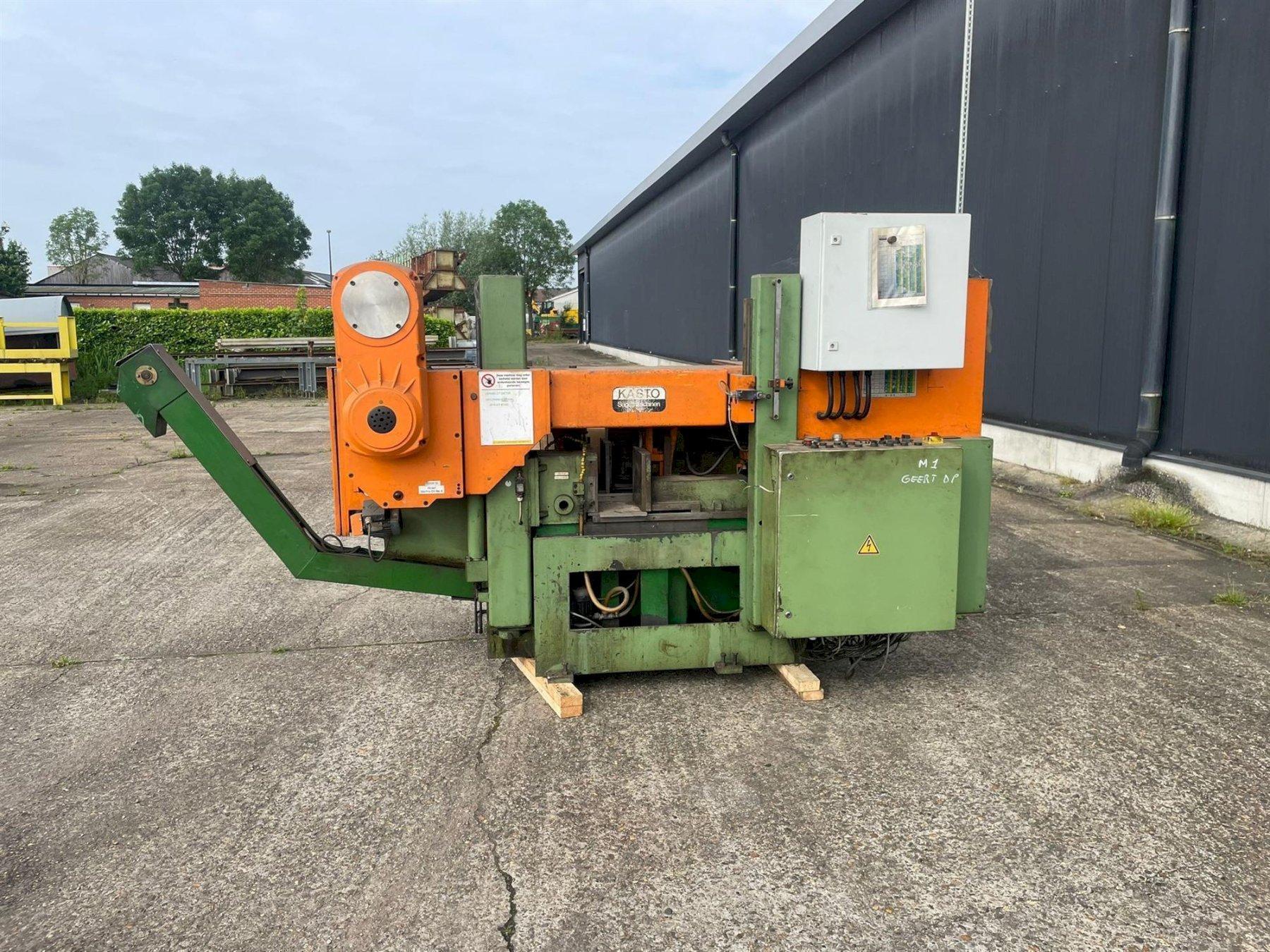

chipconveyor inclusive

clamping force regulation of the vices via handwheel
material end switch-off
material multiple feed (up to 9x) max. 5400mm
Remaining piece length min. 10mm in single cut and 80mm in automatic mode
material single feed max. 600mm

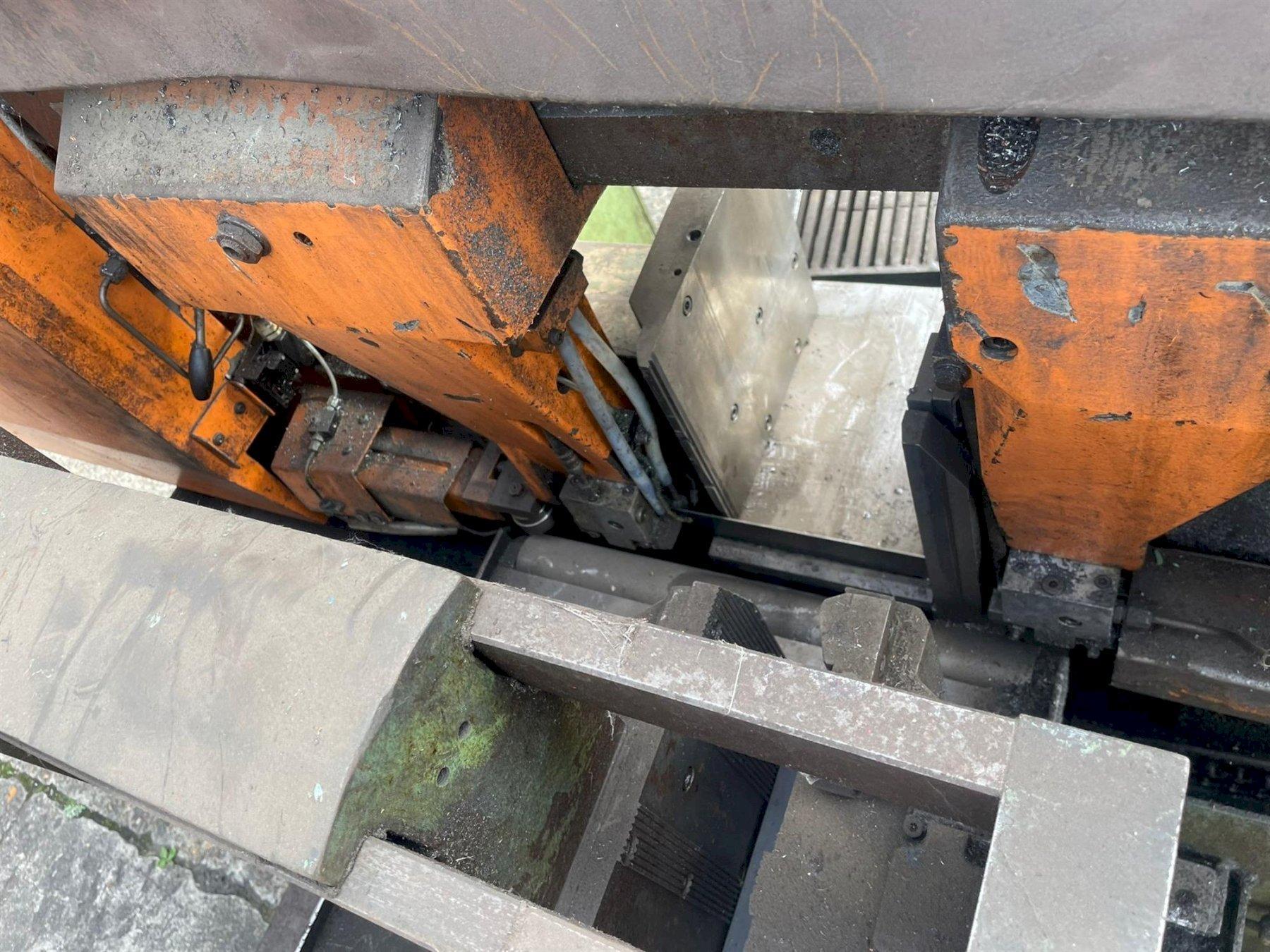

clamping jaws 460 x 250mm, hydraulic
piece counter
Coolant tank integrated in machine column approx. 90 liters incl. coolant pump 30l/min.
chip clearing brush

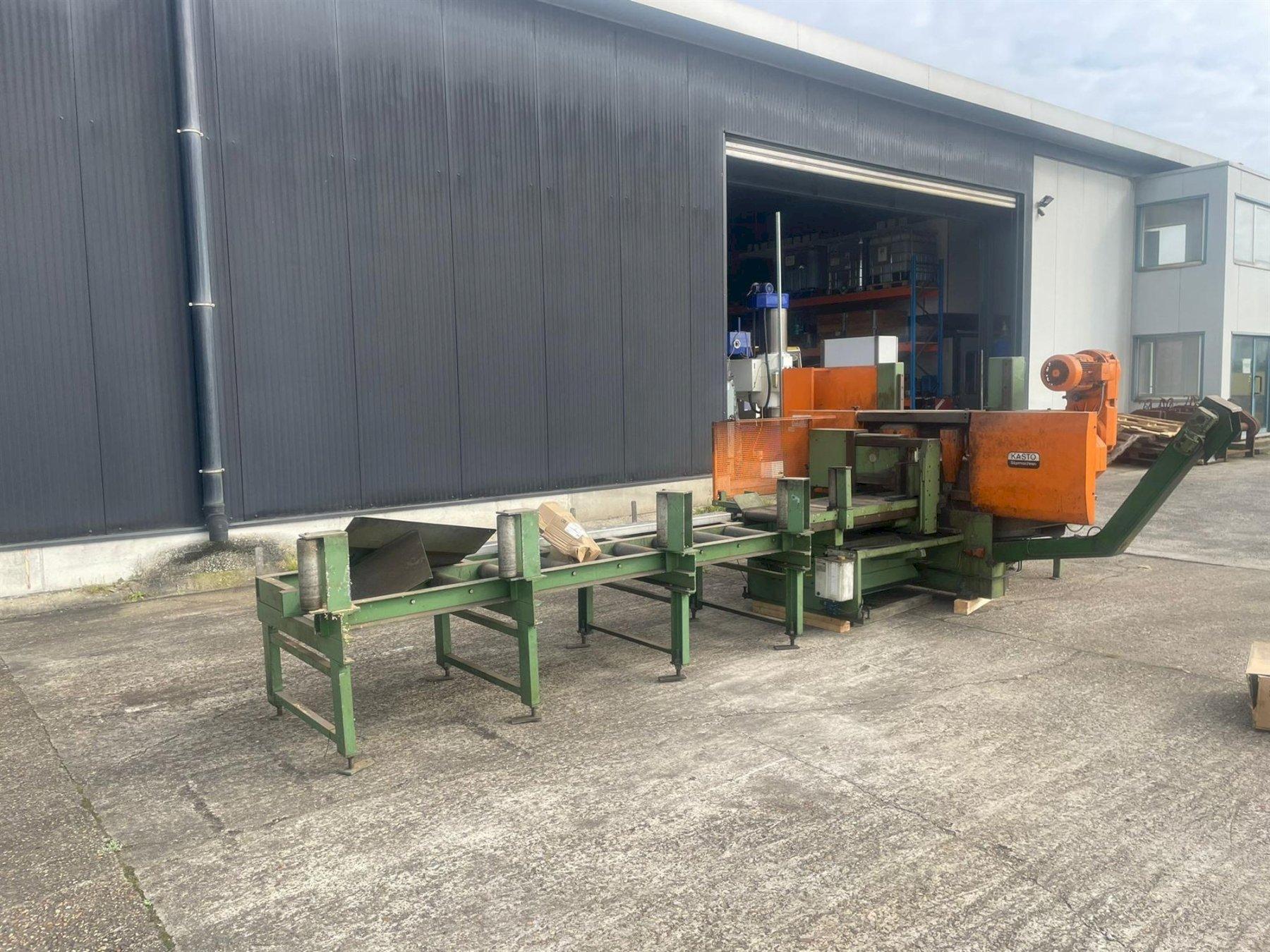

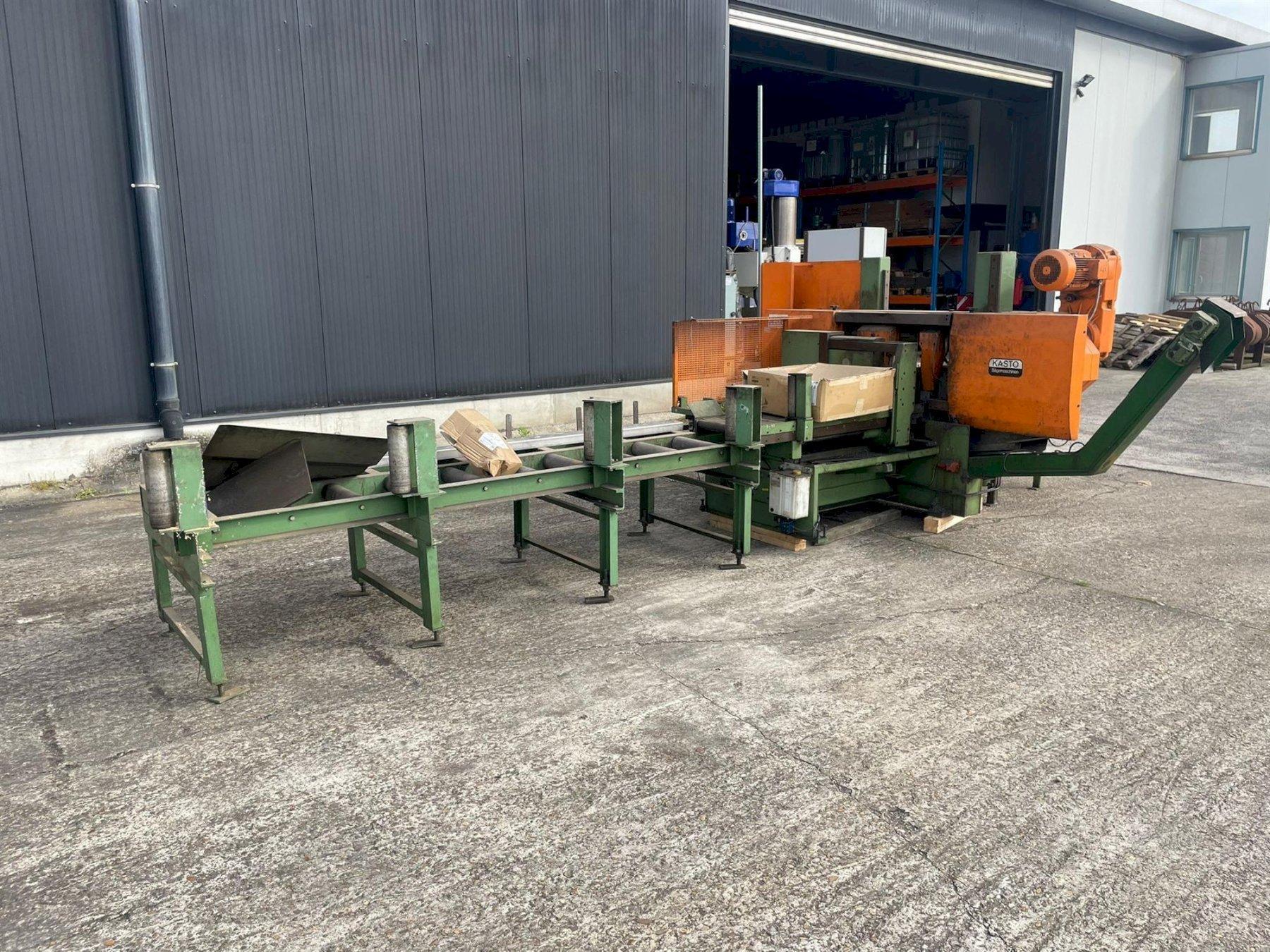

feeding track 1550 x 500mm with feeding jaws 250 x 250mm hydraulic
