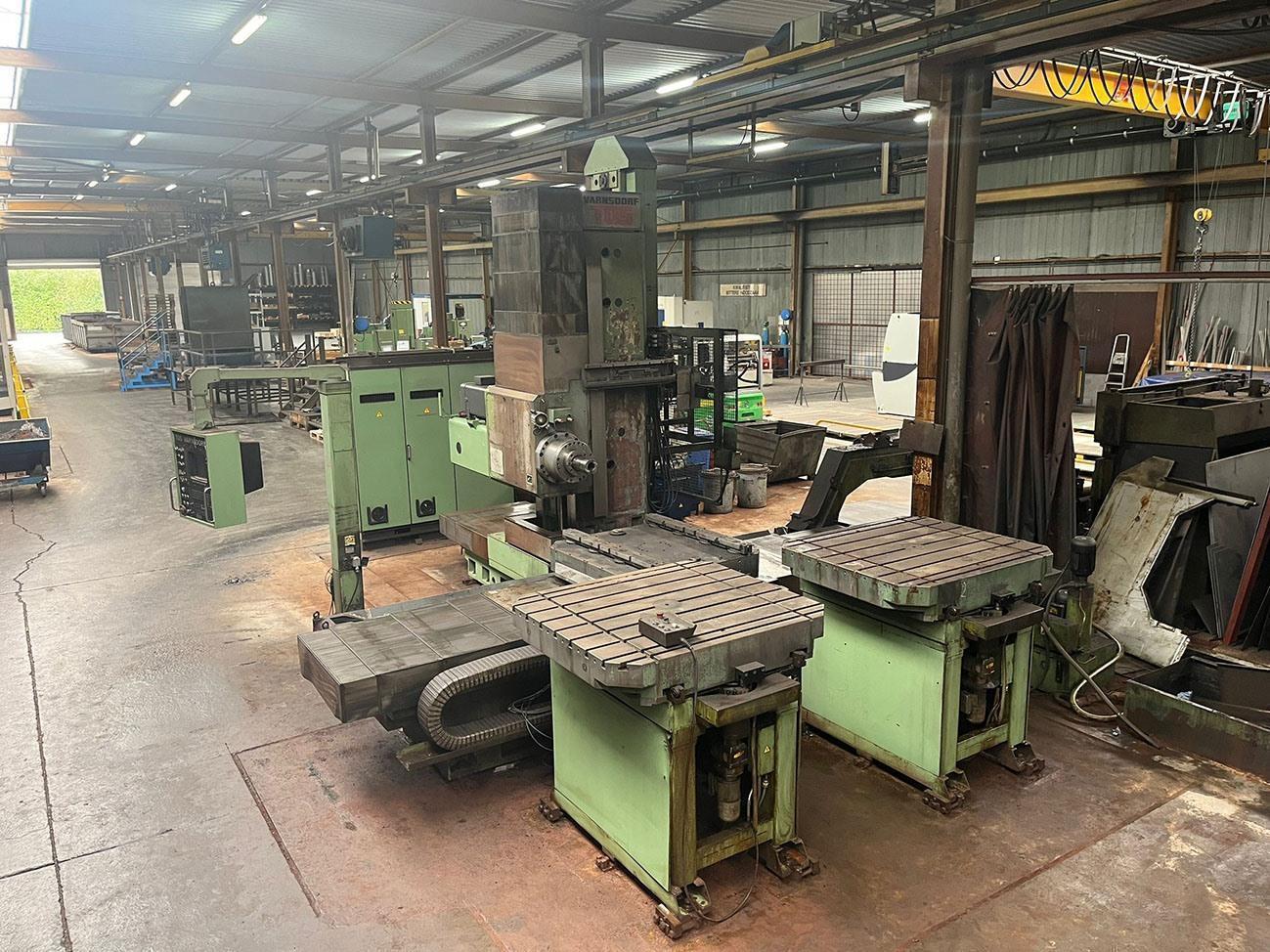

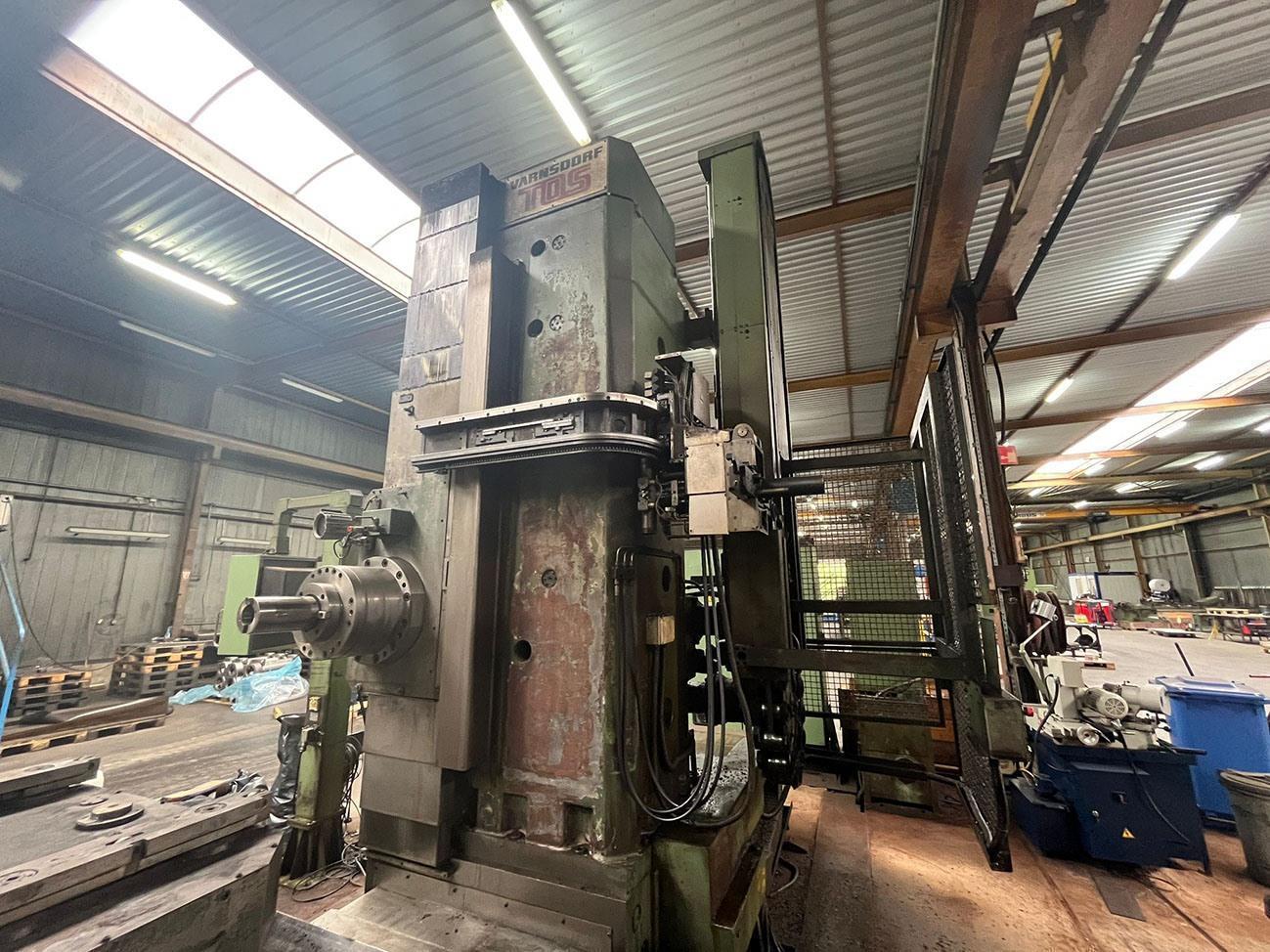

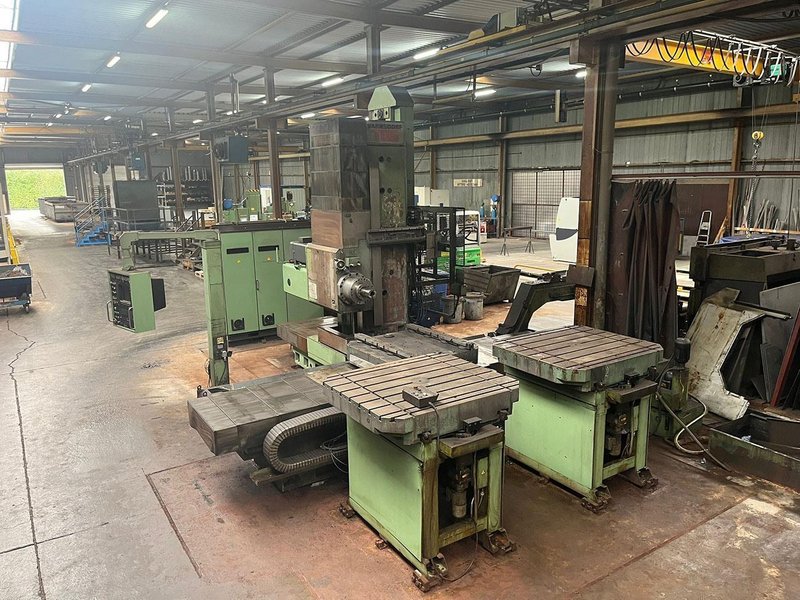

Tos WHN 110 X: 2000 - Y: 1250 - Z: 1000 mm CNC

Brand

TOS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Longitudinal travel X-axe 2000 mm
Cross travel Y-axe 1250 mm
Travel Z-axe 1000 mm

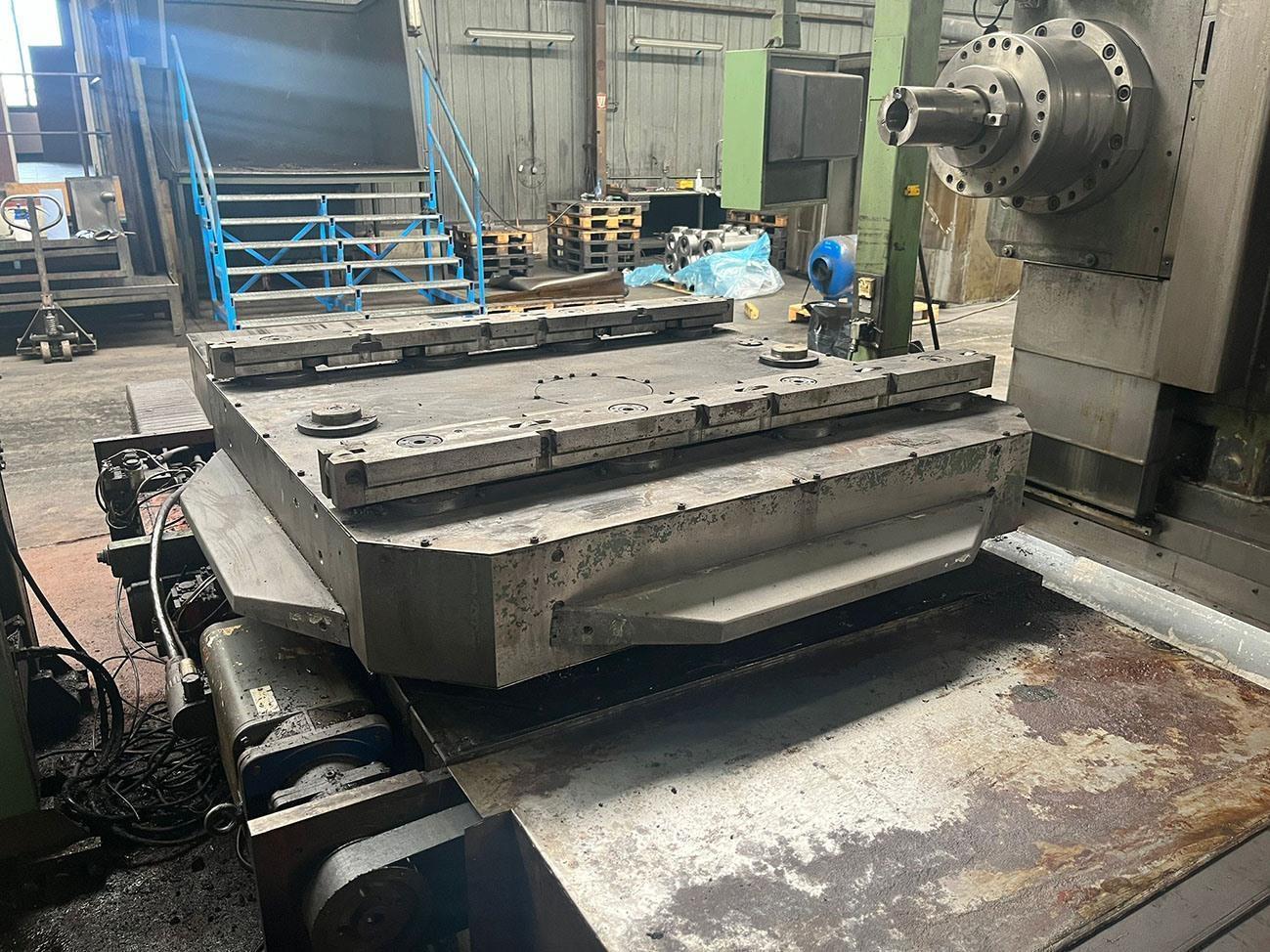

Dimensions clamping space- table 1400 x 1250 mm

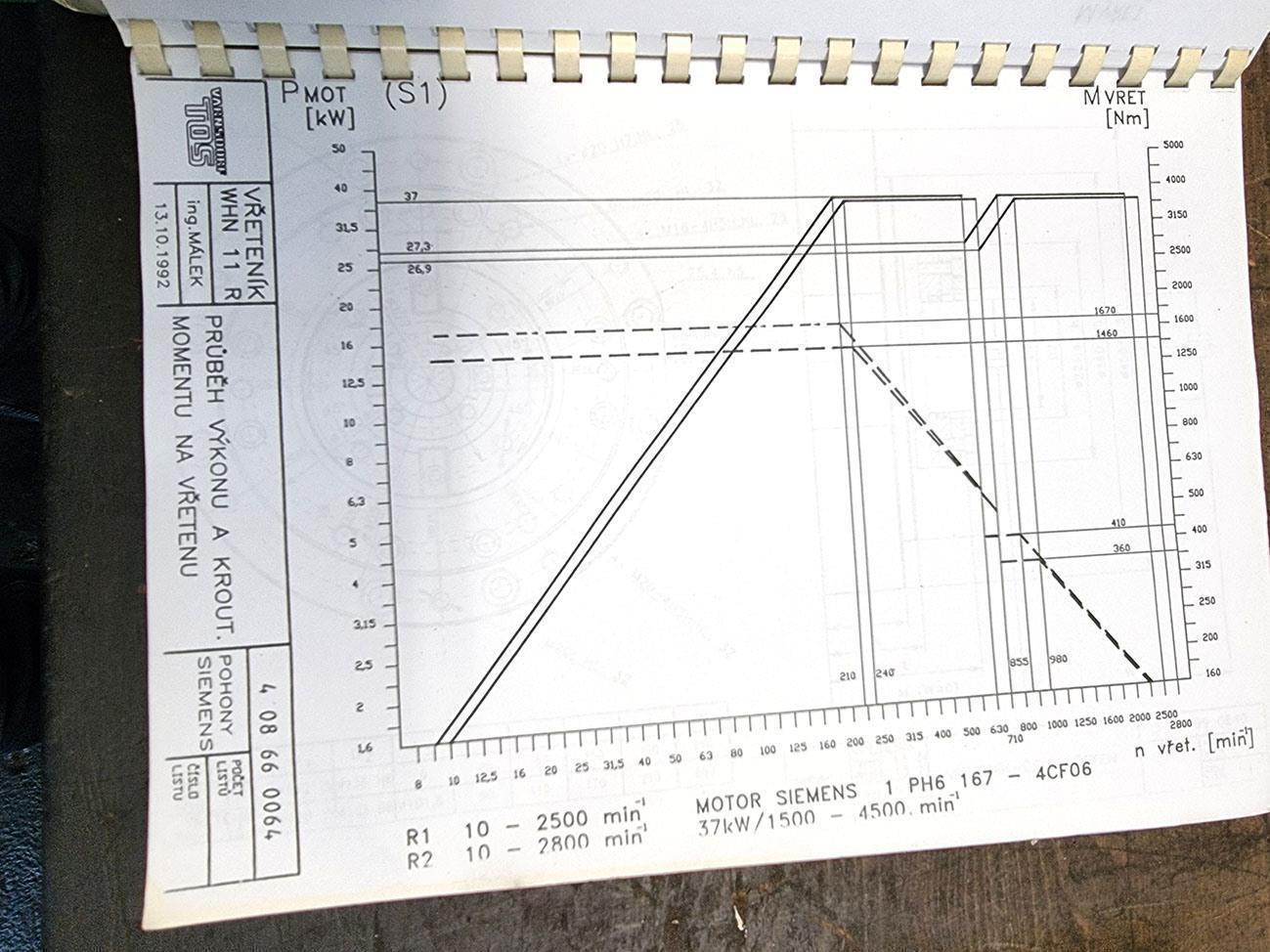

Power on spindle 37 kW
Admission in millinghead (ISO) ISO 50 (dia 125 mm)
Max speedrange 10 > 2800 rpm

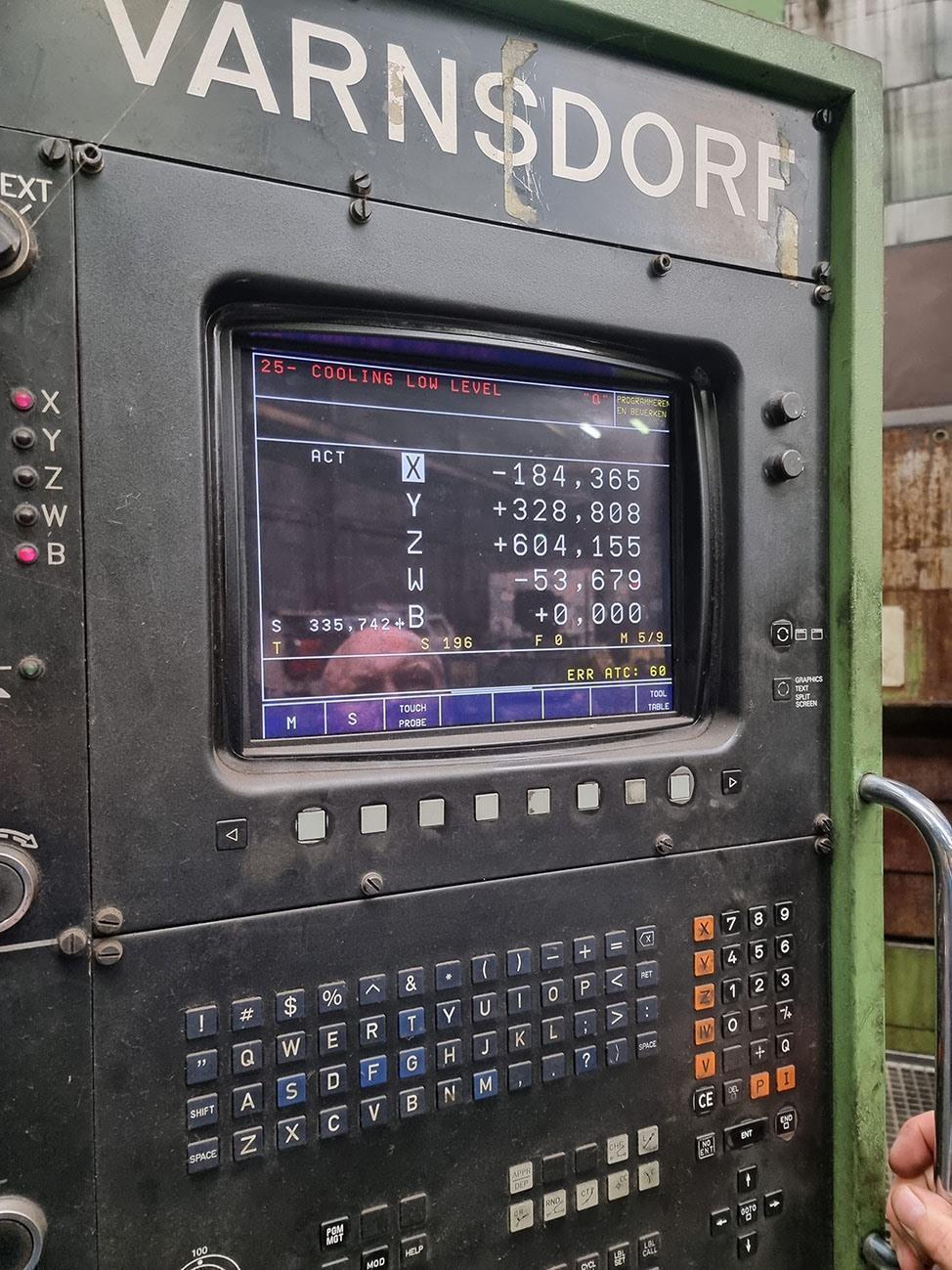

Control Heidenhain TNC 426
Power needed (KVA) 78 kVa / 82 kW

Additional info

equipped with ATC = automatic tool changer with 60 positions

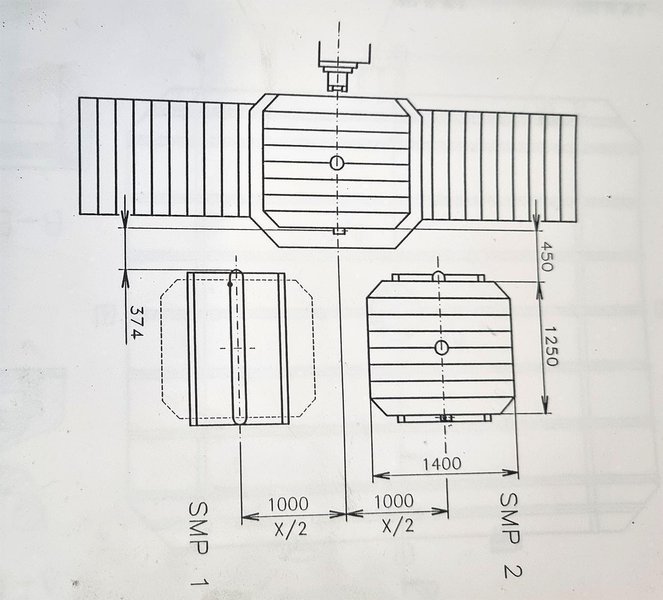

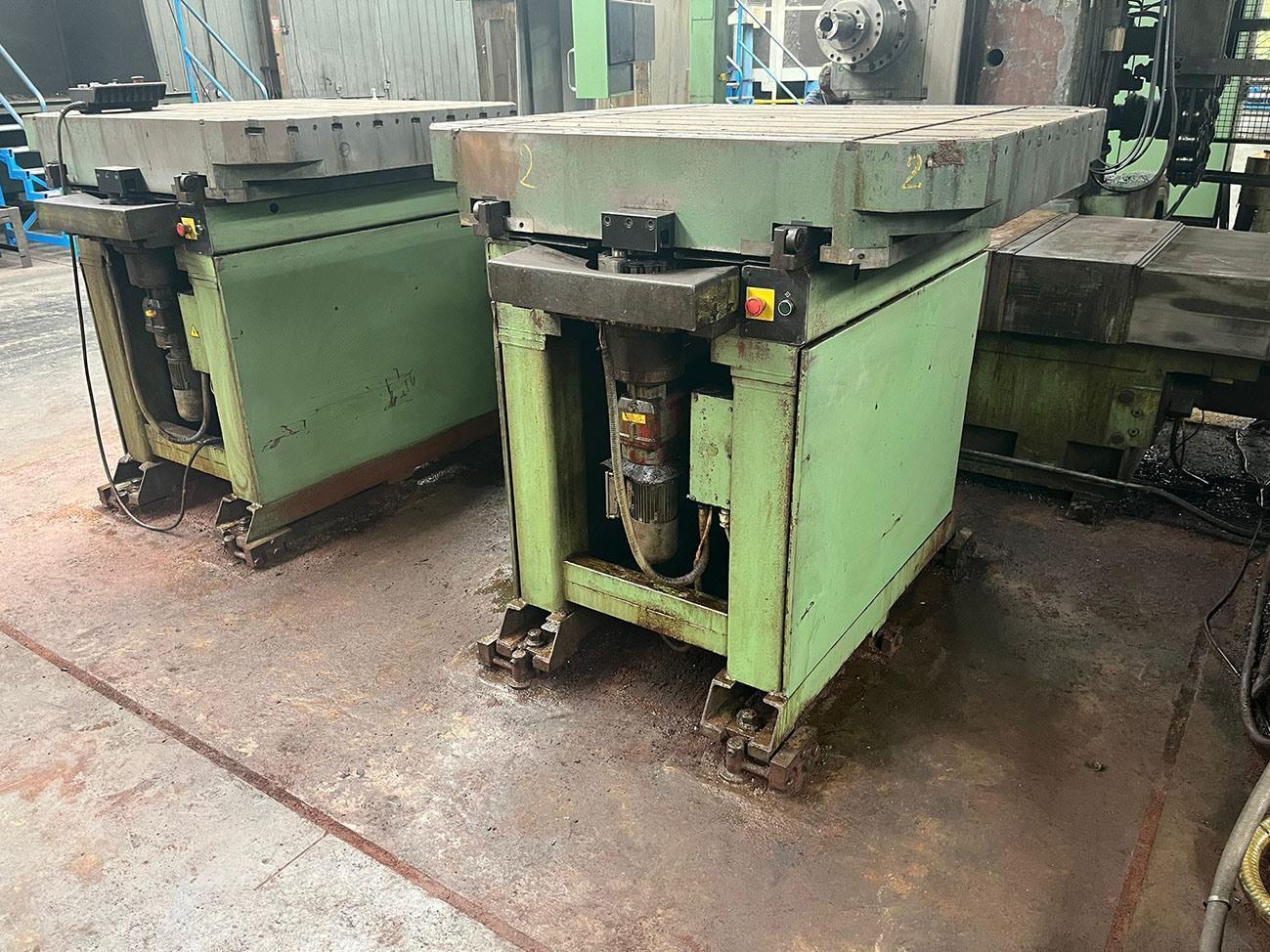

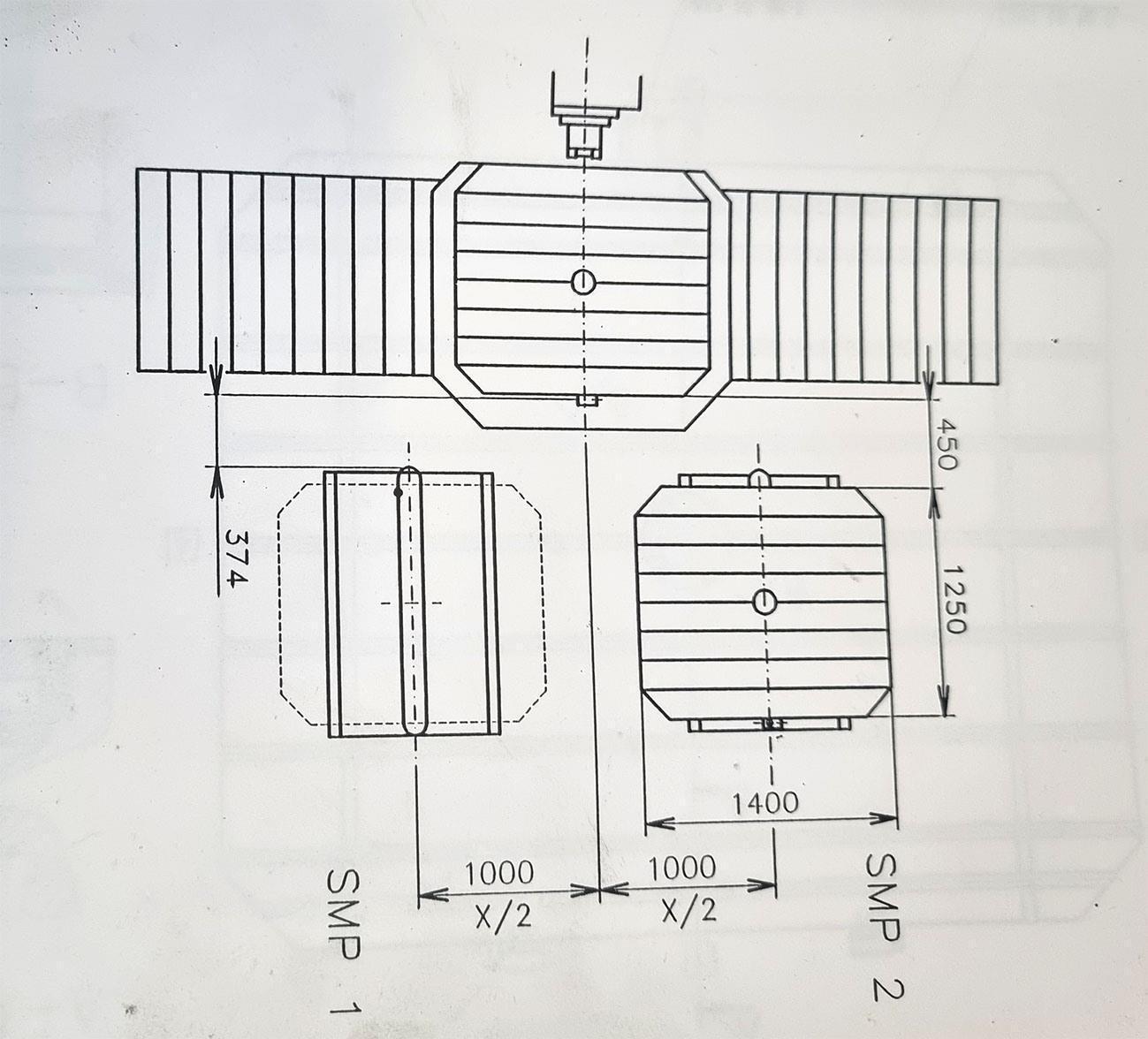

equipped with AVO = device for automatic pallet/table changer

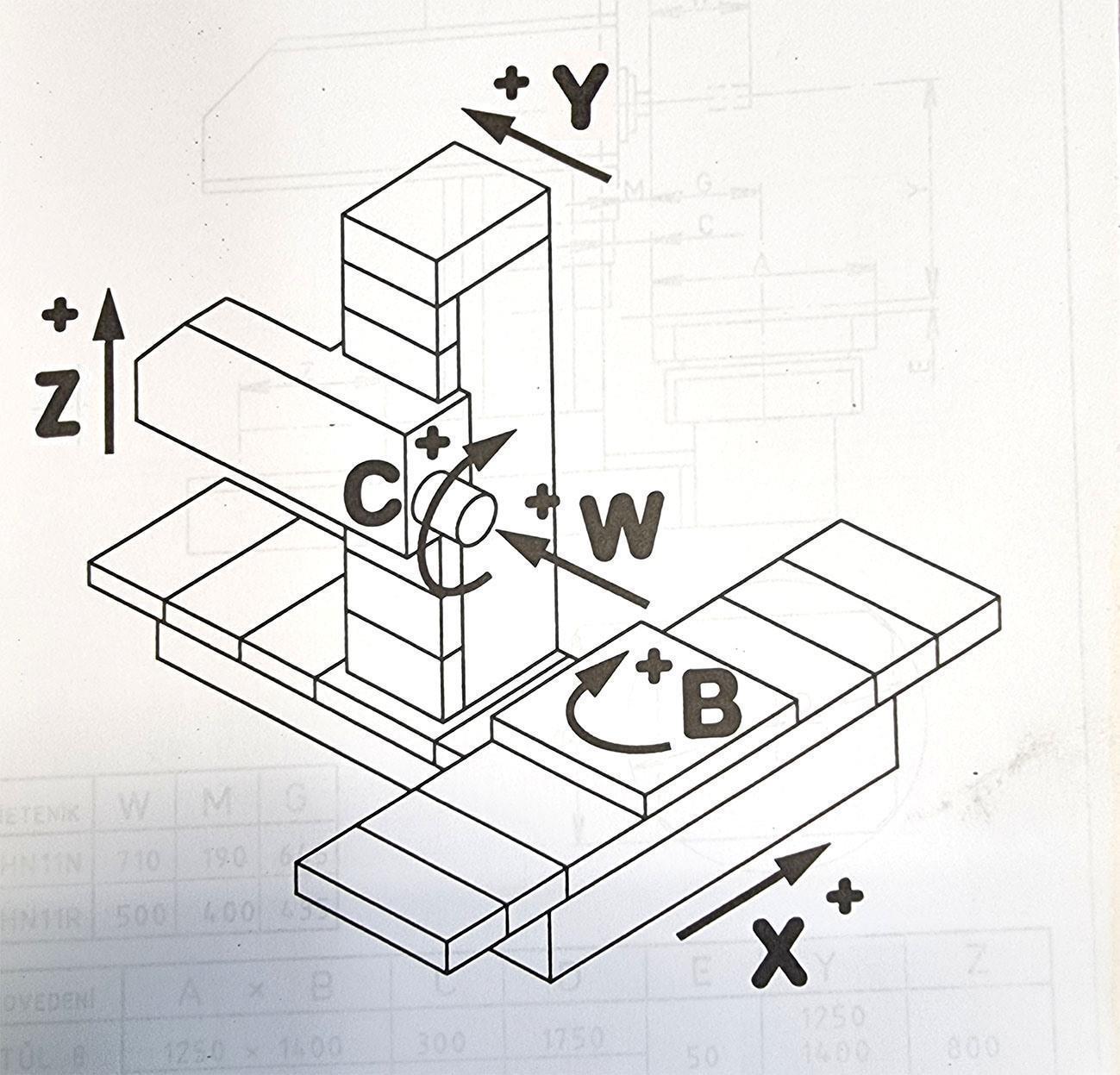

Transversal movement of table (X): 2000 mm
Vertical movement of headstock (Y): 1250 mm / 1150 with pallet
Horizontal movement of the stand (Z): 1000 mm
Movement of spindle (W): 500 mm

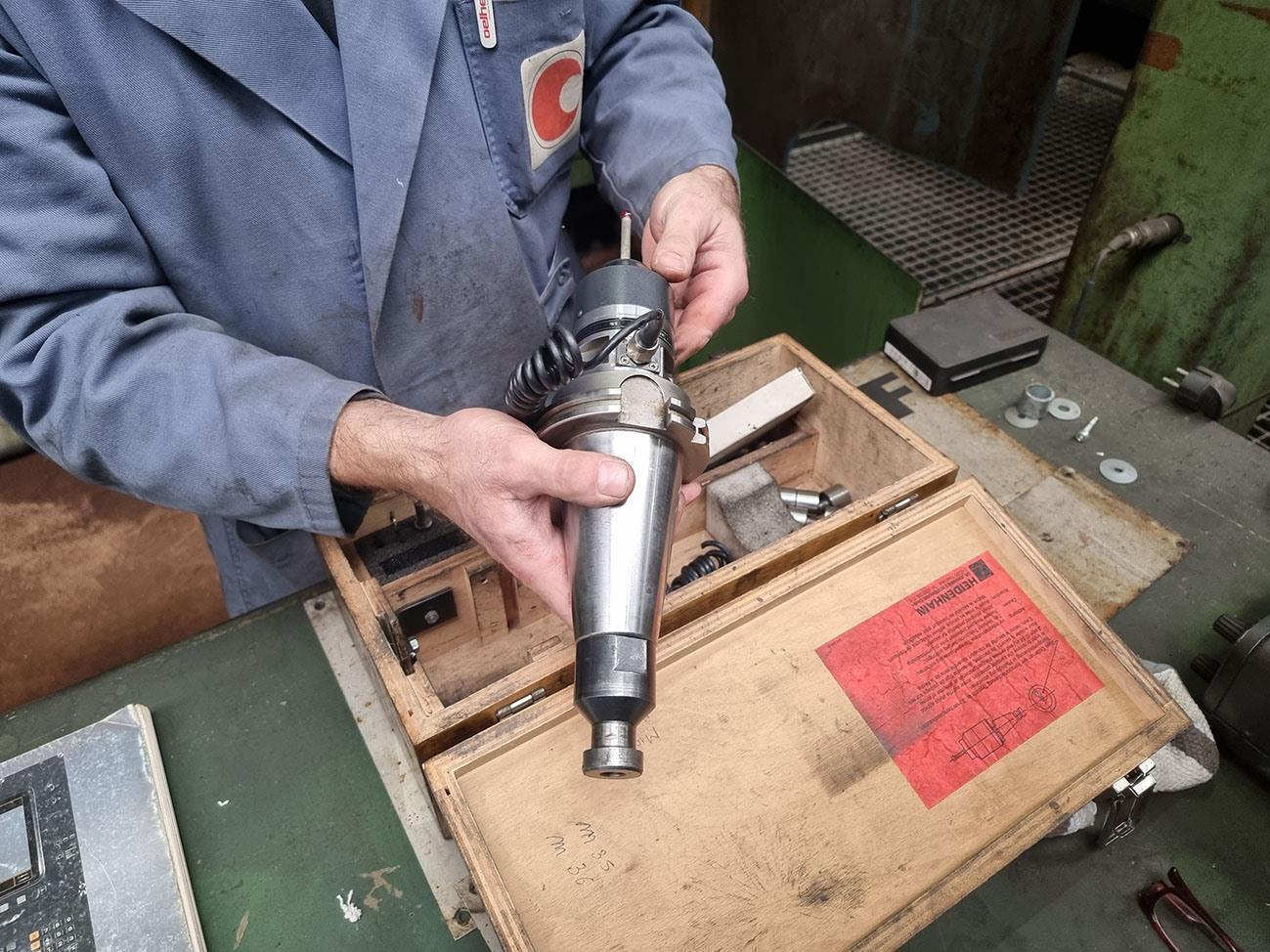

with Heidenhain measuring probe
