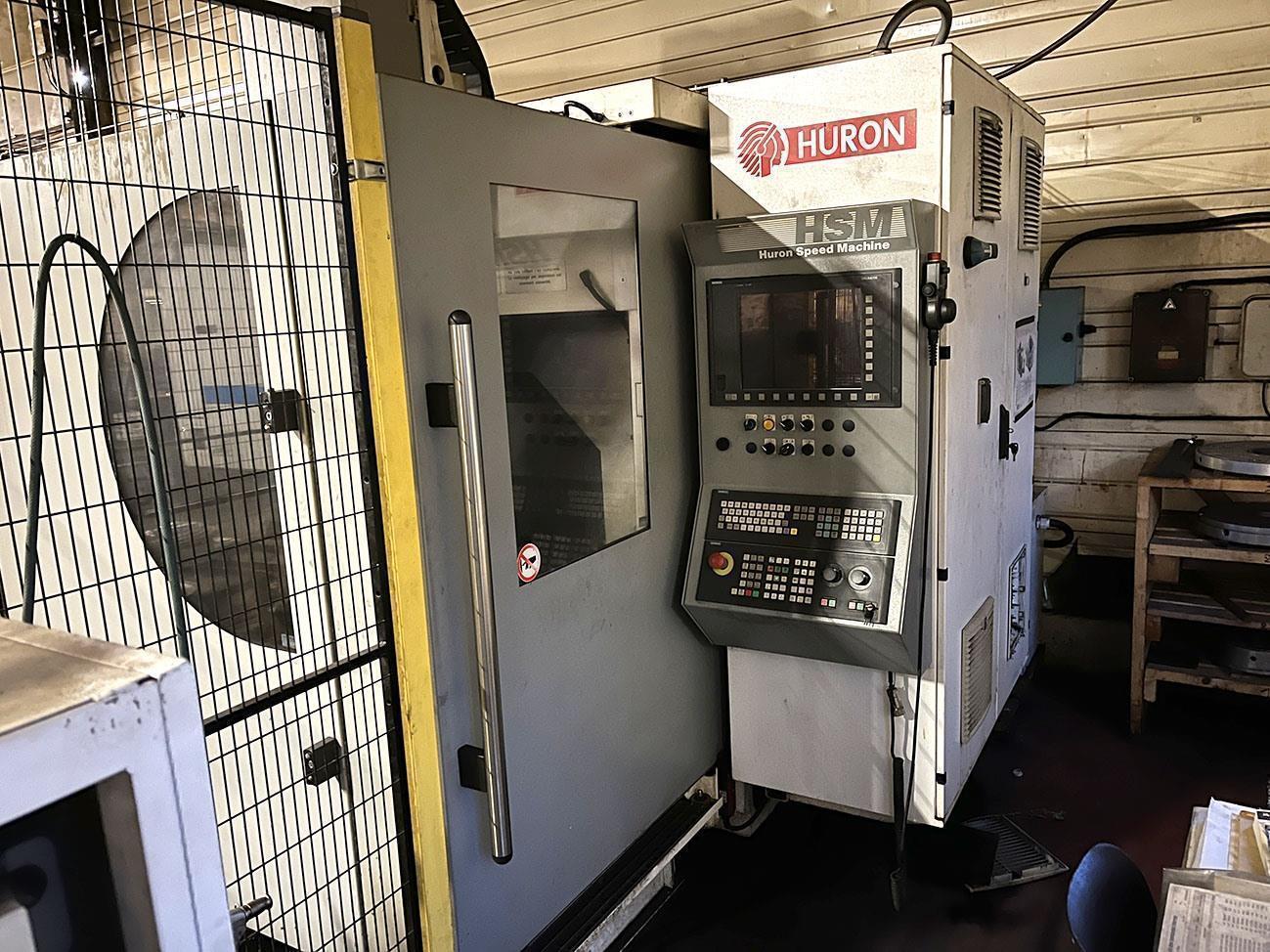

Huron K3X8F X: 780 - Y: 700 - Z: 500 mm CNC

Brand
HURON
Category
Machining Centers
Type
Machining Centers, Vertical
Model
X: 780 - Y: 700 - Z: 500 mm CNC
Stock #
D.01 15212
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

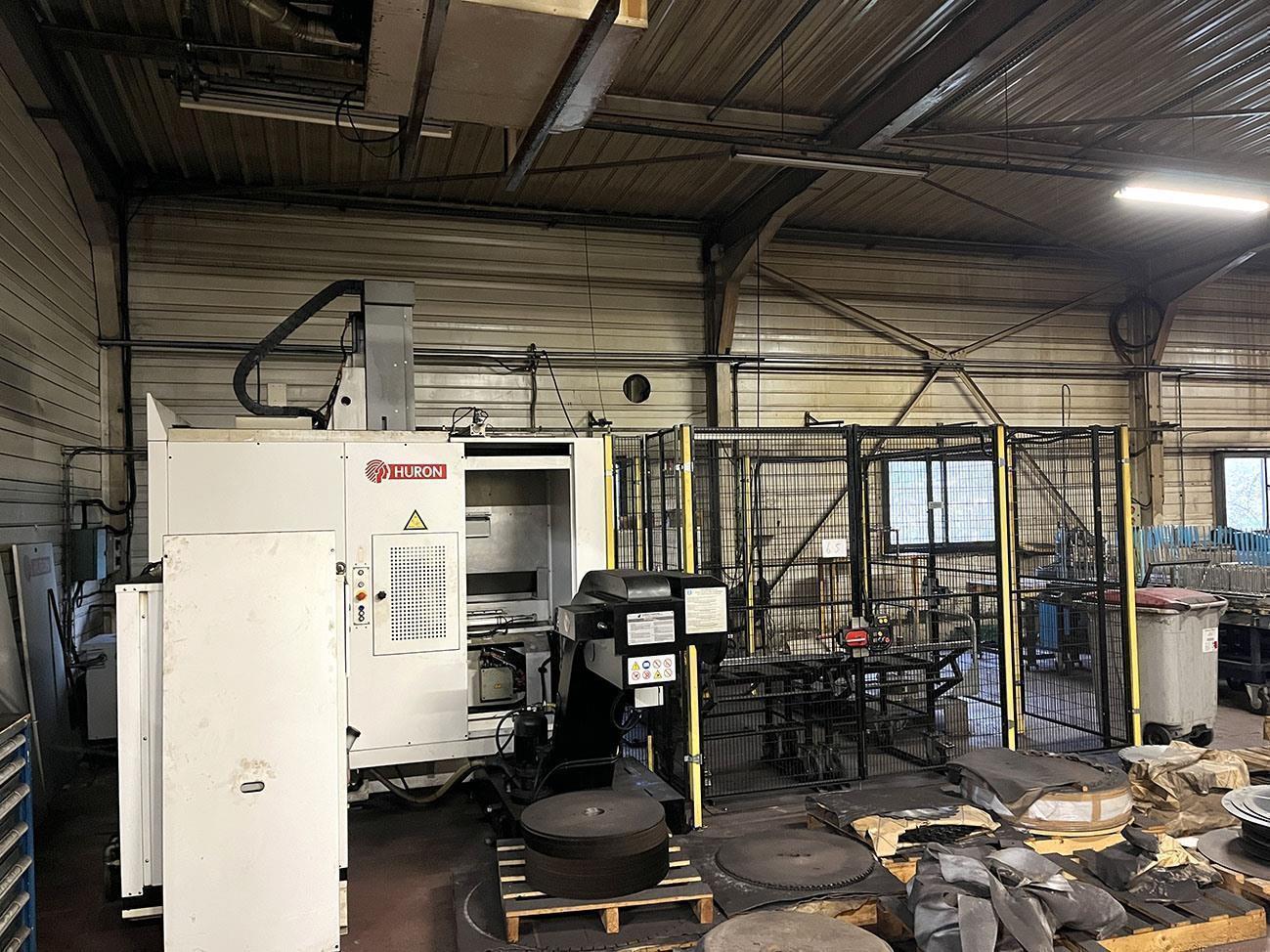

Located in Deinze, Belgium

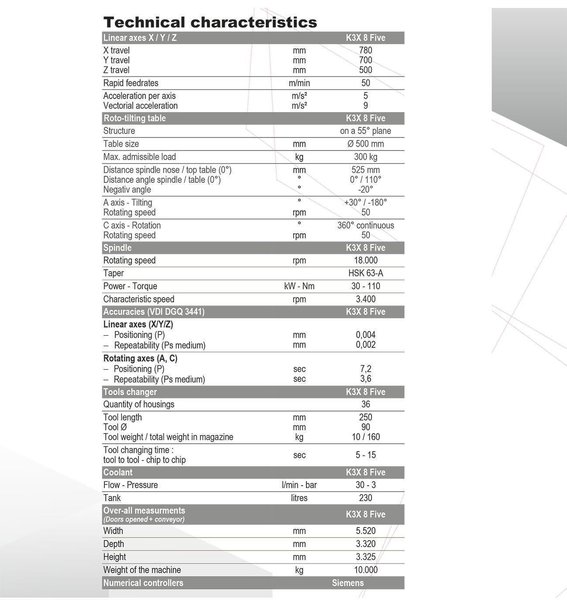

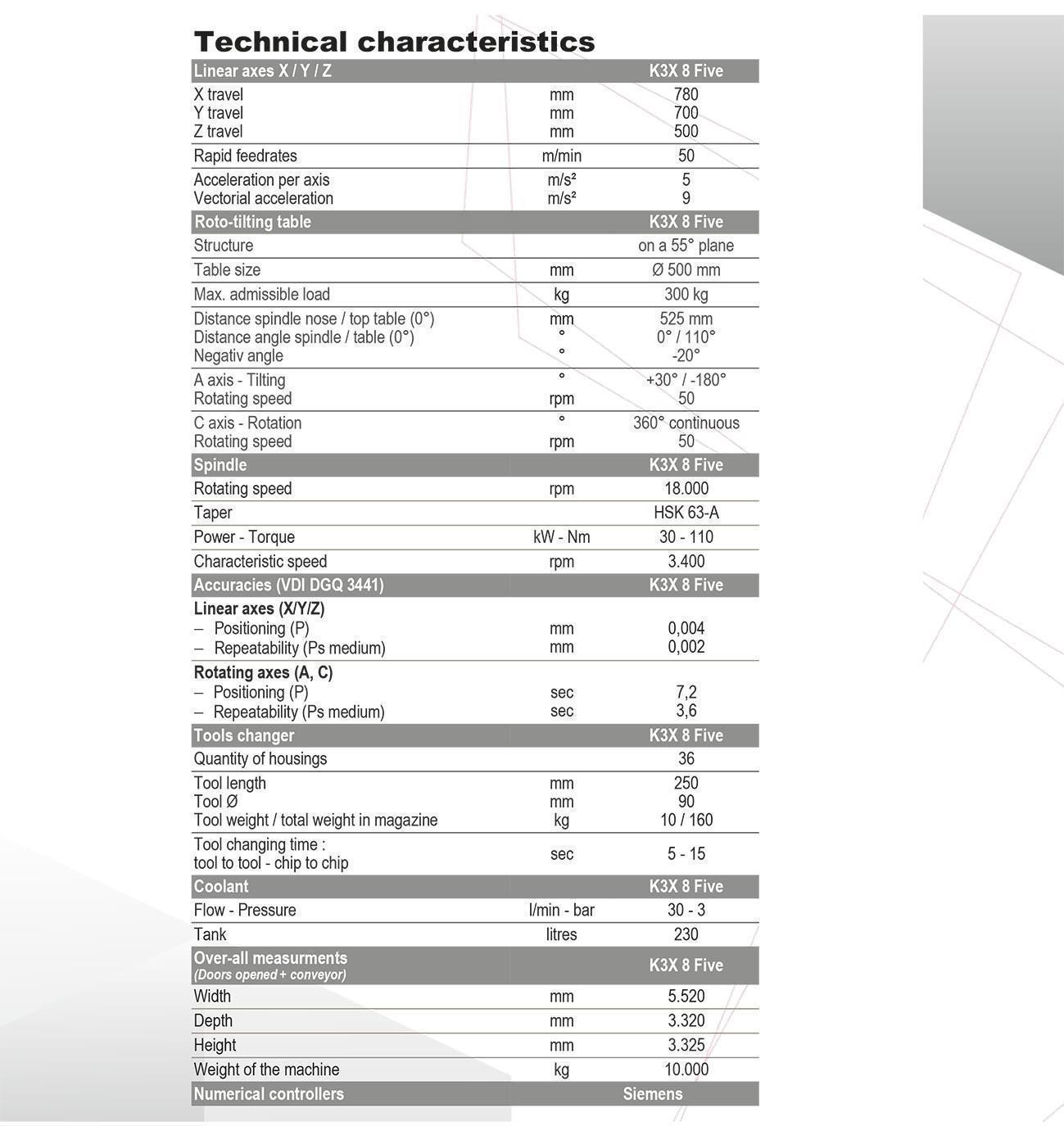

Technical information

  • X-axis 780 mm
  • Y-axis 700 mm
  • Z-axis 500 mm

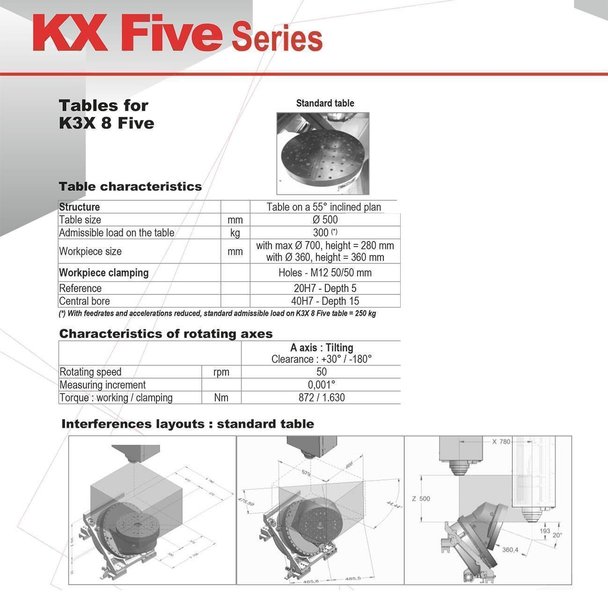

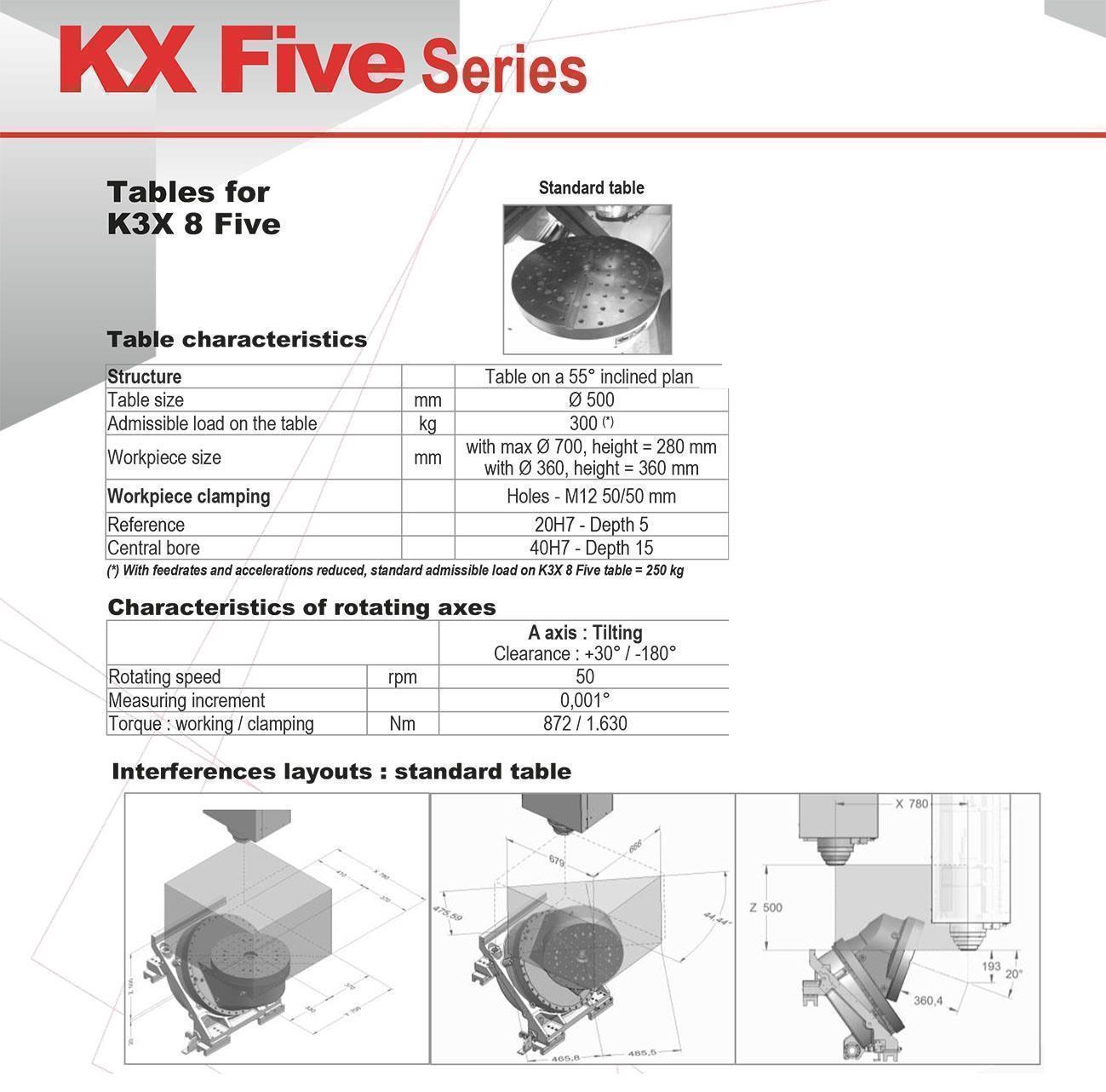

  • Table dimensions dia 500 mm
  • Admission in spindle (ISO) HSK 63A

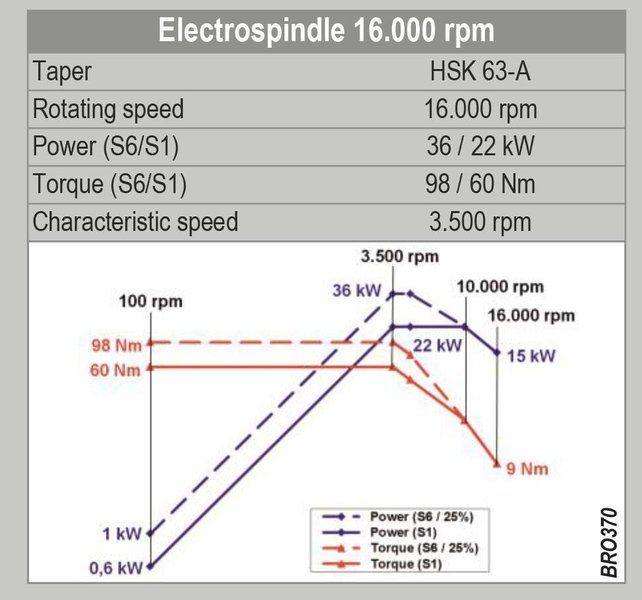

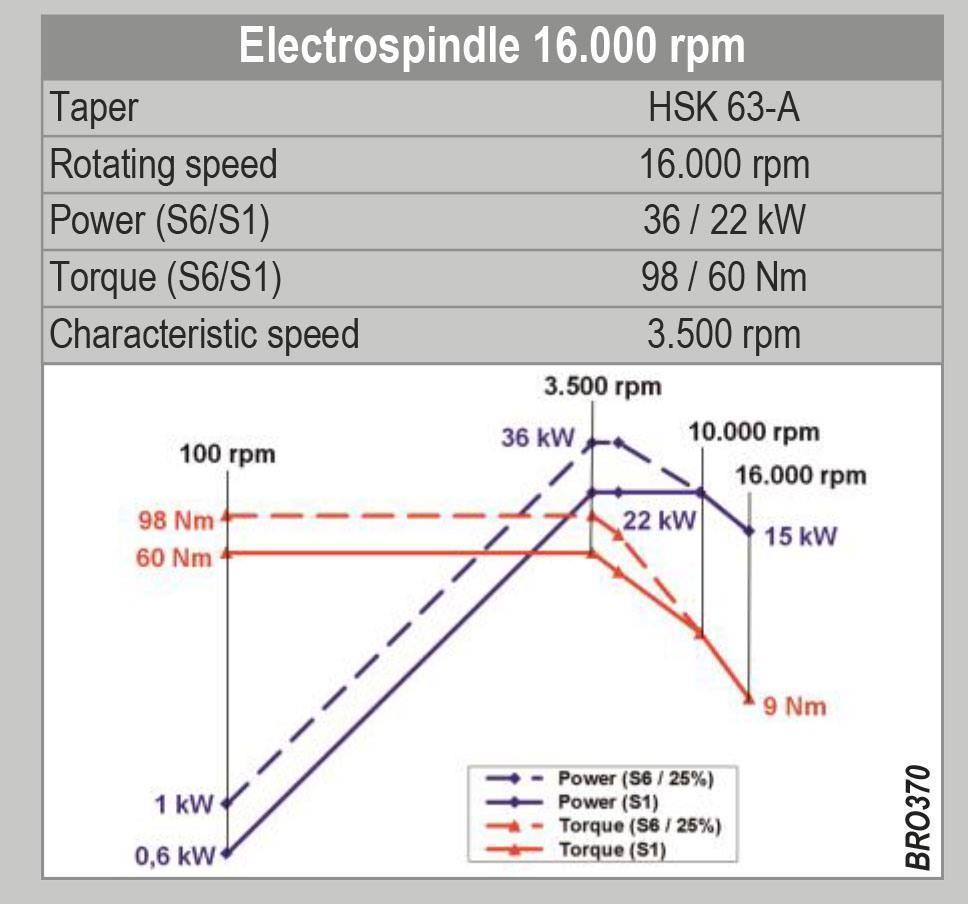

  • Power on the spindle 36 kW

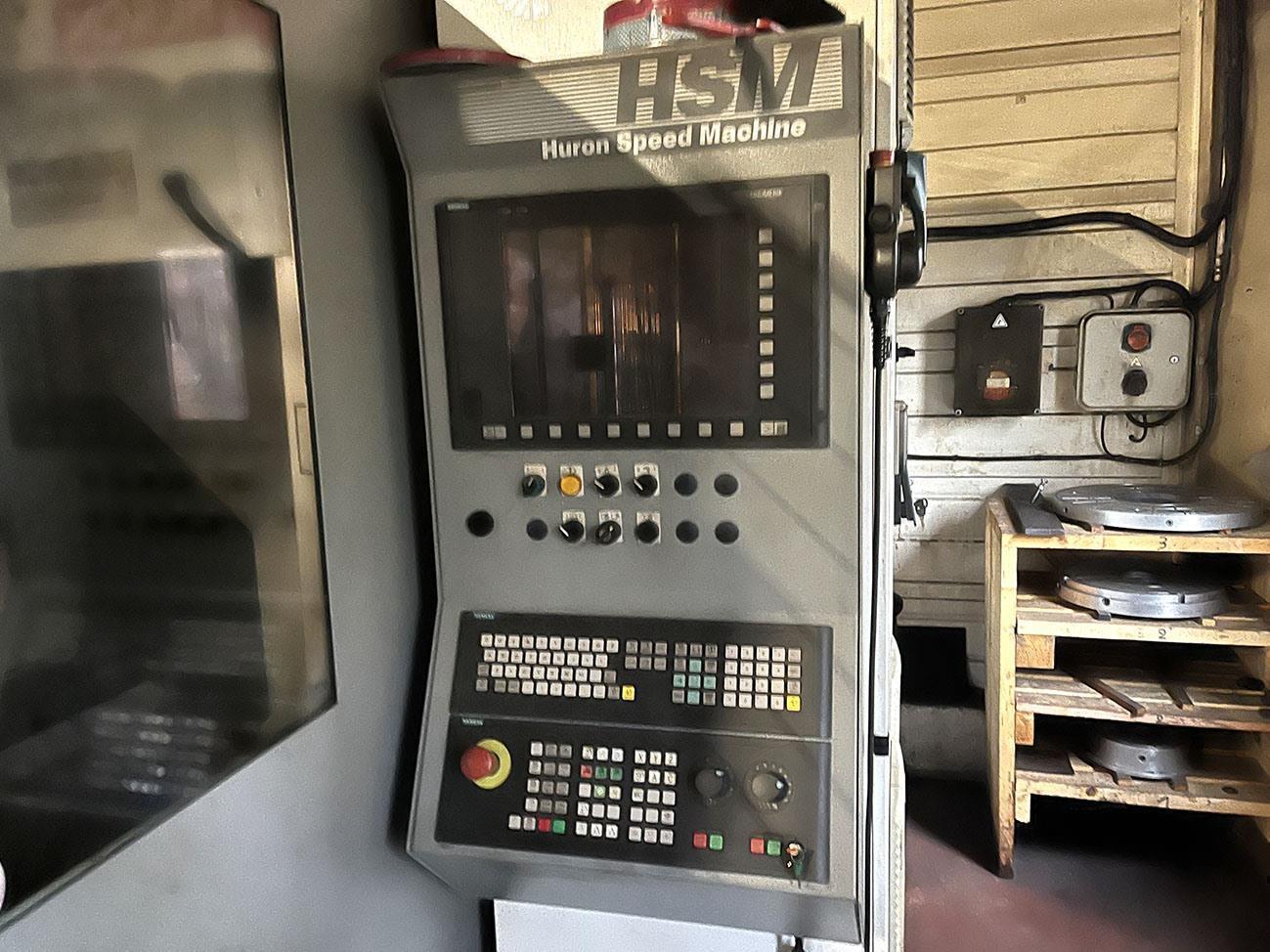

  • Control Siemens
  • Number of axes 5 axes simultaneous
  • Toolchanger yes
  • Number of toolholders 36 toolpositions
  • Number of rotations 16 000 rpm
  • Power principal motor 50 kW

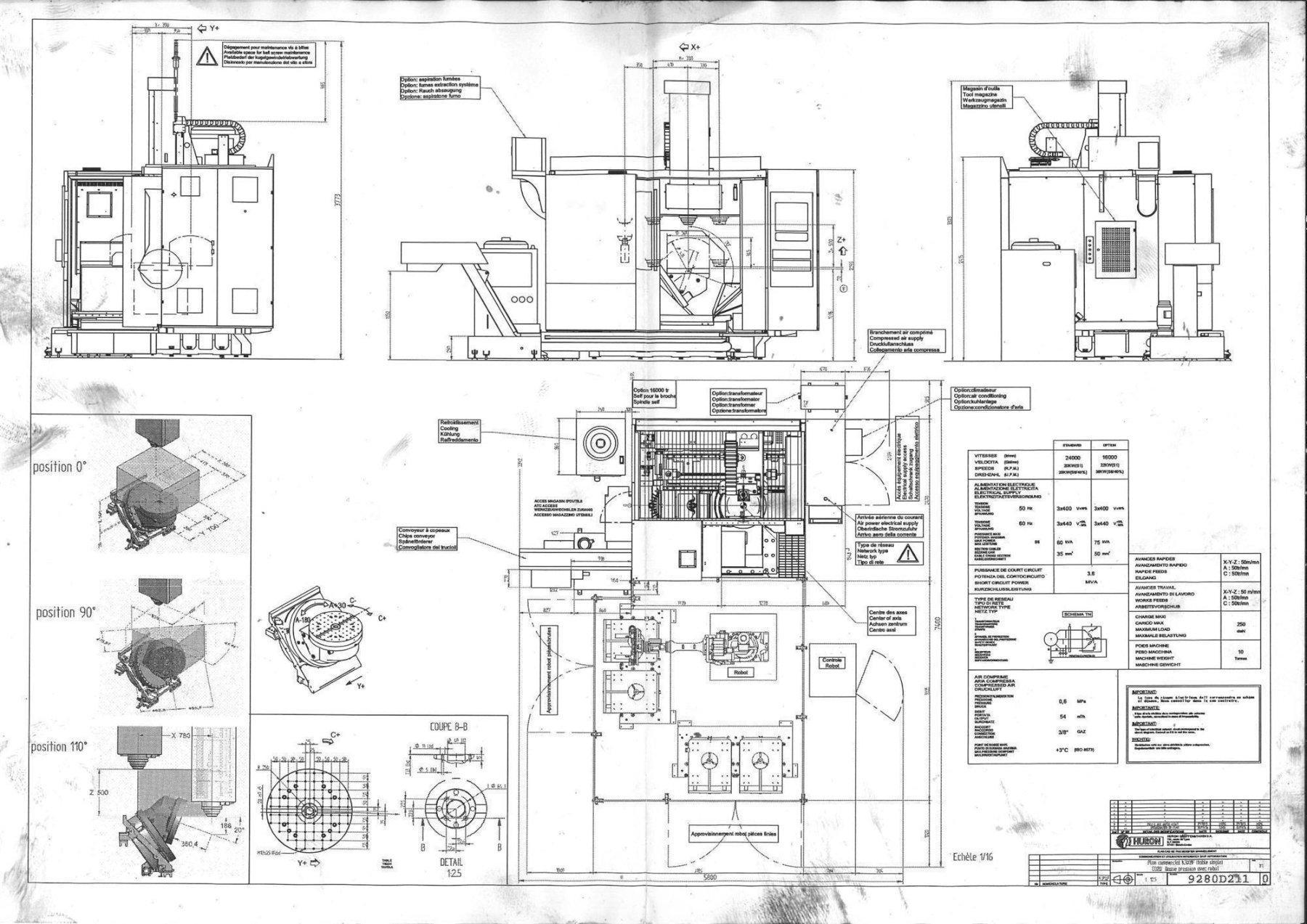

  • Length 5520 mm
  • Depth 3320 mm
  • Height 3325 mm
  • Weight 10 ton

Additional info

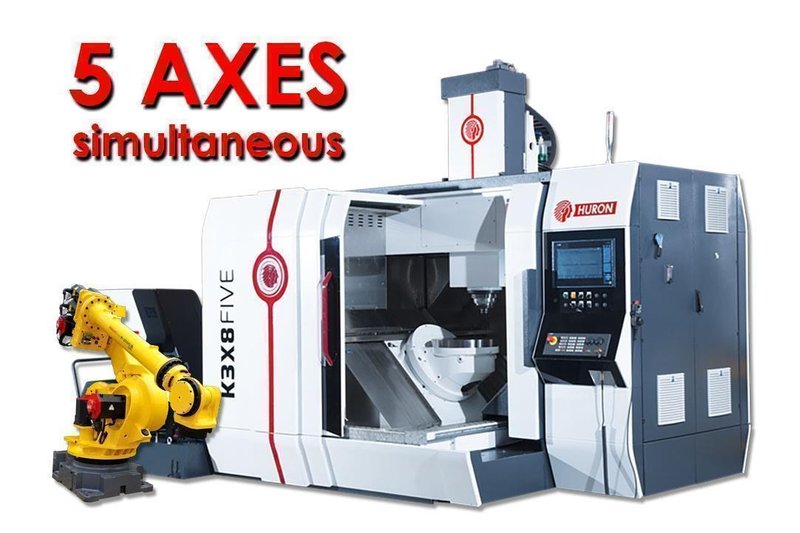

  • 5-axis simultaneous machining center

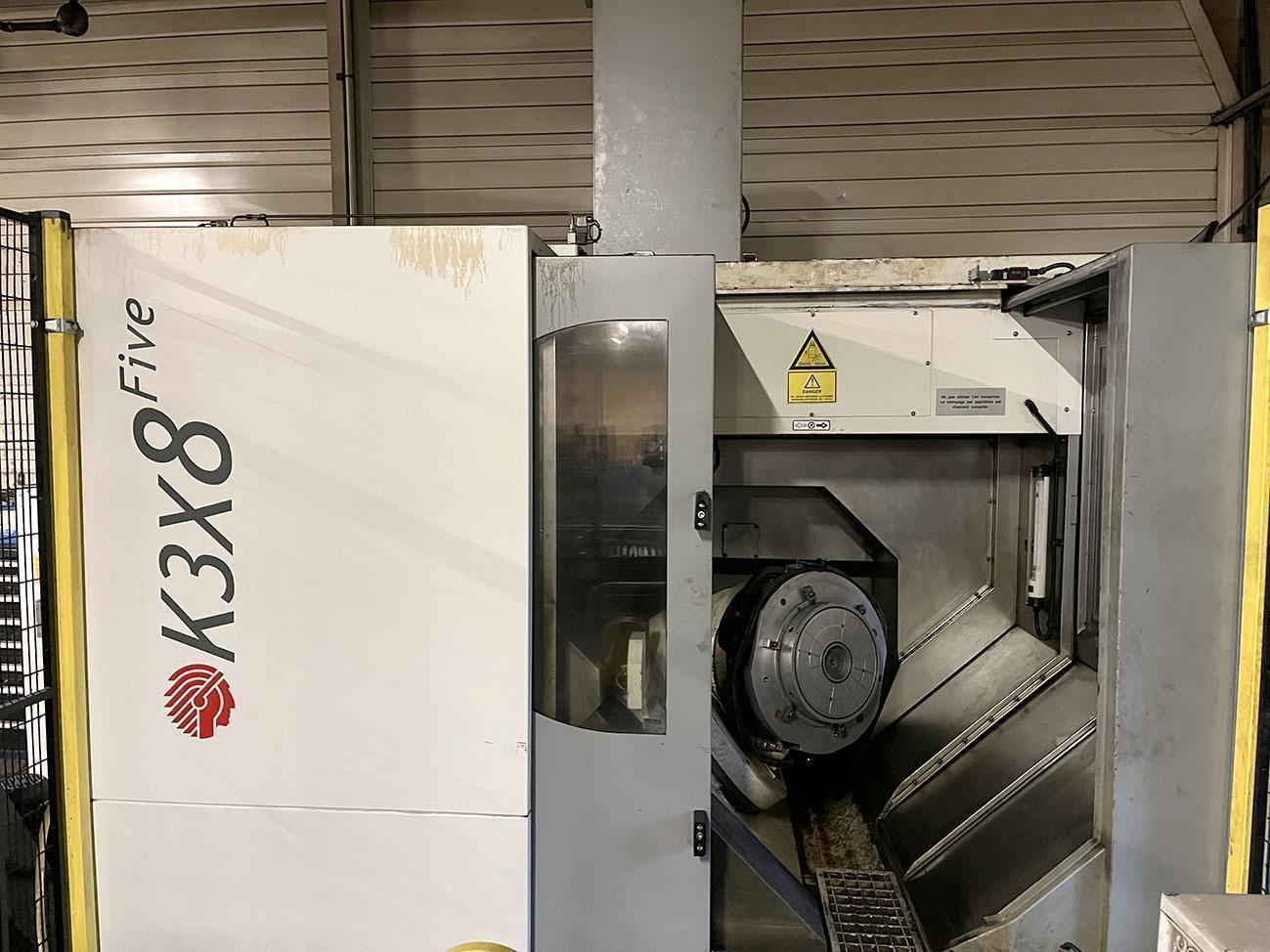

    Type: K3X8F
    max. workpiece: dia 700 mm
    max. workpiece weight: 300 kg
    distance spindle nose / top table: 525 mm

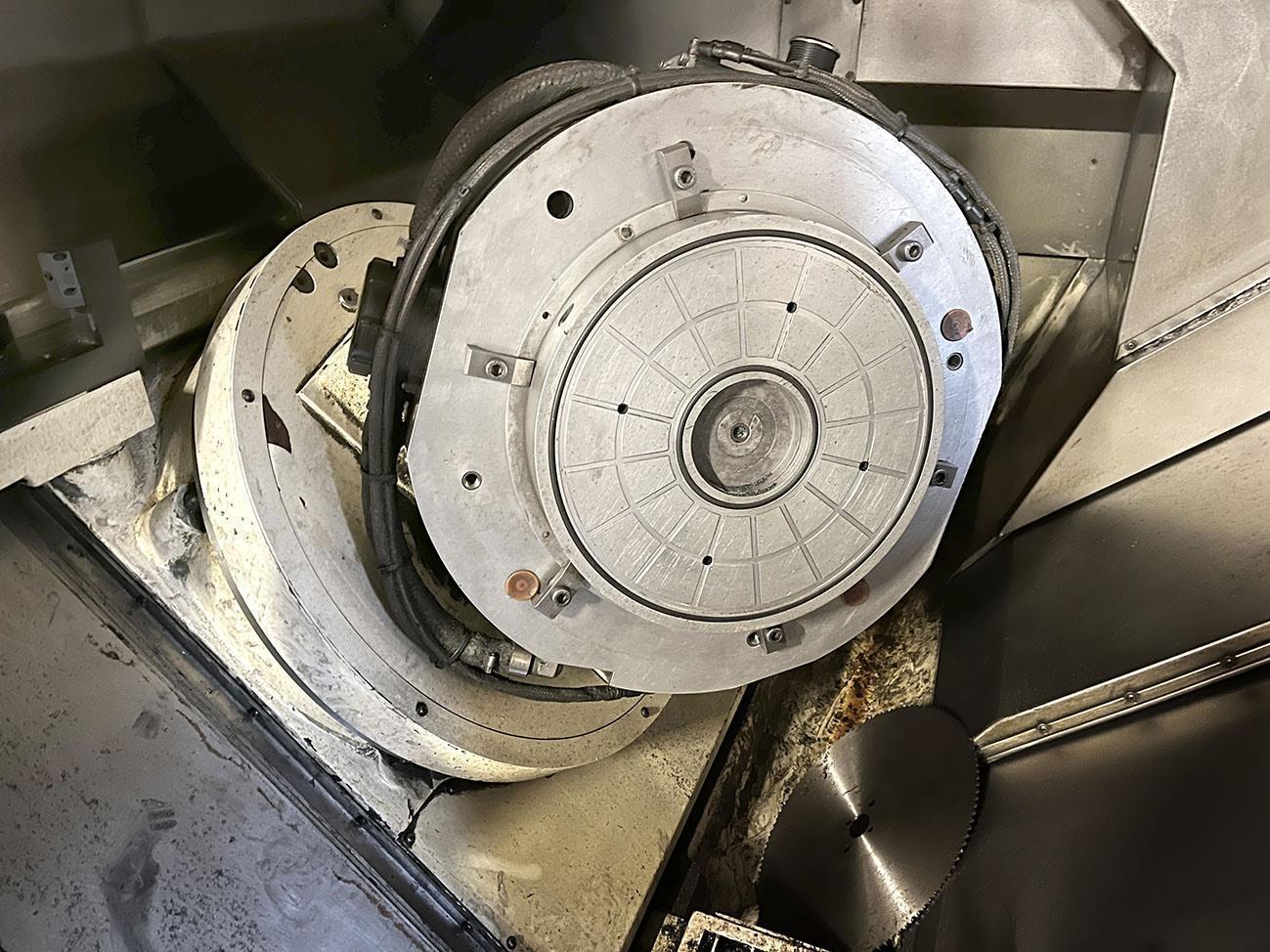

    A-axis (tilt): +30°/-180°
    C-axis (rotation): 360° continuous
    fast movements: 50,000 mm/min
    high pressure cooling by spindle
    chip conveyor belt
    vibration monitoring
    laser tool probe Blum Micro
    workpiece probe Blum TC52

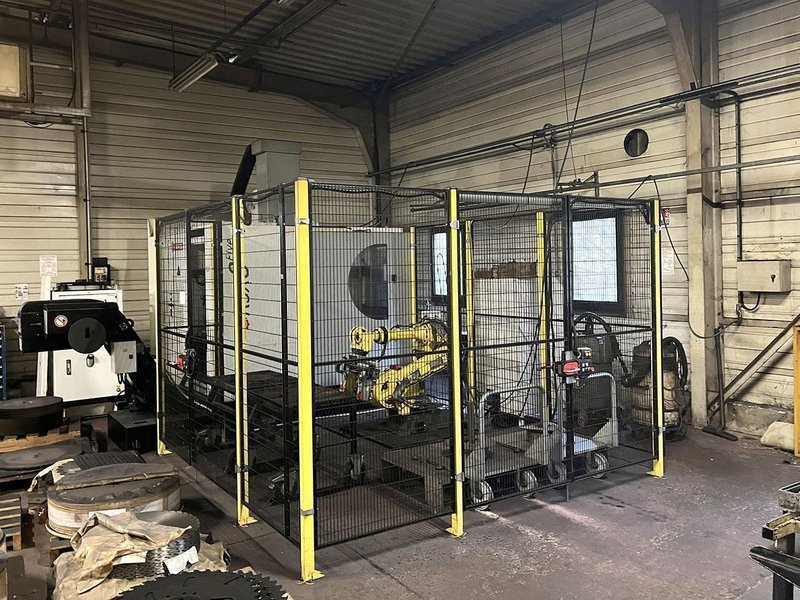

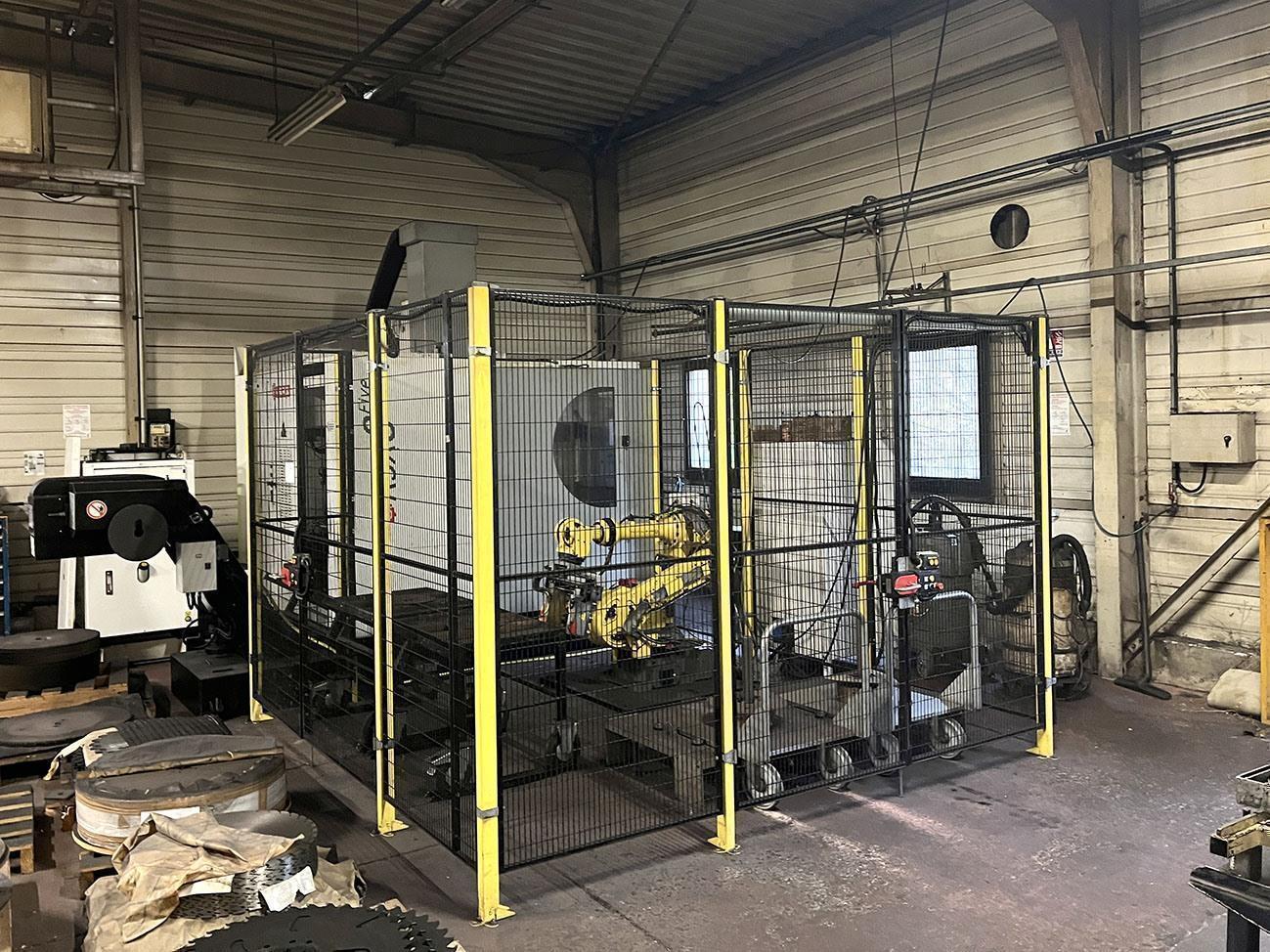

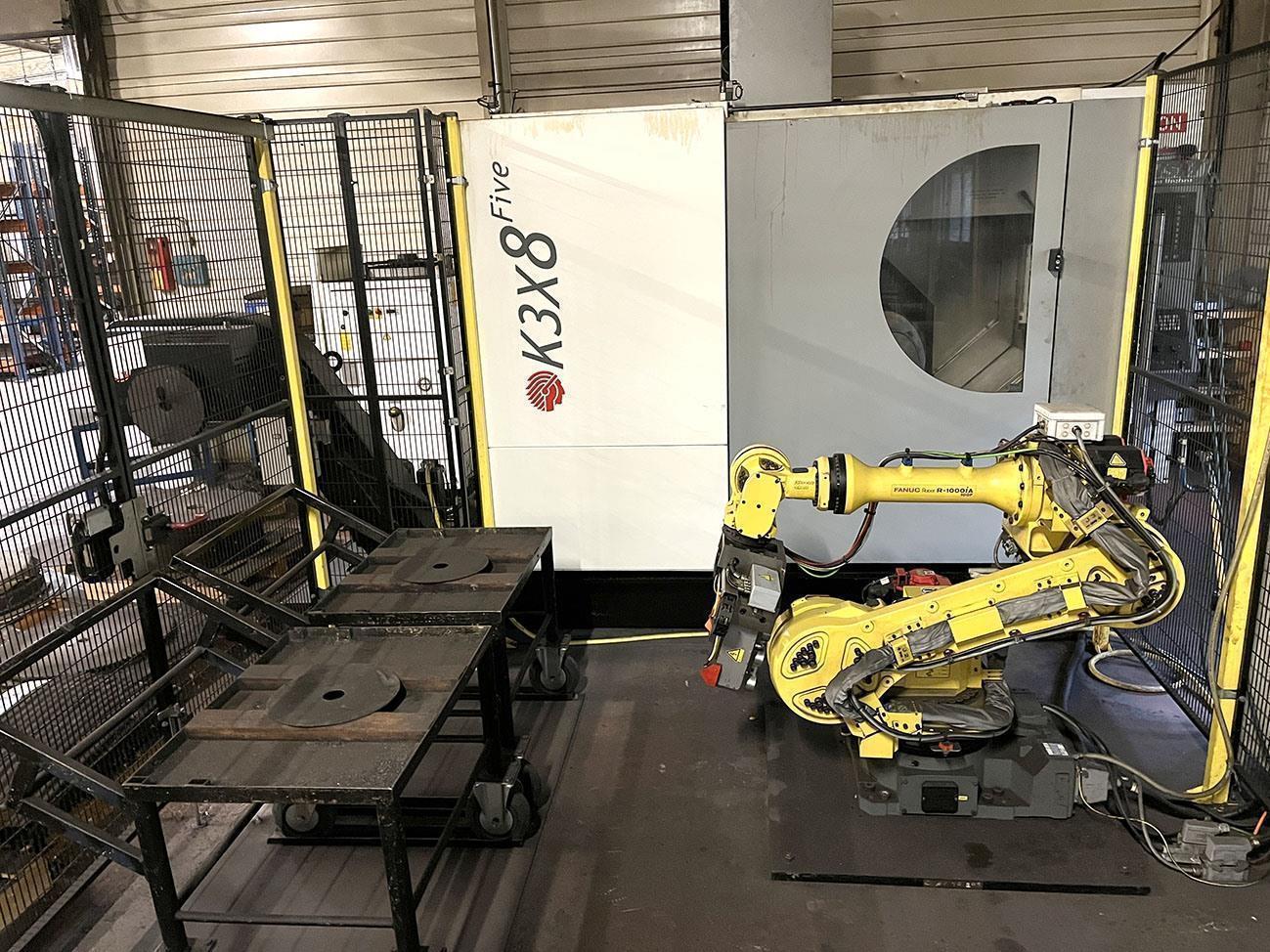

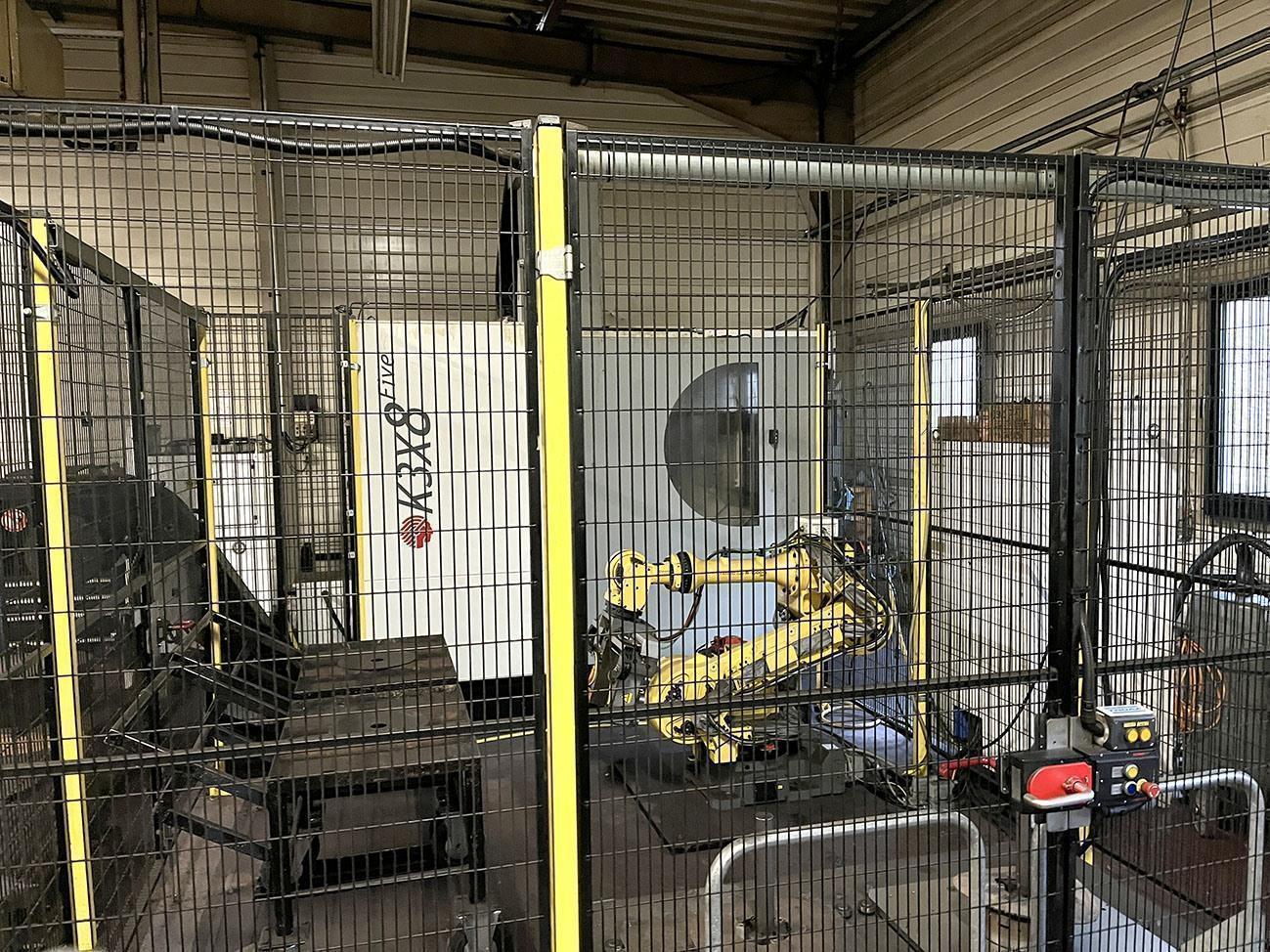

    with Fanuc Robot charging system RB:

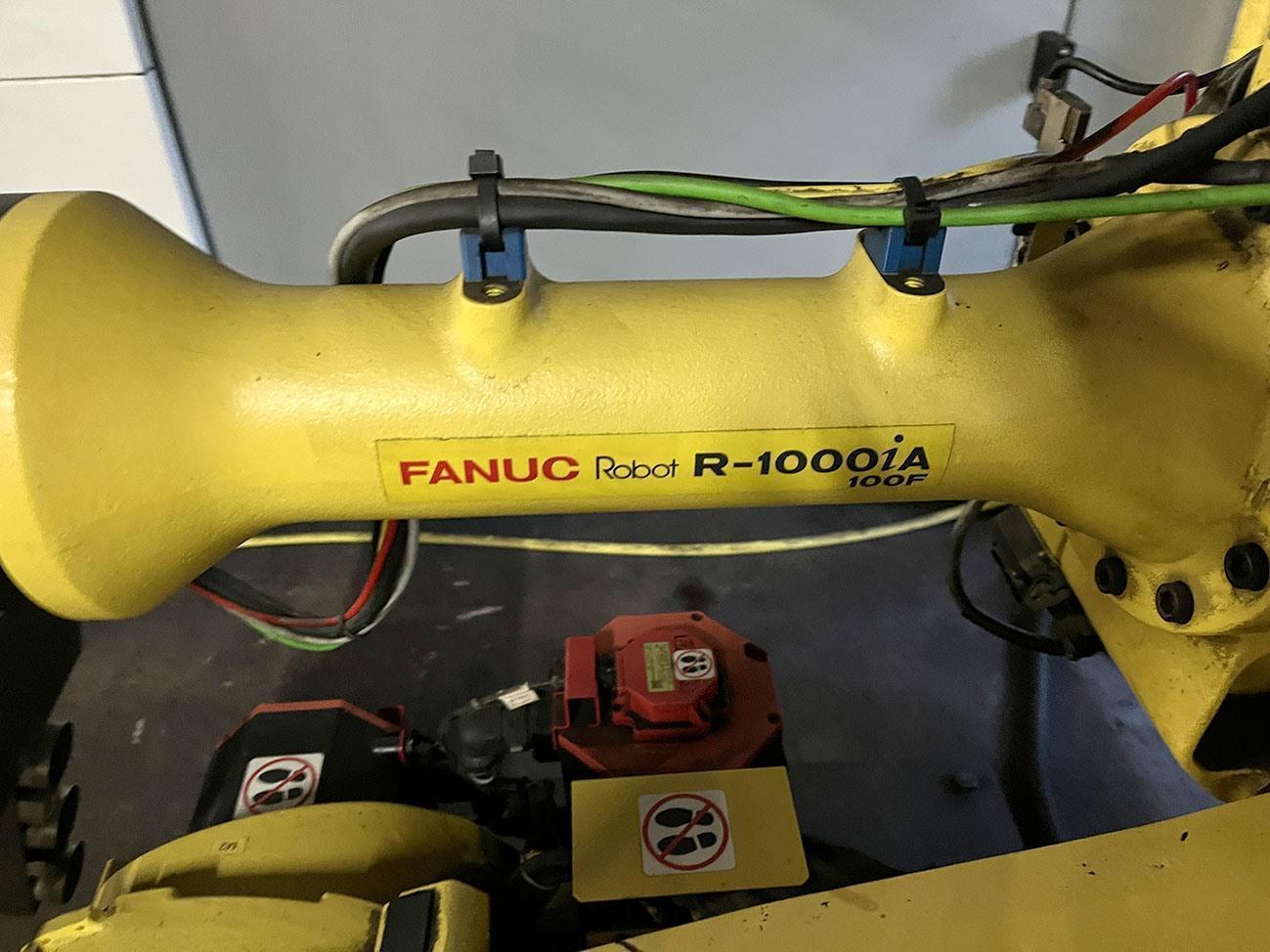

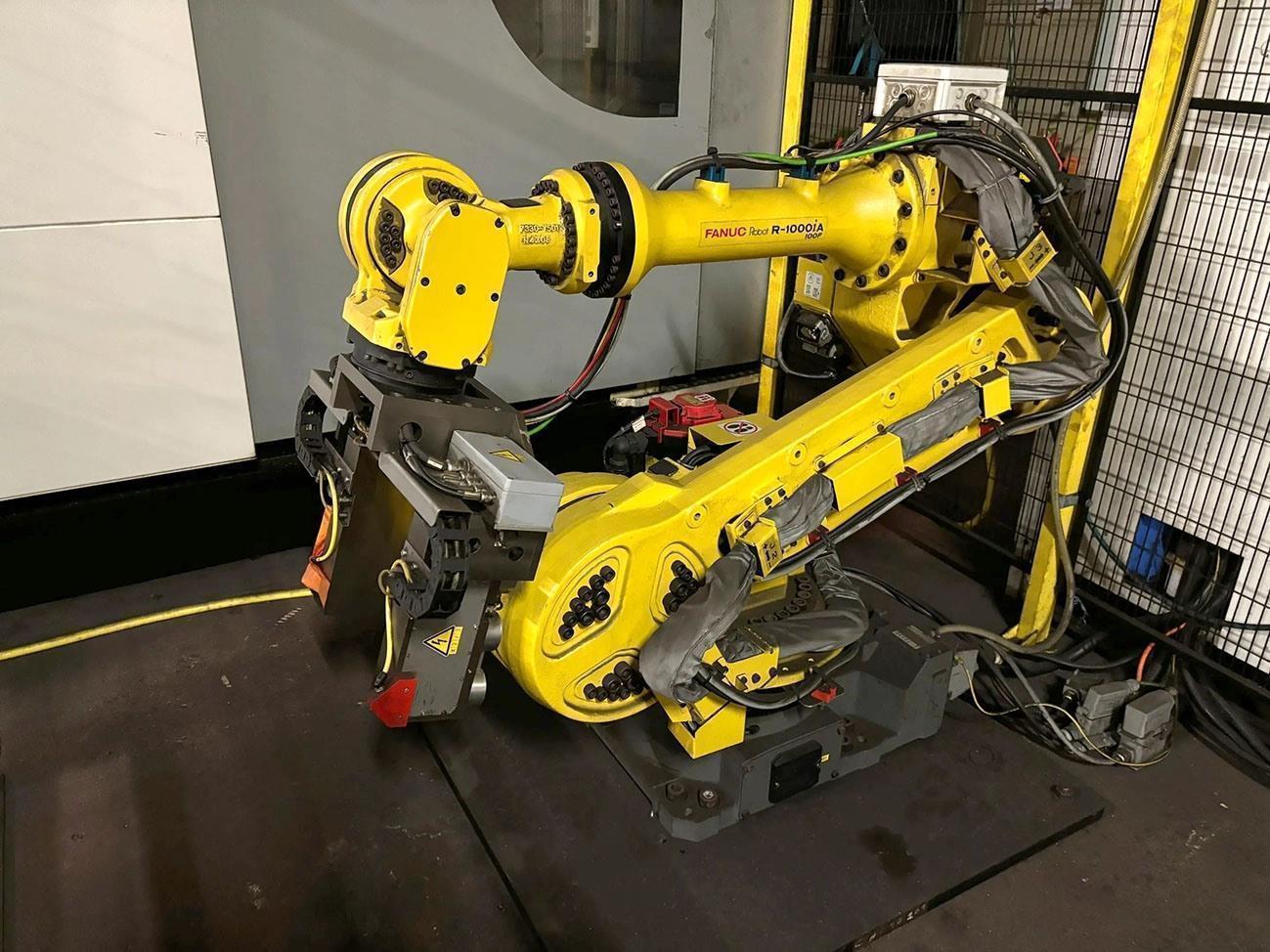

    Robot: A05B-1330-B205 (Fanuc Robot R-1000iA/100F)
    Controller: A05B-2601-B112 (Fanuc system R-30iB)
