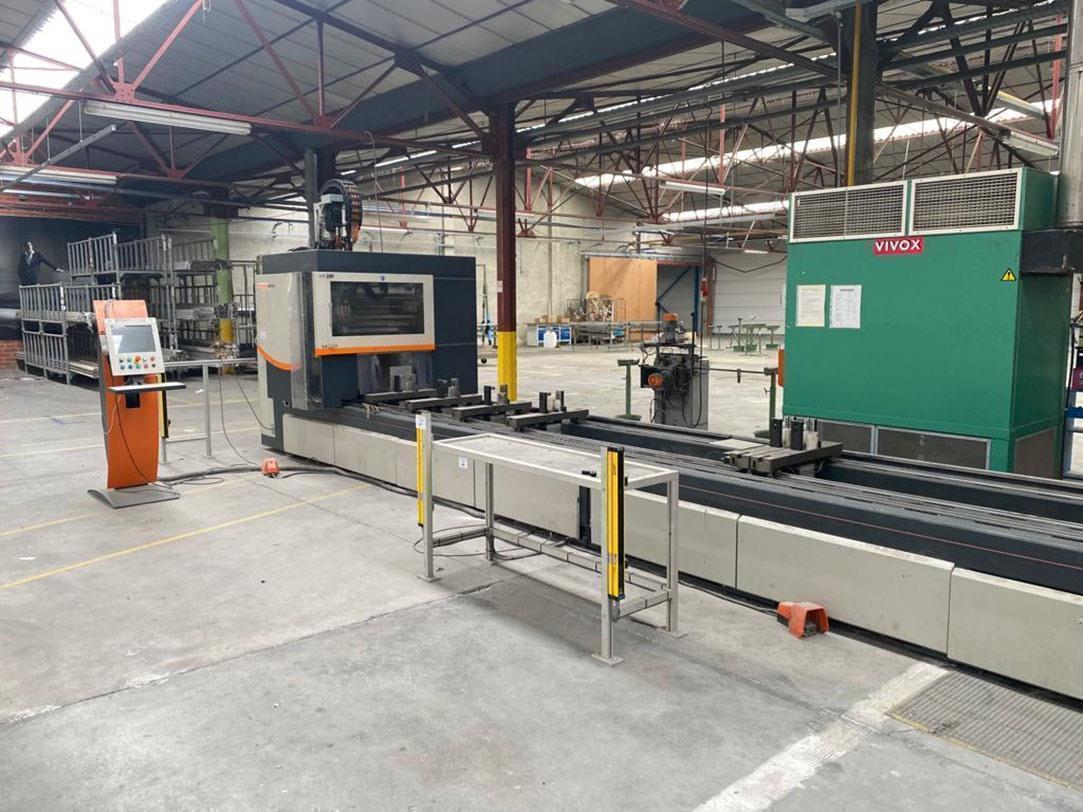

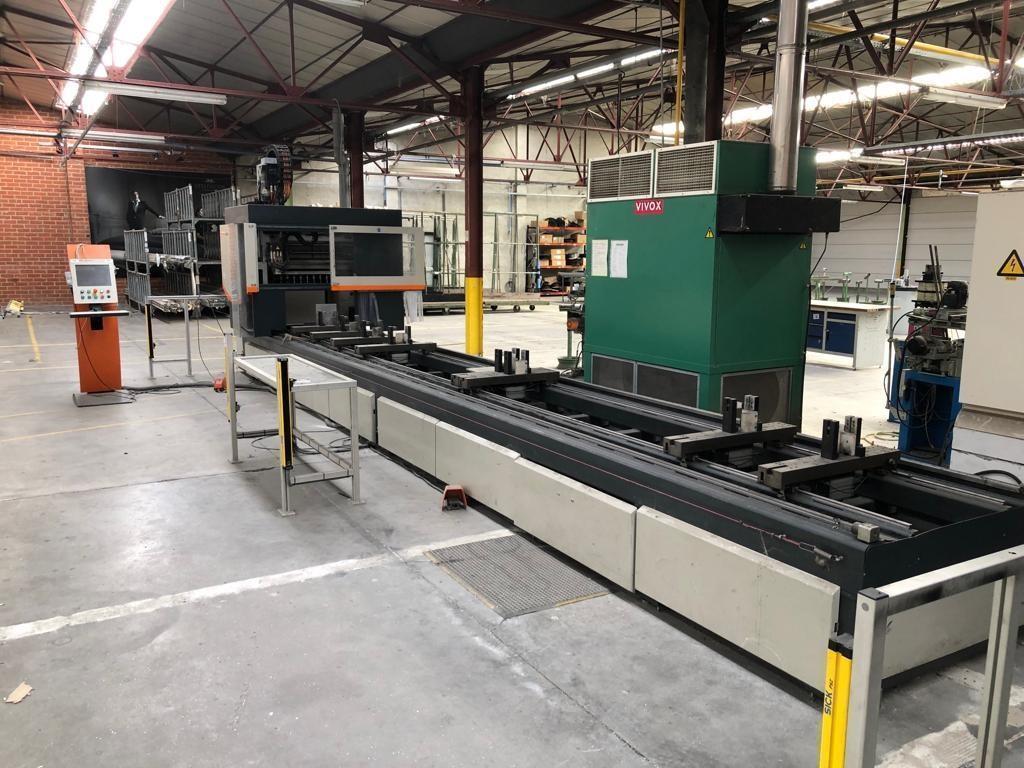

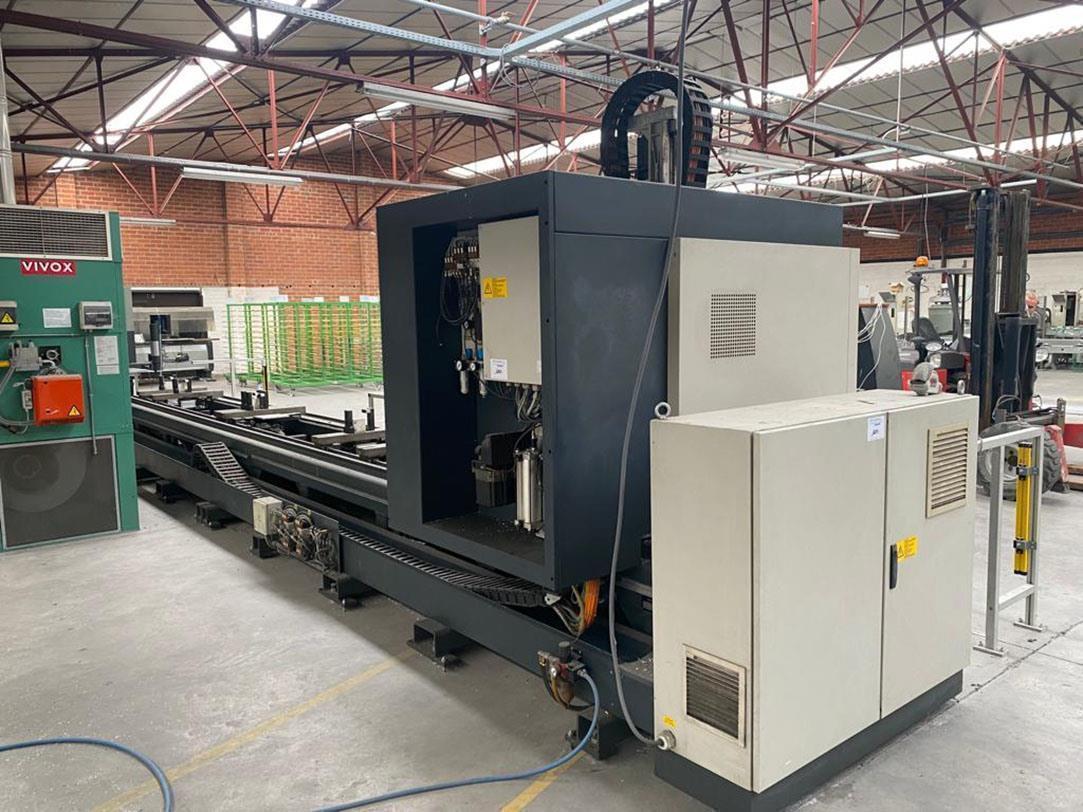

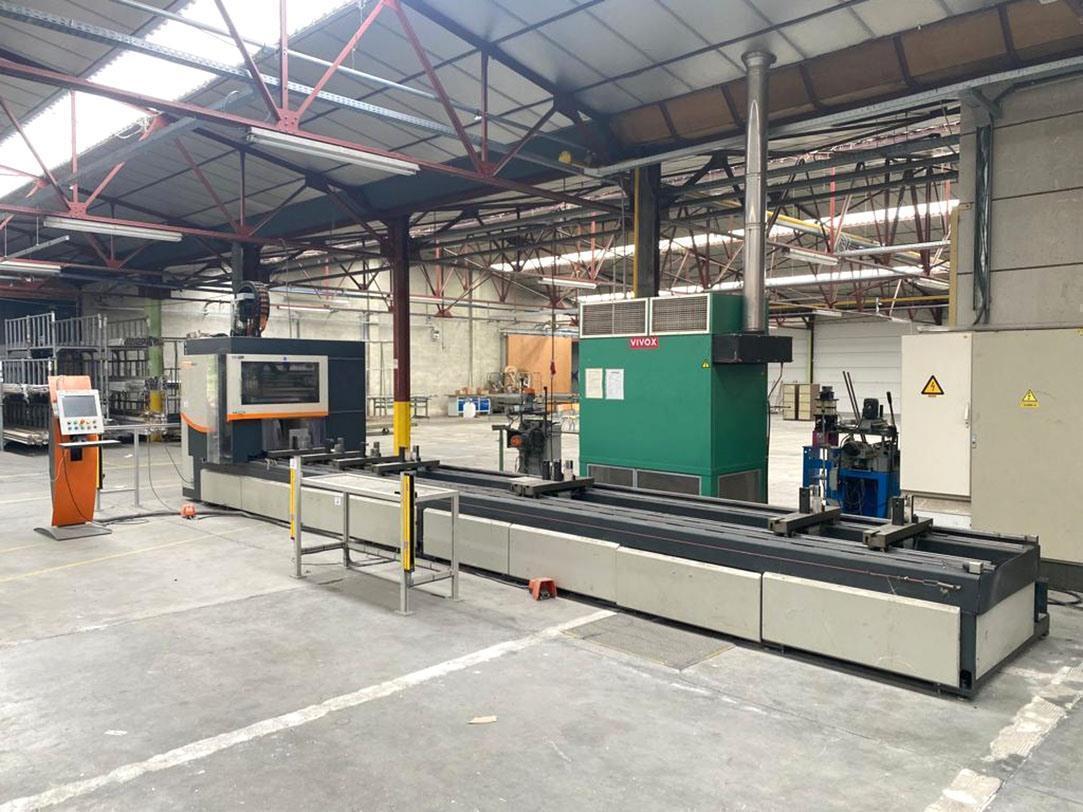

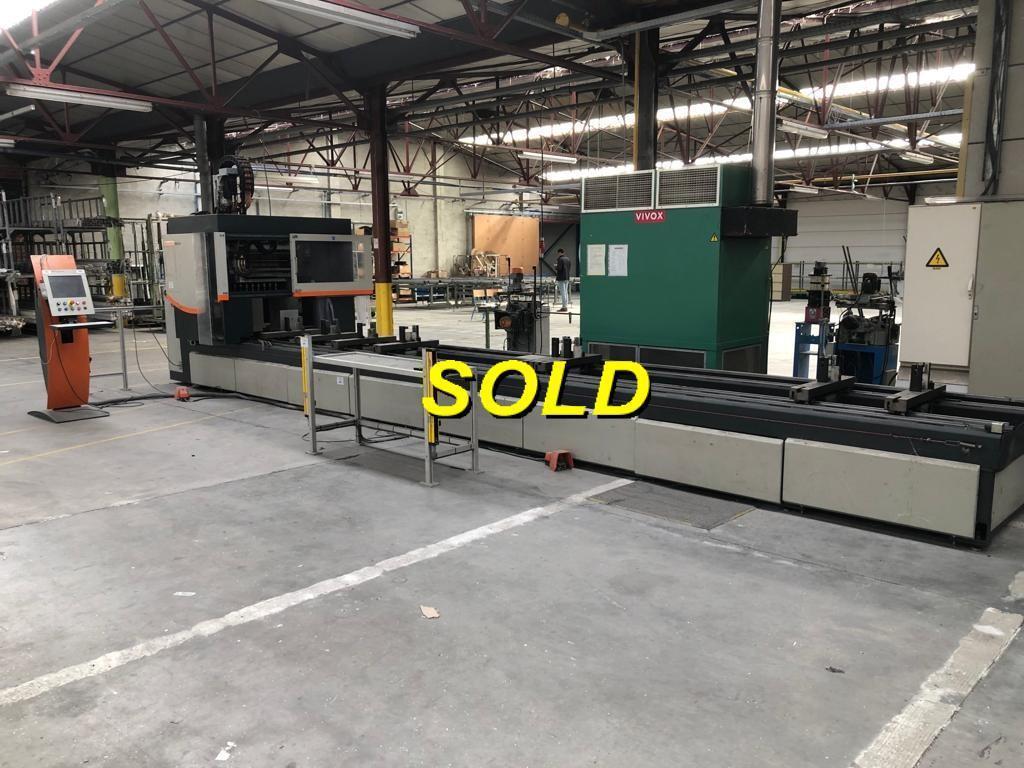

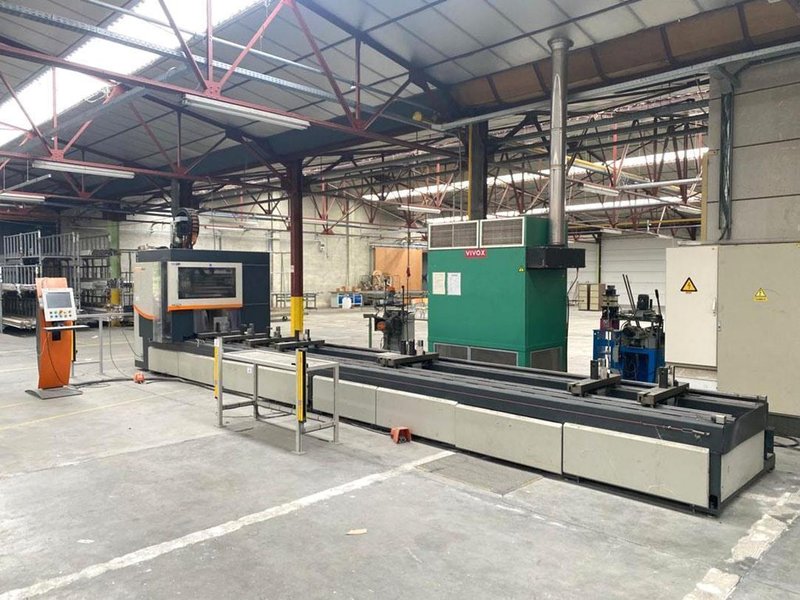

Elumatec SBZ 140 - X: 7900 - Y: 850 - Z: 650 mm

Brand
ELUMATEC
Category
Machining Centers
Type
Machining Centers, Vertical
Model
SBZ 140 - X: 7900 - Y: 850 - Z: 650 mm
Stock #
D.01 12853
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • X-axis 7900 mm
  • Y-axis 850 mm
  • Z-axis 650 mm
  • Admission in spindle (ISO) HSK-63 F
  • Power on the spindle 6 kW
  • Toolchanger yes
  • Number of toolholders 8 positions
  • Number of rotations max 21 000 rpm

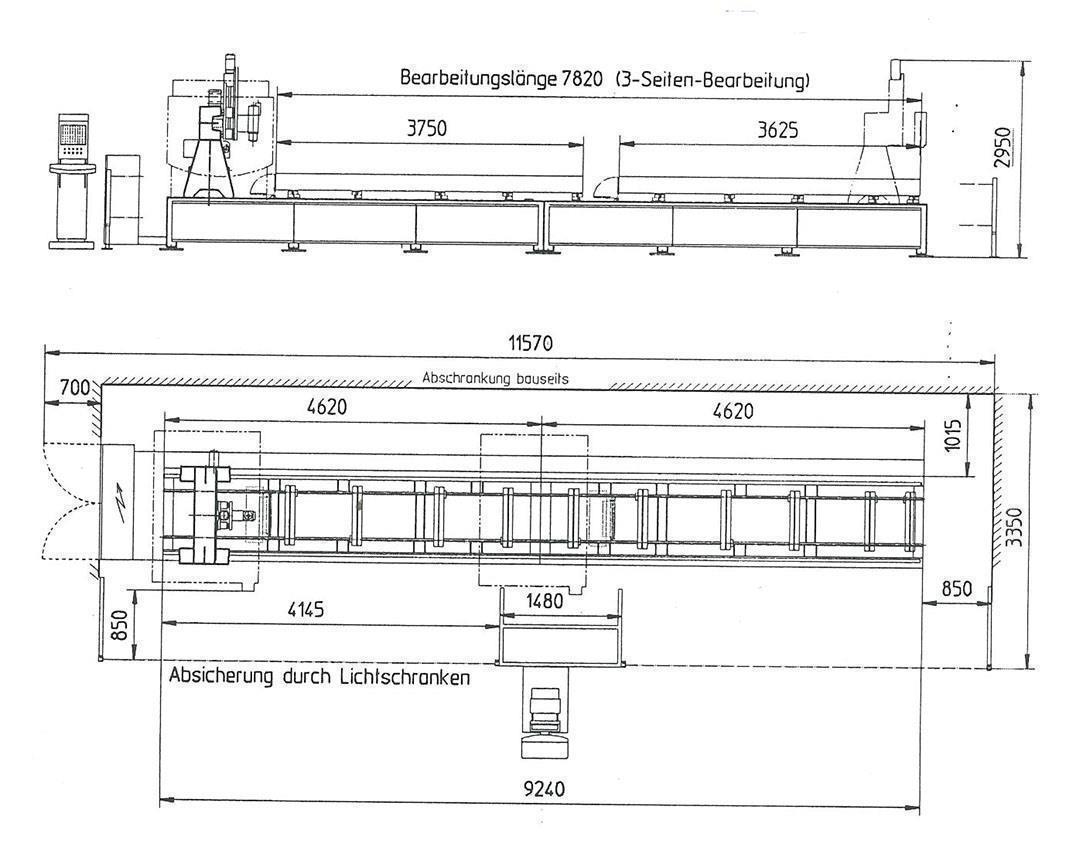

  • Length 11 400 mm
  • Depth 3350 mm
  • Height 2700 mm
  • Weight 4,9 ton

Additional info

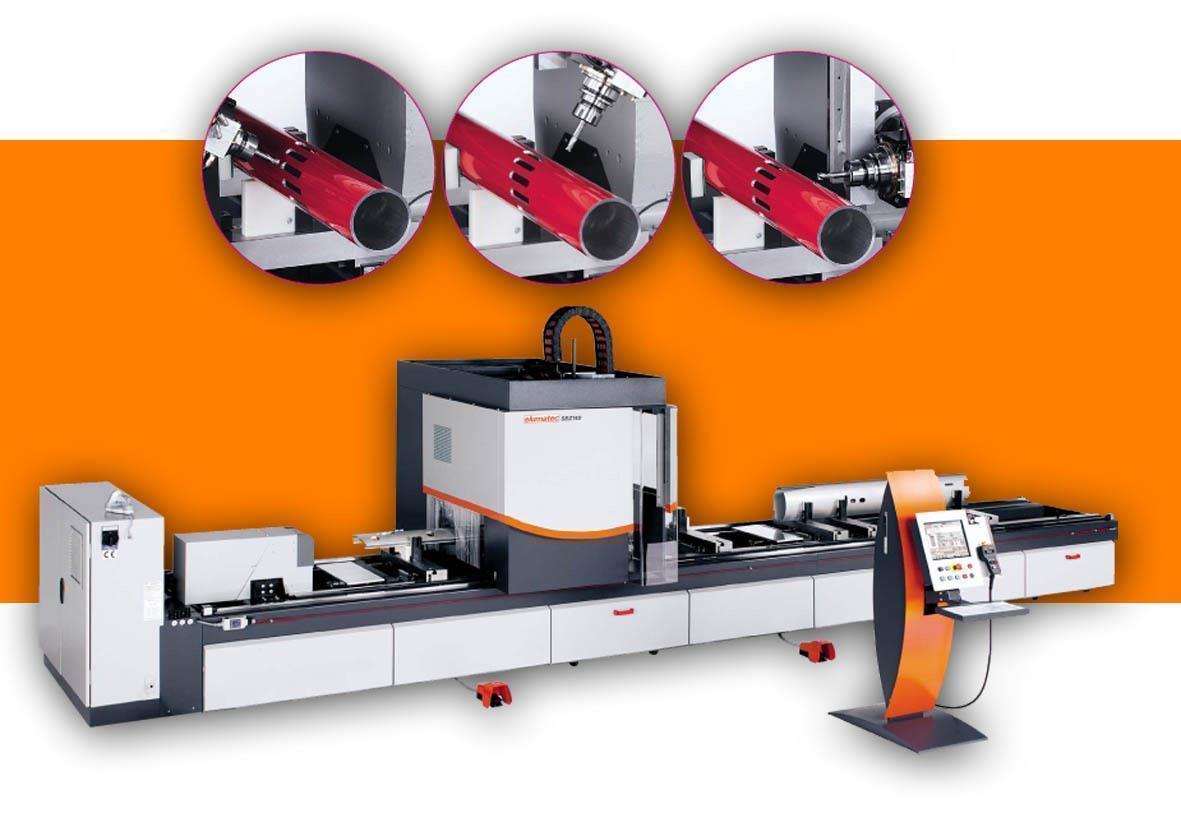

  • - 4-axis industrial profile machining center - type SBZ 140
    - Can edit up to 5 sides of a profile
    - Machining options: drilling, machining and tapping
    - Maximum machining length with profile head machining: 7480 mm
    - Maximum machining length without profile head machining: 7600 mm

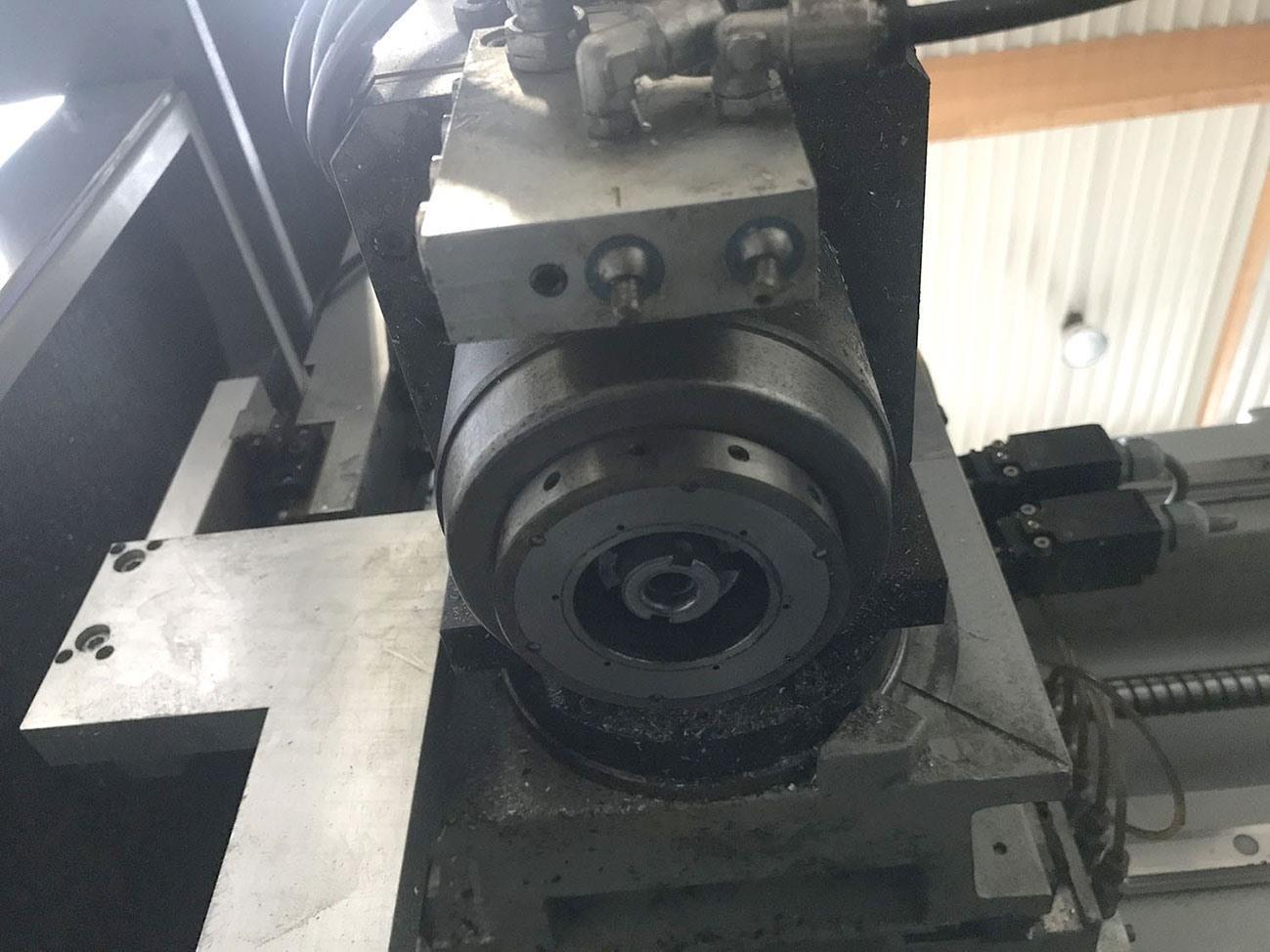

    - The axis-controlled milling head can machine the profile continuously at any position between 0° and 180° with all available tools

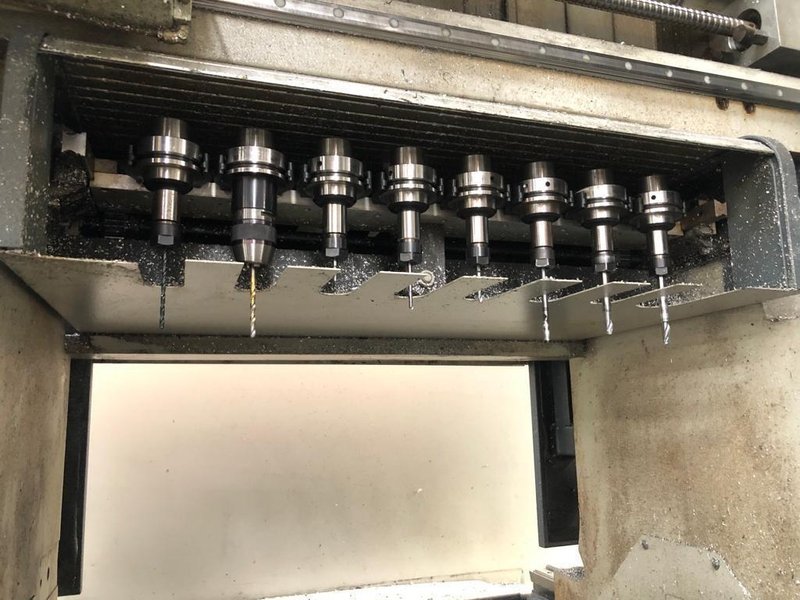

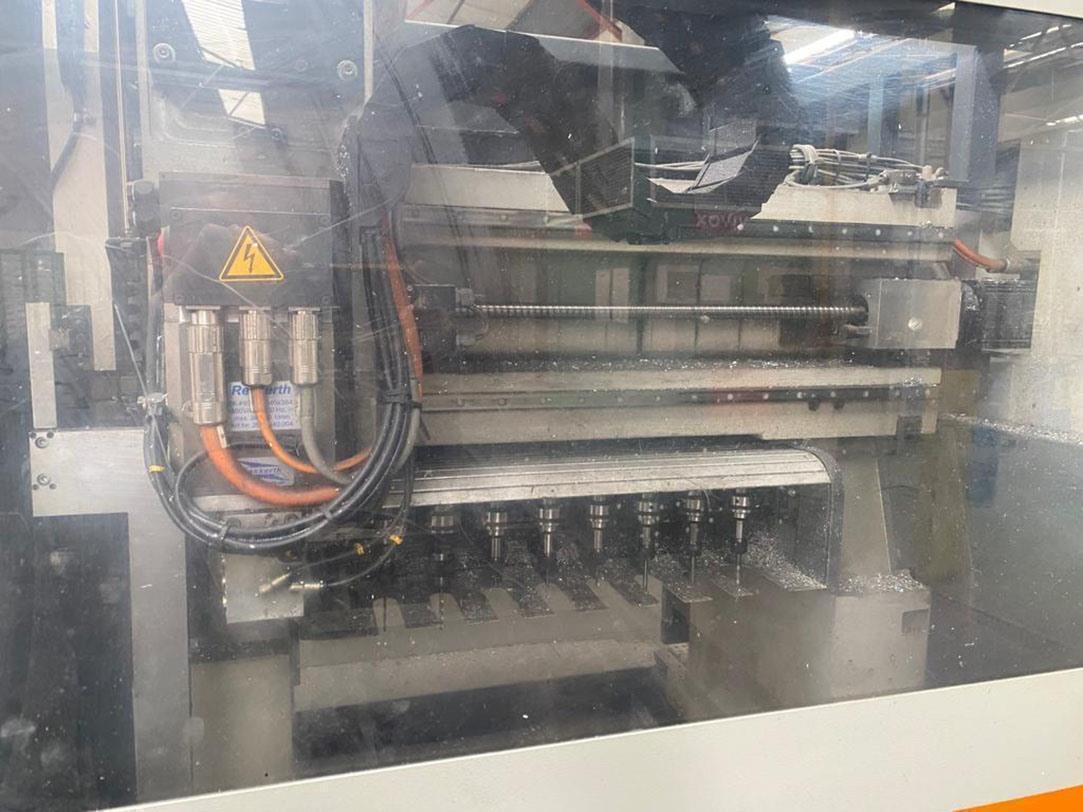

    - 8 tools
    - 8 movable clamps
    - barcode reader

    Optional: upgrade to software new control 2025
     > Version: 9.1.1.10 / 2.31e

    automatic profile measuring system
    > 2 extra clips complete material

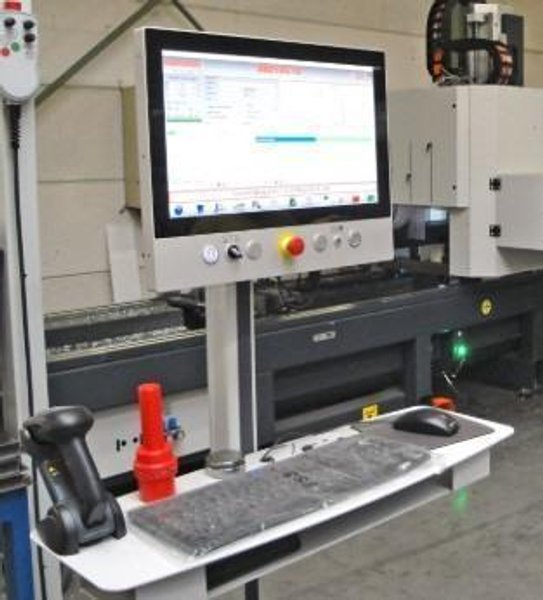

    remote control console for SBZ 140
    > 8x adjustable clamping material
    > automatic detection of the clamp position
    > automatic positioning of terminal equipment
    microdosing system (tool lubrication)
    safety cover
    safety light
    central chip removal
    > 2x pneumatic zero attack

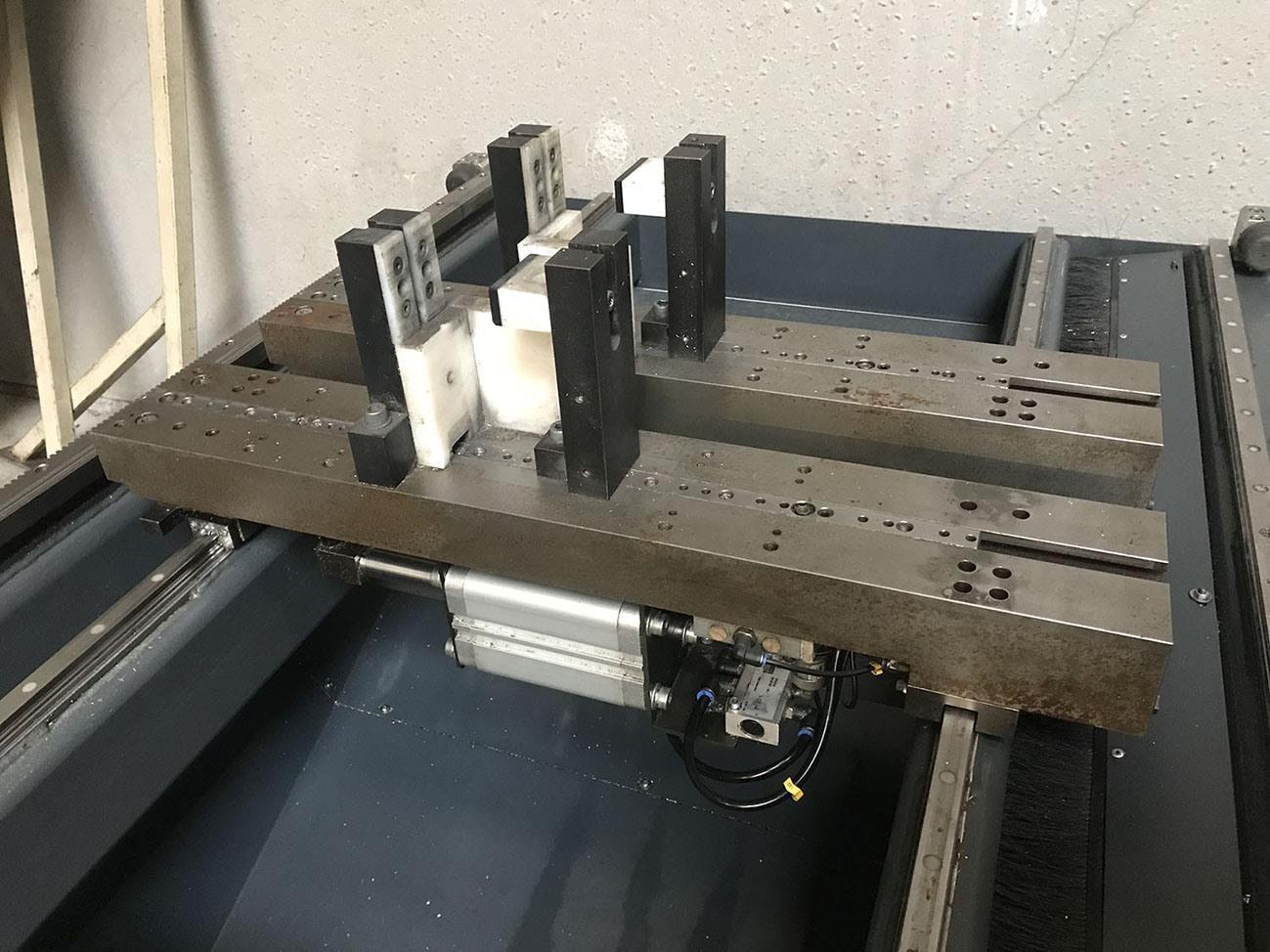

    > separate clamping system (shuttle)
    - Angle: +90° & -90°

    New price was 189,000 euros
