Forest VH 3000S

Brand
FOREST
Category
Lathes & Turning Machines
Type
Turning Centers
Model
VH 3000S
Stock #
A.12 7606
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Weight 40 TON compleet

Additional info

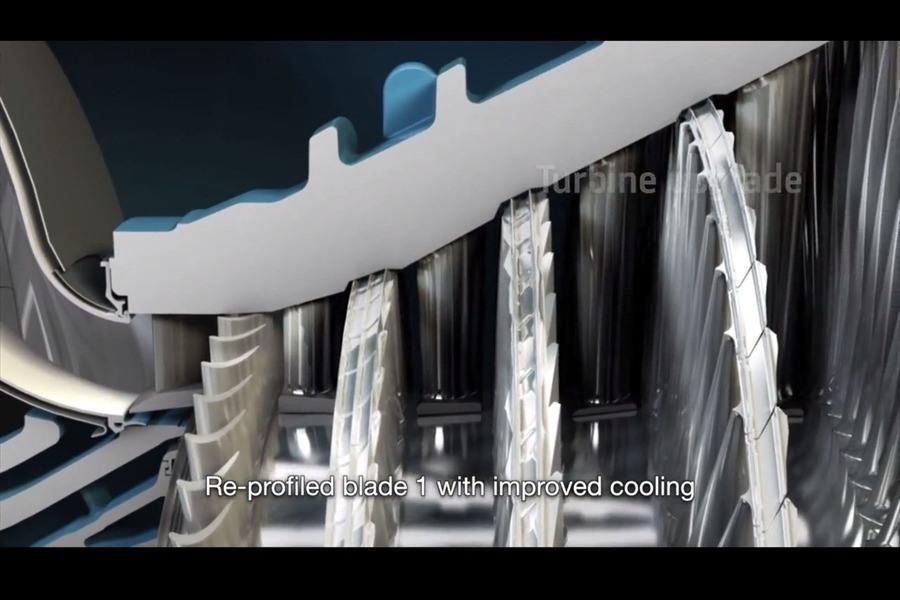

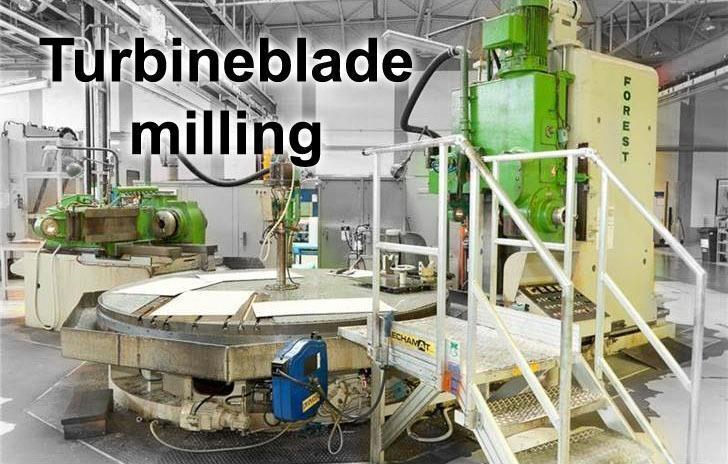

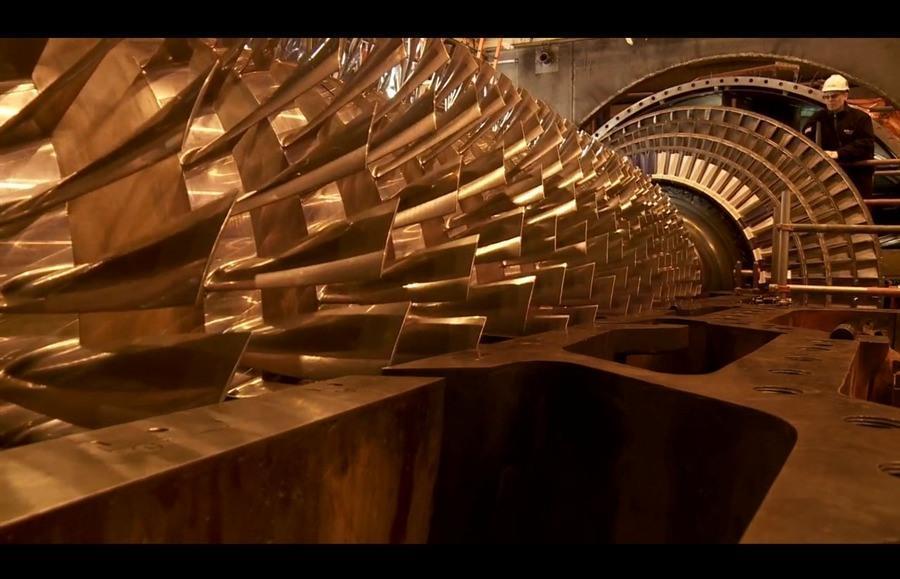

  • This machine is a three-station milling machine designed for the automatic machining, in a continuous cycle, of steam turbine blade roots.

    The three stations of this machine are defined as follows:
    - loading station with hidden time
    - roughing station (horizontal spindle)
    - finishing station (vertical spindle)

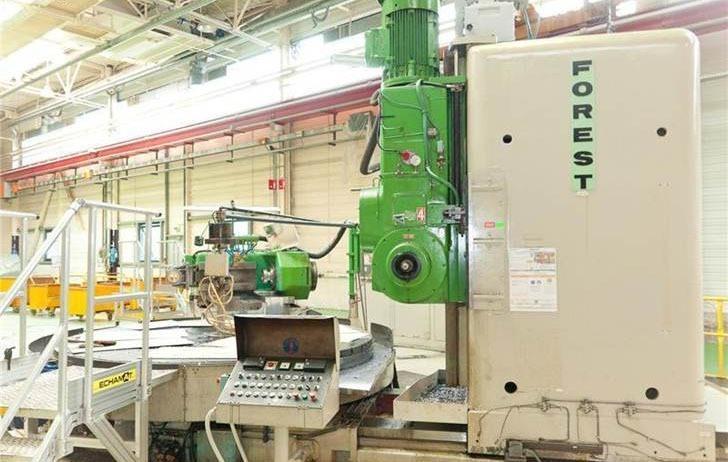

    A fixed, large cast-iron frame supports a circular plate onto which the machining fixtures will be mounted.

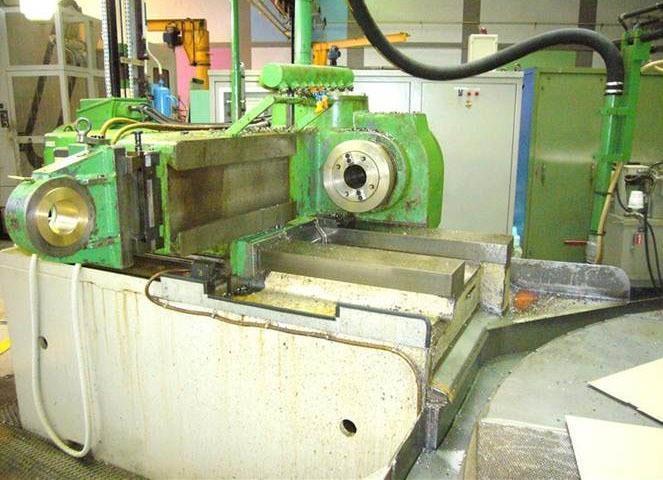

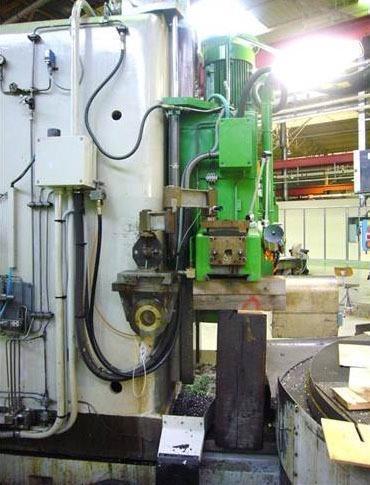

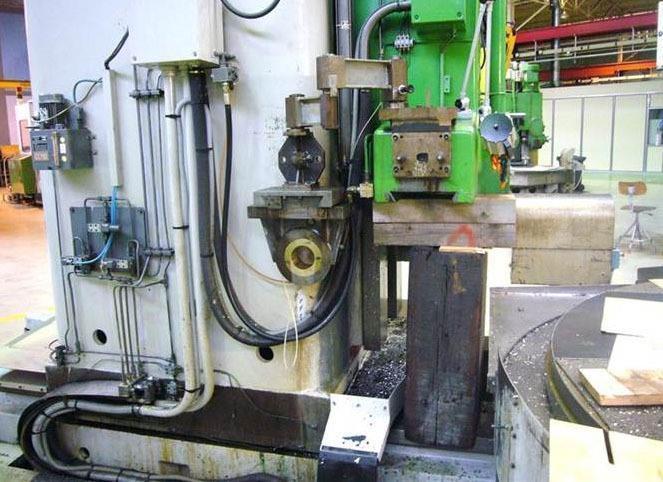

    The horizontal spindle moves, without overhang, on a rigid and fixed base.
    The feed of this spindle is controlled via a feed gearbox integrated with the base.

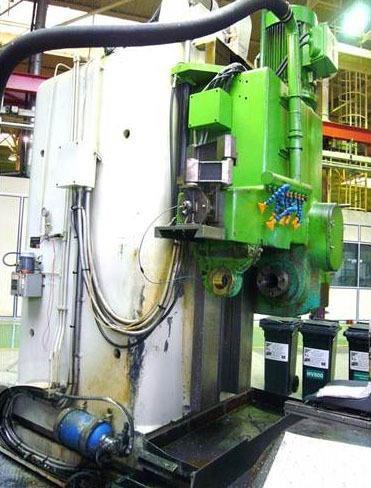

    The transverse feed of the vertical spindle involves movement of the upright on a fixed base.
    This movement is controlled by a feed gearbox located at the rear and integrated with the frame.
    The vertical feed of the vertical spindle involves movement of the spindle along the upright.
    This movement is controlled by the transverse feed gearbox located at the rear of the base.


    max workpiecedia: 4600 mm
    max workpieceheight: 900 mm


    with 2 heads:

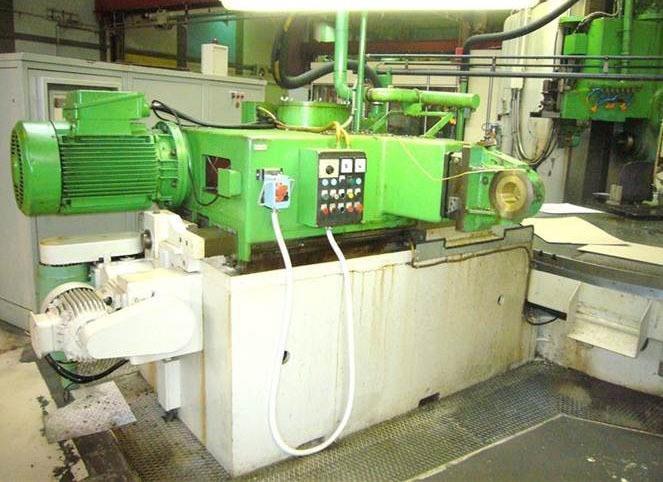

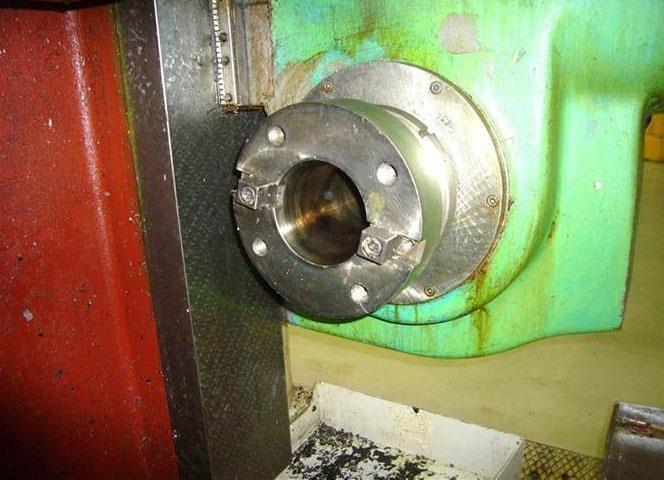

    > horizontal head: ISO 60

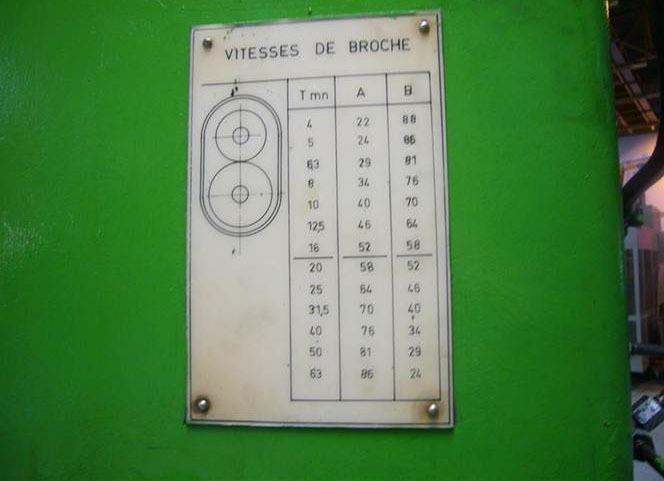

    - speed: 4-63 rpm
    - transversal stroke: 820 mm
    - spindlepower: 44 kW

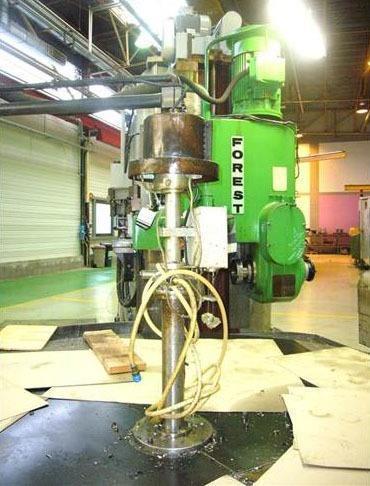

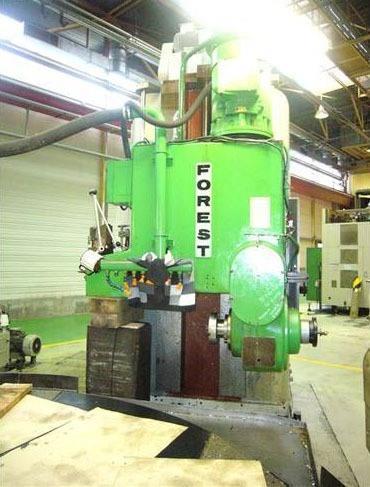

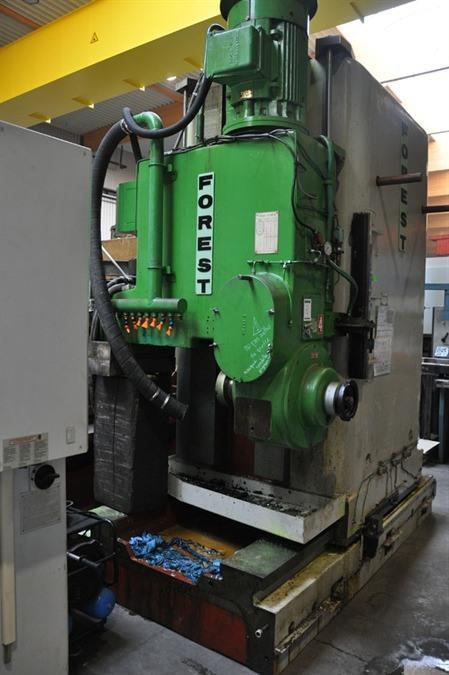

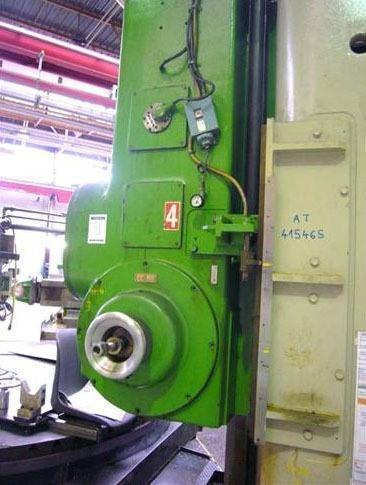

    > vertical head: ISO 60
    - speed: 4-63 rpm
    - transversal stroke: 500 mm
    - vertical stroke: 700 mm

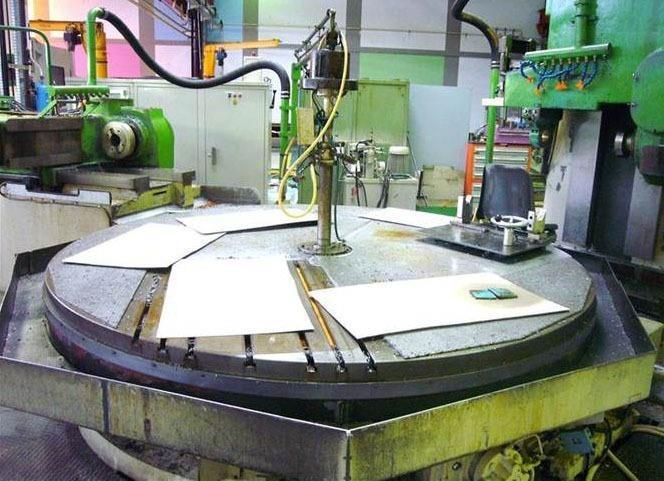

    rotating table
    - dia: 3000 mm
No files or videos to display
