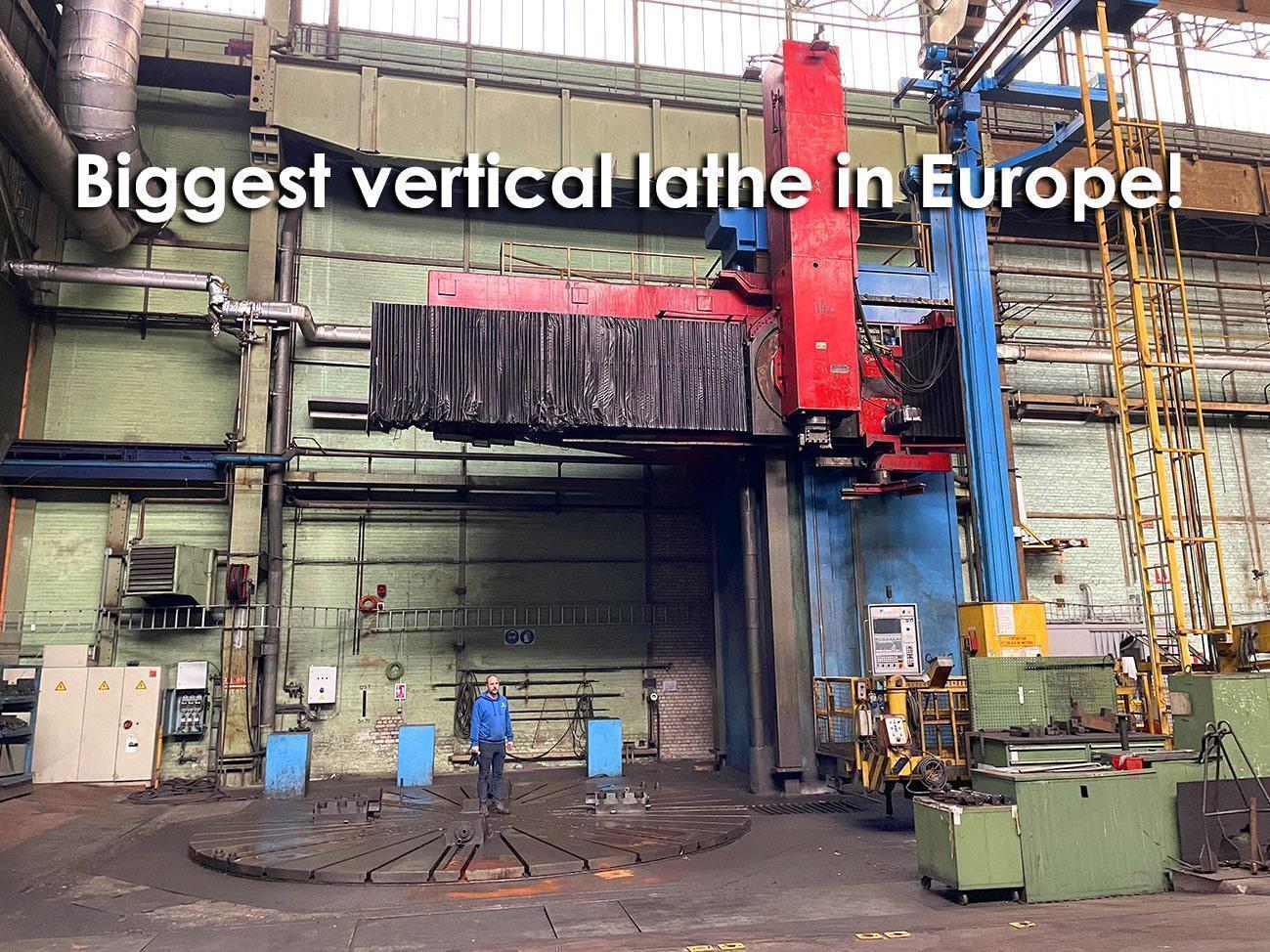

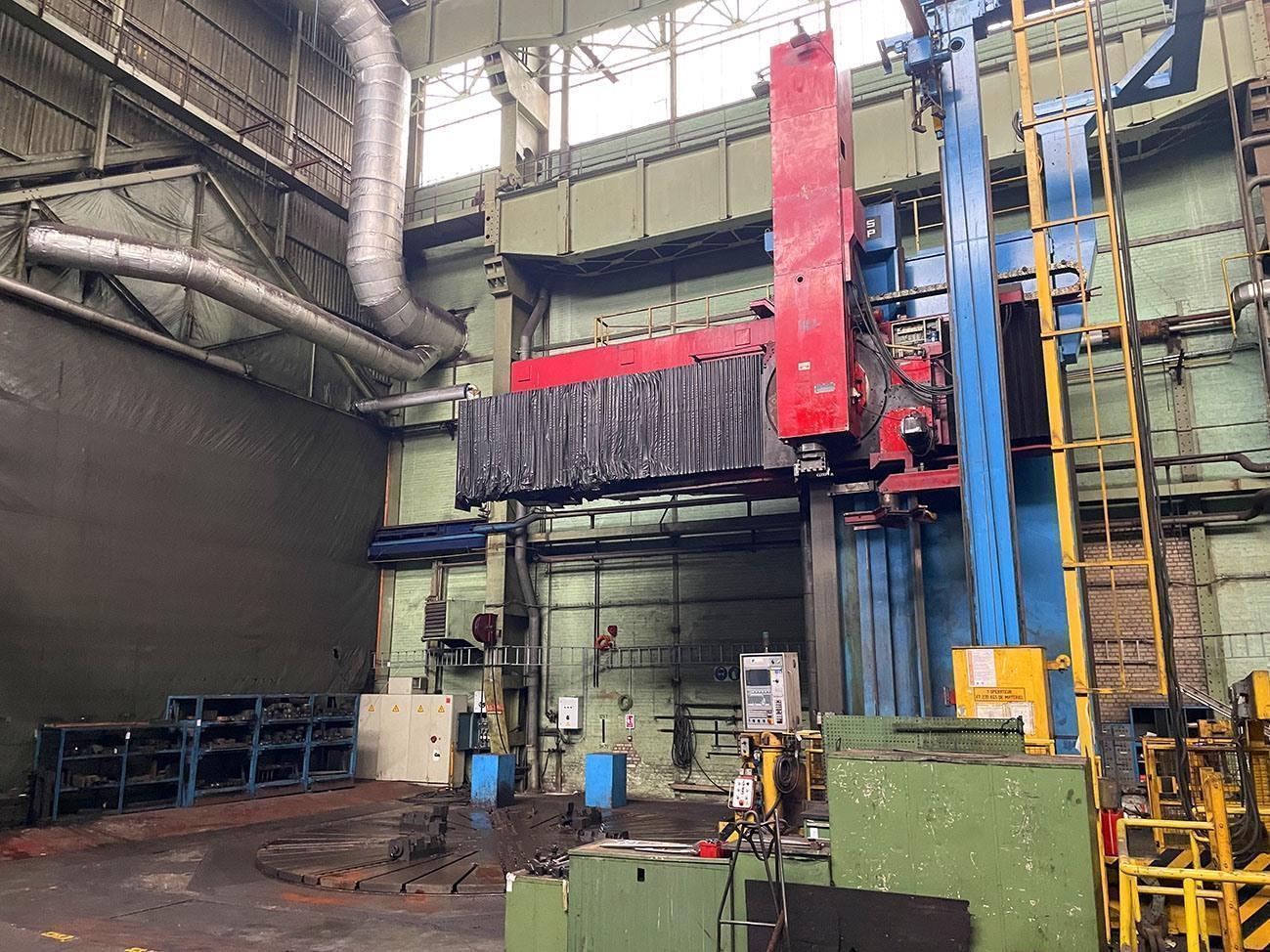

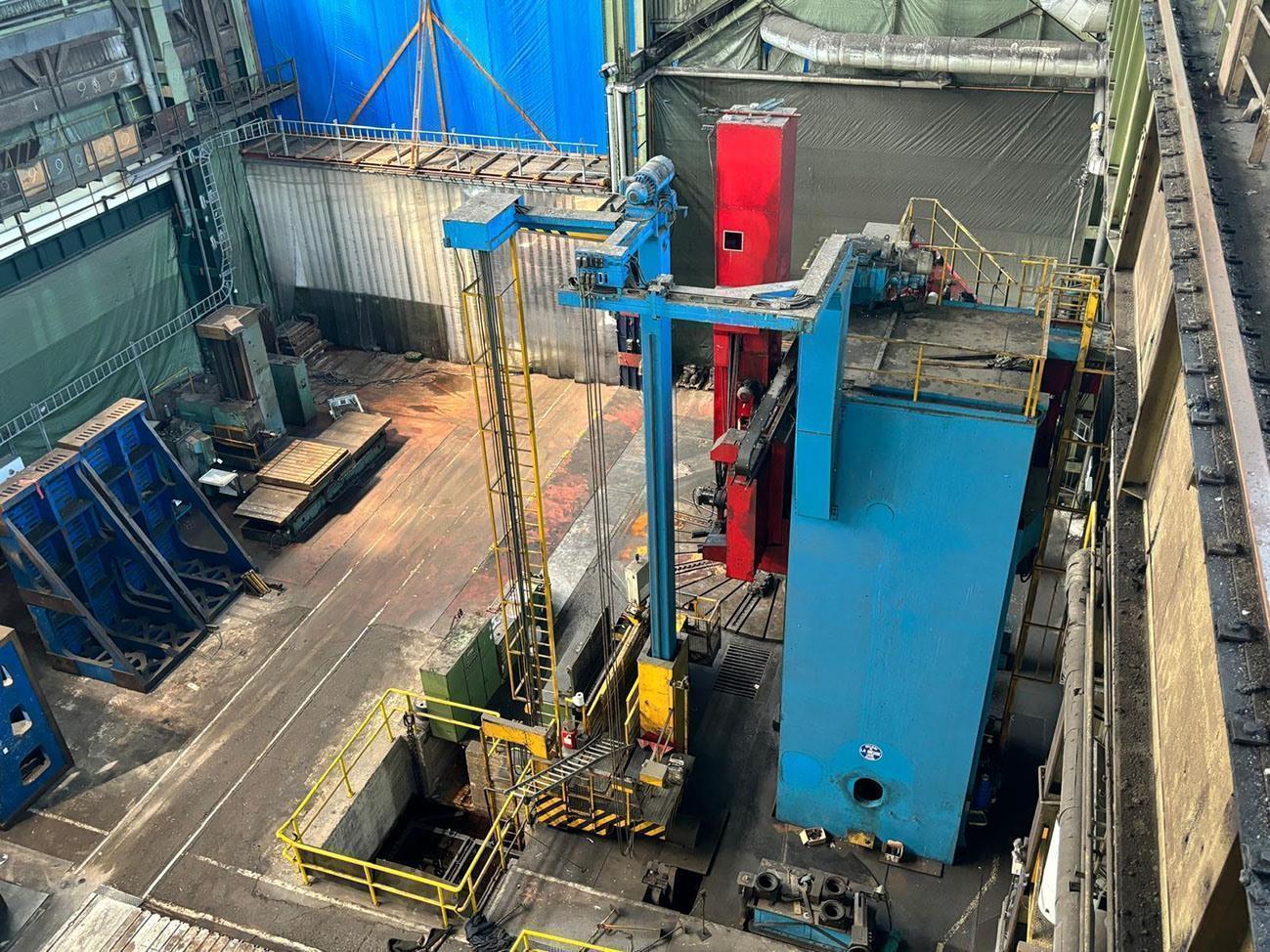

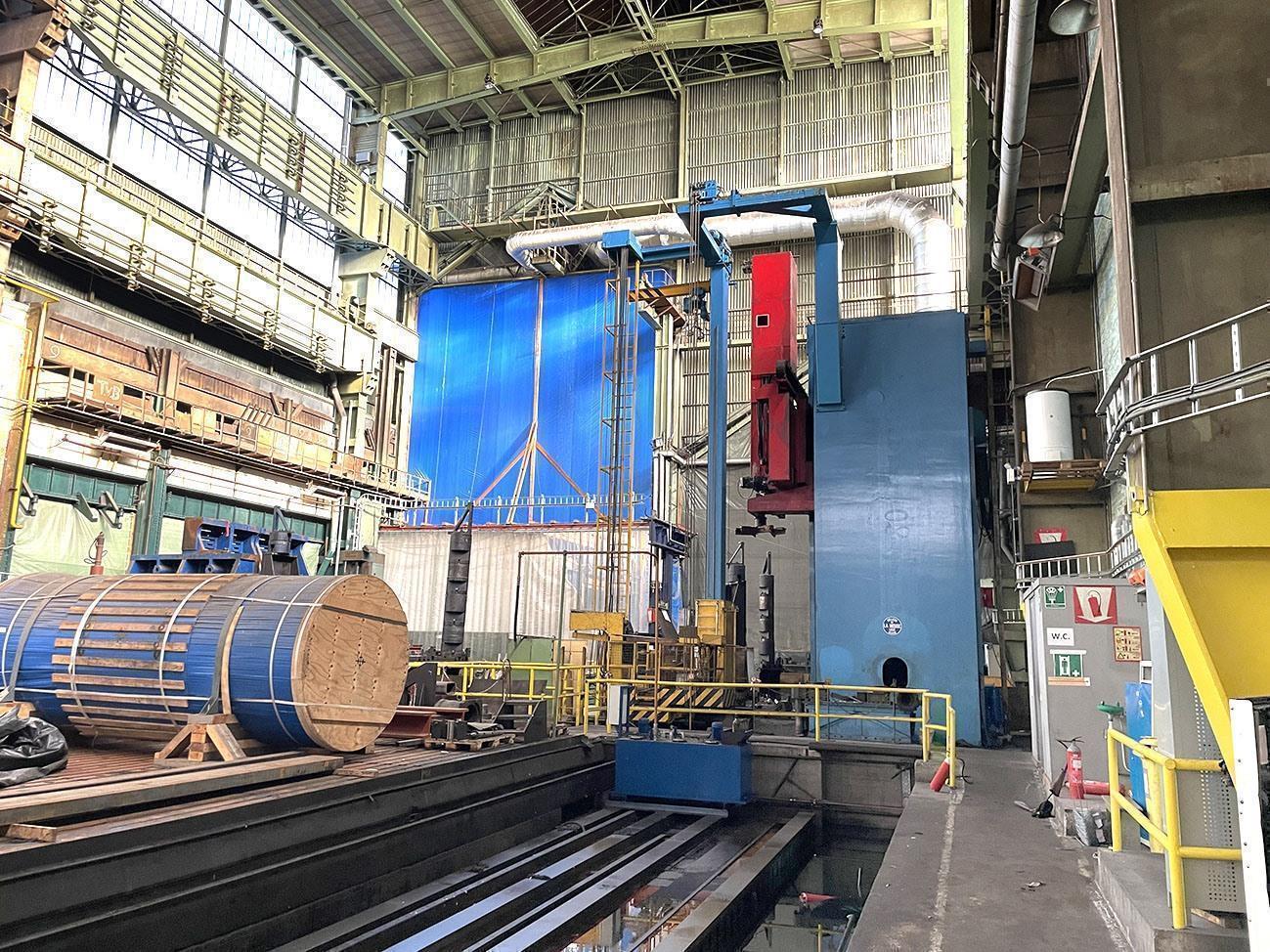

Schiess 80 DF Ø 9000 x 5547 mm CNC

Schiess 80 DF
Type: 80 DF 700/900-550/280
Original CNC machine from Schiess (no conversion from conventional to CNC)

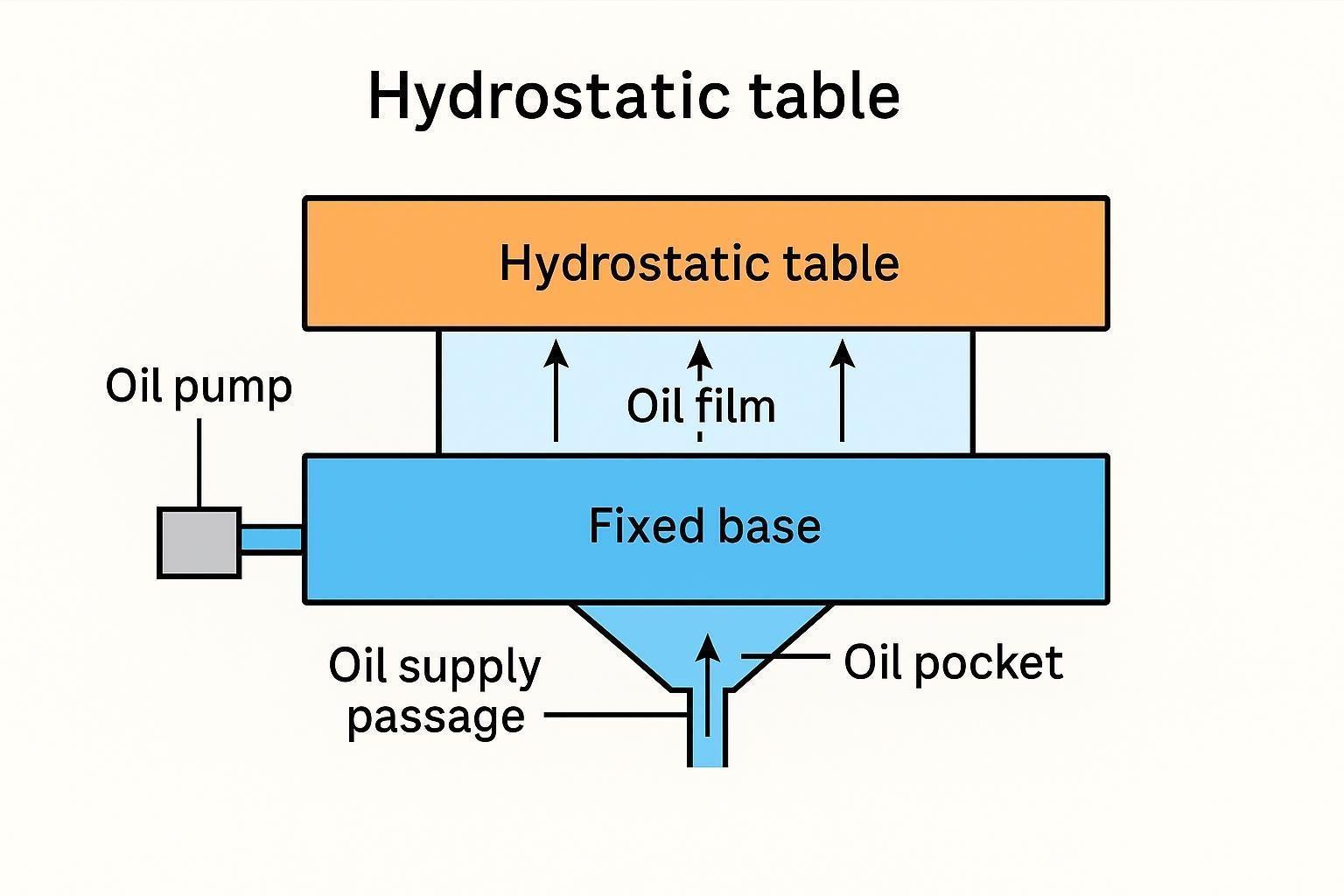

Fully hydrostatic machine

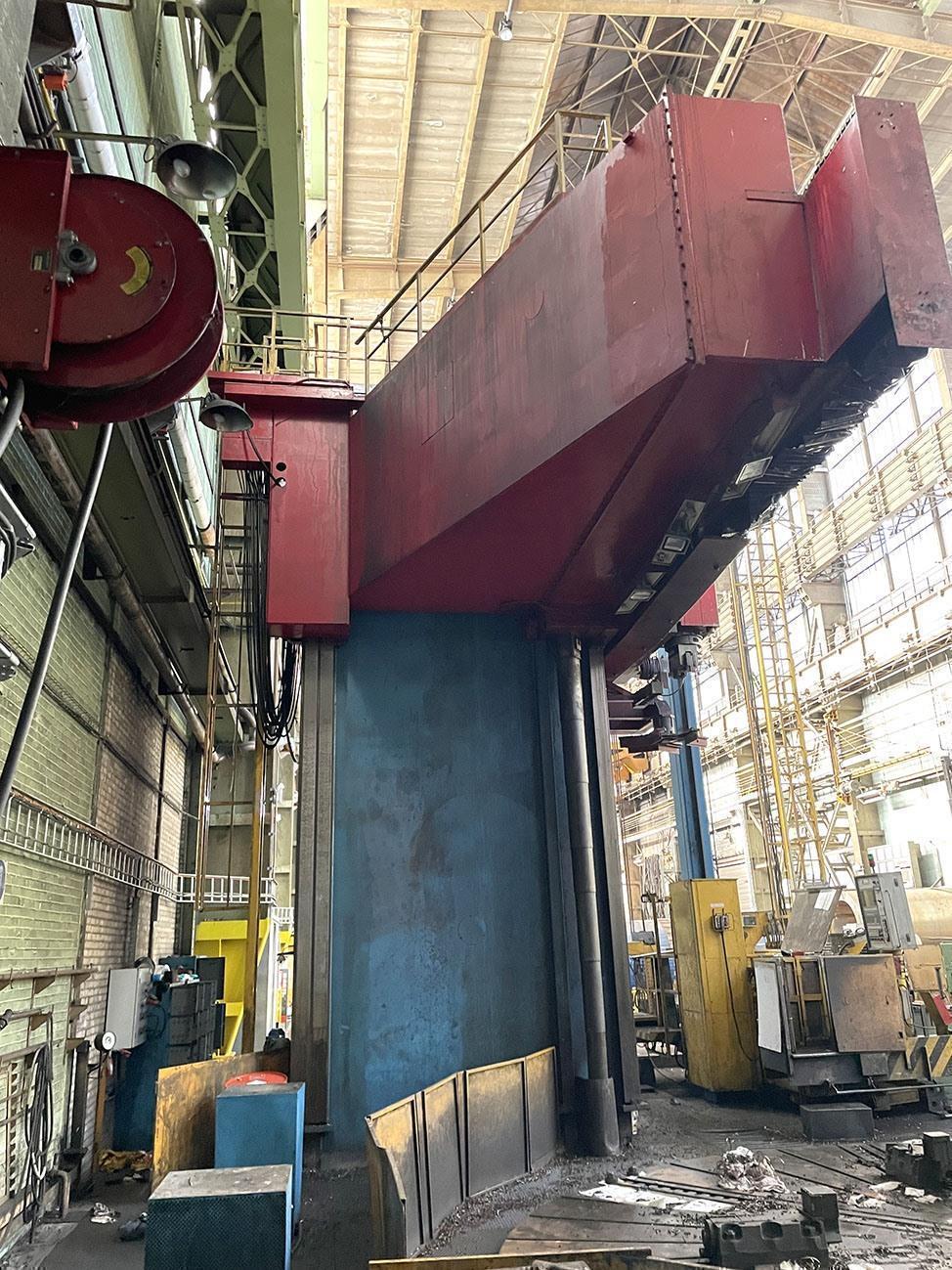

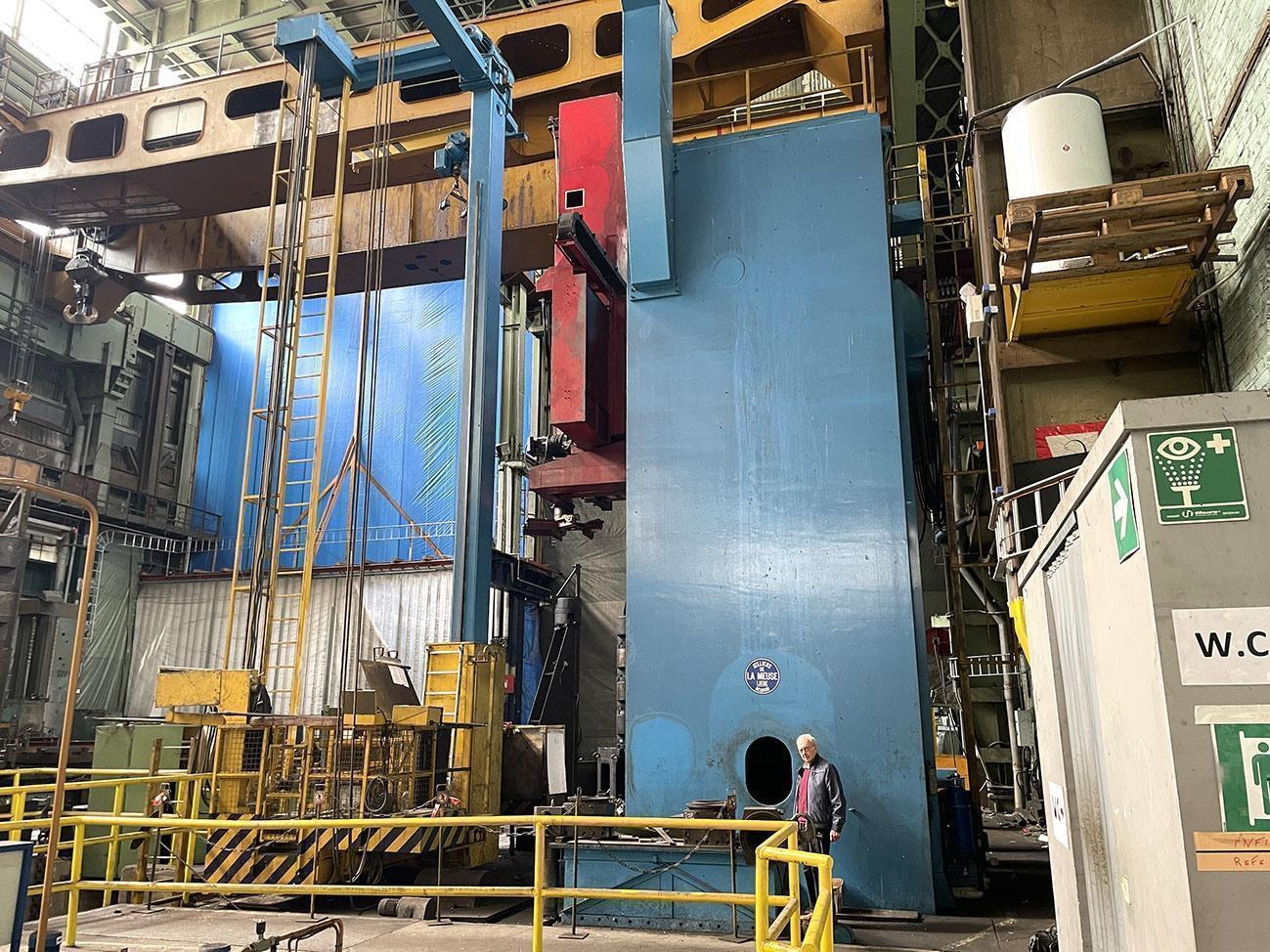

Welded column
Siemens motor

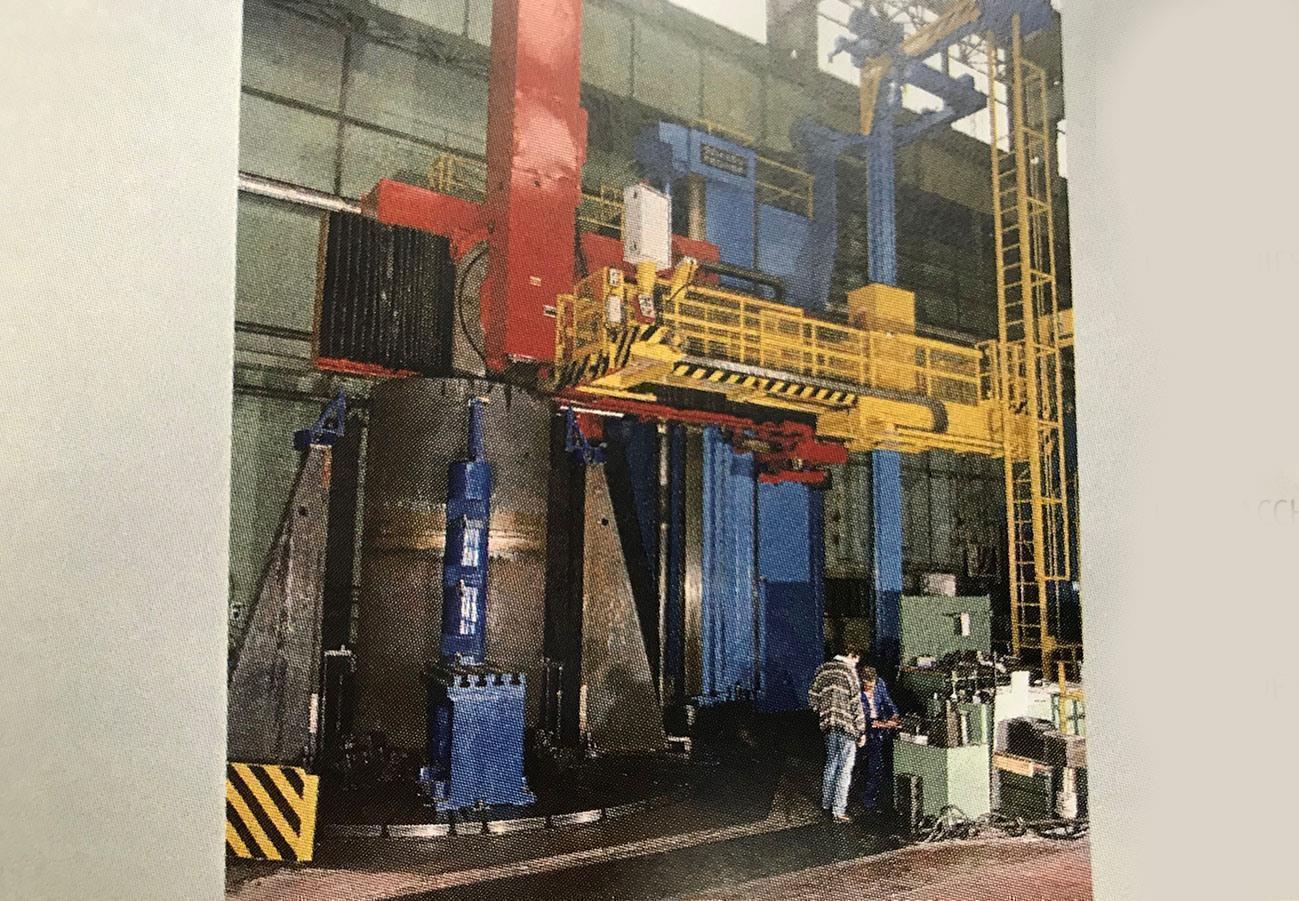

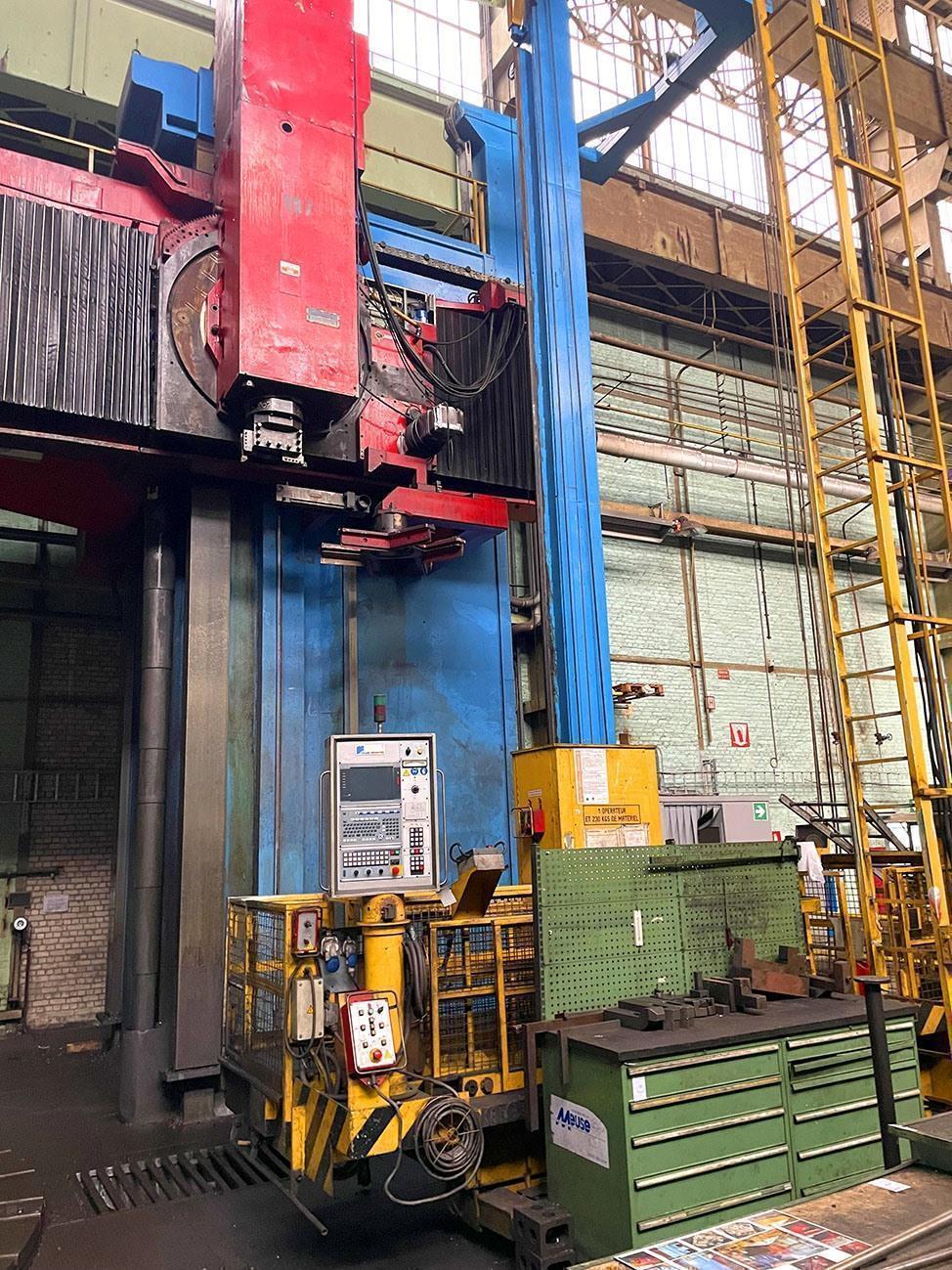

Equipped with a control lift to view the top of the workpiece
Machine with very high tolerance

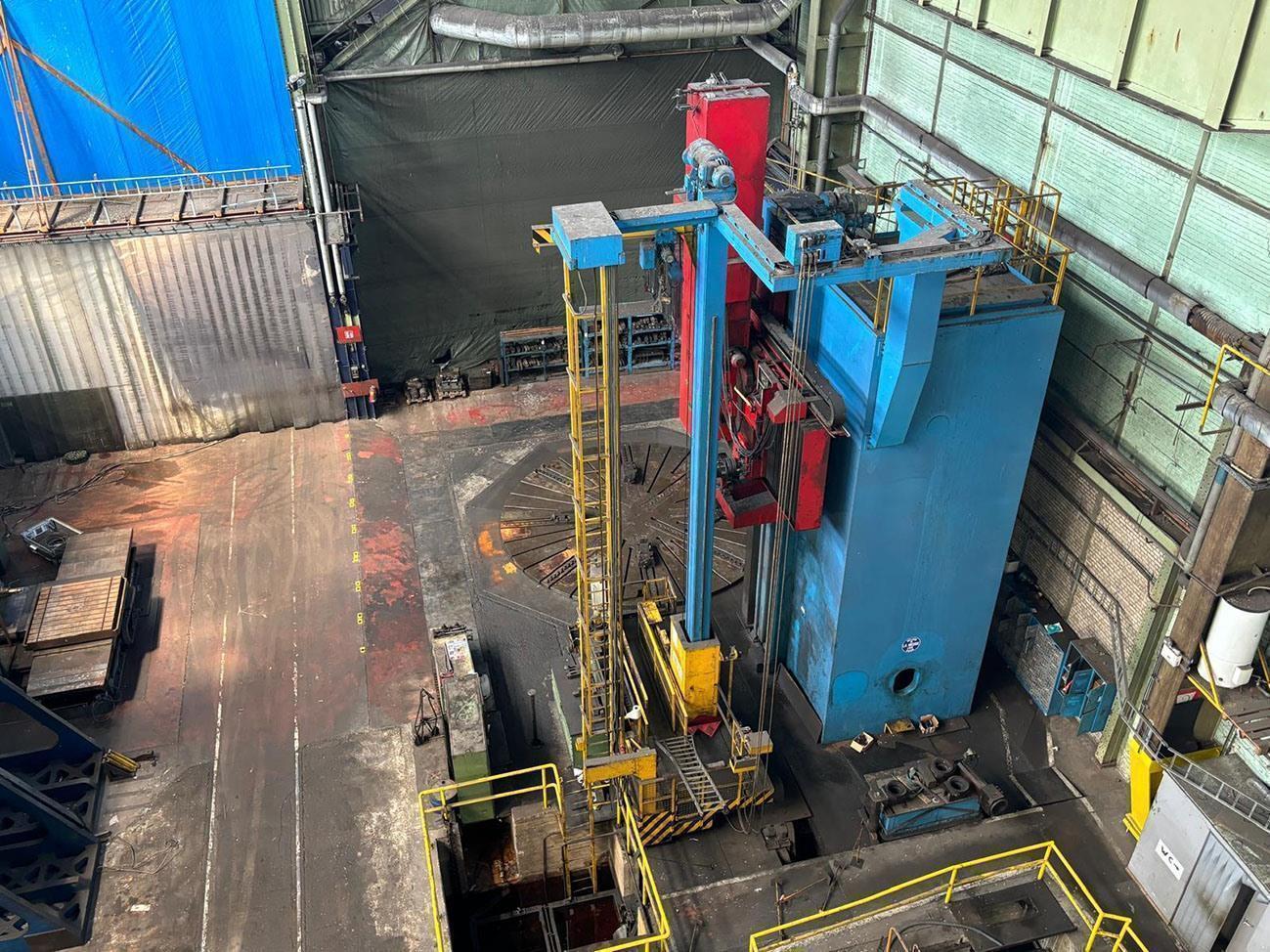

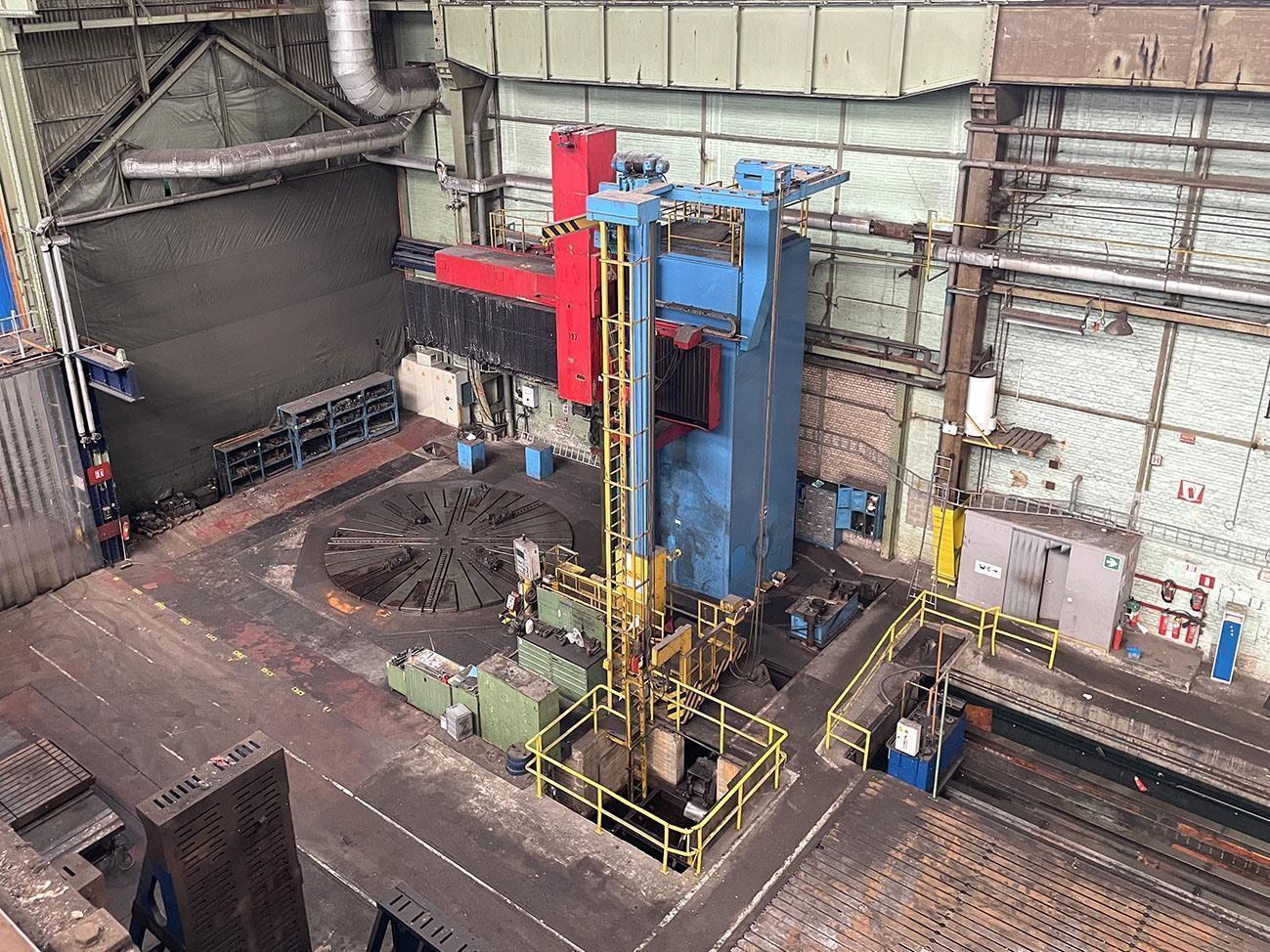

Table diameter: 7000 mm
Maximum diameter of workpiece: 9000 mm

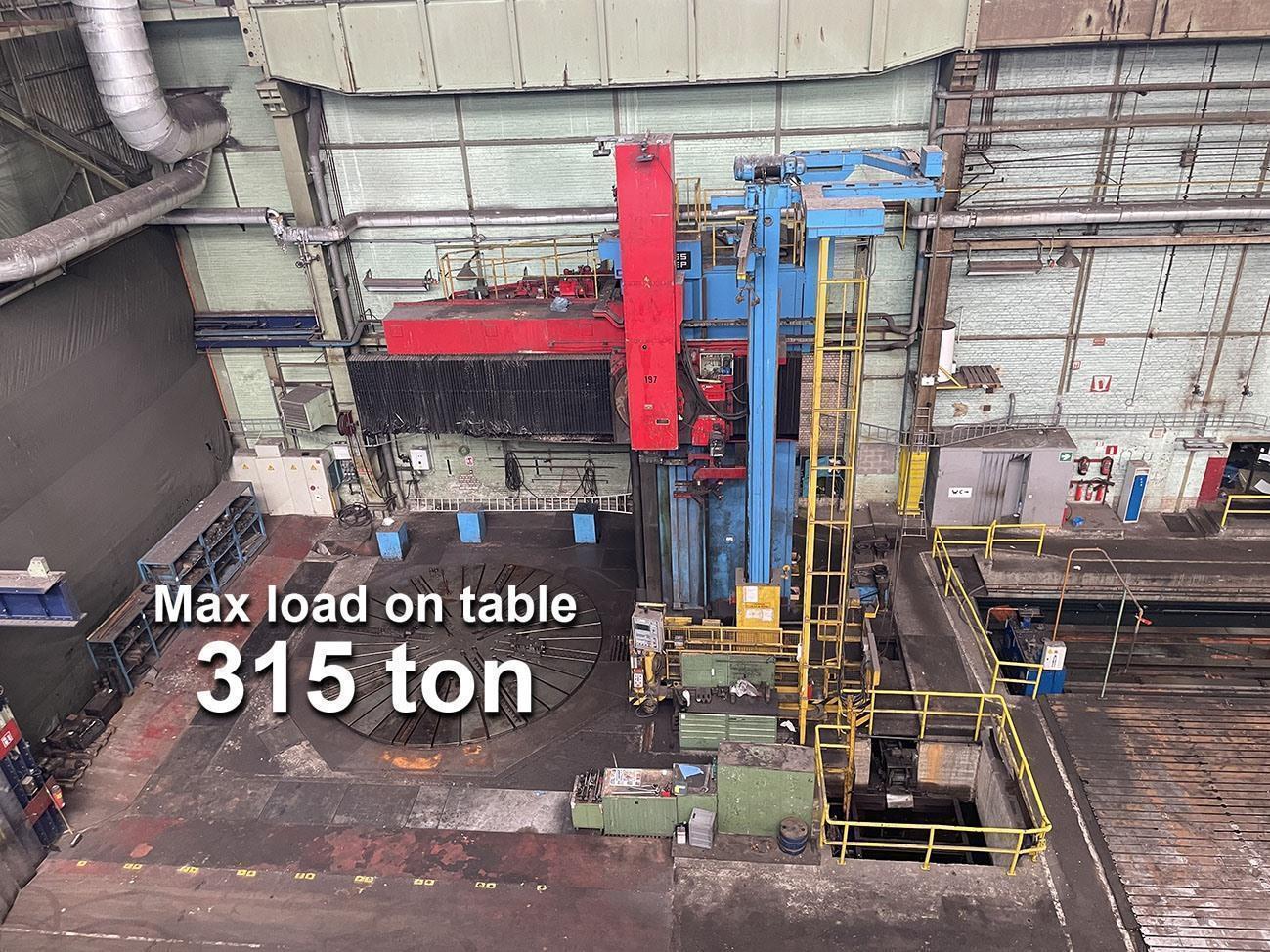

Maximum load: 315 tons

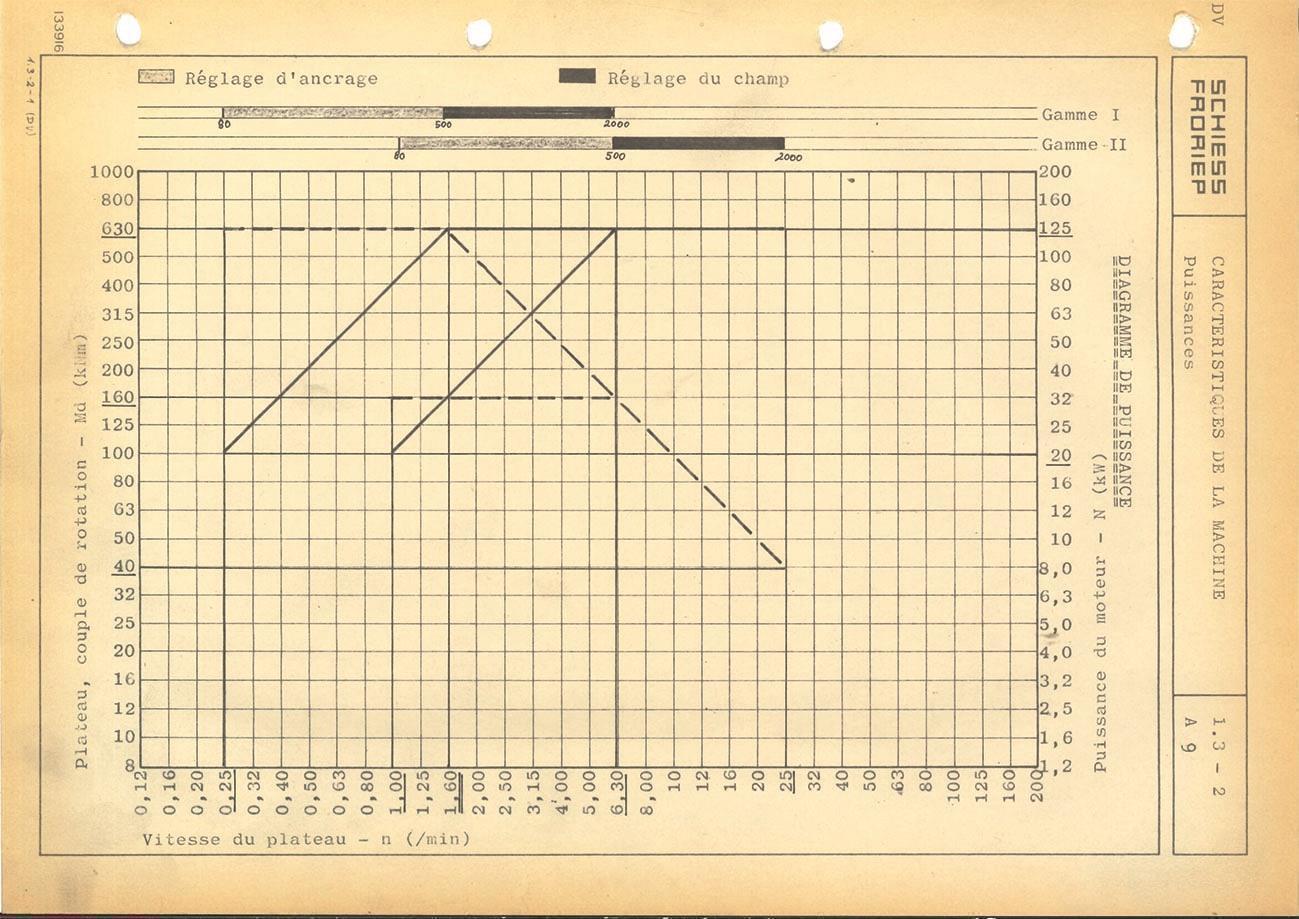

Speed: 0.25 > 25 rpm
Maximum rotational torque: 63,000 kgm
Maximum cutting force with ram extended to 900 mm: 12,500 kg

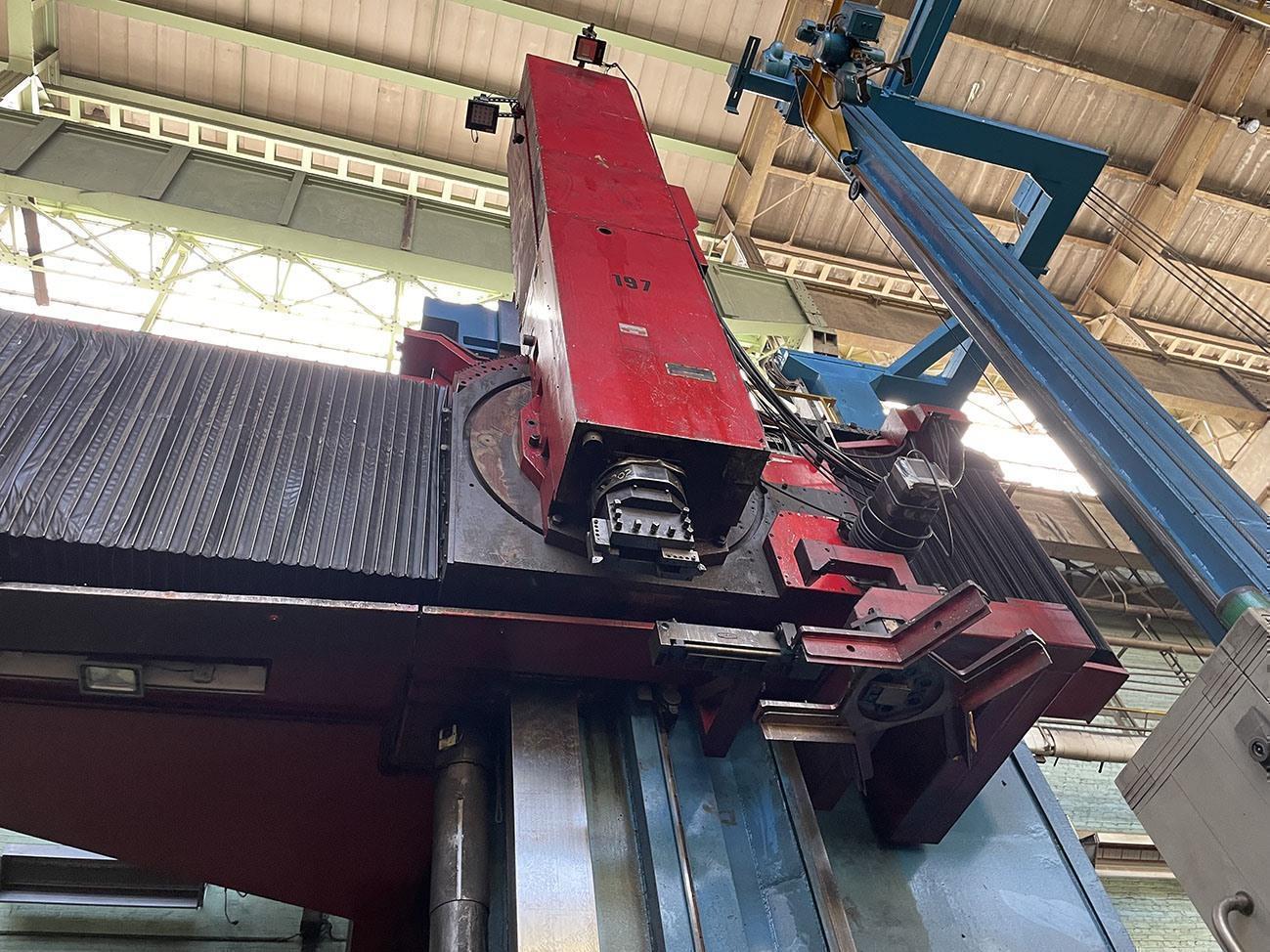

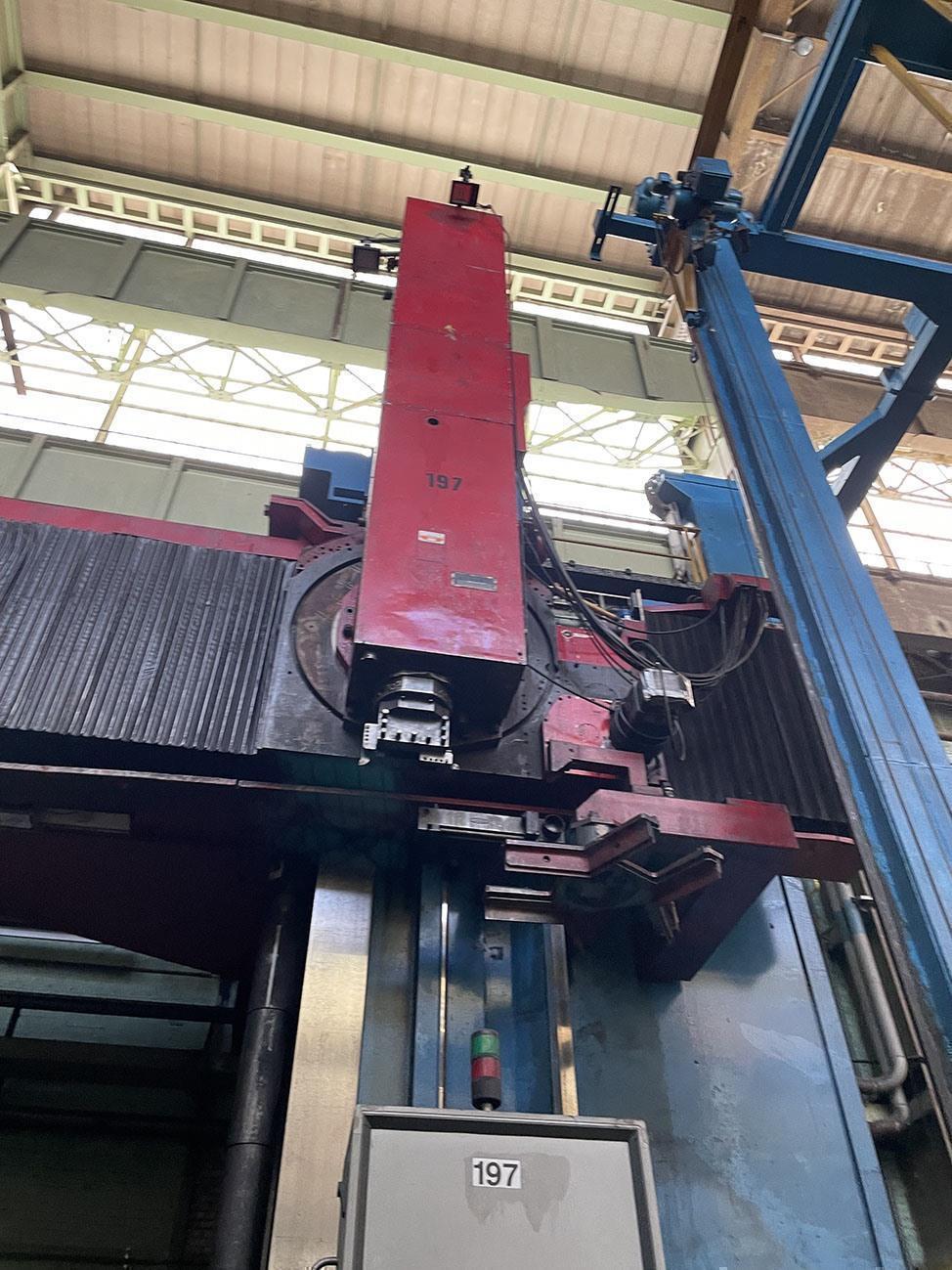

Tool head can tilt -40° to +40°
Power: 125 kW
weight of the table: 71 tons

Ram section: 380 x 380 mm
Horizontal displacement of ram from center of table: 5640 mm
Vertical stroke of the ram: 2800 mm
Maximum height under crossbar: 5547 mm
Horizontal displacement of the cross beam: 4700 mm
Equipped with 3-position automatic tool changer
Total weight of the machine: 260 tons!
