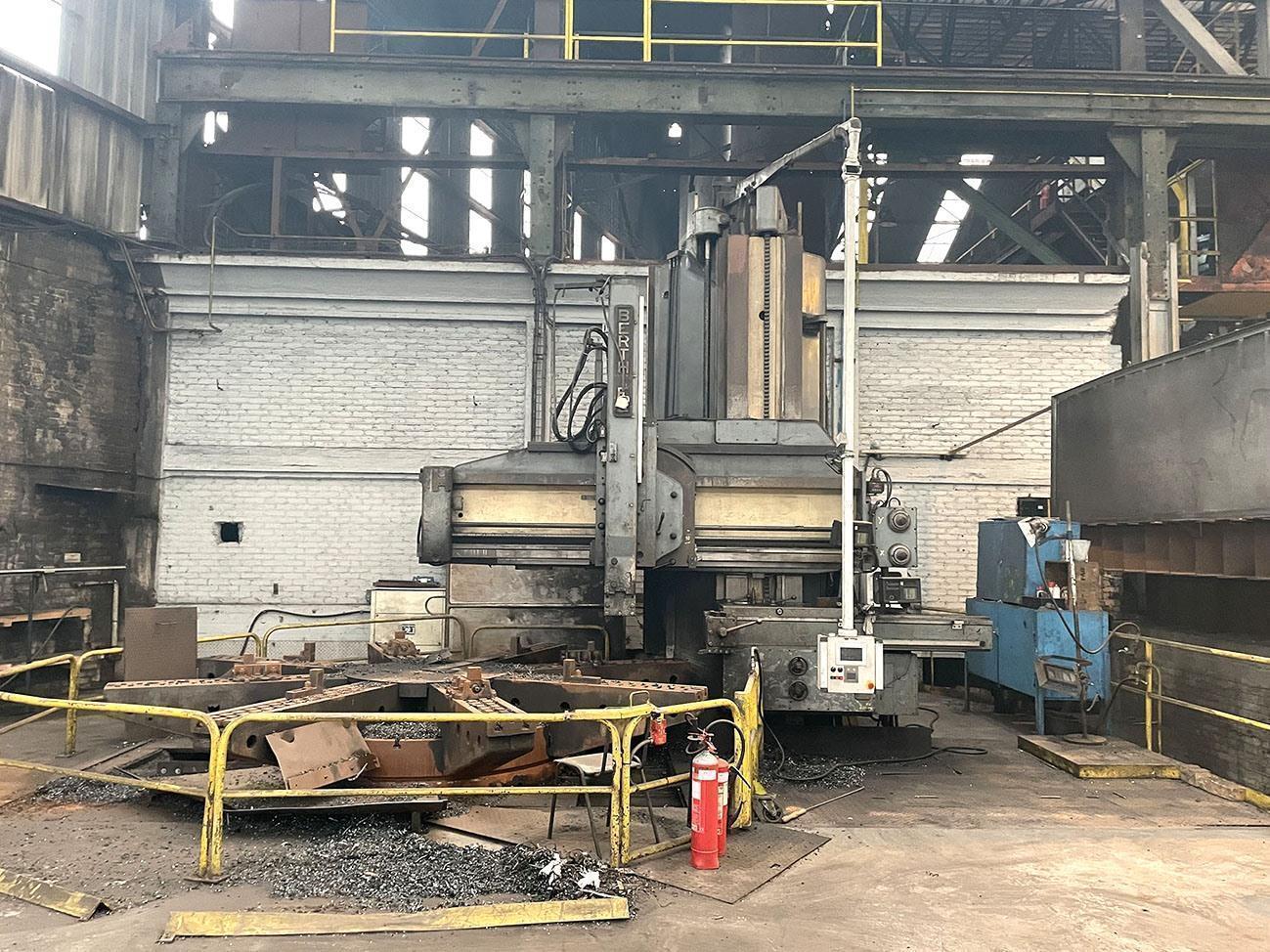

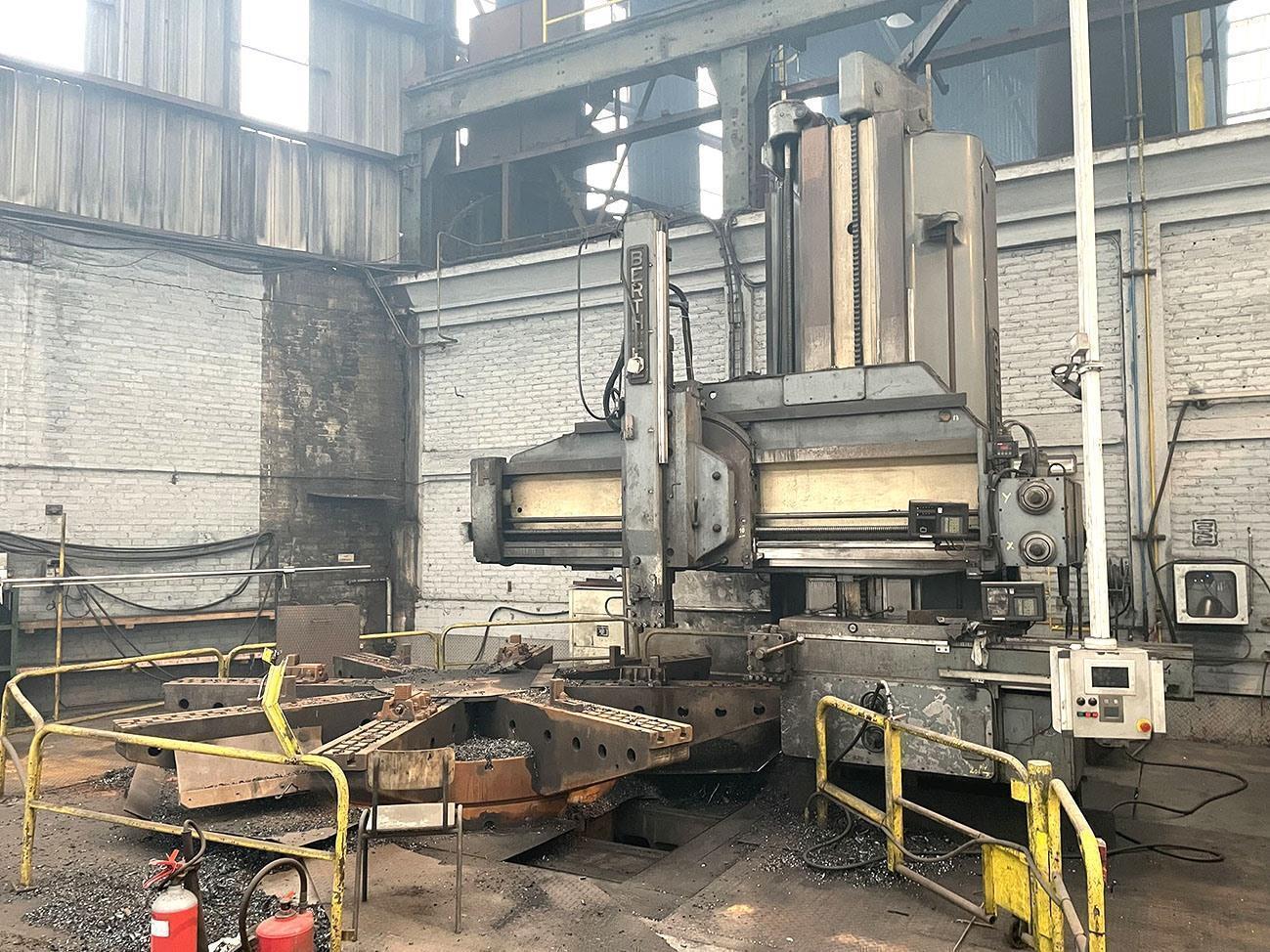

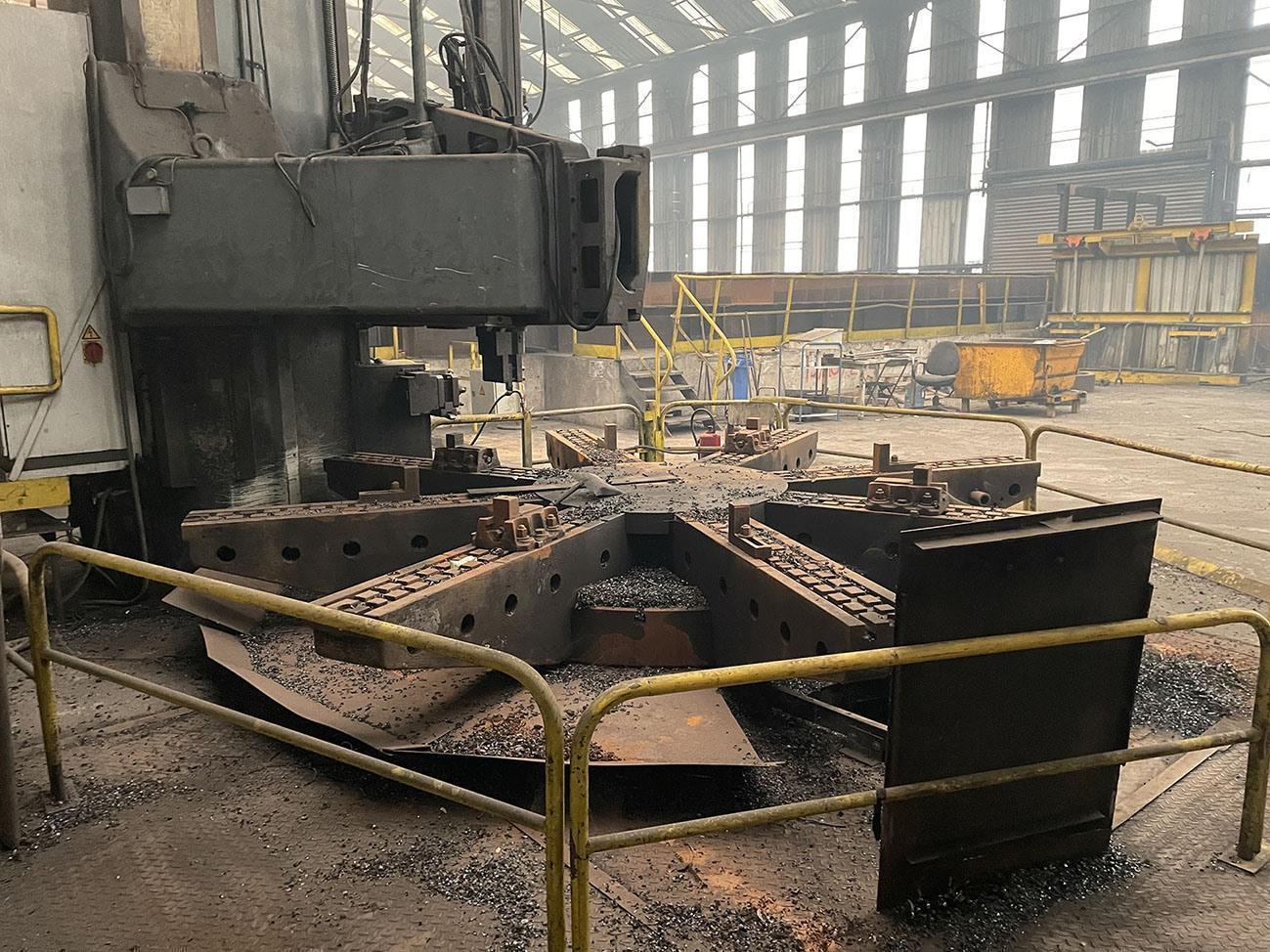

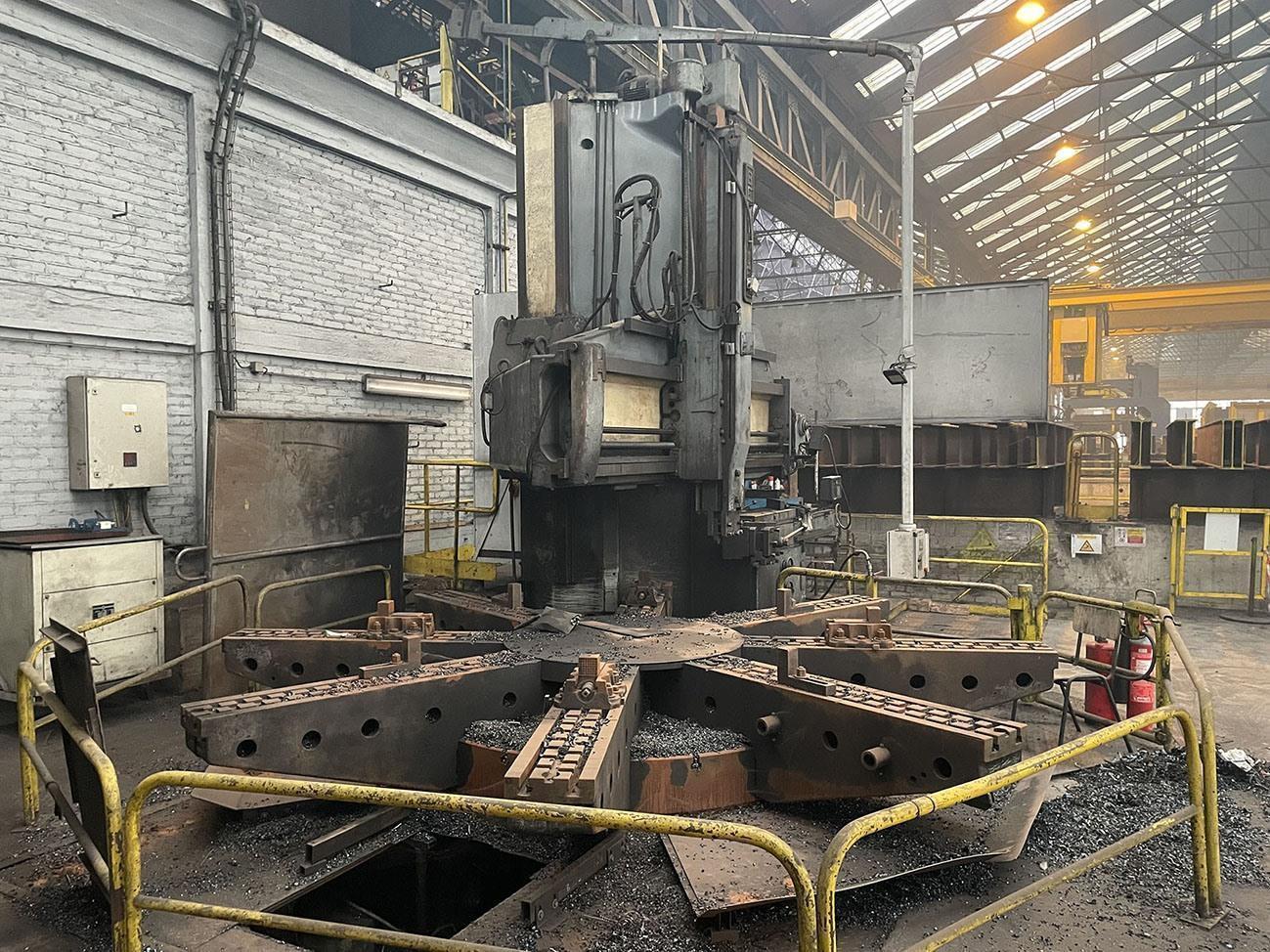

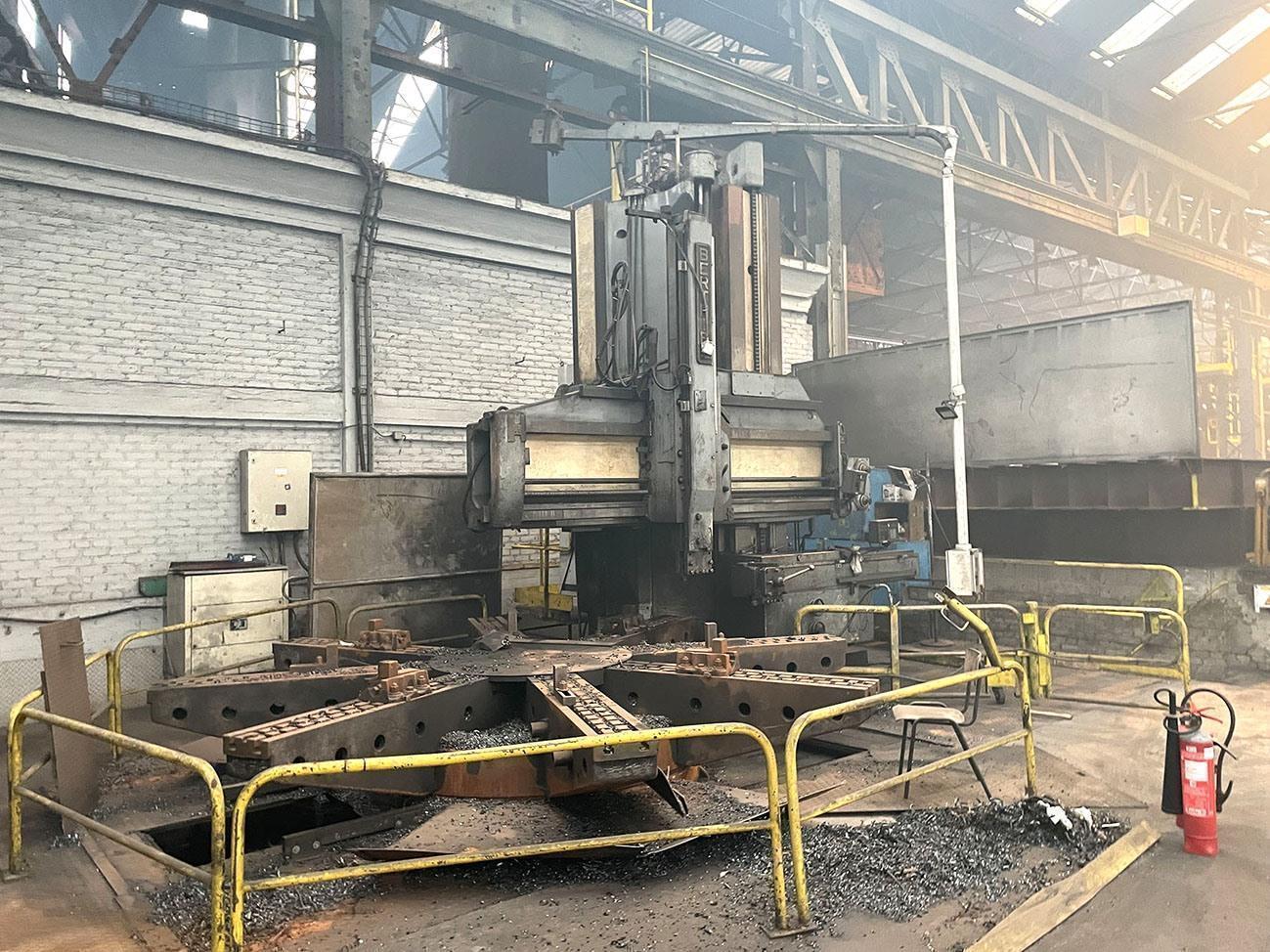

Berthiez Ø 4500 mm NC

Brand

BERTHIEZ

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

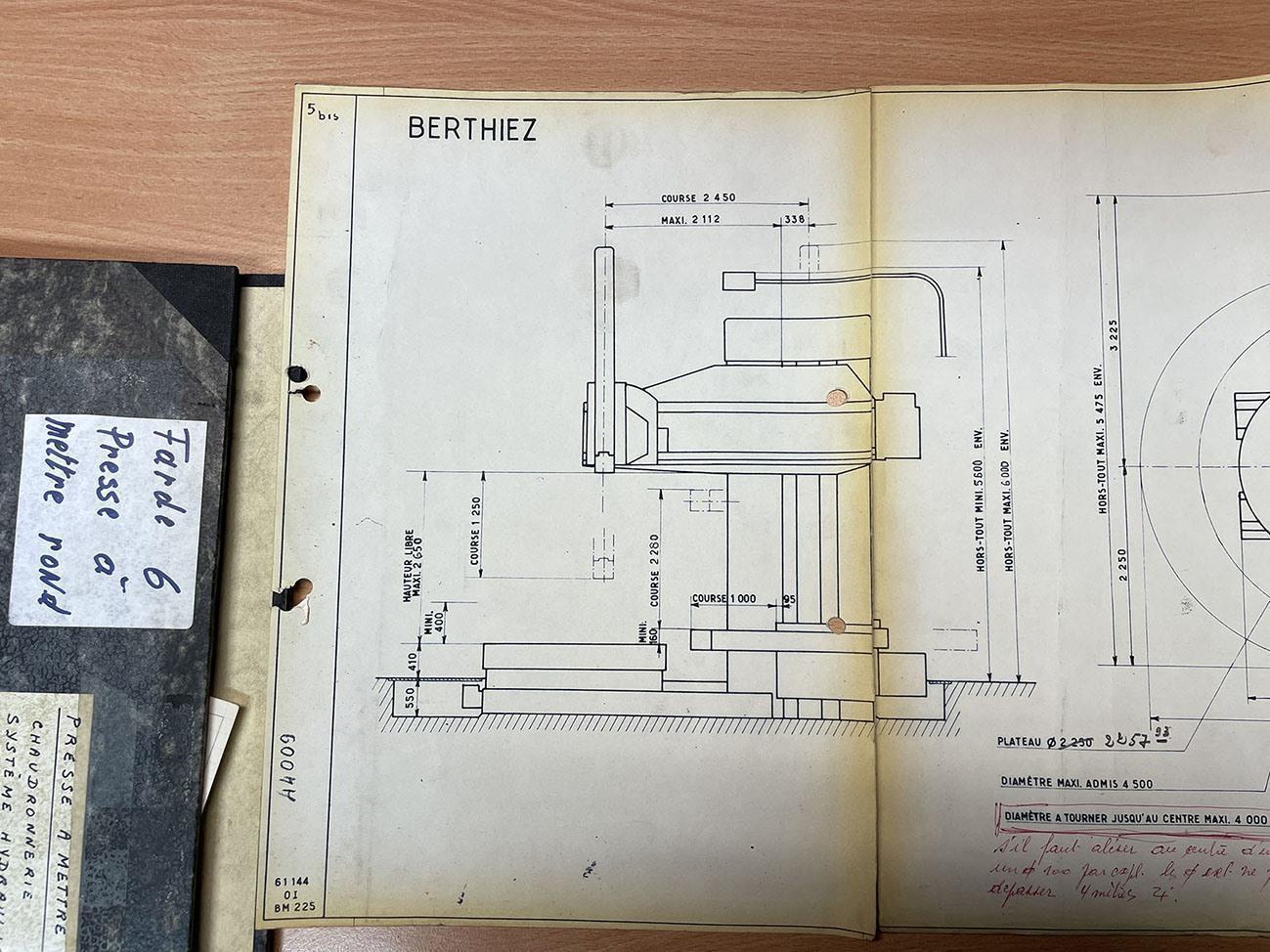

Technical information

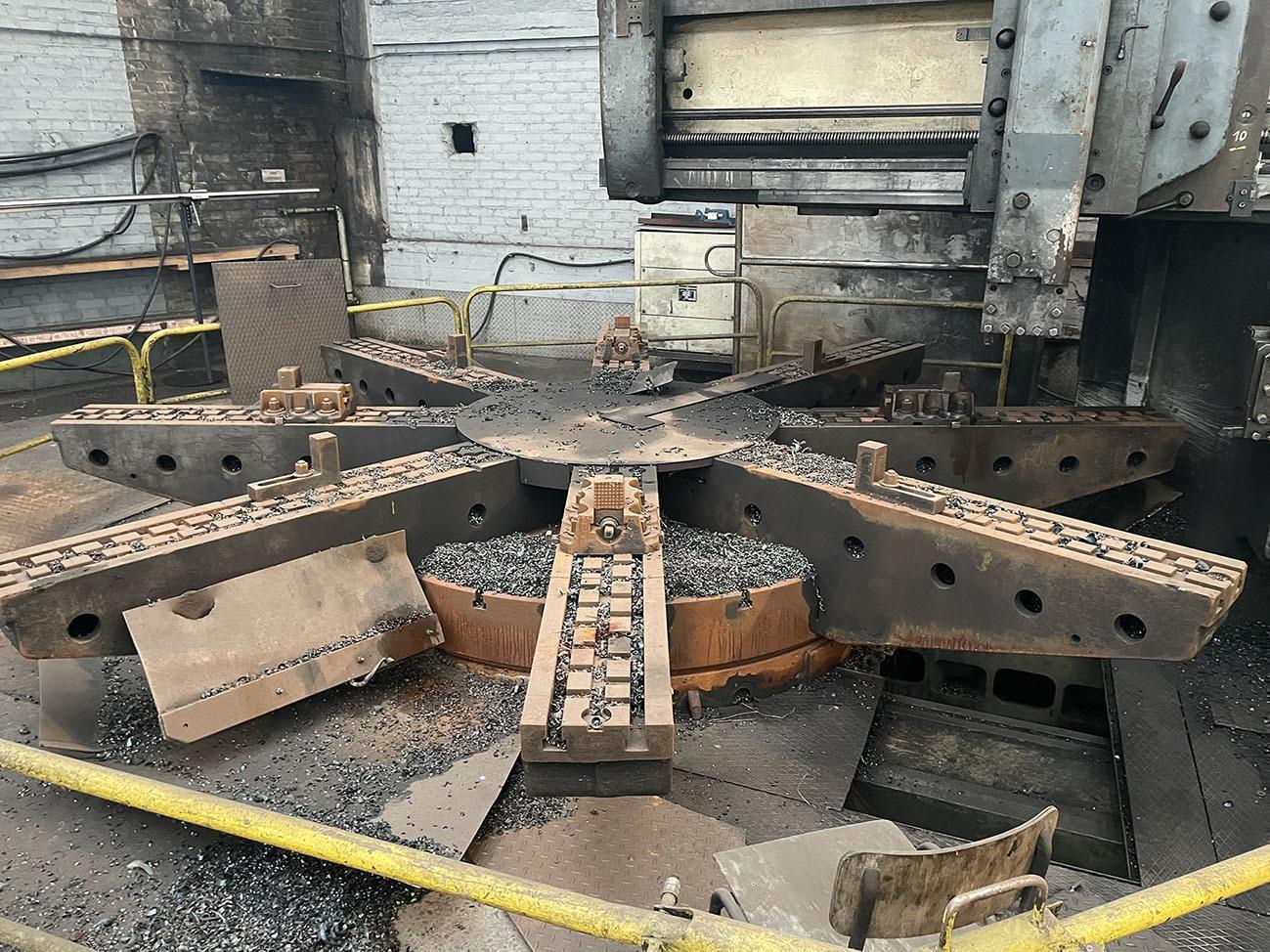

Chuck dia. 2257 mm
Max turningdia -- passage 4500 mm
Power on the spindle 69 kW
Max longitudinal travel X-axis 2450 mm
Max hight of workpiece Z-axis 2650 mm

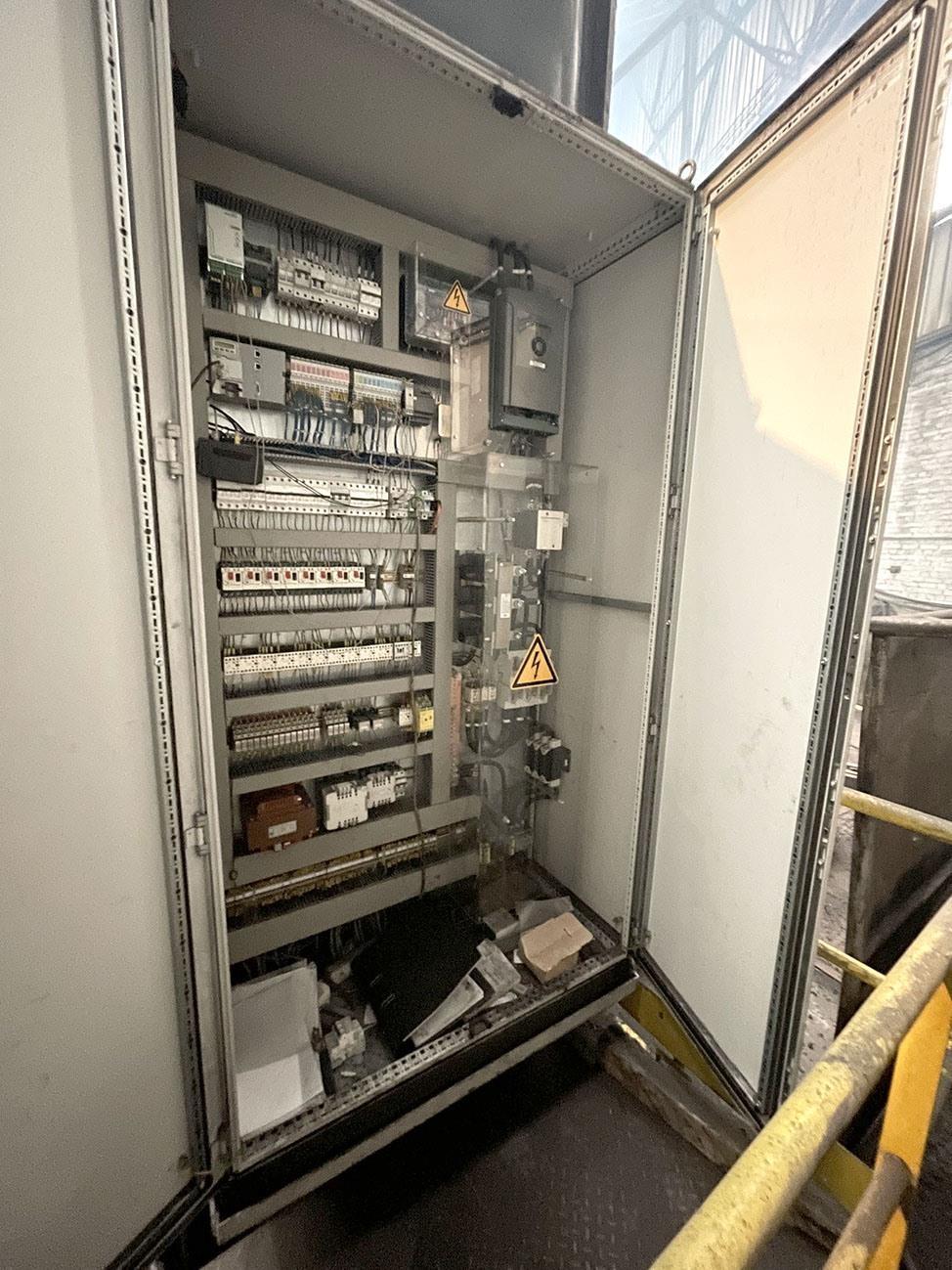

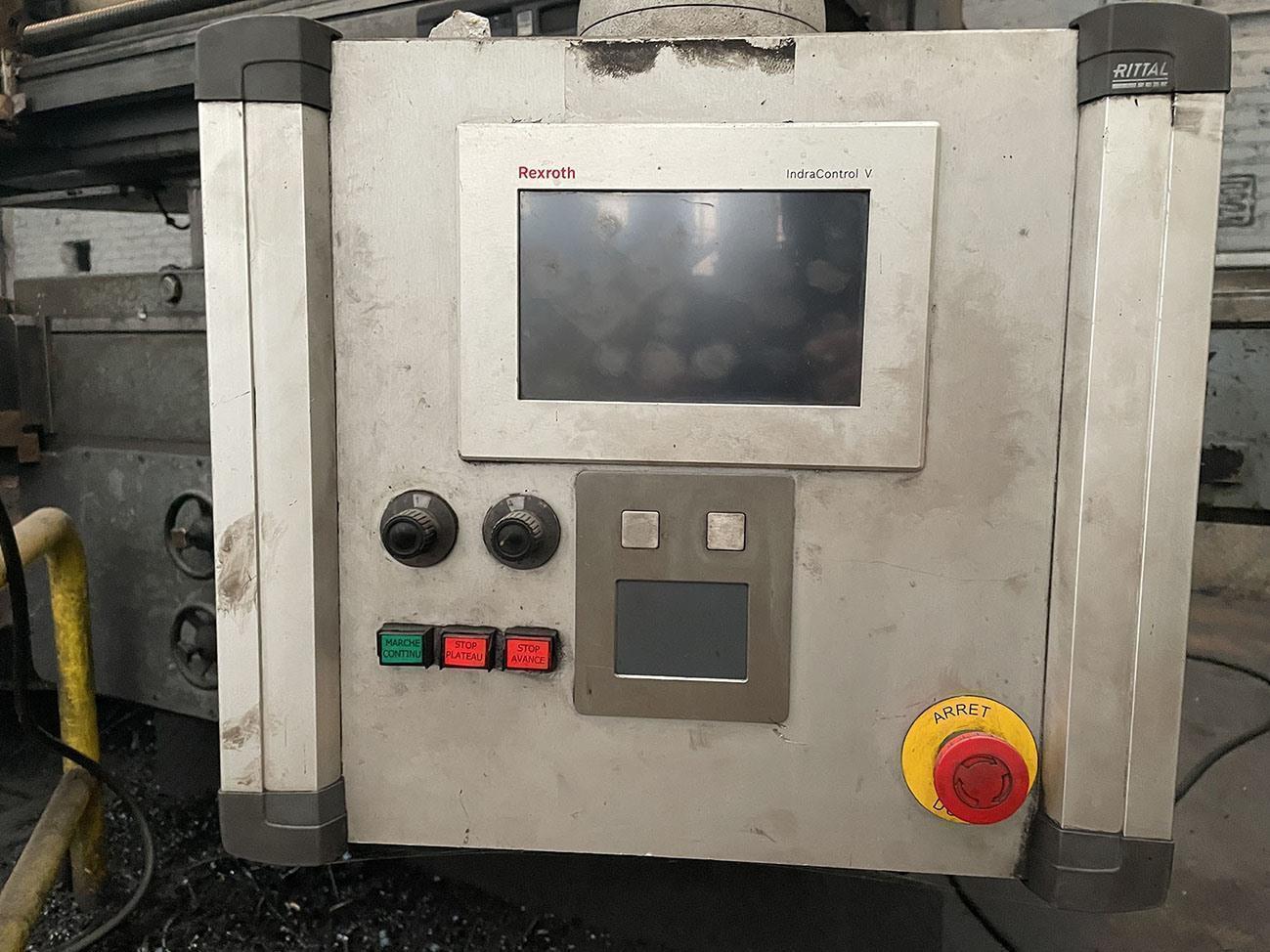

Command Bosch semi-automatic
Number of speeds 0,8 > 125 rpm
Weight 55 ton

Additional info

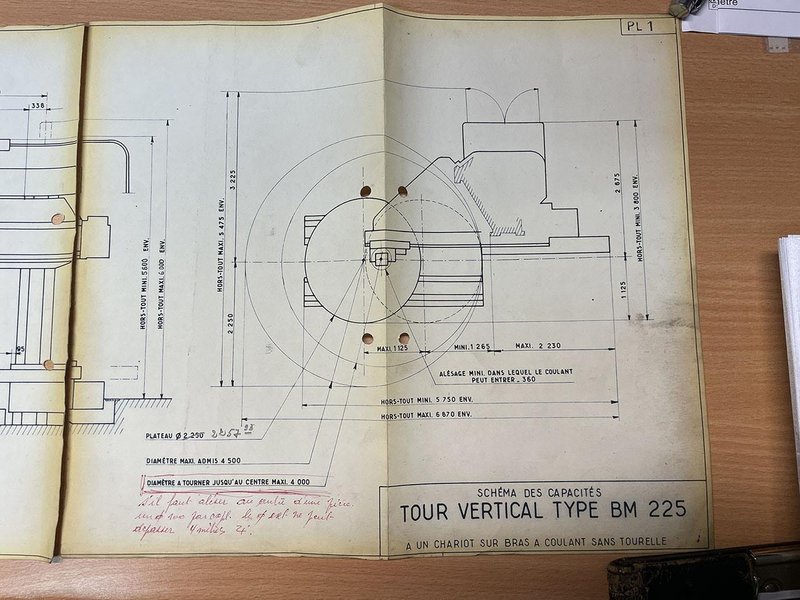

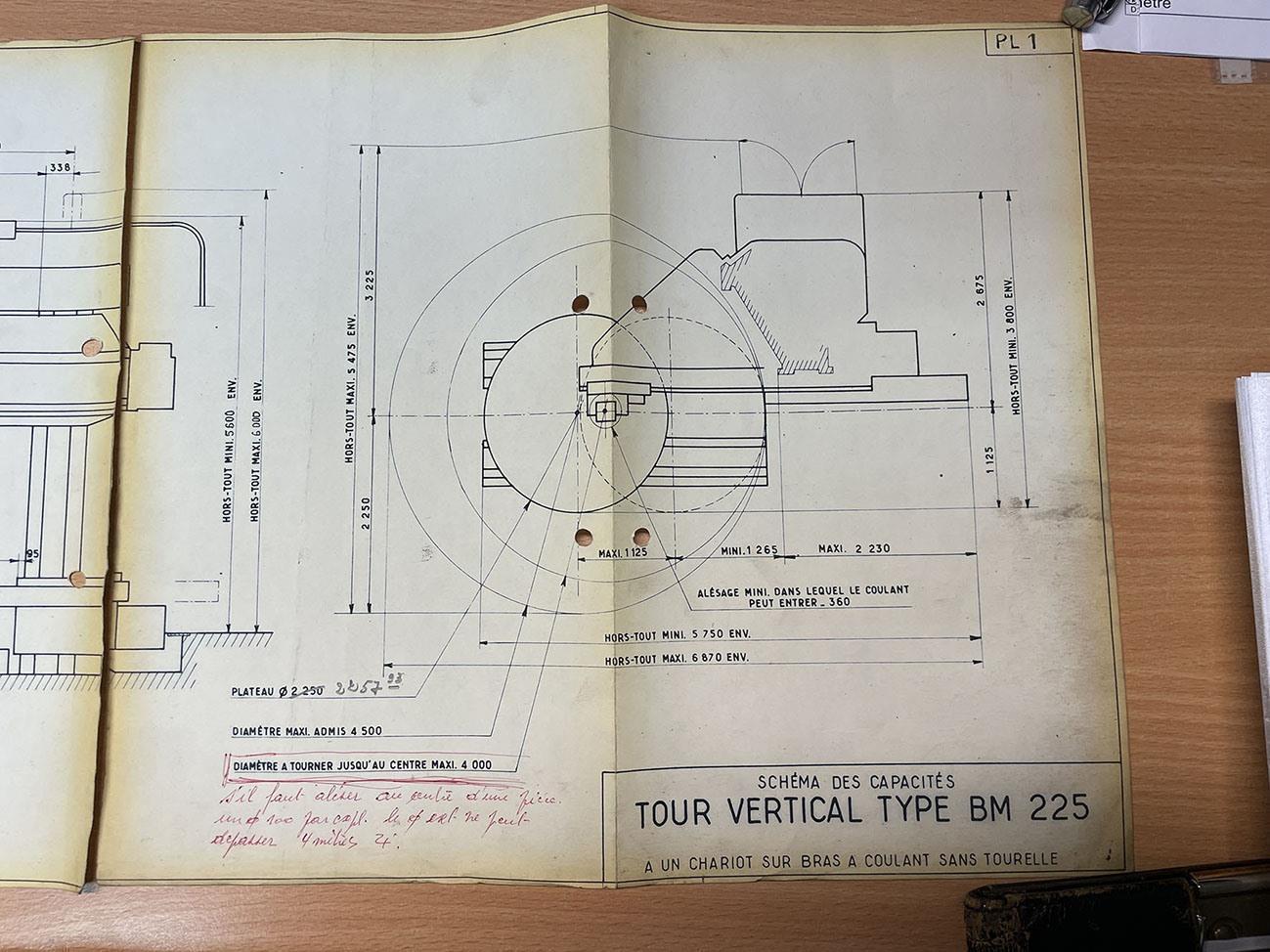

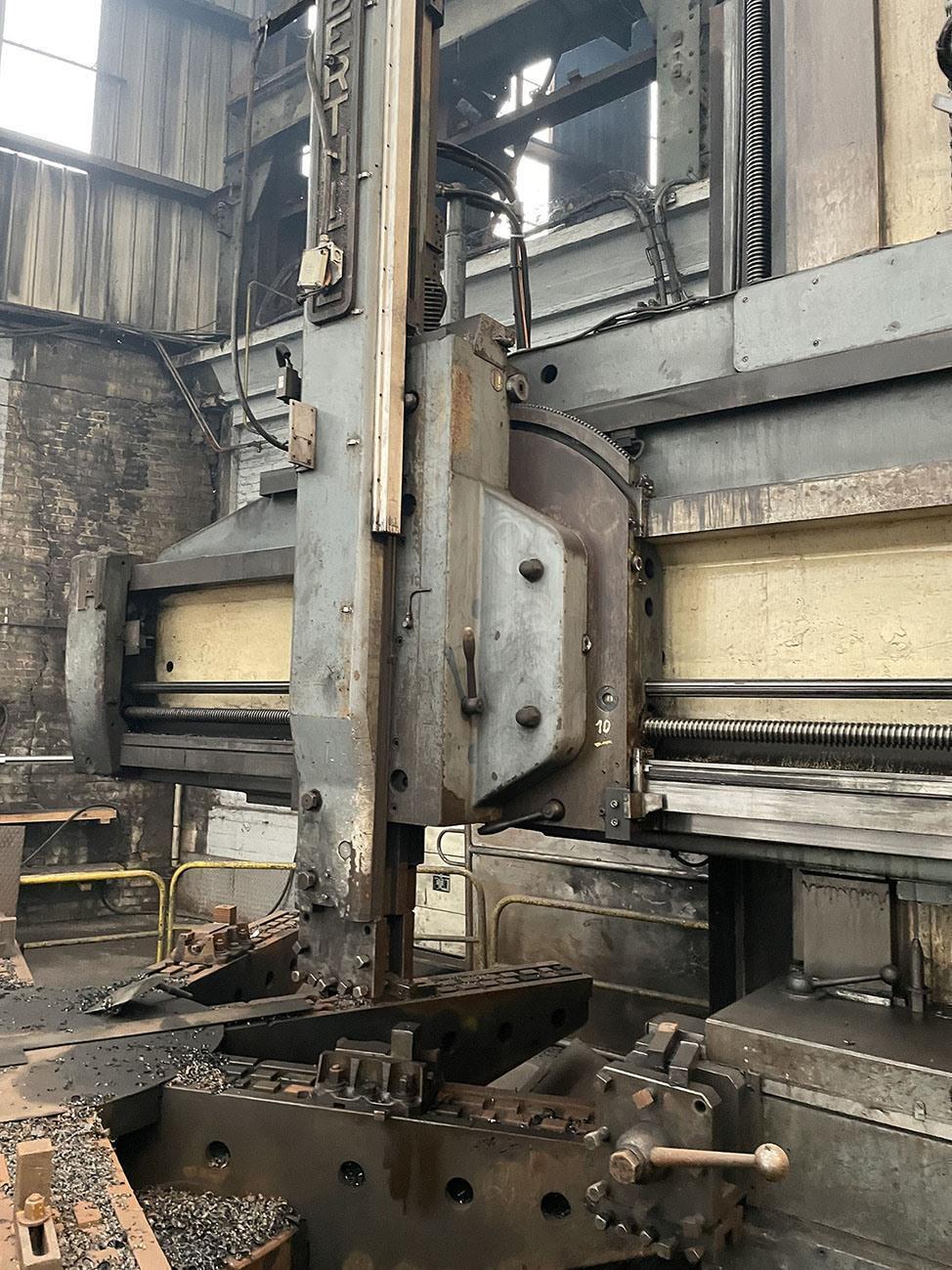

Berthiez BM 225 sermi-automatic machine
Variable speed control for the chuck
Variable speed control for the feed
Maximum stroke of the ram: 1000 mm

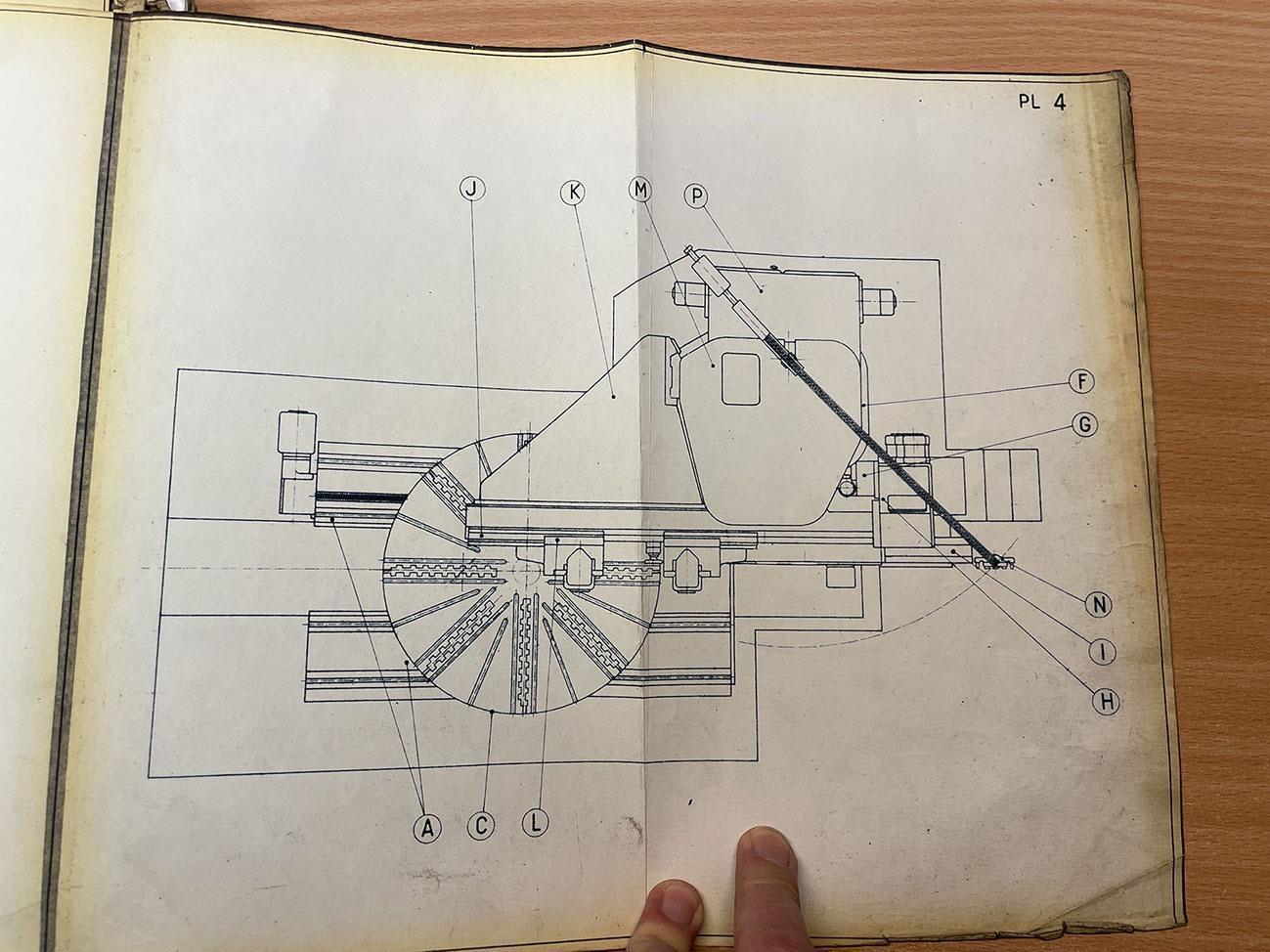

Tower can tilt 45° and 30°
Maximum workpiece diameter: 4500 mm
Maximum workpiece diameter when turning to center: 4000 mm
Maximum height of workpiece: 2650 mm
Maximum weight of workpiece: 30 tons
69 kW on chuck
Machine weight: 40 tons
