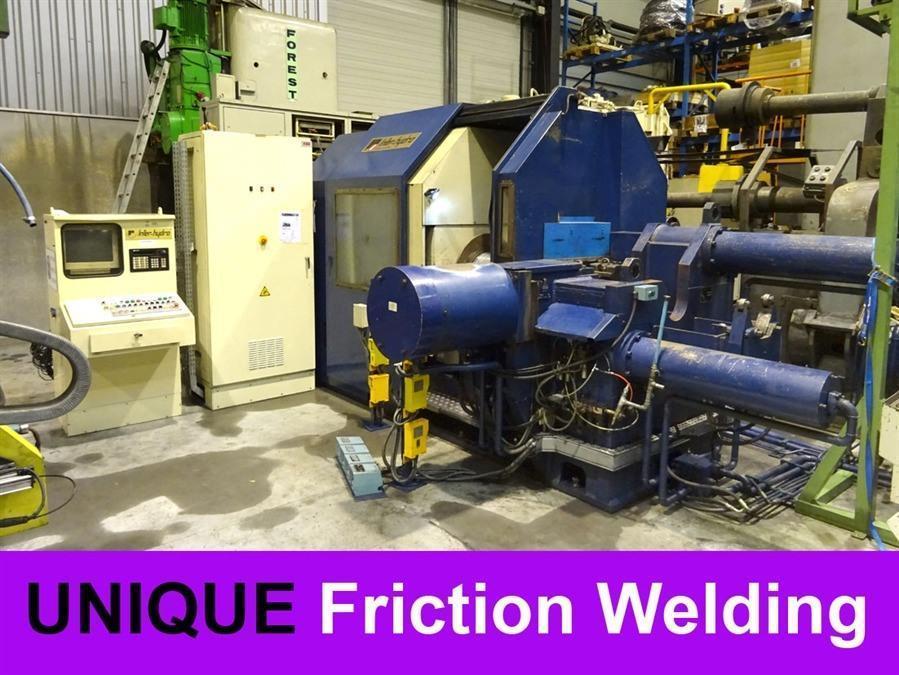

SMFI Inter Hydro CNC friction welding lathe

Brand
UNKNOWN
Category
Lathes & Turning Machines
Type
Lathes, CNC
Model
CNC friction welding lathe
Stock #
A.07 8632
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Length 12 500 mm
  • Width 3550 mm
  • Height 2700 mm
  • Weight 22 000 kg

Additional info

  • Heavy duty friction welding machine, ideal for drilling equipment for petro industry (welding drilling heads to tubes) but also for drive shafts, engines, turbines,...

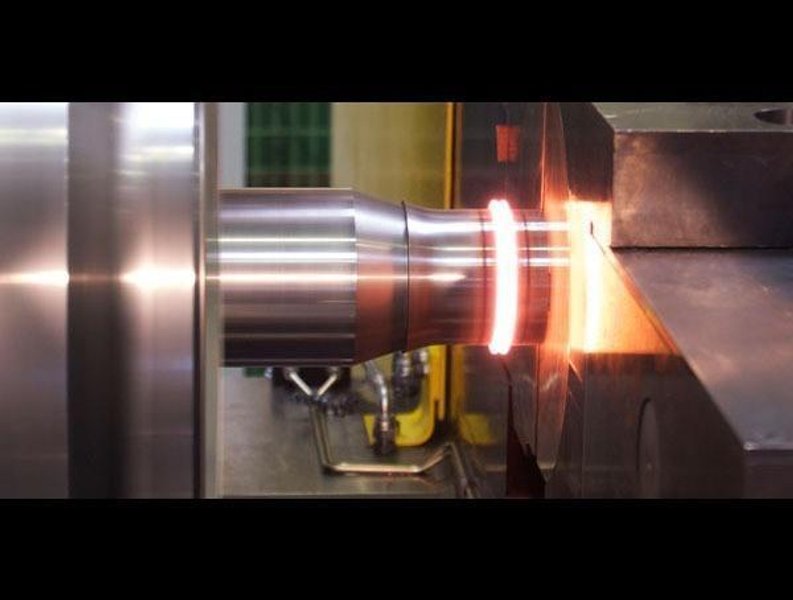

    step 1 - two pieces are welded together
    step 2 - the resulting seamweld is removed by turning action
    Type SF 1105
    2 self-centering steady-rests

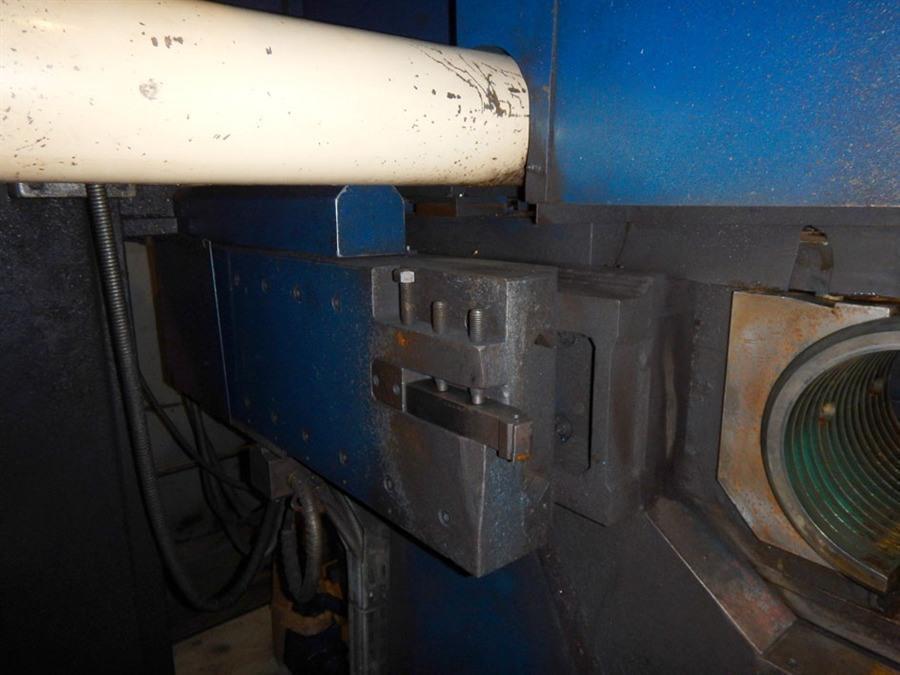

    2 tool holders
    Left side:

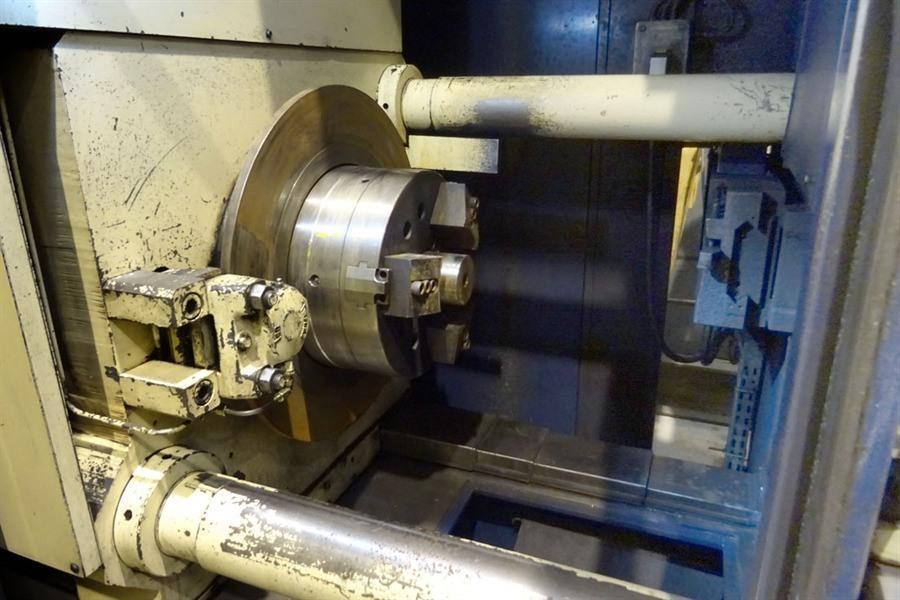

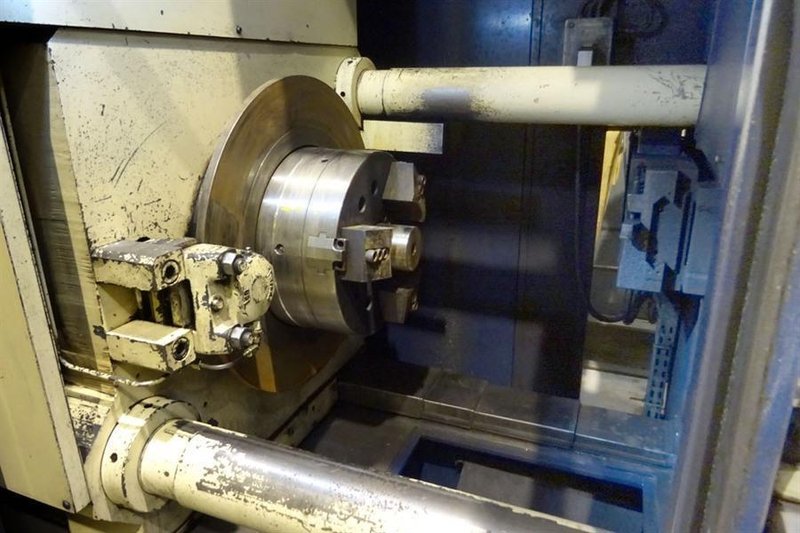

    hydraulic chuck - chuck dia: 400 mm
    max swing: 800 mm
    >> so for example for a drive shaft you can weld a flange of max dia 800 mm
    dia of spindle bore: 100 mm
    power on spindle: 129 kW
    spindle speeds: 296 > 740 rpm
    Right side:

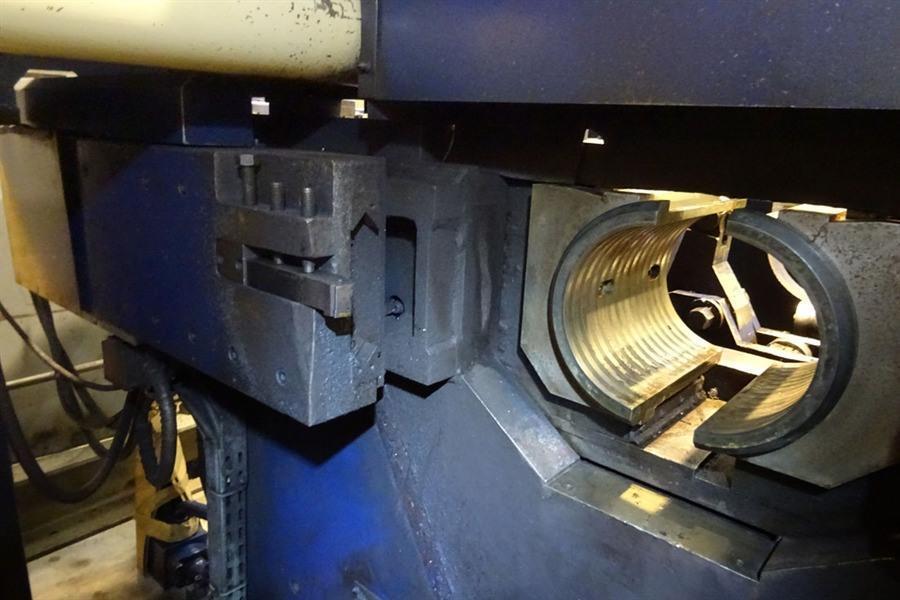

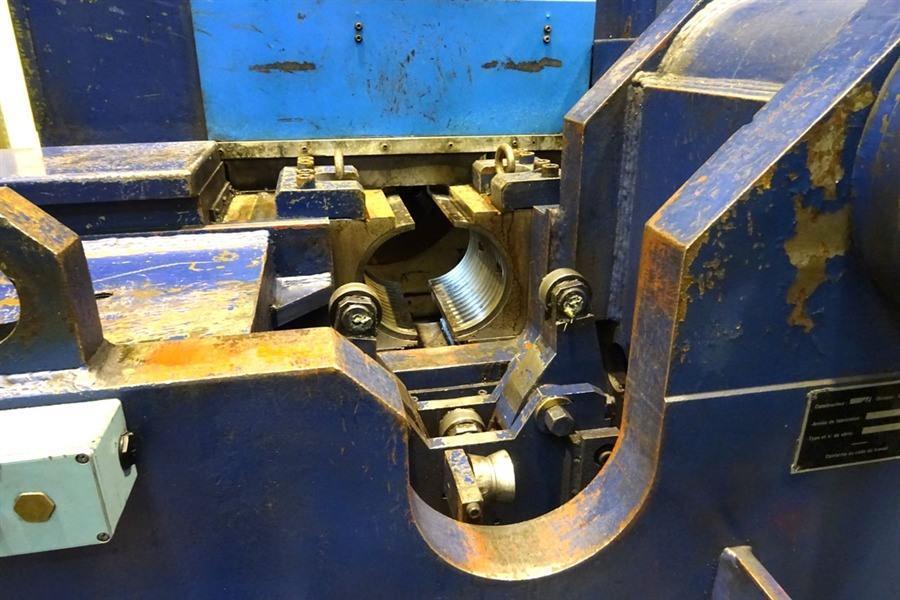

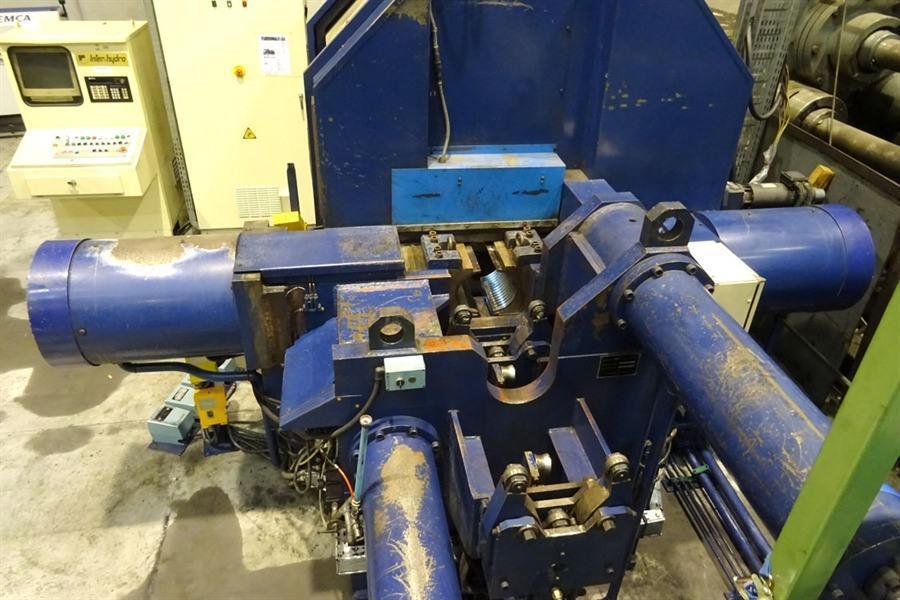

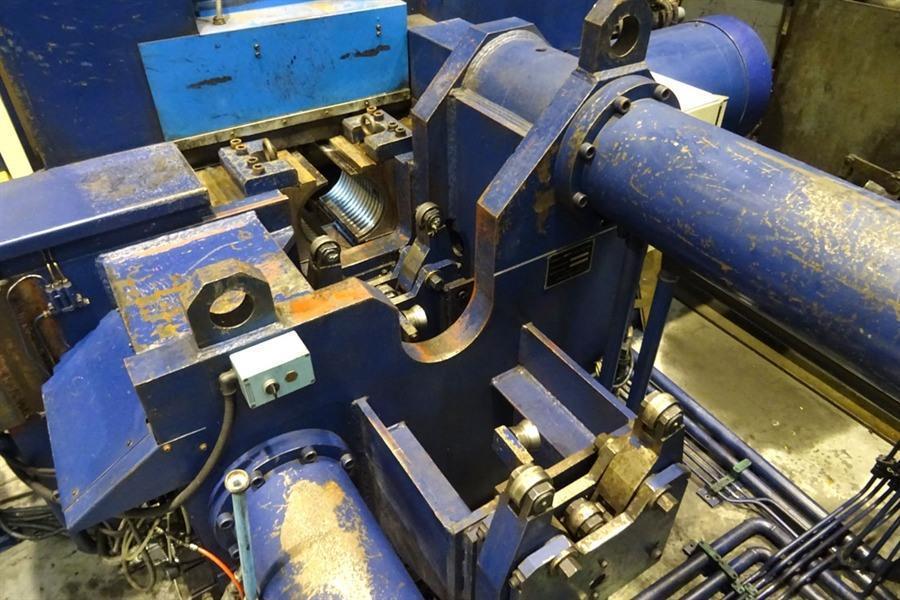

    Hydraulic movable carriage
    stroke: 700 mm

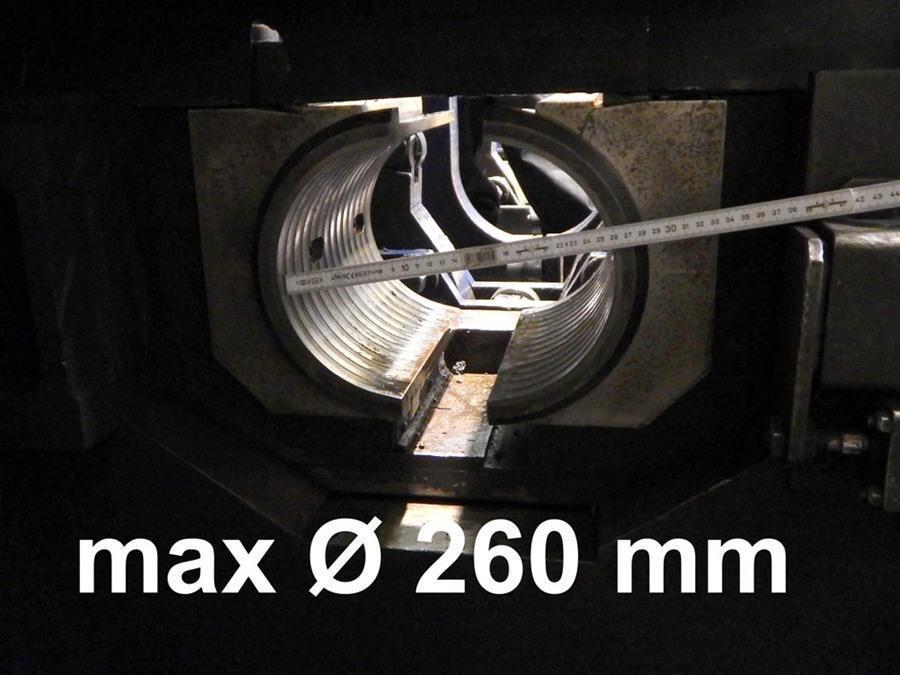

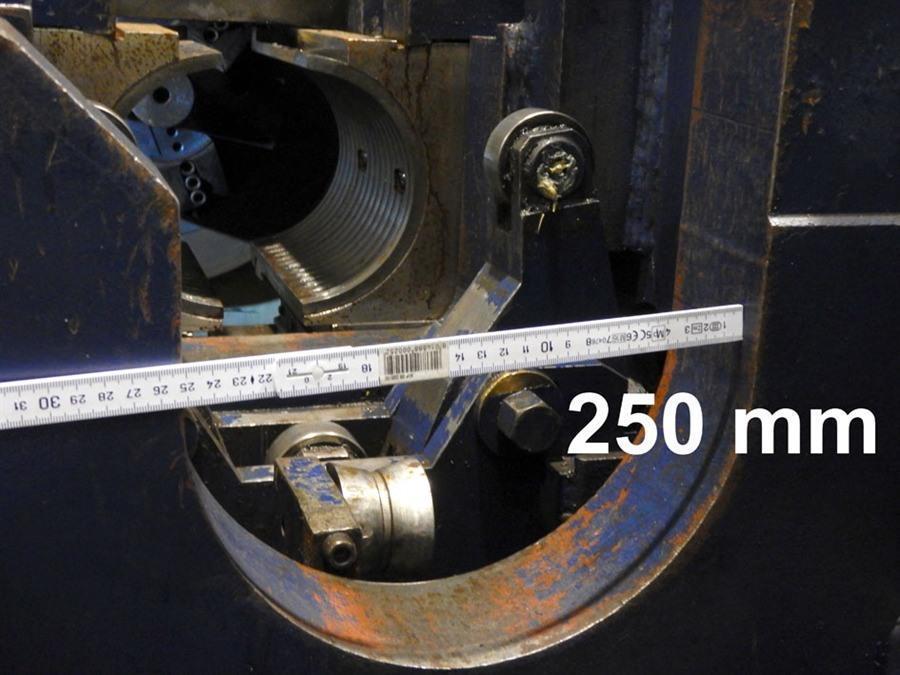

    max clamping dia of movable carriage: 220 mm
    clamping force: 2800 kN
    weldable section: 6667 mm2 at 15kg/mm2
    forging force: 1100 kN
    friction force: 500 kN

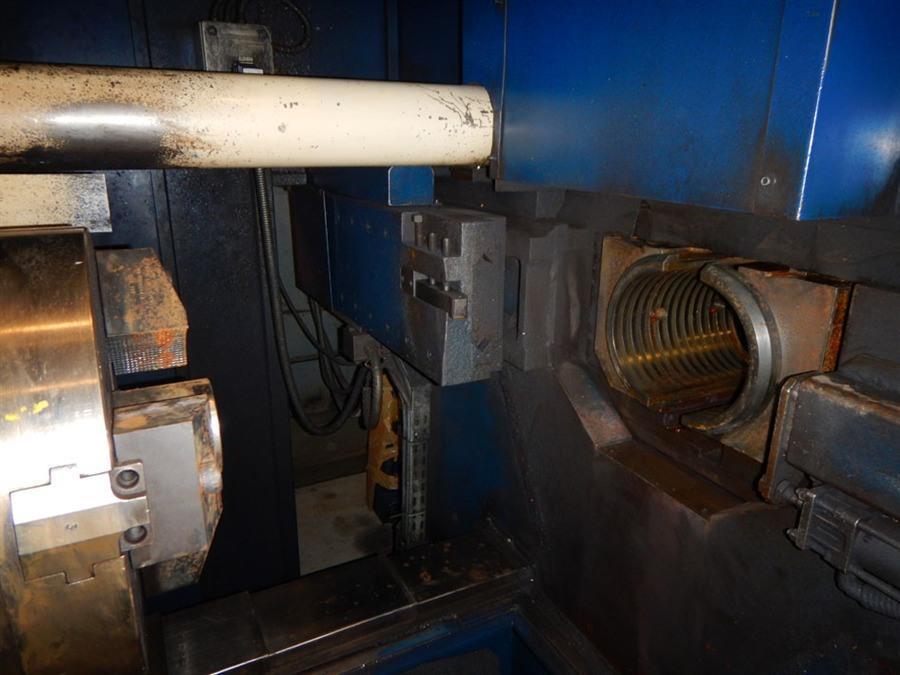

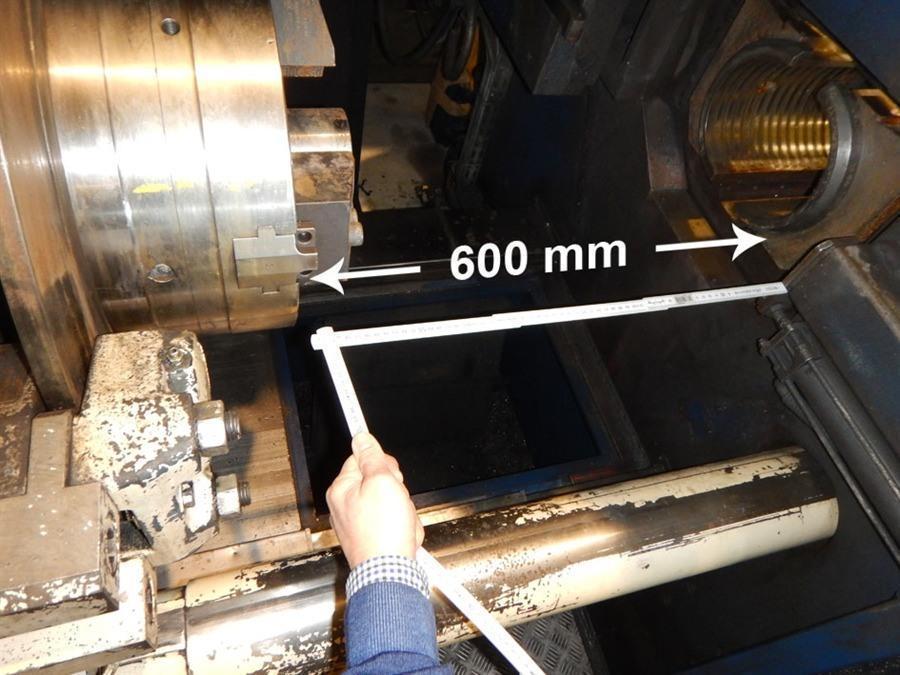

    Max distance between chuck and movable carriage: 845 mm
    machine a souder par friction - Reibschweißmaschine
