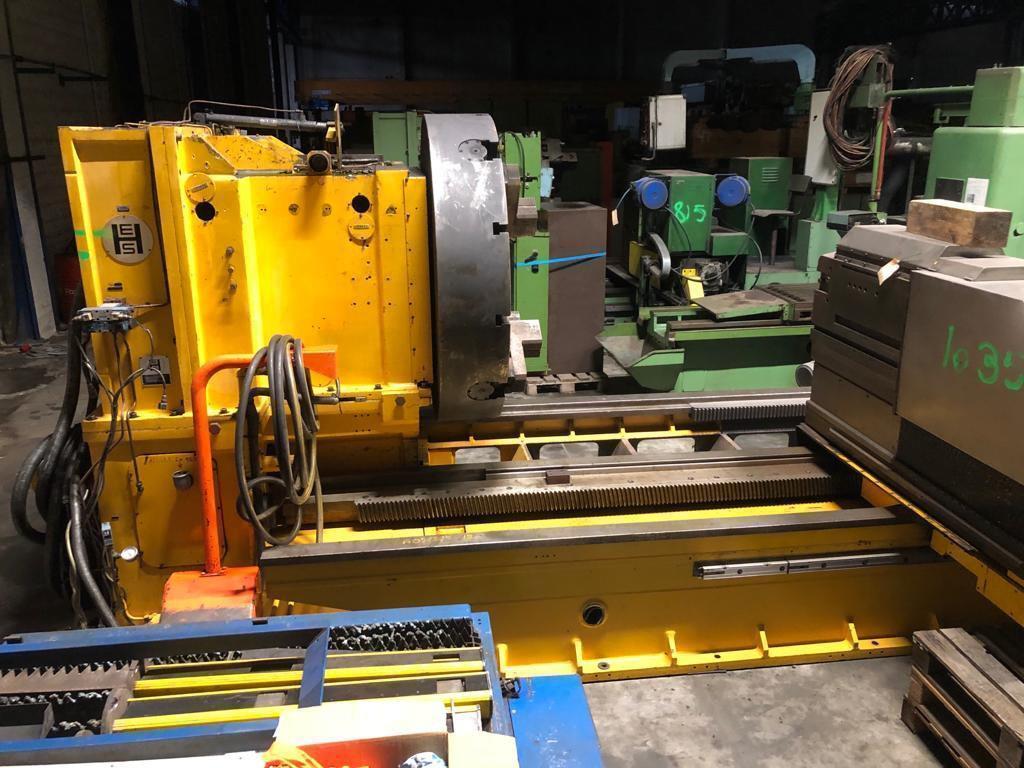

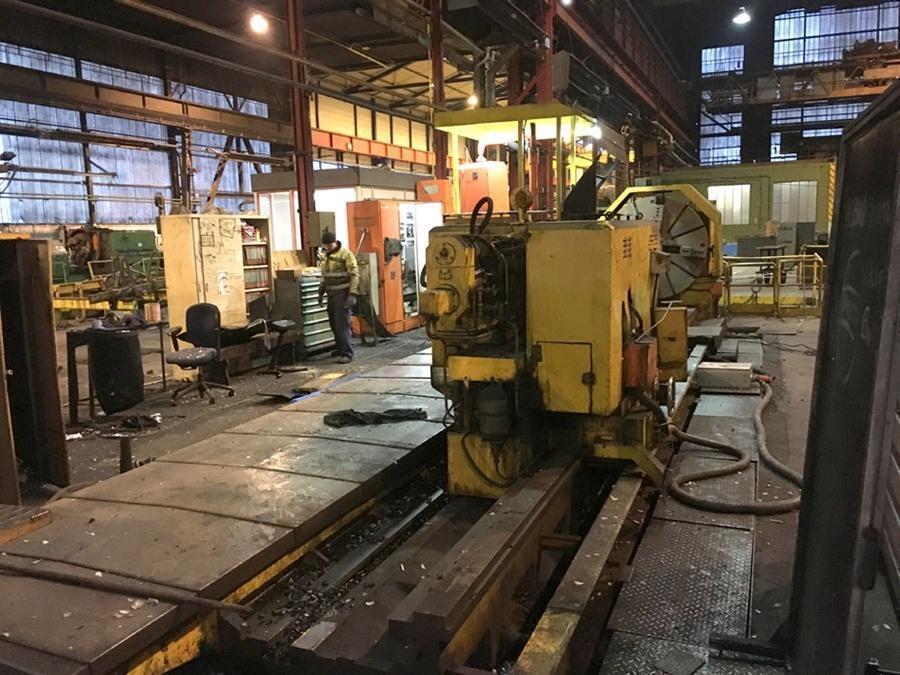

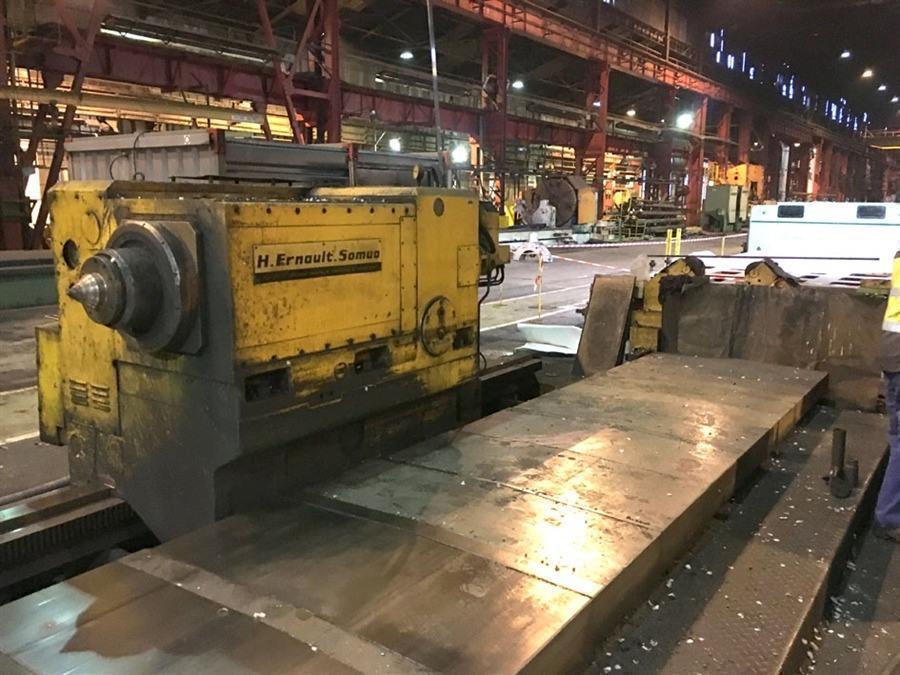

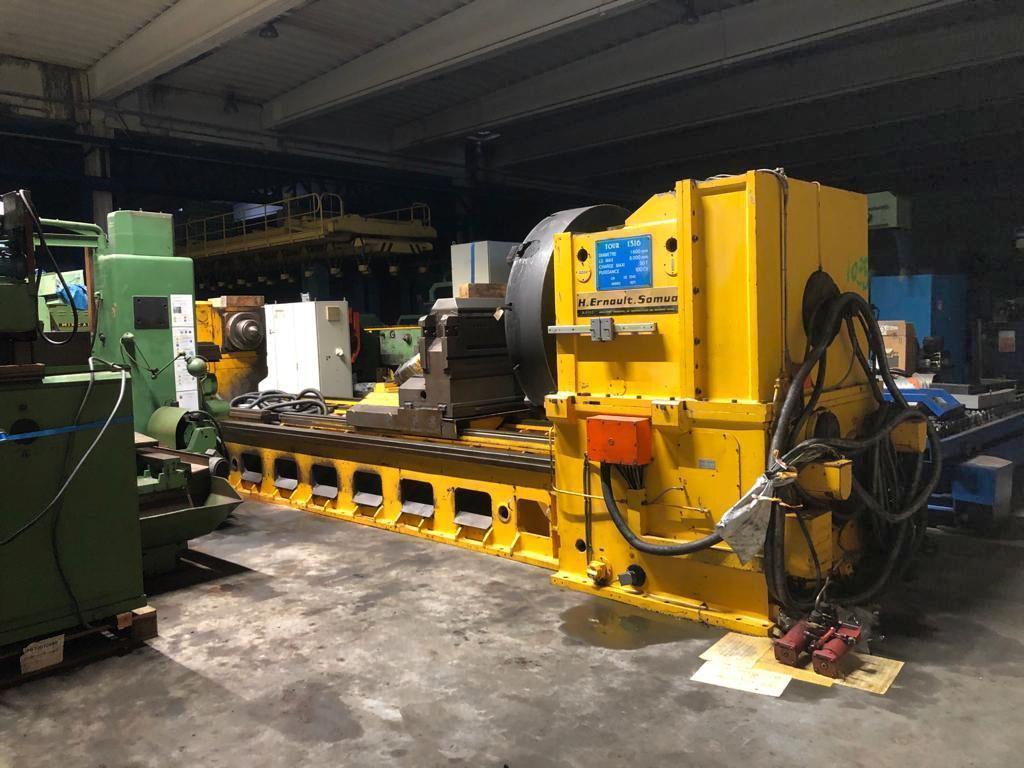

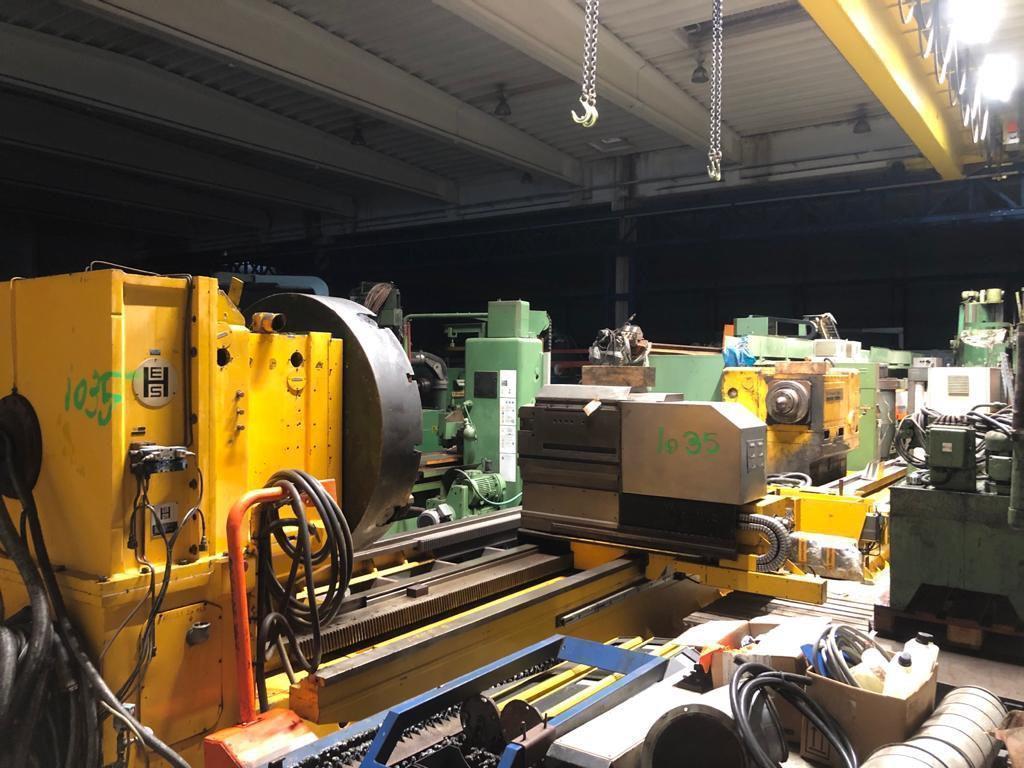

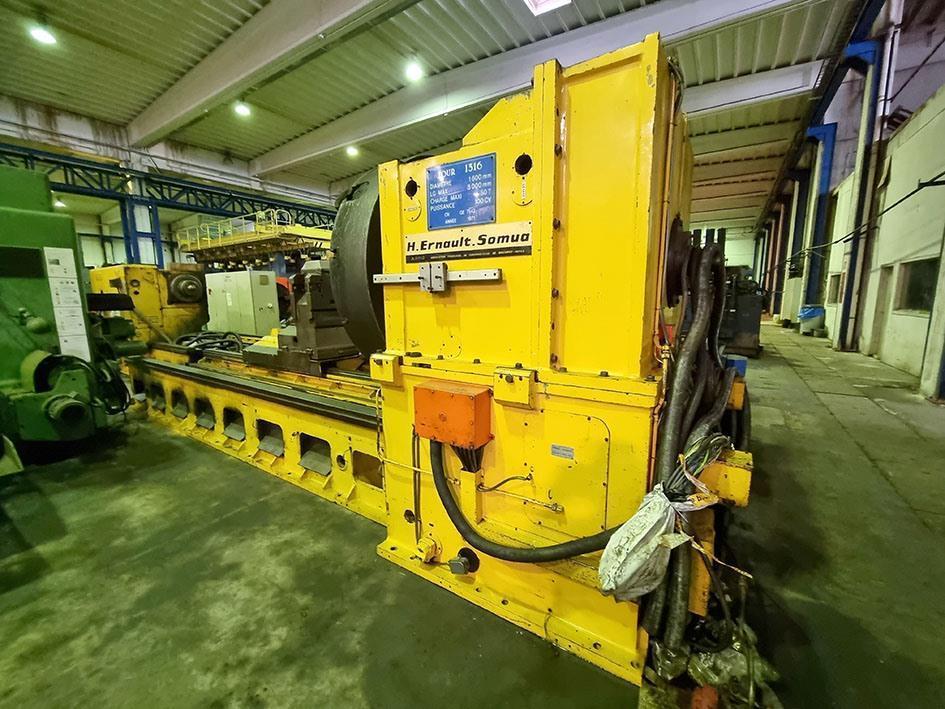

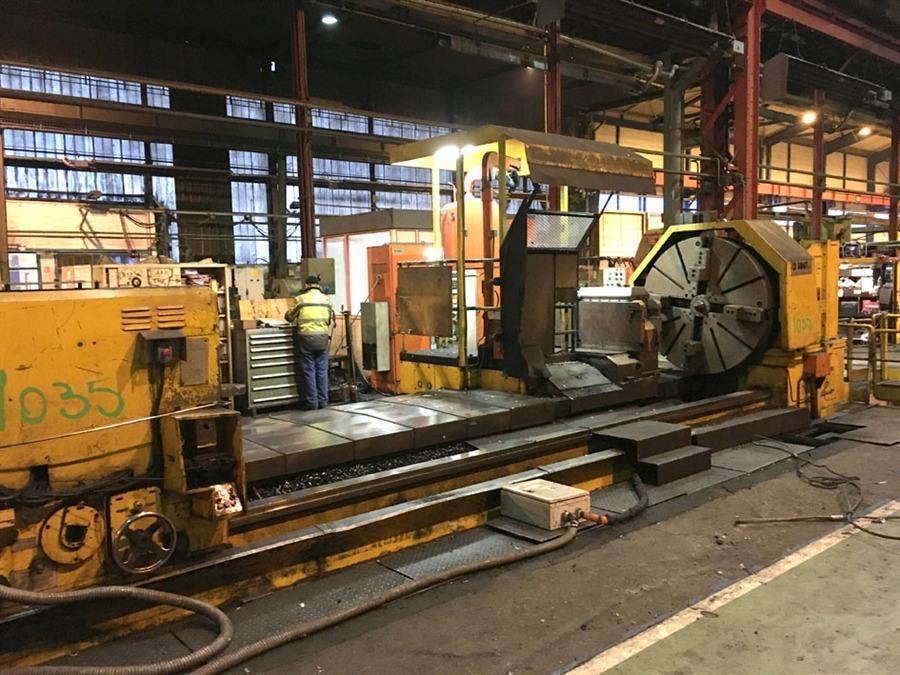

Ernault & somua - Ø 2000 x 8000 mm CNC

Brand
ERNAULT
Category
Lathes & Turning Machines
Type
CNC Lathes
Model
Ø 2000 x 8000 mm CNC
Stock #
A.07 9592
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Swing over bed 2000 mm
  • Swing over cross-slide 1600 mm
  • Distance centre tot centre 8000 mm
  • Power on the spindle 75 kW
  • Number of speeds 2 > 240 rpm
  • Command Num
  • Weight 75 ton

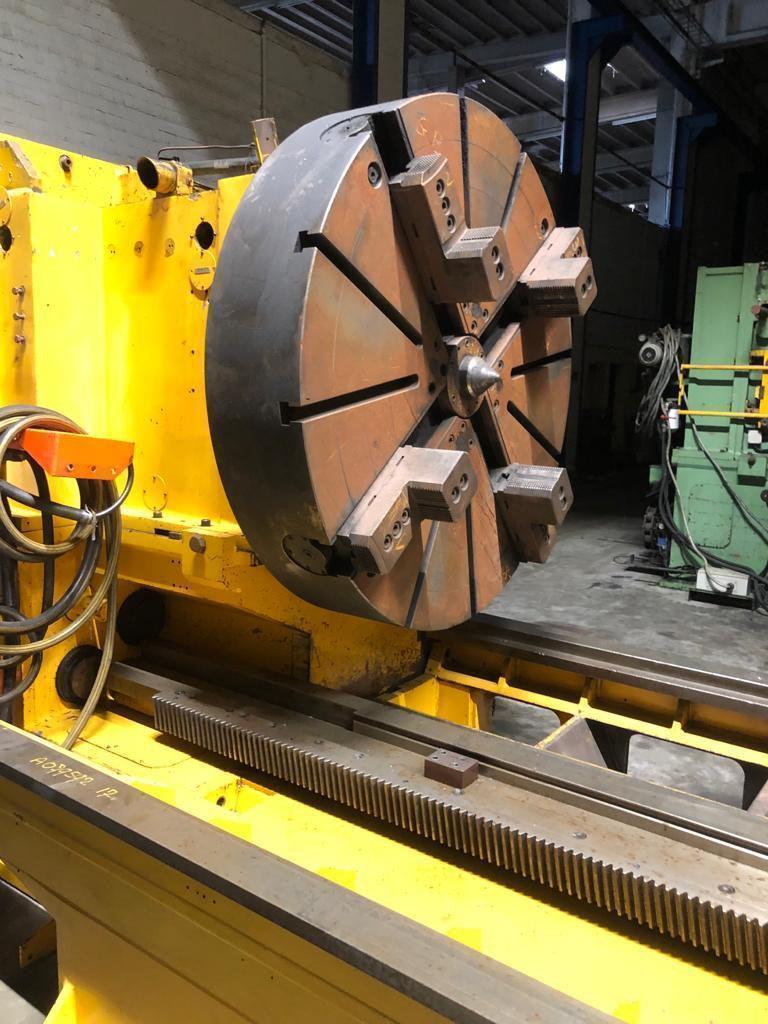

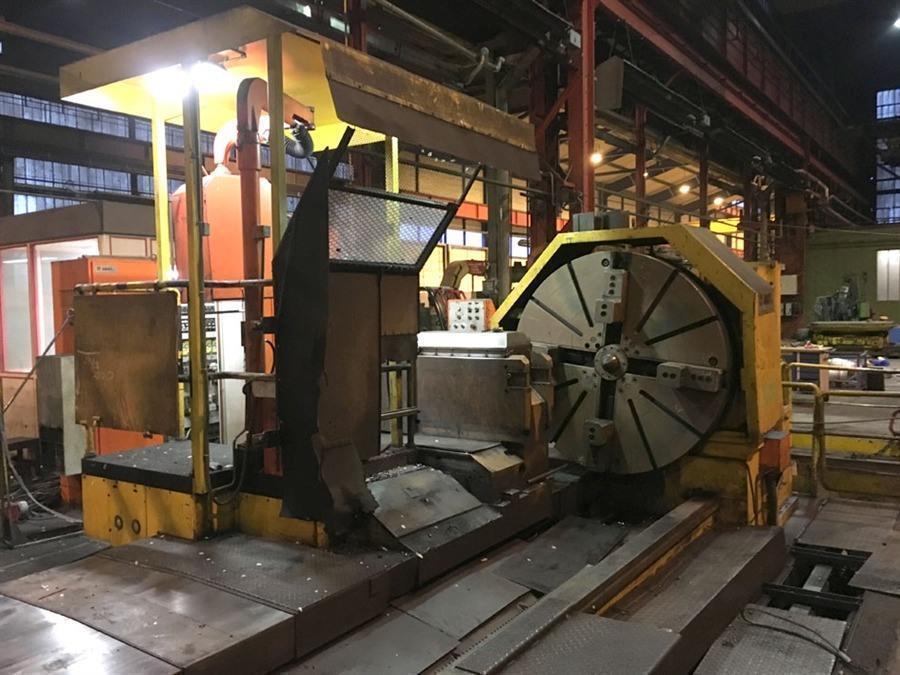

  • Chuck 1600 mm

Additional info

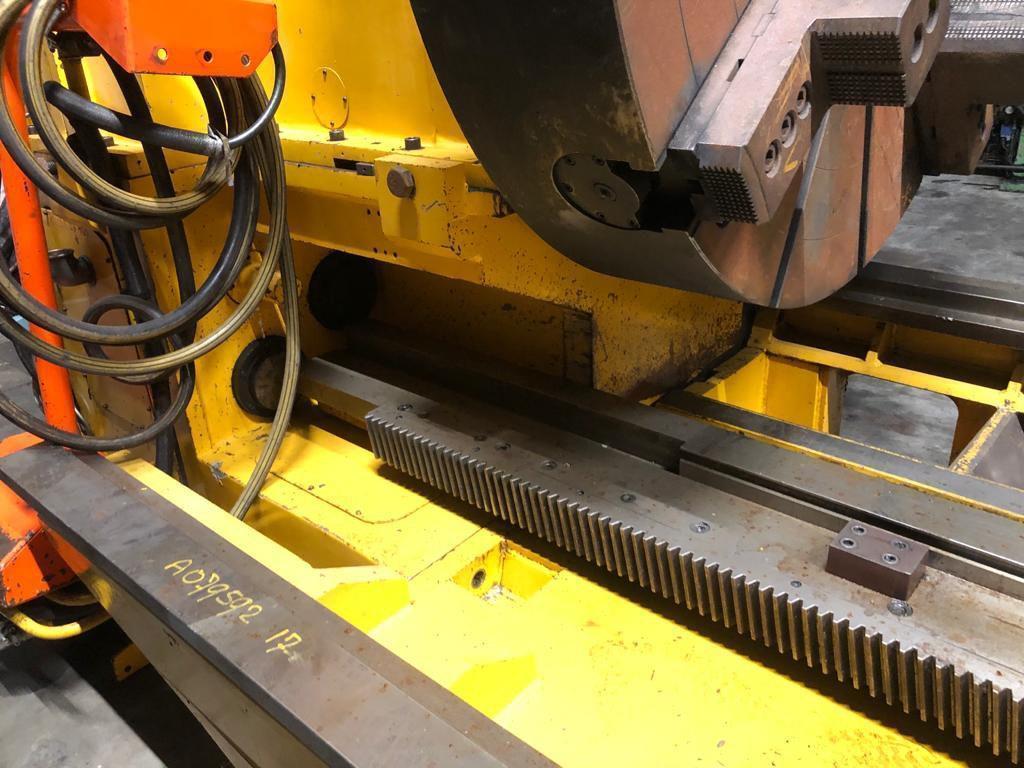

  • Heavy duty lathe with 4 hardened linear guides
    Max workpiece weight: 50 tons

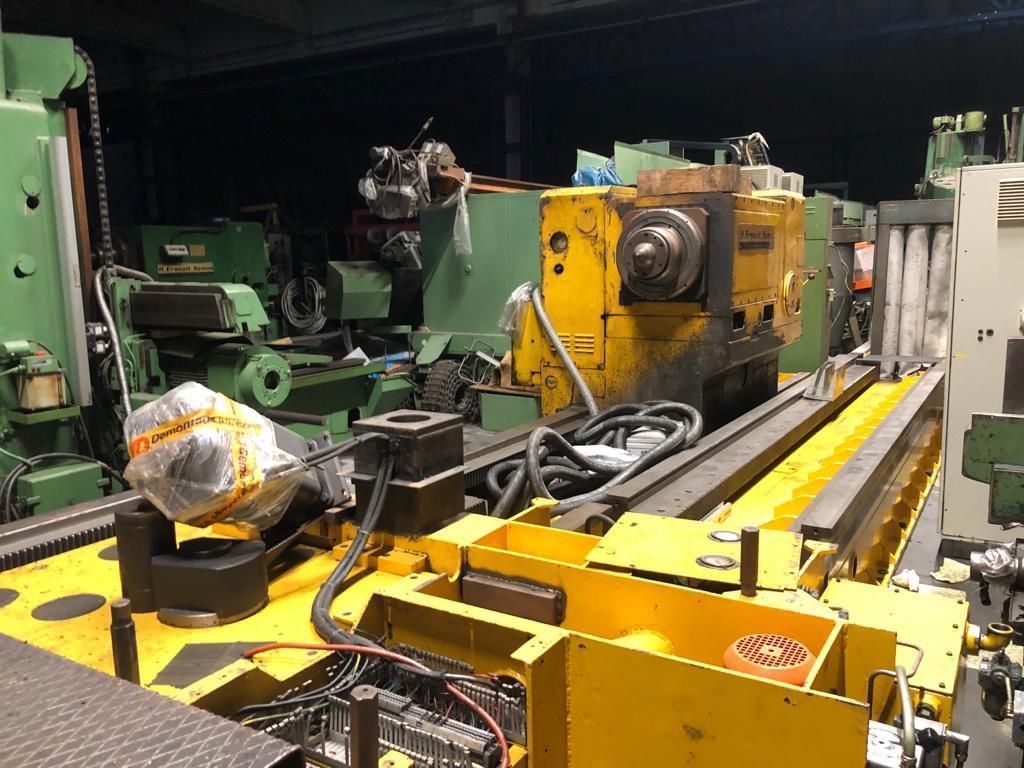

    Hydraulic counterpoint = automatic compensation

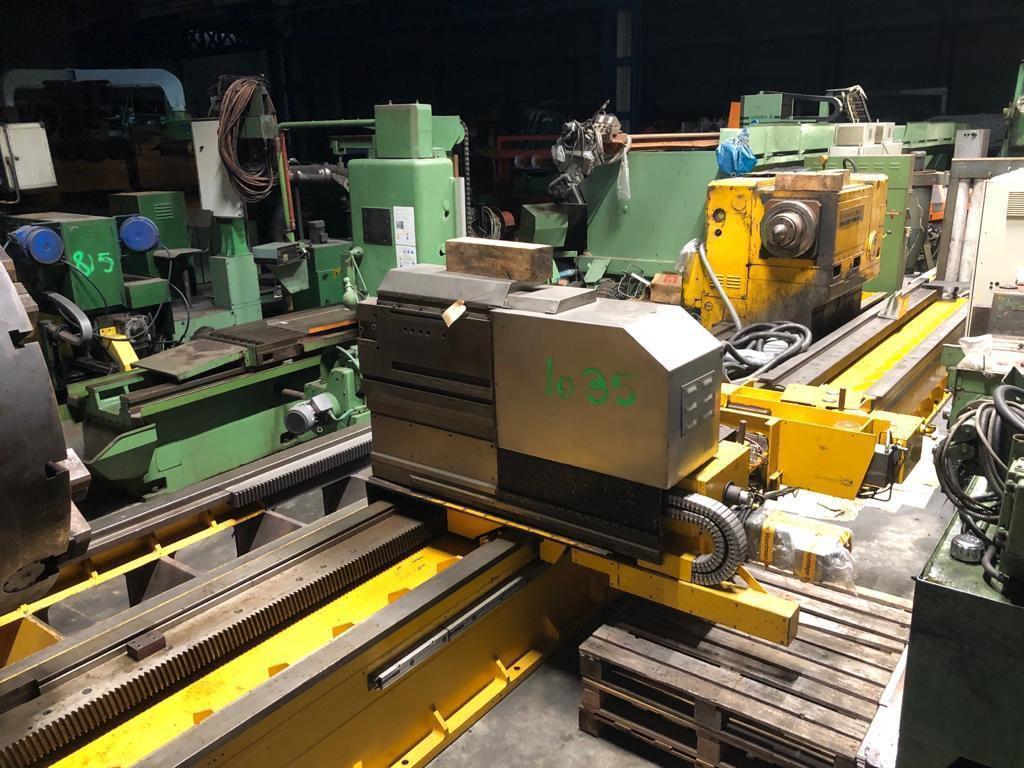

    Crosslide equipped with two CNC controlled toolholders
    Siemens drives and motors
    Heidenhain rulers and encoders

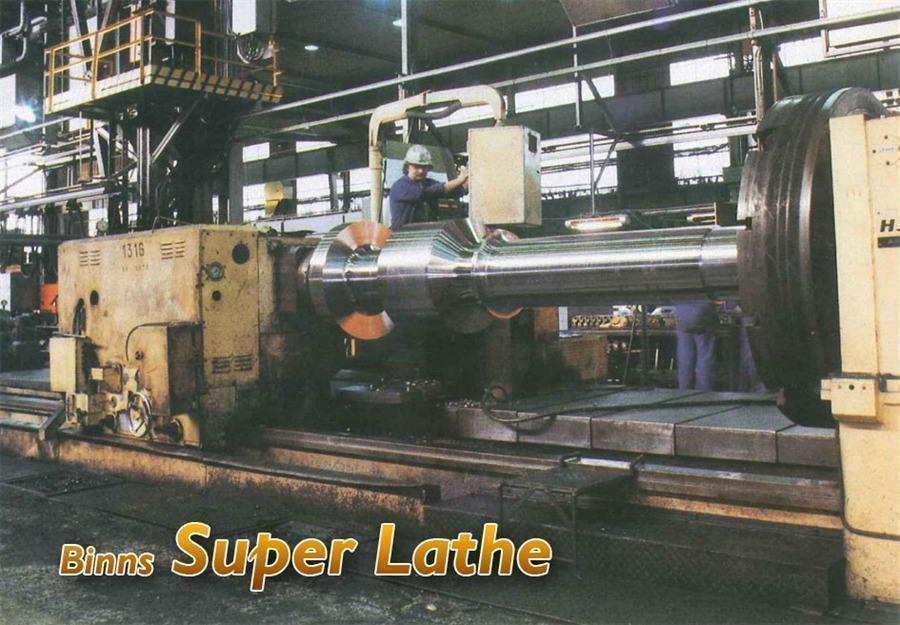

    Super Lathe principle/license of Binns Machinery (USA). The ultimate in performance for heavy lathes intended for steel mills, roll foundries, forge shops for making products like turbine rotors, large shafts and bar production.


    Most noticeable differences in regards to a normal lathe:
    > much wider bed = very high rigidity = no more vibration

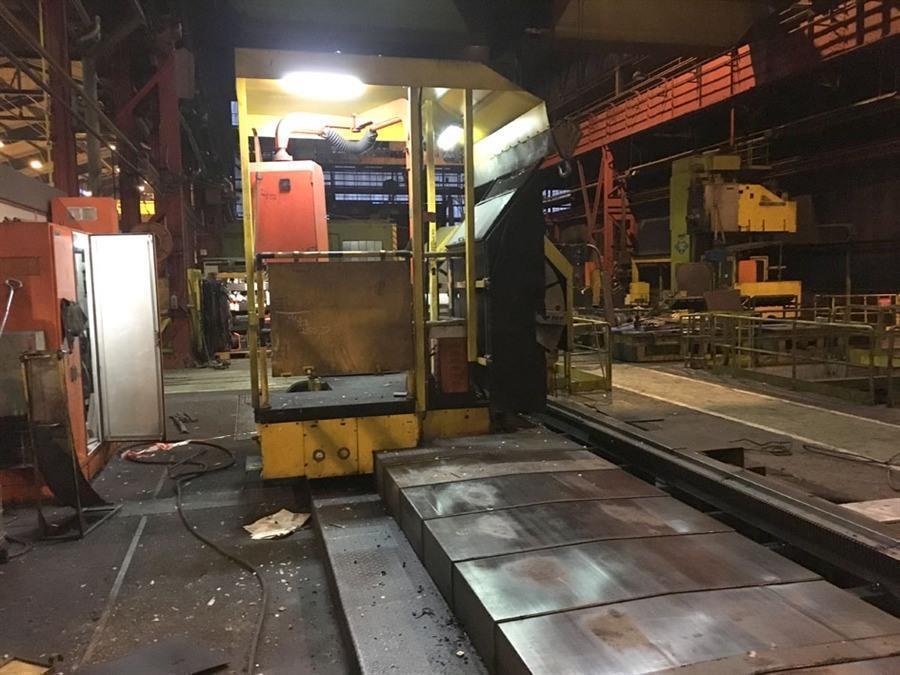

    > heavy and bulky carriage also for rigidity purposes
    > heavy workpieces can be placed between the centers
    > the total weight of the roll lathe is very high
