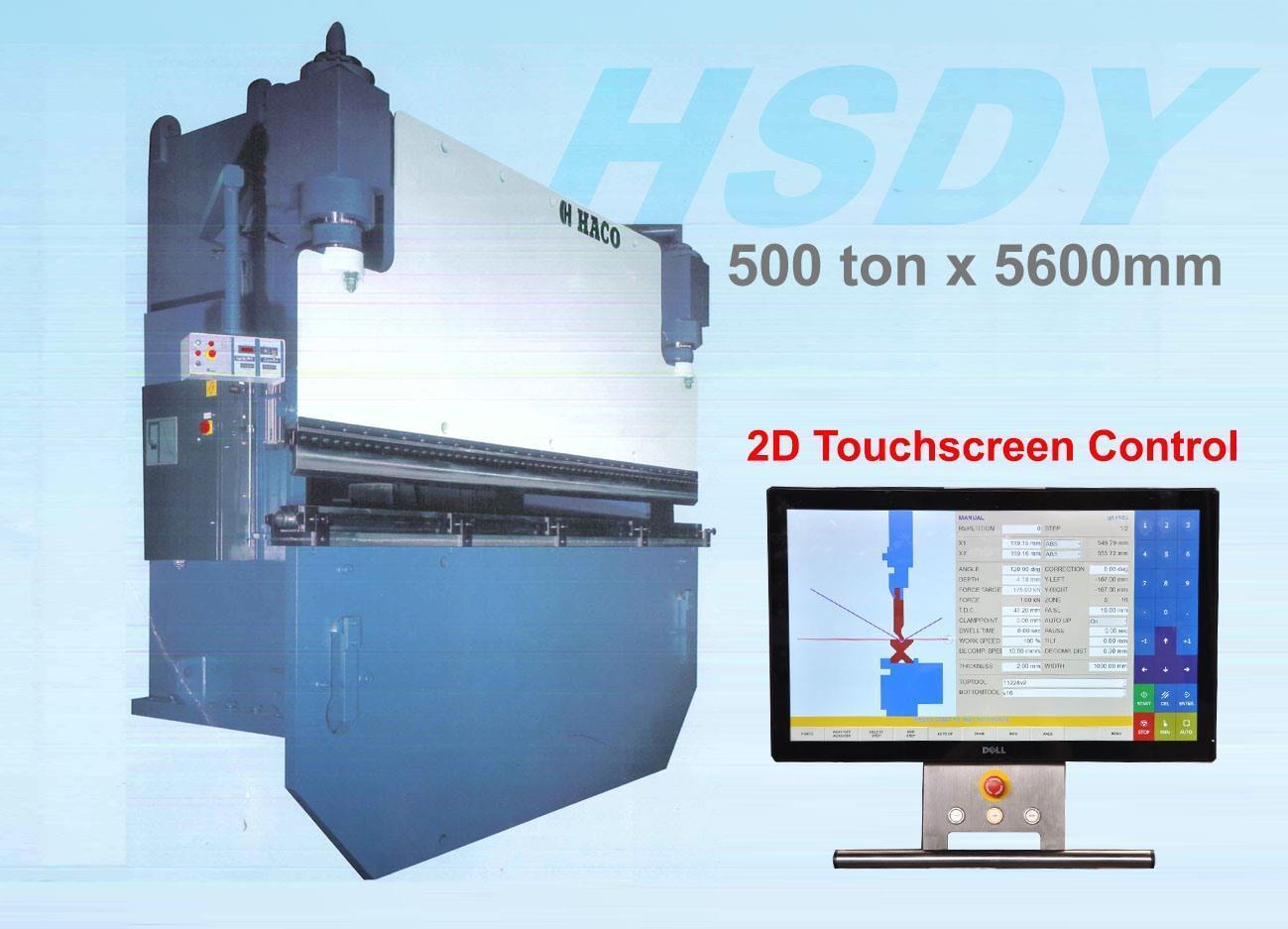

Haco HSDY 500 ton x 5600 mm CNC

Brand

HACO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Capacity 500 Ton x 5600mm
Backgauge CNC

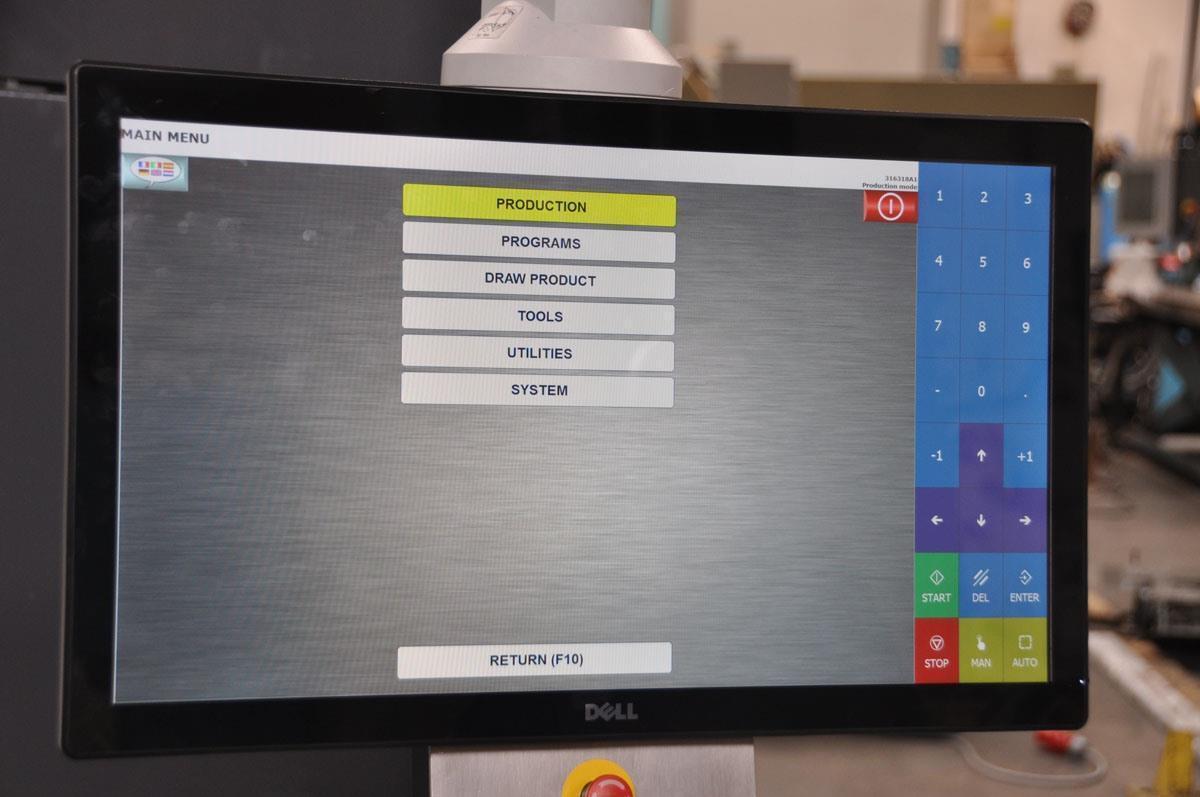

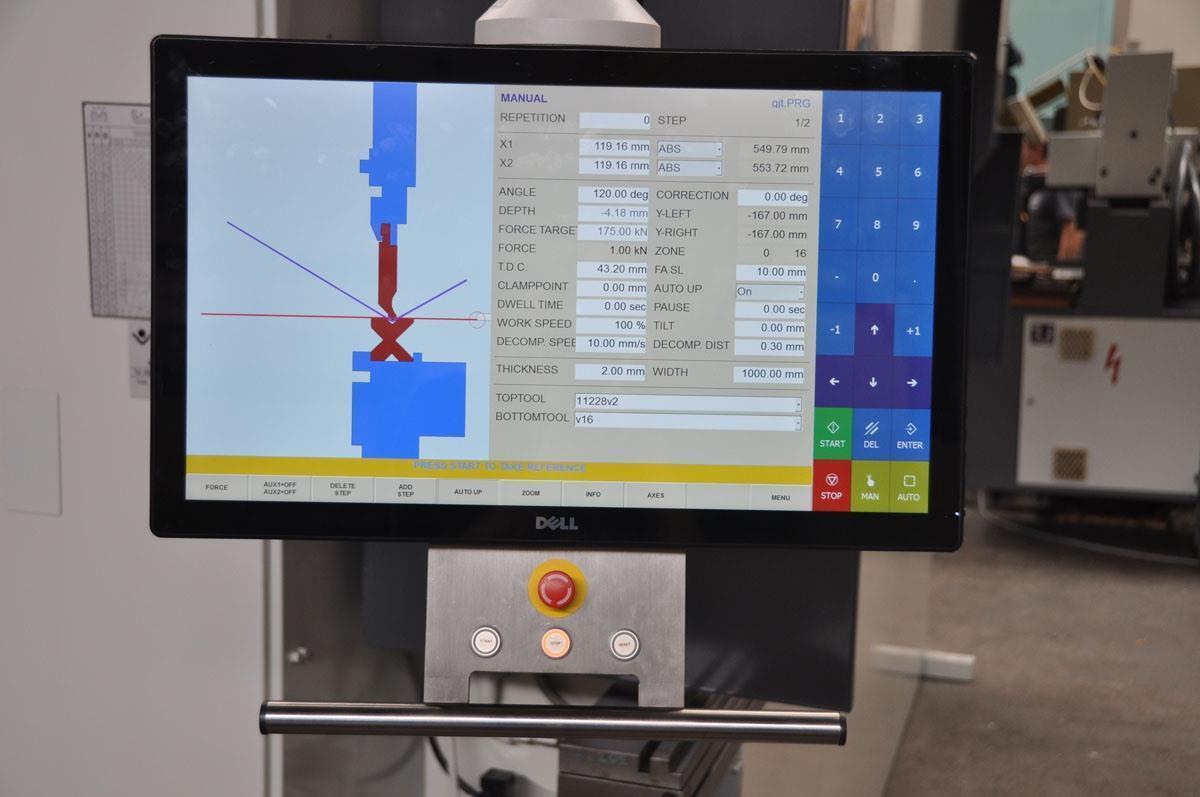

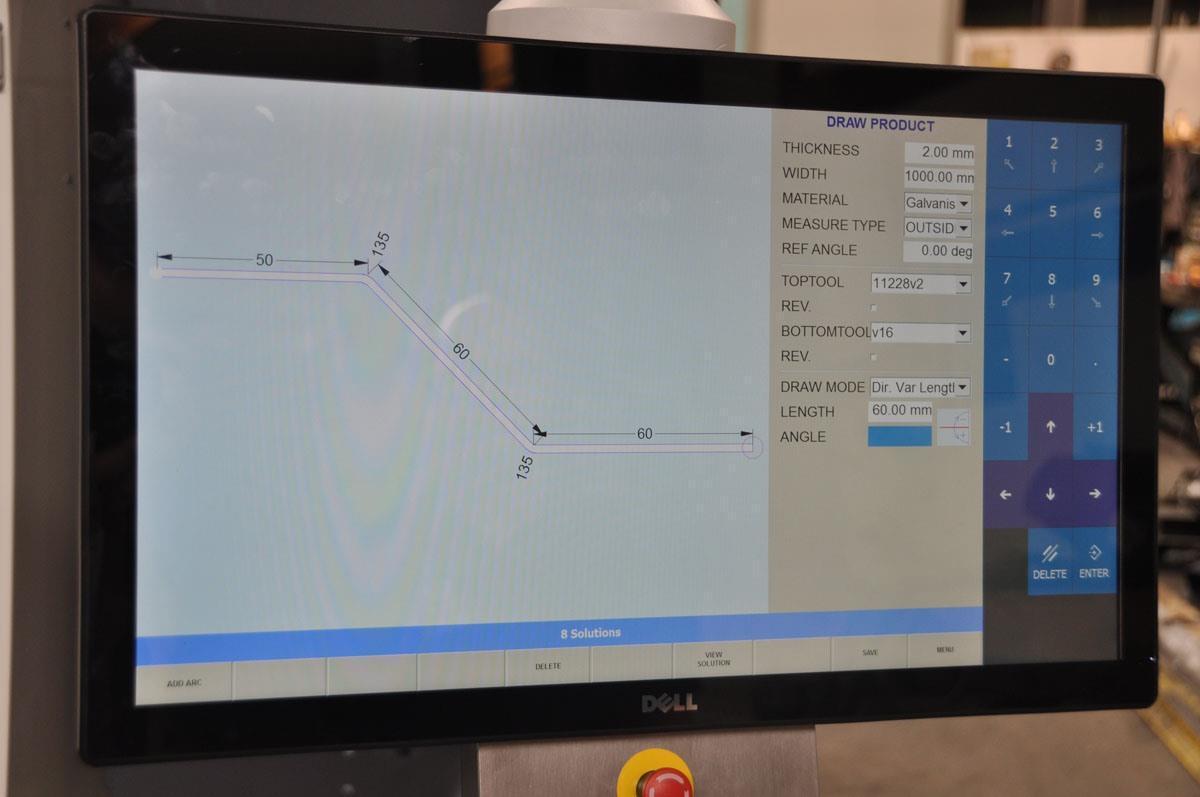

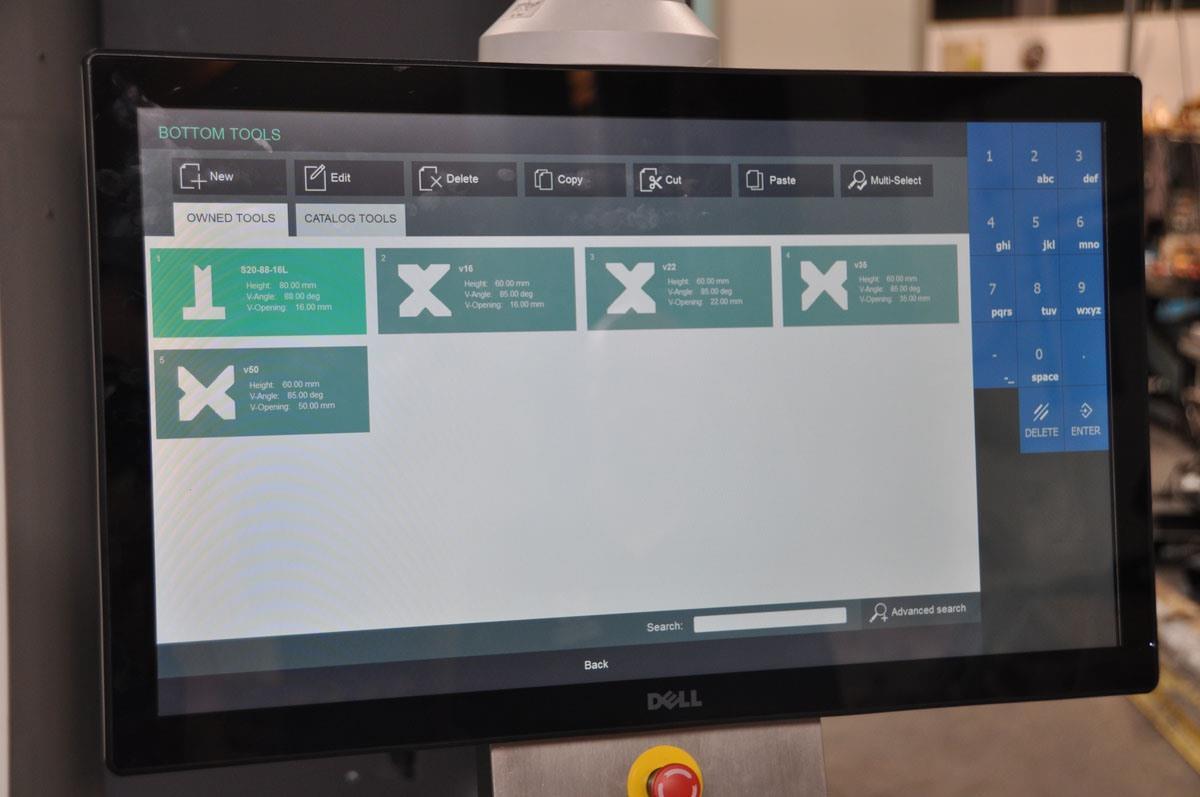

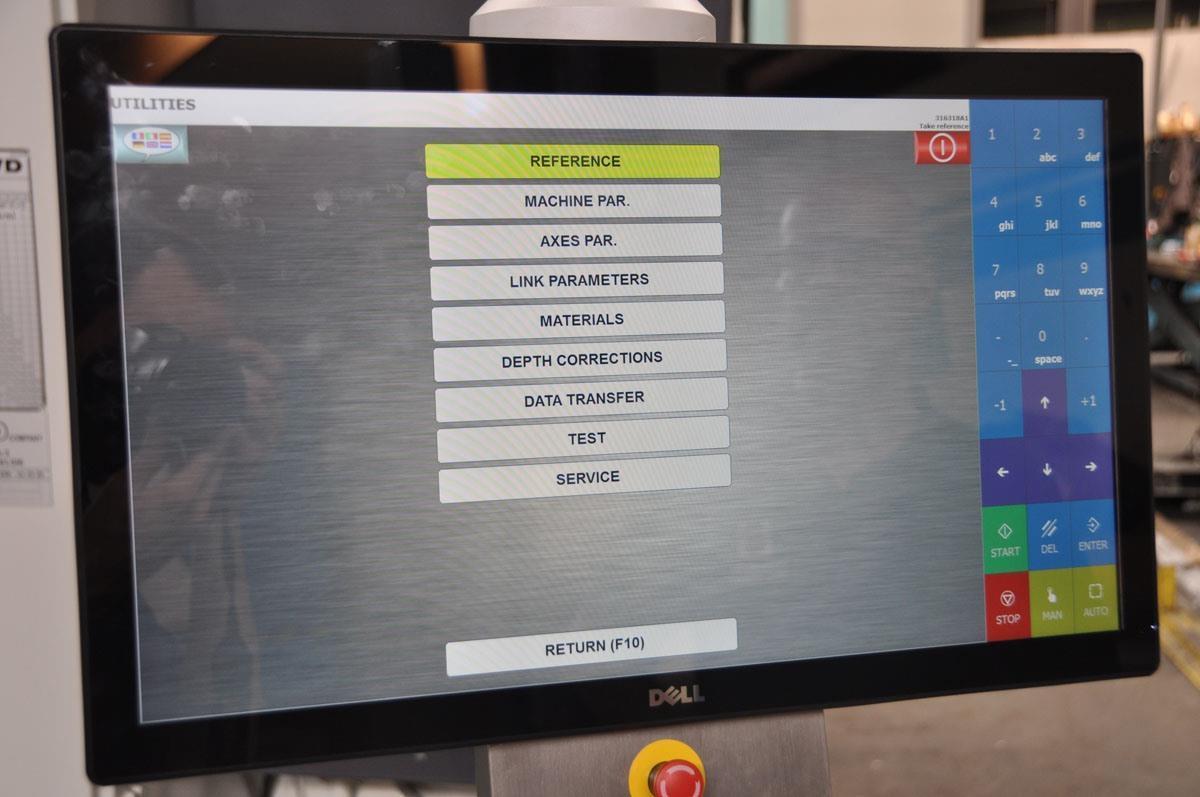

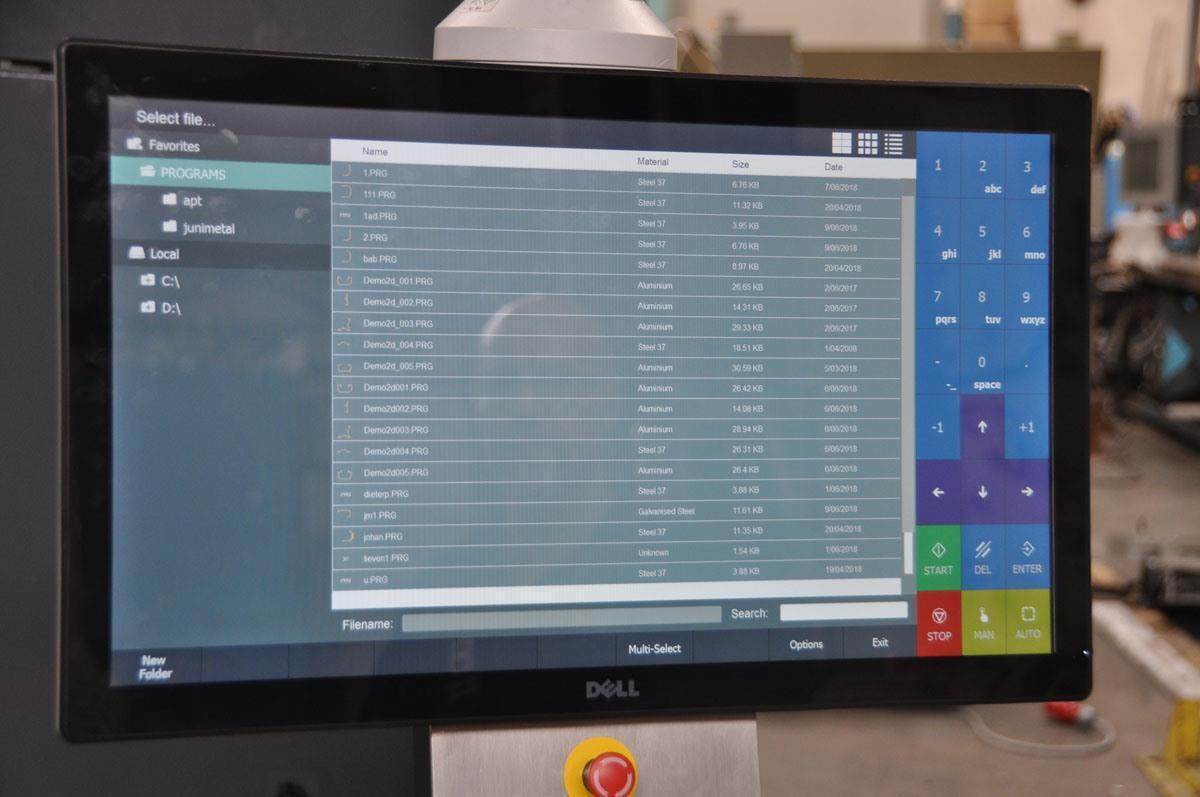

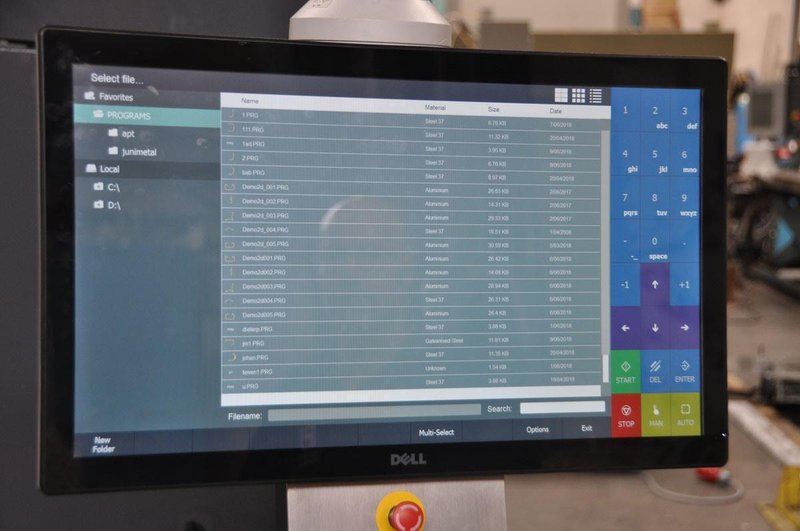

Control BC 45 Graphic 3 axes
Passage between uprights 4600 mm
Max stroke 300 mm
Max distance between table -- ram 550 mm
Depth of throat 330 mm
Locking speed 90 mm/sec
Working speed 7 mm/sec
Returning speed 60 mm/sec
Electric motor (power) 37,5 kW
Length 6150 mm
Depth 2150 mm
Height 3800 mm (above ground)
Weight 38000 kg

Additional info

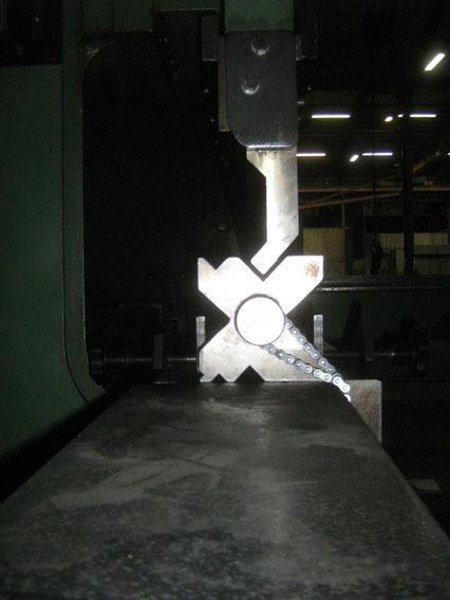

CNC Bombation Table + 1 knife 88° + Multi v-Bloc: 90°/30°/40°/60°/80°/100°
servocontrolled

3 axes

heavy duty backgauge

graphic control

possibility to bend conical

Machine can be transported in containers, in pieces.
