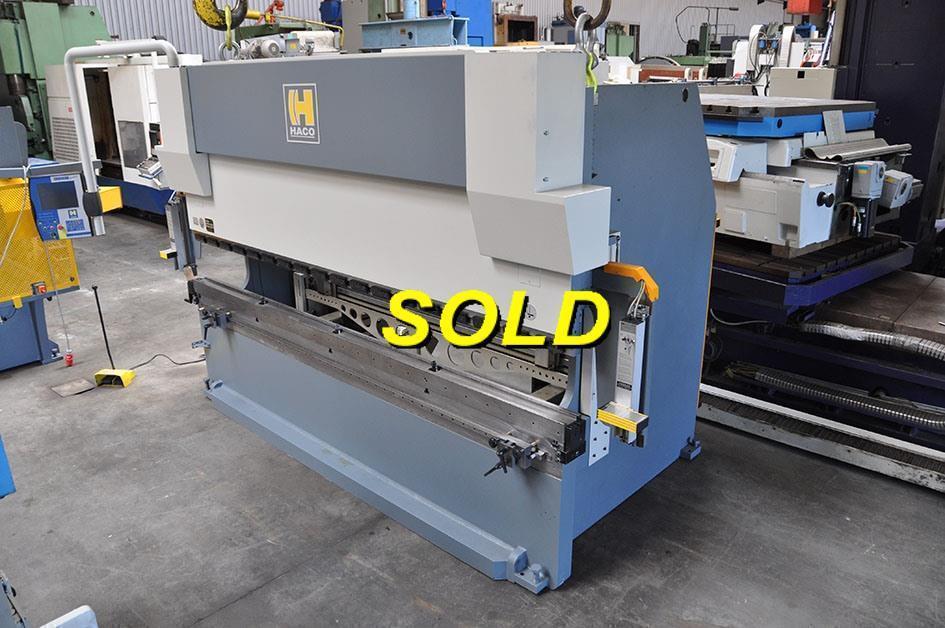

Haco ERM 250 ton x 3600 mm CNC

Brand
Model
ERM 250 ton x 3600 mm CNC
Stock #
O.01 11025
Year
Not specified
Condition
Not specified

Location

Not specified
Located in Deinze, Belgium

Technical information

  • Capacity 250 ton x 3600 mm
  • Backgauge CNC

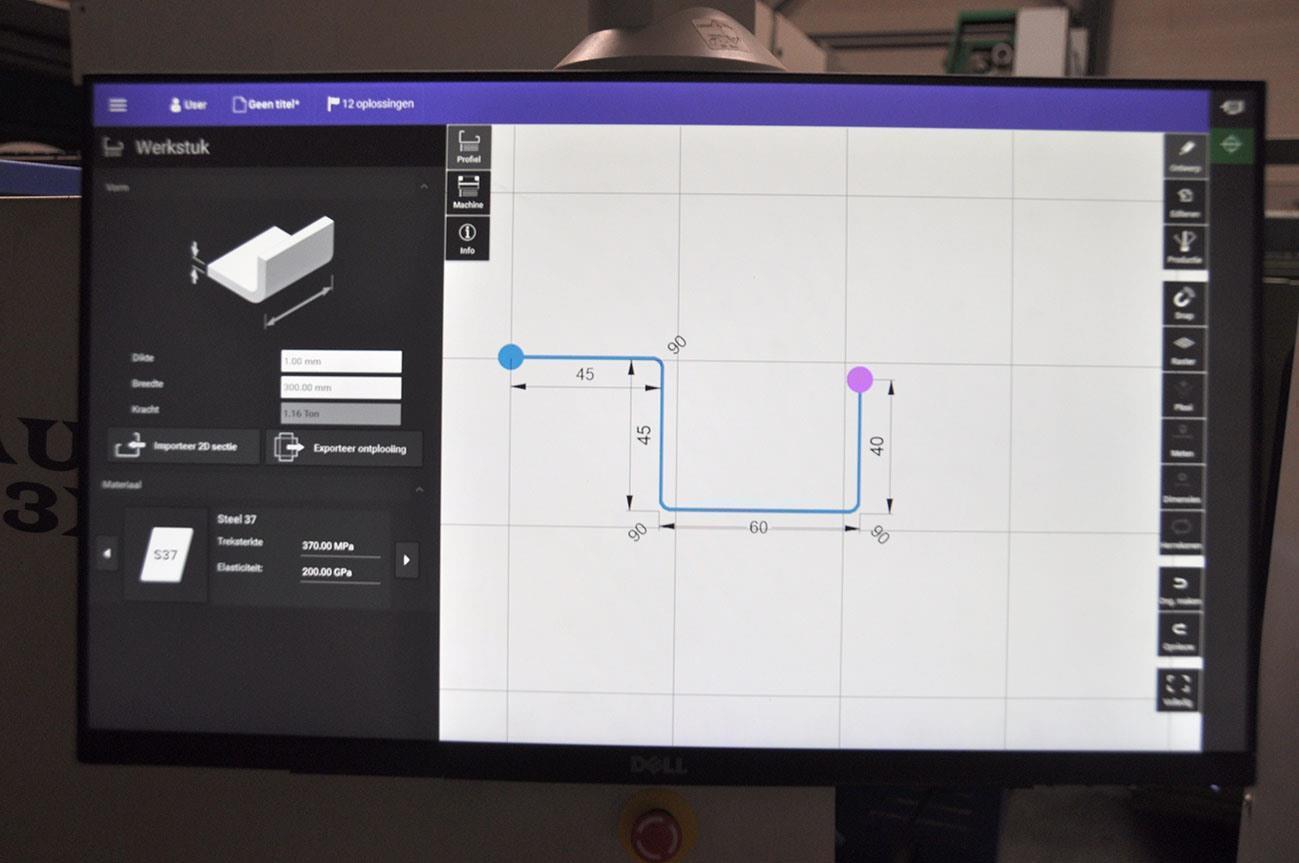

  • Control 2D Touch
  • Passage between uprights 3150 mm
  • Max stroke 250 mm
  • Max distance between table -- ram 500 mm
  • Depth of throat 330 mm
  • Locking speed 80 mm/sec
  • Working speed 7 mm/sec
  • Returning speed 80 mm/sec
  • Electric motor (power) 18,7 kW
  • Length 4160 mm
  • Depth 2100 mm
  • Height 3000 mm
  • Weight 15 ton

Additional info

  • 6 axes controlled: Y1 / Y2 / Z1 / Z2 / X / R / V (manual)
    - X-R-Z version with assymmetric fingerwidth
    - Manual bombation
    Systemtooling
    2 plate supports

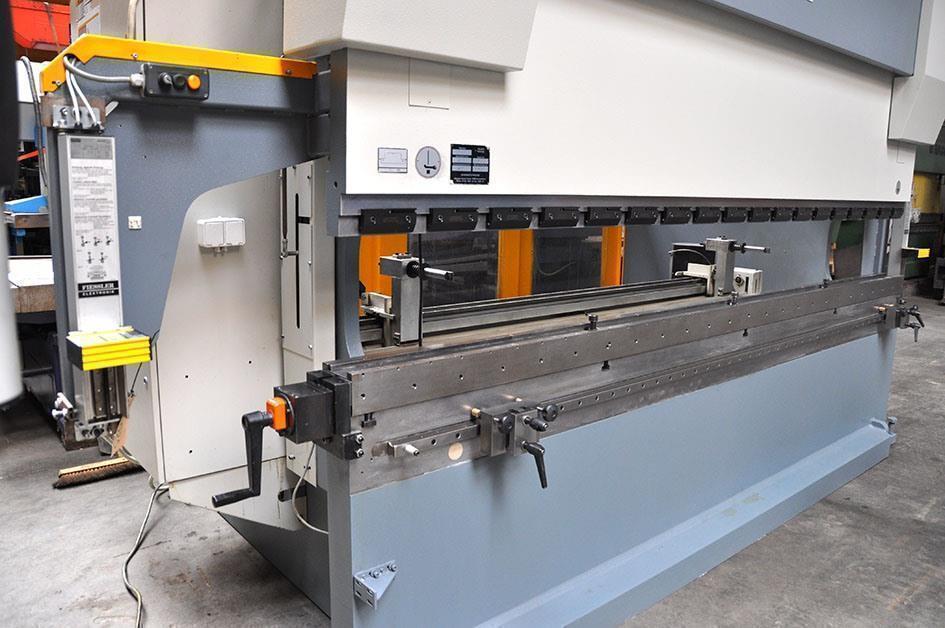

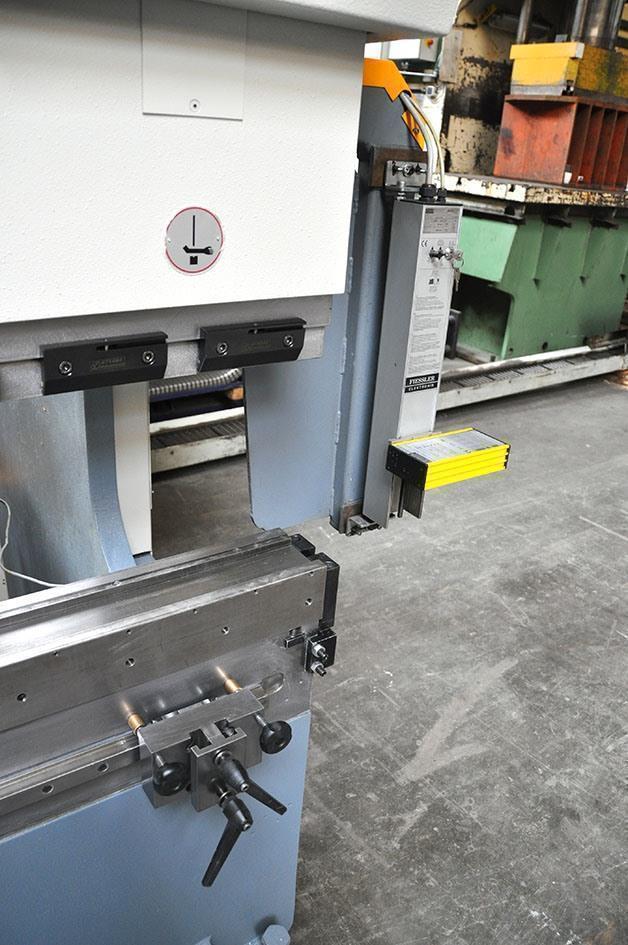

    Fiessler BendGuard
