Haco ERM 135 ton x 4600 mm CNC

Name: Used HACO 135 ton x 4600 mm CNC For Sale O.01 13934
Brand: HACO
SKU: O.01 13934

Brand

HACO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Capacity 135 ton x 4600 mm
Backgauge CNC

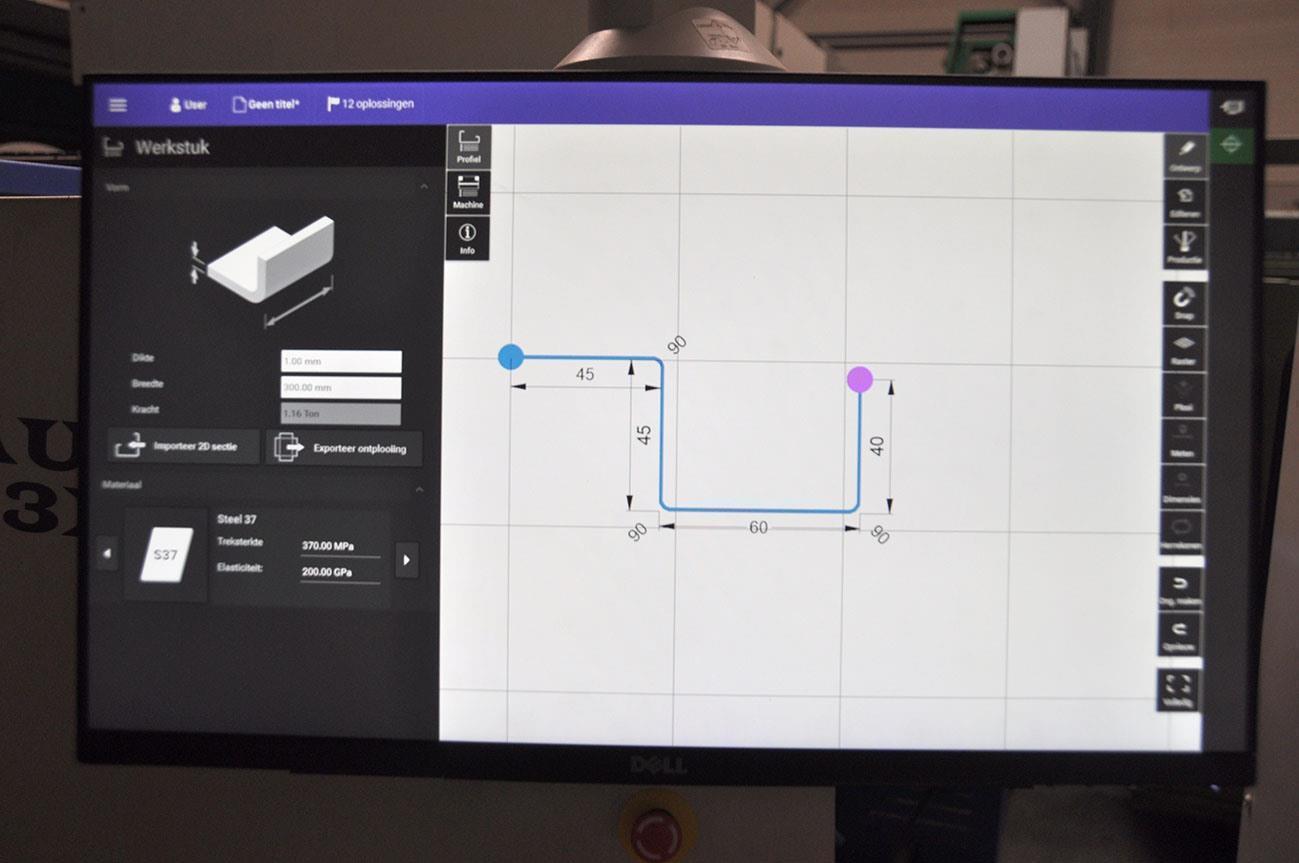

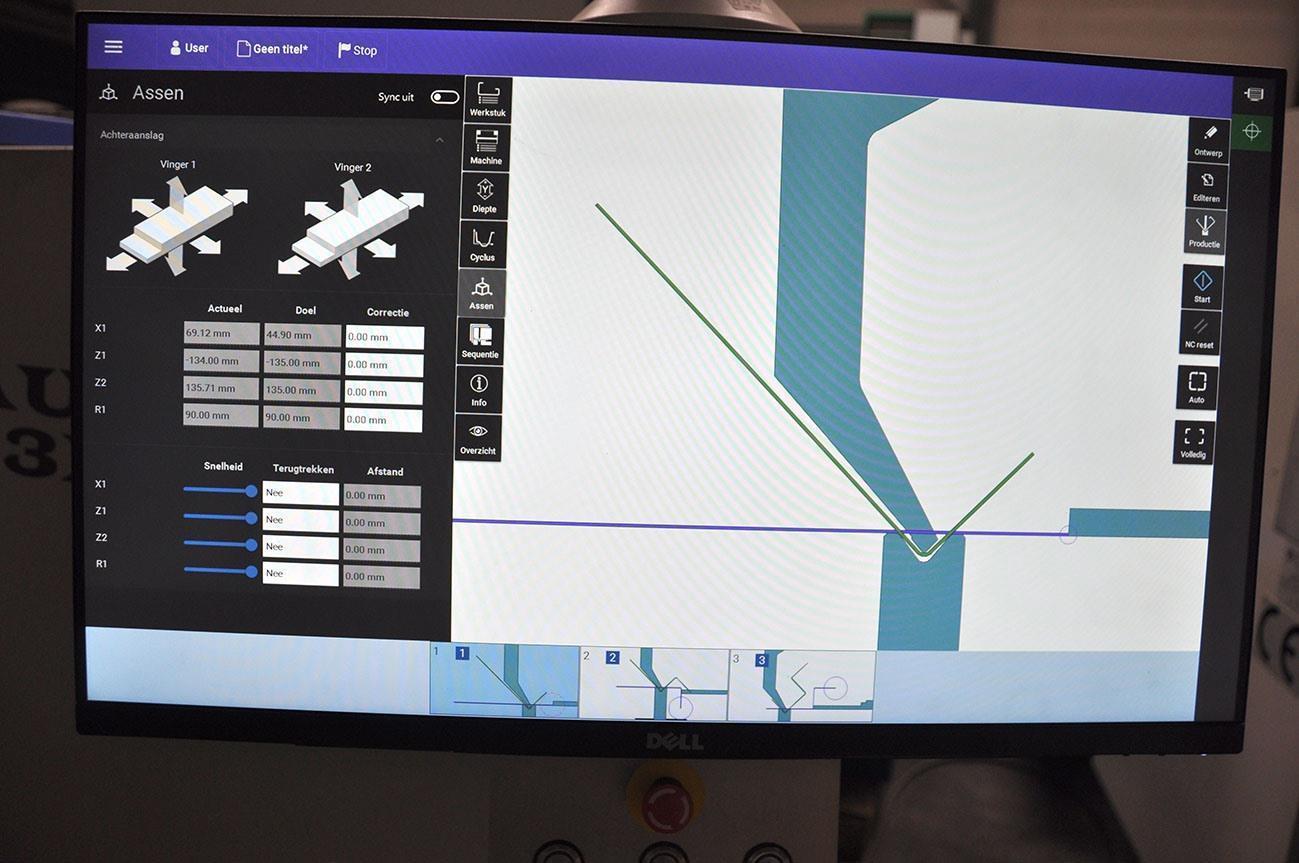

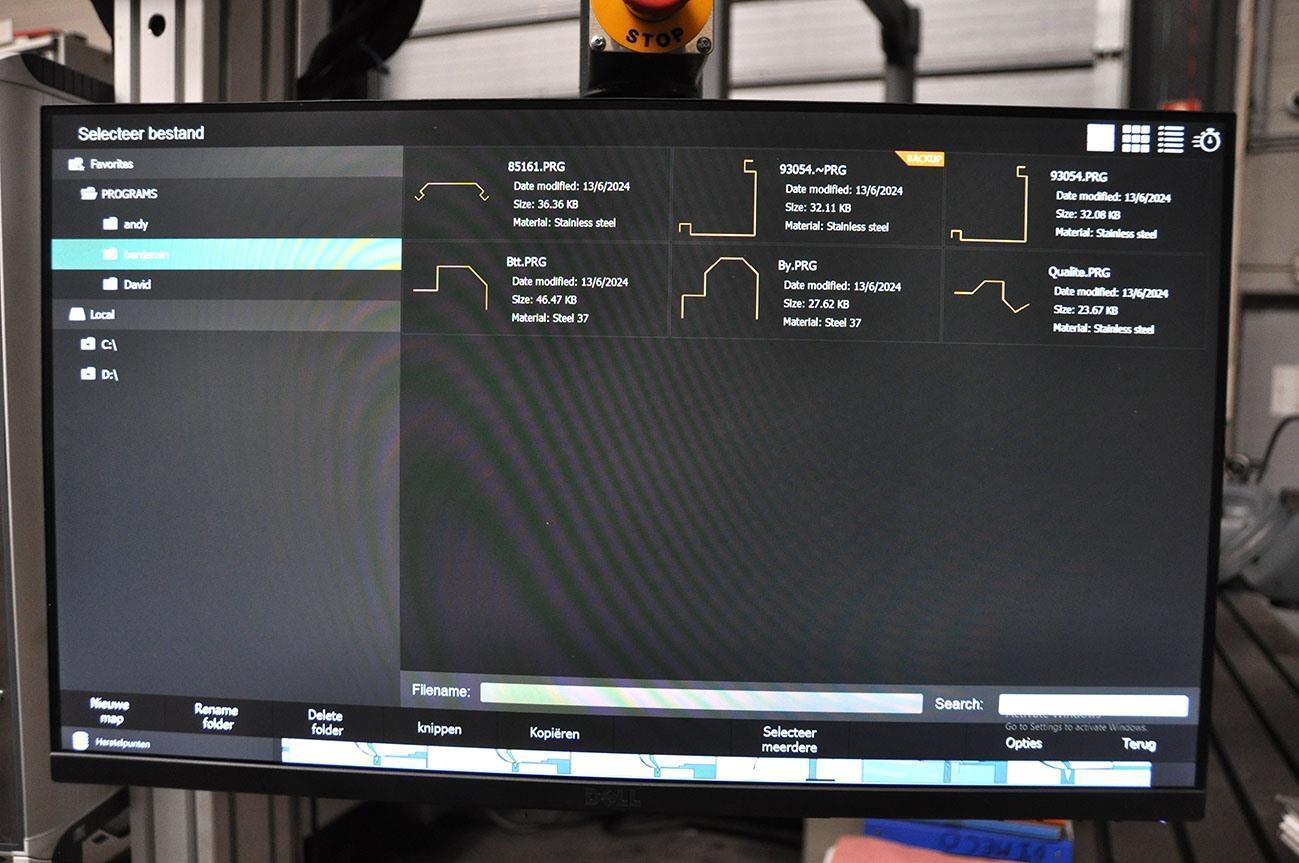

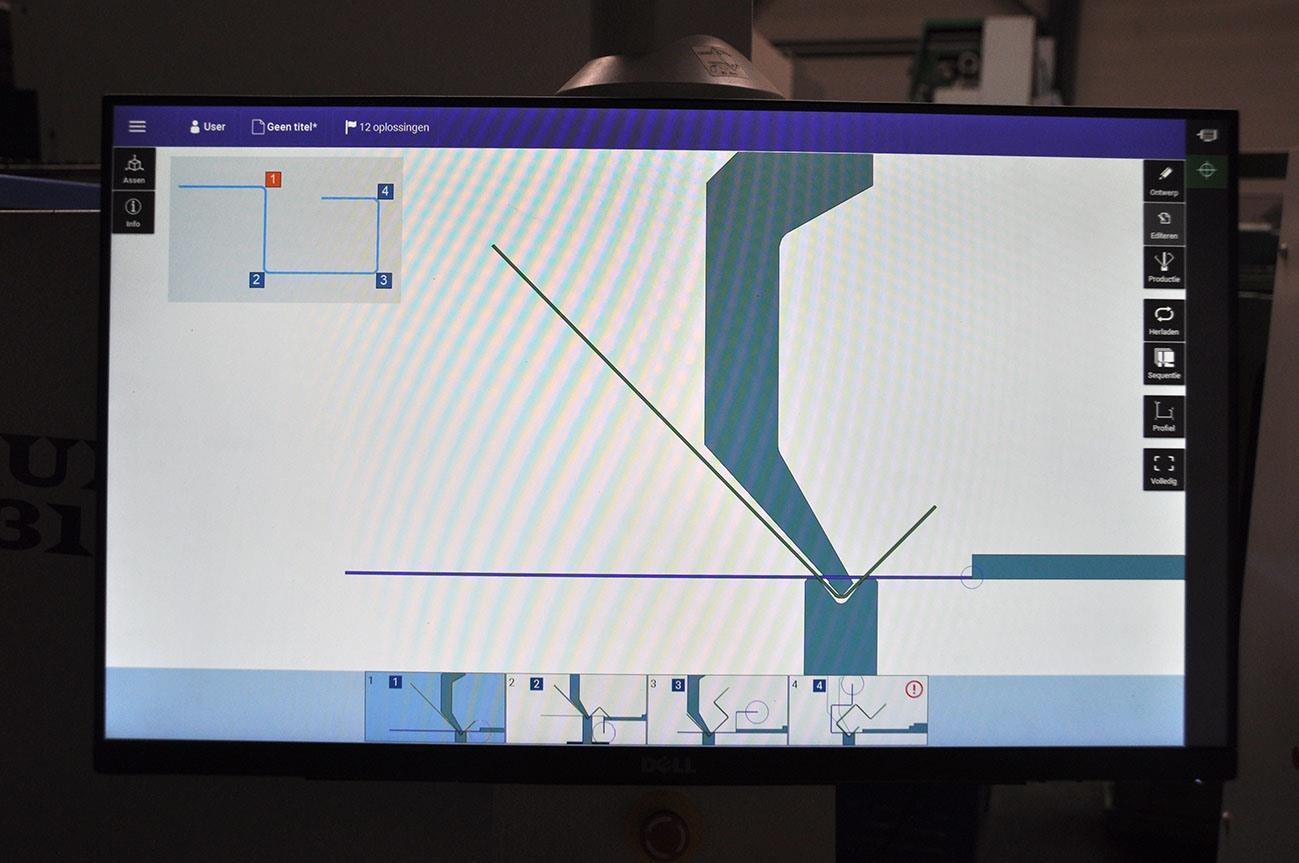

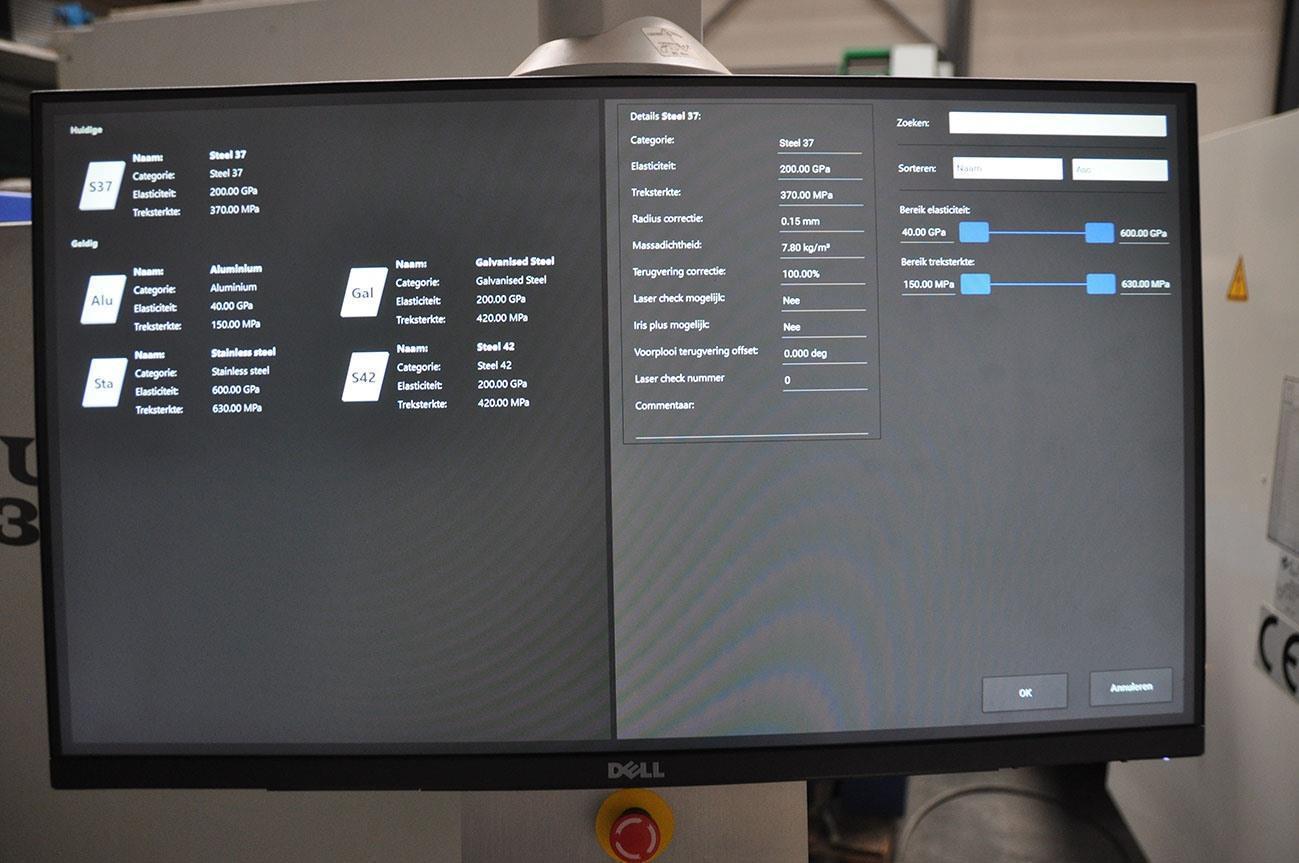

Control 2D Touch

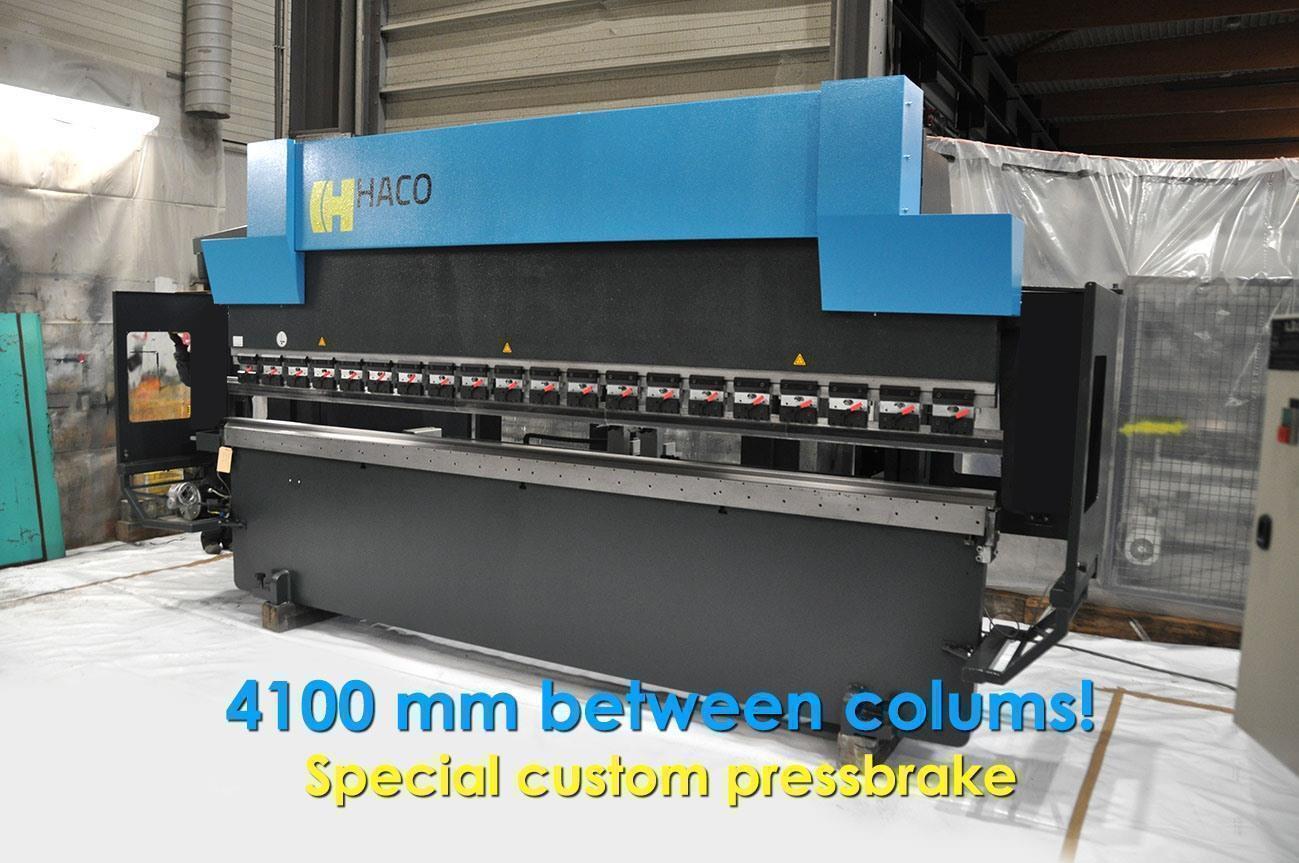

Passage between uprights 4100 mm !! (special made, not standard machine)
Max stroke 200 mm
Max distance between table -- ram 400 mm
Depth of throat 250 mm
Locking speed 100 mm/sec
Working speed 10 mm/sec
Returning speed 80 mm/sec
Electric motor (power) 15 kW
Length 5000 mm
Depth 1700 mm
Height 2850 mm
Weight 15,5 ton

Additional info

7 axes: Y1 / Y2 / X / R / Z1 / Z2 / V (CNC bombation)
Amada systemtooling
