CBM sandwich panel line / Manni & Cannon

Rollforming line for making panels:
- for thermal insulation of industrial buildings

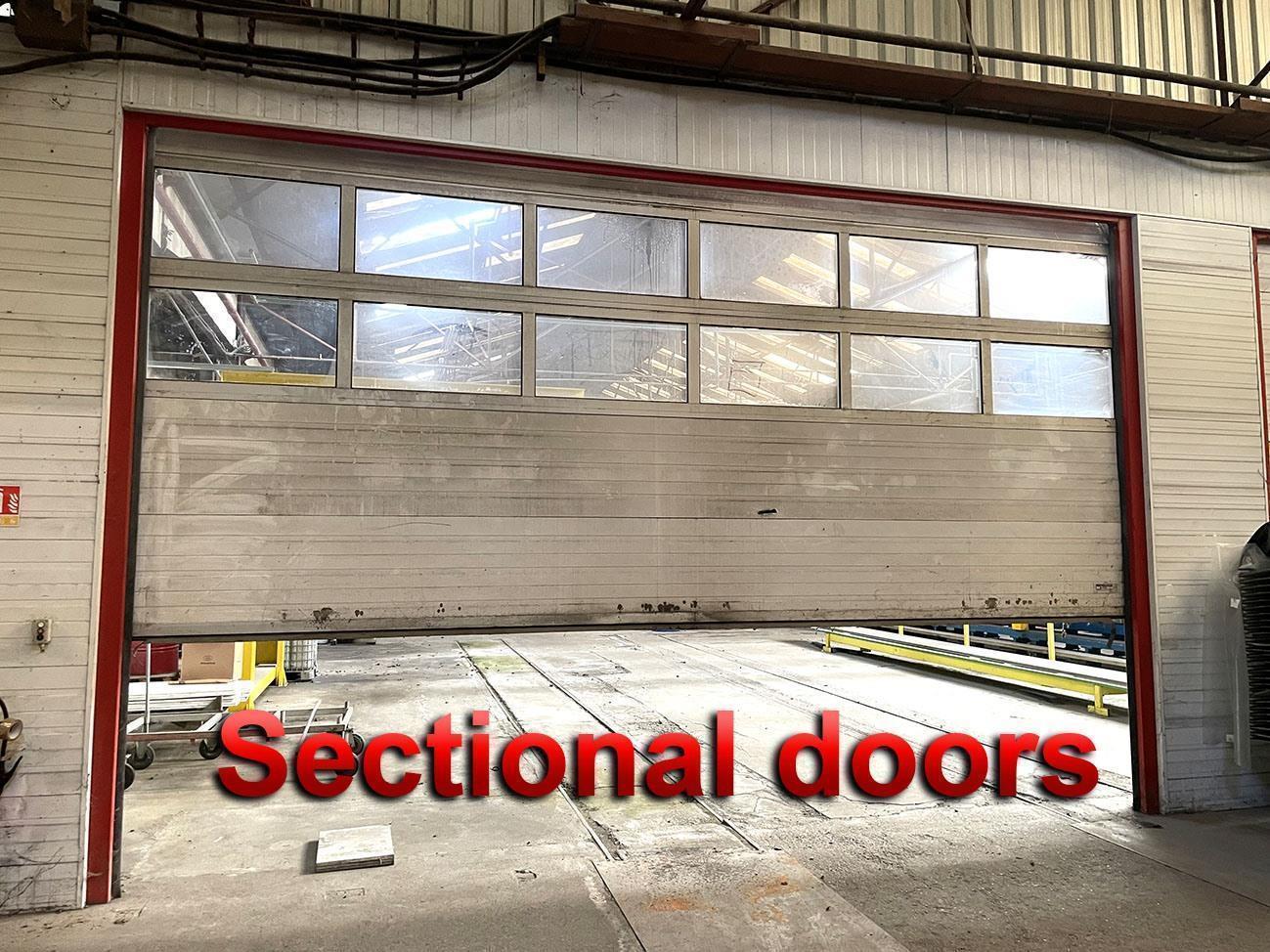

- for sectional doors (current configuration)
- for residential roof insulation

Equipment consists out of:

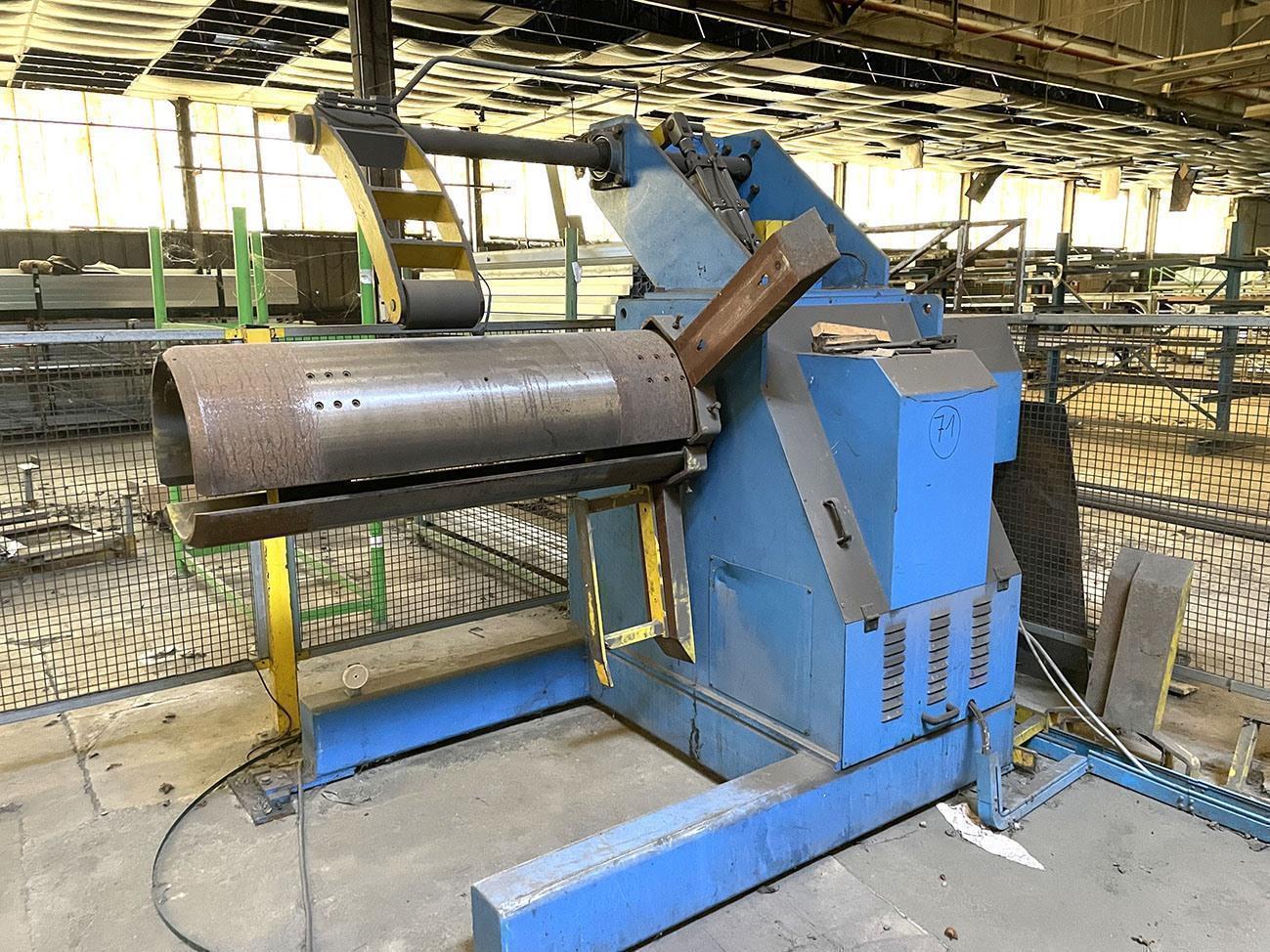

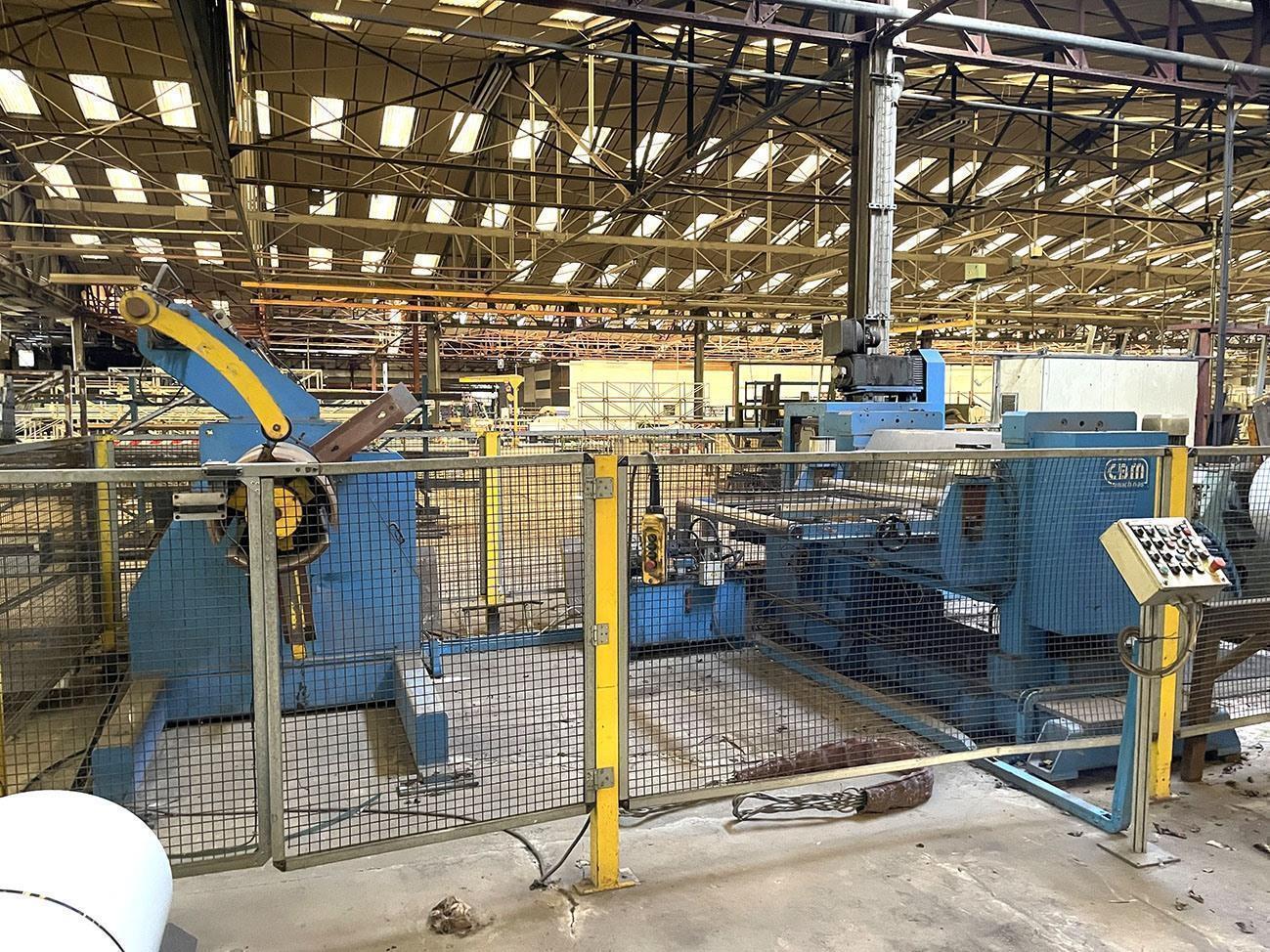

1 - Decoiler 10 ton 1350 mm

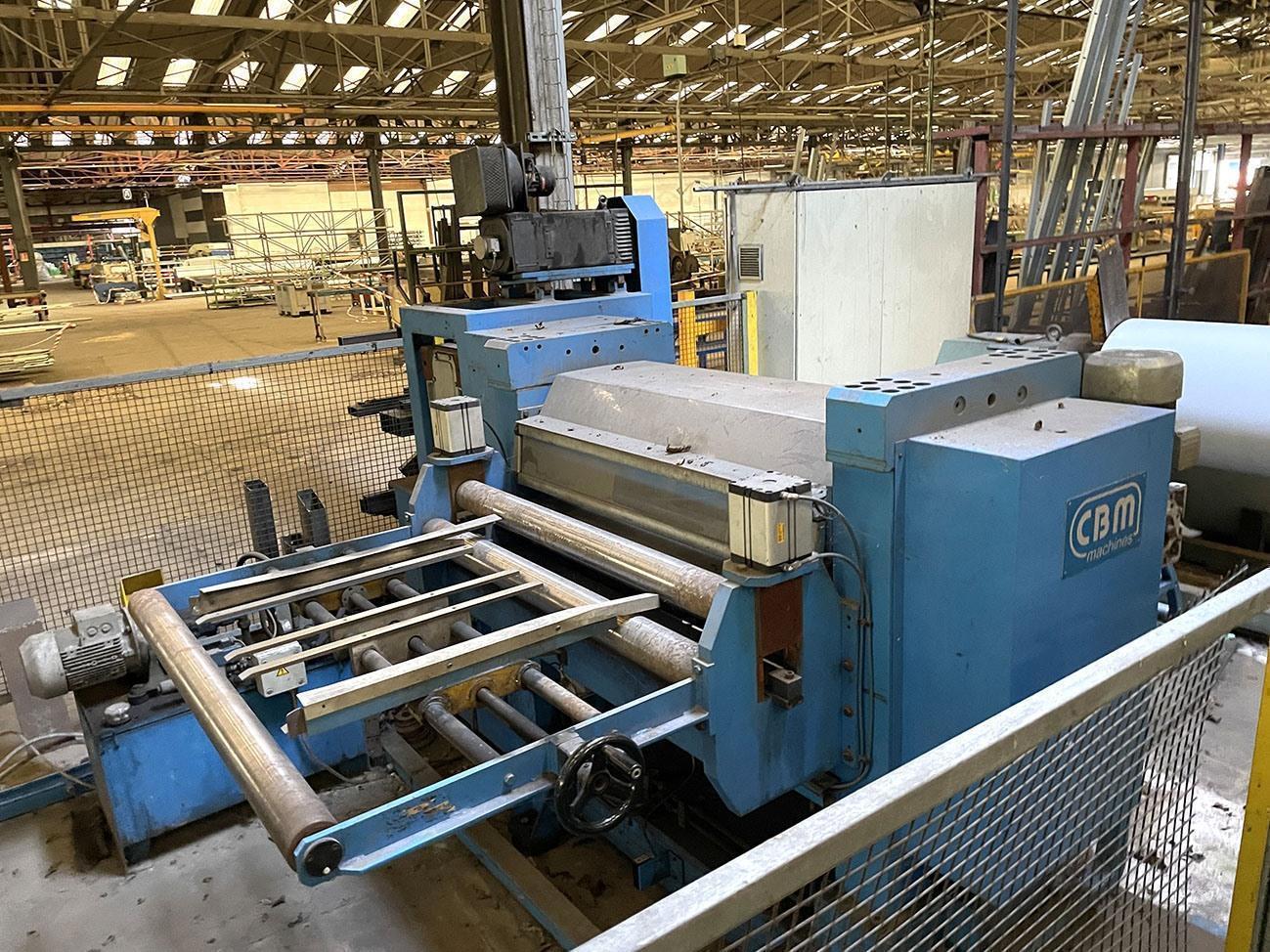

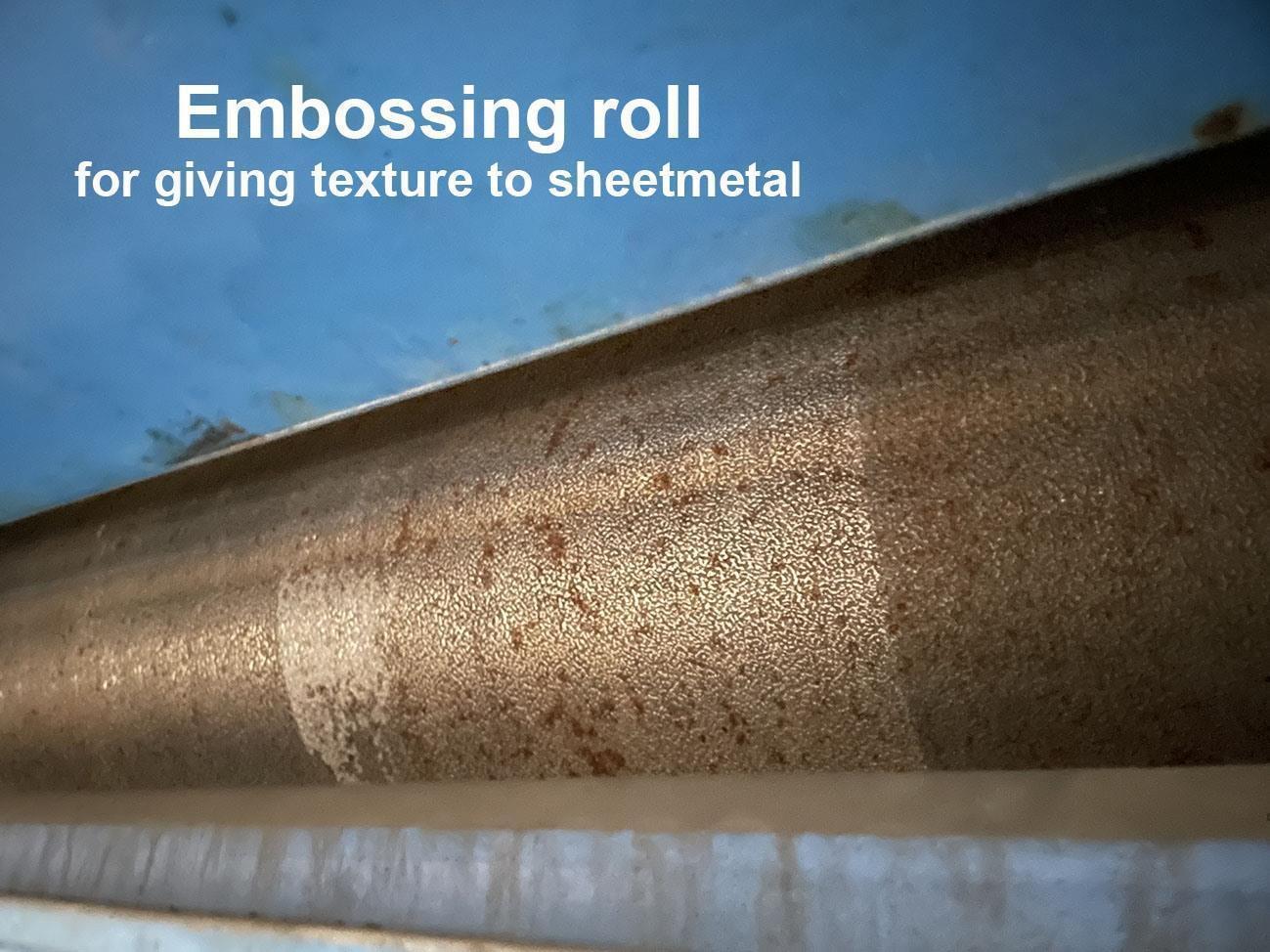

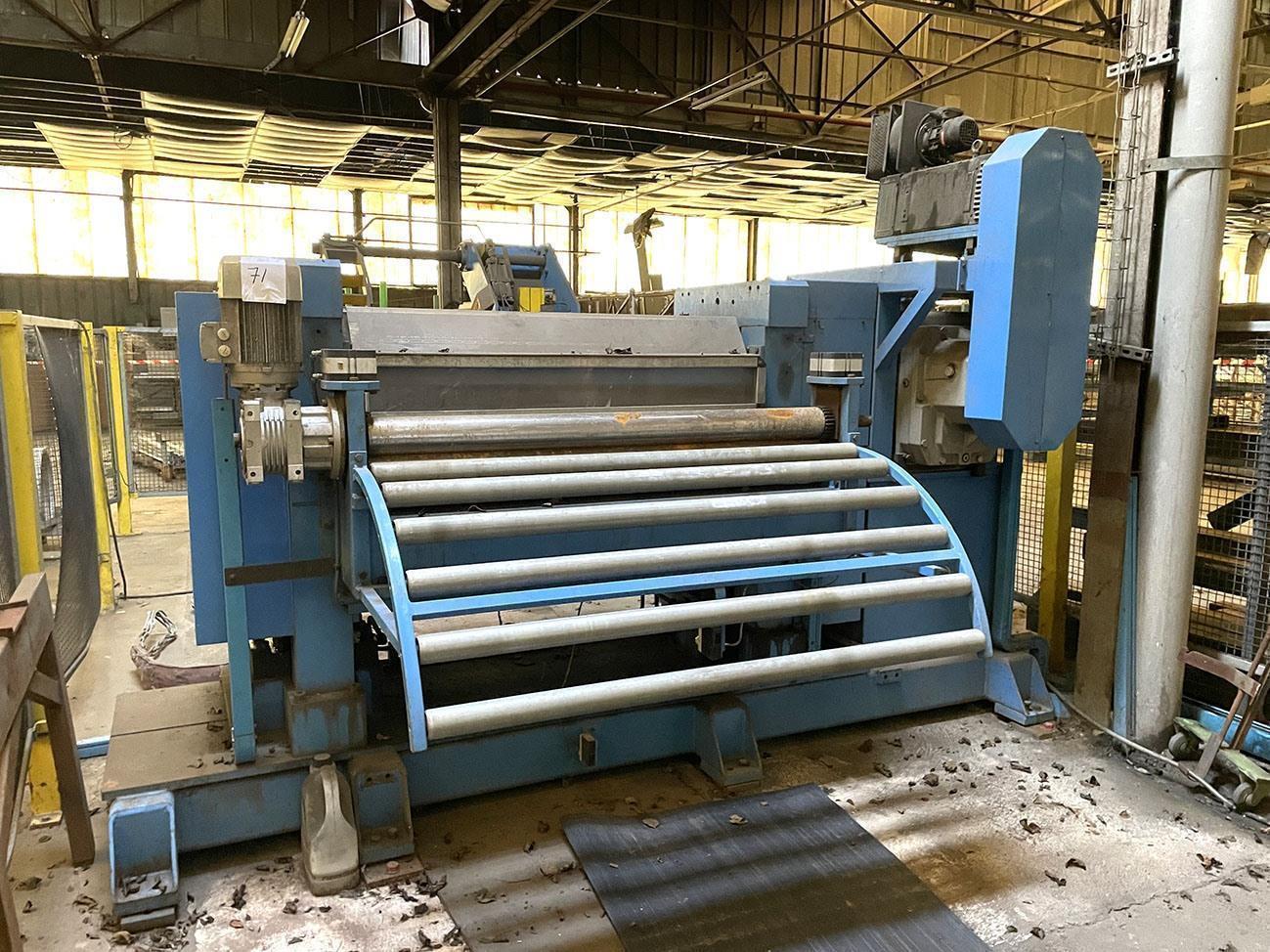

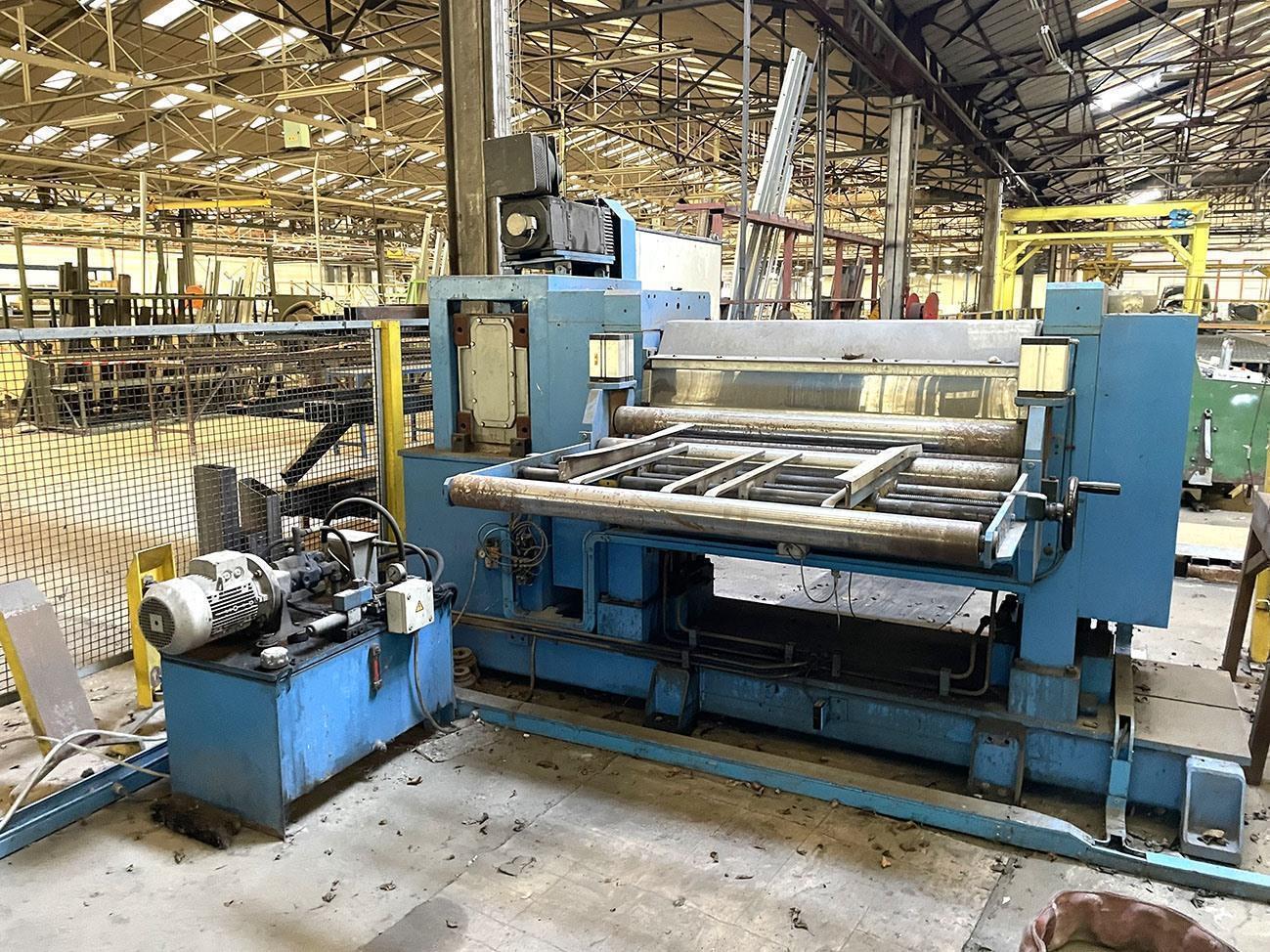

2 - Straightener 1350 mm + embossing roll

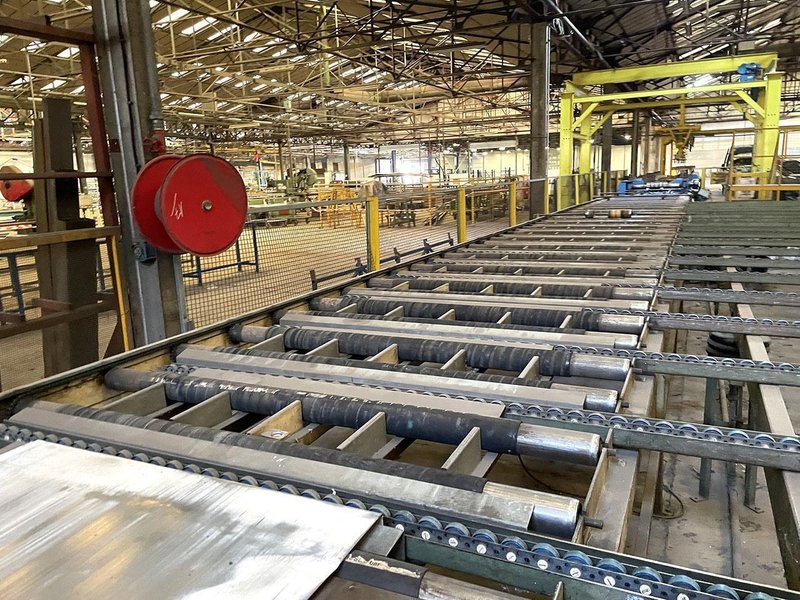

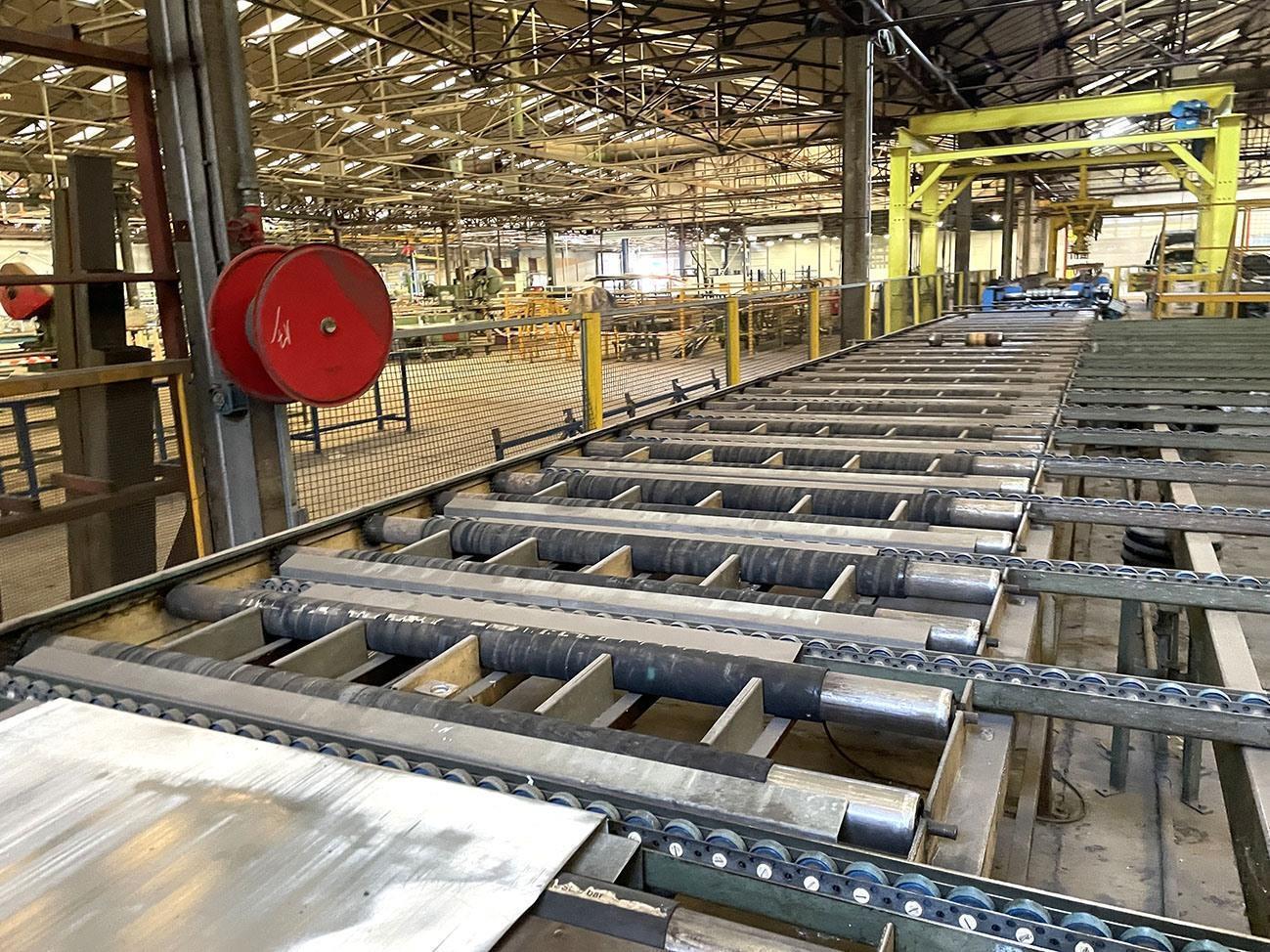

3 - Rollerconveyor 15 meters

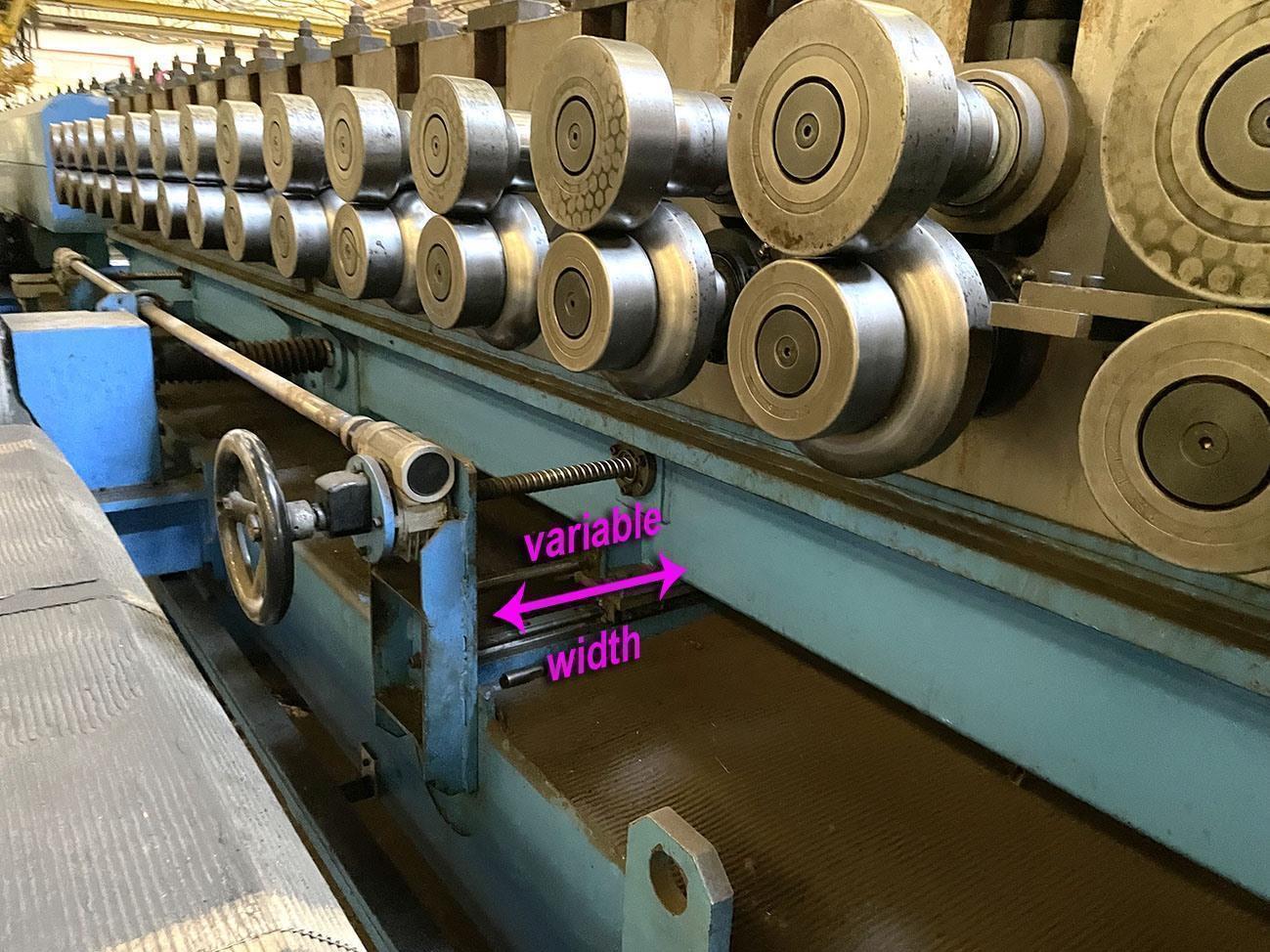

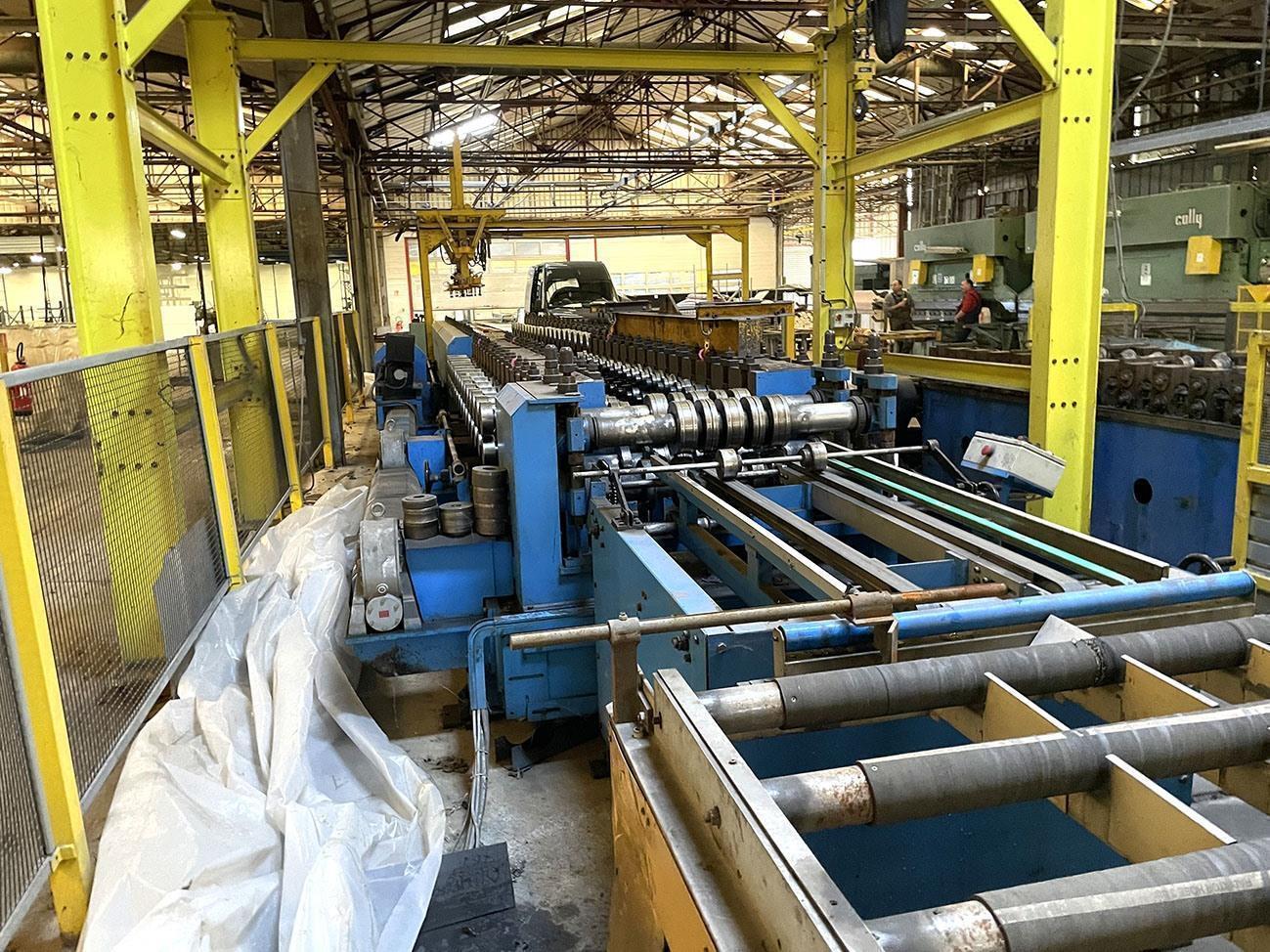

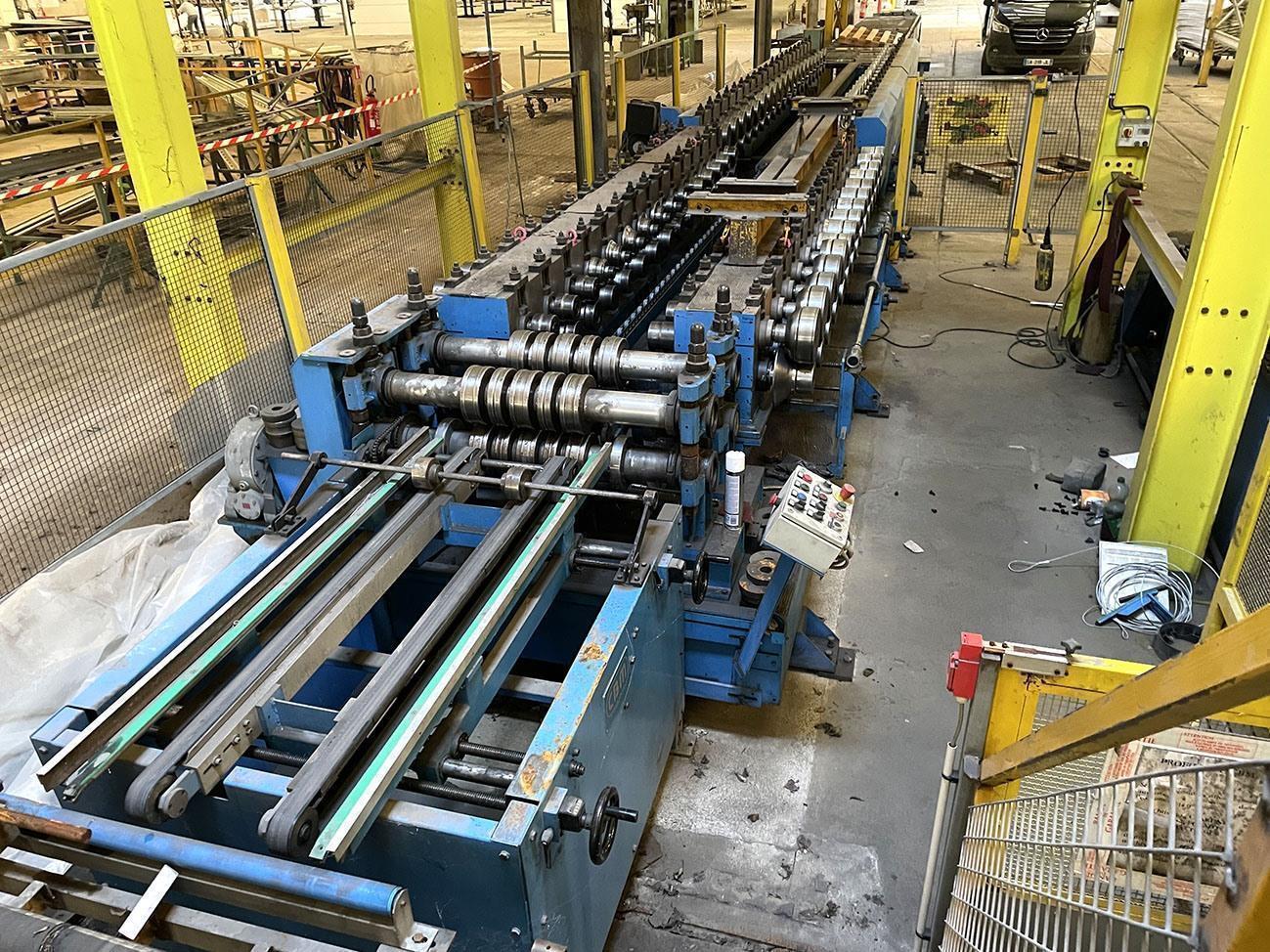

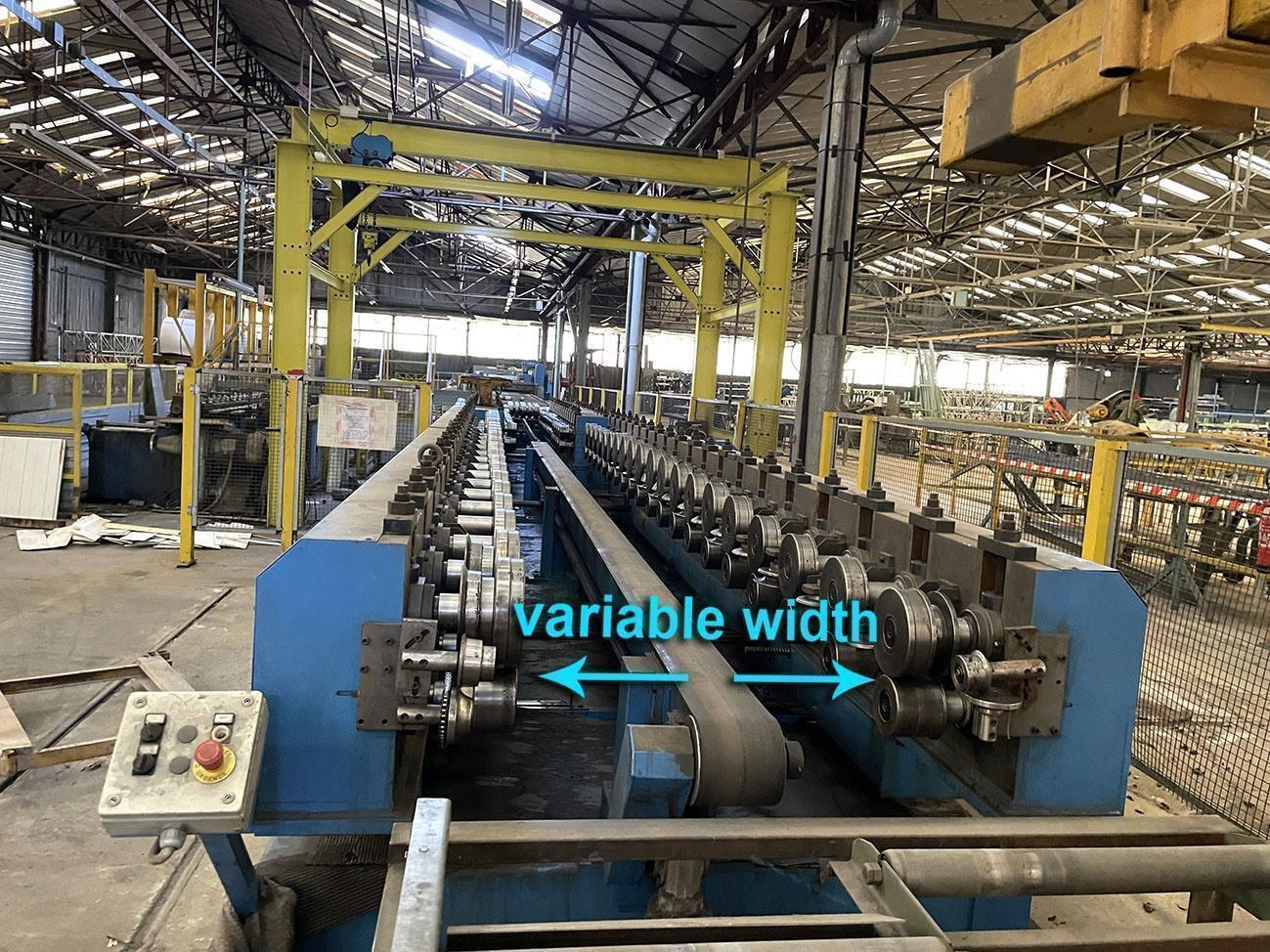

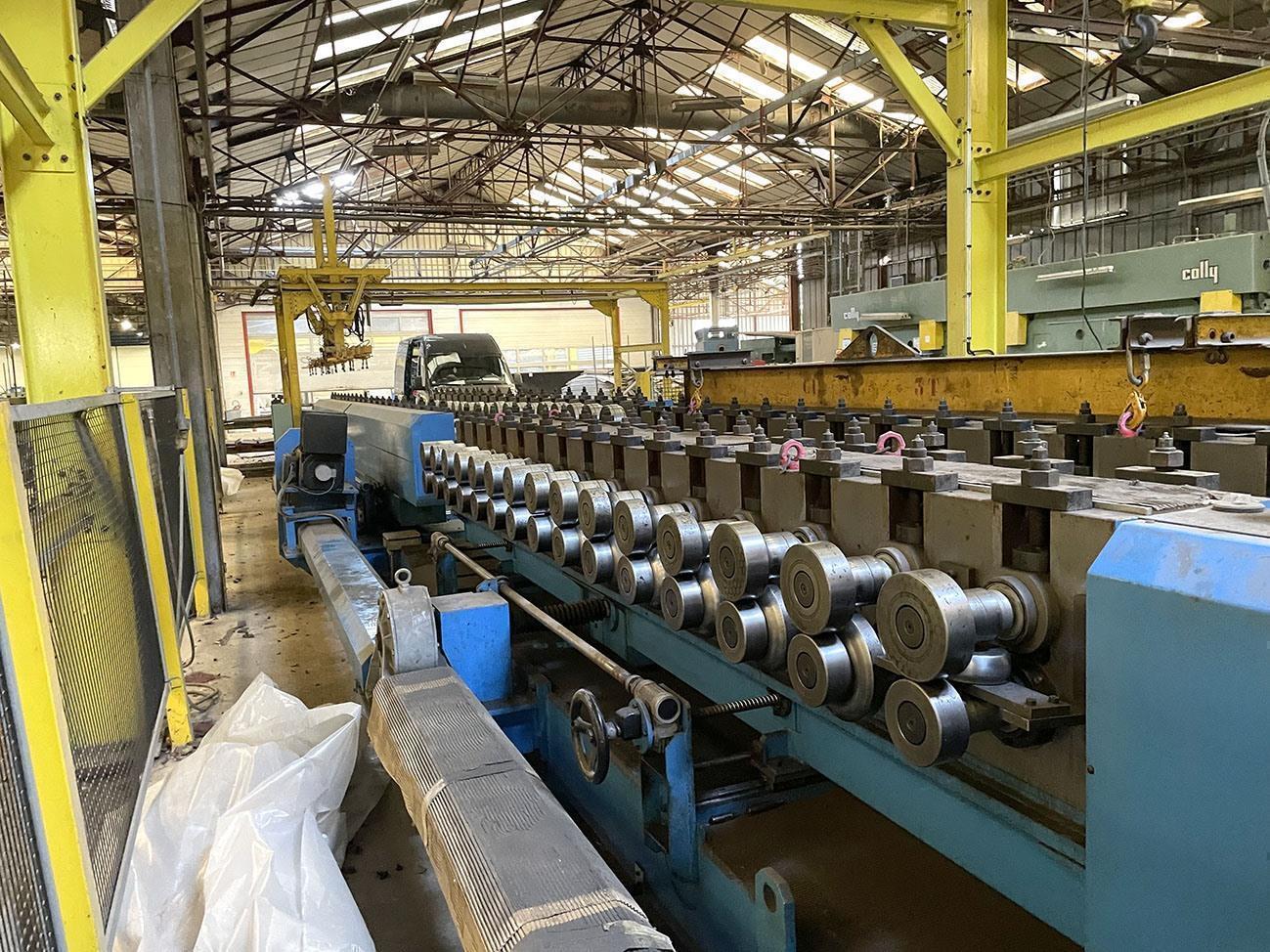

4 - CBM rollforming line with variable width:
       > min/max width: 300 > 1300 mm
       > min/max thickness: 0,5 > 1 mm
       > first section: 15 rollstands
       > second section: 20 rollstands

Current configuration (for sectional doors) consists out of 4 different tooling rollsets (which don't require dismantling)

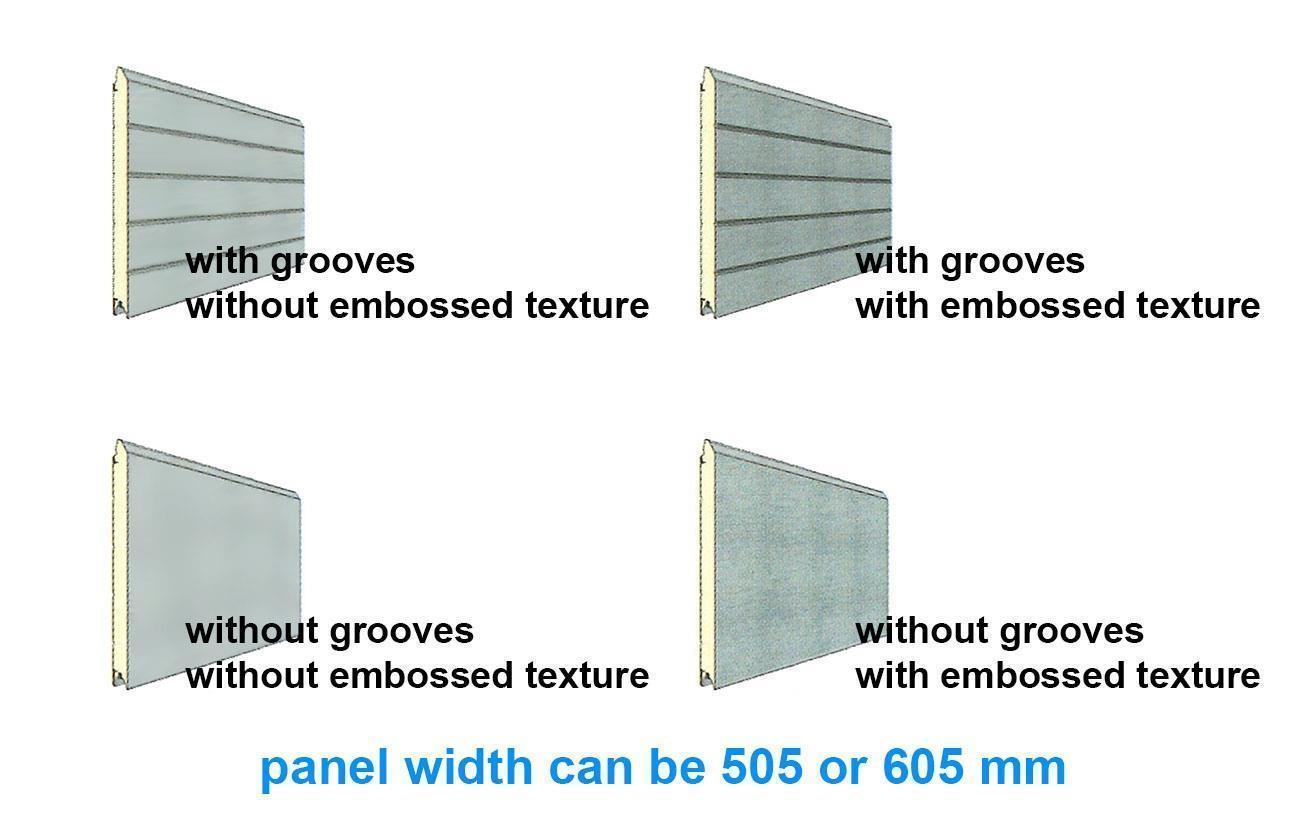

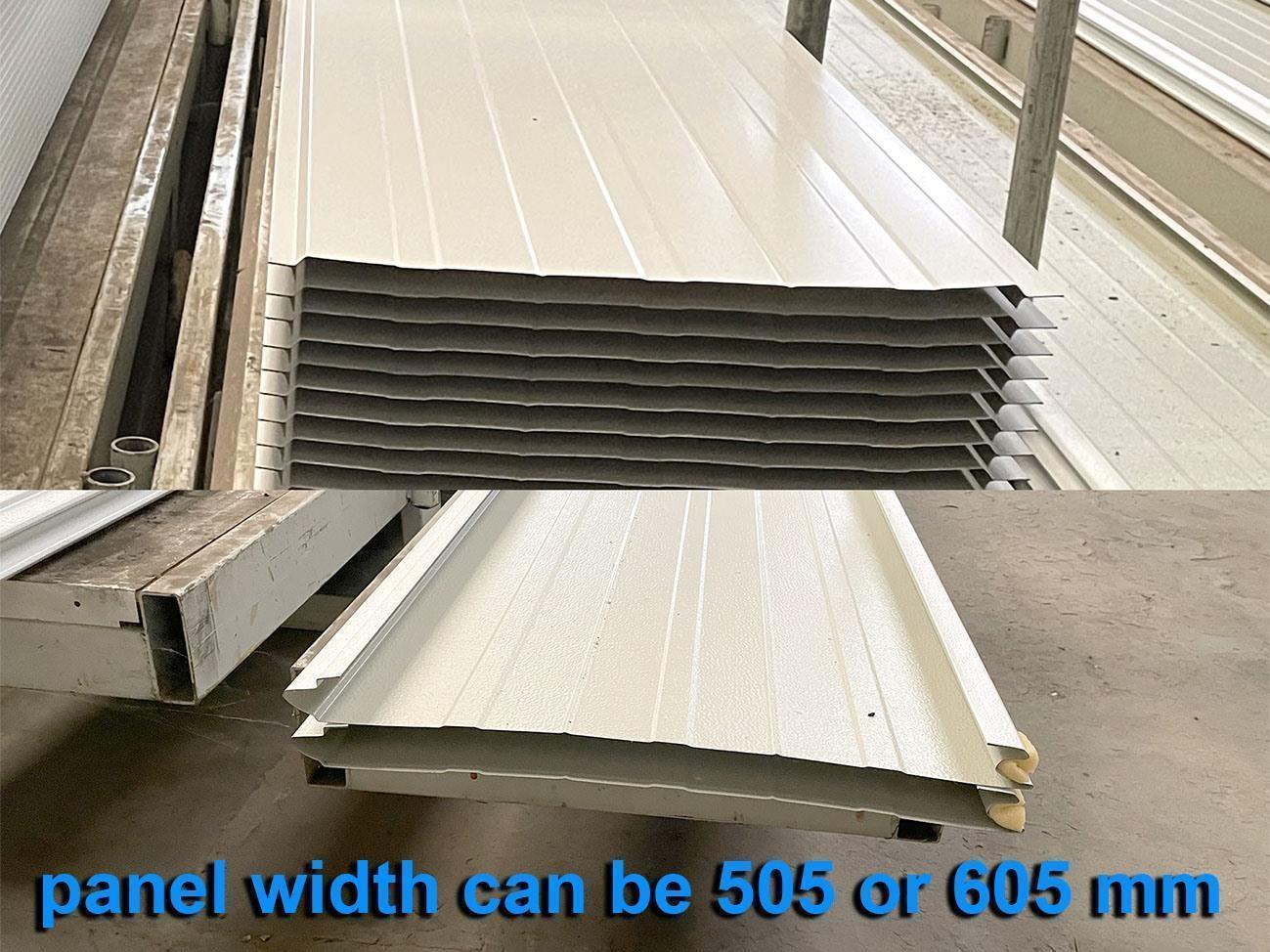

4 different panels can be made (for two thicknesses; 50 & 42 mm):
- 1 > panel with grooves, with embossed texture
- 2 > panel without grooves,with embossed texture
- 3 > panel with grooves, without embossed texture
- 4 > panel without grooves, without embossed texture
