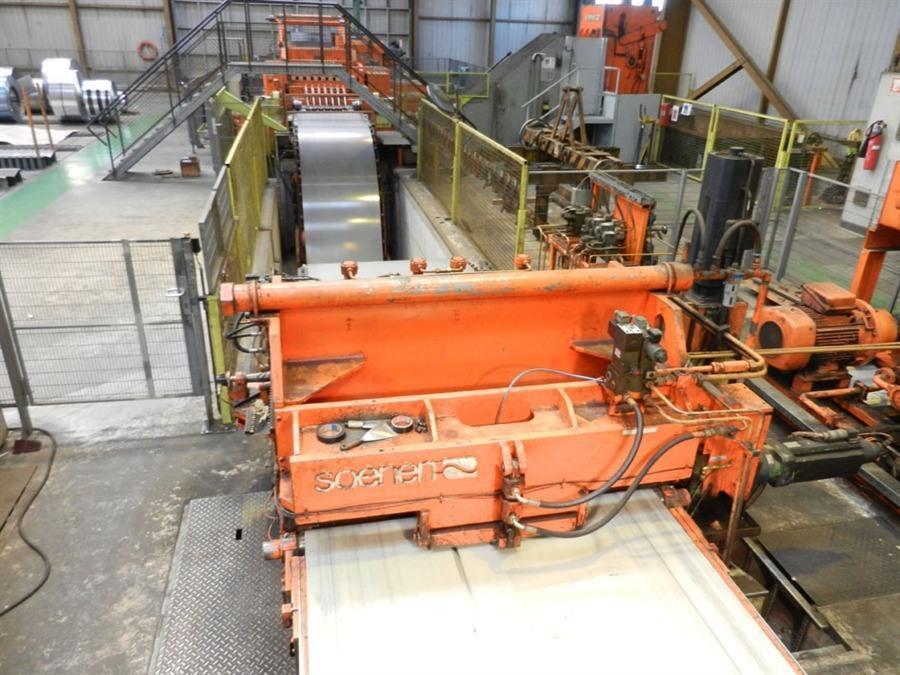

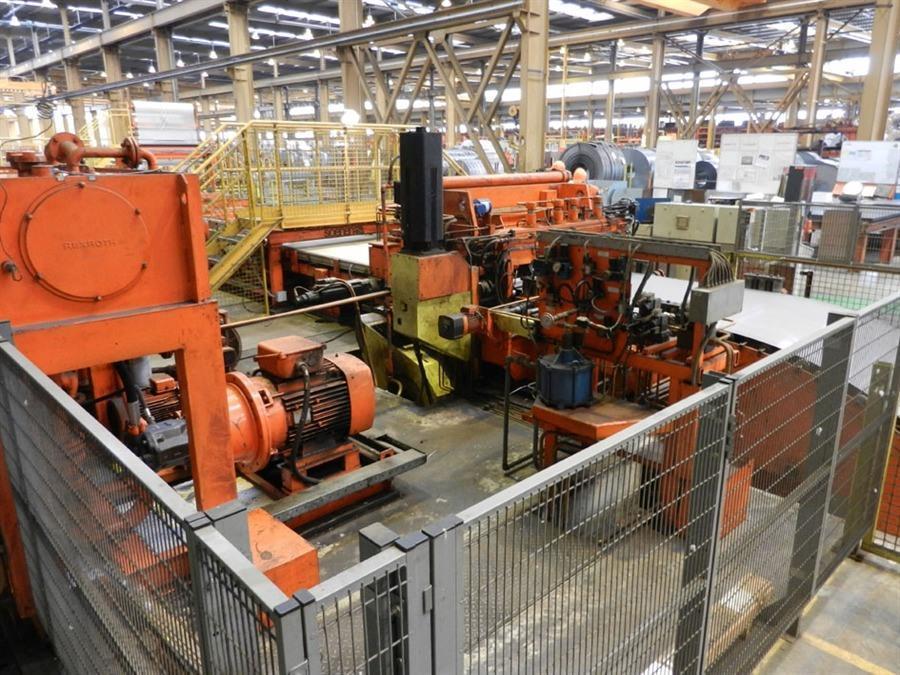

Soenen cut to length 1600 x 4 mm

Brand
SOENEN
Category
Roll Formers & Rolling Mills
Type
Roll Formers
Model
cut to length 1600 x 4 mm
Stock #
O.27 8983
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Material thickness x width 1600 x 4 mm

Additional info

  • This line can process cold-rolled plate / hot pickled plate / hot galvanized plate / electro galvanized plate / prepainted sheets
    minimum thickness: 0,3 mm

    Endproduct:
    - min/max length: 300/6000 mm
    - productioncapacity 300 mm > 4000 pieces per hour
    - productioncapacity 6000 mm > 1000 pieces per hour
    - total installed power: 500 kW

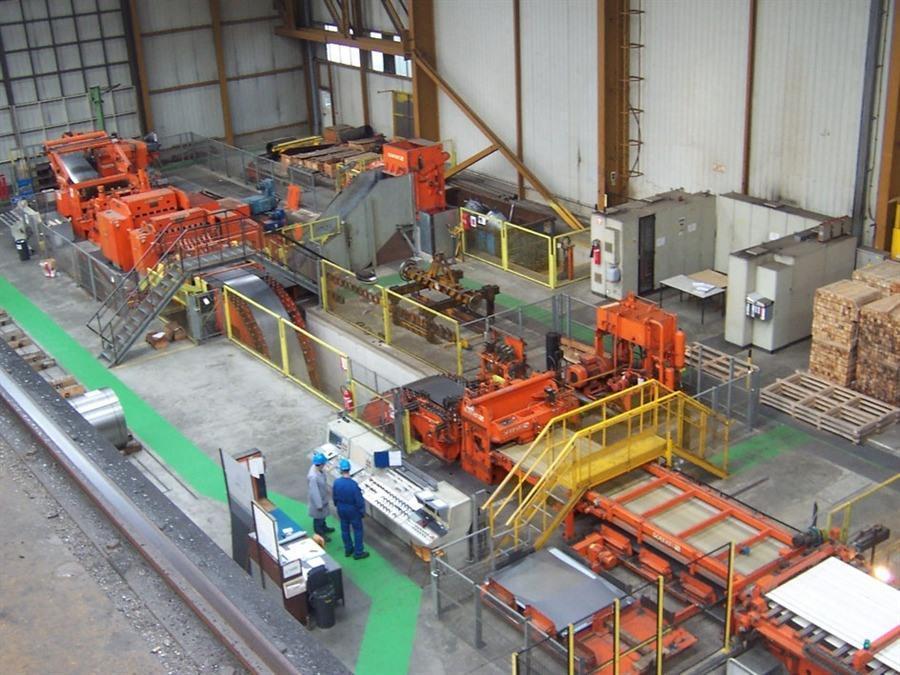

    Line consists of:
    1) Soenen 4 armed coilholder
    Type AL1600/27/4
    - max cap per arm: 27 ton
    - speed: 1 turn per minute
    - opening hook: 190 mm
    - power: 2,5 kVa
    - weight: 26 ton

    2) Soenen coilwagon
    Type HH27
    - max cap: 27 ton
    - max lifting height: 800 mm
    - min outside dia: 508 mm
    - displacement: 15 meter
    - displacementspeed: 8 m/min
    - turning speed: 10 m/min
    - weight: 8,6 ton

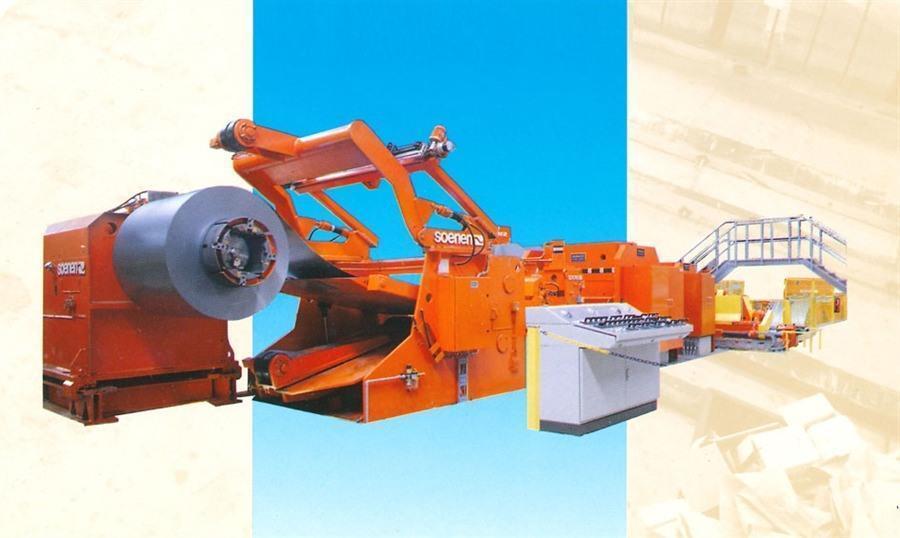

    3) Soenen Decoiler
    Type AM1600/27V
    - max cap: 27 ton
    - min/max width: 250/1600 mm
    - min/max outside dia: 508/2000 mm
    - min/max inside dia: 480/520 mm
    - max decoilingspeed: 100 m/min
    - weight: 21 ton

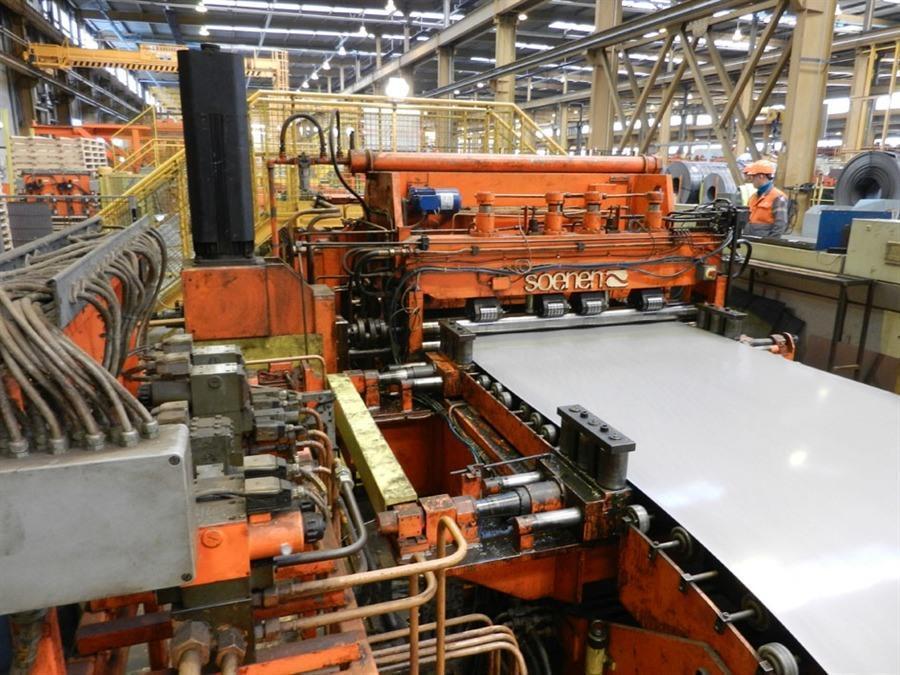

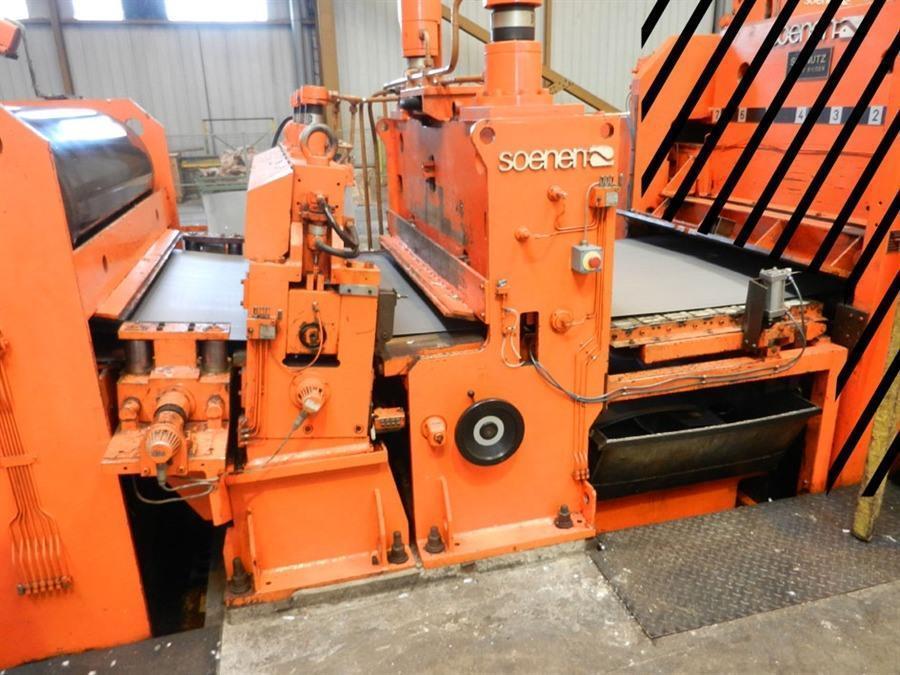

    4) Soenen feeder rolls + shear
    Type PR1600
    - min/max width: 250/1600 mm
    - min/max thickness: 0,3/4 mm
    - dia of rolls: 160 mm
    - speed: 20m/min
    - weight: 3 ton

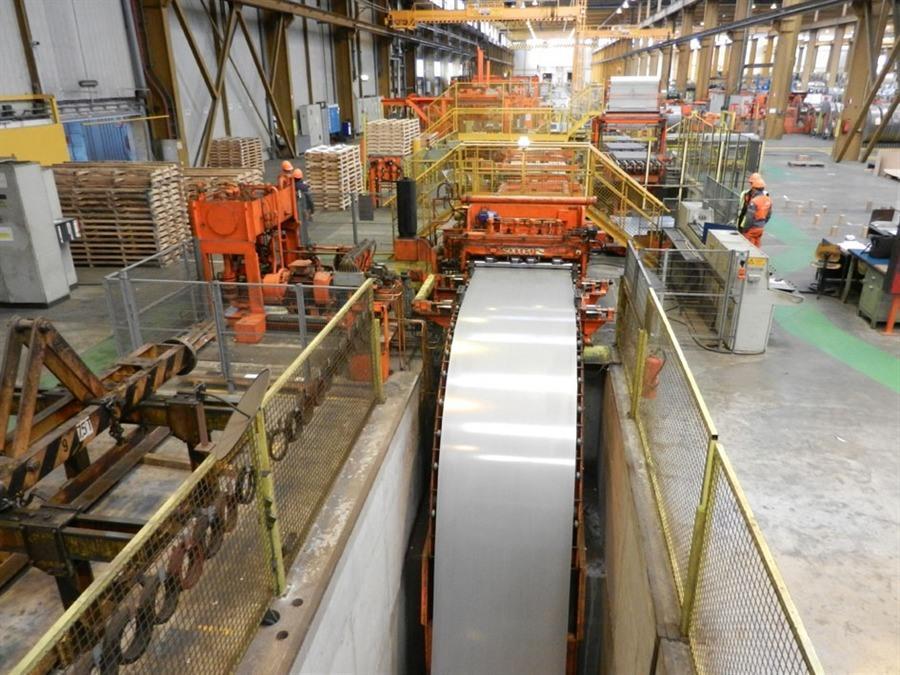

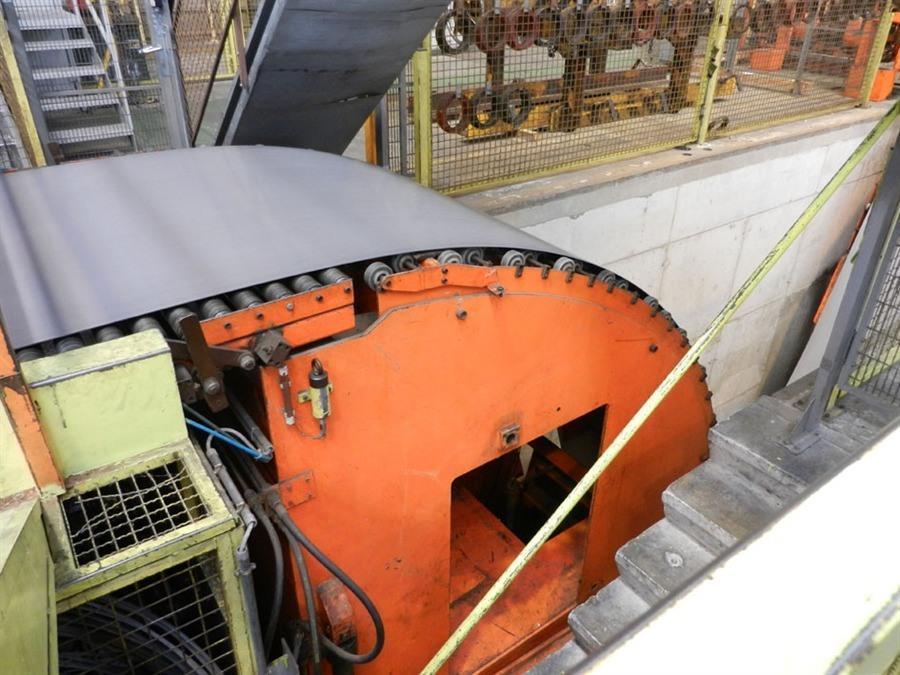

    5) Pit

    6) Soenen Puller
    Type 2VR1600EE
    - min/max width: 250/1600 mm
    - min/max thickness: 0,3/4 mm
    - dia of rolls: 95,5 mm
    - productioncapacity 500 mm > 4000 pieces per hour
    - productioncapacity 6000 mm > 1000 pieces per hour
    - max speed: 150 m/min
    - weight: 5,8 ton

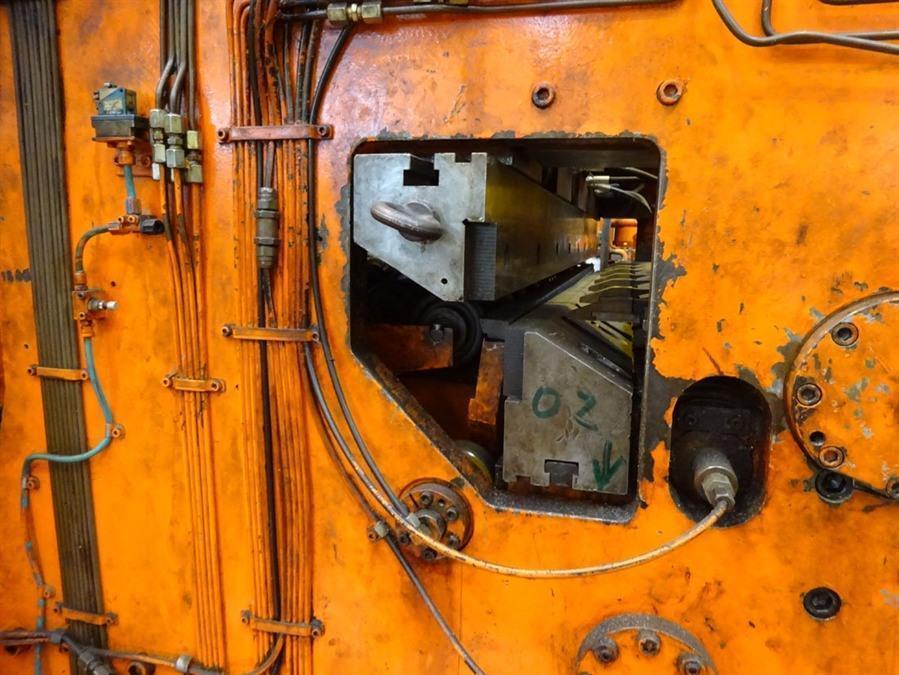

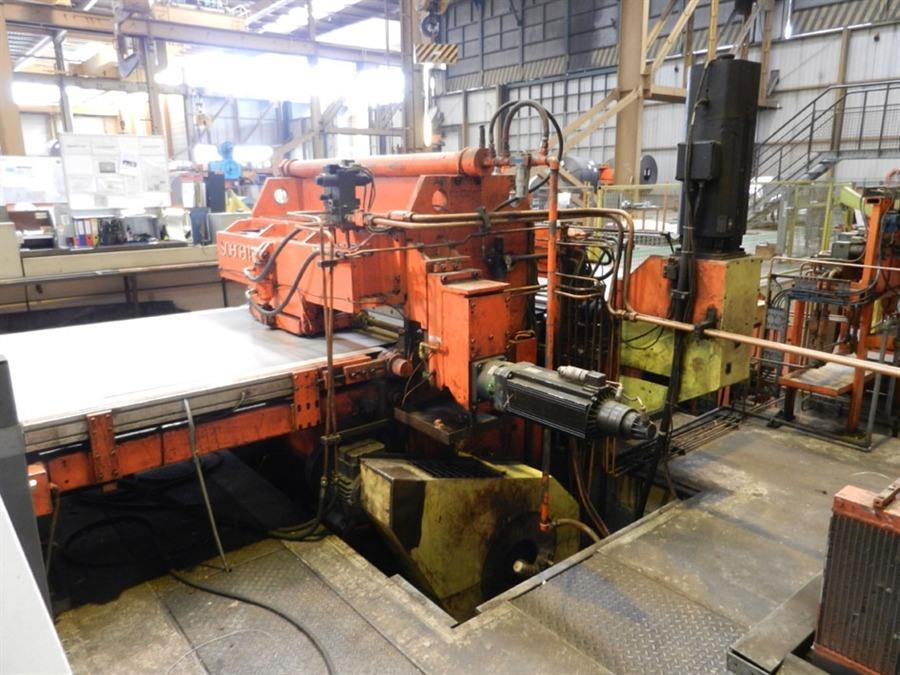

    7) Soenen high speed mechanical shear
    Type CGM4-16
    - min/max thickness: 0,3/4 mm - 6 mm st37
    - max length: 1600 mm
    - cuttingangle: 1°
    - 200 strokes per minute
    - interchangable cassette with cuttingknives
    - weight: 7,6 ton

    8) Soenen outfeed
    - speed: 170 m/min
    - width: 1600 mm
    - length from cuttingline: +- 7000 mm
    - weight: 4,2 ton

    9) Soenen Outfeed conveyor
    Type TB1,6 x 7
    - width: 1600 mm
    - length starting from cutting line: +- 7000 mm
    - speed: 170 m/min
    - power: 2x 15kW
    - weight: 4,2 ton

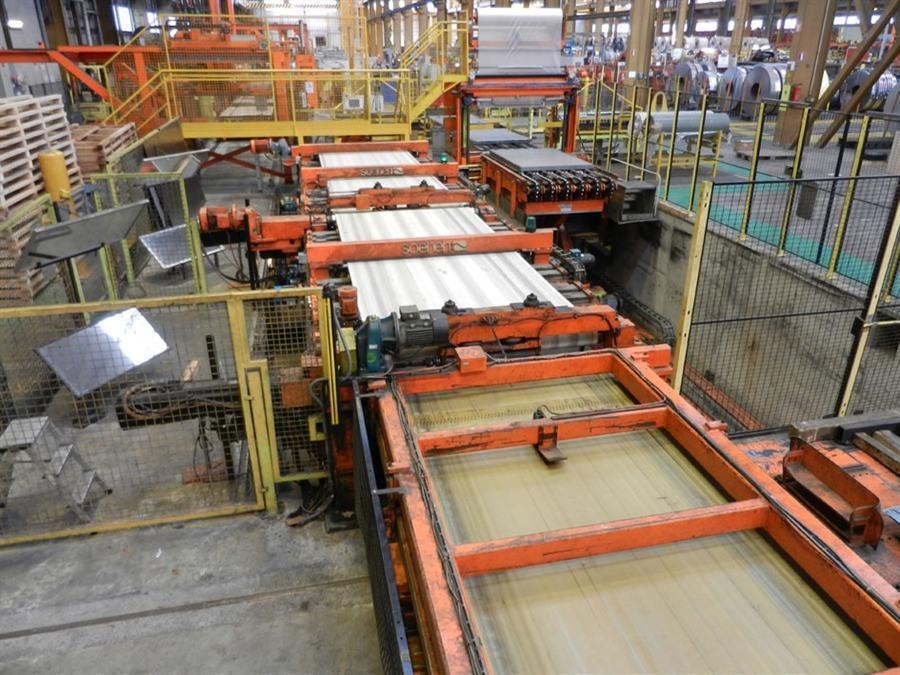

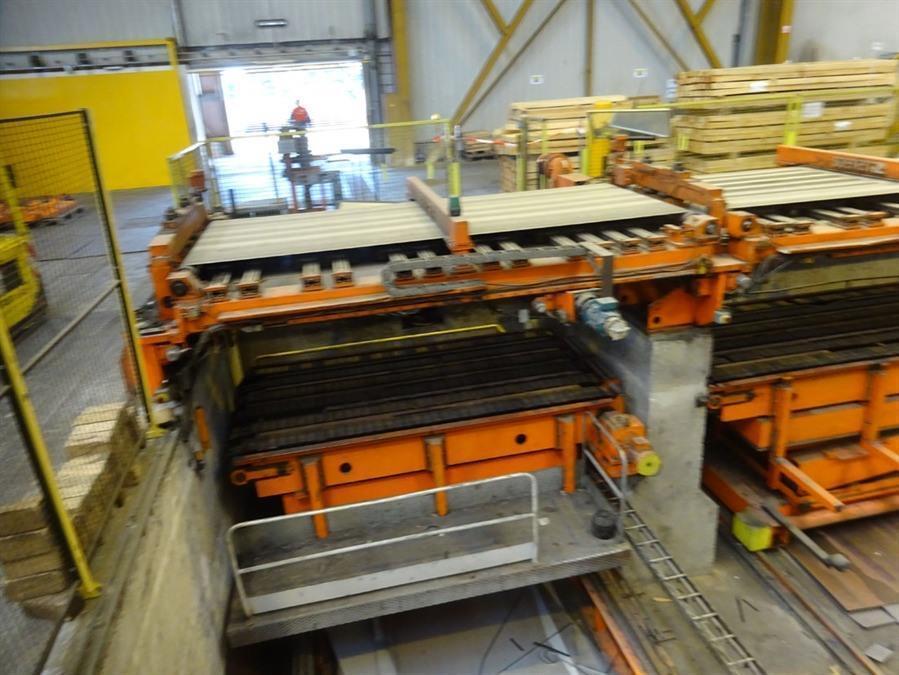

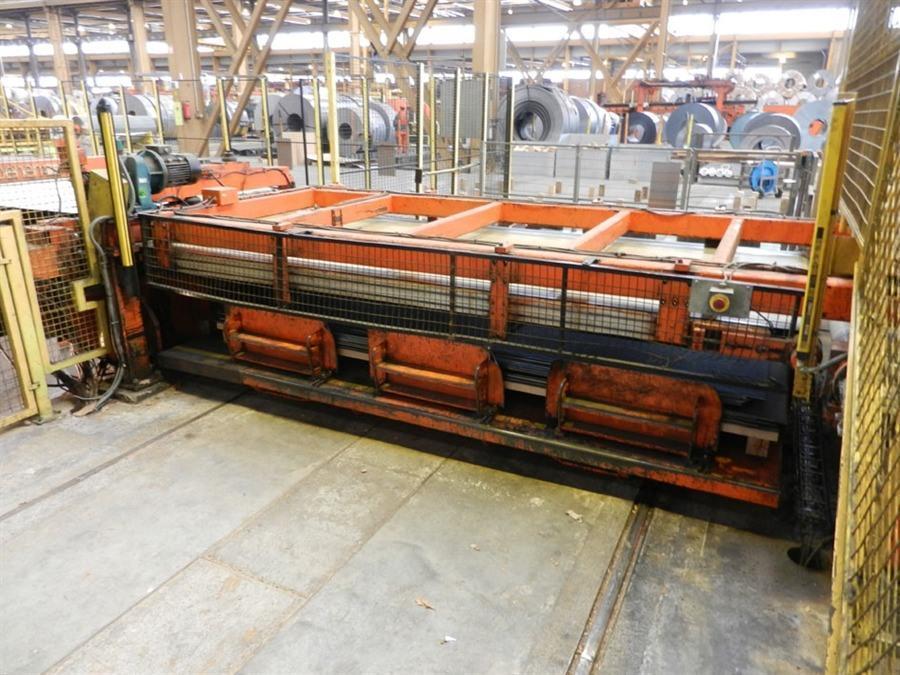

    10) Soenen Stacking unit
    Type MTB1,6 x 3D
    - min/max width: 250/1600 mm
    - min/max length: 300/6000 mm
    - min/max thickness: 0,3/4 mm
    - max stackingcapacity: 4000 pieces/hour
    - transportspeed: 180 m/min
    - weight: 21 ton
