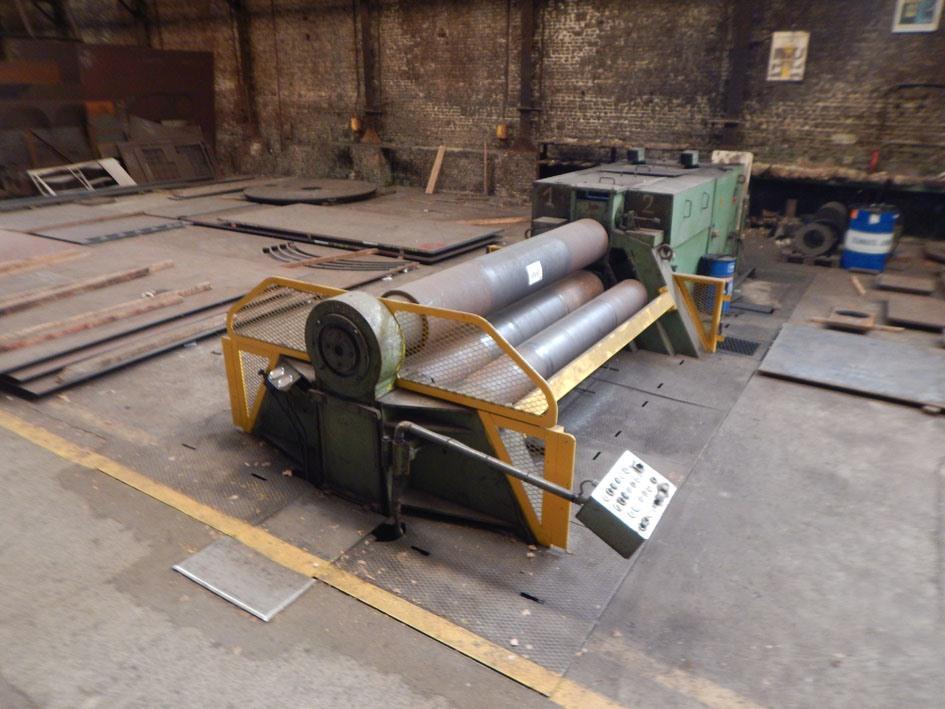

Haeusler 3100 x 40 mm

Brand
HAEUSLER
Category
Bending & Forming Equipment
Type
Rolls, Plate Bending (incld Pinch)
Model
3100 x 40 mm
Stock #
O.06 10387
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Number of rolls 4 rolls
  • Roll capacity cold 3100 x 40 mm
  • Roll dia upside 450 mm
  • Dia under roll - side rolls 350 mm
  • Power needed 60 kW
  • Length 9250 mm
  • Depth 2850 mm
  • Hight 3050 mm
  • Weight 33,5 ton
  • Pre-bending yes

Additional info

  • 2 rolls are mechanically driven with driveshafts = no slip possible of workpiece
    Hydraulic upper & lower movement of rolls and support bearing
