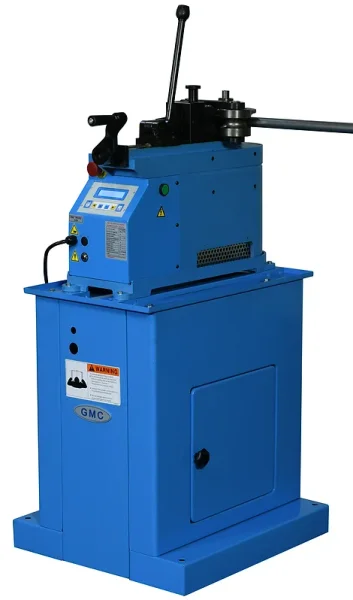

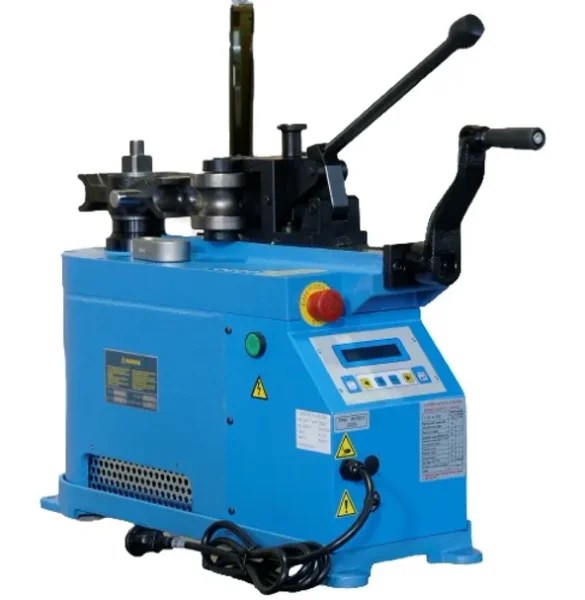

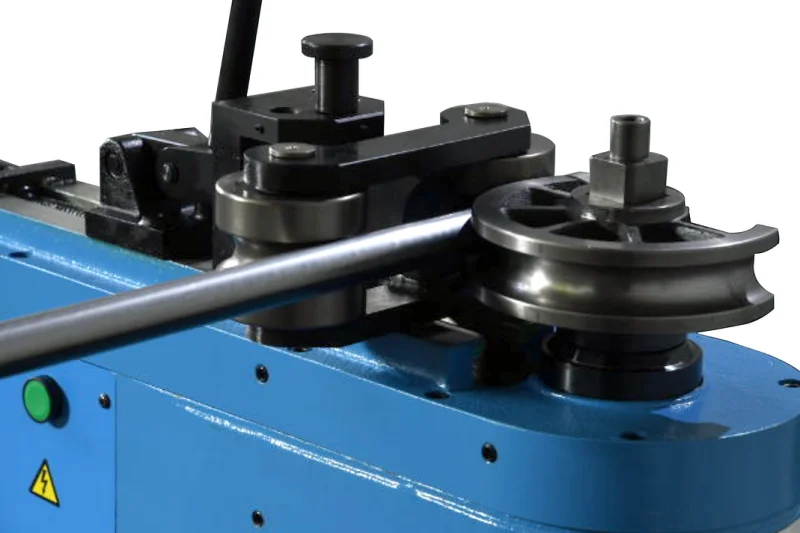

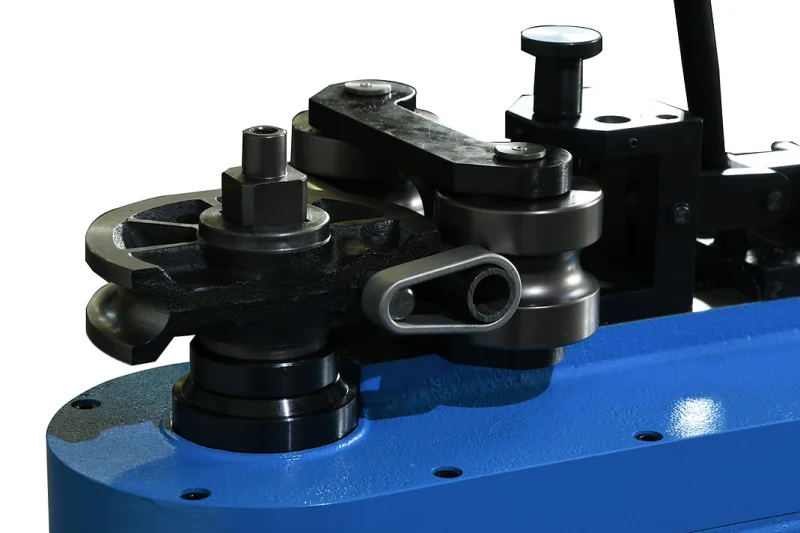

NEW GMC DB-60A 2" TUBE/ 1-1/2" PIPE DRAW BENDER

Name: NEW GMC DB-60A 2" TUBE/ 1-1/2" PIPE DRAW BENDER
Brand: GMC
SKU: 19554
Availability: InStock

Brand

GMC

California

Standard Features:

· Taiwan Machine

· ISO 9001 certified

· This easy to use hydraulic tube draw bender has an incredible capacity

of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe

· 1-1/2 HP Heavy Duty AC main motor, 220V, 1 phase

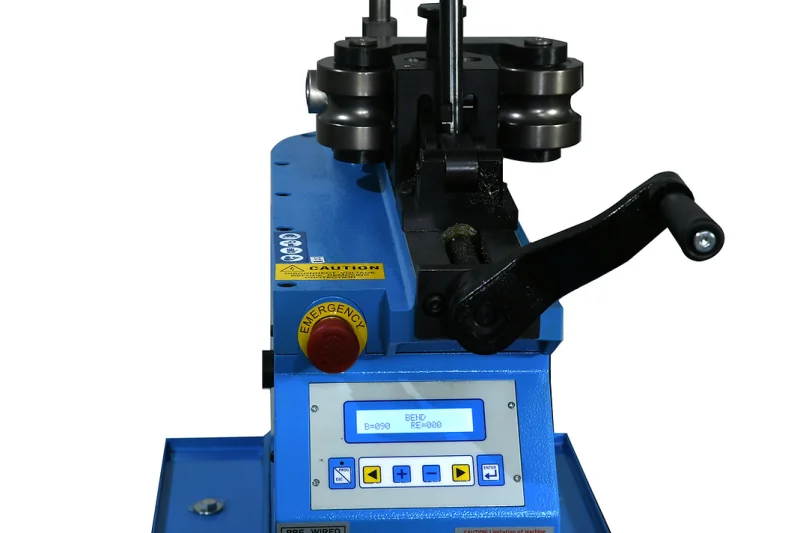

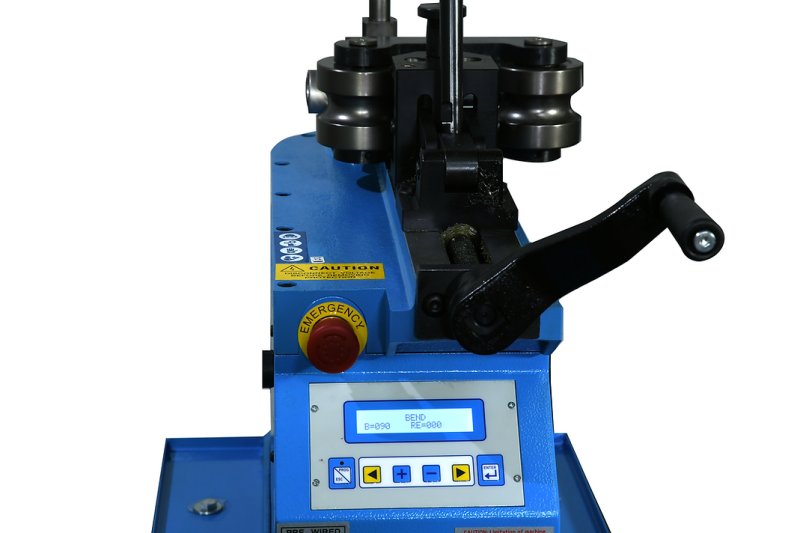

· LED degree indicator with automatic stop programming,

Optional Die Sets:

Each Die Set includes: 2 rolls, 1 former, and 1 ring

1” Tube die set # DB-60A-1T…………...………… $495.00

1-1/4” Tube die set # DB-60A-114T ……………… $795.00

1-1/2” Tube die set # DB-60A-112T ……………… $795.00

2” Tube die set # DB-60A-2T …………………….. $1,395.00

1” Pipe die set # DB-60A-1P ……………………… $495.00

1-1/2” Pipe die set # DB-60A-112P ………………. $795.00

to get as true reading of bending degree.

· 50 jobs memory, each job program contains 9 steps

· Quick tooling changes

· With deluxe stand

· One year warranty for parts

Specifications	GMC DB-60A
Capacity: Minimum CLR Minimum OD Solid Rod, mild steel Round Tube, mild steel ( wall thickness ) Round Pipe, mild steel, schedule 40 Round Tube, SS steel ( wall thickness ) Round Pipe, SS steel, schedule 40 Aluminum round Tube ( wall thickness )	½” ¼” 1” 2” (.125”) 1-1/2” 1-1/2”(.125”) 1-1/4” 2” (3/16”)
Maximum centerline Radius	8-1/2”
LED programming	50 job memory
Main motor	1.5HP, 220V,1phase
Weight	327 LBS
Machine dimensions, LxWxH	27”x9”x51”
