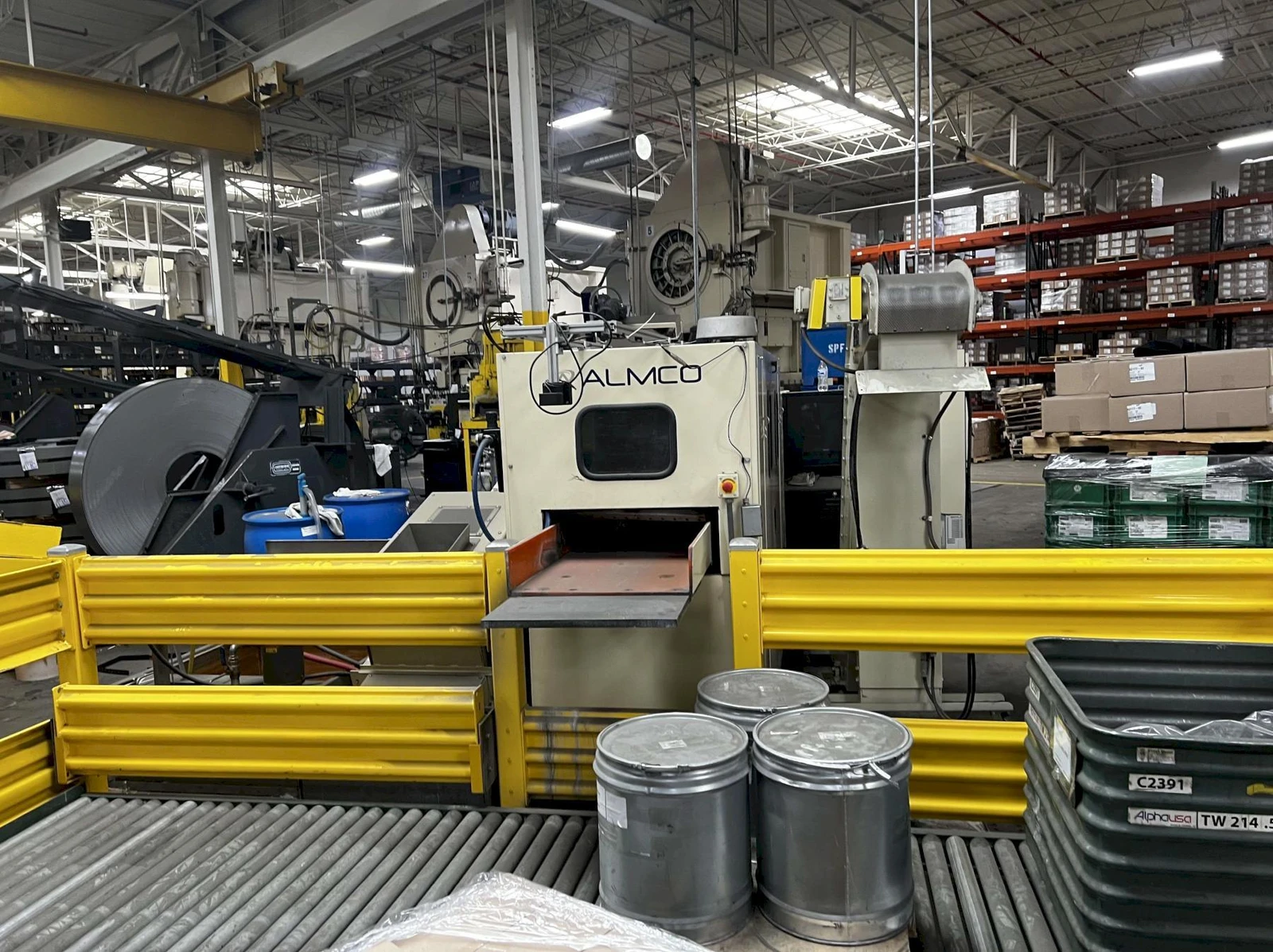

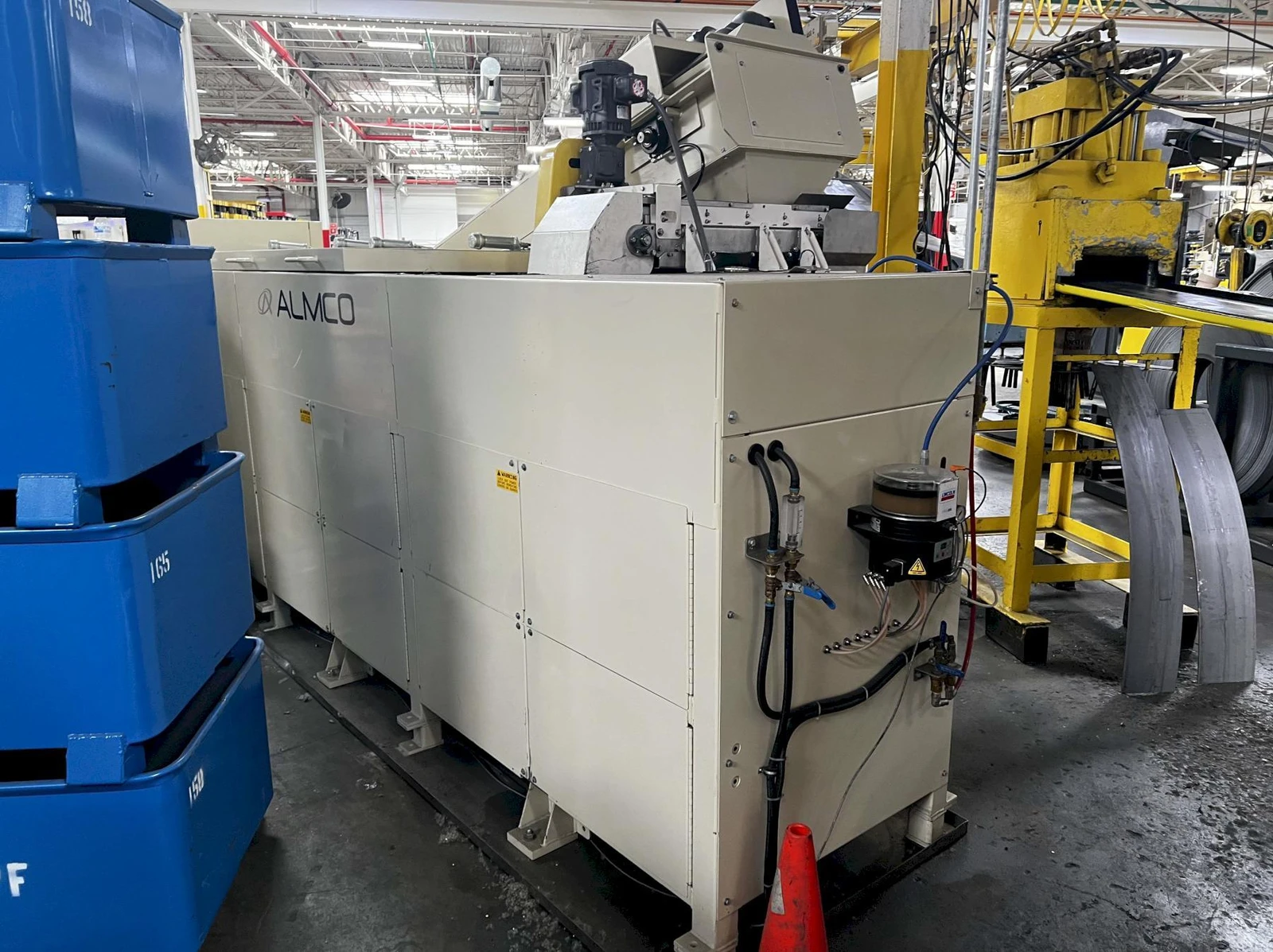

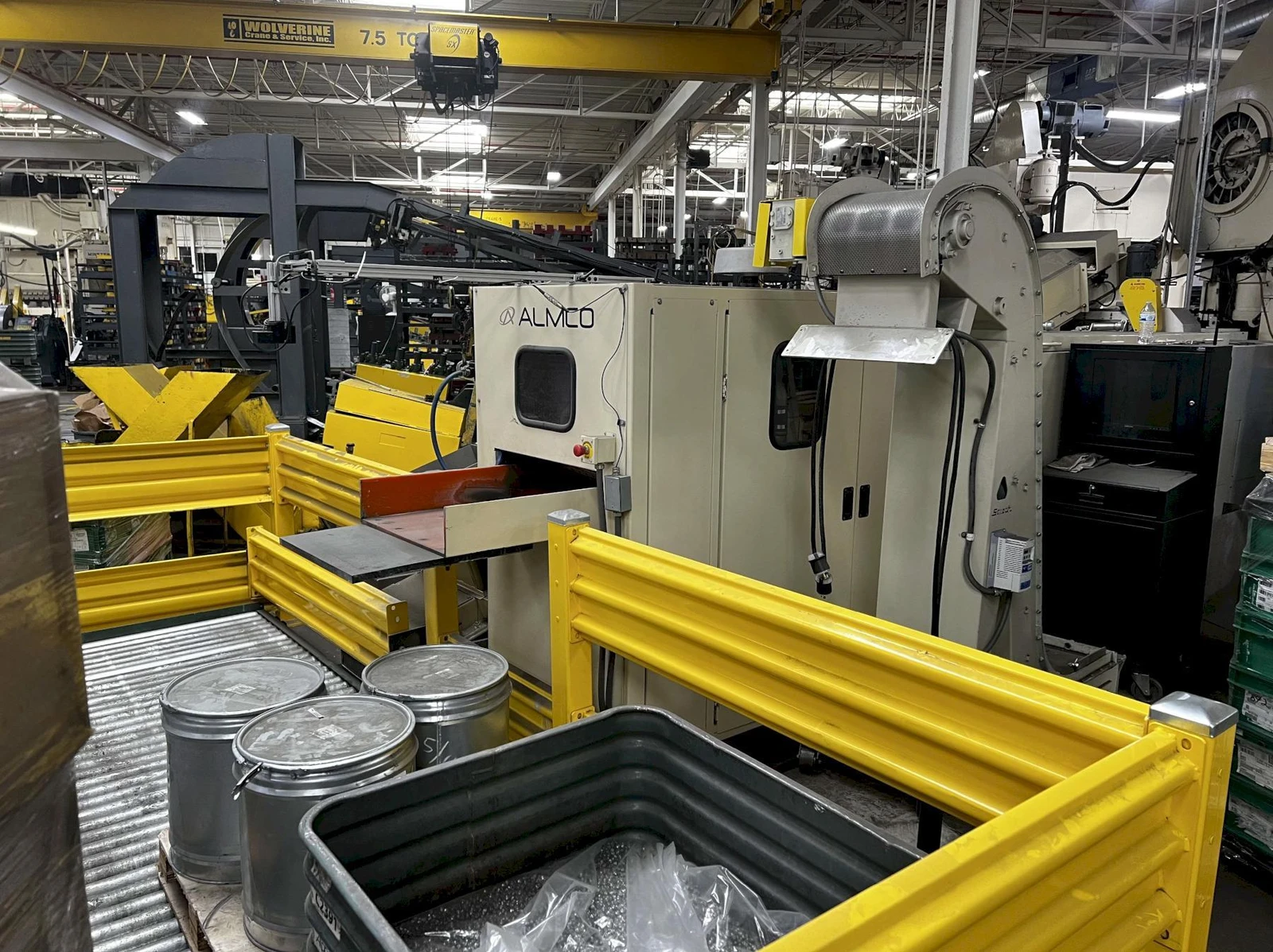

USED ALMCO MODEL V-14120 CONTINUOUS THRU-FEED VIBRATORY FINISHING SYSTEM, Stock# 11131, Year: 2022
Brand
Category
Type
Model
V-14120
Stock #
11131
Year
2022
Condition
Used
Location
Michigan
|
Brand: Almco

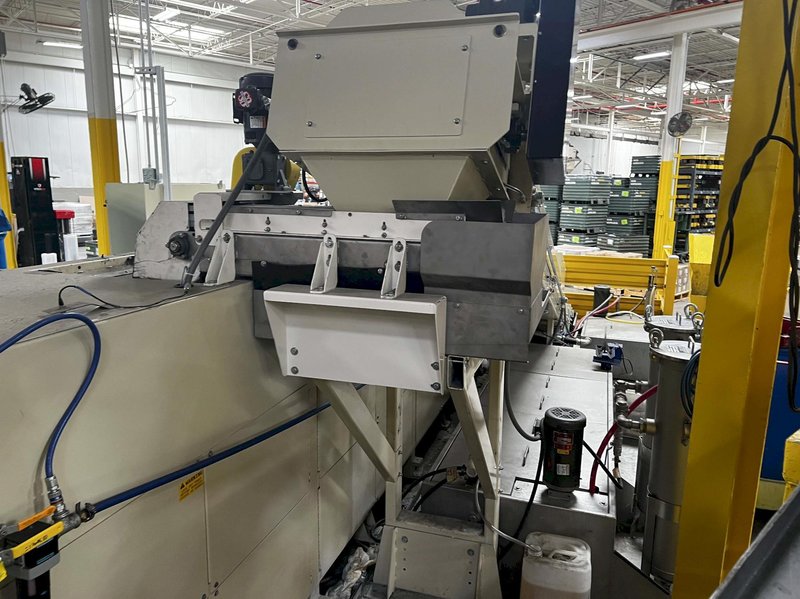

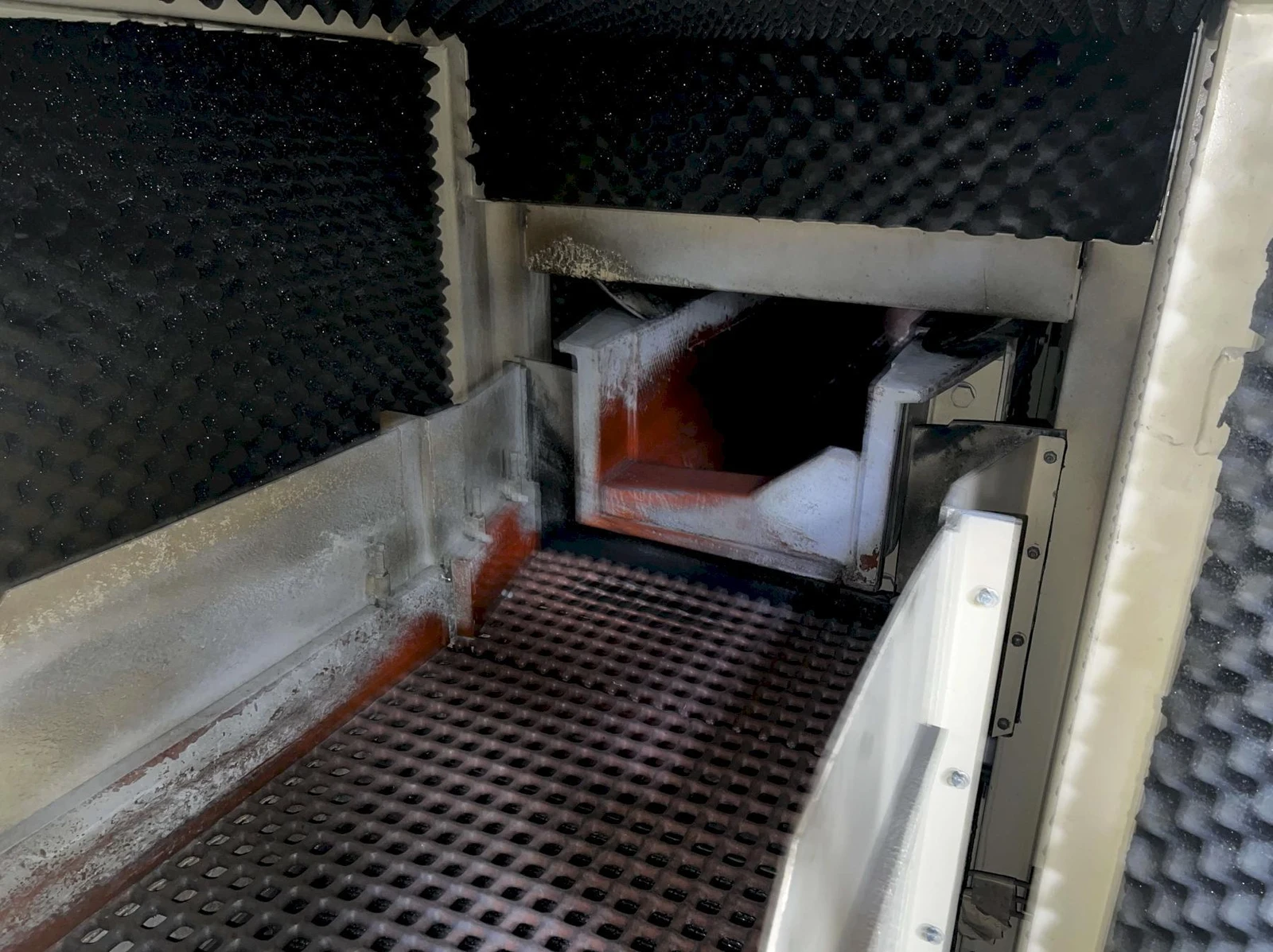

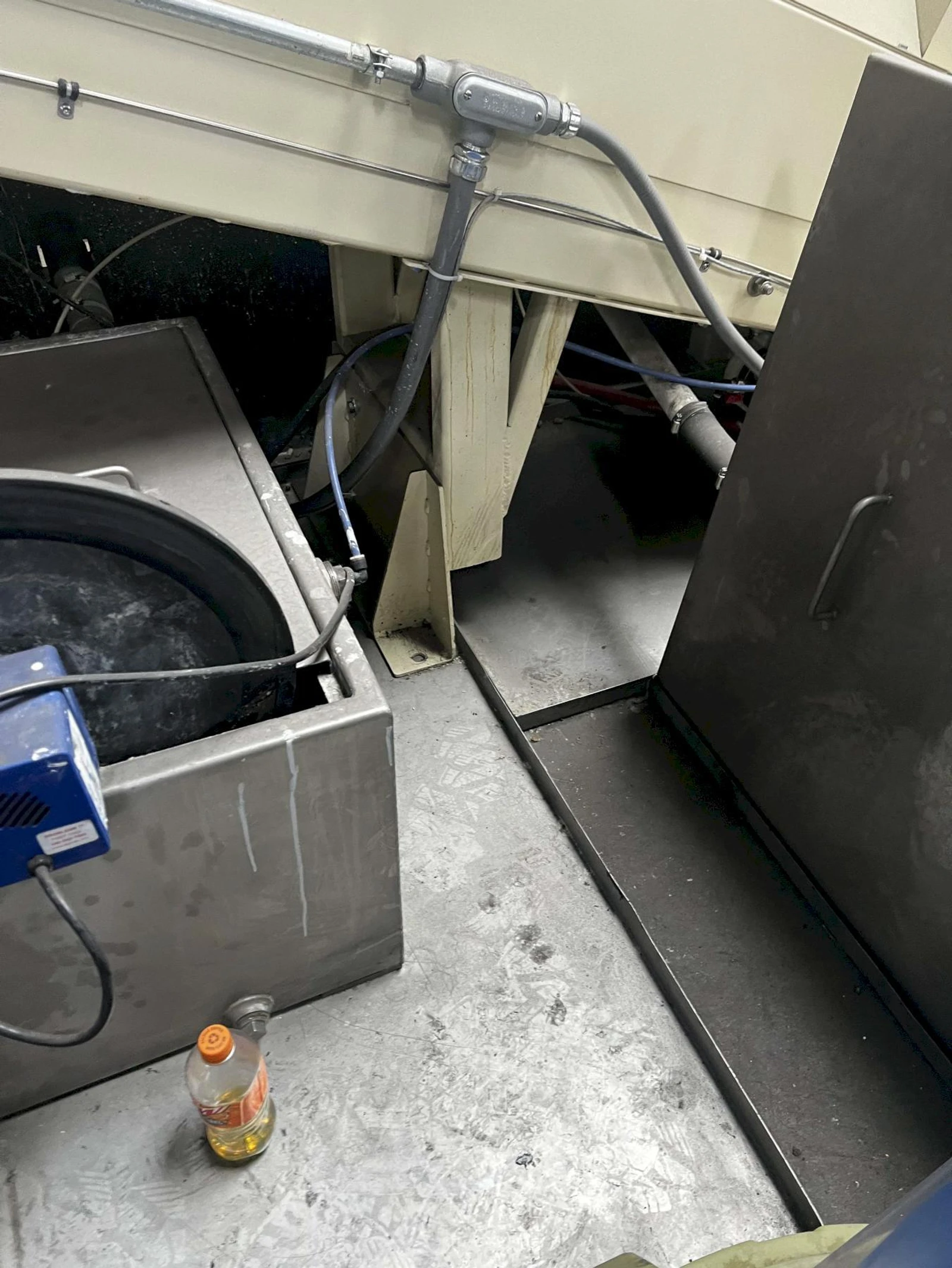

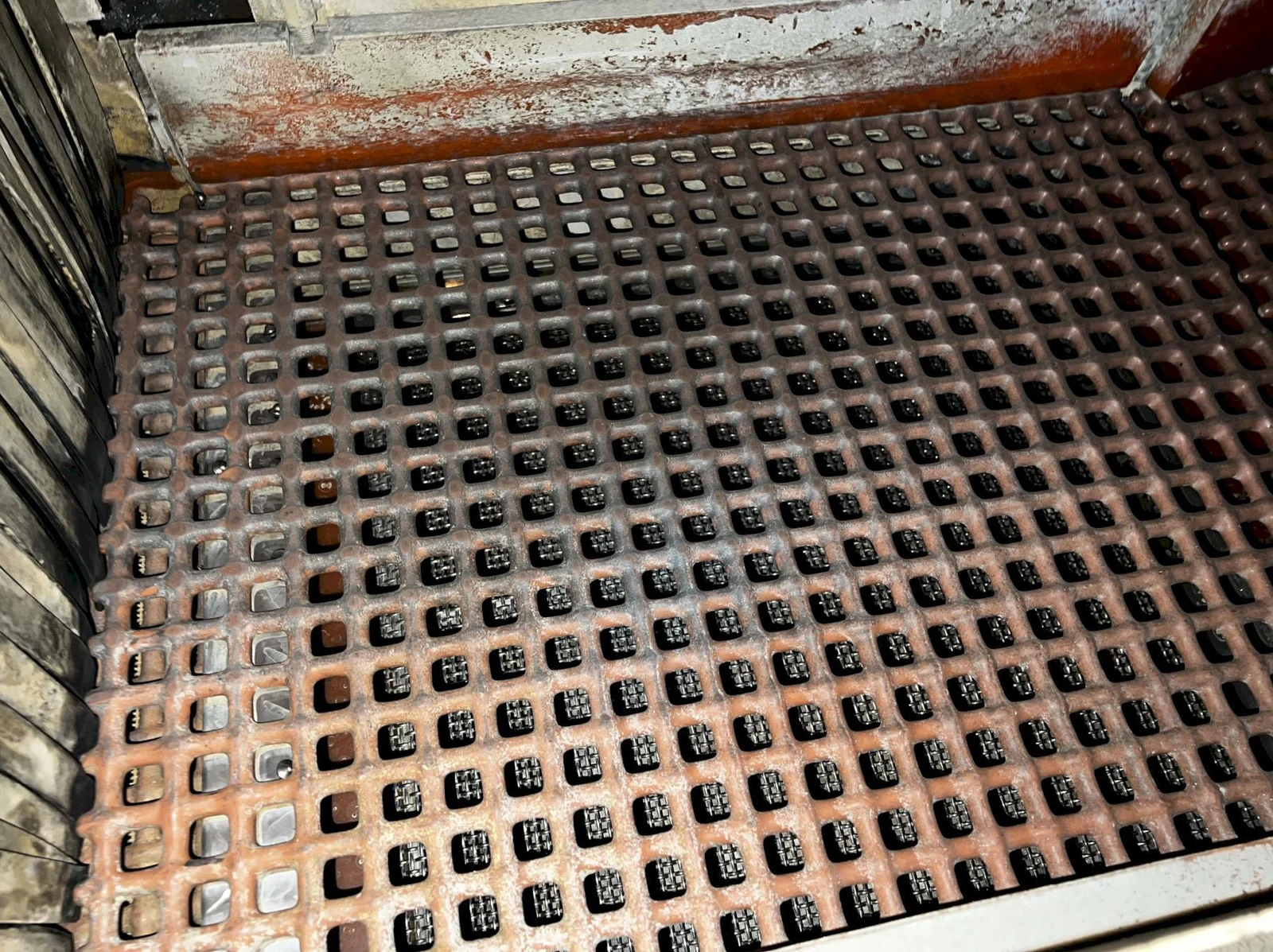

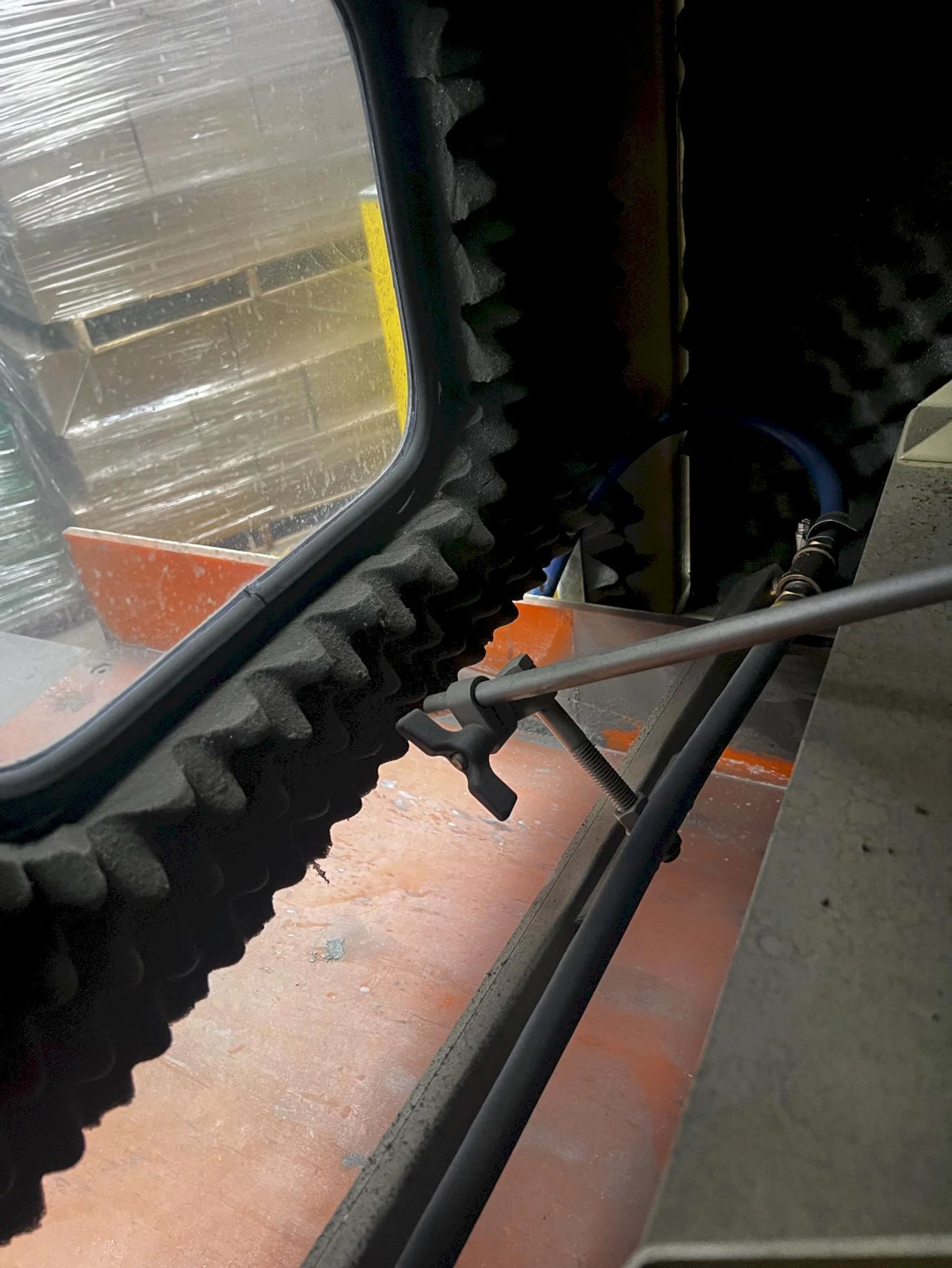

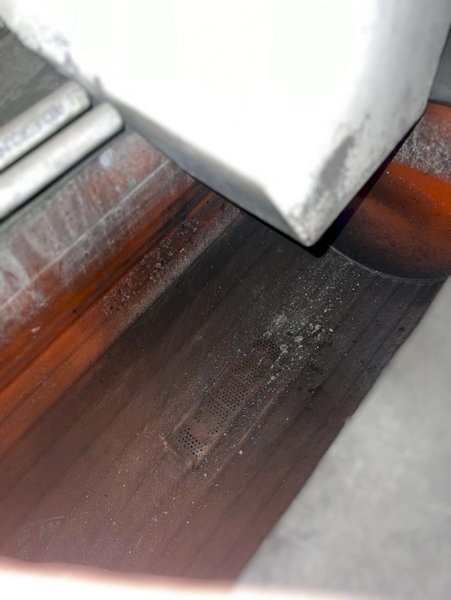

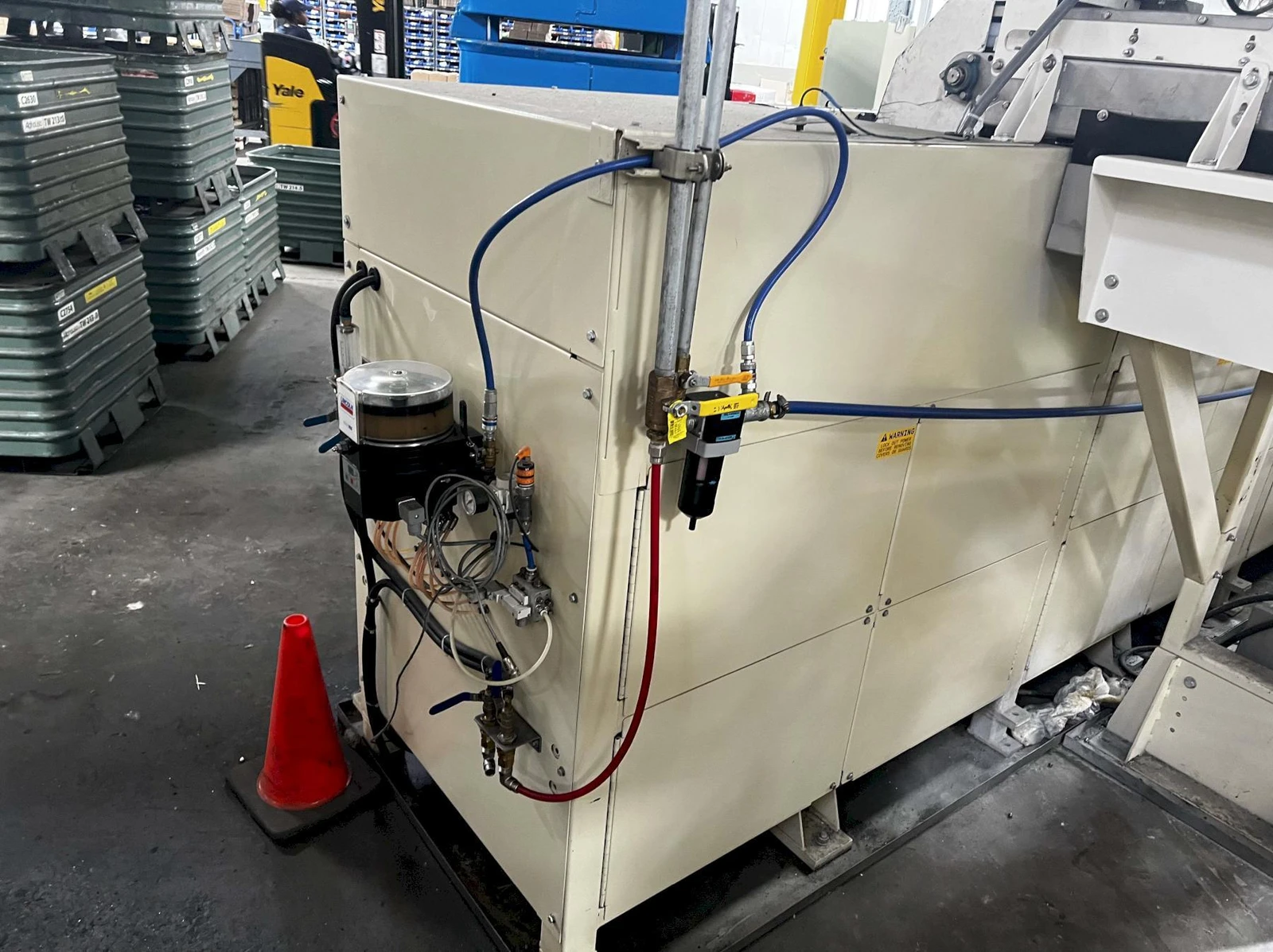

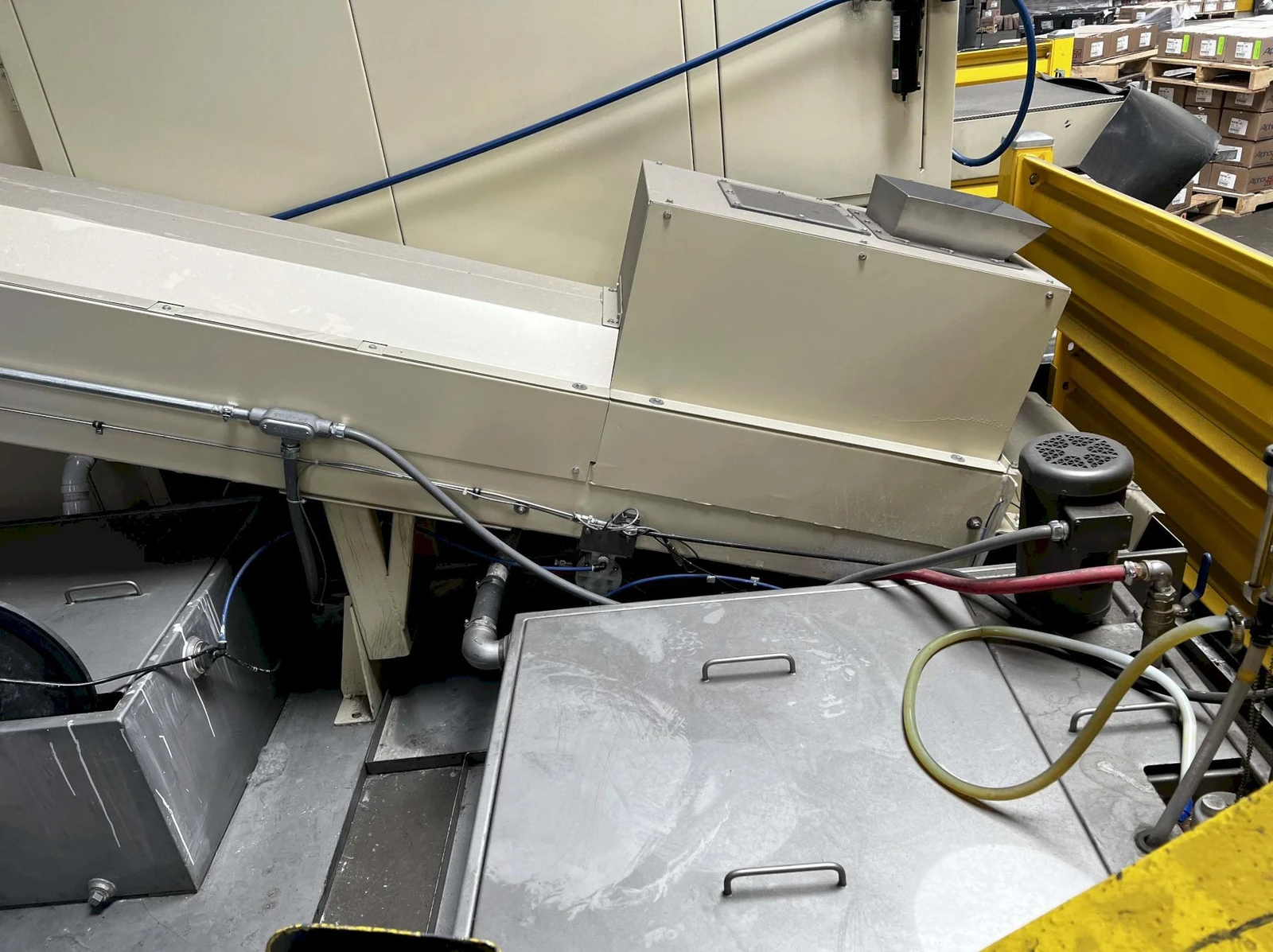

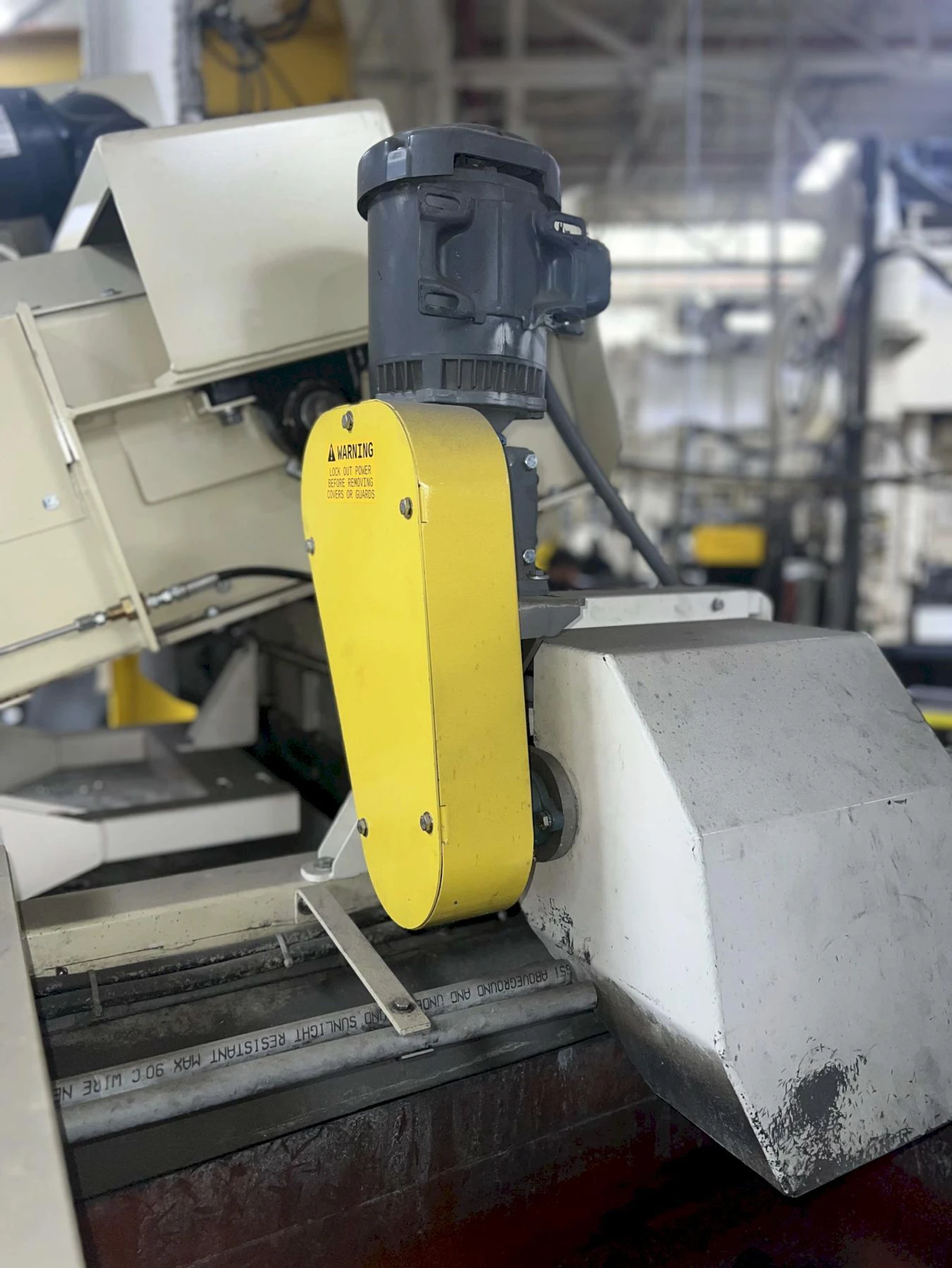

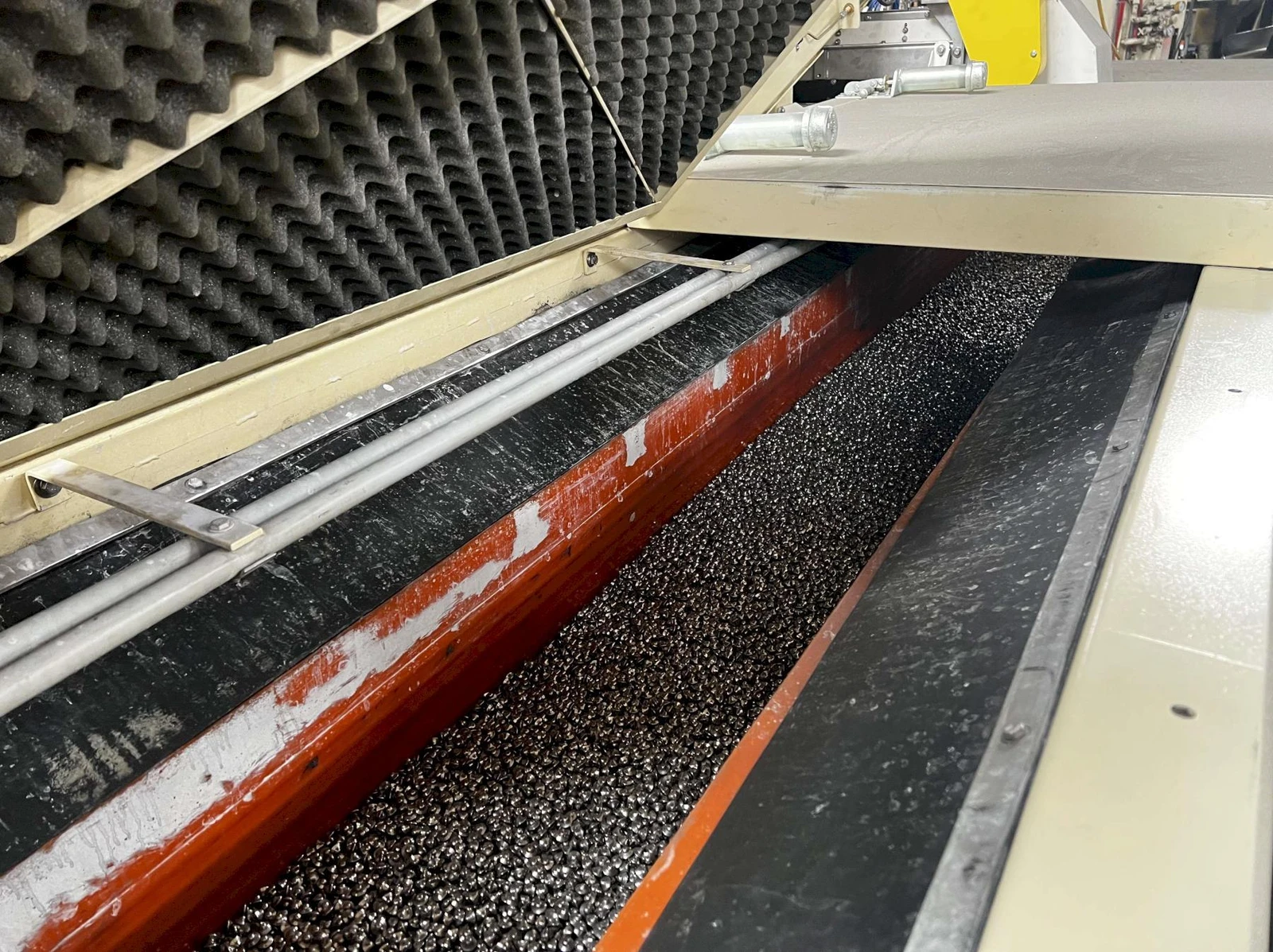

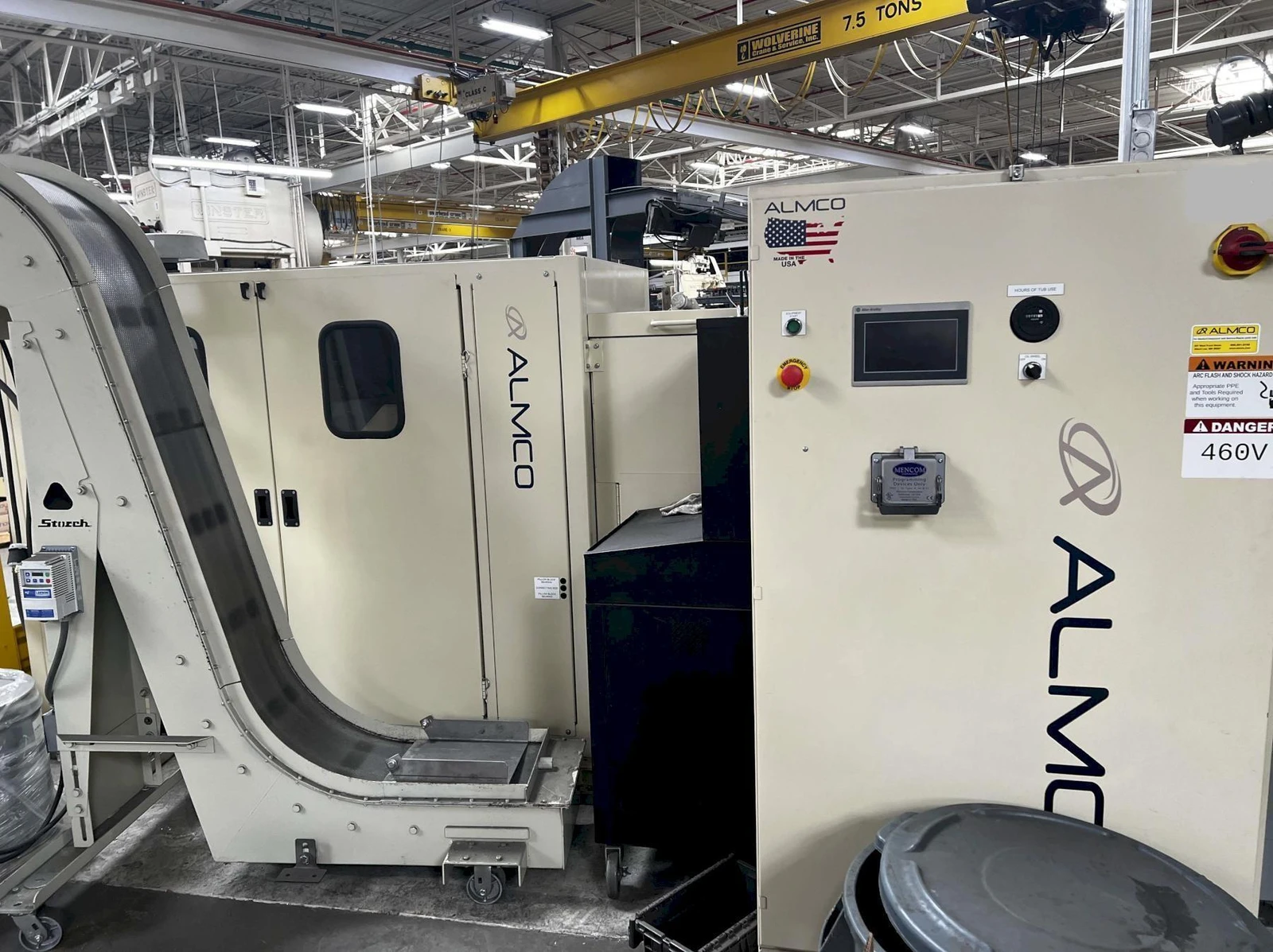

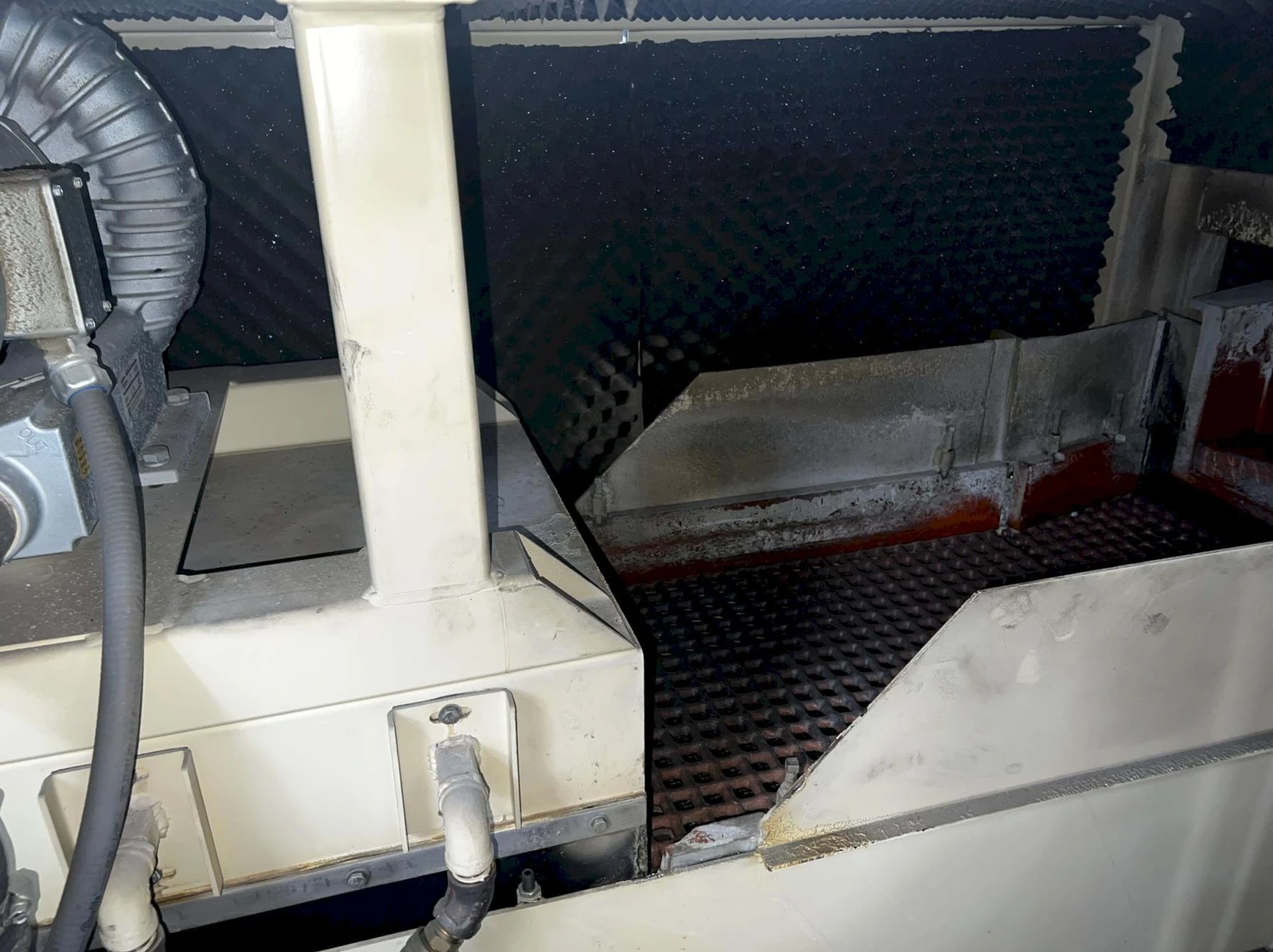

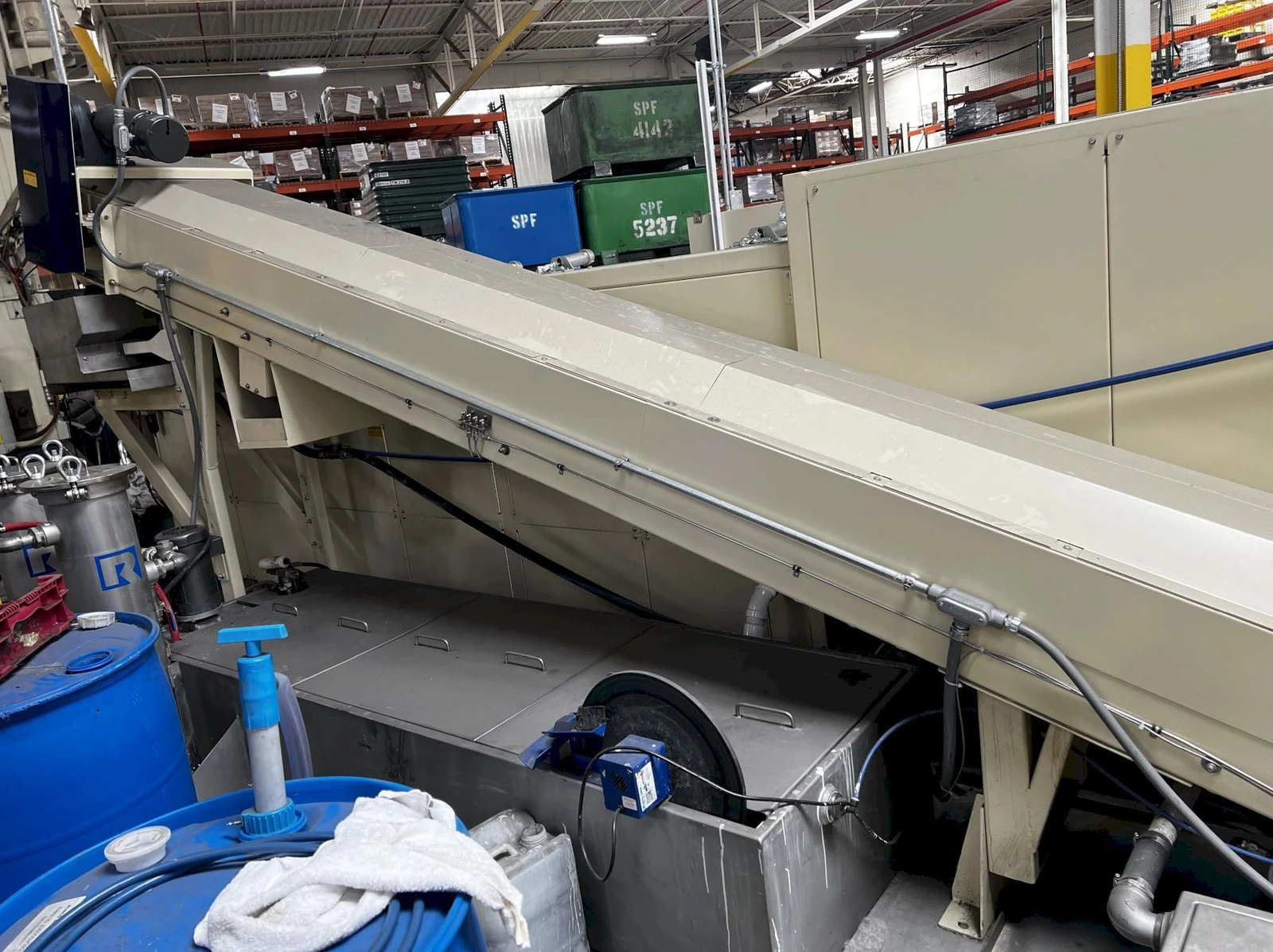

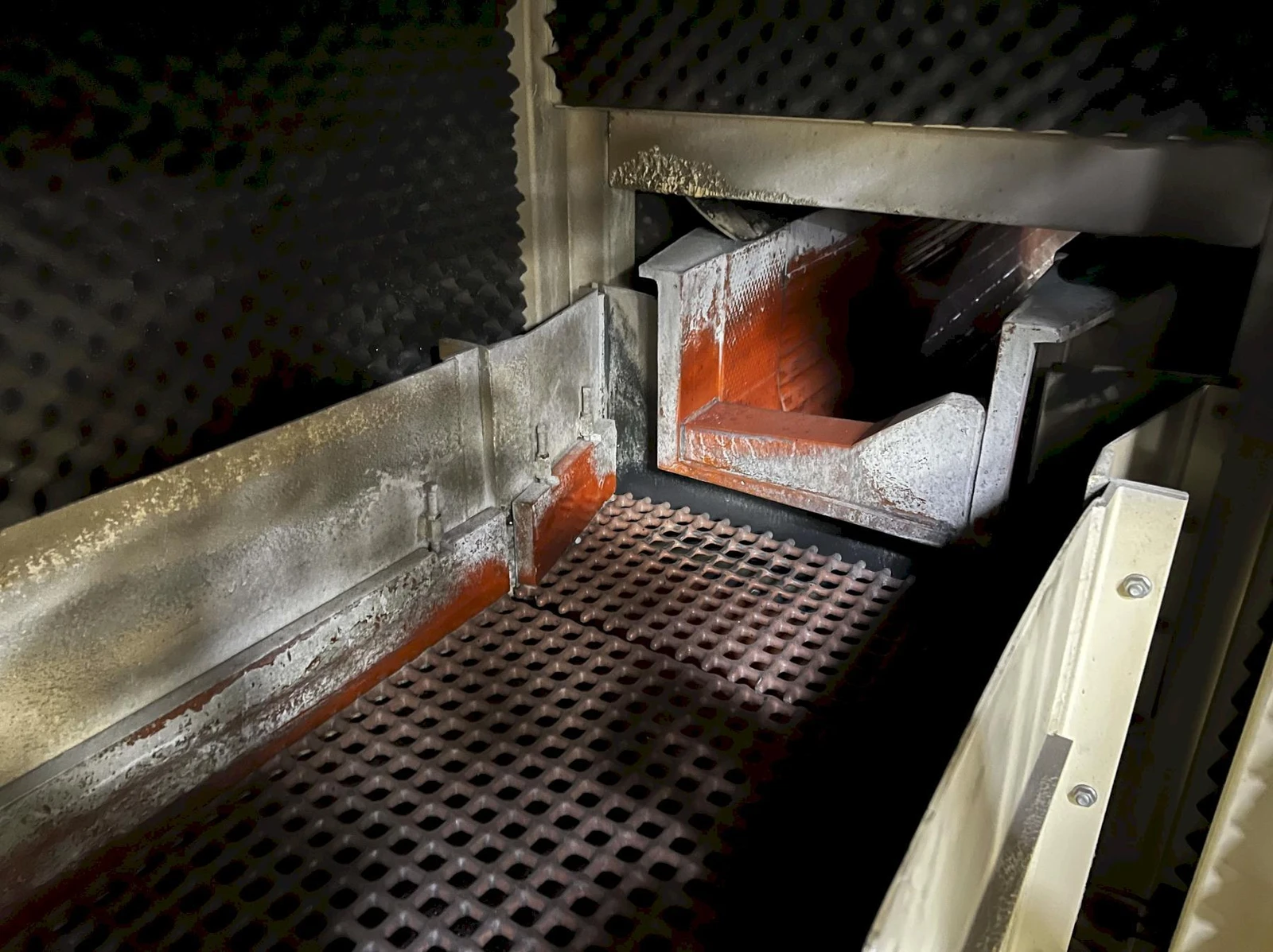

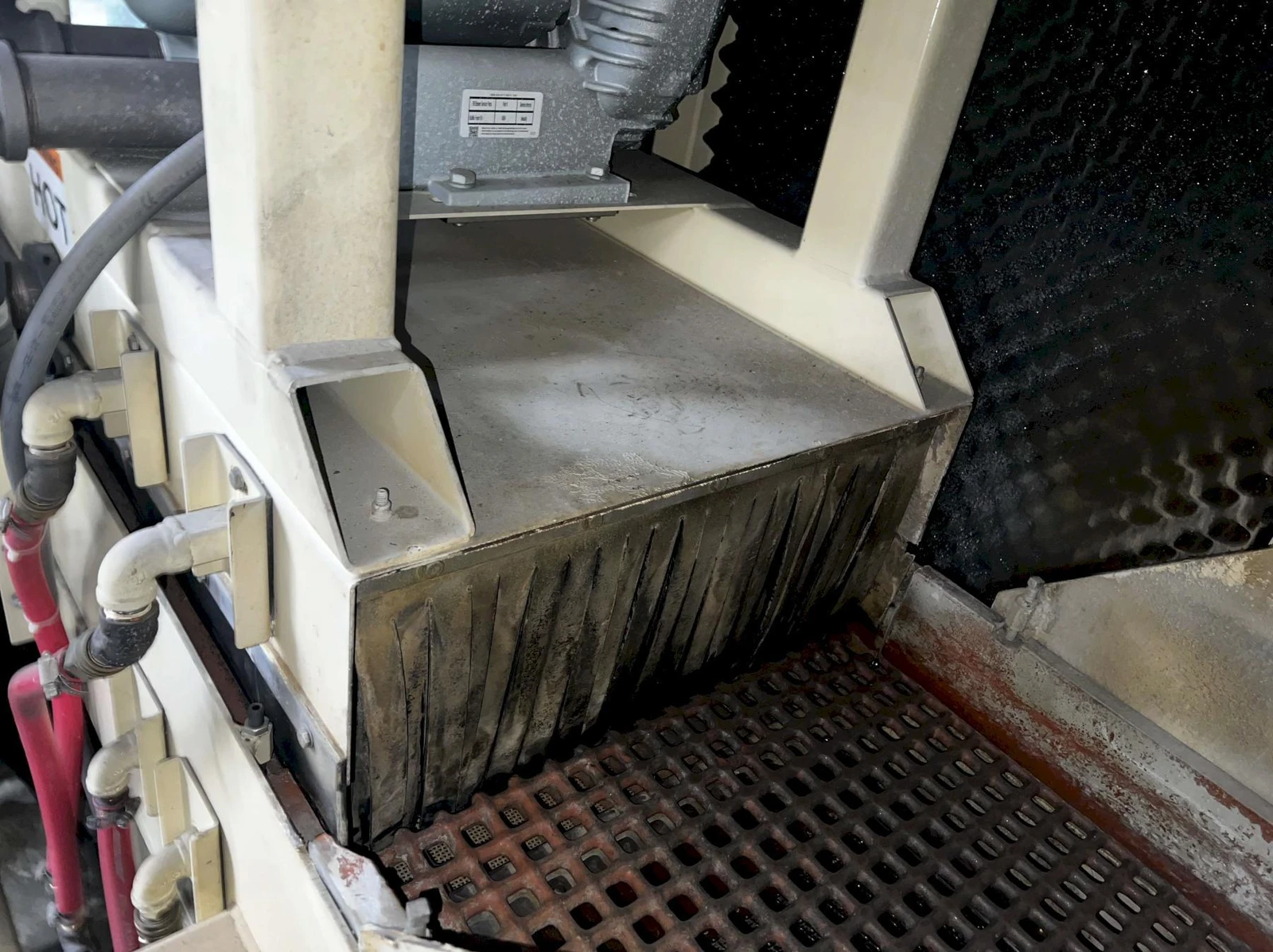

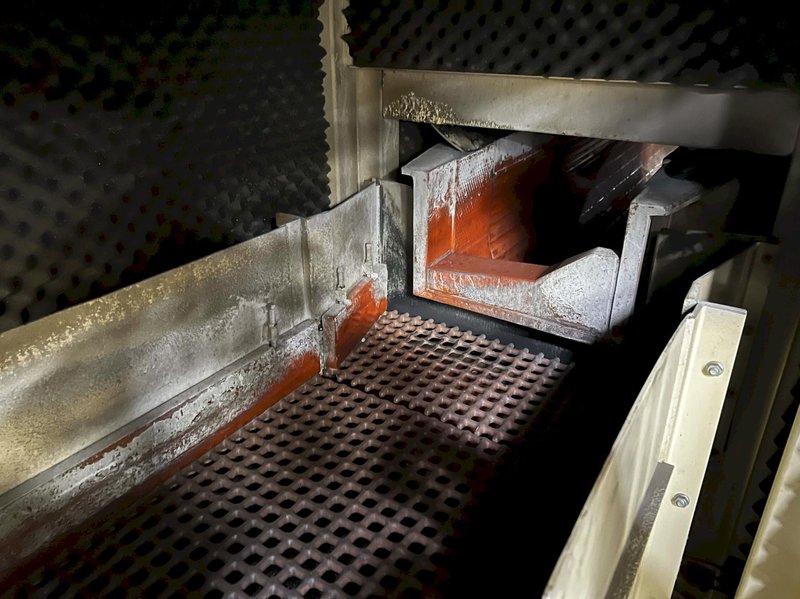

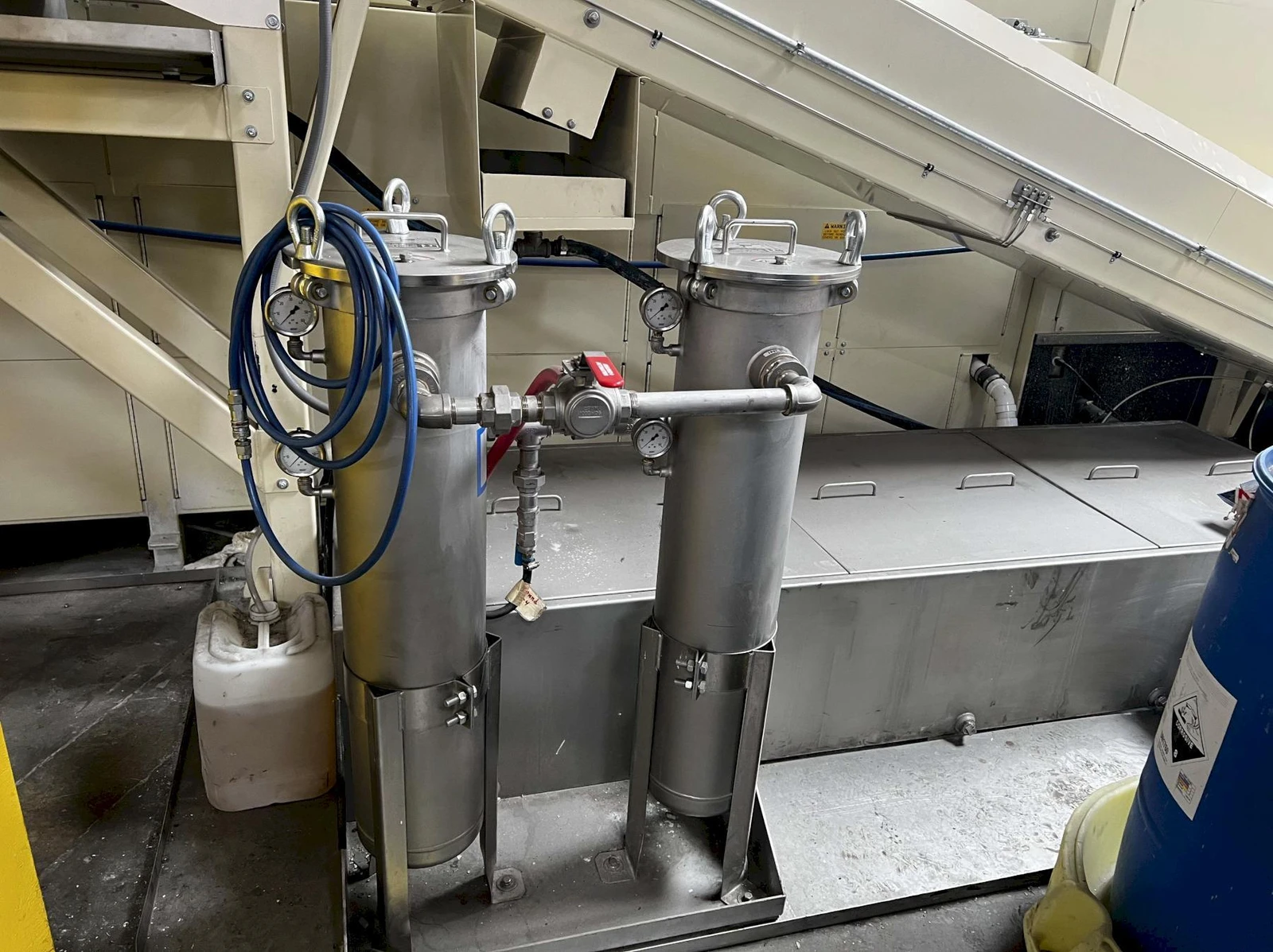

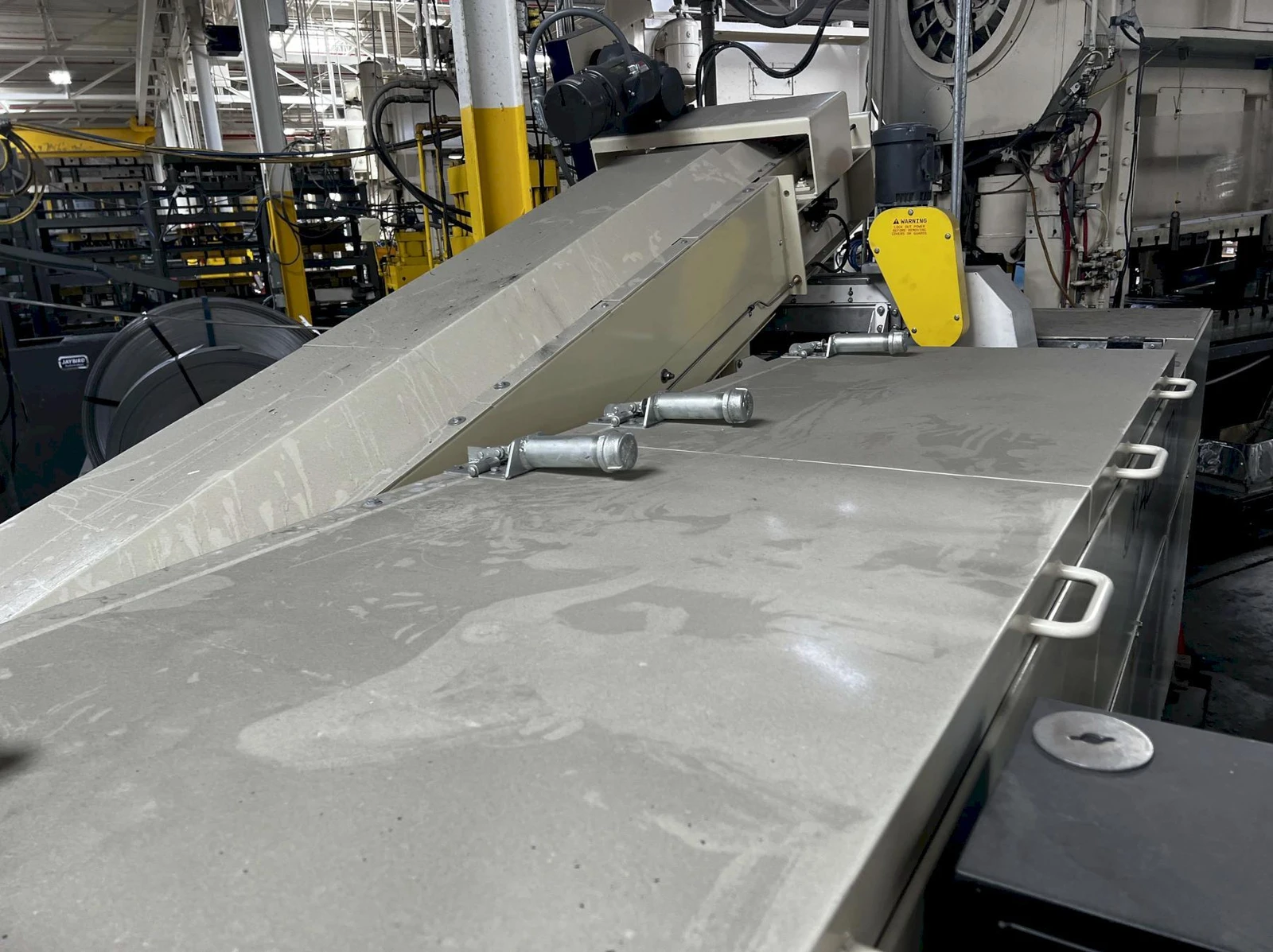

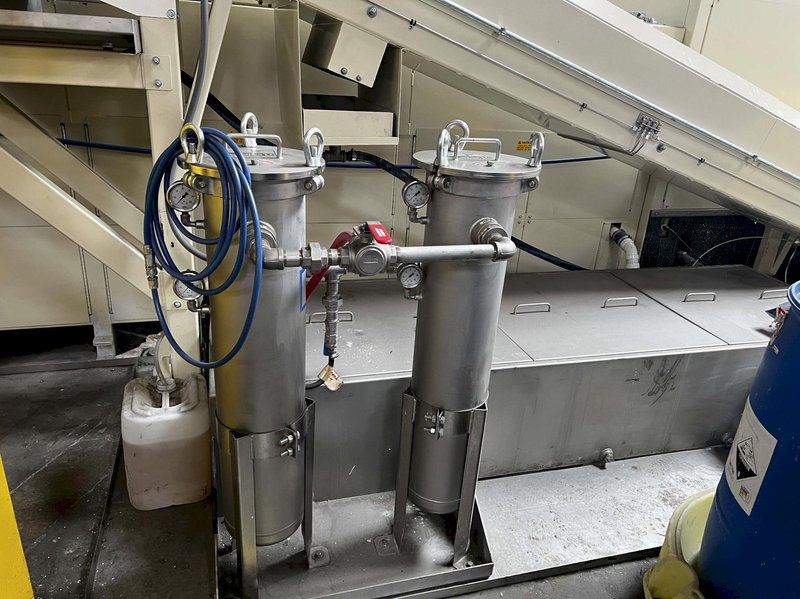

Model: V-14120 Specifications: Tub working capacity: 13.8 cu. ft. Full load amp draw @ 460 volt: 35.1 Tub drive motor: 10 H.P. Tub vibratory frequency: 1075 - 2300 RPM Blow-off motor: 5 H.P. Separator motor: 2 H.P. Media conveyor motor: 2 H.P. ST-4 tank motor: 2 H.P. Recirc pump motor: 1 H.P. Transfer conveyor motor: 1/2 H.P. Maximum number of counterweight segments: 24 Product load height: 57.01" Product discharge height: 34.52" Tub dimensions: 120" x 14" x 15-1/2" Machine dimensions: 279.74" x 118.89" x 98.35" Equipped with: Stainless Steel tanks and catch pans for complete coverage 4" lift from original height to allow for taller parts hopper Touch screen HMI control Total system sound enclosure Automatic lubrication system Tachometer Time recorder Spray rinse Rust inhibitor tank sprayer Heated air blow off Urethane separator panels (can be changed for different size media / parts) Grooved tub sidewalls Dual .05 micron poly filter bag system System has approximately 150 total hours on it. Machine sold As-Is loaded on truck |
