DYNOBEND #DB60SL U-TUBE BENDER

DYNOBEND #DB60SL U-TUBE BENDER

BRAND:               DYNOBEND

MODEL:               DB 60 SL

NEW APPROX.:         2011

TECHNICAL SPECIFICATION

MAX. DIAMETER OF TUBE ( 1.251 ")  31.75 MM

MAX. BENDING RADIUS   ( 47.28 ")   1200 MM

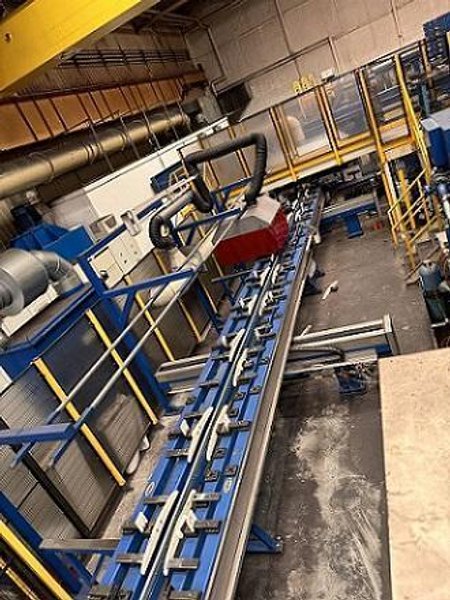

COMPLETE LINE FOR U-TUBES THAT ARE PRIMARILY USED FOR LARGE HEAT EXCHANGERS

THE LINE IS PRODUCING A COMPLETE SET OF U-TUBES OF DIFFERENT RADIUS BENDS FOR A HEAT EXCHANGER, PREPARED AS A BUNDLE.

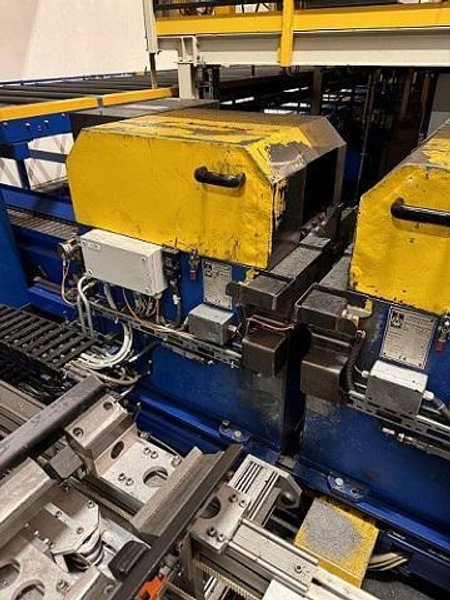

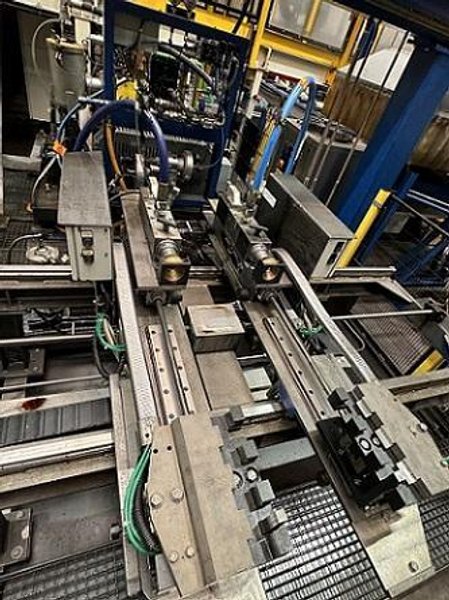

- BENDING MACHINE MANUFACTURER: DYNOBEND DB60SL

MAX. PRIMARY MATERIAL TUBE LENGTH: 25.000 MM

MIN. BENDING RADIUS: 10XD

MAX. BENDING RADIUS: 1.200 MM

MIN. LEG LENGTH: 3.000MM

MAX. LEG LENGTH: 11.600MM

MIN. OD: 15MM

MAX. OD: 31,75MM

CAMERA SEPARATION SYSTEM

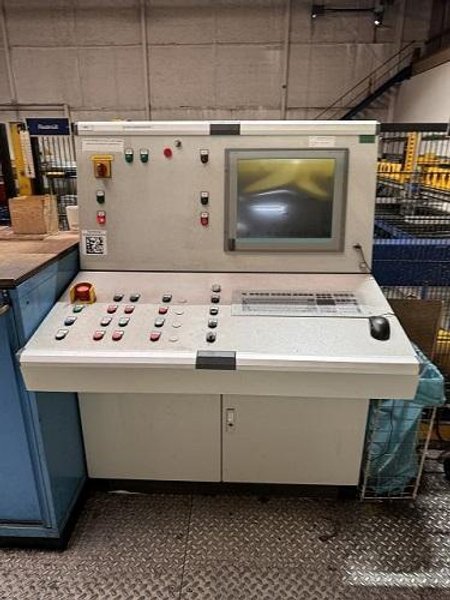

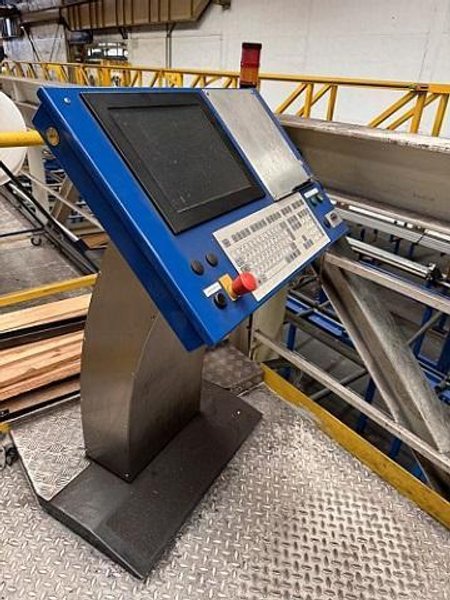

CONTROL SYSTEM: BECKHOFF

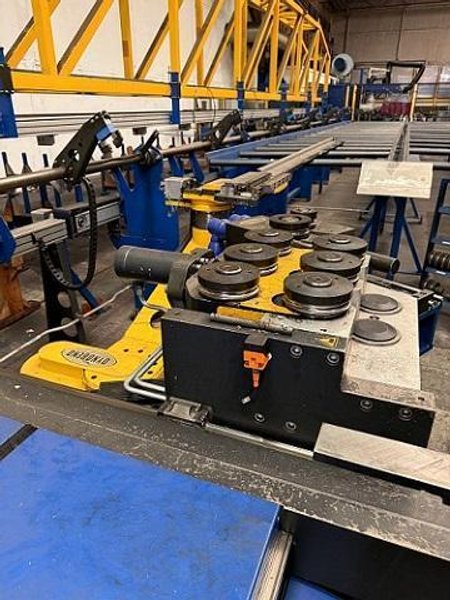

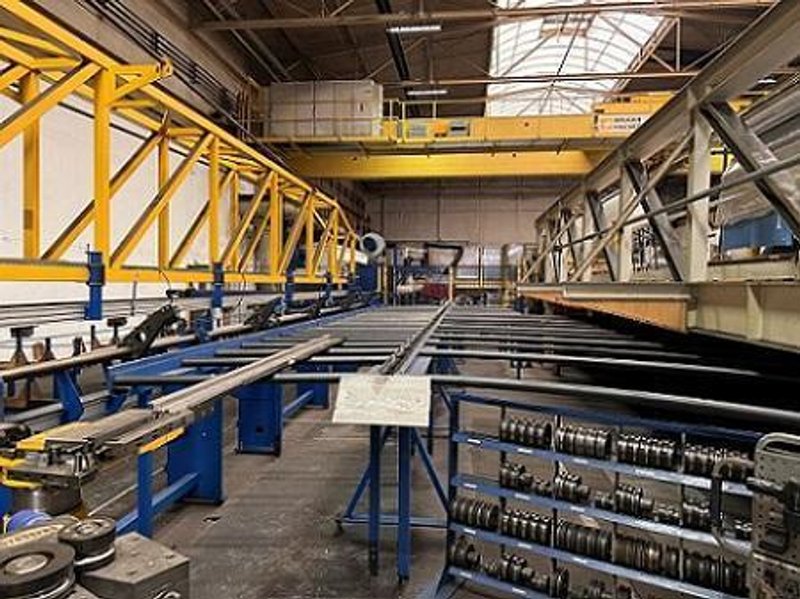

BENDING TOOL SET: 8 BENDING ROLLS

AVAILABLE TOOL SETS FOR OD: 15 MM, 15.88 MM, 16 - 18 MM, 19.05 MM, 20 MM, 22 - 23 MM, 25 MM, 25.4 MM, 31.75 MM

BYPASS SYSTEM FOR BENDING AND ANNEALING SMALLER RADIUS <10XD

TRANSPORT WITH STROTHMANN PORTAL

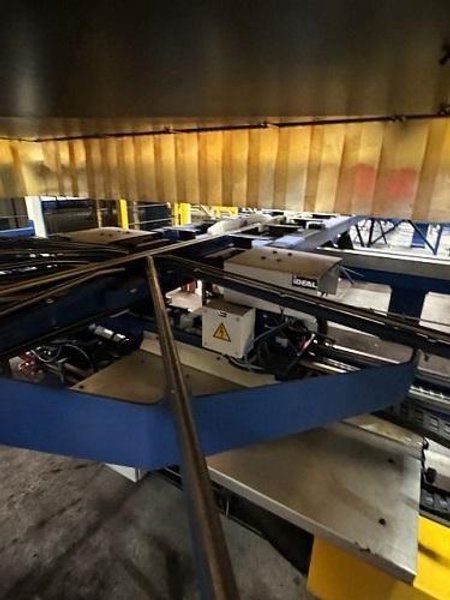

- RESISTANCE ANEALING MACHINE MANUFACTURER IDEAL-WERK WER300

TEMPERATUR CONTROL: PYROMETER

HOLDING TIME: 5 SEC

ANNEALING UNDER PROTECTIVE GAS ATMOSPHERE BY FILLING THE TUBE WITH NITROGEN GAS

- HYDROSTATIC TEST, 2 STATIONS

PRESSURE: MAX. 700 BAR

HIGH PRESSURE PUMPS HAMMELMANN

HOLDING TIME: MAX. 10 SEC

TEST MEDIUM: DEMINERALIZED WATER AND ADDITIVES

FILTERING SYSTEM FOR THE TEST MEDIUM

- CIRCULAR SAWING MACHINE

SAW BLADE: 315 X 2.5 X 50 MM

ROTATING DEBURRING WITH STEEL BRUSHES
