2000 NIIGATA SPN-50 | Machining Centers, Horizontal

Brand
Model
SPN-50
Stock #
33800
Year
2000
Condition
Not specified

Location

Not specified

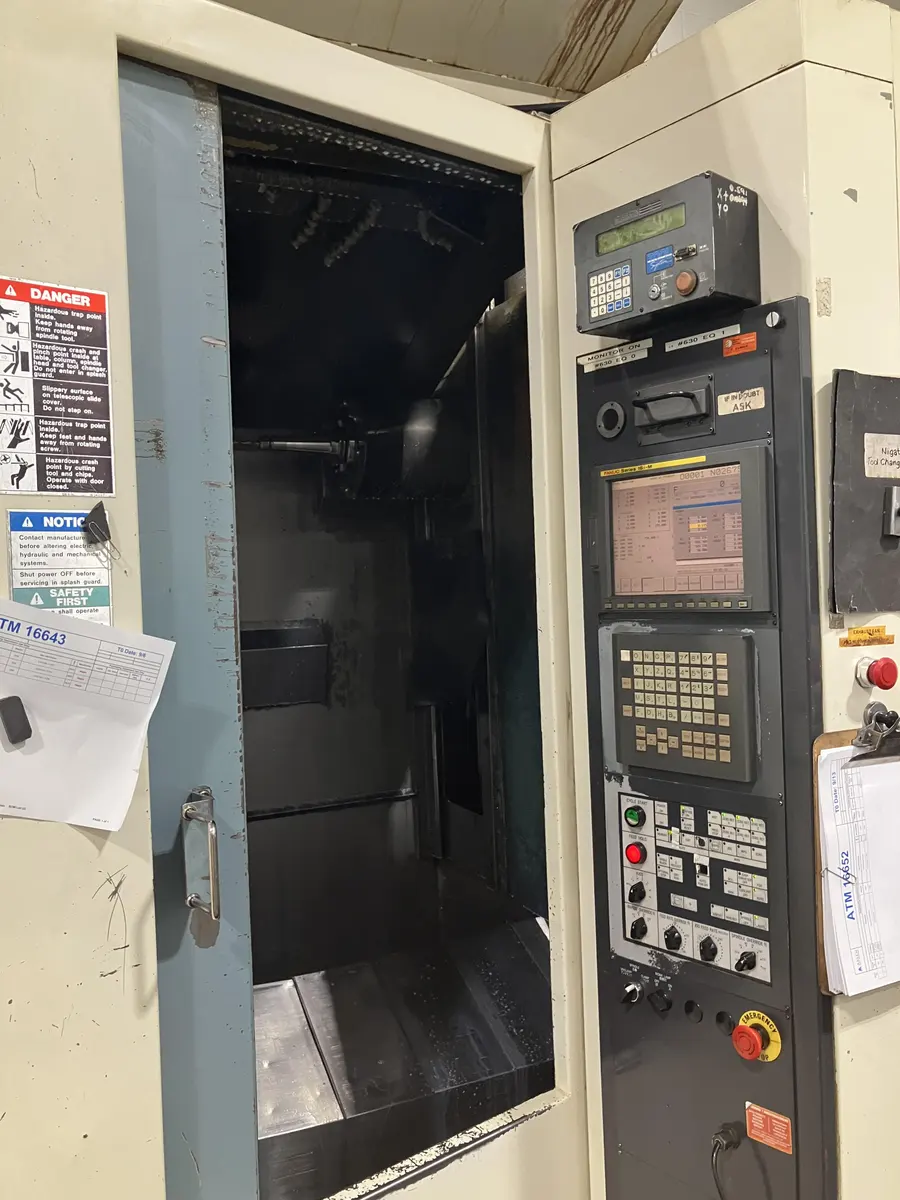

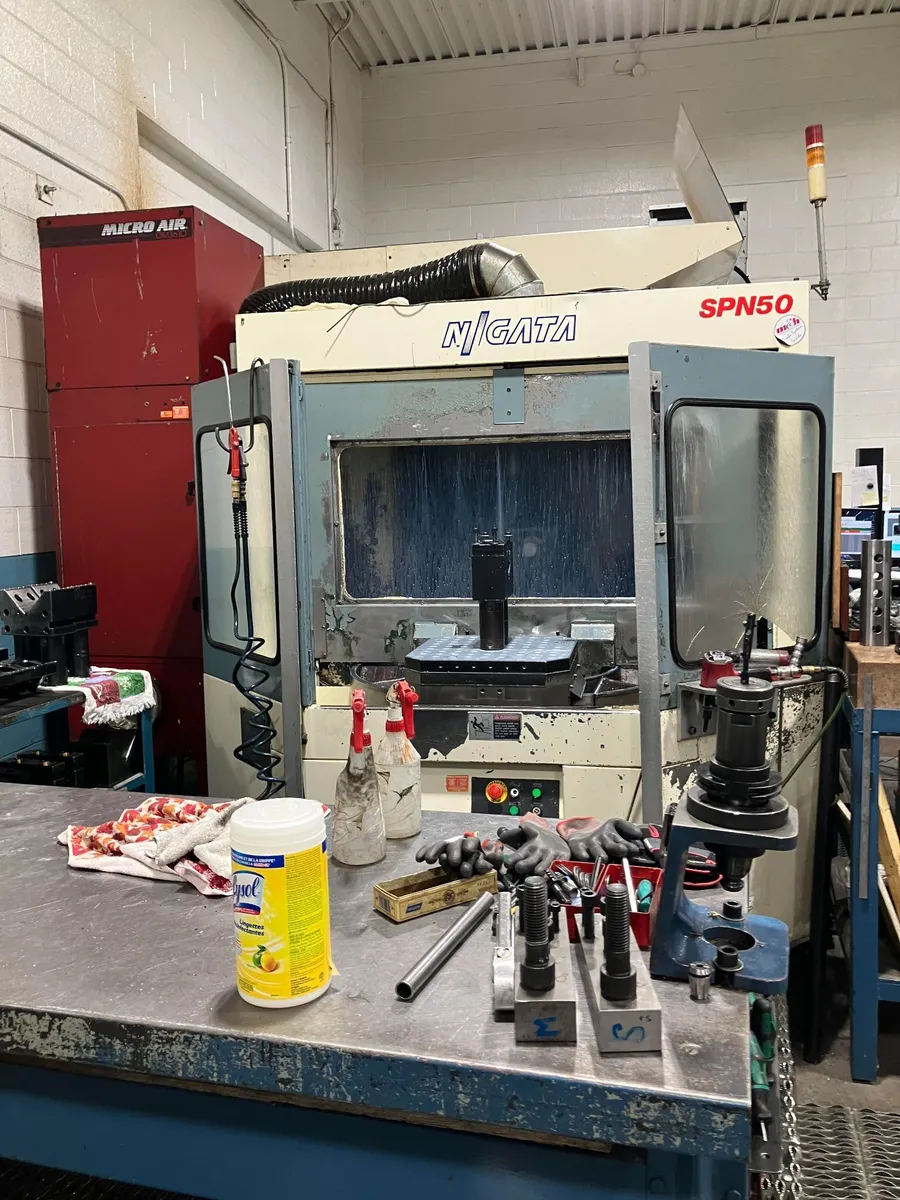

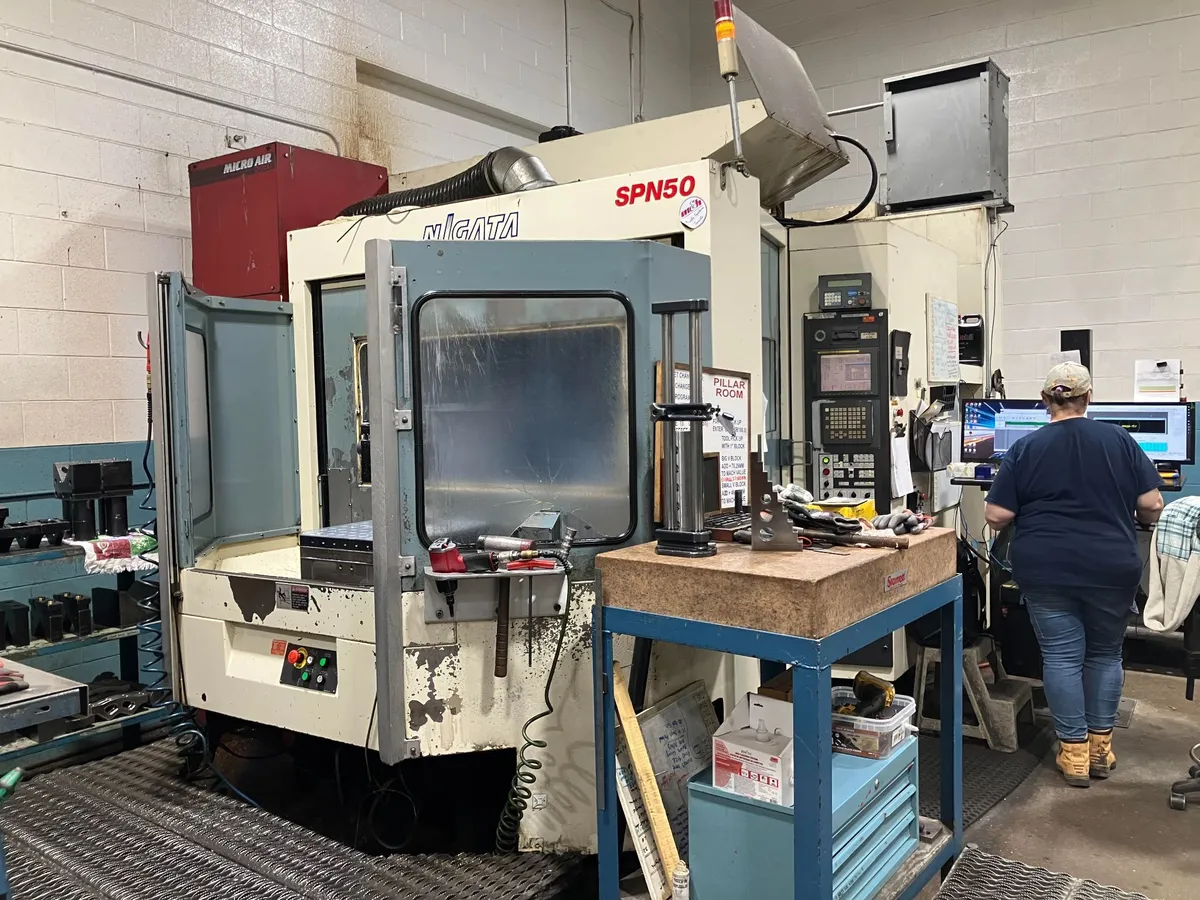

Niigata SPN-50 4-Axis HMC
20" Pallets, Full 4th, 12K RPM, 2 Pallets, Fanuc 16iM CNC Control, Chip Conveyor, Probing & More

X-Axis29.5"749.3 mm
Y-Axis29.5"749.3 mm
Z-Axis29.5"749.3 mm
Power40 hp29.8 kW
RPM12,000 RPM12,000 RPM
# ATC178178
Taper5050
Pallet-W19.7"500.38 mm
Pallet-L19.7"500.38 mm

Niigata SPN-50 4-Axis Horizontal Machining Center
New: 2000

Specifications:

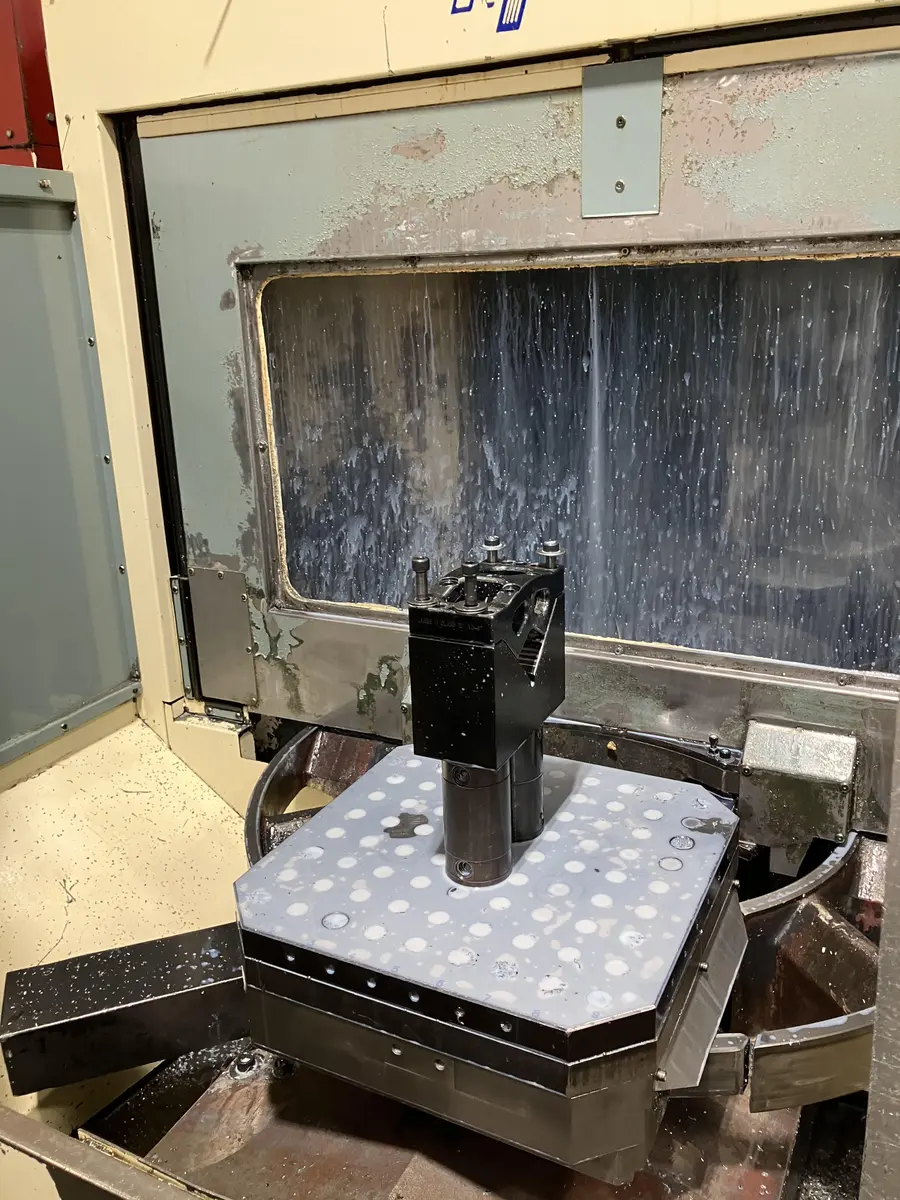

Pallet Size: 19.7 x 19.7"
Travels:
X-Axis 29.5"
Y-Axis 29.5"
Z-Axis 29.5"
Pallet Index: 360,000 Degree
Spindle Speed: 35 - 12,000 RPM
Spindle Taper: Cat 50
Spindle Nose to Table Center: 5.91" - 35.4"
Spindle Center to Table Top: 1.96" - 31.46"
Tools: 60 ATC
Main Motor: 35/40 HP AC
Number of Pallets: 2
Rapid Traverse Rates: 1,575 IPM
Pallet Load Capacity: 1320 lbs.
Spindle Torque: 260 ft. lbs.
Spindle Acceleration: 1.5 Seconds
Pallet Change Time: 6 Seconds
Max Tool Weight 33: lbs.
Machine Dimensions: (L x W x H) 196" x 102" x 108"
Machine Weight: 29020 lbs.

Equipped With:

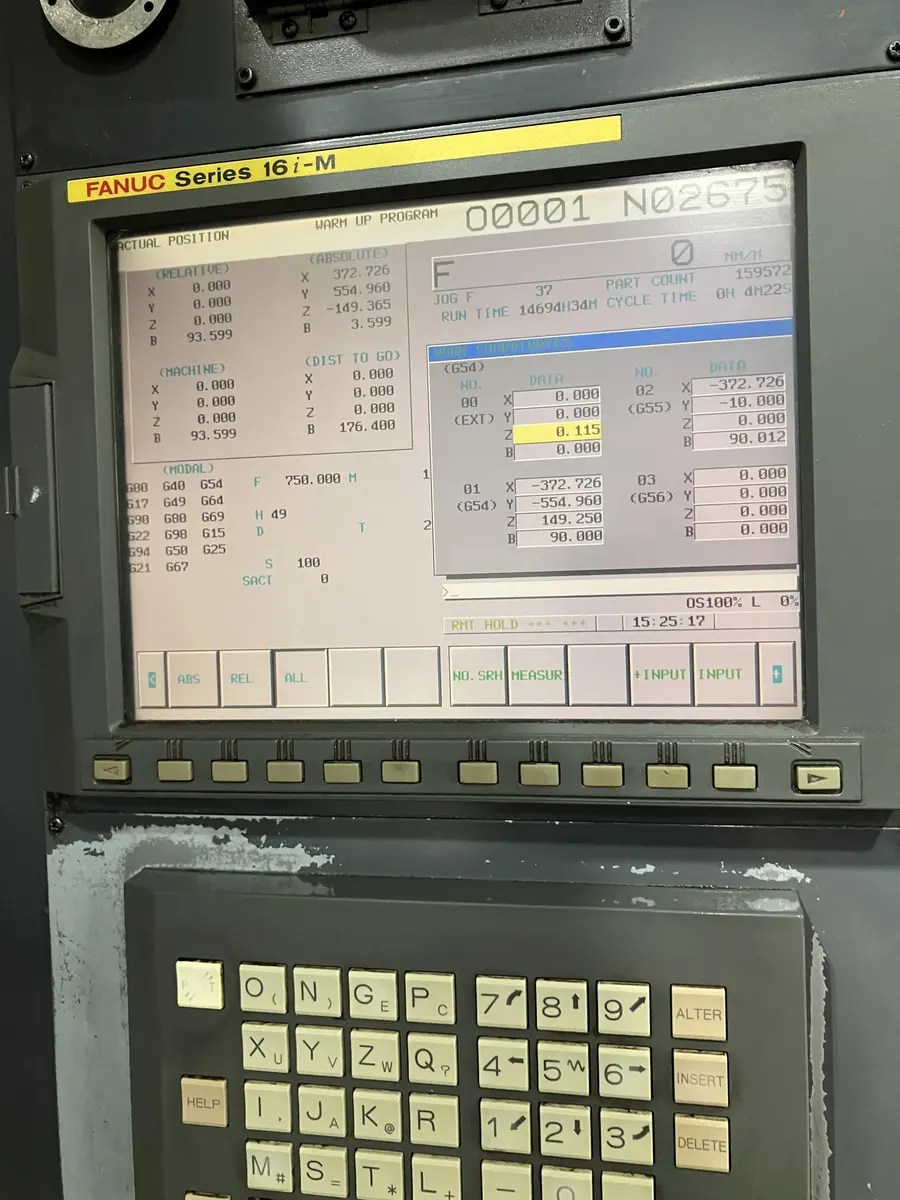

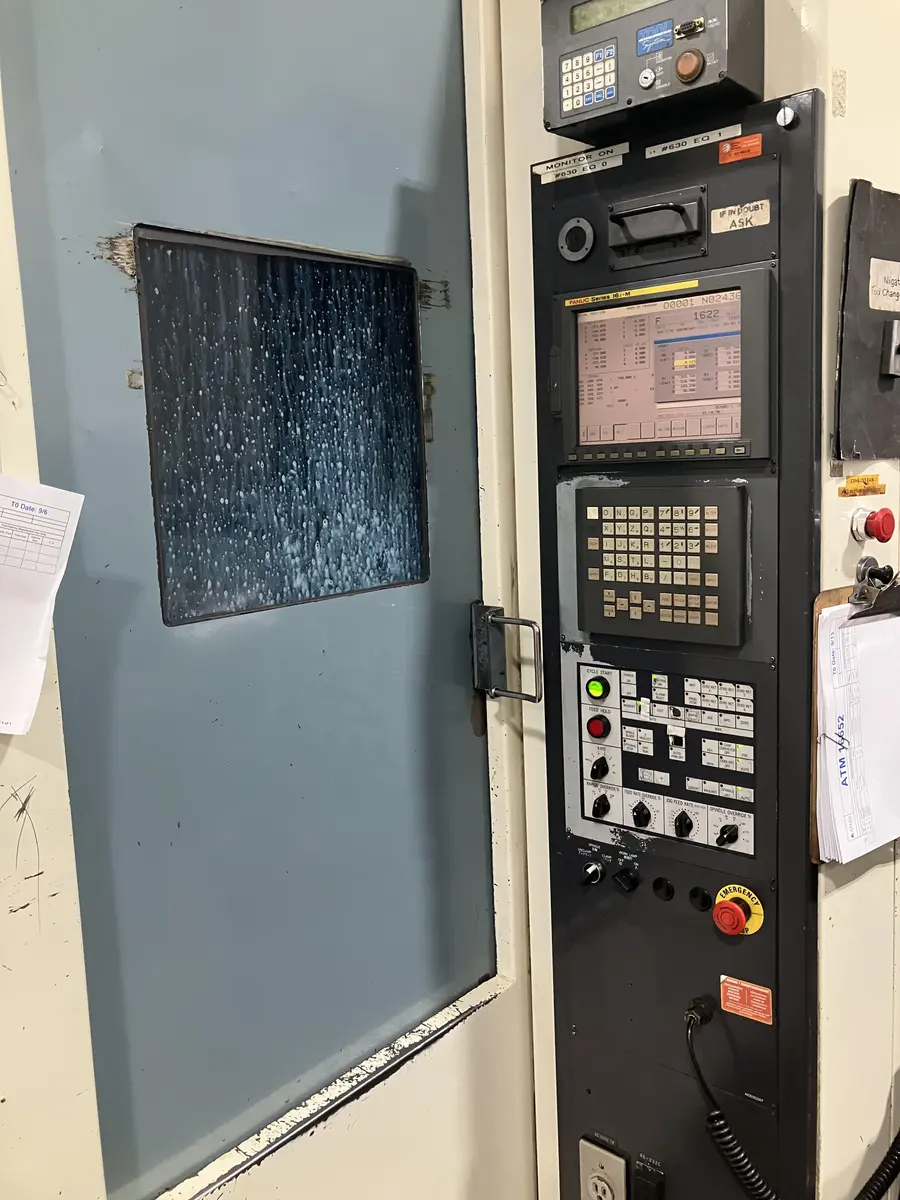

Fanuc 16im CNC CONTROL
4 Axis Machine
Graphic Display
14" LCD
Coolant Thru Spindle - High Pressure 1000 psi Hole Shooter
60 Tool Magazine
Rigid Tapping
Chip Conveyor
Tool Life Management
Niagara Flood Coolant
High Torque Spindle
Probing System
Tool Breakage Detection System
