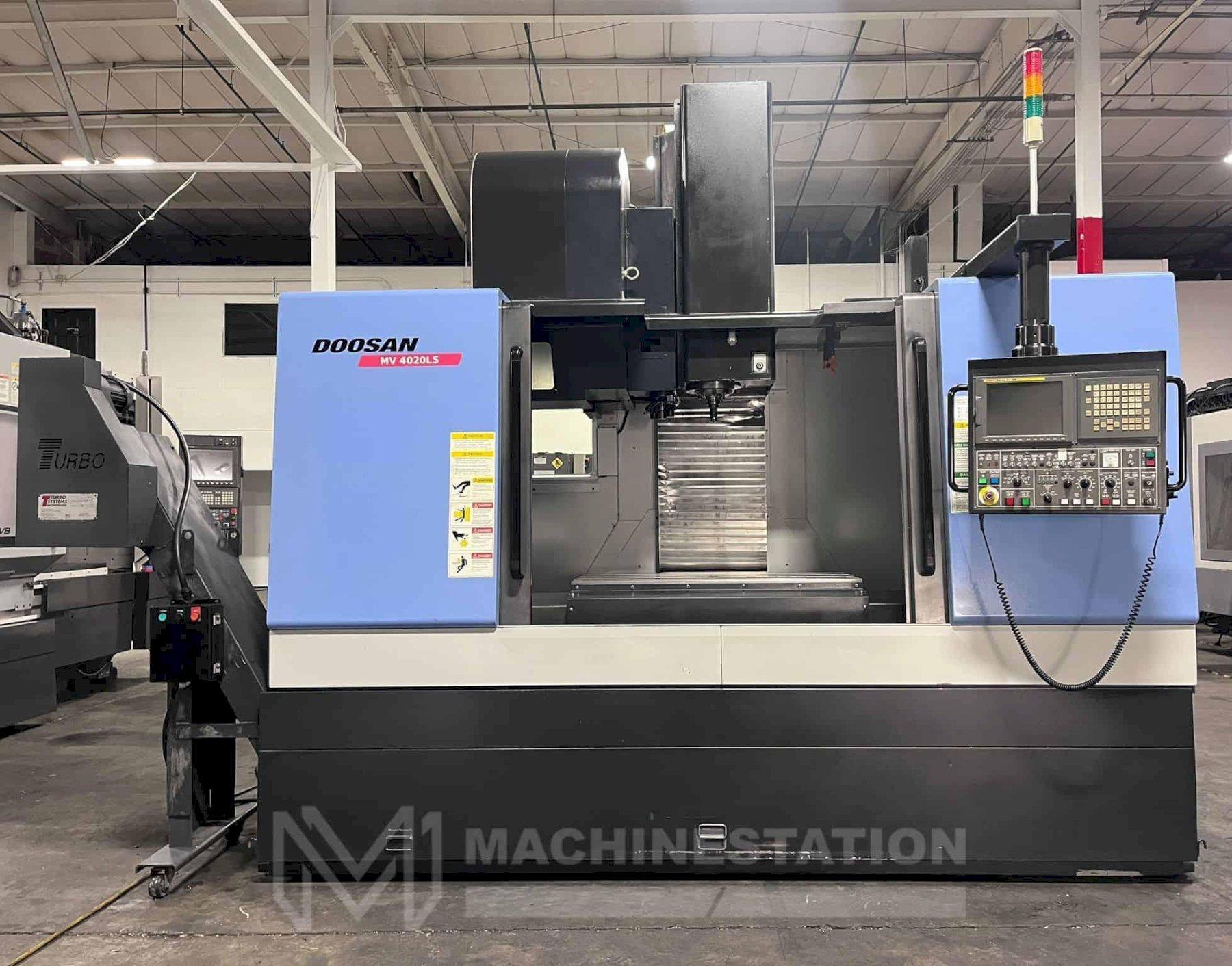

Doosan MV-4020LS CNC Vertical Machining Center – Mill

Doosan MV-4020LS CNC Vertical Machining Center – Mill

Brand

DOOSAN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

Make:	DOOSAN
Model:	MV-4020LS
Year:	2007
Condition:	Used – Good

Features:
Fanuc 21i-M CNC Control
15,000 RPM High Speed Spindle
30 Station Side Mounted Automatic tool changer
Through Spindle coolant
40 Taper Spindle
Powerful 25 HP High Torque Spindle Motor
Hand Wheel MPG Control
Rigid Tapping
Spindle Orientation
Fast Rapid Traverse Rate
PCMCIA Card Slot
Telescopic way covers
Profluid Coolant Filtration System
High Pressure Flood Coolant
Chip conveyor
Levelling Pads

Travels:
X-Axis: 40.2″
Y-Axis: 20.1″
Z-Axis: 24.6″
Rapid Traverse Rates : 1890 Inch Per Minute
Cutting Feed Rates: 945 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″

Table:
Length: 47.2″
Width: 19.7″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1760 Ibs

Spindle:
Spindle: Taper Size: 40
Speed Range: 15,000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Tool Weight: 17.6 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.81″
Tool Changing Time: 1.3 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 52.41 kva / 3-Phase
Overall Dimensions: 140″ x 100″ x 110″ High Approx.
Weight: 15,432 lbs. Approx.
