Okuma 2SP-250H Twin Spindle Twin Turret CNC Lathe, 2017 – Chip Conveyor, Robot Loader, Transformer, Inspection Reports from Gosiger

Max Turning Diameter: 8.66″ Max Turning Length: 5.91” Travel X-Axis: 5.91” Z-Axis: 6.10” Speed Range: 50-4500 rpm Turret Type: V12 NC Motor Spindle Drive: 15/10 hp

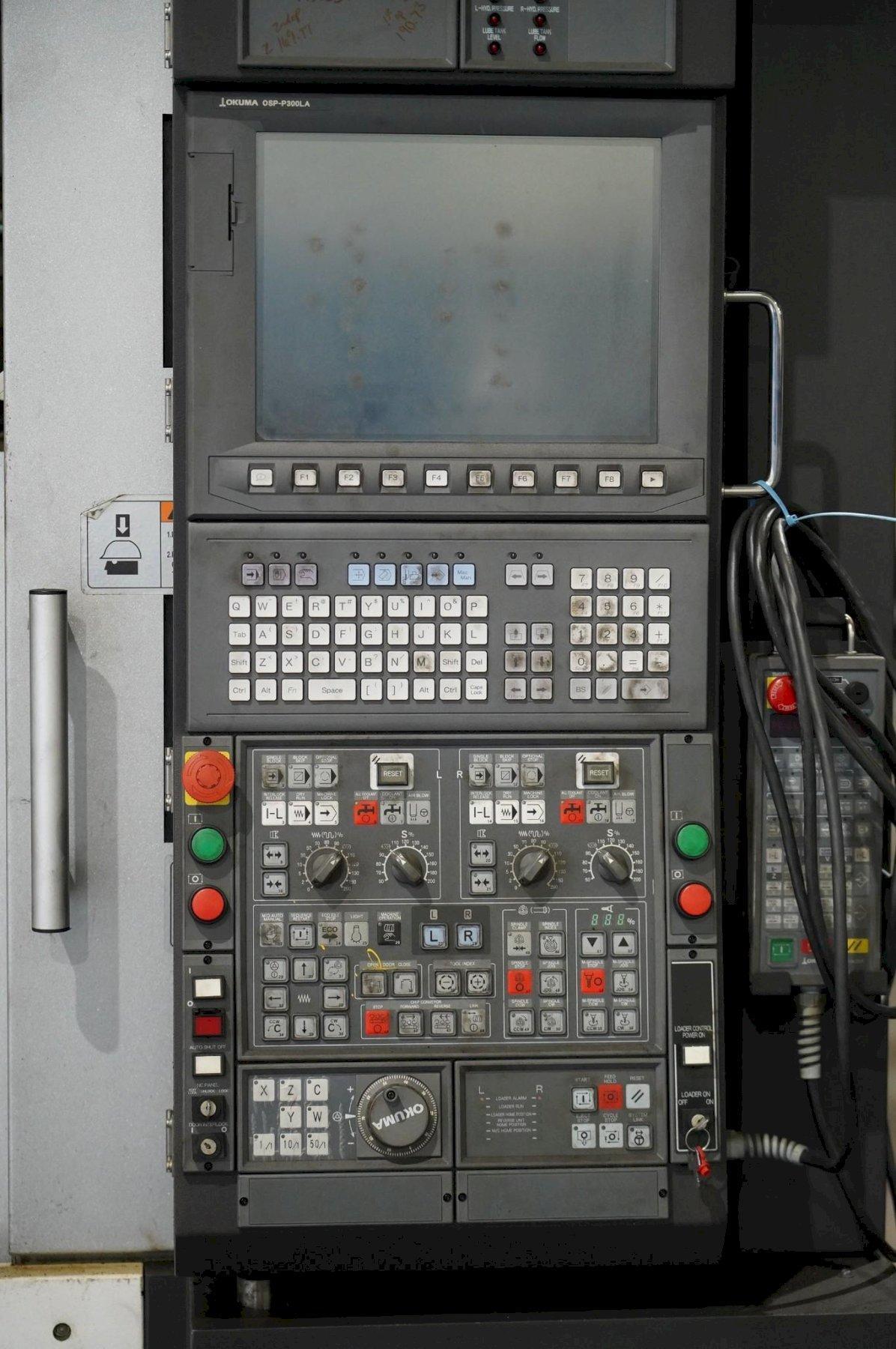

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Okuma OSP-P300LA Control Robot Loader Chip Conveyor Transformer 220/480, 3 Phase, 60 Hz, 55.1 kVA, Full Load Current 144.7 / 66.3 A, Largest Motor Rating 48 A, Interrupting Capacity 30 / 10 kA, SCCR of Control Panel 10 kA

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,**Have Inspection Reports from Gosiger**

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine powered on without any major alarms Had to set the coolant low input and air PSI input in order to move the axis Machine had a battery life alarm due to being out of service, backups performed The machine had a broken load cable track on top and was missing the chucks R-L side Axis and spindle operate normally Loader axis operate normally Machine was test without stocker table installed and appears that when it was in operation the parts were placed on a conveyor. inbound outbound.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
