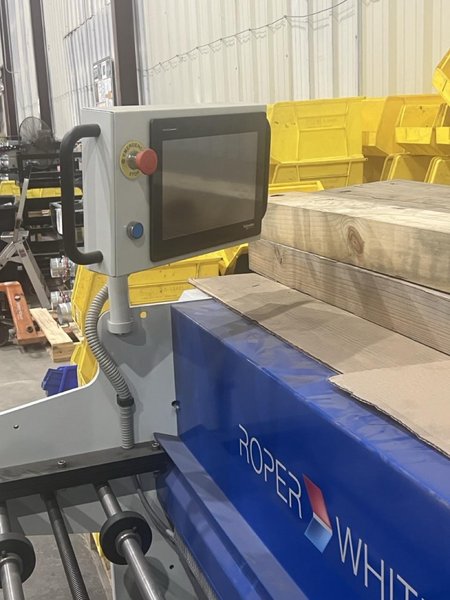

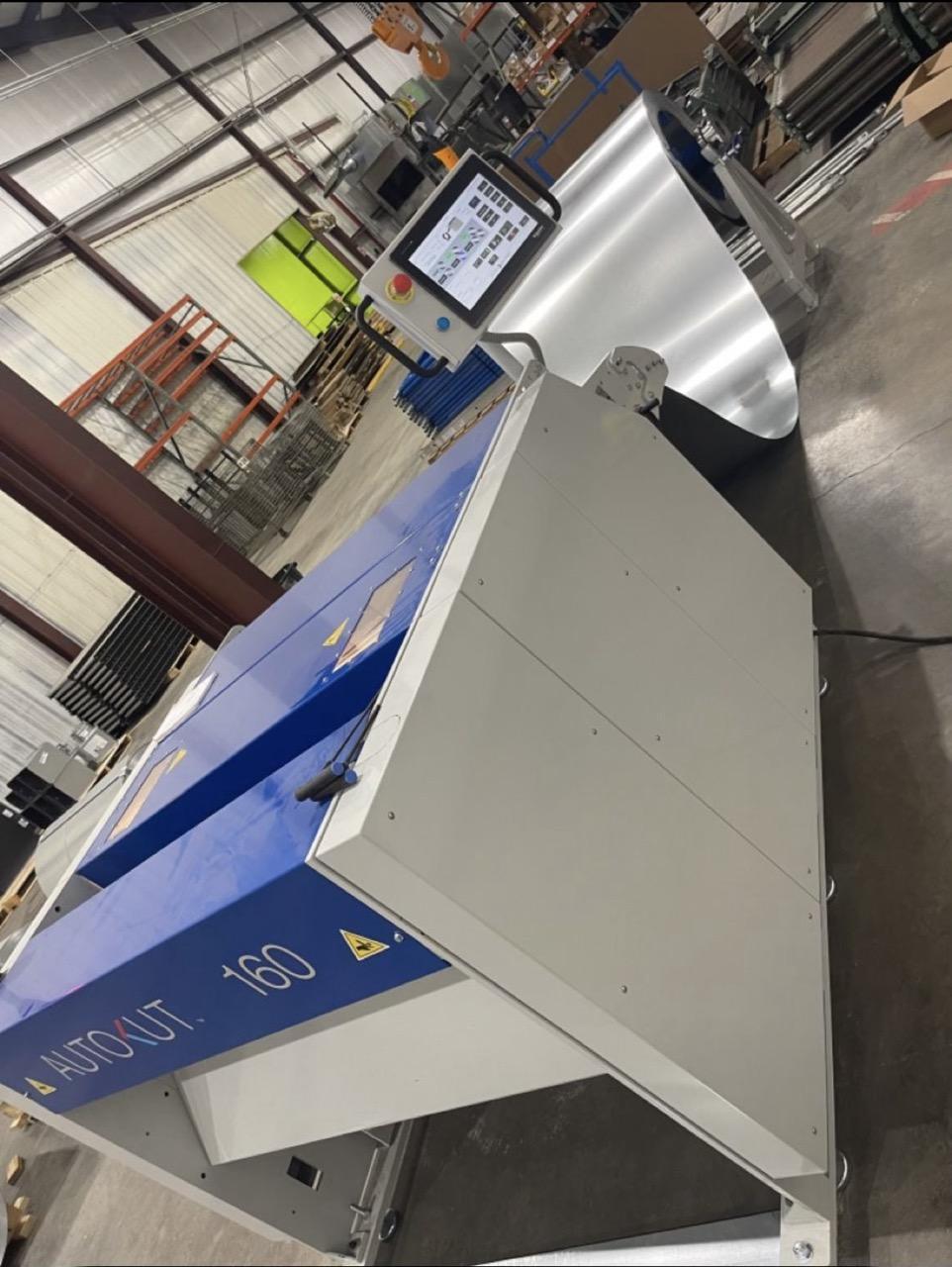

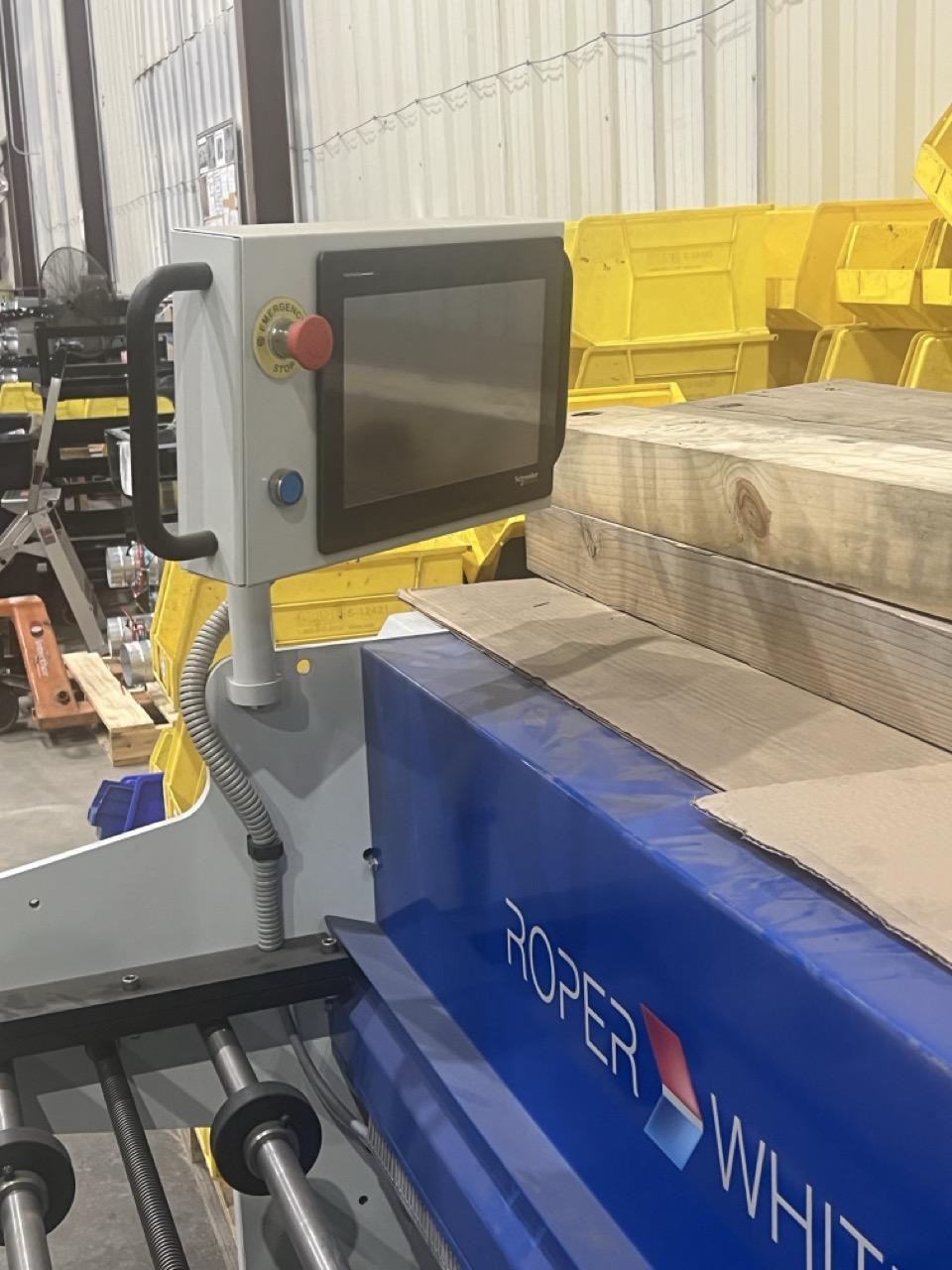

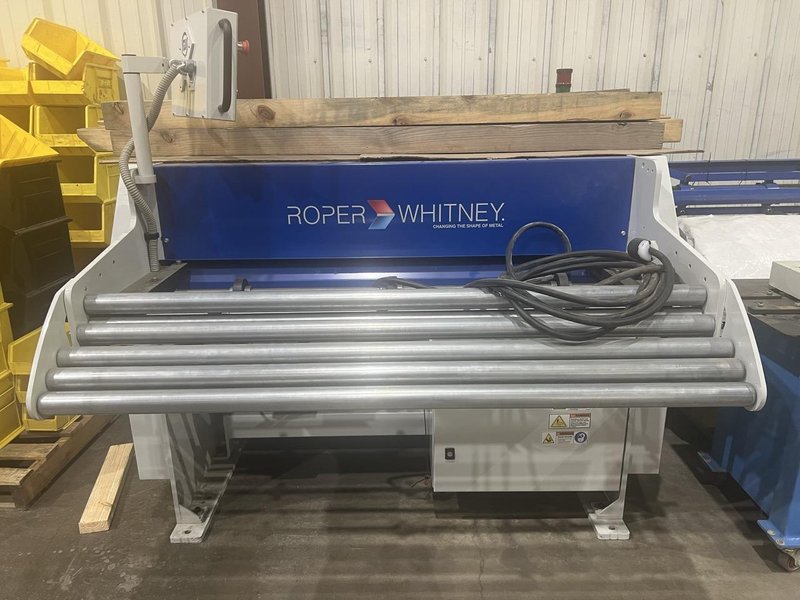

Roper Whitney Autokut 160 Coil Slitter, 2022 – Coil 20GA G90 x 48″
Brand
Category
Type
Model
Autokut 160
Stock #
843208
Year
2022
Condition
Not specified
Location
Not specified
|
Maximum Slitting Capacity:
Mild Steel: 16″
Stainless Steel: 20″
Aluminum: .080″
Maximum Blanking Capacity:
Mild Steel: 14″
Stainless Steel: 18″
Aluminum: .125″
Maximum Material Width: 49.25″
Minimum Material Width: 8″
Number of Straightening Rolls: 5
Minimum Slit Width: 2 3/8″
Minimum Edge Trim: 1/4″
Number of Slitting Knives: 5
Drive Motor: 4 HP/ 3KW
Slitting Speed Variable: 115 FPM / 35MPM
Guillotine Motor: 3HP / 2.2KW
Dimensions: 72″ x 66″ x 46″
Weight: 4,410 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: 5000 COIL 20GA G90 X 48” All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
