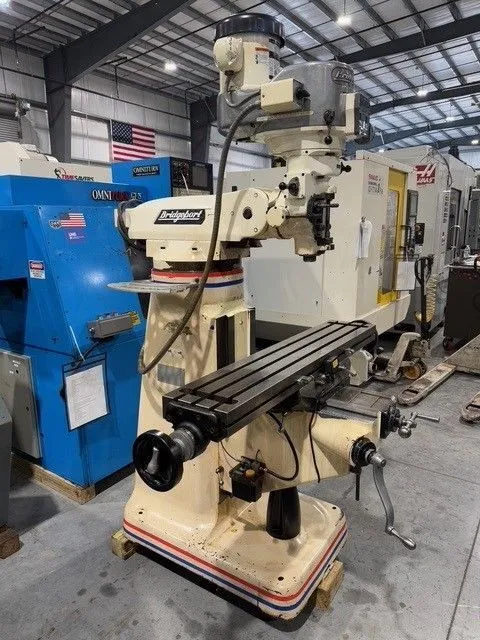

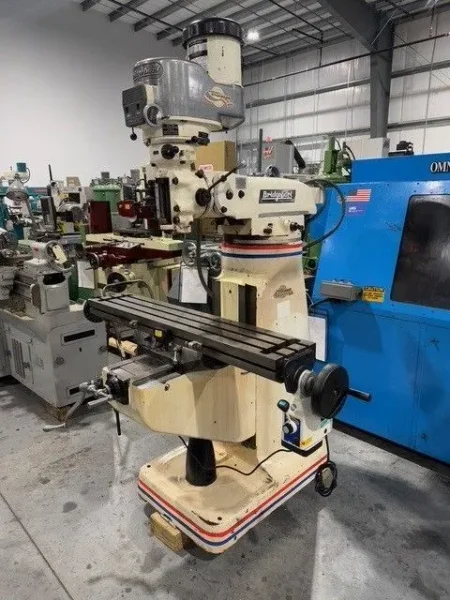

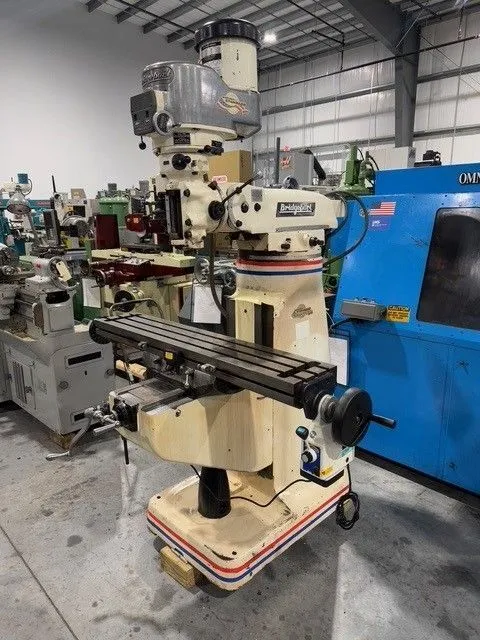

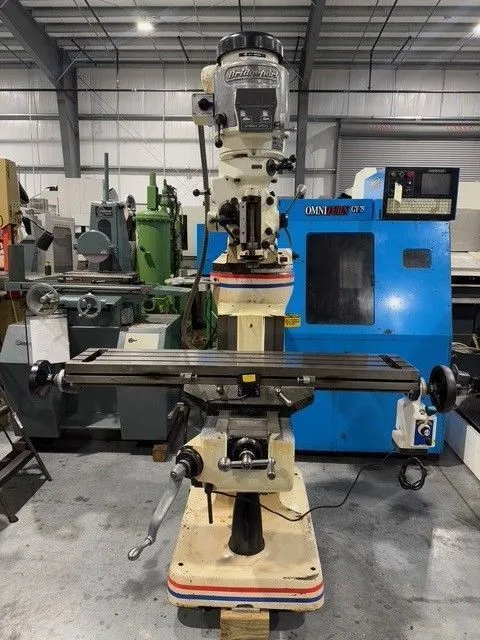

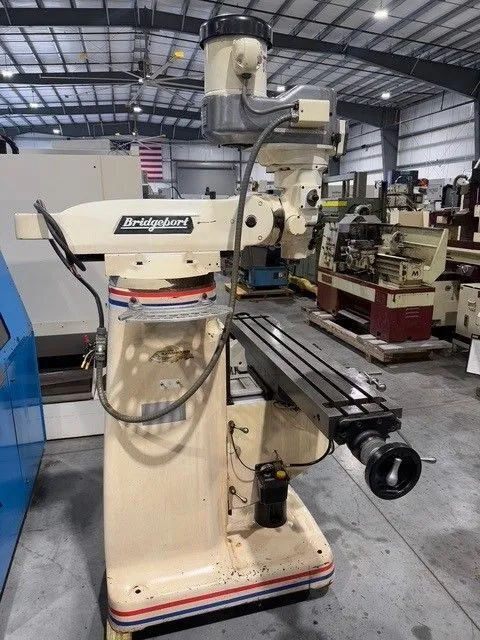

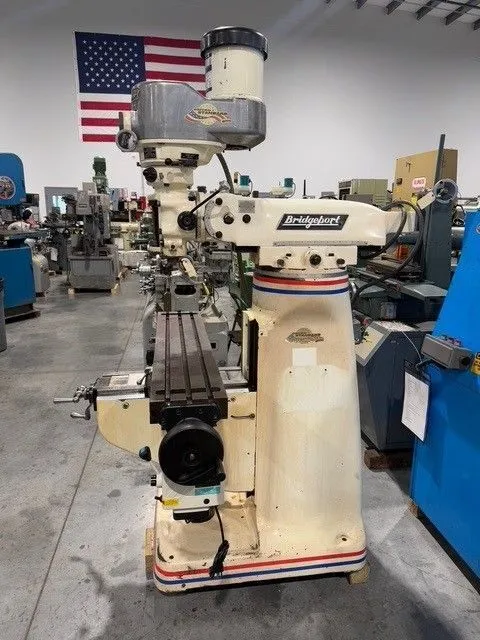

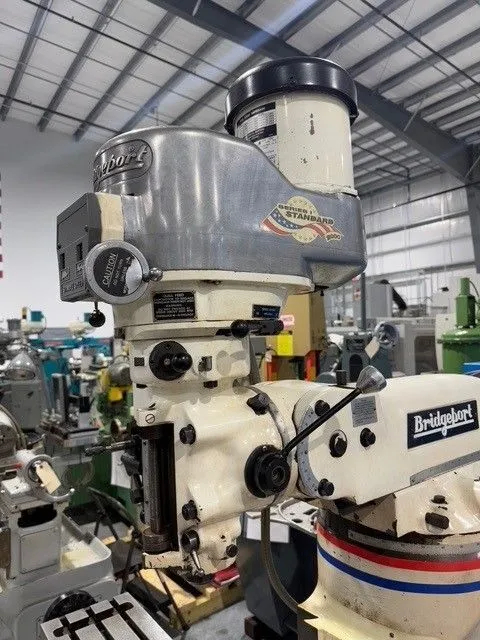

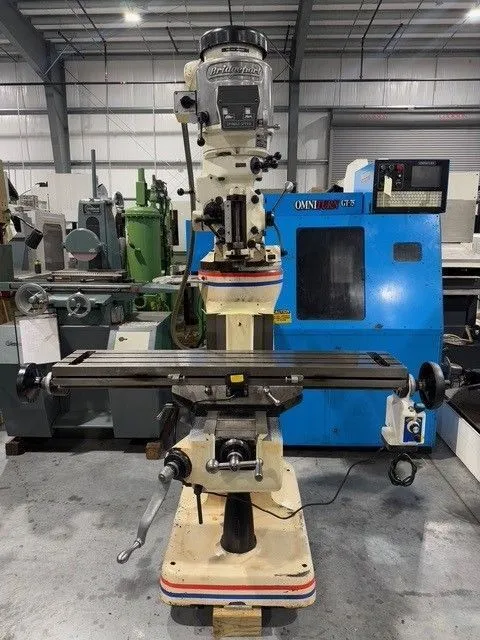

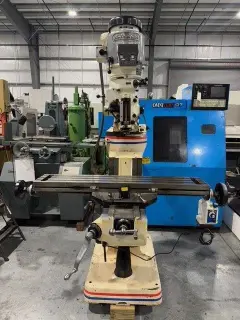

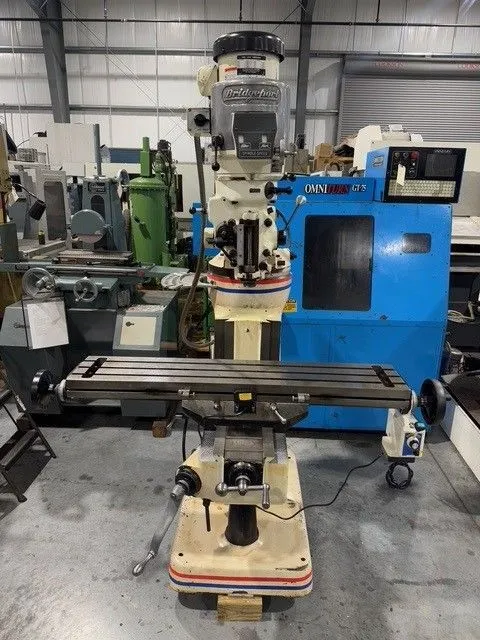

BRIDGEPORT Series 1 Vertical Milling Machine “2000 Special Edition” USA #7277
Stock # 7277
Model # Series 1 “2000 Special Edition”
Serial # 281916
Year of manufacture- 2000’

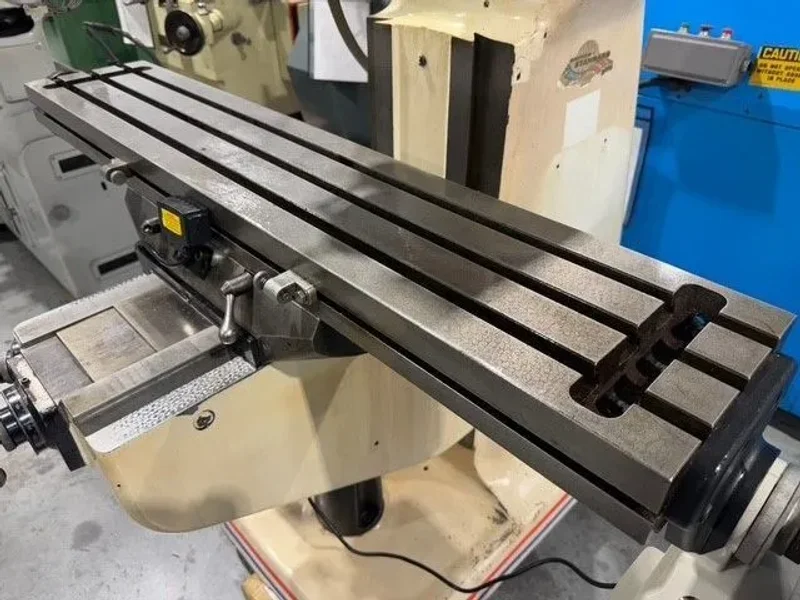

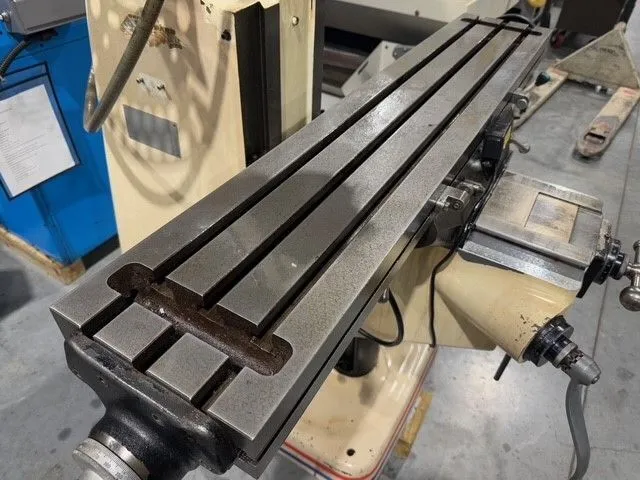

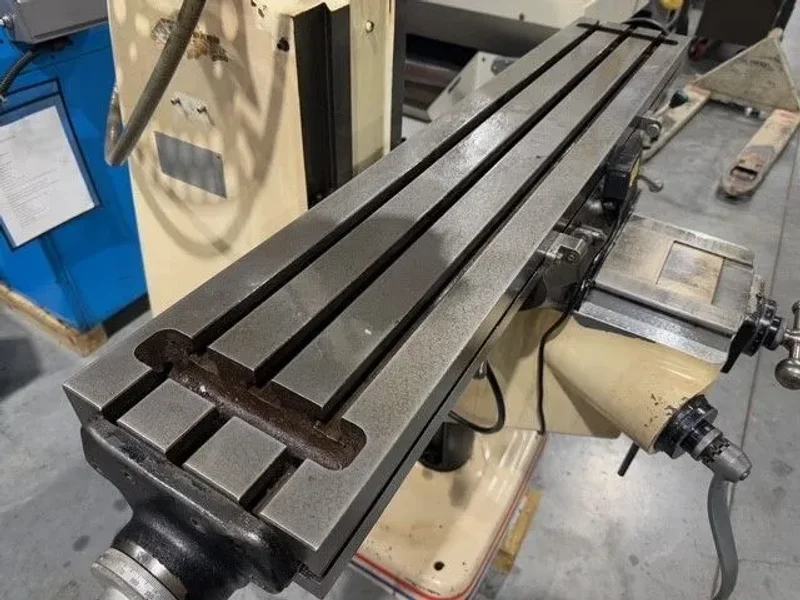

Table working surface- 9“ x 48”
Number of t-slots- 3
Ranges-
Longitudinal- 32-1/2”
Cross- 12”
Vertical, knee- 16”
Quill-5”
Maximum/Minimum distance, spindle nose to top of table- 18.5"/2.5"
Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75"
Ram travel- 12”

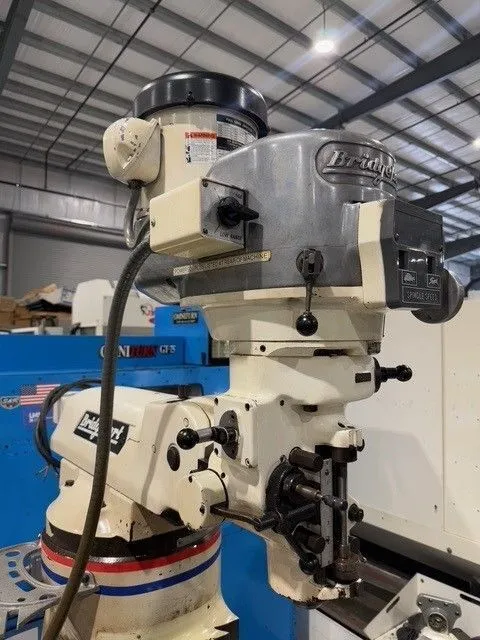

Head tilt, left & right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
Turret rotation- 360 degrees

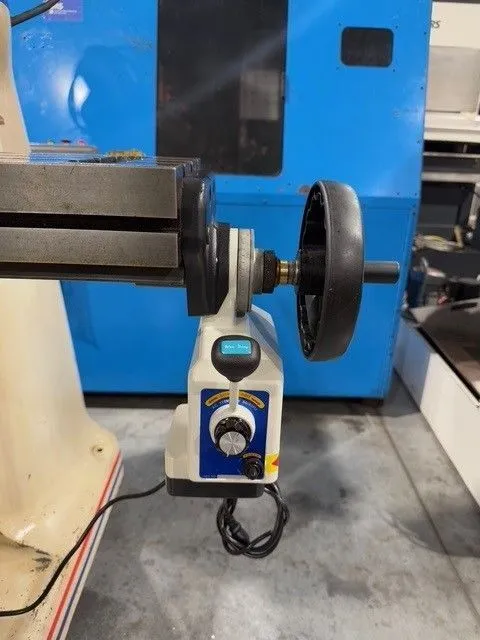

(3) Power quill feeds- - .0015, .003, .006 I.P.R.

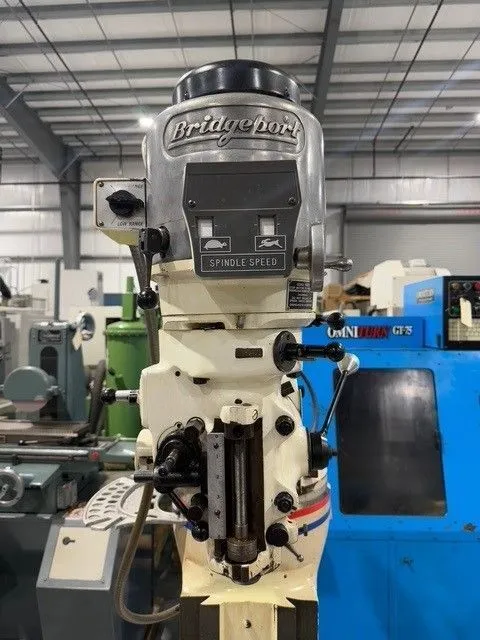

Infinitely variable spindle speeds, two ranges- 60-4,200 R.P.M
Spindle taper- R-8
Maximum collet capacity- ¾”
