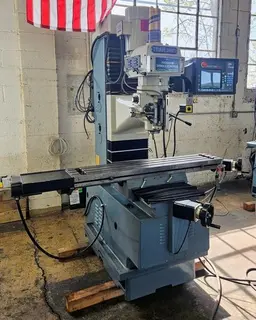

Southwestern Industries DPM SX3P (2013) Prototrak SMX CNC Control
Brand
Category
Type
Model
TRAK DPM SX3P
Stock #
104306
Year
2013
Condition
Used
Location
Not specified
|
https://youtu.be/qUjJQx7DfnI?si=TR1qMtLiUrL3Do55 Machine Specifications•Table Size – 50” x 10”
•T-Slots (number x width x pitch) - 3 x .63" x 2.48"
•Travel (X, Y, Z axis) - 31 x 17 x 23.5"
•Quill Diameter - 3 15/16"
•Maximum Quill Travel - 5”
•Spindle Taper - NMTB 40
•Spindle Speed Range - 40-600, 300-5000
•Spindle Center to Column Face - 19”
•Spindle Motor Power – 5 HP
•Power requirements, control - 110V; 1P; 10A
•Power requirements - 220V;3P; 17.5A
•Maximum Weight of Workpiece - 1320 lbs.
•Height of table from bottom of bed - 38”
•Max spindle nose to table – 23.5”
•Min height - 85”
•Max height - 95”
•Width of machine including table - 73”
•Length with electric box door closed - 66”
•Overall width incl full table traverse - 108”
•Overall length with electrical door open - 76”
•Footprint of Machine - 24” x 44”
•Weight net / shipping lbs. - 4100 / 4400
•Rapid traverse X, Y, Z - 150 IPM Machine shown with
•Auto Lube Pump additional options
•Precision ground ballscrews in the table, saddle and ram
•Chrome hardened and ground quill
•Meehanite castings
•Slide ways are Turcite coated
•Wide way surfaces are hardened and ground
•Drilling max capacity - 1”
•Milling max capacity - 5 inch³/min
•Tapping max capacity – 1 - 8
Equipped With:
ProtoTRAK SMX CNC Control Power Draw Bar Programmable E Head Networking Advance features with Verify Traking/E handwheels DXF Files Parasolid X_T |
