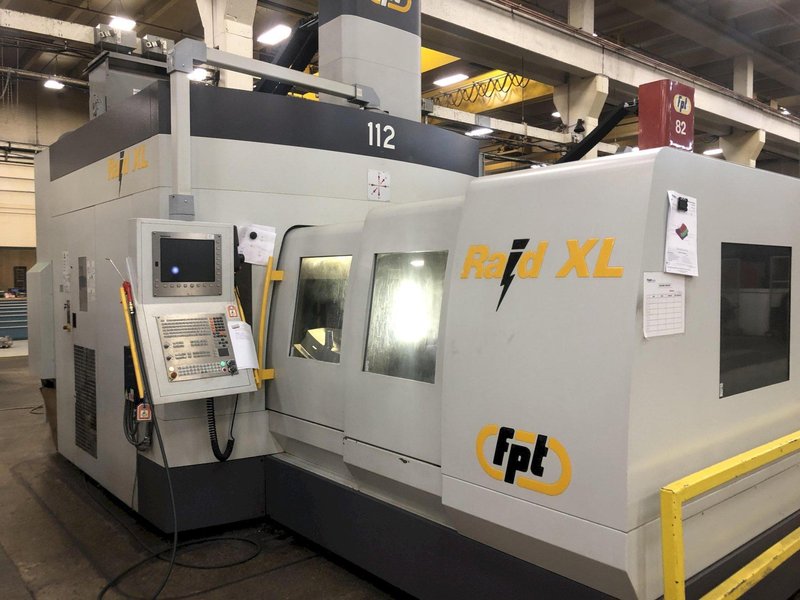

FPT Raid XL-3 Double Column Vertical Machining Center
Brand
Category
Model
Raid XL-3
Stock #
Not specified
Year
2017
Condition
Excellent
Location
Michigan
|
X........................78.8"
Y.........................63"
Z........................32"
Spindle Motor.......24 hp
Spindle Speed......18,000 RPM
Spindle Taper........HSK-A-63
Table Size............43" x 78"
Tool Changer .......30 ATC
Equipped With:
Heidenhain 620 Series CNC Control
Tool Measurement Laser
30 Tool Magazine
Spindle Chiller
Step Down Transformer
Hand Pendant w/ MPG & E-Stop PB
Variable Coolant (w/ Inverter)
Dual Chip Augers w/ Lift up
Conveyor Exit to the Right
Air/Oil Mist (Acculube)
Through Spindle Air Blow
Through Spindle Coolant
Installed Early 2017 |
