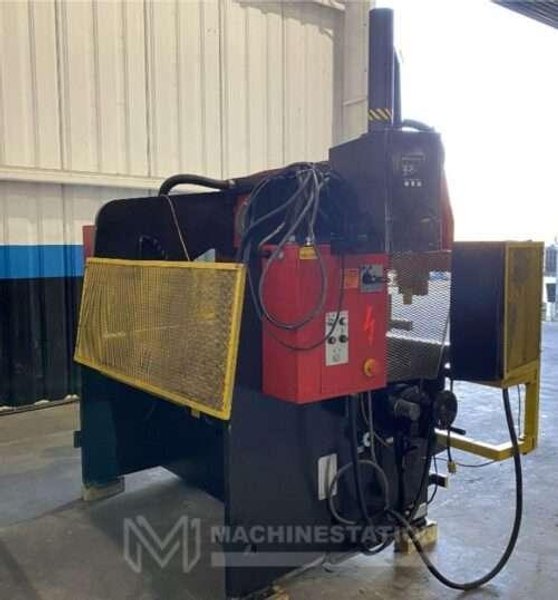

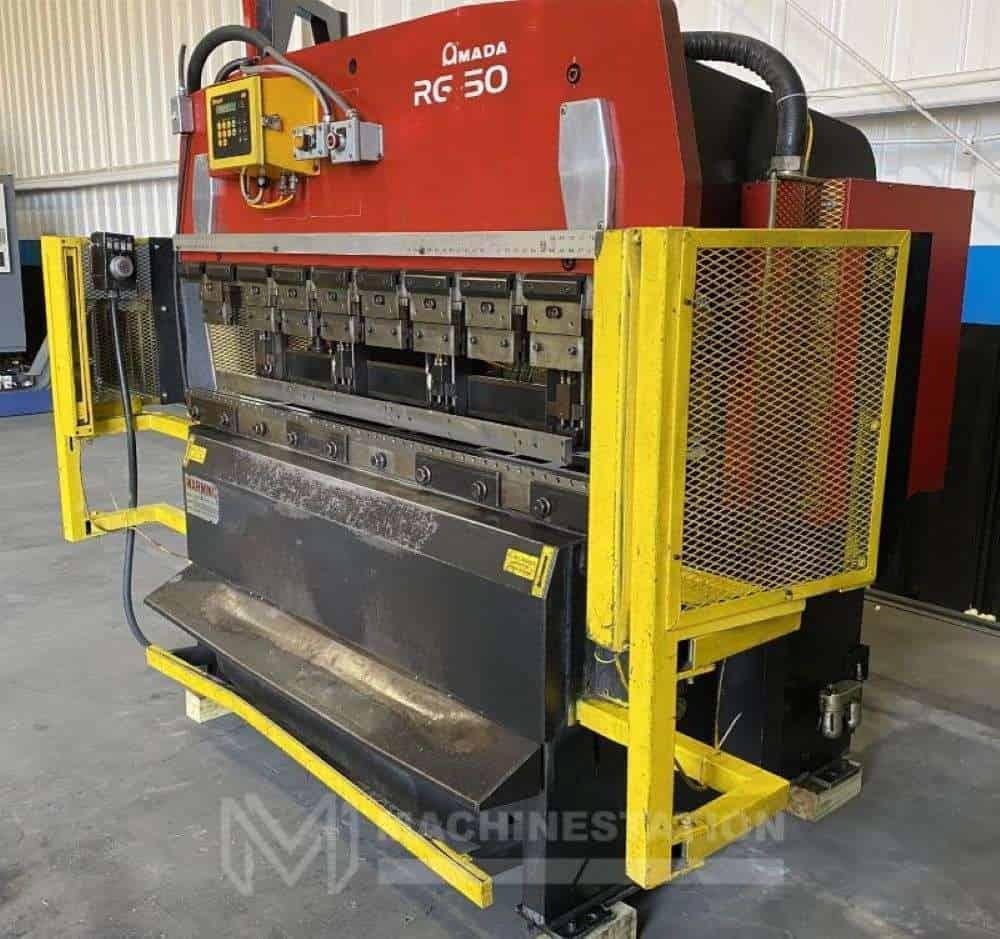

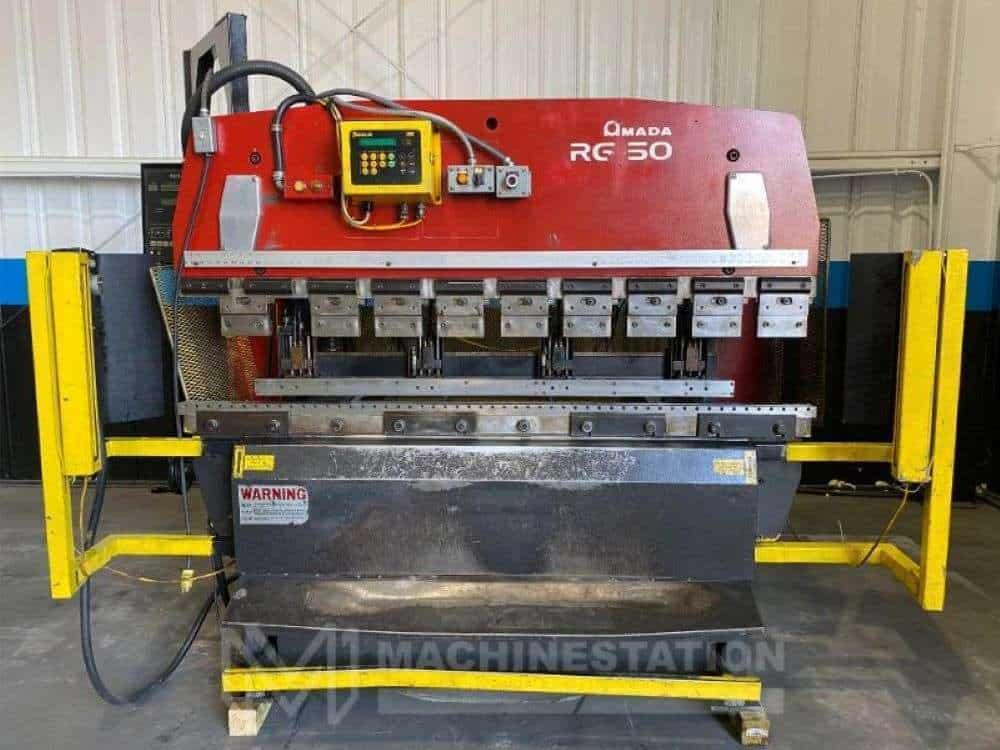

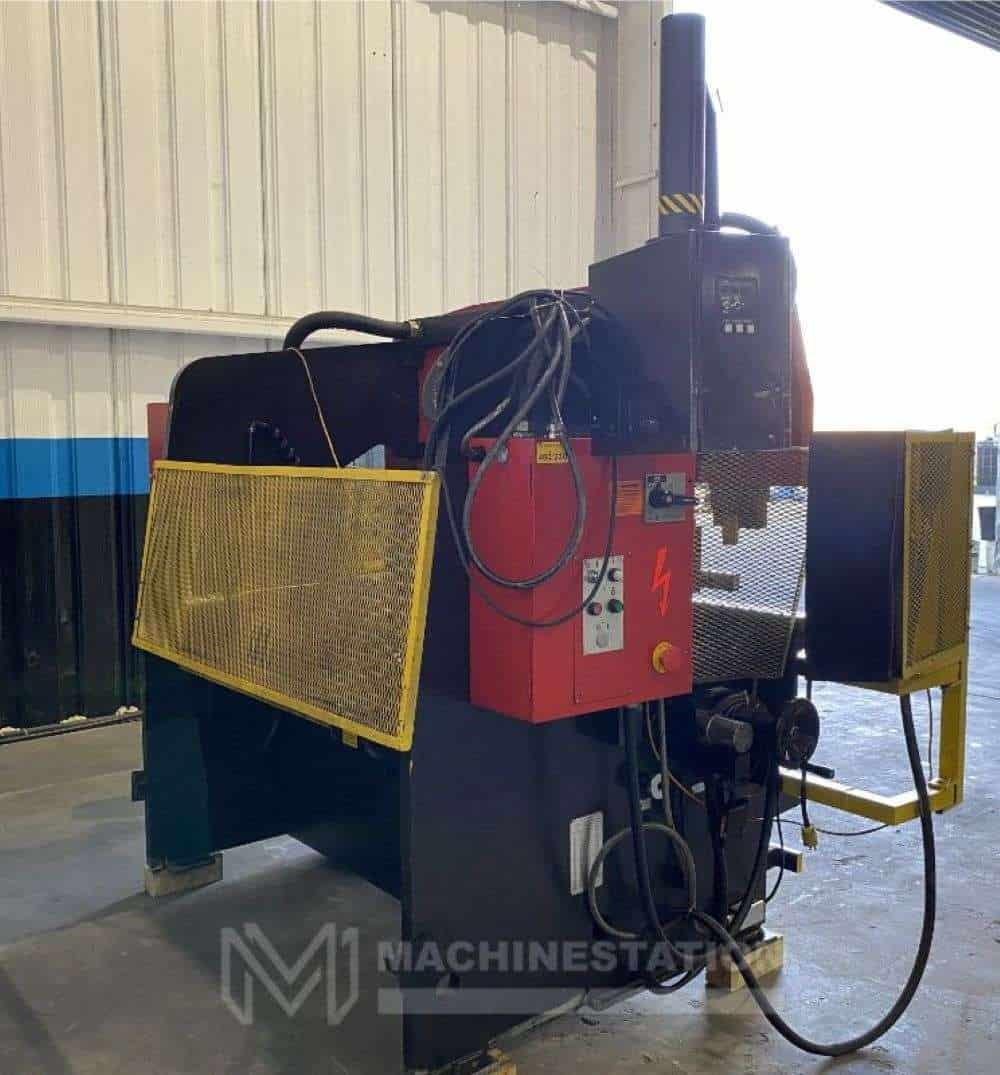

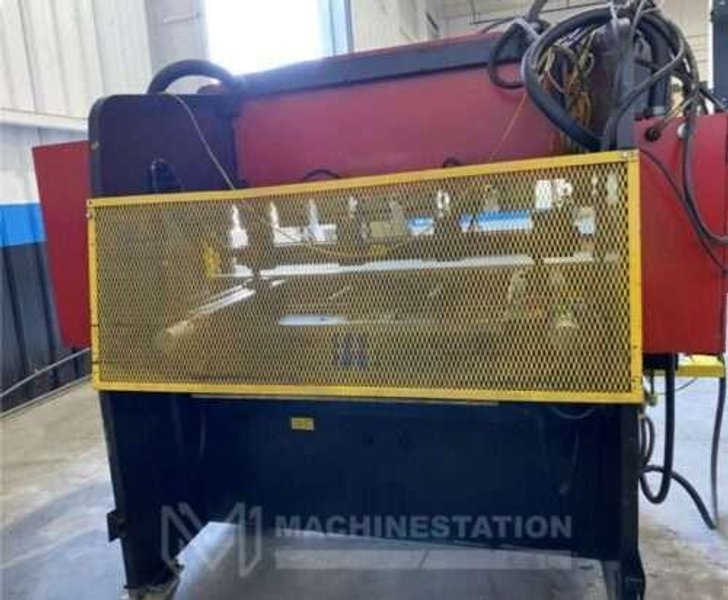

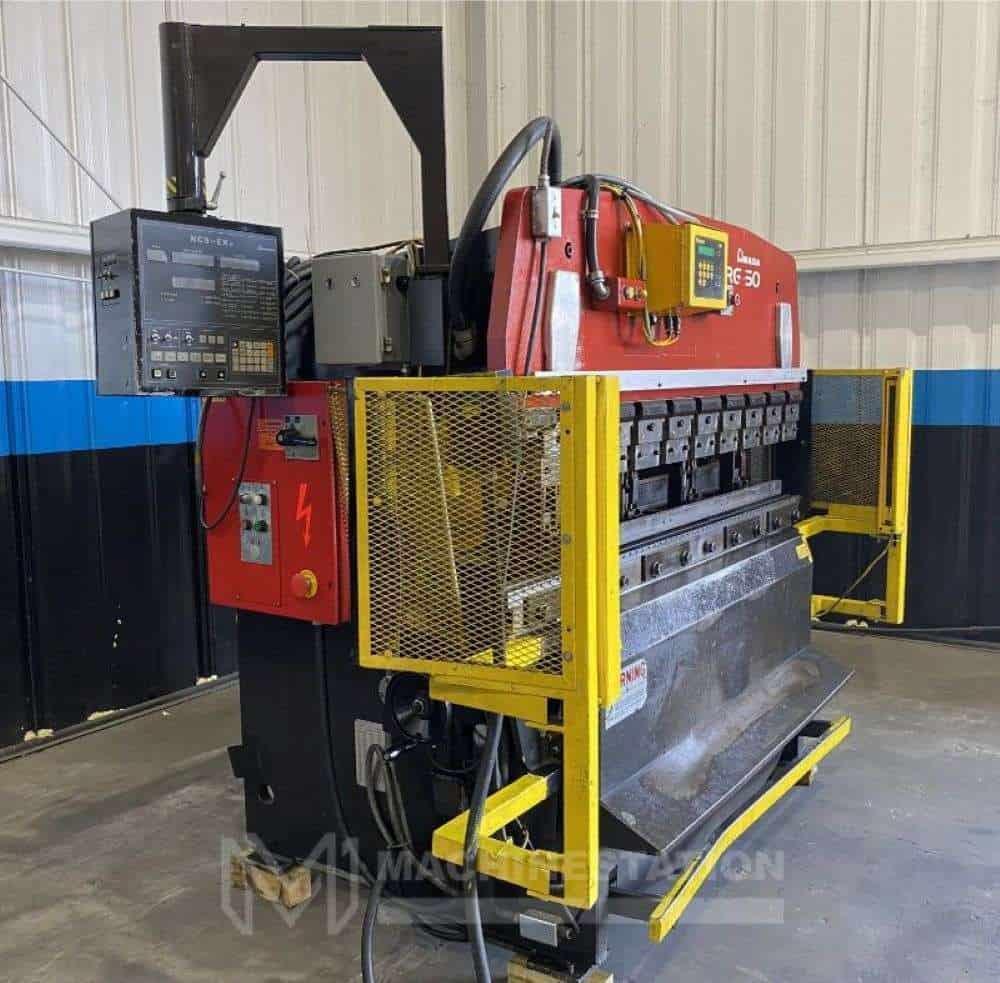

Amada RG-50 CNC Press Brake

Name: Used AMADA Amada RG-50 For Sale 112582
Brand: AMADA
SKU: 112582
Availability: PreOrder

Brand

AMADA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112582
Make:	Amada
Model:	RG50
Condition:	Used – Good

Features:

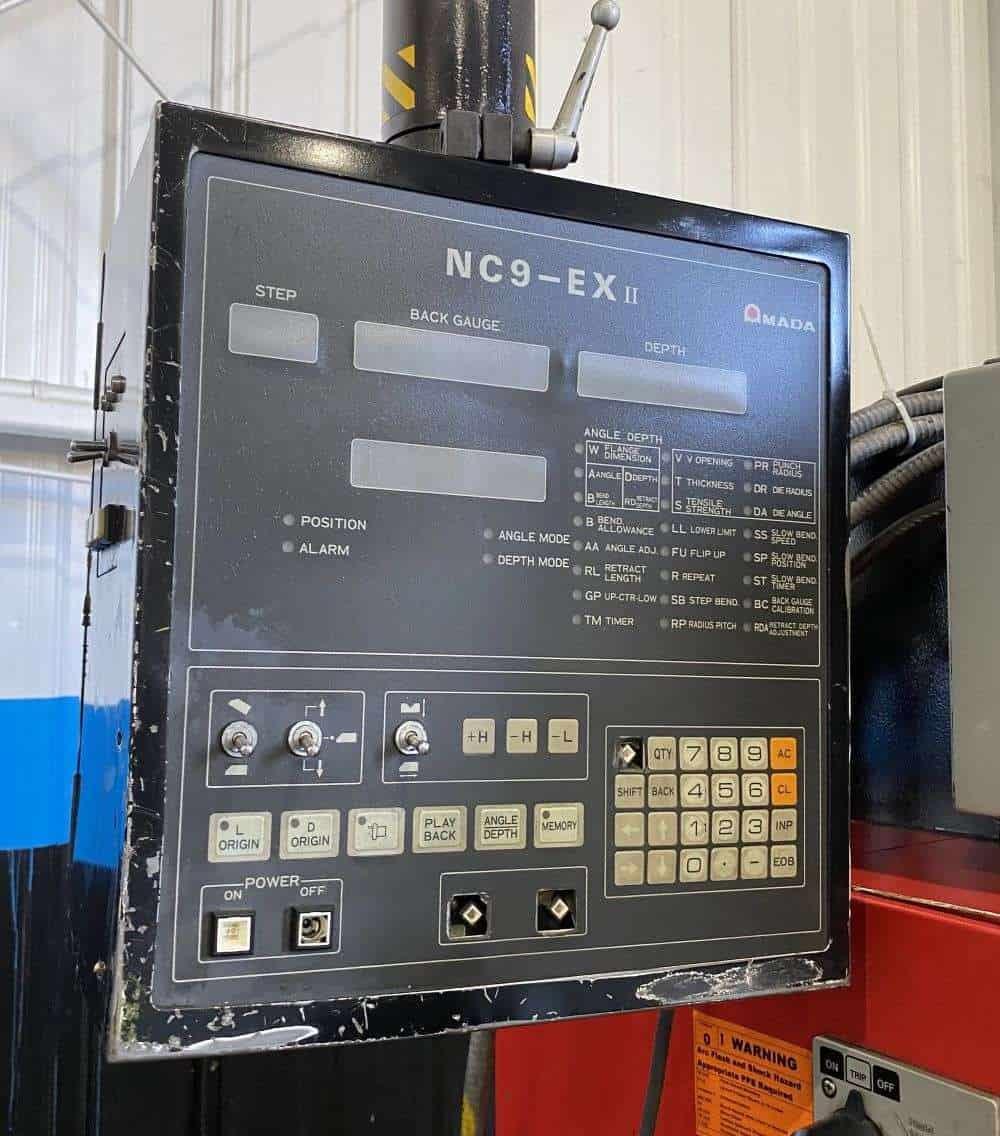

NC9-EXII CNC Control
Back Gauge
Remote Handwheel Depth Control

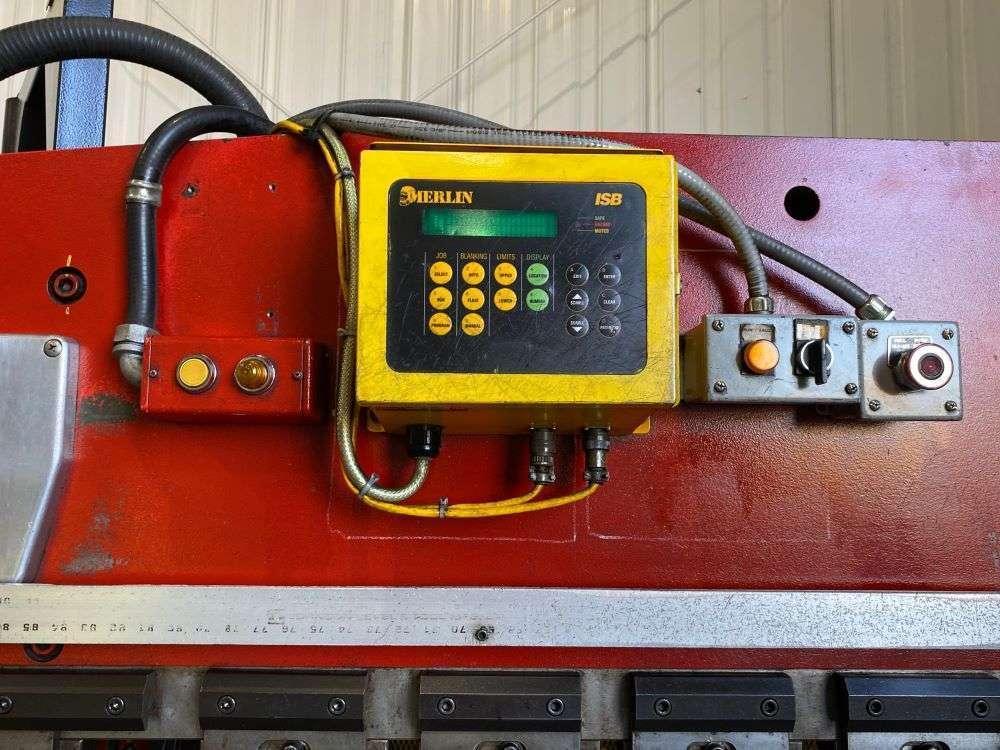

ISB Laser Safety System
Pneumatic Fingers
Foot Treadle
Pressure Gauge

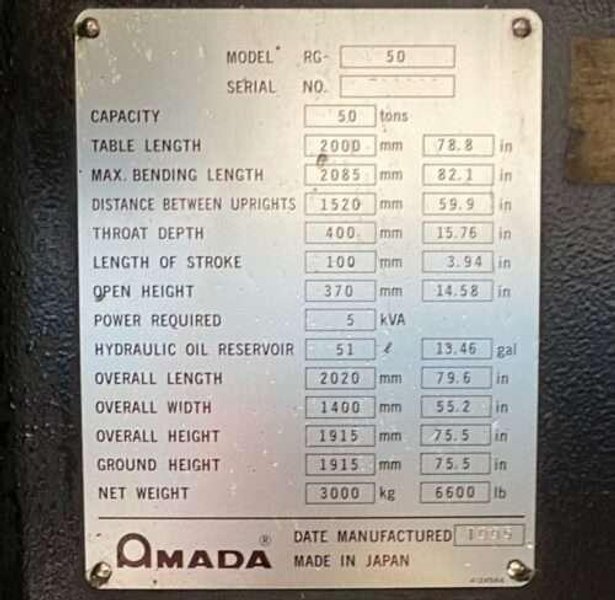

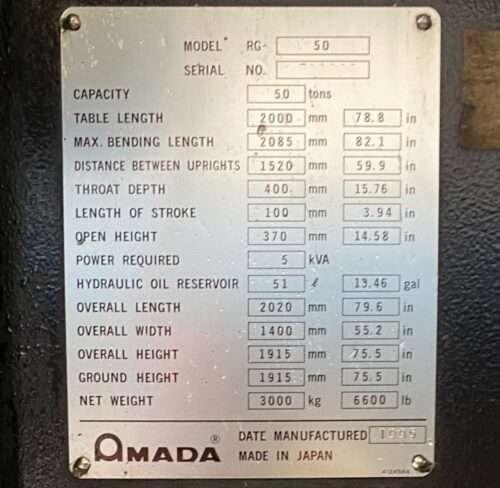

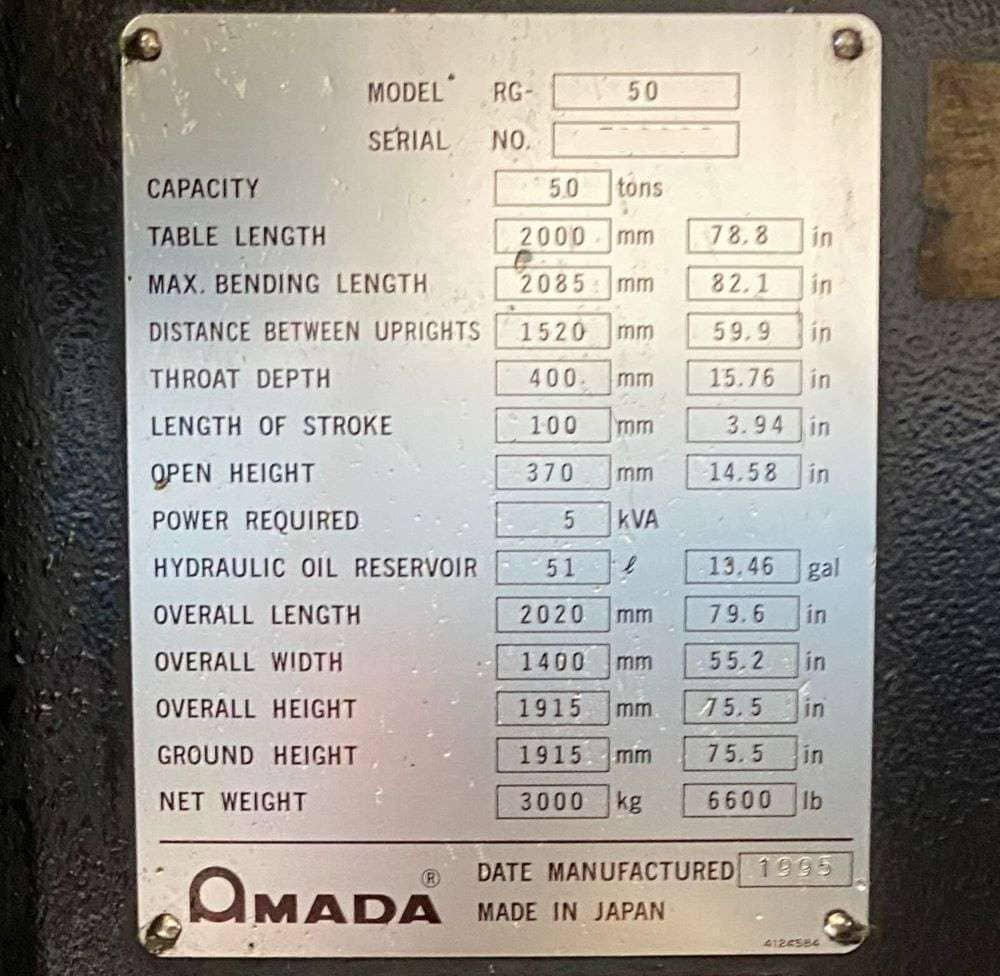

Specifications:
Capacity: 50 Ton
Table Length : 78.8″
Maximum Bending Length: 82.1″
Distance Between Uprights: 59.9″
Length of Stroke: 3.94″
Open Height: 14.58″
Shut Height: 10.67″
Throat Depth: 15.76″
Approach Speed: 2.04” Per Second
Bending Speed: 0.39” Per Second
Return Speed: 2.32” Per Second

General:

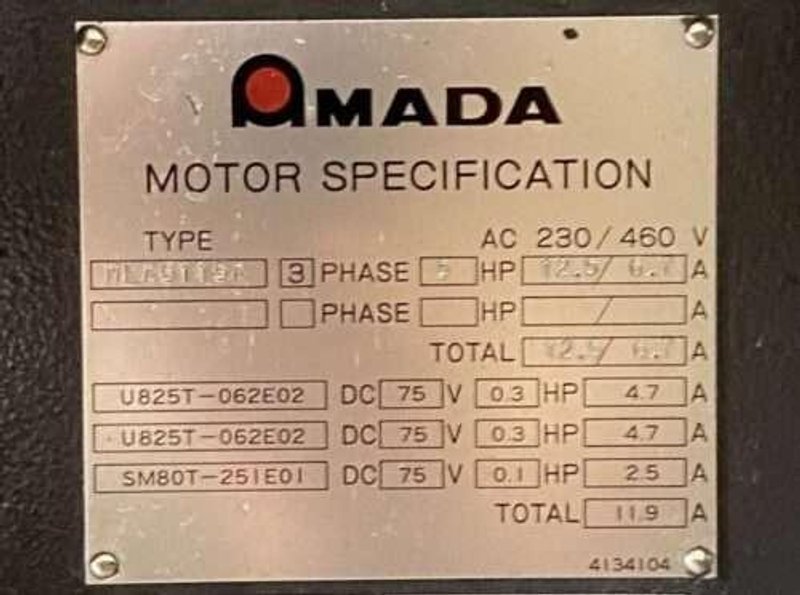

Power Source: AC 460 V, Three Phase, 60 Hz
Power Requirement: 5 KVA
Overall Dimensions: 79.6″ X 55.2″ x 75.5″ High
Weight : 6,600 lbs Approx.

If you’re in search of a press break machine then this is one of the best products out there for you. Amada RG-50 is a press brake machine with a capacity of 50 tons, a bending length of 82.1 inches, and a table length of 78.8 inches. The distance between the uprights of the machine is 59.9 inches. Amada Rg50 also has an approach speed of 106 inches per minute, a bending speed of 2 to 19 inches per minute, and a return speed of 122 inches per minute. The machine’s weight is around 6,600 lbs.

Amada RG50 also offers you a back gauge feature that helps in the accurate positioning of the workpiece which further helps in consistent bending results. The NC9-EXII CNC Control system of this press brake machine allows you good control over the machining process which helps in getting more accurate product results. The foot treadle feature of the machine helps you with hands free operation, which helps in improving the overall efficiency during the bending process. The pressure gauge feature of the Amada RG50 helps in monitoring hydraulic pressure and ensuring optimal performance of the machine and good safety levels too.
