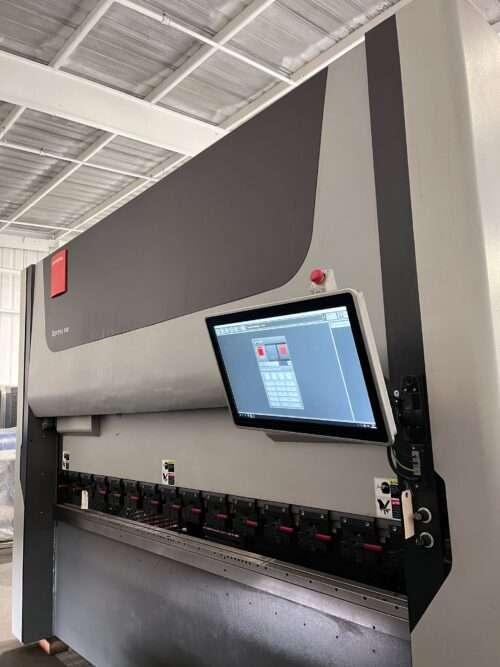

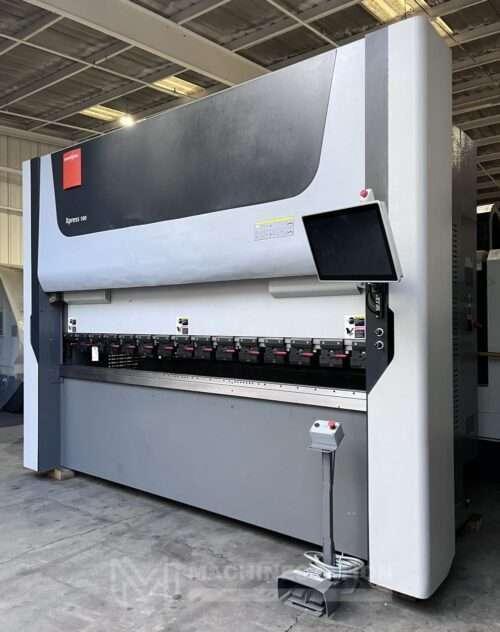

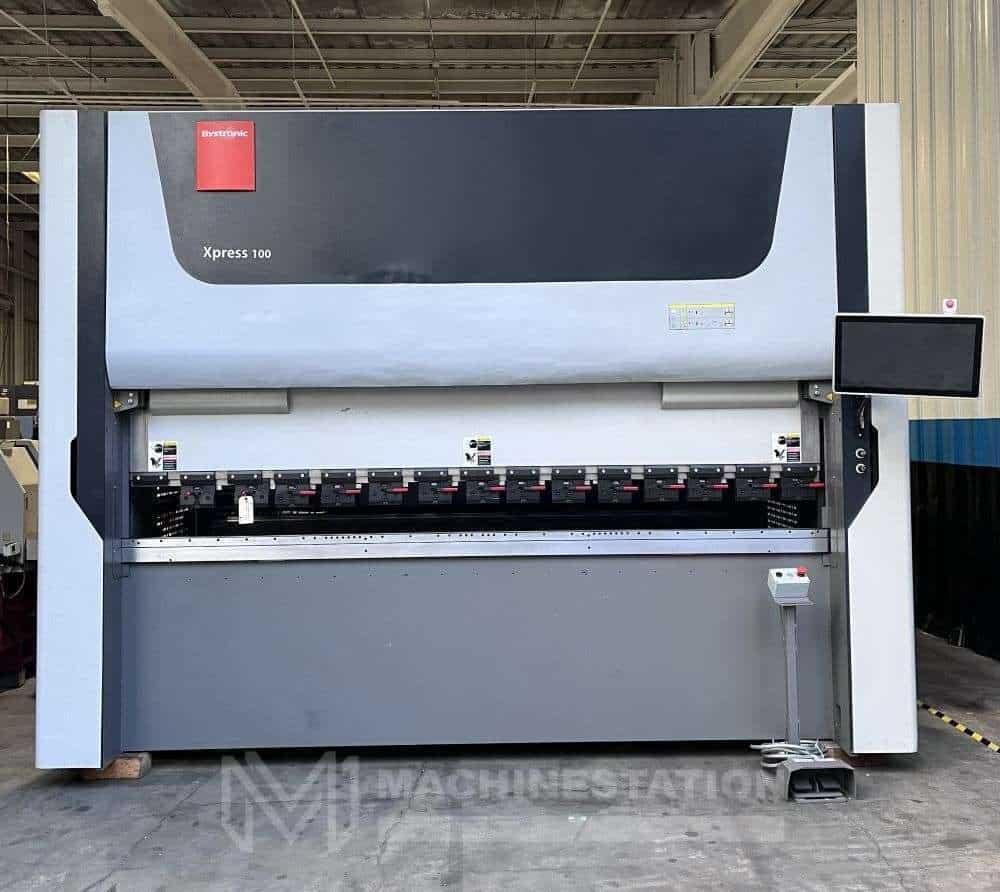

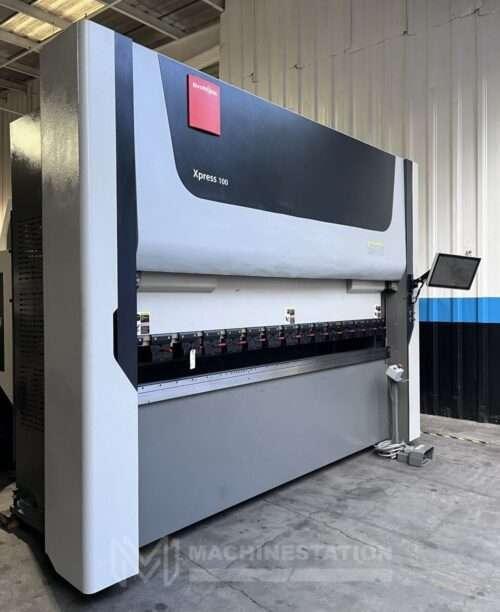

Bystronic Xpress 100/3100 CNC Press Brake – 2022

Brand
BYSTRONIC
Category
CNC, Metalworking & Manufacturing
Type
Press Brakes
Model
Xpress 100/3100
Stock #
112673
Year
112673
Condition
Not specified
Location
Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 112673
Make: Bystronic
Model: Xpress 100/3100
Condition: Used – Excellent



Features:

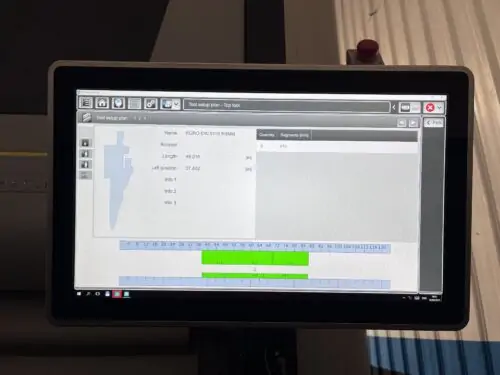

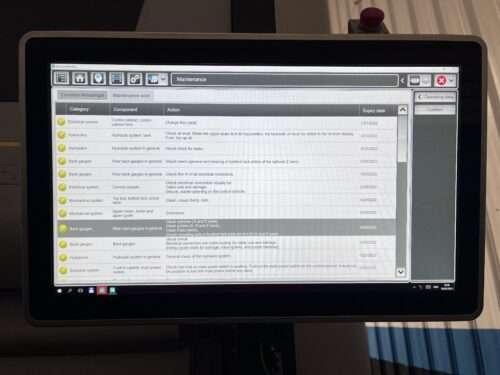

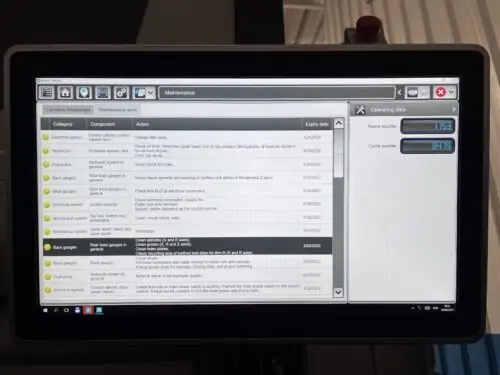

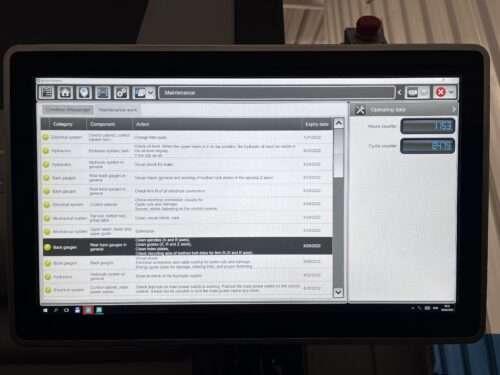

Bystronic CNC Control

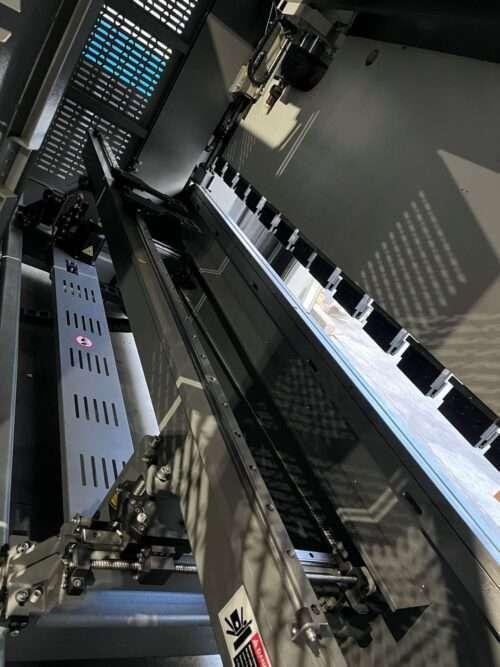

Back Gauge
X, Y, Z, R Axis
Laser Safety System

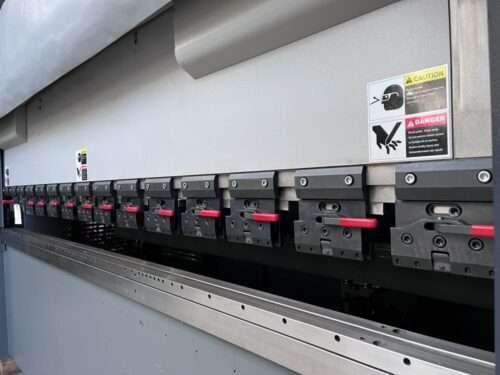

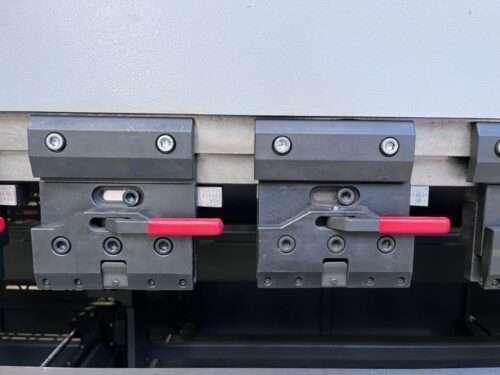

Fast Clamping System
Hydraulic Clamping System

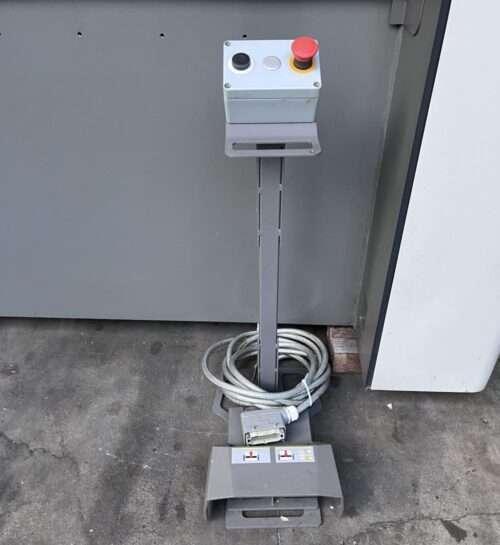

Foot Treadle
Pressure Gauge



Specifications:
Capacity: 100 Ton
Maximum Bending Length: 122.04″
Distance Between Side Frames: 124.01″
Length of Stroke: 9.84″
Open Height: 21.65″
Max Back Gauge Range X-Axis: 31.49″
X-Axis Travel: 19.68″
X-Axis Speed: 15.74” Per Second
R-Axis Travel: 3.93”
R-Axis Speed: 3.93” Per Second
Z-Axis Travel: 90.55”
Z-Axis Speed: 23.62” Per Second
Y-Approach Speed (up to): 5.90” Per Second
Y-Working Speed (up to): 0.39” Per Second

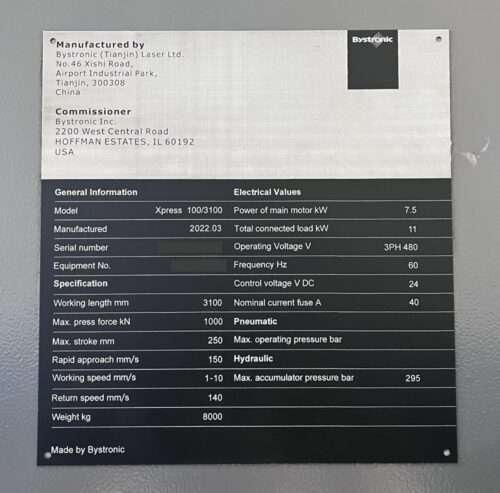

General:
Power Source: AC 480 V, Three Phase, 60 Hz
Power Requirement: 11 KW
Overall Dimensions: 147.2″ X 72.83″ x 110.23″ High
Weight : 17,637 lbs. Approx.
