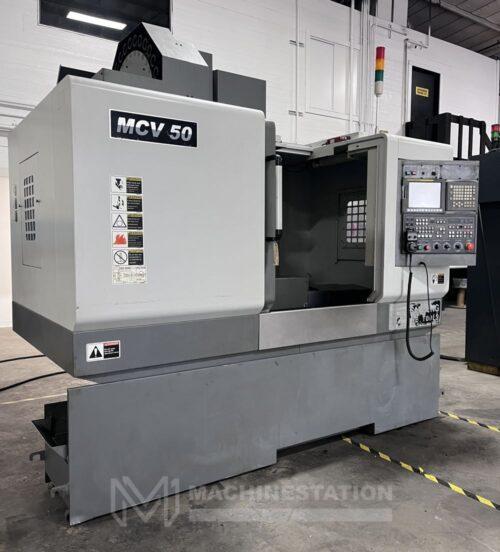

Samsung MCV 50 CNC Vertical Machining Center

Samsung MCV 50 CNC Vertical Machining Center

Name: Used SAMSUNG MCV 50 For Sale 112697
Brand: SAMSUNG
SKU: 112697

Brand

SAMSUNG

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Samsung
Model:	MCV 50
Year:	2010
Condition:	Used – Good

Key Features of the Samsung MCV 50:

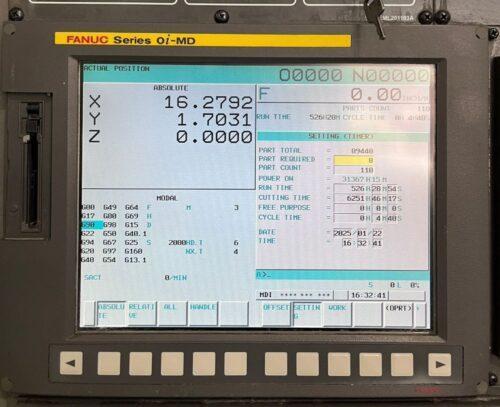

Fanuc Oi-MD CNC Control
12,000 RPM High-Speed Spindle
Through Spindle Coolant
30 Station High-Speed Tool Changer
20 HP High Torque Spindle
1417 IPM Fast Rapid Traverse
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Coolant System

Travel:

X-Axis: 35.43″
Y-Axis: 19.69″
Z-Axis: 20.08″
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 1181 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.11″ – 25.19″

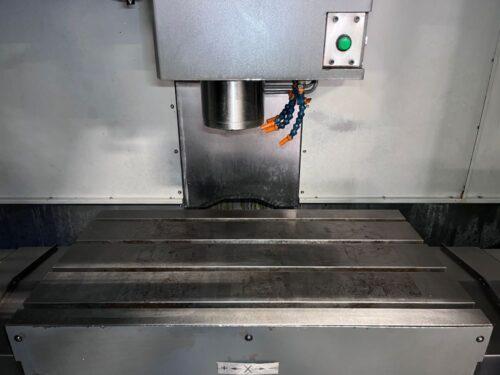

Table:

Length: 36.22″
Width: 19.69″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1322 lbs

Spindle:

Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 20 HP

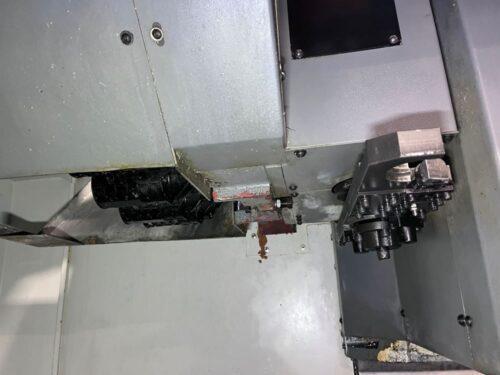

Automatic Tool Changer:

Capacity: 30 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 11″
Tool Changing Time: Seconds

General:

Air Required: 80 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 102″ x 87″ x 100″ High
Weight: 13,800 lbs Approx.

No files or videos to display
