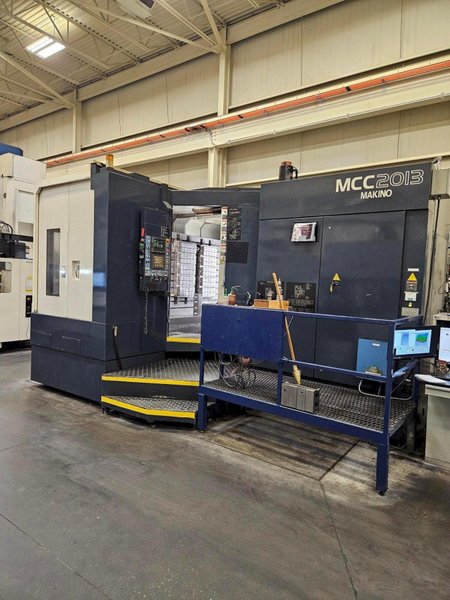

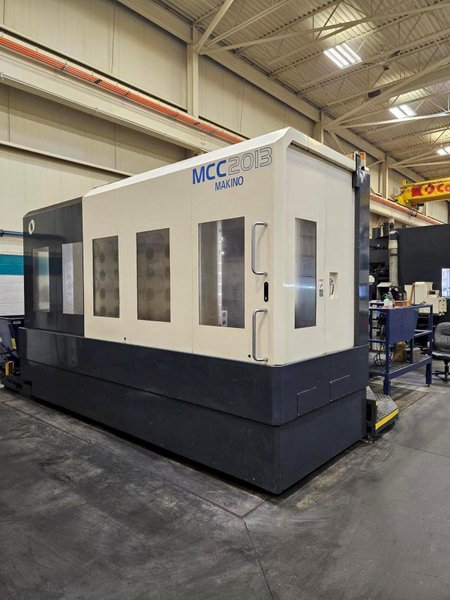

MAKINO MCC 2013 DIE/MOLD HORIZ. MACHINING CENTER
Brand
Category
Model
MCC 2013
Stock #
Not specified
Year
2004
Condition
Very Good
Location
Not specified
|
NEW - 2004

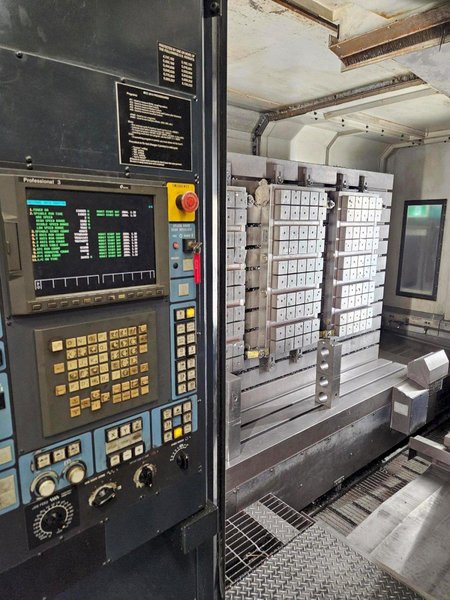

CONTROL TYPE......................................: MAKINO PROFESSIONAL 3
TABLE SIZE ..........................................: 86.6" X 39.4"
MAX. WORKPIECE SIZE...........................: 98.4" X 43.3" X 66.9"
MAX. WORKPIECE WEIGHT.......................: 22,000 LB.
CROSS TRAVEL (X).................................: 78.7"
VERTICAL TRAVEL (Y).............................: 53.1"
LONGITUDINAL TRAVEL (Z).....................: 39.4"
RAPID TRAVERSE...................................: 630 IPM
CUTTING FEEDRATE...............................: 630 IPM
SPINDLE SPEEDS...................................: 10-15,000 RPM
SPINDLE DRIVE.....................................: 40 HP
SPINDLE TAPER.....................................: HSK A-100
MAX. TOOL LENGTH...............................: 21.65"
MAX. TOOL DIAMETER...........................: 7.87"
MAX. TOOL WEIGHT..............................: 44 LB.
EQUIPPED WITH:
30 ATC
HELICAL INTERPOLATION
HIGH SPEED SKIP FUNCTION
COORDINATE SYSTEM ROTATION
RIGID TAP
SUPER G1 .4 CONTROL
AUTOMATIC MEASURING SYSTEM (RENISHAW MP700)
MONLON SECONDARY COOLANT FILTRATION UNIT W/ DUAL BAG FILTERS
HSK/A-100 SPINDLE INTERFACE
TOOL LIFE MANAGEMENT
HARDENED & GROUND WAYS
AUTO LUBE
FULL ENCLOSURE
CHIP CONVEYOR
16000 min\min (630 IMP) Rapid traverse rates

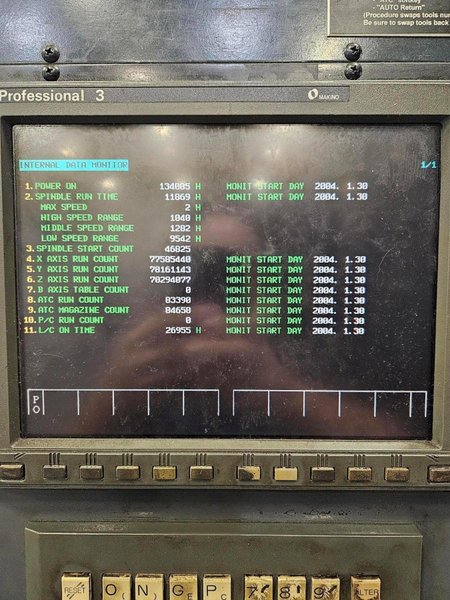

Makino Professional 3 Controls (FANUC)

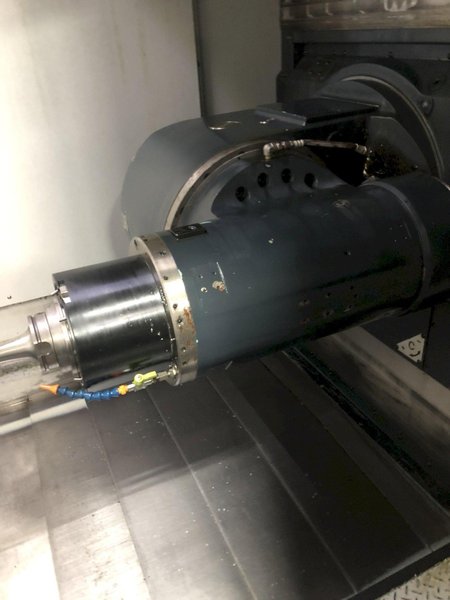

Spindle Replaced June 2017 by MAKINO |
